Instrument and control functions
6-17
6
EAU89400

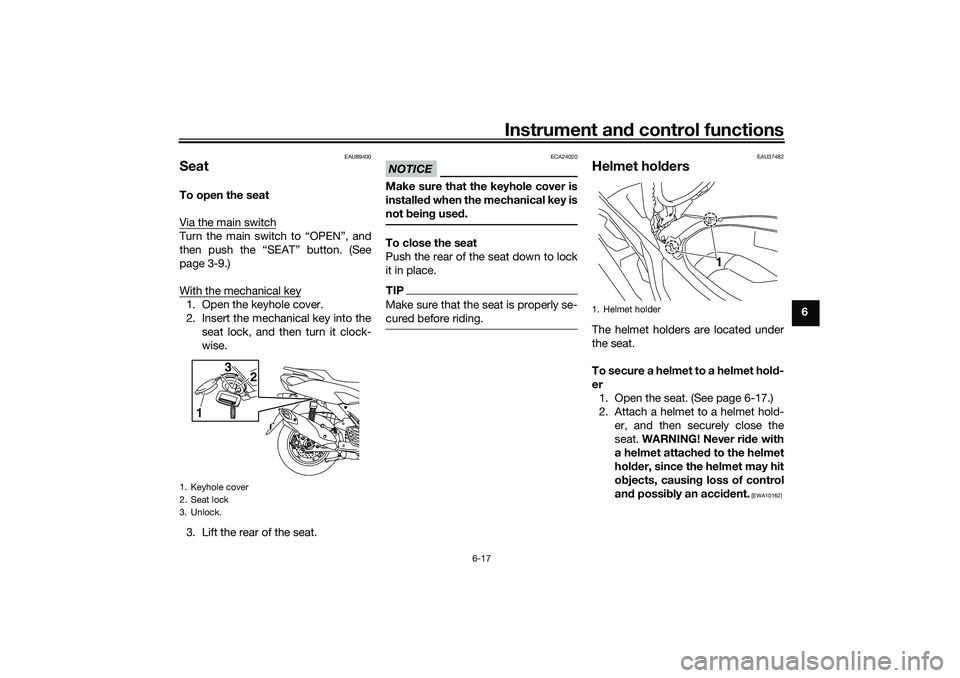

SeatTo open the seat
Via the main switchTurn the main switch to “OPEN”, and
then push the “SEAT” button. (See
page 3-9.)
With the mechanical key1. Open the keyhole cover.
2. Insert the mechanical key into the
seat lock, and then turn it clock-
wise.
3. Lift the rear of the seat.
NOTICE
ECA24020
Make sure that the keyhole cover is
installed when the mechanical key is
not being used.To close the seat
Push the rear of the seat down to lock
it in place.TIPMake sure that the seat is properly se-
cured before riding.
EAU37482
Helmet holdersThe helmet holders are located under
the seat.
To secure a helmet to a helmet hold-
er
1. Open the seat. (See page 6-17.)
2. Attach a helmet to a helmet hold-
er, and then securely close the
seat. WARNING! Never ride with
a helmet attached to the helmet
holder, since the helmet may hit
objects, causing loss of control
and possibly an accident.
[EWA10162]
1. Keyhole cover
2. Seat lock
3. Unlock.
13
2
1. Helmet holder
1
UBALE0E0.book Page 17 Wednesday, September 30, 2020 1:37 PM

Instrument and control functions
6-18

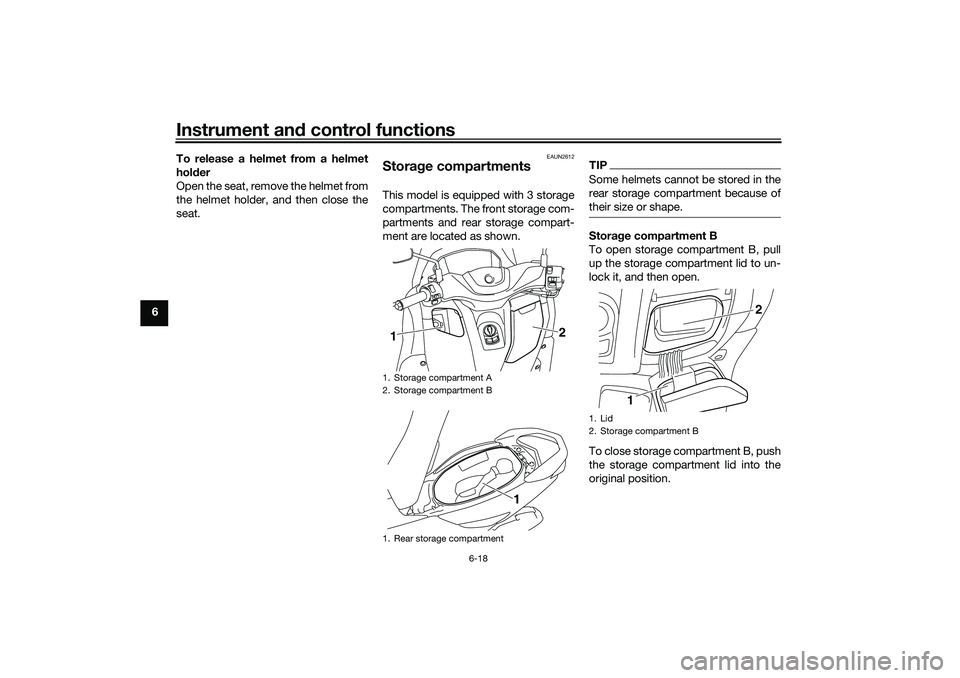

6To release a helmet from a helmet
holder
Open the seat, remove the helmet from
the helmet holder, and then close the
seat.
EAUN2612
Storage compartmentsThis model is equipped with 3 storage
compartments. The front storage com-
partments and rear storage compart-
ment are located as shown.
TIPSome helmets cannot be stored in the
rear storage compartment because of
their size or shape.Storage compartment B
To open storage compartment B, pull
up the storage compartment lid to un-
lock it, and then open.
To close storage compartment B, push
the storage compartment lid into the
original position.
1. Storage compartment A
2. Storage compartment B
1. Rear storage compartment12
1
1. Lid
2. Storage compartment B
12
UBALE0E0.book Page 18 Wednesday, September 30, 2020 1:37 PM

Instrument and control functions
6-19

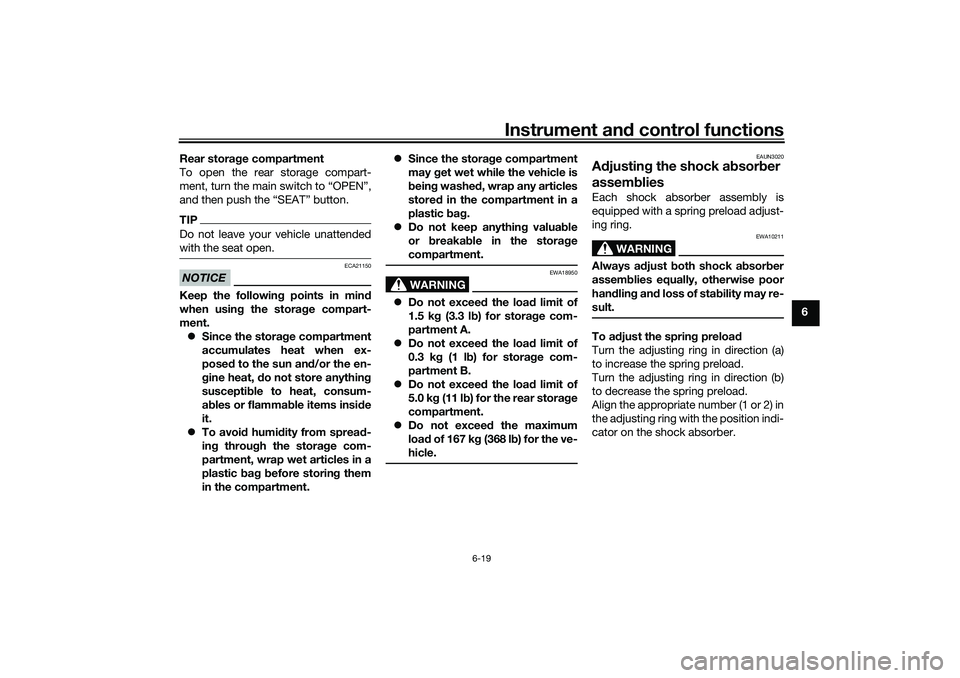

6 Rear storage compartment
To open the rear storage compart-
ment, turn the main switch to “OPEN”,
and then push the “SEAT” button.
TIPDo not leave your vehicle unattended
with the seat open.NOTICE
ECA21150
Keep the following points in mind
when using the storage compart-
ment.
Since the storage compartment
accumulates heat when ex-
posed to the sun and/or the en-
gine heat, do not store anything
susceptible to heat, consum-
ables or flammable items inside
it.
To avoid humidity from spread-
ing through the storage com-
partment, wrap wet articles in a
plastic bag before storing them
in the compartment.Since the storage compartment
may get wet while the vehicle is
being washed, wrap any articles
stored in the compartment in a
plastic bag.
Do not keep anything valuable
or breakable in the storage
compartment.
WARNING
EWA18950
Do not exceed the load limit of
1.5 kg (3.3 lb) for storage com-
partment A.
Do not exceed the load limit of
0.3 kg (1 lb) for storage com-
partment B.
Do not exceed the load limit of
5.0 kg (11 lb) for the rear storage
compartment.
Do not exceed the maximum
load of 167 kg (368 lb) for the ve-
hicle.
EAUN3020
Adjusting the shock absorber
assembliesEach shock absorber assembly is
equipped with a spring preload adjust-
ing ring.
WARNING
EWA10211
Always adjust both shock absorber
assemblies equally, otherwise poor
handling and loss of stability may re-
sult.To adjust the spring preload
Turn the adjusting ring in direction (a)
to increase the spring preload.
Turn the adjusting ring in direction (b)
to decrease the spring preload.
Align the appropriate number (1 or 2) in
the adjusting ring with the position indi-
cator on the shock absorber.
UBALE0E0.book Page 19 Wednesday, September 30, 2020 1:37 PM

Instrument and control functions
6-20
6

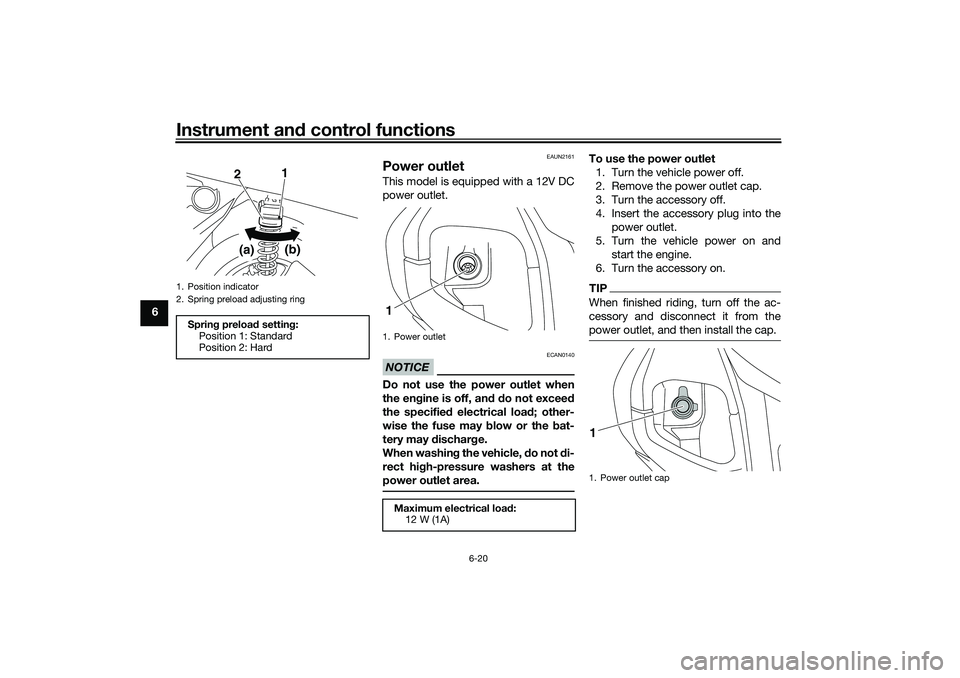

EAUN2161
Power outlet This model is equipped with a 12V DC
power outlet.NOTICE
ECAN0140
Do not use the power outlet when
the engine is off, and do not exceed
the specified electrical load; other-
wise the fuse may blow or the bat-
tery may discharge.
When washing the vehicle, do not di-
rect high-pressure washers at the
power outlet area.
To use the power outlet
1. Turn the vehicle power off.
2. Remove the power outlet cap.
3. Turn the accessory off.
4. Insert the accessory plug into the
power outlet.
5. Turn the vehicle power on and
start the engine.
6. Turn the accessory on.TIPWhen finished riding, turn off the ac-
cessory and disconnect it from the
power outlet, and then install the cap.
1. Position indicator
2. Spring preload adjusting ringSpring preload setting:
Position 1: Standard
Position 2: Hard
21
(a)(b)
1. Power outletMaximum electrical load:
12 W (1A)1
1. Power outlet cap1
UBALE0E0.book Page 20 Wednesday, September 30, 2020 1:37 PM

Instrument and control functions
6-21
6
WARNING
EWAN0050
To prevent electrical shock or short-
circuiting, install the cap when the
power outlet is not in use.
EAU15306
SidestandThe sidestand is located on the left
side of the frame. Raise the sidestand
or lower it with your foot while holding
the vehicle upright.TIPThe built-in sidestand switch is part of
the ignition circuit cut-off system,
which cuts the ignition in certain situa-
tions. (See the following section for an
explanation of the ignition circuit cut-
off system.)
WARNING
EWA10242
The vehicle must not be ridden with
the sidestand down, or if the side-
stand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control.
Yamaha’s ignition circuit cut-off
system has been designed to assist
the operator in fulfilling the respon-
sibility of raising the sidestand be-
fore starting off. Therefore, checkthis system regularly and have a
Yamaha dealer repair it if it does not
function properly.
UBALE0E0.book Page 21 Wednesday, September 30, 2020 1:37 PM

Instrument and control functions
6-22
6
EAUT1098

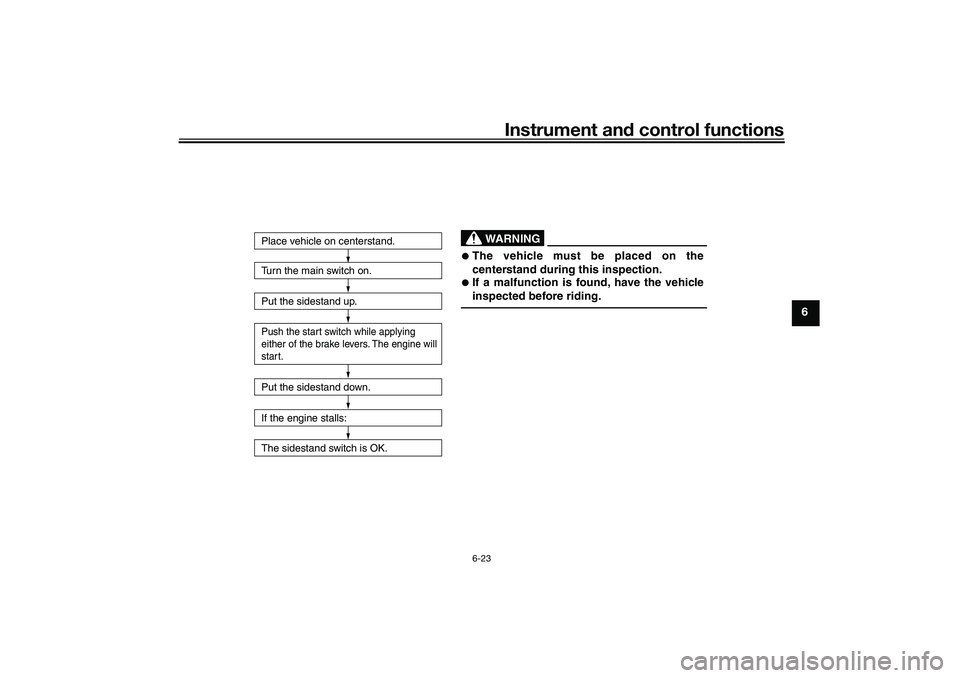

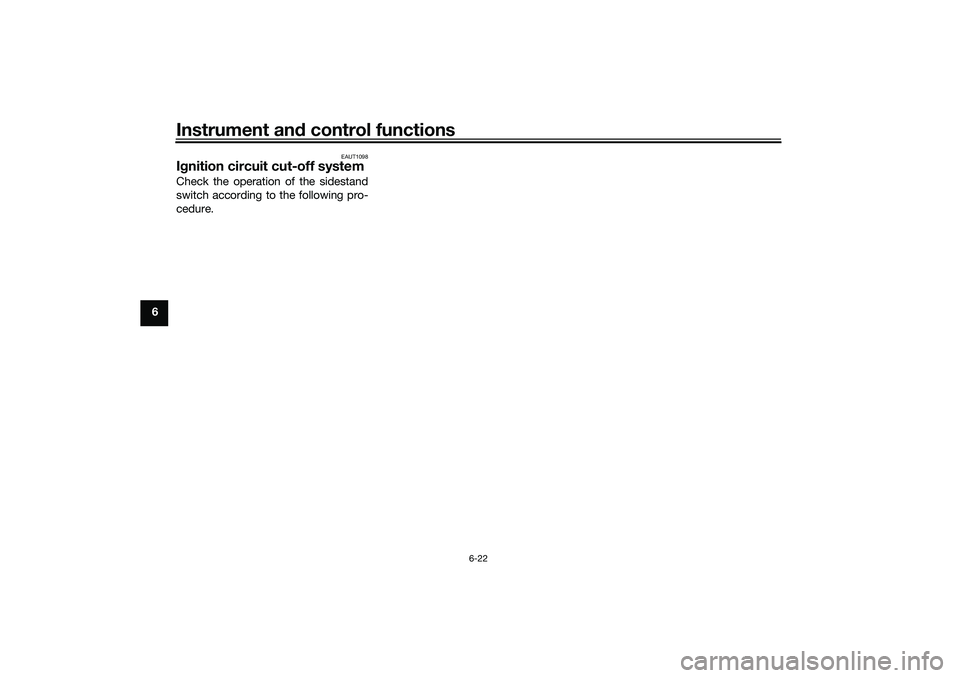

Ignition circuit cut-off systemCheck the operation of the sidestand
switch according to the following pro-
cedure.UBALE0E0.book Page 22 Wednesday, September 30, 2020 1:37 PM

Instrument and control functions
6-23
6
Turn the main switch on.
Put the sidestand up.Push the start switch while applying
either of the brake levers. The engine will
start.Put the sidestand down.
If the engine stalls:
The sidestand switch is OK.Place vehicle on centerstand.
WARNING
The vehicle must be placed on the
centerstand during this inspection.
If a malfunction is found, have the vehicle
inspected before riding.
UBALE0E0.book Page 23 Wednesday, September 30, 2020 1:37 PM

For your safety – pre-operation checks
7-1
7
EAU1559B
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the inspection
and maintenance procedures and schedules described in the Owner’s Manual.
WARNING
EWA11152
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment damage.
Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures provided in
this manual, have the vehicle inspected by a Yamaha dealer.Before using this vehicle, check the following points:
ITEM CHECKS PAGE
Fuel• Check fuel level in fuel tank.
• Refuel if necessary.
• Check fuel line for leakage.
• Check fuel tank overflow hose for obstructions, cracks or damage, and check
hose connection.6-15, 6-16
Engine oil• Check oil level in engine.
• If necessary, add recommended oil to specified level.
• Check vehicle for oil leakage.9-11
Final transmission oil• Check vehicle for oil leakage. 9-13
Coolant• Check coolant level in reservoir.
• If necessary, add recommended coolant to specified level.
• Check cooling system for leakage.9-15
Front brake• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check brake pads for wear.
• Replace if necessary.
• Check fluid level in reservoir.
• If necessary, add specified brake fluid to specified level.
• Check hydraulic system for leakage.9-21, 9-22, 9-23
UBALE0E0.book Page 1 Wednesday, September 30, 2020 1:37 PM

For your safety – pre-operation checks
7-2
7

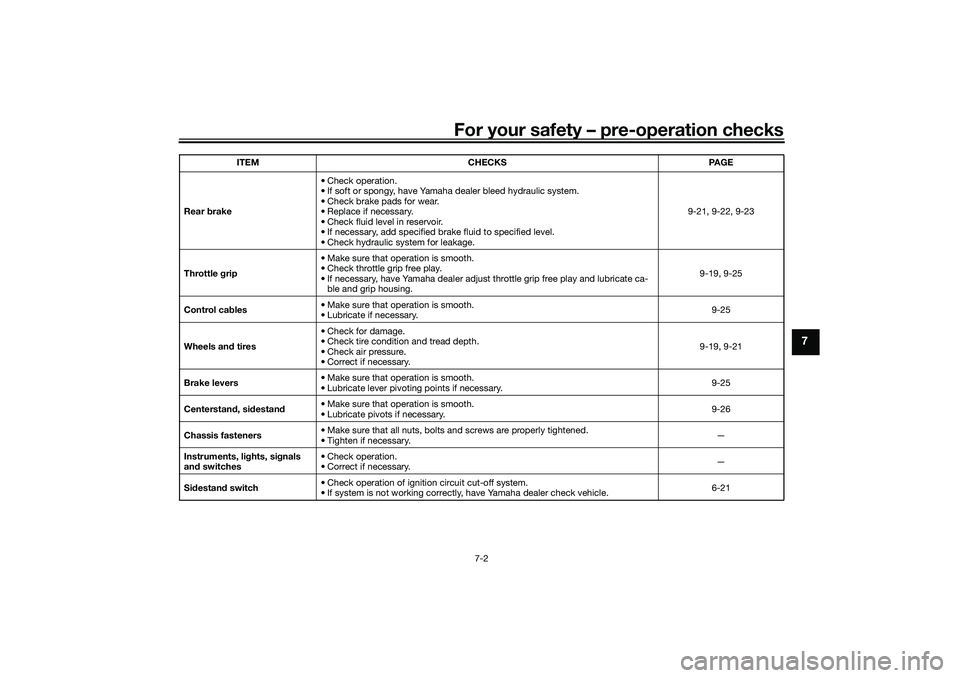

Rear brake• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check brake pads for wear.
• Replace if necessary.
• Check fluid level in reservoir.
• If necessary, add specified brake fluid to specified level.
• Check hydraulic system for leakage.9-21, 9-22, 9-23
Throttle grip• Make sure that operation is smooth.
• Check throttle grip free play.
• If necessary, have Yamaha dealer adjust throttle grip free play and lubricate ca-
ble and grip housing.9-19, 9-25
Control cables• Make sure that operation is smooth.
• Lubricate if necessary.9-25
Wheels and tires• Check for damage.
• Check tire condition and tread depth.
• Check air pressure.
• Correct if necessary.9-19, 9-21
Brake levers• Make sure that operation is smooth.
• Lubricate lever pivoting points if necessary.9-25
Centerstand, sidestand• Make sure that operation is smooth.
• Lubricate pivots if necessary.9-26
Chassis fasteners• Make sure that all nuts, bolts and screws are properly tightened.
• Tighten if necessary.—
Instruments, lights, signals
and switches• Check operation.
• Correct if necessary.—
Sidestand switch • Check operation of ignition circuit cut-off system.
• If system is not working correctly, have Yamaha dealer check vehicle.6-21 ITEM CHECKS PAGE
UBALE0E0.book Page 2 Wednesday, September 30, 2020 1:37 PM

Operation and important riding points
8-1
8
EAU15952
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10272
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which could cause an accident
or injury.
EAU16842
Engine break-inThere is never a more important period
in the life of your engine than the period
between 0 and 1600 km (1000 mi). For
this reason, you should read the fol-
lowing material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1600 km (1000 mi). The various parts in
the engine wear and polish themselves
to the correct operating clearances.
During this period, prolonged full-throt-
tle operation or any condition that
might result in engine overheating
must be avoided.
EAUM2012
0–1000 km (0–600 mi)
Avoid prolonged operation above 1/3
throttle. NOTICE: After 1000 km (600
mi) of operation, be sure to replace
the engine oil and final transmission
oil.
[ECA11662]
1000–1600 km (600–1000 mi)
Avoid prolonged operation above 1/2
throttle.1600 km (1000 mi) and beyond
The vehicle can now be operated nor-
mally.
NOTICE
ECA10271
If any engine trouble should occur
during the engine break-in period,
immediately have a Yamaha dealer
check the vehicle.
UBALE0E0.book Page 1 Wednesday, September 30, 2020 1:37 PM
