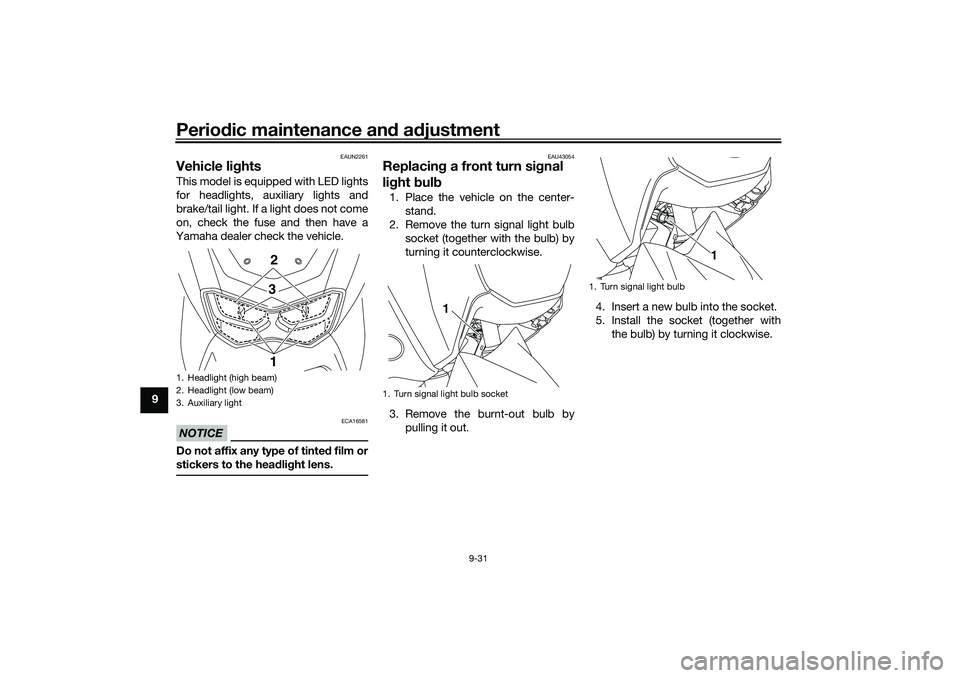

Periodic maintenance and adjustment
9-31
9
EAUN2261
Vehicle lightsThis model is equipped with LED lights
for headlights, auxiliary lights and
brake/tail light. If a light does not come
on, check the fuse and then have a
Yamaha dealer check the vehicle.NOTICE
ECA16581
Do not affix any type of tinted film or
stickers to the headlight lens.
EAU43054
Replacing a front turn signal
light bulb1. Place the vehicle on the center-
stand.
2. Remove the turn signal light bulb
socket (together with the bulb) by
turning it counterclockwise.
3. Remove the burnt-out bulb by
pulling it out.4. Insert a new bulb into the socket.
5. Install the socket (together with
the bulb) by turning it clockwise.
1. Headlight (high beam)
2. Headlight (low beam)
3. Auxiliary light
2
3
1
1. Turn signal light bulb socket
1
1. Turn signal light bulb
1
UBALE0E0.book Page 31 Wednesday, September 30, 2020 1:37 PM

Specifications
11-2
11
Rear suspension:Type:
Unit swingElectrical system:System voltage:
12 VBattery:Model:
YTZ7V
Voltage, capacity:
12 V, 6.0 Ah (10 HR)Bulb wattage:Headlight:
LED
Brake/tail light:
LED
Front turn signal light:
10.0 W
Rear turn signal light:
10.0 W
Auxiliary light:
LED
License plate light:
5.0 W
