key YAMAHA NMAX 155 2021 User Guide

Smart key system
3-7
3
2. Remove the battery.
TIPDispose of the removed battery in ac-
cordance with local regulations.3. Install a new battery as shown. Note the polarity of the battery. 4. Gently snap the smart key case
closed.
EAUN2100
Main switchThe main switch is used to turn the ve-
hicle power on and off, lock and unlock
the steering, and open the seat. After
pushing the main switch knob (and
confirmation with the smart key has
1. Battery
1
Specified b attery:
CR2032
1. Battery
1
1. Main switch knob
1. Smart key system indicator light Ž
1
1
UBBDE0E0.book Page 7 Wednesday, June 2, 2021 2:57 PM

Smart key system
3-8
3taken place), the main switch can be
turned while the smart key system indi-
cator light is on (approximately 4 sec-
onds).
WARNING
EWA18720
Never turn the main switch to
“OFF”, “ ”, or “OPEN” while the ve-
hicle is movin
g. Otherwise the elec-
trical systems will b e switched off,
which may result in loss of control or
an acci dent.TIPDo not push the main switch knob re-
peatedly or turn the main switch back
and forth excessively (beyond normal
use). To protect the main switch from
damage, the smart key system will
temporarily disable, and the smart key
system indicator light will flash. If this
occurs, wait until the indicator light
stops flashing, and then operate the
main switch.The main switch positions are de-
scribed below.
EAU76502
ON
All electrical circuits are supplied with
power, and the engine can be started.
To turn the vehicle power on1. Turn the smart key on and bring it
within operating range.
2. Push the main switch knob and the smart key indicator light will
come on for approximately 4 sec-
onds.
3. While the smart key system indi- cator light is on, turn the main
switch to “ON”. All of the turn sig-
nal lights will flash twice and the
vehicle power will turn on.
TIPIf the vehicle battery voltage is
low, the turn signal lights will not
flash.
 See “Emergency mode” on page
9-38 for information on turning the
vehicle power on without the
smart key.
EAU76511
OFF
All electrical systems are off.
To turn the vehicle power off1. With the smart key turned on and
within operating range, turn the
main switch to “OFF”.
1. Push.
2. Turn.1 2
1. Turn.
1
UBBDE0E0.book Page 8 Wednesday, June 2, 2021 2:57 PM

Smart key system
3-9
3
2. The turn signal lights flash once
and the vehicle power turns off.
TIPWhen the main switch is turned to

confirmed (the smart key is either out-
side operation range or has been
turned off), the beeper will sound for 3
seconds and the smart key system in-
dicator light will flash for 30 seconds. During this 30 seconds, the main
switch can be freely operated.
 After 30 seconds, the vehicle
power will turn off automatically.
 To turn the vehicle power off im-
mediately, push the main switch
knob four times within 2 seconds.
EAU76534
OPEN
The fuel tank cap lid and the seat can
be opened:
1. With the smart key on and within operating range, push the main
switch knob.
2. While the smart key system indi- cator light is on, turn the main
switch to “OPEN”. To open the fuel tank cap li
d
Push the “FUEL” button to open the
fuel tank cap lid.
After refueling, push the fuel tank cap
lid until it is closed.
TIP See page 6-14 for fuel tank cap re-
moval and installation procedures.To open the seat
Push the “SEAT” button, and then lift
the rear of the seat.
To close the seat, push down on the
rear to lock it in position.TIP Make sure that the seat is securely
closed before starting off.
 The seat can also be opened with
the mechanical key. (See page
6-19.)
1. Push.
2. Turn.
1. “FUEL” button1
2
1
1.
1
UBBDE0E0.book Page 9 Wednesday, June 2, 2021 2:57 PM

Smart key system
3-10
3Open position remin
der
To prevent you from accidentally leav-
ing the vehicle unlocked by walking
away with the main switch still in the
“OPEN” position, the smart key system
beeper will sound under the following
conditions.  When the main switch has been in
the open position for 3 minutes
 If the smart key is turned off while
the main switch is in the open po-
sition
 If you walk out of range of the
smart key system with the main
switch in the open position
If the beeper sounds after 3 minutes,
turn the main switch to “OFF” or “ ”. If
the beeper sounds because the smart
key was turned off or moved out of
range, turn the smart key on and walk
back into range.
TIP The beeper will turn off after 1
minute.
EAU76521
“ ” (lock)
The steering is locked and all electrical
systems are off.
To lock the steering1. Turn the handlebar all the way to
the left.
2. With the smart key turned on and within operating range, push the
main switch knob.
3. While the smart key system indi- cator light is on, push and turn the
main switch to “ ”.
TIPIf the steering will not lock, try turning
the handlebar back to the right slightly.To unlock the steering1. With the smart key turned on andwithin operating range, push the
main switch knob.
2. While the smart key system indi- cator light is on, push and turn the
main switch to the desired posi-
tion.
1. Push.
2. Turn.1 2
1. Push.
2. Turn.12
UBBDE0E0.book Page 10 Wednesday, June 2, 2021 2:57 PM

Instrument and control functions
6-1
6
EAU77123
In dicator lig hts and warning
lig hts
EAU88900
Turn si gnal in dicator li ghts “ ”
an d“”
Each indicator light will flash when its
corresponding turn signal lights are
flashing.
EAU88910
Hi gh beam in dicator li ght “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU88712
Malfunction in dicator li ght
(MIL) “ ”
This light comes on or flashes if a prob-
lem is detected in the engine or other
vehicle control system. If this occurs,
have a Yamaha dealer check the on-
board diagnostic system. The electri-
cal circuit of the warning light can be
checked by turning the vehicle power
on. The light should come on for a few
seconds, and then go off. If the light
does not come on initially when the ve-
hicle power is turned on, or if the light
remains on, have a Yamaha dealer
check the vehicle.
NOTICE
ECA26820
If the MIL starts flashin g, re duce en-
g ine spee d to prevent exhaust sys-
tem damag e.TIPThe engine is sensitively monitored by
the on-board diagnostic system to de-
tect deterioration and malfunction of
the emission control system. Therefore
the MIL may come on or flash due to
vehicle modifications, lack of mainte-
nance, or excessive/improper use of
the vehicle. To prevent this, observe
these precautions.
 Do not attempt to modify the soft-
ware of the engine control unit.
 Do not add any electrical acces-
sories that interfere with engine
control.
 Do not use aftermarket accesso-
ries or parts such as suspension,
spark plugs, injectors, exhaust
system, etc.
 Do not change the drivetrain
specifications (chain, sprockets,
wheels, tires, etc.).
1. Left turn signal indicator light “ ”
2. Incoming notification indicator light “ ”
3. Traction control system indicator
light “ ”
4. ABS warning light “ ”
5. High beam indicator light “ ”
6. Malfunction indicator light “ ”
7. Stop and Start System indicator light “ ”
8. Smart key system indicator light “ ”
9. Incoming call indicator light “ ”
10.Right turn signal indicator light “ ”
4
110
5
6
7
8
23 9
UBBDE0E0.book Page 1 Wednesday, June 2, 2021 2:57 PM

Instrument and control functions
6-2
6 
Do not remove or alter the O2 sen-
sor, air induction system, or ex-
haust parts (catalysts or EXUP,
etc.).
 Maintain V-belt and drive belt (if
equipped) properly.
 Maintain correct tire pressure.
 Do not operate the vehicle in an
extreme manner. For example, re-
peated or excessive opening and
closing of the throttle, racing,
burnouts, wheelies, etc.
EAU88890
ABS warnin g li ght “ ”
This warning light comes on when the
vehicle is first turned on, and goes off
after starting riding. If the warning light
comes on while riding, the anti-lock
brake system may not work correctly.
WARNING
EWA16043
If the ABS warnin g lig ht does not
turn off after reachin g 10 km/h (6
mi/h), or if the warnin g li ght comes
on while ri din g:
 Use extra caution to avoi d pos-
si ble wheel lock d uring emer-
g ency brakin g. 
Have a Yamaha dealer check
the vehicle as soon as possib le.
TIPThe ABS warning light may come on
while revving the engine with the vehi-
cle on its centerstand, but this does
not indicate a malfunction.
EAU88930
Traction control system indicator
li g ht “ ”
This indicator light will flash when trac-
tion control has engaged.
If the traction control system is turned
off, this indicator light will come on.
(See page 6-13.)TIPWhen the vehicle is turned on, the light
should come on for a few seconds and
then go off. If the light does not come
on, or if the light remains on, have a
Yamaha dealer check vehicle.
EAUN2770
Smart key system in dicator
li g ht “ ”
This indicator light communicates the
status of the smart key system. When
the smart key system is operating nor-
mally, this indicator light will be off. If
there is an error in the smart key sys-
tem, the indicator light will flash. The
indicator light will also flash when com-
munication between the vehicle and
smart key takes place and when cer-
tain smart key system operations are
carried out.
EAUN2830
Stop an d Start System in dicator
li g ht “ ”
This indicator light comes on when the
Stop and Start System activates. The
indicator light will flash when the en-
gine is automatically stopped by the
Stop and Start System.TIPEven if the Stop and Start Switch is set
to Ž, this indicator light may not
come on. (See page 4-1.)
A
UBBDE0E0.book Page 2 Wednesday, June 2, 2021 2:57 PM

Instrument and control functions
6-12
6
EAU53142
ABSThe Yamaha ABS (Anti-lock Brake
System) features a dual electronic con-
trol system, which acts on the front and
rear brakes independently.
Operate the brakes with ABS as you
would conventional brakes. If the ABS
is activated, a pulsating sensation may
be felt at the brake levers. In this situa-
tion, continue to apply the brakes and
let the ABS work; do not “pump” the
brakes as this will reduce braking ef-
fectiveness.
WARNING
EWA16051
Always keep a sufficient d istance
from the vehicle ahead to match the
ri din g speed even with ABS.
 The ABS performs best with
lon g b rakin g d istances.
 On certain surfaces, such as
rou gh or g ravel roa ds, the b rak-
in g d istance may b e longer with
the ABS than without.The ABS is monitored by an ECU,
which will revert the system to conven-
tional braking if a malfunction occurs.
TIP The ABS performs a self-diagno-
sis test each time the vehicle first
starts off after the key is turned to
“ON” and the vehicle has traveled
at a speed of 10 km/h (6 mi/h) or
higher. During this test, a “click-
ing” noise can be heard from the
front of the vehicle, and if either
brake lever is even slightly ap-
plied, a vibration can be felt at the
lever, but these do not indicate a
malfunction.
 This ABS has a test mode which
allows the owner to experience
the pulsation at the brake levers
when the ABS is operating. How-
ever, special tools are required, so
please consult your Yamaha deal-
er.NOTICE
ECA20100
Be careful not to damag e the wheel
sensor or wheel sensor rotor; other-
wise, improper performance of the
ABS will result.
1. Front wheel sensor
2. Front wheel sensor rotor
1. Rear wheel sensor
2. Rear wheel sensor rotor
2
1
1
2
UBBDE0E0.book Page 12 Wednesday, June 2, 2021 2:57 PM

Instrument and control functions
6-17
6
EAU86150
Fuel tank overflow hoseThe overflow hose drains excess gaso-
line and directs it safely away from the
vehicle.
Before operating the vehicle:
 Check the fuel tank overflow hose
connection and routing.
 Check the fuel tank overflow hose
for cracks or damage, and replace
it if necessary.
 Make sure that the fuel tank over-
flow hose is not blocked, and
clean it if necessary.
EAU13435
Catalytic converterThe exhaust system contains catalytic
converter(s) to reduce harmful exhaust
emissions.
WARNING
EWA10863
The exhaust system is hot after op-
eration. To prevent a fire hazar d or
b urns:
 Do not park the vehicle near
possi ble fire hazar ds such as
g rass or other materials that
easily burn.
 Park the vehicle in a place
where pe destrians or chil dren
are not likely to touch the hot
exhaust system.
 Make sure that the exhaust sys-
tem has cooled down before
d oin g any maintenance work.
 Do not allow the en gine to id le
more than a few minutes. Lon g
i d lin g can cause a buil d-up of
heat.
EAU89400
SeatTo open the seat
Via the main switchTurn the main switch to “OPEN”, and
then push the “SEAT” button. (See
page 3-9.)
With the mechanical key1. Open the keyhole cover.
2. Insert the mechanical key into the seat lock, and then turn it clock-
wise.
3. Lift the rear of the seat.
1. Fuel tank overflow hose
1
1. Keyhole cover
2. Seat lock
3. Unlock.
1 3
2
UBBDE0E0.book Page 17 Wednesday, June 2, 2021 2:57 PM

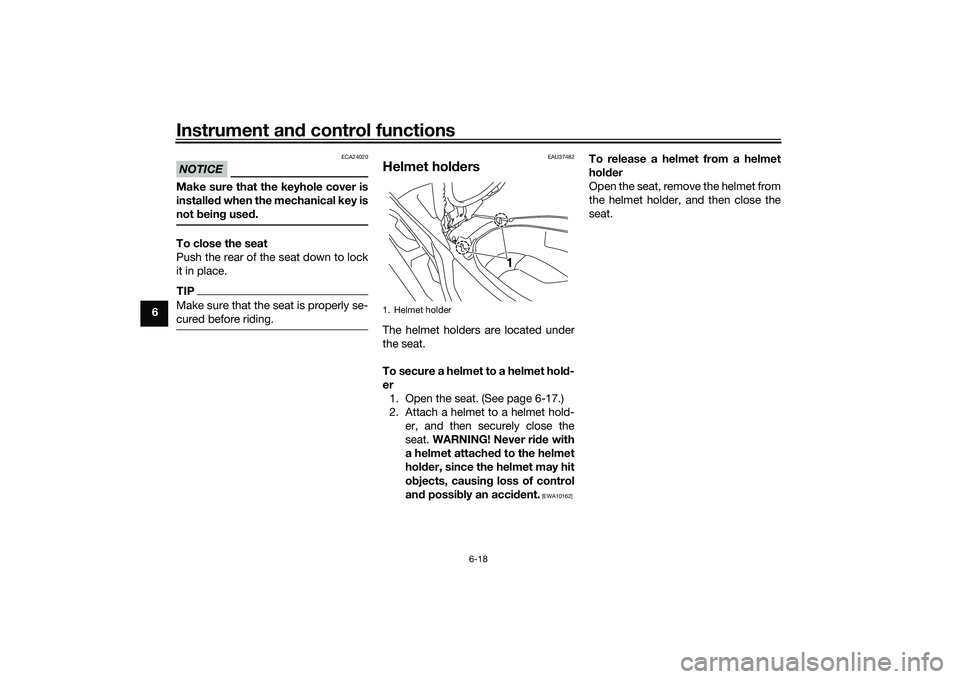

Instrument and control functions
6-18
6
NOTICE
ECA24020
Make sure that the keyhole cover is
installe d when the mechanical key is
not bein g use d.To close the seat
Push the rear of the seat down to lock
it in place.TIPMake sure that the seat is properly se-
cured before riding.
EAU37482
Helmet hold ersThe helmet holders are located under
the seat.
To secure a helmet to a helmet hol d-
er 1. Open the seat. (See page 6-17.)
2. Attach a helmet to a helmet hold- er, and then securely close the
seat. WARNING! Never ri de with
a helmet attached to the helmet
hol der, since the helmet may hit
o bjects, causin g loss of control
an d possi bly an acci dent.
[EWA10162]
To release a helmet from a helmet
hol der
Open the seat, remove the helmet from
the helmet holder, and then close the
seat.
1. Helmet holder
1
UBBDE0E0.book Page 18 Wednesday, June 2, 2021 2:57 PM

Operation and important ri din g points
8-4
8
EAUW4891
Parkin g When parking, turn off the Stop and
Start System and then stop the engine.
After turning off the main switch, be
sure to turn off the smart key and take
it with you.
WARNING
EWA18840
 Since the en gine an d exhaust
system can b ecome very hot,
park in a place where pe destri-
ans or chil dren are not likely to
touch them an d b e burne d.
 Do not park on a slope or on soft
groun d, otherwise the vehicle
may overturn, increasin g the
risk of a fuel leak an d fire.
 Do not park near grass or other
flamma ble materials which
mi ght catch fire.
 If the Stop an d Start System is
left turne d on, the b attery could
b ecome dischar ged an d it may
not be possi ble to restart the
en gine due to insufficient b at-
tery volta ge.
TIPEven when the vehicle is parked in a lo-
cation partitioned by a fence or the
glass window of a shop, if the smart
key is within operating range, other
people will be able to start the engine
and operate the vehicle. Please turn
the smart key off when leaving the ve-
hicle. (See page 3-8.)
UBBDE0E0.book Page 4 Wednesday, June 2, 2021 2:57 PM
