YAMAHA PW50 2008 User Guide

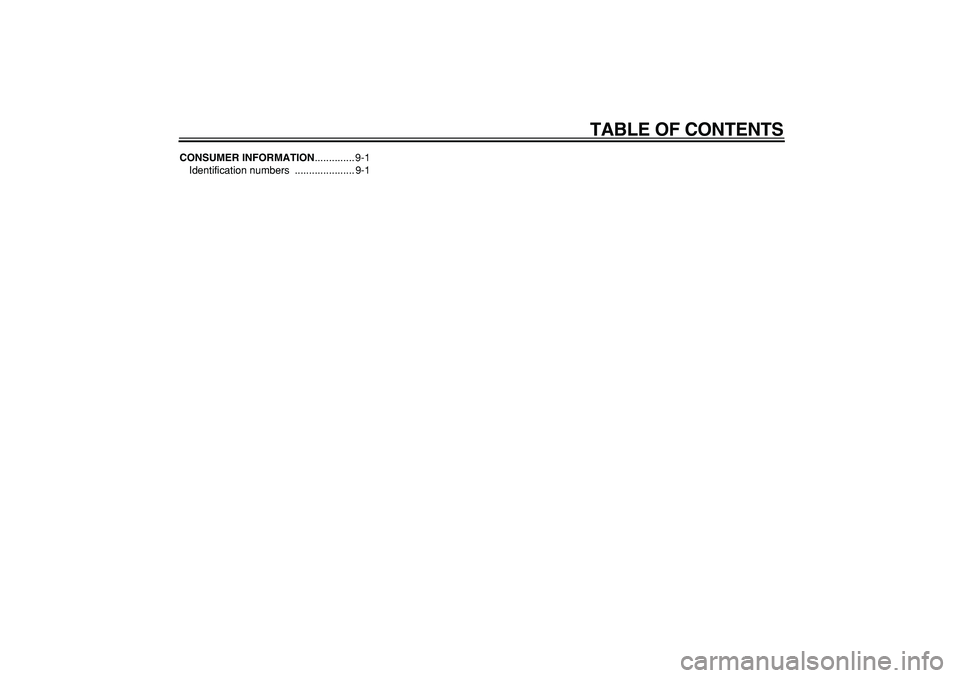

TABLE OF CONTENTS
CONSUMER INFORMATION
.............. 9-1
Identification numbers ..................... 9-1

1-1
1

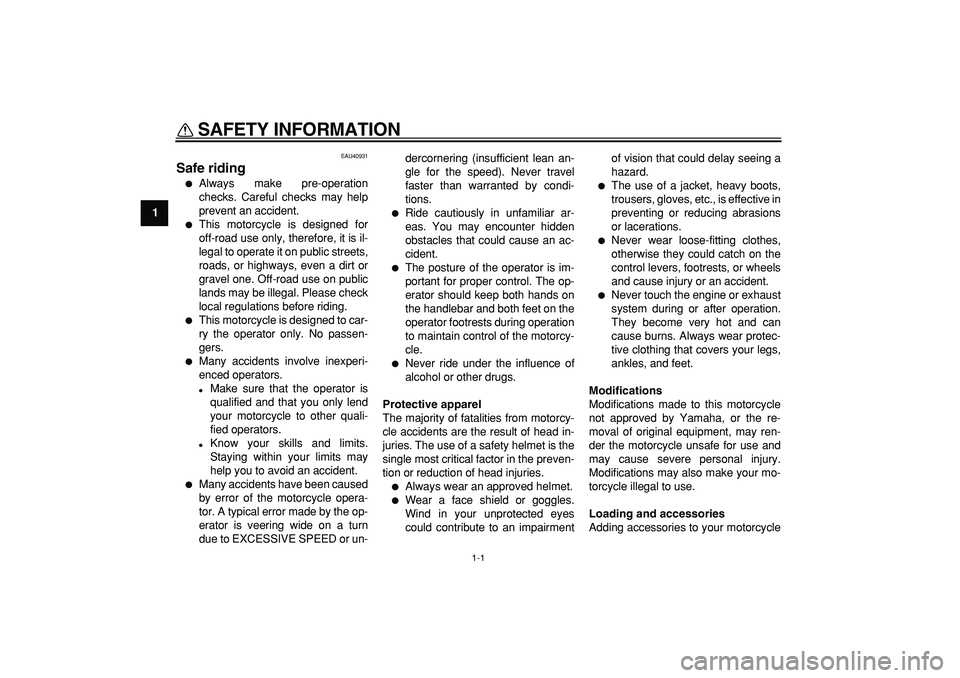

SAFETY INFORMATION
EAU40931
Safe riding

Always make pre-operation
checks. Careful checks may help
prevent an accident.

This motorcycle is designed for
off-road use only, therefore, it is il-
legal to operate it on public streets,
roads, or highways, even a dirt or
gravel one. Off-road use on public
lands may be illegal. Please check
local regulations before riding.

This motorcycle is designed to car-
ry the operator only. No passen-
gers.

Many accidents involve inexperi-
enced operators.

Make sure that the operator is
qualified and that you only lend
your motorcycle to other quali-
fied operators.

Know your skills and limits.
Staying within your limits may
help you to avoid an accident.

Many accidents have been caused
by error of the motorcycle opera-
tor. A typical error made by the op-
erator is veering wide on a turn
due to EXCESSIVE SPEED or un-dercornering (insufficient lean an-
gle for the speed). Never travel
faster than warranted by condi-
tions.

Ride cautiously in unfamiliar ar-
eas. You may encounter hidden
obstacles that could cause an ac-
cident.

The posture of the operator is im-
portant for proper control. The op-
erator should keep both hands on
the handlebar and both feet on the
operator footrests during operation
to maintain control of the motorcy-
cle.

Never ride under the influence of
alcohol or other drugs.
Protective apparel
The majority of fatalities from motorcy-
cle accidents are the result of head in-
juries. The use of a safety helmet is the
single most critical factor in the preven-
tion or reduction of head injuries.

Always wear an approved helmet.

Wear a face shield or goggles.
Wind in your unprotected eyes
could contribute to an impairmentof vision that could delay seeing a
hazard.

The use of a jacket, heavy boots,
trousers, gloves, etc., is effective in
preventing or reducing abrasions
or lacerations.

Never wear loose-fitting clothes,
otherwise they could catch on the
control levers, footrests, or wheels
and cause injury or an accident.

Never touch the engine or exhaust
system during or after operation.
They become very hot and can
cause burns. Always wear protec-
tive clothing that covers your legs,
ankles, and feet.
Modifications
Modifications made to this motorcycle
not approved by Yamaha, or the re-
moval of original equipment, may ren-
der the motorcycle unsafe for use and
may cause severe personal injury.
Modifications may also make your mo-
torcycle illegal to use.
Loading and accessories
Adding accessories to your motorcycle

SAFETY INFORMATION
1-2
1

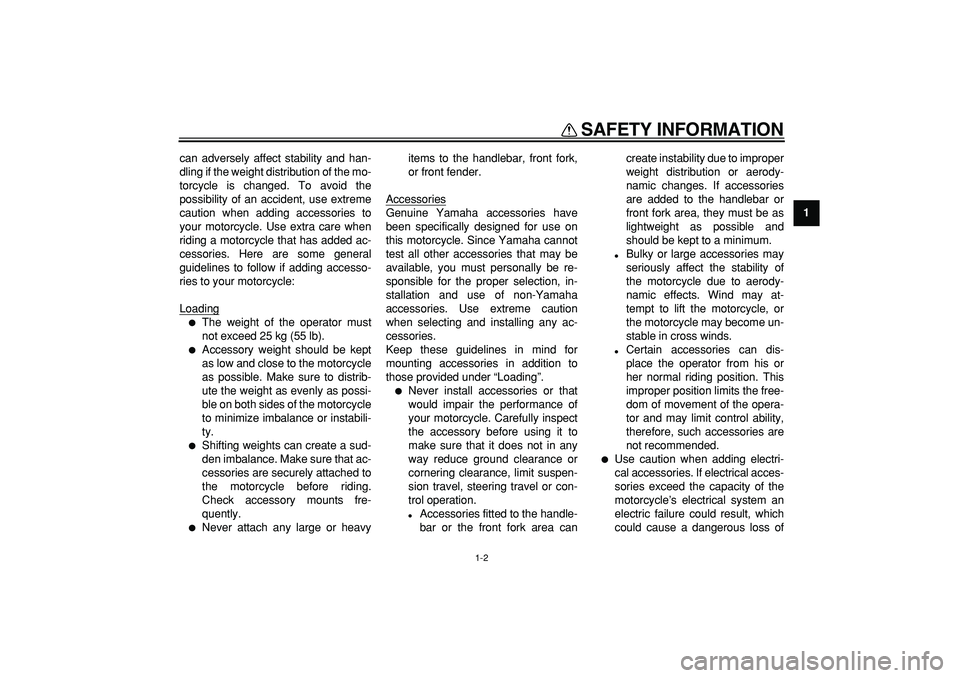

can adversely affect stability and han-
dling if the weight distribution of the mo-
torcycle is changed. To avoid the
possibility of an accident, use extreme
caution when adding accessories to
your motorcycle. Use extra care when
riding a motorcycle that has added ac-
cessories. Here are some general
guidelines to follow if adding accesso-
ries to your motorcycle:
Loading

The weight of the operator must
not exceed 25 kg (55 lb).

Accessory weight should be kept
as low and close to the motorcycle
as possible. Make sure to distrib-
ute the weight as evenly as possi-
ble on both sides of the motorcycle
to minimize imbalance or instabili-
ty.

Shifting weights can create a sud-
den imbalance. Make sure that ac-
cessories are securely attached to
the motorcycle before riding.
Check accessory mounts fre-
quently.

Never attach any large or heavyitems to the handlebar, front fork,
or front fender.
Accessories
Genuine Yamaha accessories have
been specifically designed for use on
this motorcycle. Since Yamaha cannot
test all other accessories that may be
available, you must personally be re-
sponsible for the proper selection, in-
stallation and use of non-Yamaha
accessories. Use extreme caution
when selecting and installing any ac-
cessories.
Keep these guidelines in mind for
mounting accessories in addition to
those provided under “Loading”.


Never install accessories or that
would impair the performance of
your motorcycle. Carefully inspect
the accessory before using it to
make sure that it does not in any
way reduce ground clearance or
cornering clearance, limit suspen-
sion travel, steering travel or con-
trol operation.

Accessories fitted to the handle-
bar or the front fork area cancreate instability due to improper
weight distribution or aerody-
namic changes. If accessories
are added to the handlebar or
front fork area, they must be as
lightweight as possible and
should be kept to a minimum.

Bulky or large accessories may
seriously affect the stability of
the motorcycle due to aerody-
namic effects. Wind may at-
tempt to lift the motorcycle, or
the motorcycle may become un-
stable in cross winds.

Certain accessories can dis-
place the operator from his or
her normal riding position. This
improper position limits the free-
dom of movement of the opera-
tor and may limit control ability,
therefore, such accessories are
not recommended.

Use caution when adding electri-
cal accessories. If electrical acces-
sories exceed the capacity of the
motorcycle’s electrical system an
electric failure could result, which
could cause a dangerous loss of

SAFETY INFORMATION
1-3
1
engine power.

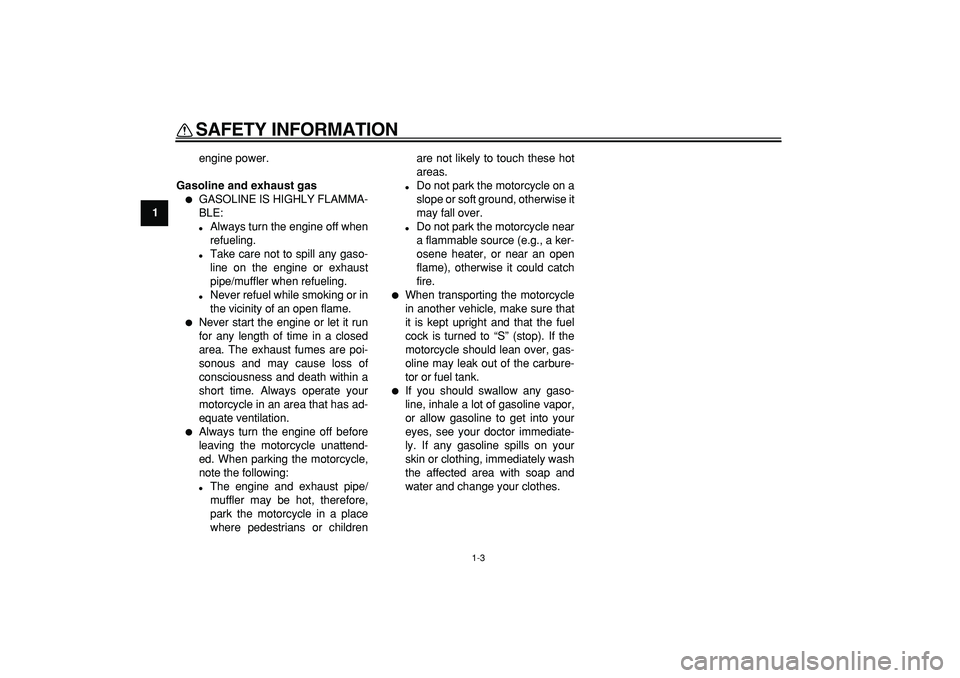

Gasoline and exhaust gas

GASOLINE IS HIGHLY FLAMMA-
BLE:

Always turn the engine off when
refueling.

Take care not to spill any gaso-
line on the engine or exhaust
pipe/muffler when refueling.

Never refuel while smoking or in
the vicinity of an open flame.

Never start the engine or let it run
for any length of time in a closed
area. The exhaust fumes are poi-
sonous and may cause loss of
consciousness and death within a
short time. Always operate your
motorcycle in an area that has ad-
equate ventilation.

Always turn the engine off before
leaving the motorcycle unattend-
ed. When parking the motorcycle,
note the following:

The engine and exhaust pipe/
muffler may be hot, therefore,
park the motorcycle in a place
where pedestrians or childrenare not likely to touch these hot
areas.

Do not park the motorcycle on a
slope or soft ground, otherwise it
may fall over.

Do not park the motorcycle near
a flammable source (e.g., a ker-
osene heater, or near an open
flame), otherwise it could catch
fire.

When transporting the motorcycle
in another vehicle, make sure that
it is kept upright and that the fuel
cock is turned to “S” (stop). If the
motorcycle should lean over, gas-
oline may leak out of the carbure-
tor or fuel tank.

If you should swallow any gaso-
line, inhale a lot of gasoline vapor,
or allow gasoline to get into your
eyes, see your doctor immediate-
ly. If any gasoline spills on your
skin or clothing, immediately wash
the affected area with soap and
water and change your clothes.

SAFETY INFORMATION
1-4
1
EAU41970

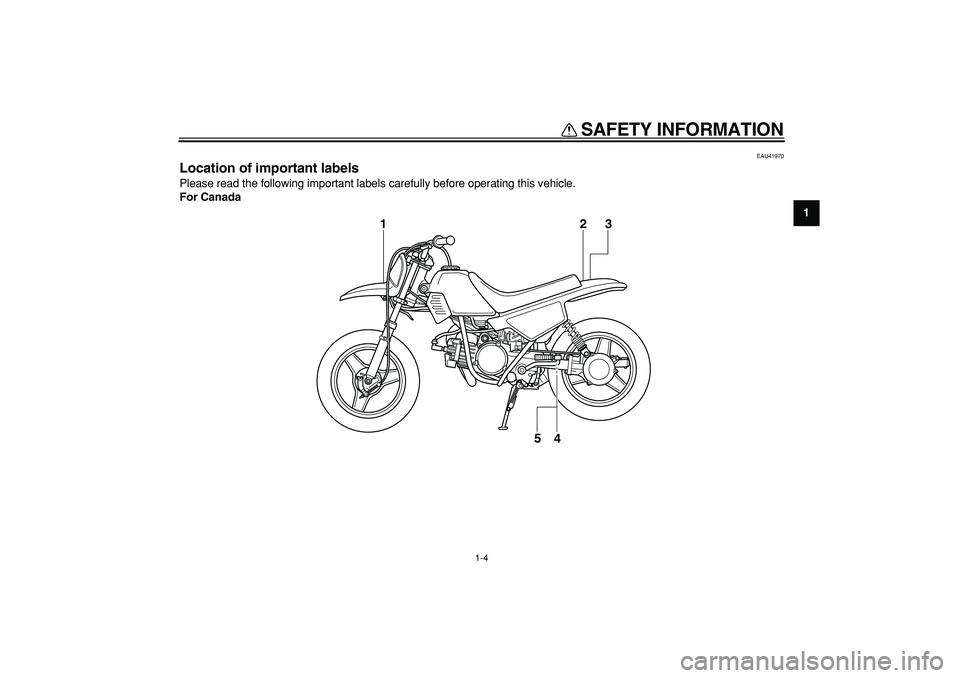

Location of important labels
Please read the following important labels carefully before operating this vehicle.
For Canada
3 2
4
1
5

SAFETY INFORMATION
1-5
1

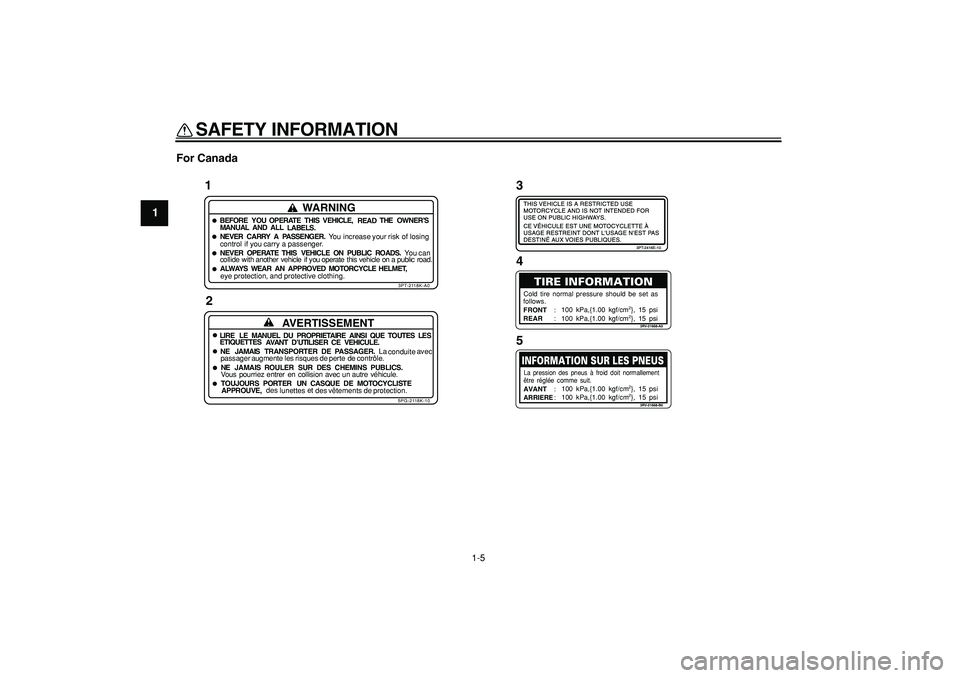

For Canada
1
WARNING
BEFORE YOU OPERATE THIS VEHICLE,
READTHE OWNER’S
MANUAL AND ALL
LABELS.NEVER CARRY
A PASSENGER.You increase your
riskof losing
control if you carry a passenger.NEVEROPERATE
THIS VEHICLE ON PUBLIC ROADS.
Yo u
can
collide withanother vehicle if you operate this vehicle on a public road.A LWAY S
WEAR AN APPROVED MOTORCYCLE HELMET,
eyeprotection, and protective clothing.
3PT-2118K-A0
23
4
AVERTISSEMENT
LIRELE
MANUEL
ETIQUETTESNELa
passagerNE
VousTOUJOURS
des
5PG-2118K-10
DU
PROPRIETAIREAINSI
QUETOUTES
LES
AVANT D’UTILISER CEVEHICULE.
JAMAISTRANSPORTER
DEPASSAGER.
conduiteavec
augmente
les risques de perte de contrôle.
JAMAISROULERSUR
DES CHEMINS PUBLICS.
pourriez
entreren
collision avec un autre véhicule.
PORTER
UN CASQUE DE MOTOCYCLISTE
APPROUVE,lunetteset
des vêtementsde
protection.
follows.
FRONT:
: REAR
3RV-21668-A0
Cold tire normal pressure should be set as
100 kPa,{1.00 kgf/cm
2}, 15 psi
100 kPa,{1.00 kgf/cm2}, 15 psi
être réglée comme suit.AVANT:
:ARRIERE
3RV-21668-B0
100 kPa,{1.00 kgf/cm
2}, 15 psi
100 kPa,{1.00 kgf/cm2}, 15 psi
La pression des pneus à froid doit normallement5

SAFETY INFORMATION
1-6
1

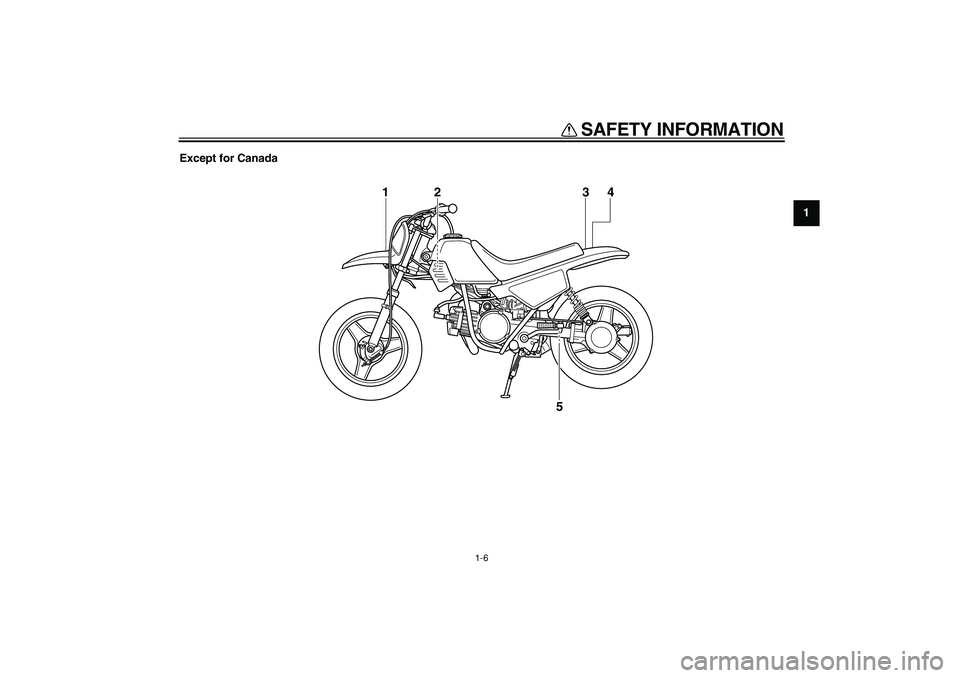

Except for Canada
4 3
5
1
2

SAFETY INFORMATION
1-7
1

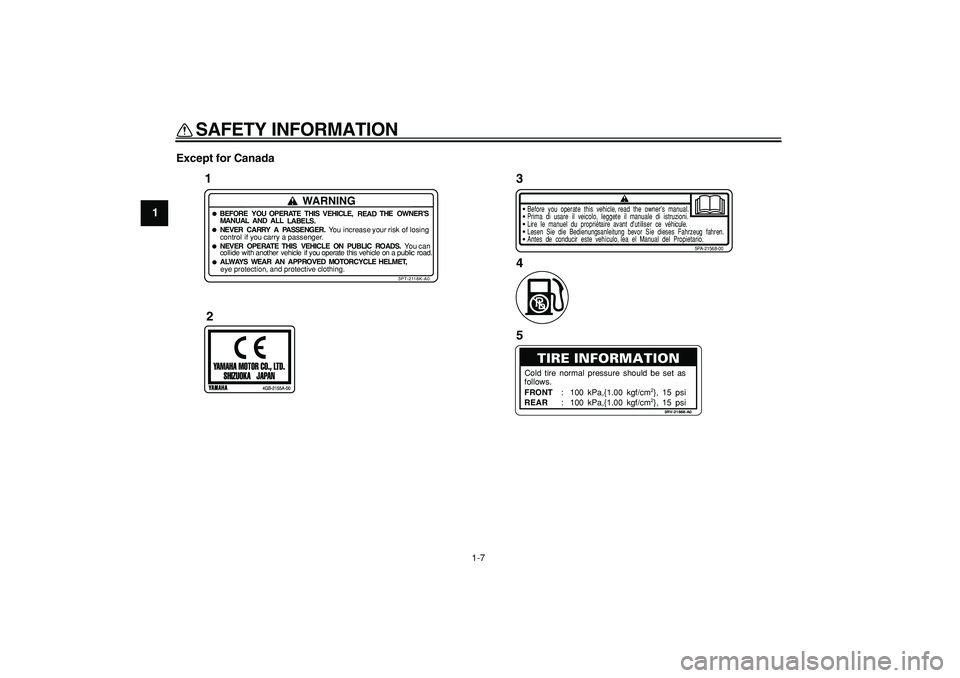

Except for Canada
1
WARNING
BEFORE YOU OPERATE THIS VEHICLE,
READTHE OWNER’S
MANUAL AND ALL
LABELS.NEVER CARRY
A PASSENGER.You increase your
riskof losing
control if you carry a passenger.NEVEROPERATE
THIS VEHICLE ON PUBLIC ROADS.
Yo u
can
collide withanother vehicle if you operate this vehicle on a public road.A LWAY S
WEAR AN APPROVED MOTORCYCLE HELMET,
eyeprotection, and protective clothing.
3PT-2118K-A0
2
Before you operate this vehicle, read the owner’s manual.
5PA-21568-00
Prima di usare il veicolo, leggete il manuale di istruzioni.Lire le manuel du propri
étaire avant d
’utiliser ce v
éhicule.
Lesen Sie die Bedienungsanleitung bevor Sie dieses Fahrzeug fahren.Antes de conducir este vehículo, lea el Manual del Propietario.3
4follows.
FRONT:
: REAR
3RV-21668-A0
Cold tire normal pressure should be set as
100 kPa,{1.00 kgf/cm
2}, 15 psi
100 kPa,{1.00 kgf/cm2}, 15 psi
5

SAFETY INFORMATION
1-8
1

2-1
1
2
3
4
5
6
7
8
9

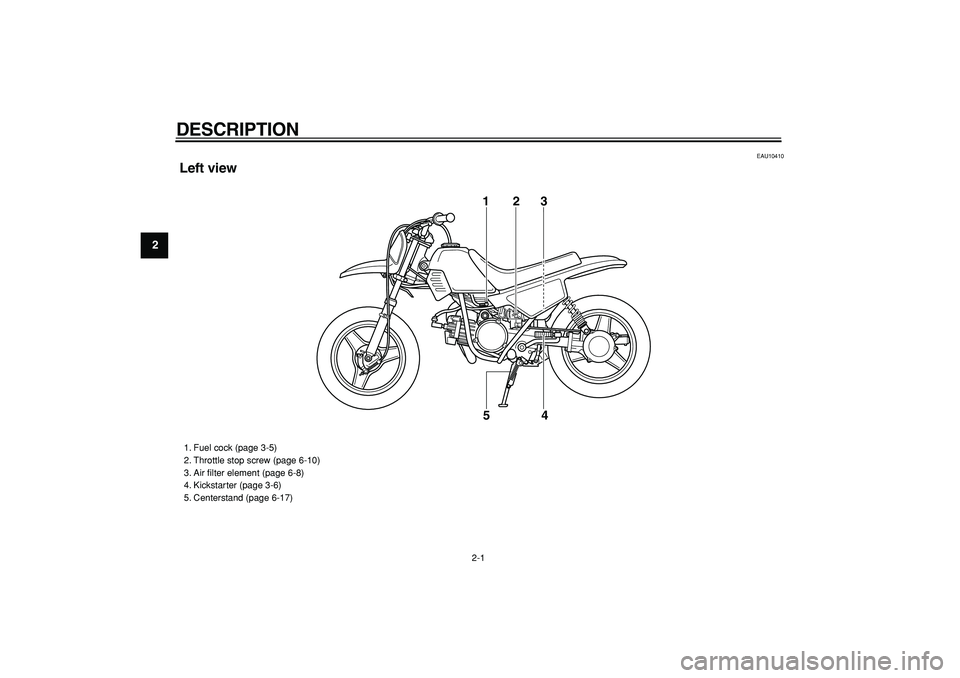

DESCRIPTION
EAU10410
Left view
123
4 5

1. Fuel cock (page 3-5)
2. Throttle stop screw (page 6-10)
3. Air filter element (page 6-8)
4. Kickstarter (page 3-6)
5. Centerstand (page 6-17)
