YAMAHA PW50 2011 User Guide

LOCATION OF IMPORTANT LABELS1-1
1
EAU48114
Read and understand all of the labels on your vehicle. They contain important information for safe and proper operation of
your vehicle. Never remove any labels from your vehicle. If a label becomes difficult to read or comes off, a replacement label
is available from your Yamaha dealer.
For Canada
1
2
3,4
7
5,6
U5PG8AE0.book Page 1 Thursday, April 8, 2010 8:37 AM

LOCATION OF IMPORTANT LABELS
1-2
1For Canada
THIS VEHICLE IS A RESTRICTED USE
MOTORCYCLE AND IS NOT INTENDED FOR
USE ON PUBLIC HIGHWAYS.
CE VÉHICULE EST UNE MOTOCYCLETTE À
USAGE RESTREINT DONT L’USAGE N’EST PAS
DESTINÉ AUX VOIES PUBLIQUES.
3PT-2416E-10
CMVSSCANADANSVAC
TRANSPORT
506
WARNING
3PT-2118K-A1
 BEFORE YOU OPERATE THIS VEHICLE, READ THE OWNER’S
MANUAL AND ALL LABELS.
 NEVER CARRY A PASSENGER. You increase your risk of losing
control if you carry a passenger.
 NEVER OPERATE THIS VEHICLE ON PUBLIC ROADS. You can
collide with another vehicle if you operate this vehicle on a public road.
 ALWAYS WEAR AN APPROVED MOTORCYCLE HELMET,
eye protection, and protective clothing.
AVERTISSEMENT
5PG-2118K-10
 LIRE LE MANUEL DU PROPRIETAIRE AINSI QUE TOUTES LES
ETIQUETTES AVANT D’UTILISER CE VEHICULE.
 NE JAMAIS TRANSPORTER DE PASSAGER. La conduite avec
passager augmente les risques de perte de contrôle.
 NE JAMAIS ROULER SUR DES CHEMINS PUBLICS.
Vous pourriez entrer en collision avec un autre véhicule.
 TOUJOURS PORTER UN CASQUE DE MOTOCYCLISTE
APPROUVE, des lunettes et des vêtements de protection.12
34
U5PG8AE0.book Page 2 Thursday, April 8, 2010 8:37 AM

LOCATION OF IMPORTANT LABELS1-3
1 For Canada
TIRE INFORMATION
Cold tire normal pressure should be set as
follows.
FRONT
REAR: 100 kPa, {1.00 kgf/cm²}, 15 psi
: 100 kPa, {1.00 kgf/cm²}, 15 psi
3RV-21668-A0
INFORMATION SUR LES PNEUSLa pression des pneus à froid doit normalement
être réglée comme suit.
AVANTARRIERE
: 100 kPa, {1.00 kgf/cm²}, 15 psi
: 100 kPa, {1.00 kgf/cm²}, 15 psi
3RV-21668-B0
3JK-82377-00
This spark ignition system meets all requirements
of the Canadian Interference Causing Equipment
Regulations.
Ce système d’allumage par étincelle de véhicule
respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.56
7
U5PG8AE0.book Page 3 Thursday, April 8, 2010 8:37 AM

LOCATION OF IMPORTANT LABELS
1-4
1For Europe
3
2
1
U5PG8AE0.book Page 4 Thursday, April 8, 2010 8:37 AM

LOCATION OF IMPORTANT LABELS1-5
1 For Europe
5PG-2816R-00
100 kPa
1.00 kgf/cm²
15 psi 100 kPa
1.00 kgf/cm²
15 psi
8AC-2817L-00
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPAN
2010
5PG-2156A-10
PW50
2.1 kW 39 kg
12
3
U5PG8AE0.book Page 5 Thursday, April 8, 2010 8:37 AM

LOCATION OF IMPORTANT LABELS
1-6
1Familiarize yourself with the following pictograms and read the explanatory text.
**.* kPa
*.** kgf/cm²
*.* psi**.* kPa
*.** kgf/cm²
*.* psi
Read the Owner’s manual.
This unit contains high-pressure
nitrogen gas.
Mishandling can cause
an explosion. Do not incinerate,
puncture or open.
Turn off the main switch after
riding to avoid draining the
battery.Use unleaded gasoline only.
Measure the tire pressure when
the tires are cold.
Adjust the tire pressure.
Improper tire pressure can
cause loss of control.
Loss of control can result in
severe injury or death.
U5PG8AE0.book Page 6 Thursday, April 8, 2010 8:37 AM

LOCATION OF IMPORTANT LABELS1-7
1
******
*** kW *** kg1
23
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPAN
****11
2
3Model Name
Max. Power
Mass In Running Order
1
Year of construction
U5PG8AE0.book Page 7 Thursday, April 8, 2010 8:37 AM

LOCATION OF IMPORTANT LABELS
1-8
1For Oceania and South Africa
1
2
U5PG8AE0.book Page 8 Thursday, April 8, 2010 8:37 AM

LOCATION OF IMPORTANT LABELS1-9
1 For Oceania and South Africa
TIRE INFORMATION
Cold tire normal pressure should be set as
follows.
FRONT
REAR: 100 kPa, {1.00 kgf/cm²}, 15 psi
: 100 kPa, {1.00 kgf/cm²}, 15 psi
3RV-21668-A0
WARNING
3PT-2118K-A1
 BEFORE YOU OPERATE THIS VEHICLE, READ THE OWNER’S
MANUAL AND ALL LABELS.
 NEVER CARRY A PASSENGER. You increase your risk of losing
control if you carry a passenger.
 NEVER OPERATE THIS VEHICLE ON PUBLIC ROADS. You can
collide with another vehicle if you operate this vehicle on a public road.
 ALWAYS WEAR AN APPROVED MOTORCYCLE HELMET,
eye protection, and protective clothing.12
U5PG8AE0.book Page 9 Thursday, April 8, 2010 8:37 AM

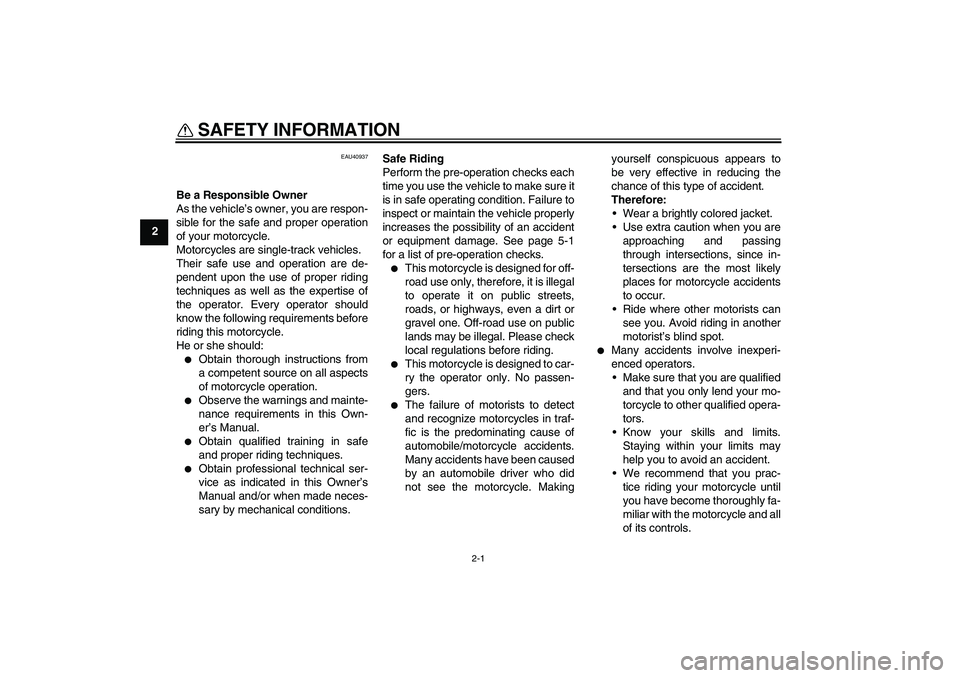

2-1
2
SAFETY INFORMATION
EAU40937
Be a Responsible Owner
As the vehicle’s owner, you are respon-
sible for the safe and proper operation
of your motorcycle.
Motorcycles are single-track vehicles.
Their safe use and operation are de-
pendent upon the use of proper riding
techniques as well as the expertise of
the operator. Every operator should
know the following requirements before
riding this motorcycle.
He or she should:

Obtain thorough instructions from
a competent source on all aspects
of motorcycle operation.


Observe the warnings and mainte-
nance requirements in this Own-
er’s Manual.


Obtain qualified training in safe
and proper riding techniques.


Obtain professional technical ser-
vice as indicated in this Owner’s
Manual and/or when made neces-
sary by mechanical conditions.Safe Riding
Perform the pre-operation checks each
time you use the vehicle to make sure it
is in safe operating condition. Failure to
inspect or maintain the vehicle properly
increases the possibility of an accident
or equipment damage. See page 5-1
for a list of pre-operation checks.


This motorcycle is designed for off-
road use only, therefore, it is illegal
to operate it on public streets,
roads, or highways, even a dirt or
gravel one. Off-road use on public
lands may be illegal. Please check
local regulations before riding.


This motorcycle is designed to car-
ry the operator only. No passen-
gers.


The failure of motorists to detect
and recognize motorcycles in traf-
fic is the predominating cause of
automobile/motorcycle accidents.
Many accidents have been caused
by an automobile driver who did
not see the motorcycle. Makingyourself conspicuous appears to
be very effective in reducing the
chance of this type of accident.
Therefore:
Wear a brightly colored jacket.
Use extra caution when you are
approaching and passing
through intersections, since in-
tersections are the most likely
places for motorcycle accidents
to occur.
Ride where other motorists can
see you. Avoid riding in another
motorist’s blind spot.


Many accidents involve inexperi-
enced operators.
Make sure that you are qualified
and that you only lend your mo-
torcycle to other qualified opera-
tors.
Know your skills and limits.
Staying within your limits may
help you to avoid an accident.
We recommend that you prac-
tice riding your motorcycle until
you have become thoroughly fa-
miliar with the motorcycle and all
of its controls.
