YAMAHA PW50 2011 Owner's Guide

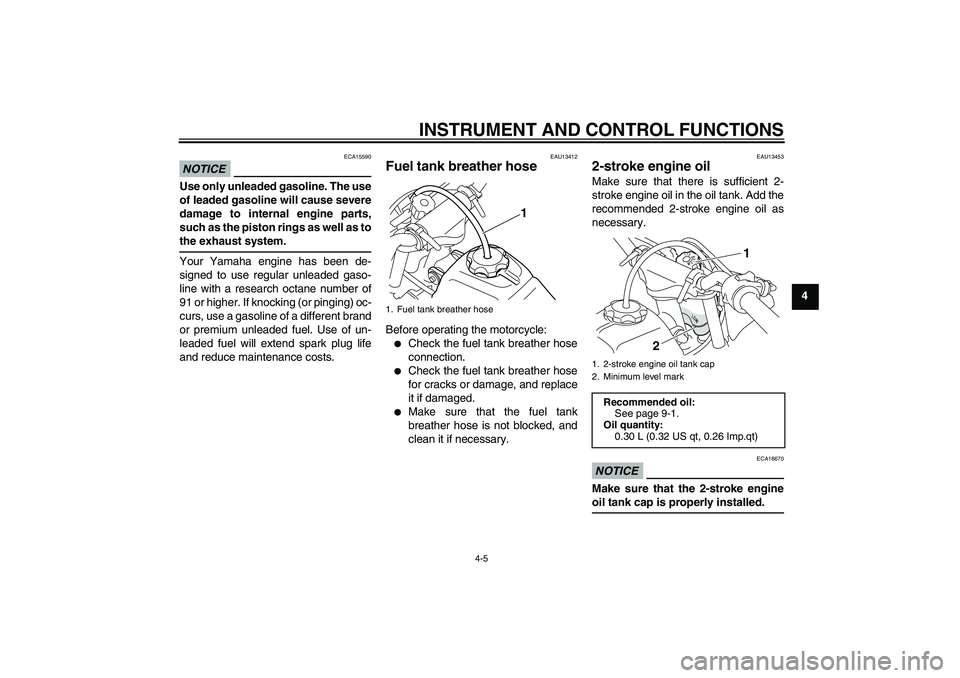

INSTRUMENT AND CONTROL FUNCTIONS
4-5
4
NOTICE
ECA15590
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the piston rings as well as to
the exhaust system.Your Yamaha engine has been de-
signed to use regular unleaded gaso-
line with a research octane number of
91 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different brand
or premium unleaded fuel. Use of un-
leaded fuel will extend spark plug life
and reduce maintenance costs.
EAU13412
Fuel tank breather hose Before operating the motorcycle:

Check the fuel tank breather hose
connection.


Check the fuel tank breather hose
for cracks or damage, and replace
it if damaged.


Make sure that the fuel tank
breather hose is not blocked, and
clean it if necessary.
EAU13453
2-stroke engine oil Make sure that there is sufficient 2-
stroke engine oil in the oil tank. Add the
recommended 2-stroke engine oil as
necessary.NOTICE
ECA16670
Make sure that the 2-stroke engine
oil tank cap is properly installed.
1. Fuel tank breather hose
1
1. 2-stroke engine oil tank cap
2. Minimum level mark
Recommended oil:
See page 9-1.
Oil quantity:
0.30 L (0.32 US qt, 0.26 Imp.qt)
21
U5PG8AE0.book Page 5 Thursday, April 8, 2010 8:37 AM

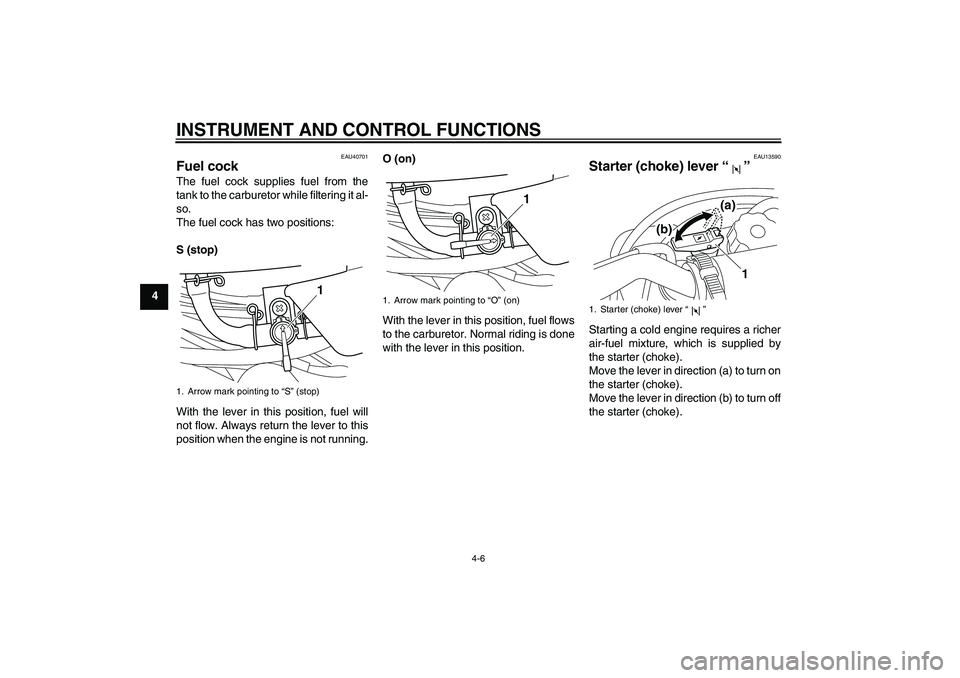

INSTRUMENT AND CONTROL FUNCTIONS
4-6
4
EAU40701
Fuel cock The fuel cock supplies fuel from the
tank to the carburetor while filtering it al-
so.
The fuel cock has two positions:
S (stop)
With the lever in this position, fuel will
not flow. Always return the lever to this
position when the engine is not running.O (on)
With the lever in this position, fuel flows
to the carburetor. Normal riding is done
with the lever in this position.
EAU13590
Starter (choke) lever“” Starting a cold engine requires a richer
air-fuel mixture, which is supplied by
the starter (choke).
Move the lever in direction (a) to turn on
the starter (choke).
Move the lever in direction (b) to turn off
the starter (choke).
1. Arrow mark pointing to “S” (stop)
1
1. Arrow mark pointing to “O” (on)
1
1. Starter (choke) lever“”
1 (a)
(b)
U5PG8AE0.book Page 6 Thursday, April 8, 2010 8:37 AM

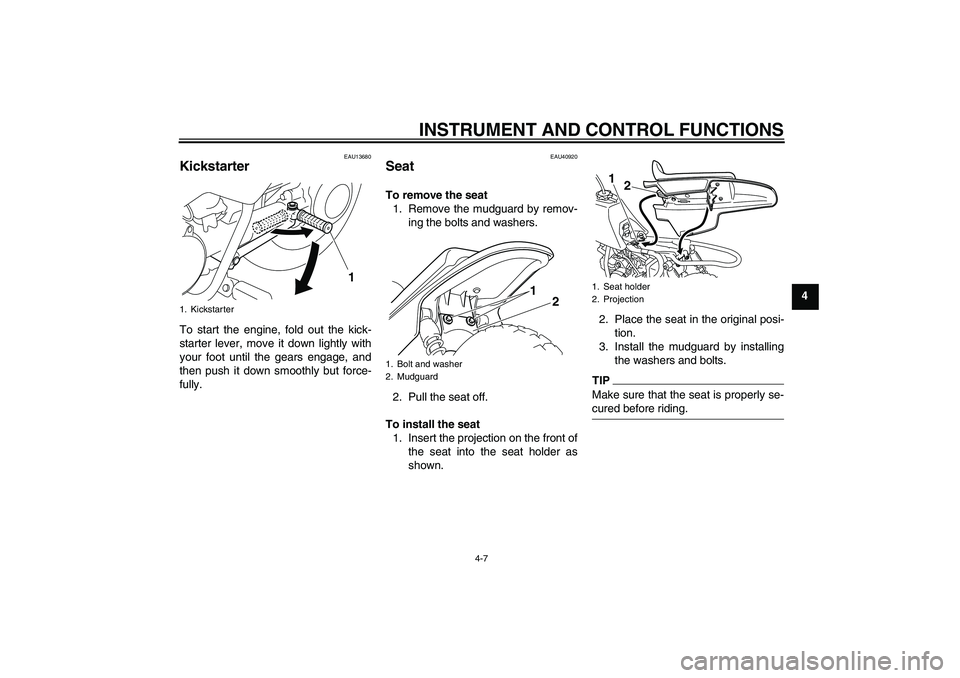

INSTRUMENT AND CONTROL FUNCTIONS
4-7
4
EAU13680
Kickstarter To start the engine, fold out the kick-
starter lever, move it down lightly with
your foot until the gears engage, and
then push it down smoothly but force-
fully.
EAU40920
Seat To remove the seat
1. Remove the mudguard by remov-
ing the bolts and washers.
2. Pull the seat off.
To install the seat
1. Insert the projection on the front of
the seat into the seat holder as
shown.2. Place the seat in the original posi-
tion.
3. Install the mudguard by installing
the washers and bolts.
TIPMake sure that the seat is properly se-
cured before riding.
1. Kickstarter
1
1. Bolt and washer
2. Mudguard
1
2
1. Seat holder
2. Projection
1
2
U5PG8AE0.book Page 7 Thursday, April 8, 2010 8:37 AM

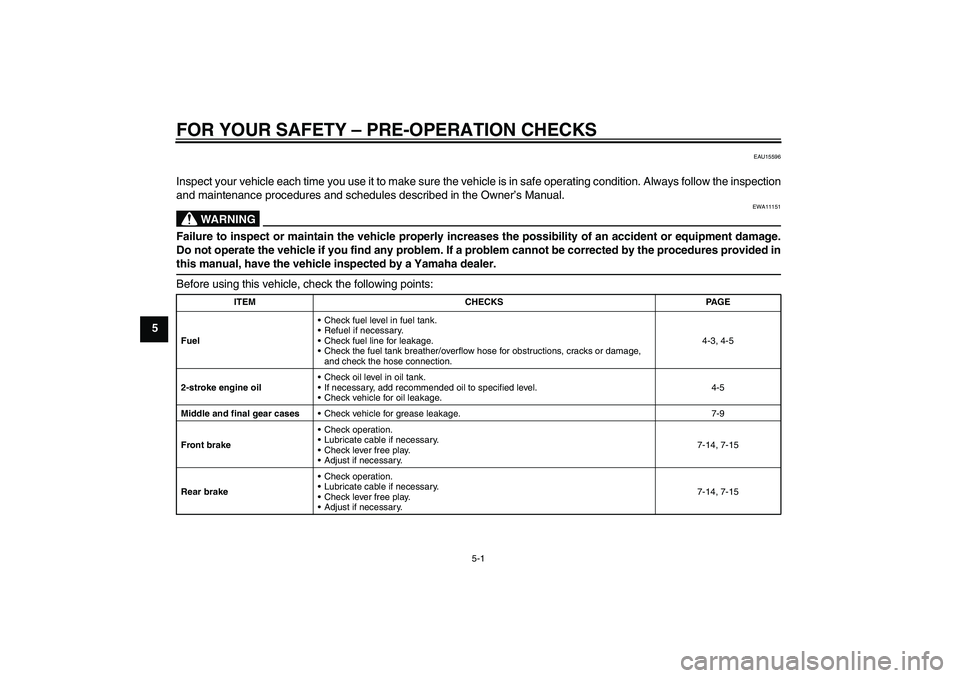

FOR YOUR SAFETY – PRE-OPERATION CHECKS
5-1
5
EAU15596
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the inspection
and maintenance procedures and schedules described in the Owner’s Manual.
WARNING
EWA11151
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment damage.
Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures provided in
this manual, have the vehicle inspected by a Yamaha dealer.Before using this vehicle, check the following points:
ITEM CHECKS PAGE
FuelCheck fuel level in fuel tank.
Refuel if necessary.
Check fuel line for leakage.
Check the fuel tank breather/overflow hose for obstructions, cracks or damage,
and check the hose connection.4-3, 4-5
2-stroke engine oilCheck oil level in oil tank.
If necessary, add recommended oil to specified level.
Check vehicle for oil leakage.4-5
Middle and final gear casesCheck vehicle for grease leakage. 7-9
Front brakeCheck operation.
Lubricate cable if necessary.
Check lever free play.
Adjust if necessary.7-14, 7-15
Rear brakeCheck operation.
Lubricate cable if necessary.
Check lever free play.
Adjust if necessary.7-14, 7-15
U5PG8AE0.book Page 1 Thursday, April 8, 2010 8:37 AM

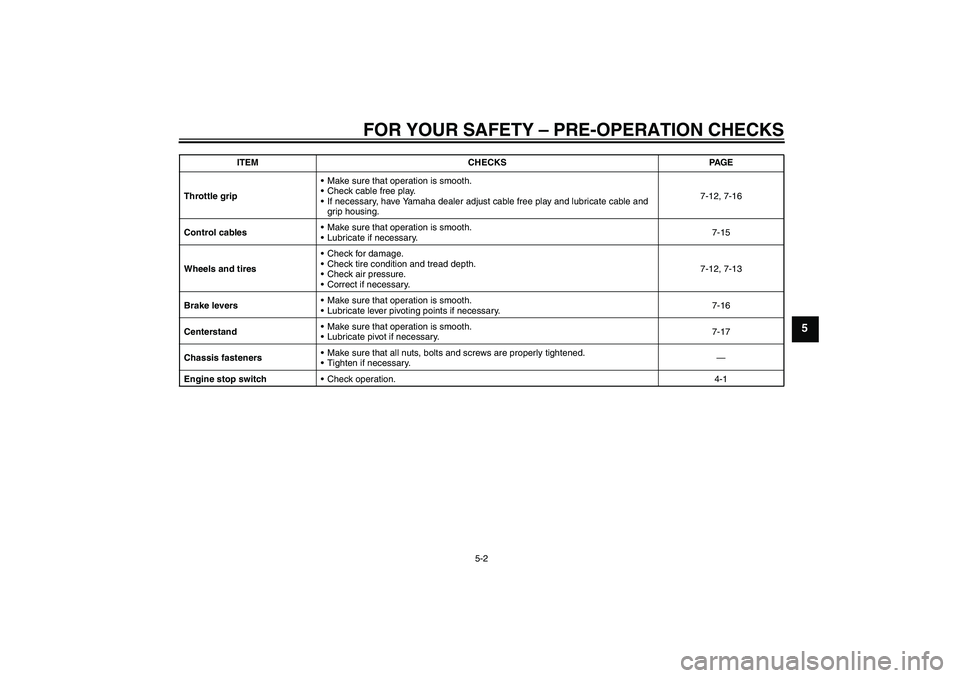

FOR YOUR SAFETY – PRE-OPERATION CHECKS
5-2
5
Throttle gripMake sure that operation is smooth.
Check cable free play.
If necessary, have Yamaha dealer adjust cable free play and lubricate cable and
grip housing.7-12, 7-16
Control cablesMake sure that operation is smooth.
Lubricate if necessary.7-15
Wheels and tiresCheck for damage.
Check tire condition and tread depth.
Check air pressure.
Correct if necessary.7-12, 7-13
Brake leversMake sure that operation is smooth.
Lubricate lever pivoting points if necessary.7-16
CenterstandMake sure that operation is smooth.
Lubricate pivot if necessary.7-17
Chassis fastenersMake sure that all nuts, bolts and screws are properly tightened.
Tighten if necessary.—
Engine stop switchCheck operation.4-1 ITEM CHECKS PAGE
U5PG8AE0.book Page 2 Thursday, April 8, 2010 8:37 AM

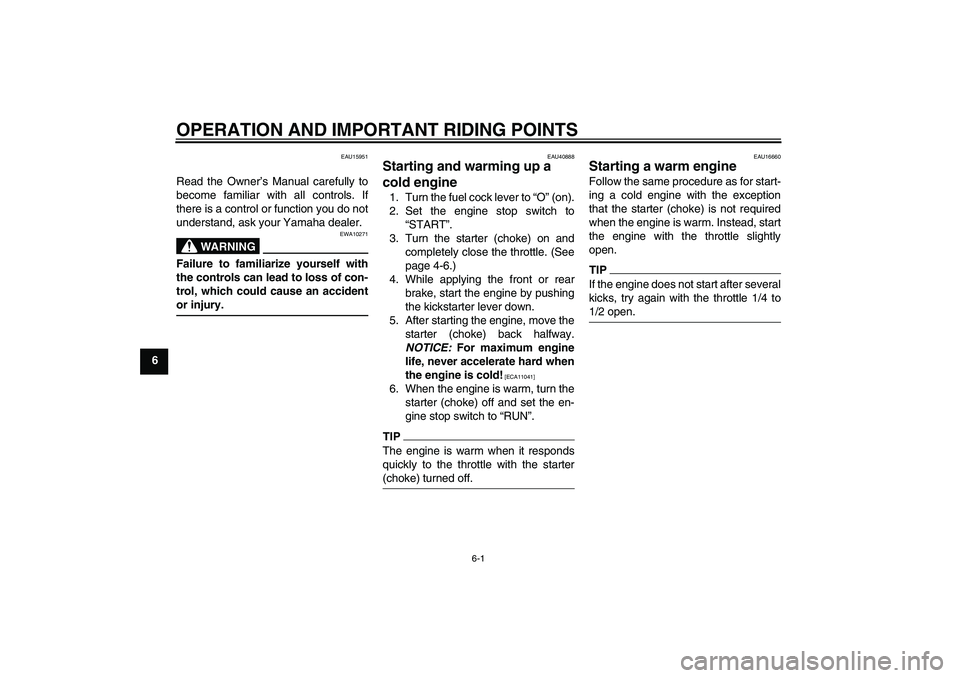

OPERATION AND IMPORTANT RIDING POINTS
6-1
6
EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10271
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which could cause an accident
or injury.
EAU40888
Starting and warming up a
cold engine 1. Turn the fuel cock lever to “O” (on).
2. Set the engine stop switch to
“START”.
3. Turn the starter (choke) on and
completely close the throttle. (See
page 4-6.)
4. While applying the front or rear
brake, start the engine by pushing
the kickstarter lever down.
5. After starting the engine, move the
starter (choke) back halfway.
NOTICE: For maximum engine
life, never accelerate hard when
the engine is cold!
[ECA11041]
6. When the engine is warm, turn the
starter (choke) off and set the en-
gine stop switch to “RUN”.TIPThe engine is warm when it responds
quickly to the throttle with the starter
(choke) turned off.
EAU16660
Starting a warm engine Follow the same procedure as for start-
ing a cold engine with the exception
that the starter (choke) is not required
when the engine is warm. Instead, start
the engine with the throttle slightly
open.TIPIf the engine does not start after several
kicks, try again with the throttle 1/4 to
1/2 open.
U5PG8AE0.book Page 1 Thursday, April 8, 2010 8:37 AM

OPERATION AND IMPORTANT RIDING POINTS
6-2
6
EAU41002

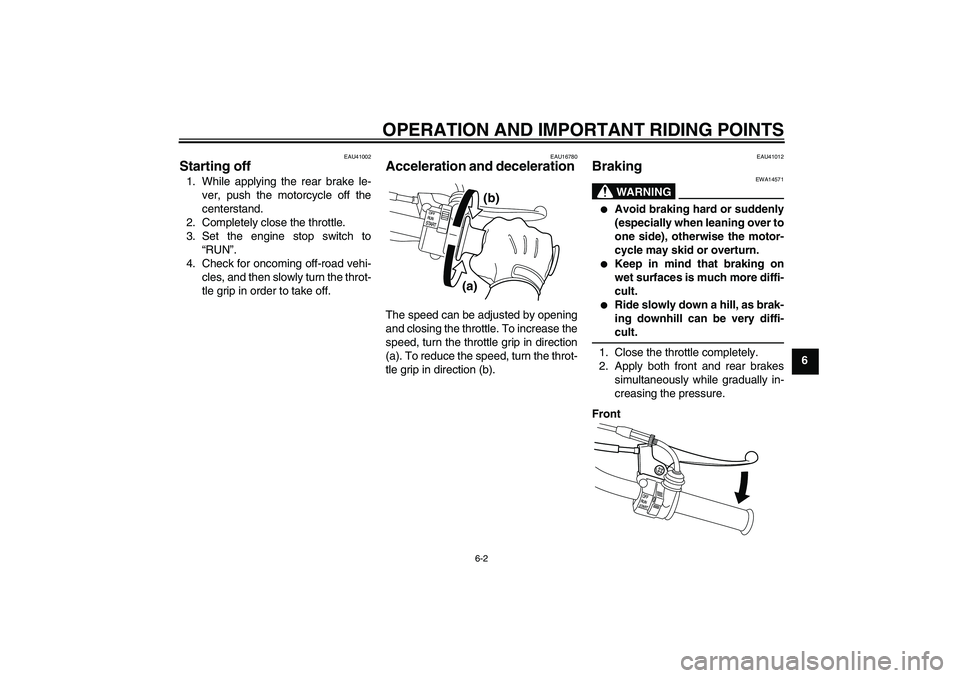

Starting off 1. While applying the rear brake le-
ver, push the motorcycle off the
centerstand.
2. Completely close the throttle.
3. Set the engine stop switch to
“RUN”.
4. Check for oncoming off-road vehi-
cles, and then slowly turn the throt-
tle grip in order to take off.
EAU16780
Acceleration and deceleration The speed can be adjusted by opening
and closing the throttle. To increase the
speed, turn the throttle grip in direction
(a). To reduce the speed, turn the throt-
tle grip in direction (b).
EAU41012
Braking
WARNING
EWA14571


Avoid braking hard or suddenly
(especially when leaning over to
one side), otherwise the motor-
cycle may skid or overturn.


Keep in mind that braking on
wet surfaces is much more diffi-
cult.


Ride slowly down a hill, as brak-
ing downhill can be very diffi-
cult.
1. Close the throttle completely.
2. Apply both front and rear brakes
simultaneously while gradually in-
creasing the pressure.
Front
(a)(b)
U5PG8AE0.book Page 2 Thursday, April 8, 2010 8:37 AM

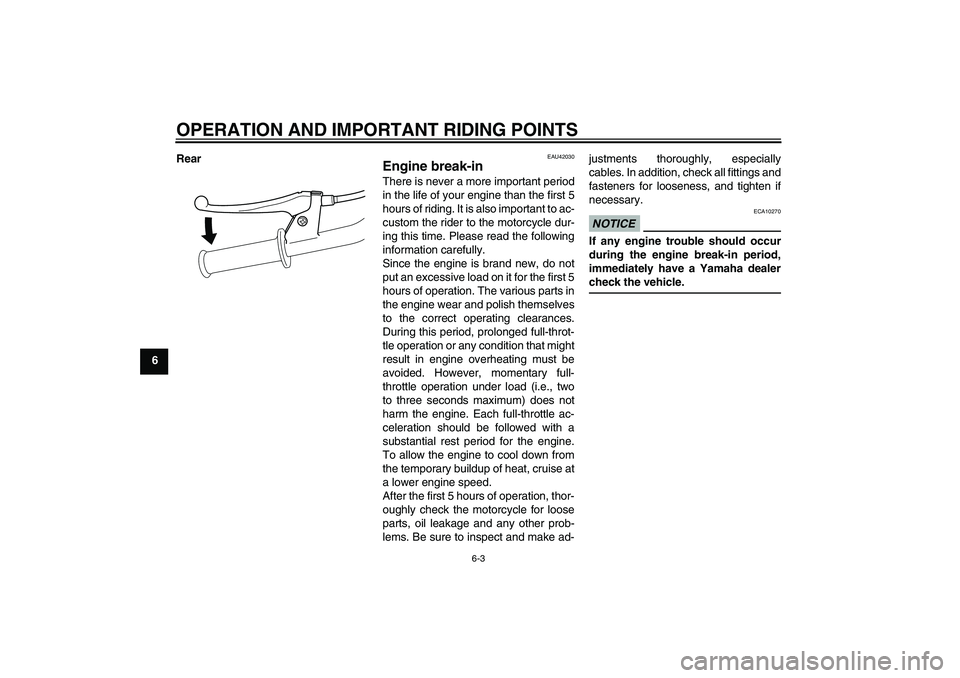

OPERATION AND IMPORTANT RIDING POINTS
6-3
6Rear
EAU42030
Engine break-in There is never a more important period
in the life of your engine than the first 5
hours of riding. It is also important to ac-
custom the rider to the motorcycle dur-
ing this time. Please read the following
information carefully.
Since the engine is brand new, do not
put an excessive load on it for the first 5
hours of operation. The various parts in
the engine wear and polish themselves
to the correct operating clearances.
During this period, prolonged full-throt-
tle operation or any condition that might
result in engine overheating must be
avoided. However, momentary full-
throttle operation under load (i.e., two
to three seconds maximum) does not
harm the engine. Each full-throttle ac-
celeration should be followed with a
substantial rest period for the engine.
To allow the engine to cool down from
the temporary buildup of heat, cruise at
a lower engine speed.
After the first 5 hours of operation, thor-
oughly check the motorcycle for loose
parts, oil leakage and any other prob-
lems. Be sure to inspect and make ad-justments thoroughly, especially
cables. In addition, check all fittings and
fasteners for looseness, and tighten if
necessary.
NOTICE
ECA10270
If any engine trouble should occur
during the engine break-in period,
immediately have a Yamaha dealer
check the vehicle.
U5PG8AE0.book Page 3 Thursday, April 8, 2010 8:37 AM

OPERATION AND IMPORTANT RIDING POINTS
6-4
6
EAU40722

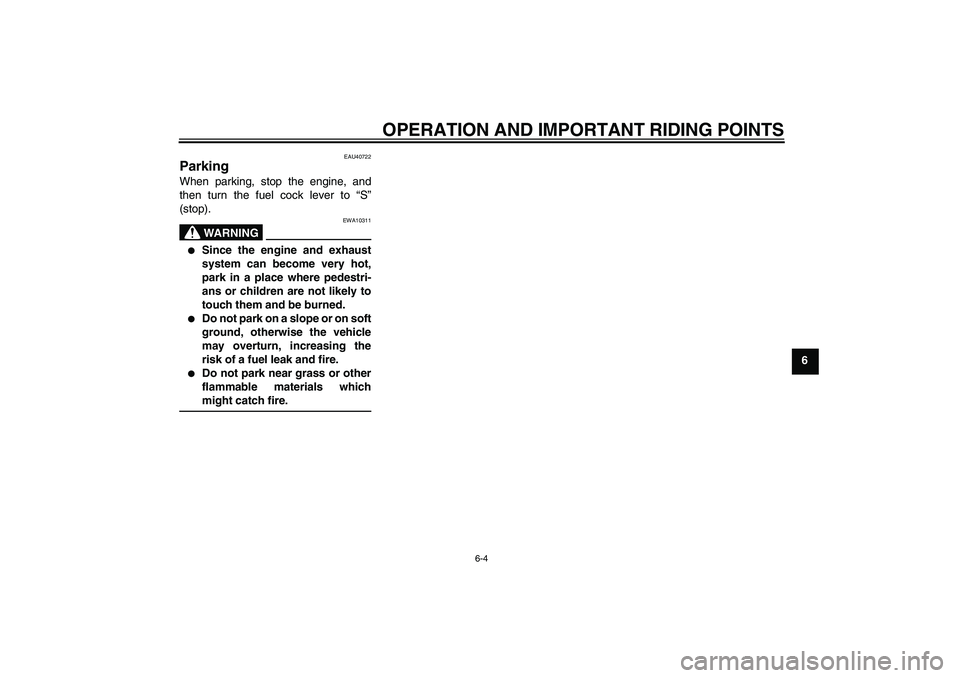

Parking When parking, stop the engine, and
then turn the fuel cock lever to “S”
(stop).
WARNING
EWA10311


Since the engine and exhaust
system can become very hot,
park in a place where pedestri-
ans or children are not likely to
touch them and be burned.


Do not park on a slope or on soft
ground, otherwise the vehicle
may overturn, increasing the
risk of a fuel leak and fire.


Do not park near grass or other
flammable materials which
might catch fire.
U5PG8AE0.book Page 4 Thursday, April 8, 2010 8:37 AM

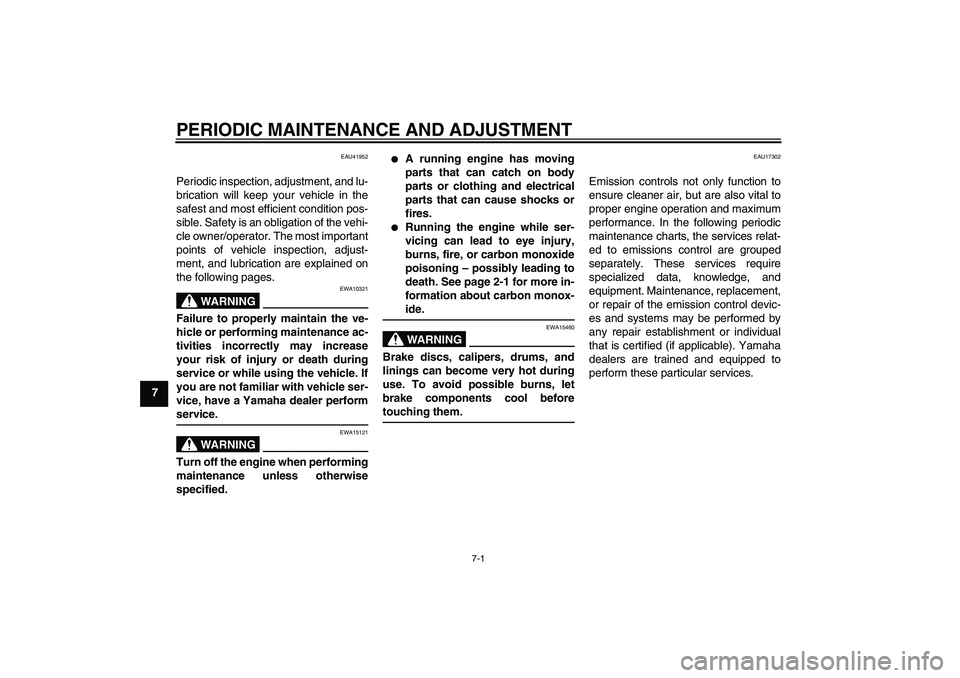

PERIODIC MAINTENANCE AND ADJUSTMENT
7-1
7
EAU41952
Periodic inspection, adjustment, and lu-
brication will keep your vehicle in the
safest and most efficient condition pos-
sible. Safety is an obligation of the vehi-
cle owner/operator. The most important
points of vehicle inspection, adjust-
ment, and lubrication are explained on
the following pages.
WARNING
EWA10321
Failure to properly maintain the ve-
hicle or performing maintenance ac-
tivities incorrectly may increase
your risk of injury or death during
service or while using the vehicle. If
you are not familiar with vehicle ser-
vice, have a Yamaha dealer perform
service.
WARNING
EWA15121
Turn off the engine when performing
maintenance unless otherwise
specified.


A running engine has moving
parts that can catch on body
parts or clothing and electrical
parts that can cause shocks or
fires.


Running the engine while ser-
vicing can lead to eye injury,
burns, fire, or carbon monoxide
poisoning – possibly leading to
death. See page 2-1 for more in-
formation about carbon monox-
ide.WARNING
EWA15460
Brake discs, calipers, drums, and
linings can become very hot during
use. To avoid possible burns, let
brake components cool before
touching them.
EAU17302
Emission controls not only function to
ensure cleaner air, but are also vital to
proper engine operation and maximum
performance. In the following periodic
maintenance charts, the services relat-
ed to emissions control are grouped
separately. These services require
specialized data, knowledge, and
equipment. Maintenance, replacement,
or repair of the emission control devic-
es and systems may be performed by
any repair establishment or individual
that is certified (if applicable). Yamaha
dealers are trained and equipped to
perform these particular services.
U5PG8AE0.book Page 1 Thursday, April 8, 2010 8:37 AM
