YAMAHA PW50 2011 Service Manual

PERIODIC MAINTENANCE AND ADJUSTMENT
7-2
7
EAU17311

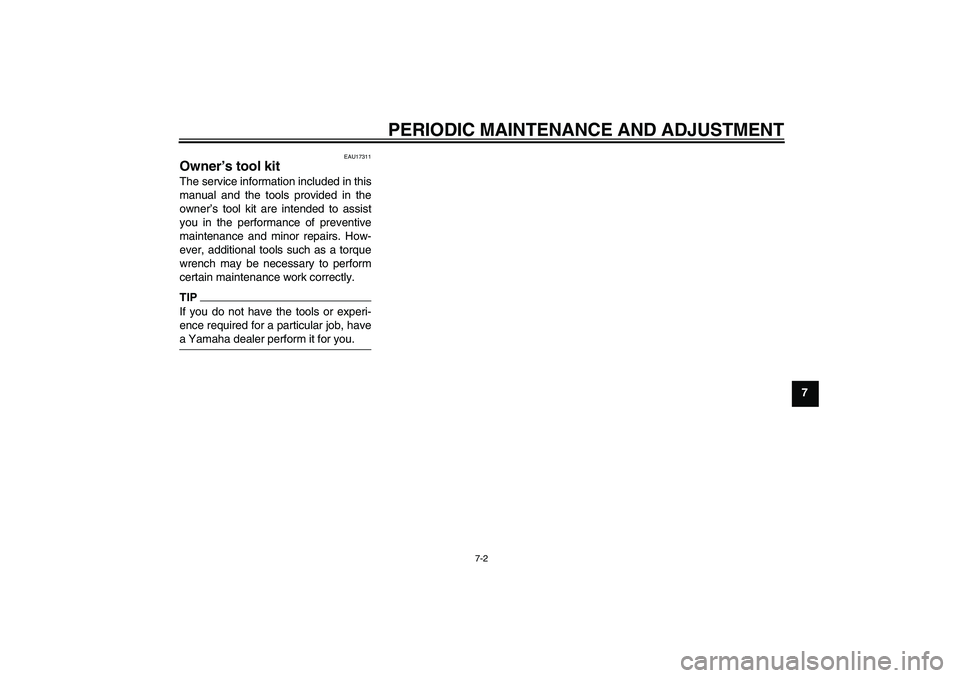

Owner’s tool kit The service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs. How-
ever, additional tools such as a torque
wrench may be necessary to perform
certain maintenance work correctly.TIPIf you do not have the tools or experi-
ence required for a particular job, have
a Yamaha dealer perform it for you.
U5PG8AE0.book Page 2 Thursday, April 8, 2010 8:37 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
7-3
7
EAU41741

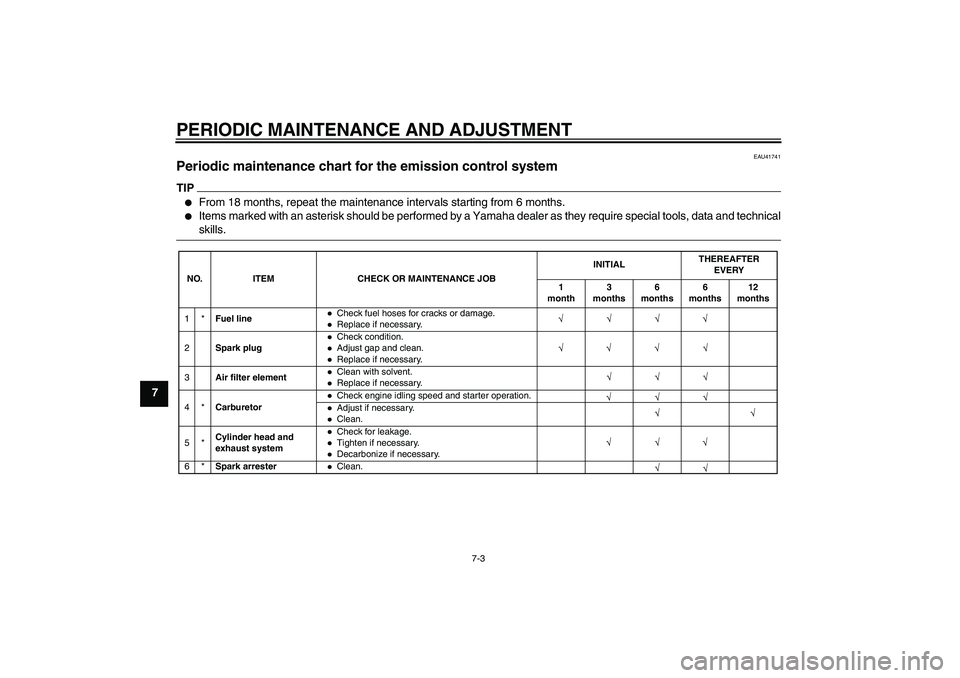

Periodic maintenance chart for the emission control system TIP

From 18 months, repeat the maintenance intervals starting from 6 months.


Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technical
skills.
NO. ITEM CHECK OR MAINTENANCE JOBINITIALTHEREAFTER
EVERY
1
month3
months6
months6
months12
months
1*Fuel line
Check fuel hoses for cracks or damage.Replace if necessary.
2Spark plugCheck condition.Adjust gap and clean.Replace if necessary.
3Air filter elementClean with solvent.Replace if necessary.
4*CarburetorCheck engine idling speed and starter operation.Adjust if necessary.Clean.
5*Cylinder head and
exhaust systemCheck for leakage.Tighten if necessary.Decarbonize if necessary.
6*Spark arresterClean.
U5PG8AE0.book Page 3 Thursday, April 8, 2010 8:37 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
7-4
7
EAU41755

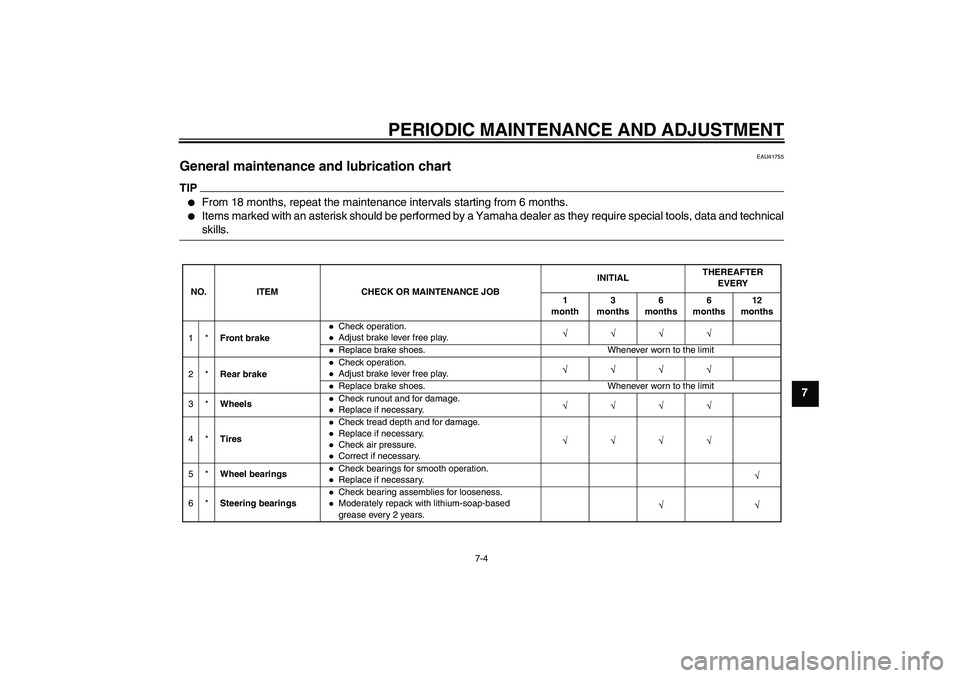

General maintenance and lubrication chart TIP

From 18 months, repeat the maintenance intervals starting from 6 months.


Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technical
skills.NO. ITEM CHECK OR MAINTENANCE JOBINITIALTHEREAFTER
EVERY
1
month3
months6
months6
months12
months
1*Front brake
Check operation.Adjust brake lever free play.Replace brake shoes. Whenever worn to the limit
2*Rear brakeCheck operation.Adjust brake lever free play.Replace brake shoes. Whenever worn to the limit
3*WheelsCheck runout and for damage.Replace if necessary.
4*TiresCheck tread depth and for damage.Replace if necessary.Check air pressure.Correct if necessary.
5*Wheel bearingsCheck bearings for smooth operation.Replace if necessary.
6*Steering bearingsCheck bearing assemblies for looseness.Moderately repack with lithium-soap-based
grease every 2 years.
U5PG8AE0.book Page 4 Thursday, April 8, 2010 8:37 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
7-5
7

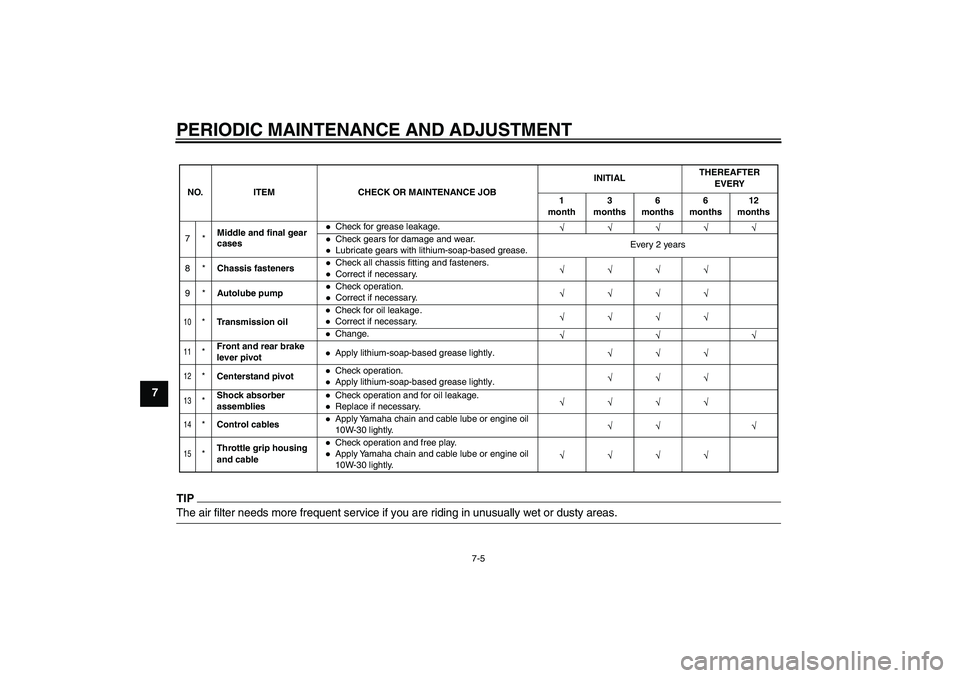

TIPThe air filter needs more frequent service if you are riding in unusually wet or dusty areas.10
*Transmission oil
Check for oil leakage .Correct if necessary.Change.
11
*Front and rear brake
lever pivot
Apply lithium-soap-based grease lightly.
12
*
Centerstand pivot
Check operation.Apply lithium-soap-based grease lightly.
13
*Shock absorber
assemblies
Check operation and for oil leakage.Replace if necessary.
14
*Control cables
Apply Yamaha chain and cable lube or engine oil
10W-30 lightly.
15
*Throttle grip housing
and cable
Check operation and free play.Apply Yamaha chain and cable lube or engine oil
10W-30 lightly. NO. ITEM CHECK OR MAINTENANCE JOBINITIALTHEREAFTER
EVERY
1
month3
months6
months6
months12
months
7*Check for grease leakage.Check gears for damage and wear.Lubricate gears with lithium-soap-based grease.Every 2 years
8*Chassis fastenersCorrect if necessary.
A 9*utolube pumpCheck operation.Correct if necessary. Middle and final gear
cases
Check all chassis fitting and fasteners.
U5PG8AE0.book Page 5 Thursday, April 8, 2010 8:37 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
7-6
7
EAU19604

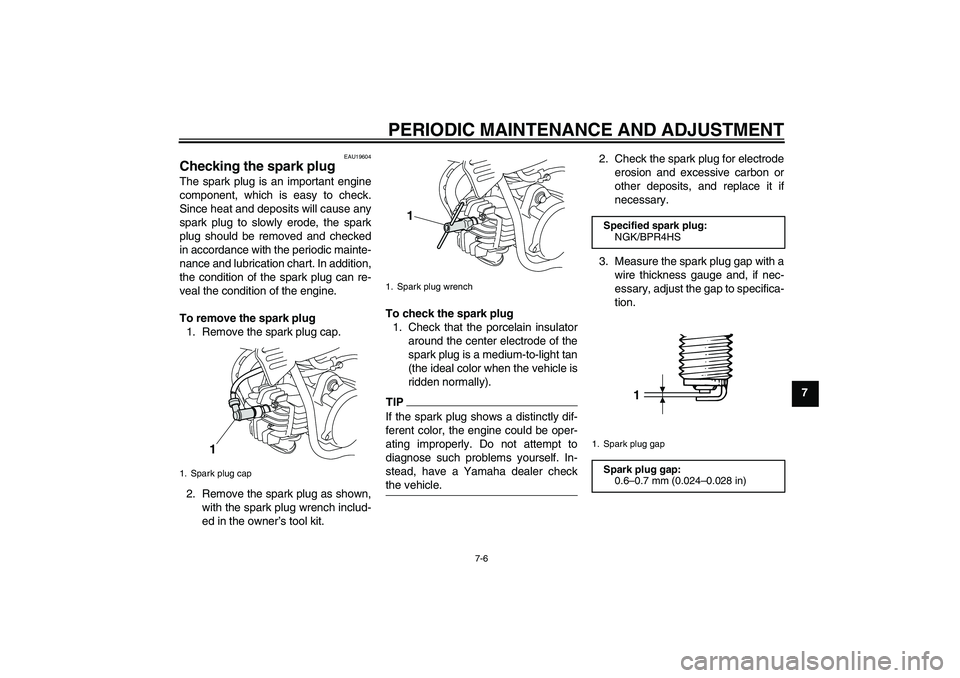

Checking the spark plug The spark plug is an important engine
component, which is easy to check.
Since heat and deposits will cause any
spark plug to slowly erode, the spark
plug should be removed and checked
in accordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plug can re-
veal the condition of the engine.
To remove the spark plug
1. Remove the spark plug cap.
2. Remove the spark plug as shown,
with the spark plug wrench includ-
ed in the owner’s tool kit.To check the spark plug
1. Check that the porcelain insulator
around the center electrode of the
spark plug is a medium-to-light tan
(the ideal color when the vehicle is
ridden normally).
TIPIf the spark plug shows a distinctly dif-
ferent color, the engine could be oper-
ating improperly. Do not attempt to
diagnose such problems yourself. In-
stead, have a Yamaha dealer check
the vehicle.
2. Check the spark plug for electrode
erosion and excessive carbon or
other deposits, and replace it if
necessary.
3. Measure the spark plug gap with a
wire thickness gauge and, if nec-
essary, adjust the gap to specifica-
tion.
1. Spark plug cap
1
1. Spark plug wrench
1
Specified spark plug:
NGK/BPR4HS
1. Spark plug gap
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
1
U5PG8AE0.book Page 6 Thursday, April 8, 2010 8:37 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
7-7

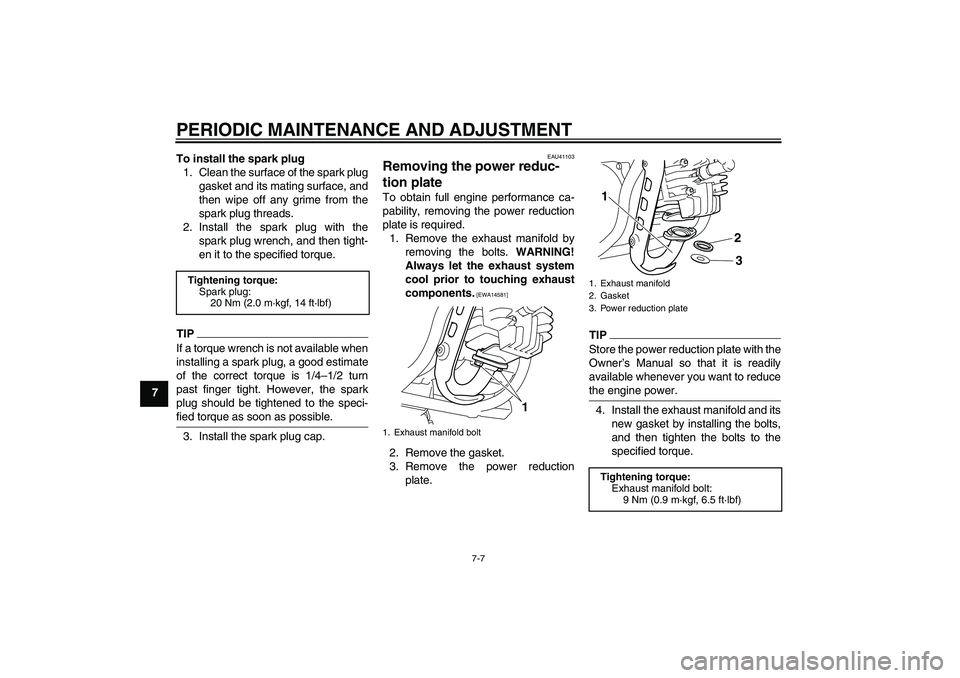

7To install the spark plug
1. Clean the surface of the spark plug
gasket and its mating surface, and
then wipe off any grime from the
spark plug threads.
2. Install the spark plug with the
spark plug wrench, and then tight-
en it to the specified torque.
TIPIf a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-
fied torque as soon as possible.3. Install the spark plug cap.
EAU41103
Removing the power reduc-
tion plate To obtain full engine performance ca-
pability, removing the power reduction
plate is required.
1. Remove the exhaust manifold by
removing the bolts. WARNING!
Always let the exhaust system
cool prior to touching exhaust
components.
[EWA14581]
2. Remove the gasket.
3. Remove the power reduction
plate.
TIPStore the power reduction plate with the
Owner’s Manual so that it is readily
available whenever you want to reduce
the engine power.4. Install the exhaust manifold and its
new gasket by installing the bolts,
and then tighten the bolts to the
specified torque.
Tightening torque:
Spark plug:
20 Nm (2.0 m·kgf, 14 ft·lbf)
1. Exhaust manifold bolt
1
1. Exhaust manifold
2. Gasket
3. Power reduction plateTightening torque:
Exhaust manifold bolt:
9 Nm (0.9 m·kgf, 6.5 ft·lbf)1
23
U5PG8AE0.book Page 7 Thursday, April 8, 2010 8:37 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
7-8
7
EAU40893

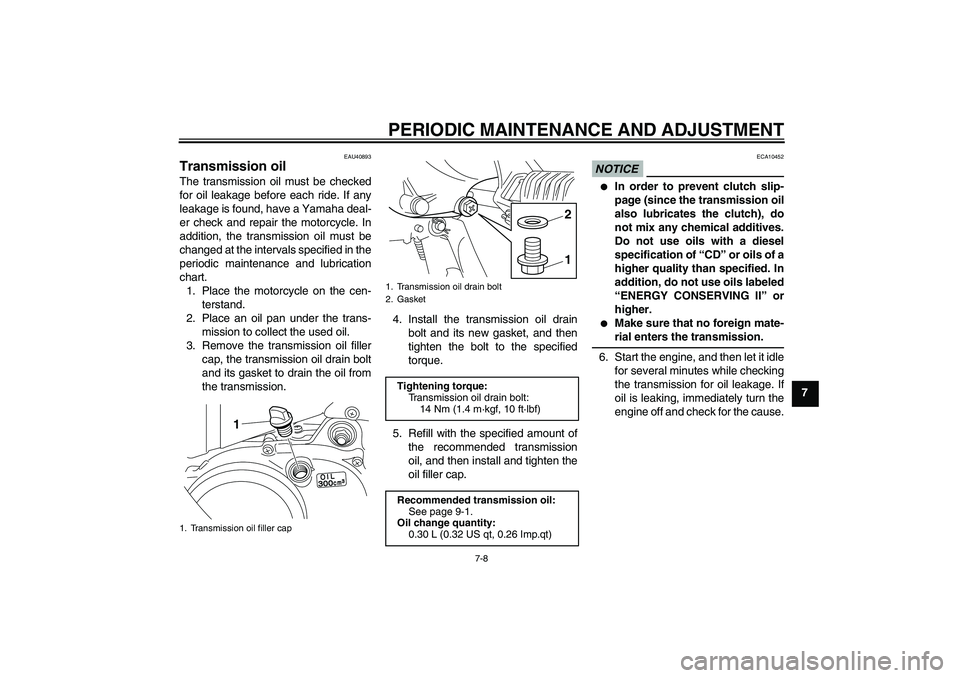

Transmission oil The transmission oil must be checked
for oil leakage before each ride. If any
leakage is found, have a Yamaha deal-
er check and repair the motorcycle. In
addition, the transmission oil must be
changed at the intervals specified in the
periodic maintenance and lubrication
chart.
1. Place the motorcycle on the cen-
terstand.
2. Place an oil pan under the trans-
mission to collect the used oil.
3. Remove the transmission oil filler
cap, the transmission oil drain bolt
and its gasket to drain the oil from
the transmission.4. Install the transmission oil drain
bolt and its new gasket, and then
tighten the bolt to the specified
torque.
5. Refill with the specified amount of
the recommended transmission
oil, and then install and tighten the
oil filler cap.
NOTICE
ECA10452


In order to prevent clutch slip-
page (since the transmission oil
also lubricates the clutch), do
not mix any chemical additives.
Do not use oils with a diesel
specification of “CD” or oils of a
higher quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.


Make sure that no foreign mate-
rial enters the transmission.
6. Start the engine, and then let it idle
for several minutes while checking
the transmission for oil leakage. If
oil is leaking, immediately turn the
engine off and check for the cause.
1. Transmission oil filler cap
1
1. Transmission oil drain bolt
2. Gasket
Tightening torque:
Transmission oil drain bolt:
14 Nm (1.4 m·kgf, 10 ft·lbf)
Recommended transmission oil:
See page 9-1.
Oil change quantity:
0.30 L (0.32 US qt, 0.26 Imp.qt)
12
U5PG8AE0.book Page 8 Thursday, April 8, 2010 8:37 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
7-9
7
EAU41711

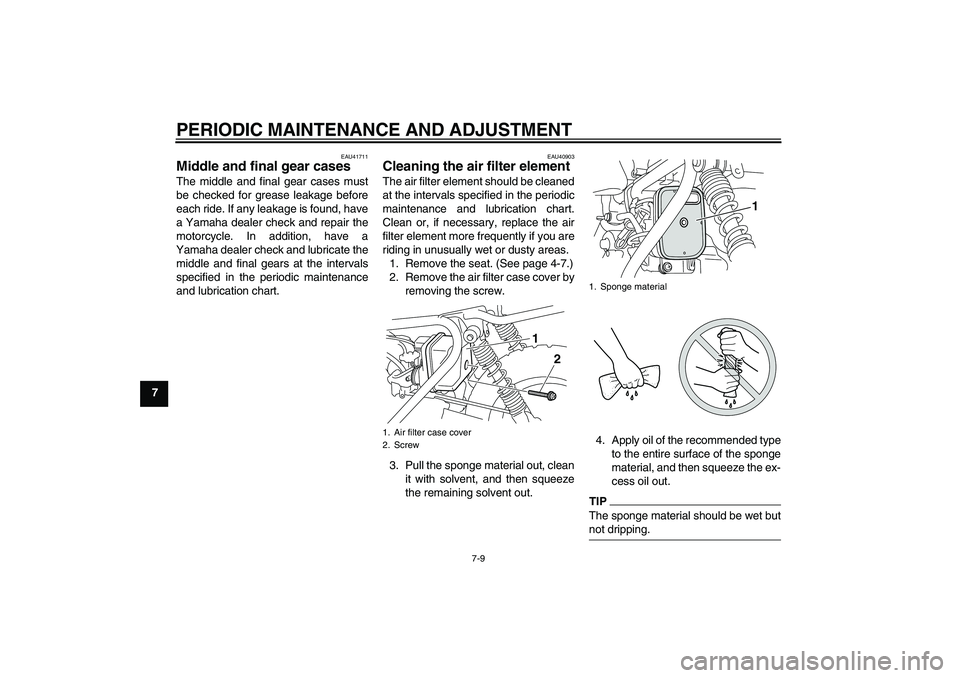

Middle and final gear cases The middle and final gear cases must
be checked for grease leakage before
each ride. If any leakage is found, have
a Yamaha dealer check and repair the
motorcycle. In addition, have a
Yamaha dealer check and lubricate the
middle and final gears at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU40903
Cleaning the air filter element The air filter element should be cleaned
at the intervals specified in the periodic
maintenance and lubrication chart.
Clean or, if necessary, replace the air
filter element more frequently if you are
riding in unusually wet or dusty areas.
1. Remove the seat. (See page 4-7.)
2. Remove the air filter case cover by
removing the screw.
3. Pull the sponge material out, clean
it with solvent, and then squeeze
the remaining solvent out.4. Apply oil of the recommended type
to the entire surface of the sponge
material, and then squeeze the ex-
cess oil out.
TIPThe sponge material should be wet but
not dripping.
1. Air filter case cover
2. Screw
2 1
1. Sponge material
1
U5PG8AE0.book Page 9 Thursday, April 8, 2010 8:37 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
7-10

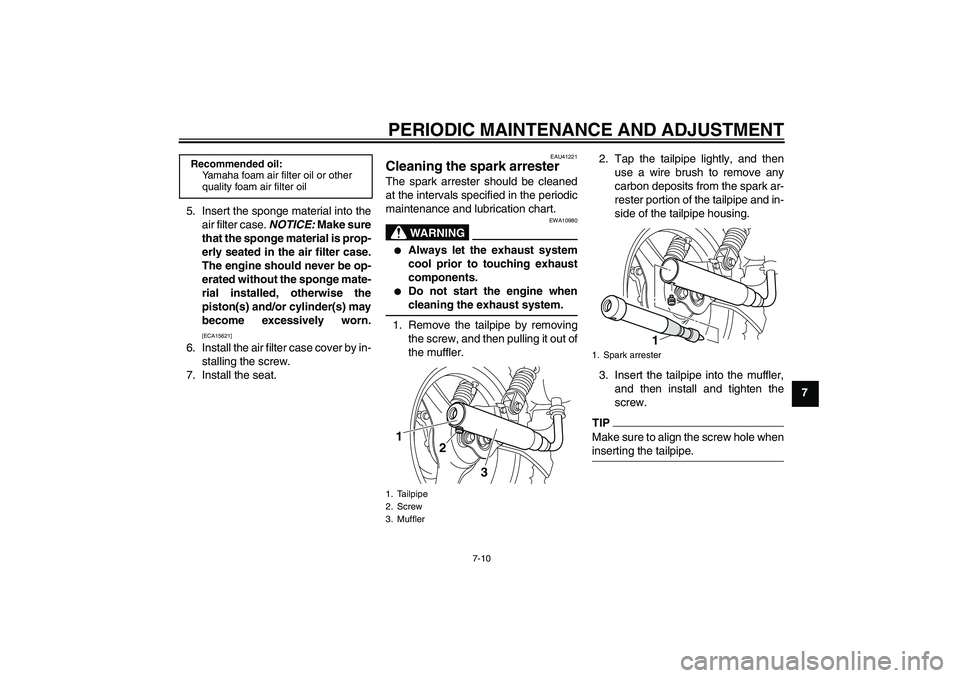

7 5. Insert the sponge material into the
air filter case. NOTICE: Make sure
that the sponge material is prop-
erly seated in the air filter case.
The engine should never be op-
erated without the sponge mate-
rial installed, otherwise the
piston(s) and/or cylinder(s) may
become excessively worn.
[ECA15621]
6. Install the air filter case cover by in-
stalling the screw.
7. Install the seat.
EAU41221
Cleaning the spark arrester The spark arrester should be cleaned
at the intervals specified in the periodic
maintenance and lubrication chart.
WARNING
EWA10980


Always let the exhaust system
cool prior to touching exhaust
components.


Do not start the engine when
cleaning the exhaust system.
1. Remove the tailpipe by removing
the screw, and then pulling it out of
the muffler.2. Tap the tailpipe lightly, and then
use a wire brush to remove any
carbon deposits from the spark ar-
rester portion of the tailpipe and in-
side of the tailpipe housing.
3. Insert the tailpipe into the muffler,
and then install and tighten the
screw.
TIPMake sure to align the screw hole when
inserting the tailpipe.
Recommended oil:
Yamaha foam air filter oil or other
quality foam air filter oil
1. Tailpipe
2. Screw
3. Muffler1
2
3
1. Spark arrester
1
U5PG8AE0.book Page 10 Thursday, April 8, 2010 8:37 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
7-11
7
EAU39930

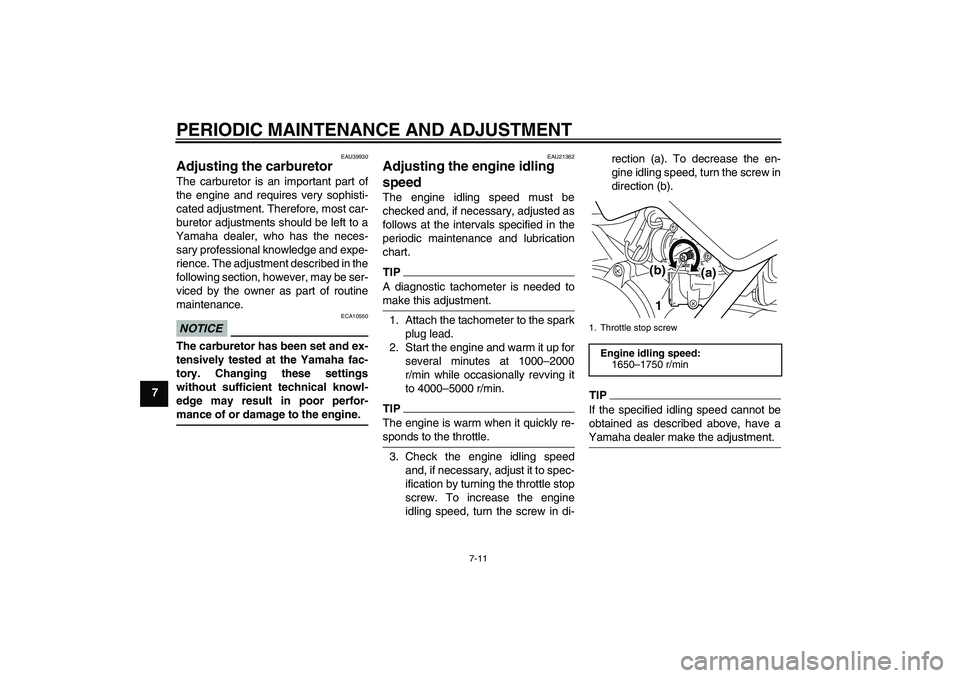

Adjusting the carburetor The carburetor is an important part of
the engine and requires very sophisti-
cated adjustment. Therefore, most car-
buretor adjustments should be left to a
Yamaha dealer, who has the neces-
sary professional knowledge and expe-
rience. The adjustment described in the
following section, however, may be ser-
viced by the owner as part of routine
maintenance.NOTICE
ECA10550
The carburetor has been set and ex-
tensively tested at the Yamaha fac-
tory. Changing these settings
without sufficient technical knowl-
edge may result in poor perfor-
mance of or damage to the engine.
EAU21362
Adjusting the engine idling
speed The engine idling speed must be
checked and, if necessary, adjusted as
follows at the intervals specified in the
periodic maintenance and lubrication
chart.TIPA diagnostic tachometer is needed to
make this adjustment.1. Attach the tachometer to the spark
plug lead.
2. Start the engine and warm it up for
several minutes at 1000–2000
r/min while occasionally revving it
to 4000–5000 r/min.TIPThe engine is warm when it quickly re-
sponds to the throttle.3. Check the engine idling speed
and, if necessary, adjust it to spec-
ification by turning the throttle stop
screw. To increase the engine
idling speed, turn the screw in di-rection (a). To decrease the en-
gine idling speed, turn the screw in
direction (b).
TIPIf the specified idling speed cannot be
obtained as described above, have a
Yamaha dealer make the adjustment.1. Throttle stop screwEngine idling speed:
1650–1750 r/min
1(a) (b)
U5PG8AE0.book Page 11 Thursday, April 8, 2010 8:37 AM
