SPECIFICATIONS
9-2
9
Secondary reduction ratio:6.218 (19/15 x 54/11)Chassis:Frame type:
Backbone
Caster angle: 25.50 °
Trail: 50 mm (2.0 in)Front tire:Type:With tube
Size: 2.50-10 4PR
Manufacturer/model:
PW50 (EUR)
BRIDGESTONE/KNOBBY PW50 (ZAF), PW50D, PW50D1
BRIDGESTONE/KNOBBY IRC/KNOBBY
Speed rating:
100 km/h (62 mph)Rear tire:Type:With tube
Size:
2.50-10 4PR
Manufacturer/model: PW50 (EUR)
BRIDGESTONE/KNOBBY PW50 (ZAF), PW50D, PW50D1
BRIDGESTONE/KNOBBY
IRC/KNOBBY Speed rating:
100 km/h (62 mph)
Loading:Maximum rider weight:
25.0 kg (55 lb)Tire air pressure (measured on cold
tires):
Front:100 kPa (1.00 kgf/cm², 15 psi)
Rear: 100 kPa (1.00 kgf/cm², 15 psi)
Front wheel:Wheel type:
Panel wheel
Rim size: 10x1.50Rear wheel:Wheel type:
Panel wheel
Rim size: 10x1.50Front brake:Type:
Drum brake
Operation: Right hand operationRear brake:Type:
Drum brake
Operation: Left hand operationFront suspension:Type:
Telescopic fork Spring/shock absorber type:
Coil spring/oil damper
Wheel travel: 60.0 mm (2.36 in)
Rear suspension:Type:Unit swing
Spring/shock absorber type: Coil spring/oil damper
Wheel travel:
50.0 mm (1.97 in)Electrical system:Ignition system:CDI
U5PG8BE0.book Page 2 Wednesday, June 27, 2012 2:53 PM

SPECIFICATIONS
9-3
9
EAU51131
For Europe only
The figures quoted are emission levels
and are not necessarily safe working
levels. Whilst there is a correlation be-
tween the emission and exposure lev-
els, this cannot be used reliably to
determine whether or not further pre-
cautions are required. Factors that in-
fluence the actual level of exposure of
work-force include the characteristics
of the work room, the other sources of
noise, etc. i.e. the number of machines
and other adjacent processes, and the
length of time for which an operator is
exposed to the noise. Also the permis-
sible exposure level can vary from
country. This information, however, will
enable the user of the machine to make
a better evaluation of the hazard and
risk.U5PG8BE0.book Page 3 Wednesday, June 27, 2012 2:53 PM

CONSUMER INFORMATION
10-1
10
EAU40792
Identification numbers Record the vehicle identification num-
ber and model label information in the
spaces provided below for assistance
when ordering spare parts from a
Yamaha dealer or for reference in case the vehicle is stolen.
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26400
Vehicle identification number

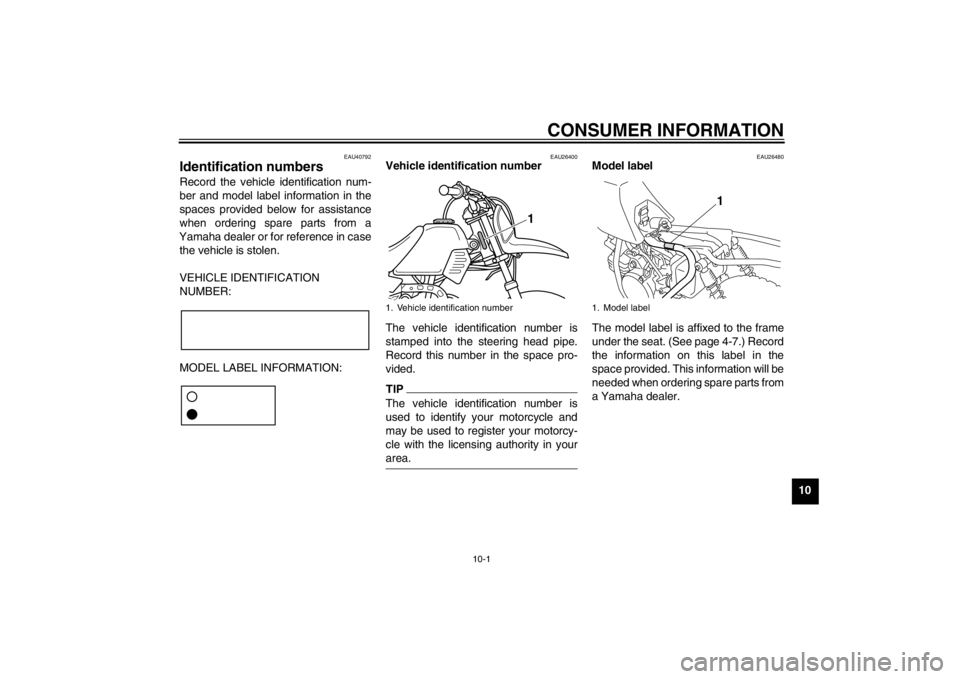

The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
EAU26480
Model label
The model label is affixed to the frame
under the seat. (See page 4-7.) Record
the information on this label in the
space provided. This information will be
needed when ordering spare parts from
a Yamaha dealer.
1. Vehicle identification number
1
1. Model label
1
U5PG8BE0.book Page 1 Wednesday, June 27, 2012 2:53 PM

CONSUMER INFORMATION
10-2
10

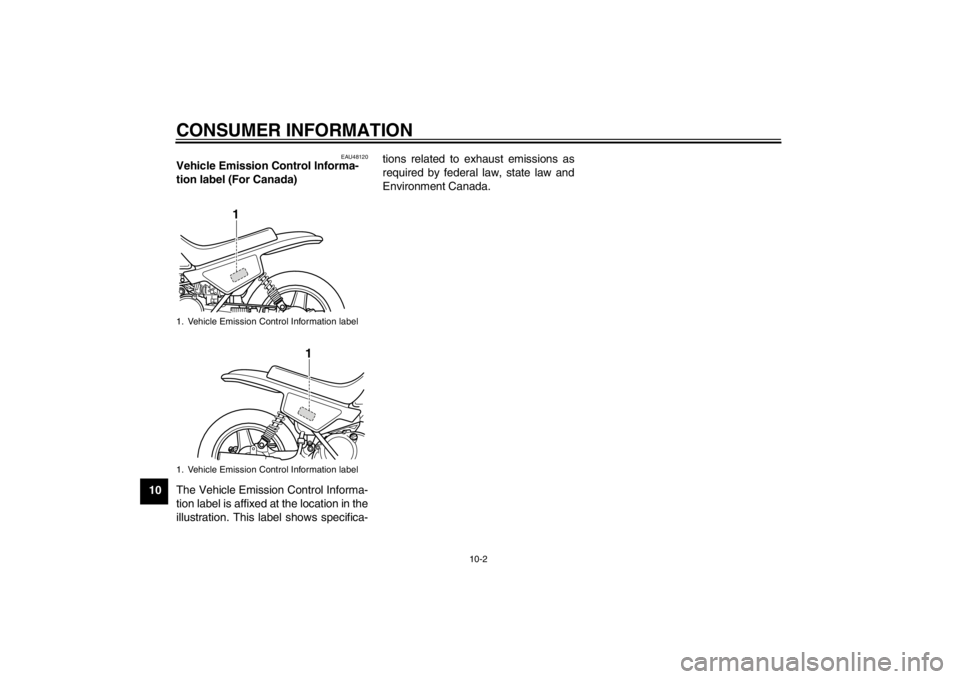

EAU48120
Vehicle Emission Control Informa-
tion label (For Canada)
The Vehicle Emission Control Informa-
tion label is affixed at the location in the
illustration. This label shows specifica-tions related to exhaust emissions as
required by federal law, state law and
Environment Canada.1. Vehicle Emission Control Information label
1. Vehicle Emission Control Information label
1
1
U5PG8BE0.book Page 2 Wednesday, June 27, 2012 2:53 PM

INDEX
AAcceleration and deceleration ................ 6-2
Air filter element, cleaning ...................... 7-9
Autolube pump, adjusting ..................... 7-16BBrake lever, front .................................... 4-2
Brake lever, rear ..................................... 4-3
Brake levers, lubricating ....................... 7-17
Brake shoes, checking ......................... 7-15
Braking ................................................... 6-2CCable lock (for Europe)........................... 4-8
Cables, checking and lubricating .......... 7-16
Carburetor, adjusting ............................ 7-11
Care ........................................................ 8-1
Centerstand, checking and lubricating ..................... 7-17EEngine break-in ...................................... 6-3
Engine idling speed .............................. 7-11
Engine oil ................................................ 4-6
Engine, starting a warm .......................... 6-1
Engine stop switch.................................. 4-1FFront and rear brake lever free play, adjusting ............................................. 7-14
Front fork, checking .............................. 7-17
Fuel......................................................... 4-3
Fuel cock ................................................ 4-6
Fuel tank breather hose.......................... 4-5
Fuel tank cap .......................................... 4-3HHandlebar switch .................................... 4-1
IIdentification numbers ........................... 10-1KKickstarter ............................................... 4-7LLabels, location .......................................1-1MMaintenance and lubrication, periodic..... 7-4
Maintenance, emission control system ... 7-3
Matte color, caution .................................8-1
Middle and final gear cases .................... 7-9
Model label ............................................ 10-1PParking ....................................................6-4
Part locations .......................................... 3-1
Power reduction plate, removing............. 7-7SSafety information ...................................2-1
Seat ......................................................... 4-7
Spark arrester, cleaning ........................ 7-10
Spark plug, checking ...............................7-6
Specifications .......................................... 9-1
Speed limiter and
power reduction plate............................ 4-1
Starter (choke) lever................................ 4-7
Starting and warming up a cold engine ... 6-1
Starting off ............................................... 6-2
Steering, checking.................................7-18
Storage....................................................8-3TThrottle grip and cable,
checking and lubricating ..................... 7-16
Throttle grip free play, checking ............7-12
Tires ......................................................7-12 Tool kit .................................................... 7-2
Transmission oil ...................................... 7-8
Troubleshooting .................................... 7-23
Troubleshooting chart ........................... 7-24
VVehicle Emission Control Information
label (For Canada).............................. 10-2
Vehicle identification number ................ 10-1WWheel bearings, checking..................... 7-18
Wheel (front) ......................................... 7-19
Wheel (rear) .......................................... 7-20
Wheels .................................................. 7-14
U5PG8BE0.book Page 1 Wednesday, June 27, 2012 2:53 PM
