OPERATION AND IMPORTANT RIDING POINTS
6-4
6
EAU40723
ParkingWhen parking, stop the engine, and
then turn the fuel cock lever to “S”
(stop).
WARNING
EWA10312
Since the en gine an d exhaust
system can b ecome very hot,
park in a place where pe destri-
ans or chil dren are not likely to
touch them an d b e burne d.
 Do not park on a slope or on soft
groun d, otherwise the vehicle
may overturn, increasin g the
risk of a fuel leak an d fire.
 Do not park near grass or other
flamma ble materials which
mi ght catch fire.
U2SA81E0.book Page 4 Monday, June 2, 2014 2:00 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
7-1
7
EAU17245
Periodic inspection, adjustment, and
lubrication will keep your vehicle in the
safest and most efficient condition
possible. Safety is an obligation of the
vehicle owner/operator. The most im-
portant points of vehicle inspection,
adjustment, and lubrication are ex-
plained on the following pages.
The intervals given in the periodic
maintenance charts should be simply
considered as a general guide under
normal riding conditions. However, de-
pending on the weather, terrain, geo-
graphical location, and individual use,
the maintenance intervals may need to
be shortened.
WARNING
EWA10322
Failure to properly maintain the vehi-
cle or performing maintenance ac-
tivities incorrectly may increase
your risk of injury or death durin g
service or while usin g the vehicle. If
you are not familiar with vehicle ser-
vice, have a Yamaha d ealer perform
service.
WARNING
EWA15123
Turn off the en gine when performin g
maintenance unless otherwise
specified .
 A runnin g en gine has movin g
parts that can catch on body
parts or clothin g an d electrical
parts that can cause shocks or
fires.
 Runnin g the en gine while ser-
vicin g can lead to eye injury,
b urns, fire, or car bon monoxi de
poisonin g – possi bly lea din g to
d eath. See pag e 2-2 for more in-
formation a bout car bon monox-
i d e.
WARNING
EWA15461
Brake discs, calipers, drums, and
linin gs can b ecome very hot d uring
use. To avoi d possi ble burns, let
b rake components cool before
touchin g them.
EAU17303
Emission controls not only function to
ensure cleaner air, but are also vital to
proper engine operation and maximum
performance. In the following periodic
maintenance charts, the services relat-
ed to emissions control are grouped
separately. These services require
specialized data, knowledge, and
equipment. Maintenance, replace-
ment, or repair of the emission control
devices and systems may be per-
formed by any repair establishment or
individual that is certified (if applicable).
Yamaha dealers are trained and equipped to perform these particular
services.
U2SA81E0.book Page 1 Monday, June 2, 2014 2:00 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
7-2
7
EAU17312
Owner’s tool kitThe service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs. How-
ever, additional tools such as a torque
wrench may be necessary to perform
certain maintenance work correctly.TIPIf you do not have the tools or experi-
ence required for a particular job, have
a Yamaha dealer perform it for you.
U2SA81E0.book Page 2 Monday, June 2, 2014 2:00 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
7-3
7
EAU41743
Periodic maintenance chart for the emission control systemTIPItems marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technical
skills.NO. ITEM CHECK OR MAINTENANCE JOB INITIAL
THEREAFTER
EVERY
1
month 3
months 6
months 6
months 12
months
1* Fuel line
Check fuel hoses for cracks or damage.Replace if necessary.
2 Spark plugCheck condition.Adjust gap and clean.Replace if necessary.
3 Air filter elementClean with solvent.Replace if necessary.
4* CarburetorCheck engine idling speed and starter operation.Adjust if necessary.Clean.
5* Cylinder head and
exhaust systemCheck for leakage.Tighten if necessary.Decarbonize if necessary.
6* Spark arresterClean.
U2SA81E0.book Page 3 Monday, June 2, 2014 2:00 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
7-4
7
EAU4175B
General maintenance and lu brication chartTIPItems marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technical
skills.NO. ITEM CHECK OR MAINTENANCE JOB INITIAL
THEREAFTER
EVERY
1
month 3
months 6
months 6
months 12
months
1* Front brake
Check operation.Adjust brake lever free play.Replace brake shoes. Whenever worn to the limit
2* Rear brakeCheck operation.Adjust brake lever free play.Replace brake shoes. Whenever worn to the limit
3* WheelsCheck runout and for damage.Replace if necessary.
4* TiresCheck tread depth and for damage.Replace if necessary.Check air pressure.Correct if necessary.
5* Wheel bearingsCheck bearings for smooth operation.Replace if necessary.
7*Check for grease leakage.Check gears for damage and wear.Lubricate gears with lithium-soap-based grease. Every 2 years
Middle and final gear
casesCheck bearing assemblies for looseness.Moderately repack with lithium-soap-based
grease.
Every 2 years
6*
Steering bearings
U2SA81E0.book Page 4 Monday, June 2, 2014 2:00 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
7-5
7
TIPThe air filter needs more frequent service if you are riding in unusually wet or dusty areas.10

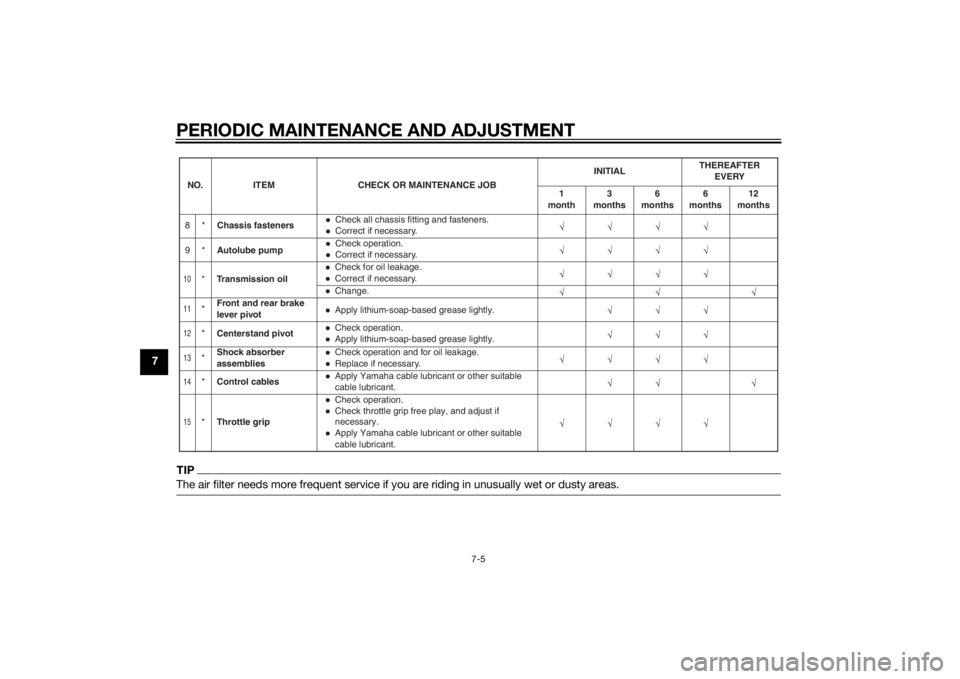

*Transmission oil
Check for oil leakage .Correct if necessary.Change.
11
*Front and rear brake
lever pivot
Apply lithium-soap-based grease lightly.
12
*
Centerstand pivot
Check operation.Apply lithium-soap-based grease lightly.
13
*Shock absorber
assemblies
Check operation and for oil leakage.Replace if necessary.
14
*
Control cables
Apply Yamaha cable lubricant or other suitable
cable lubricant.
15
*Throttle grip
Check operation.Check throttle grip free play, and adjust if
necessary.Apply Yamaha cable lubricant or other suitable
cable lubricant.
NO. ITEM CHECK OR MAINTENANCE JOB
INITIAL
THEREAFTER
EVERY
1
month 3
months 6
months 6
months 12
months
8* Chassis fastenersCorrect if necessary.
A
9* utolube pumpCheck operation.Correct if necessary. Check all chassis fitting and fasteners.
U2SA81E0.book Page 5 Monday, June 2, 2014 2:00 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
7-6
7
EAU19605

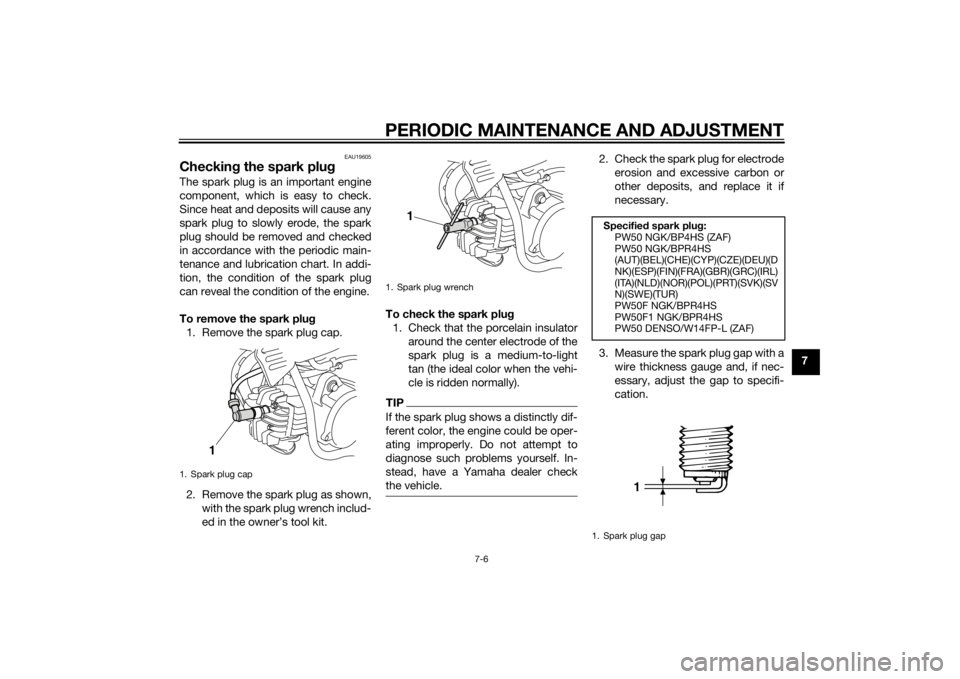

Checking the spark plugThe spark plug is an important engine
component, which is easy to check.
Since heat and deposits will cause any
spark plug to slowly erode, the spark
plug should be removed and checked
in accordance with the periodic main-
tenance and lubrication chart. In addi-
tion, the condition of the spark plug
can reveal the condition of the engine.
To remove the spark plu g
1. Remove the spark plug cap.
2. Remove the spark plug as shown, with the spark plug wrench includ-
ed in the owner’s tool kit. To check the spark plu
g
1. Check that the porcelain insulator around the center electrode of the
spark plug is a medium-to-light
tan (the ideal color when the vehi-
cle is ridden normally).
TIPIf the spark plug shows a distinctly dif-
ferent color, the engine could be oper-
ating improperly. Do not attempt to
diagnose such problems yourself. In-
stead, have a Yamaha dealer check
the vehicle.
2. Check the spark plug for electrodeerosion and excessive carbon or
other deposits, and replace it if
necessary.
3. Measure the spark plug gap with a wire thickness gauge and, if nec-
essary, adjust the gap to specifi-
cation.
1. Spark plug cap
1
1. Spark plug wrench
1
Specified spark plu g:
PW50 NGK/BP4HS (ZAF)
PW50 NGK/BPR4HS
(AUT)(BEL)(CHE)(CYP)(CZE)(DEU)(D
NK)(ESP)(FIN)(FRA)(GBR)(GRC)(IRL)
(ITA)(NLD)(NOR)(POL)(PRT)(SVK)(SV
N)(SWE)(TUR)
PW50F NGK/BPR4HS
PW50F1 NGK/BPR4HS
PW50 DENSO/W14FP-L (ZAF)
1. Spark plug gap
1
U2SA81E0.book Page 6 Monday, June 2, 2014 2:00 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
7-7
7To install the spark plu
g
1. Clean the surface of the spark plug gasket and its mating surfa-
ce, and then wipe off any grime
from the spark plug threads.
2. Install the spark plug with the spark plug wrench, and then tight-
en it to the specified torque.
TIPIf a torque wrench is not available
when installing a spark plug, a good
estimate of the correct torque is 1/4–
1/2 turn past finger tight. However, the
spark plug should be tightened to the
specified torque as soon as possible.3. Install the spark plug cap.
EAU41104

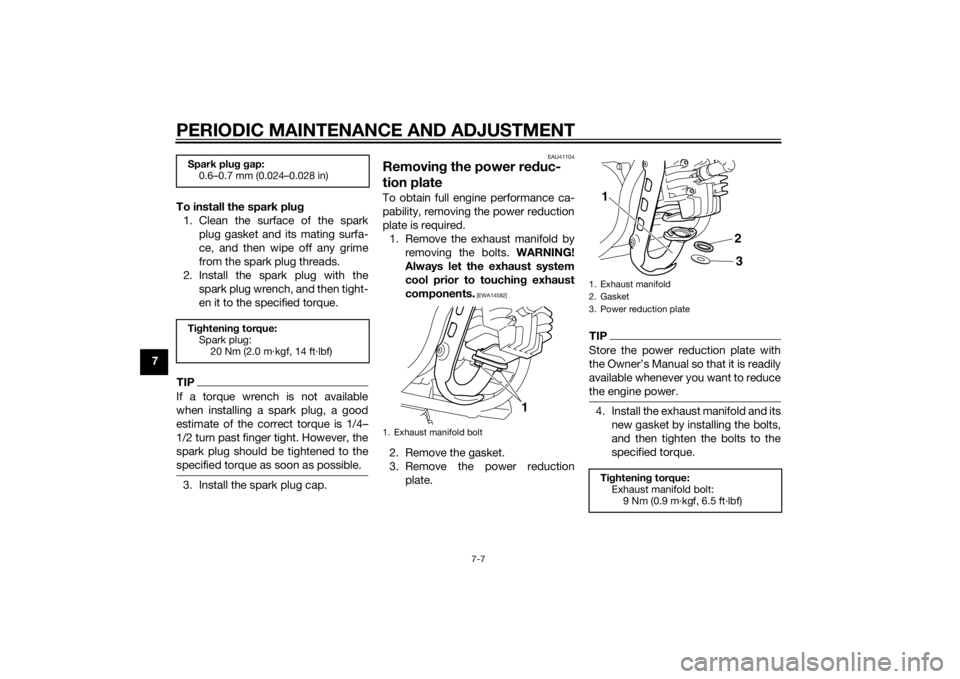

Removin g the power re duc-
tion plateTo obtain full engine performance ca-
pability, removing the power reduction
plate is required.
1. Remove the exhaust manifold by removing the bolts. WARNING!
Always let the exhaust system
cool prior to touching exhaust
components.
[EWA14582]
2. Remove the gasket.
3. Remove the power reduction plate.
TIPStore the power reduction plate with
the Owner’s Manual so that it is readily
available whenever you want to reduce
the engine power.4. Install the exhaust manifold and itsnew gasket by installing the bolts,
and then tighten the bolts to the
specified torque.
Spark plu g g ap:
0.6–0.7 mm (0.024–0.028 in)
Ti ghtenin g torque:
Spark plug: 20 Nm (2.0 m·kgf, 14 ft·lbf)
1. Exhaust manifold bolt
1
1. Exhaust manifold
2. Gasket
3. Power reduction plateTightenin g torque:
Exhaust manifold bolt: 9 Nm (0.9 m·kgf, 6.5 ft·lbf)1
23
U2SA81E0.book Page 7 Monday, June 2, 2014 2:00 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
7-8
7
EAU40894

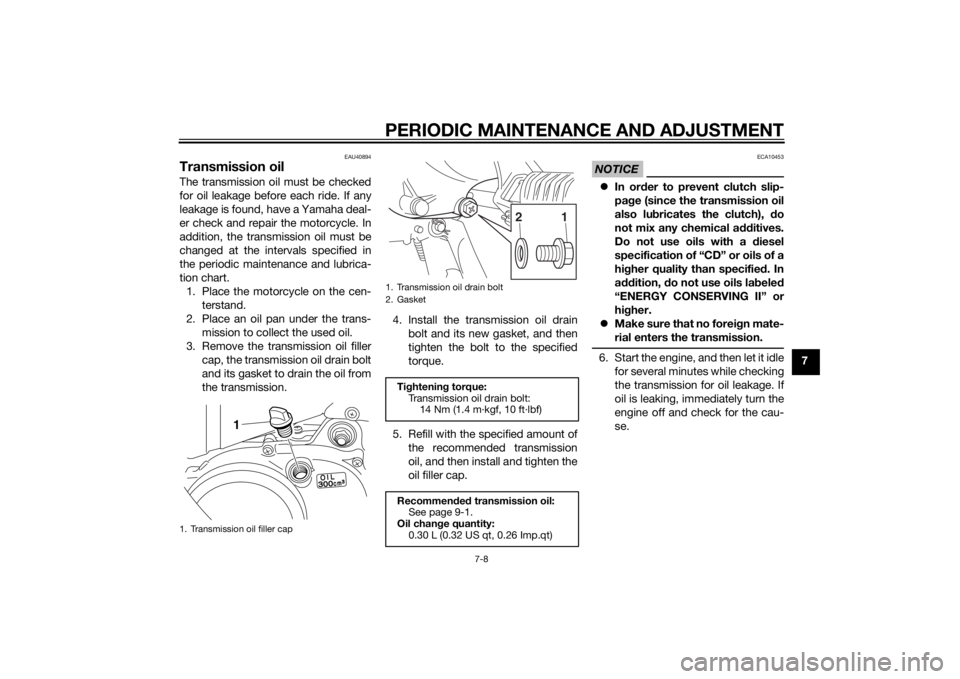

Transmission oilThe transmission oil must be checked
for oil leakage before each ride. If any
leakage is found, have a Yamaha deal-
er check and repair the motorcycle. In
addition, the transmission oil must be
changed at the intervals specified in
the periodic maintenance and lubrica-
tion chart.1. Place the motorcycle on the cen- terstand.
2. Place an oil pan under the trans- mission to collect the used oil.
3. Remove the transmission oil filler cap, the transmission oil drain bolt
and its gasket to drain the oil from
the transmission. 4. Install the transmission oil drain
bolt and its new gasket, and then
tighten the bolt to the specified
torque.
5. Refill with the specified amount of the recommended transmission
oil, and then install and tighten the
oil filler cap.
NOTICE
ECA10453
In or der to prevent clutch slip-
pa ge (since the transmission oil
also lu bricates the clutch), do
not mix any chemical additives.
Do not use oils with a diesel
specification of “CD” or oils of a
hi gher quality than specifie d. In
a dd ition, do not use oils la bele d
“ENERGY CONSERVING II” or
hi gher.
 Make sure that no forei gn mate-
rial enters the transmission.6. Start the engine, and then let it idle for several minutes while checking
the transmission for oil leakage. If
oil is leaking, immediately turn the
engine off and check for the cau-
se.
1. Transmission oil filler cap
1
1. Transmission oil drain bolt
2. Gasket
Tightenin g torque:
Transmission oil drain bolt: 14 Nm (1.4 m·kgf, 10 ft·lbf)
Recommen ded transmission oil:
See page 9-1.
Oil chan ge quantity:
0.30 L (0.32 US qt, 0.26 Imp.qt)
1
2
U2SA81E0.book Page 8 Monday, June 2, 2014 2:00 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
7-9
7
EAU41712

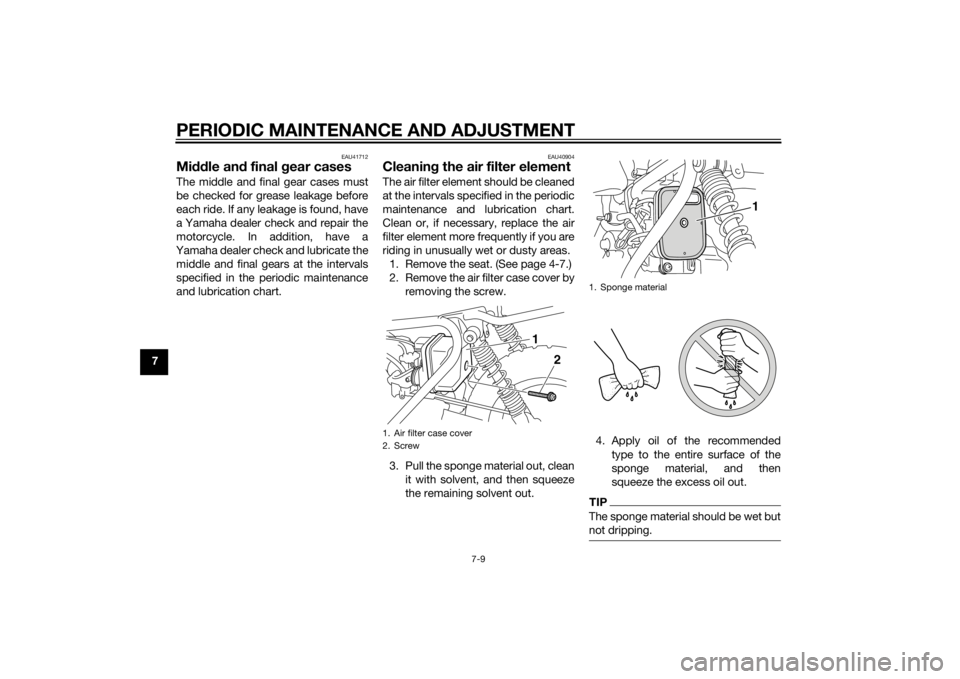

Middle an d final g ear casesThe middle and final gear cases must
be checked for grease leakage before
each ride. If any leakage is found, have
a Yamaha dealer check and repair the
motorcycle. In addition, have a
Yamaha dealer check and lubricate the middle and final gears at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU40904
Cleanin g the air filter elementThe air filter element should be cleaned
at the intervals specified in the periodic
maintenance and lubrication chart.
Clean or, if necessary, replace the air
filter element more frequently if you are
riding in unusually wet or dusty areas.
1. Remove the seat. (See page 4-7.)
2. Remove the air filter case cover by removing the screw.
3. Pull the sponge material out, clean it with solvent, and then squeeze
the remaining solvent out. 4. Apply oil of the recommended
type to the entire surface of the
sponge material, and then
squeeze the excess oil out.
TIPThe sponge material should be wet but
not dripping.
1. Air filter case cover
2. Screw
2
1
1. Sponge material
1
U2SA81E0.book Page 9 Monday, June 2, 2014 2:00 PM
