SPECIFICATIONS
9-2
9
Chassis:Frame type:Backbone
Caster angle:
25.50 °
Trail: 50 mm (2.0 in)Front tire:Type:
With tube
Size: 2.50-10 4PR
Manufacturer/model: BRIDGESTONE/M29
Manufacturer/model:
PW50 IRC/Z MARK II (ZAF)
PW50F IRC/Z MARK II
PW50F1 IRC/Z MARK II
Speed rating: 100 km/h (62 mph)Rear tire:Type:With tube
Size: 2.50-10 4PR
Manufacturer/model:
BRIDGESTONE/M29
Manufacturer/model: PW50 IRC/Z MARK II (ZAF)
PW50F IRC/Z MARK II
PW50F1 IRC/Z MARK II
Speed rating:
100 km/h (62 mph)
Loa din g:Maximum rider weight:
25.0 kg (55 lb)Tire air pressure (measure d on col d
tires):
Front:
100 kPa (1.00 kgf/cm², 15 psi)
Rear:
100 kPa (1.00 kgf/cm², 15 psi)
Front wheel:Wheel type:Panel wheel
Rim size:
10x1.50Rear wheel:Wheel type:Panel wheel
Rim size:
10x1.50Front brake:Type:
Drum brake
Operation:
Right hand operationRear brake:Type:
Drum brake
Operation:
Left hand operationFront suspension:Type:Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper Wheel travel:
60 mm (2.4 in)
Rear suspension:Type:
Unit swing
Spring/shock absorber type: Coil spring/oil damper
Wheel travel: 50 mm (2.0 in)Electrical system:Ignition system:CDI
U2SA81E0.book Page 2 Monday, June 2, 2014 2:00 PM

SPECIFICATIONS
9-3
9
EAU51132
For Europe only
The figures quoted are emission levels
and are not necessarily safe working
levels. Whilst there is a correlation be-
tween the emission and exposure lev-
els, this cannot be used reliably to
determine whether or not further pre-
cautions are required. Factors that in-
fluence the actual level of exposure of
work-force include the characteristics
of the work room, the other sources of
noise, etc. i.e. the number of machines
and other adjacent processes, and the
length of time for which an operator is
exposed to the noise. Also the permis-
sible exposure level can vary from
country. This information, however, will
enable the user of the machine to make
a better evaluation of the hazard and
risk.U2SA81E0.book Page 3 Monday, June 2, 2014 2:00 PM

CONSUMER INFORMATION
10-1
10
EAU53562
Id entification num bersRecord the vehicle identification num-
ber, engine serial number, and the
model label information in the spaces
provided below. These identification
numbers are needed when registering
the vehicle with the authorities in your
area and when ordering spare parts
from a Yamaha dealer.
VEHICLE IDENTIFICATION NUMBER:
ENGINE SERIAL NUMBER:
MODEL LABEL INFORMATION:
EAU26401
Vehicle i dentification num ber
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
EAU26441
En gine serial num ber
The engine serial number is stamped
into the crankcase.
EAU26481
Mo del la bel
1. Vehicle identification number
1
1. Engine serial number
1. Model label
1
1
U2SA81E0.book Page 1 Monday, June 2, 2014 2:00 PM

CONSUMER INFORMATION
10-2
10The model label is affixed to the frame
under the seat. (See page 4-7.) Record
the information on this label in the
space provided. This information will
be needed when ordering spare parts
from a Yamaha dealer.
EAU48121
Vehicle Emission Control Informa-
tion la
bel (For Canad a)

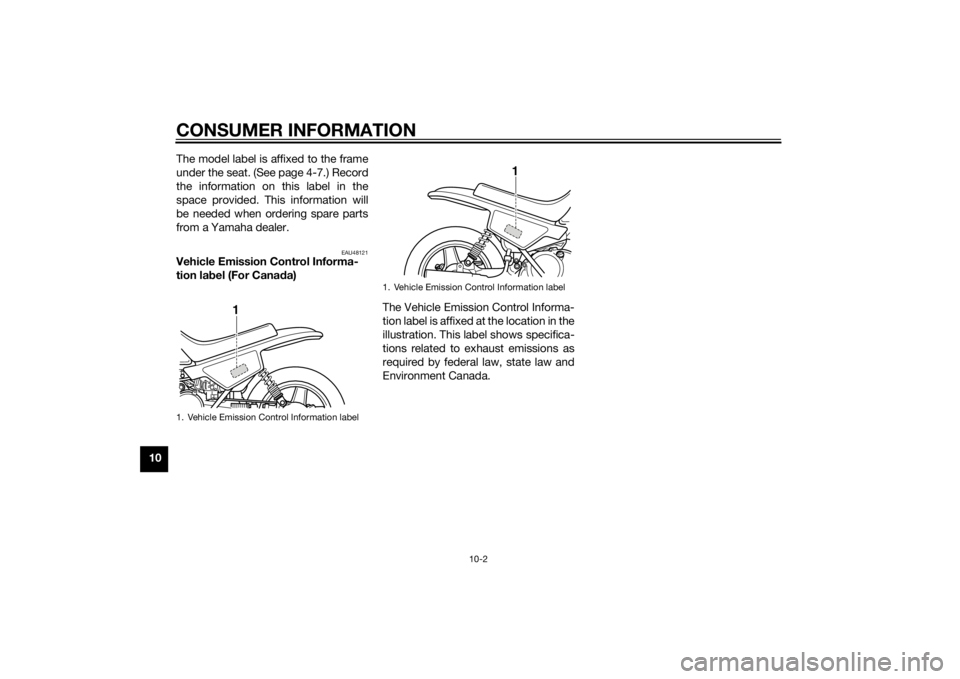

The Vehicle Emission Control Informa-
tion label is affixed at the location in the
illustration. This label shows specifica-
tions related to exhaust emissions as
required by federal law, state law and
Environment Canada.1. Vehicle Emission Control Information label
1
1. Vehicle Emission Control Information label
1
U2SA81E0.book Page 2 Monday, June 2, 2014 2:00 PM

11-1
11
INDEX
AAcceleration and deceleration ................ 6-2
Air filter element, cleaning ...................... 7-9
Autolube pump, adjusting .................... 7-16BBrake lever, front .................................... 4-2
Brake lever, rear ..................................... 4-3
Brake levers, lubricating ....................... 7-17
Brake shoes, checking ......................... 7-15
Braking ................................................... 6-2CCable lock (for Europe) ........................... 4-8
Cables, checking and lubricating ......... 7-16
Carburetor, adjusting............................ 7-11
Care ........................................................ 8-1
Centerstand, checking and lubricating........................................... 7-17EEngine break-in ...................................... 6-3
Engine idling speed .............................. 7-11
Engine oil ................................................ 4-6
Engine serial number ............................ 10-1
Engine, starting a warm.......................... 6-1
Engine stop switch ................................. 4-1FFront and rear brake lever free play, adjusting ............................................. 7-14
Front fork, checking ............................. 7-17
Fuel ......................................................... 4-3
Fuel cock ................................................ 4-6
Fuel tank breather hose.......................... 4-5
Fuel tank cap .......................................... 4-3HHandlebar switch.................................... 4-1
IIdentification numbers ......................... 10-1KKickstarter .............................................. 4-7LLabels, location ...................................... 1-1MMaintenance and lubrication, periodic... 7-4
Maintenance, emission control system ................................................. 7-3
Matte color, caution ............................... 8-1
Middle and final gear cases ................... 7-9
Model label........................................... 10-1PParking ................................................... 6-4
Part locations ......................................... 3-1
Power reduction plate, removing ........... 7-7SSafety information .................................. 2-1
Seat ........................................................ 4-7
Spark arrester, cleaning ....................... 7-10
Spark plug, checking ............................. 7-6
Specifications......................................... 9-1
Speed limiter and power reduction plate ..................................................... 4-1
Starter (choke) lever ............................... 4-7
Starting and warming up a cold engine .................................................. 6-1
Starting off ............................................. 6-2
Steering, checking ............................... 7-18
Storage................................................... 8-3TThrottle grip and cable, checking and lubricating .......................................... 7-16 Throttle grip free play, checking ........... 7-12
Tires ...................................................... 7-12
Tool kit .................................................... 7-2
Transmission oil ...................................... 7-8
Troubleshooting .................................... 7-23
Troubleshooting chart........................... 7-24
VVehicle Emission Control Information
label (For Canada) .............................. 10-2
Vehicle identification number ............... 10-1WWheel bearings, checking .................... 7-18
Wheel (front).......................................... 7-19
Wheel (rear)........................................... 7-20
Wheels .................................................. 7-14
U2SA81E0.book Page 1 Monday, June 2, 2014 2:00 PM

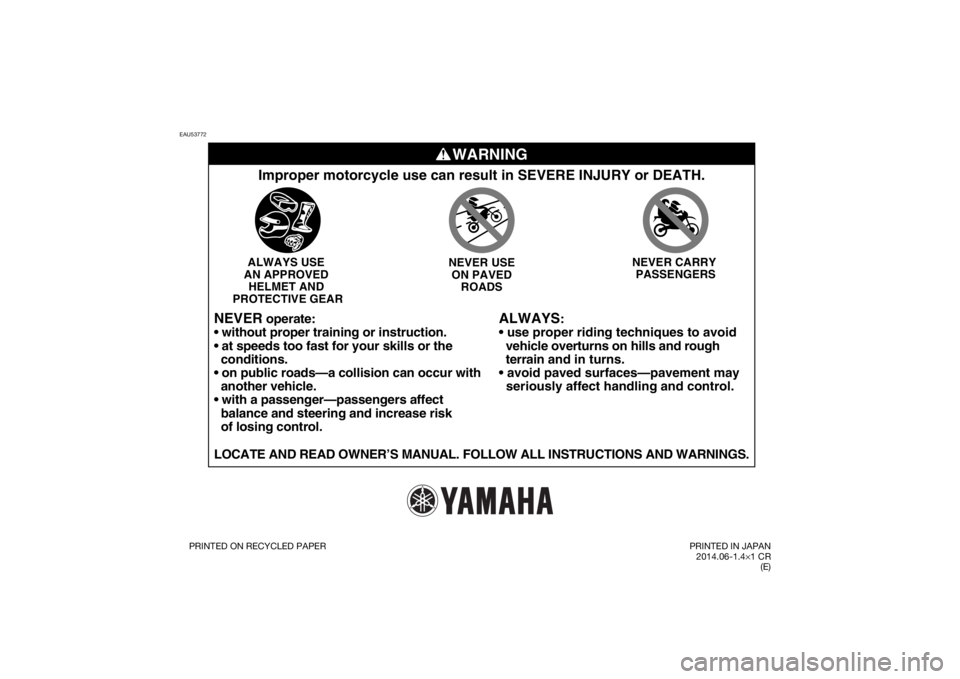

EAU53772
WARNING
ALWAYS
:

vehicle overturns on hills and rough
terrain and in turns.

seriously affect handling and control.
Improper motorcycle use can result in SEVERE INJURY or DEATH.ALWAYS USE
AN APPROVED HELMET AND
PROTECTIVE GEAR NEVER USE
ON PAVED ROADS NEVER CARRY
PASSENGERS
NEVER
operate:


conditions.

another vehicle.

balance and steering and increase risk
of losing control.
LOCATE AND READ OWNER’S MANUAL. FOLLOW ALL INSTRUCTIONS AND WARNINGS.\
PRINTED ON RECYCLED PAPER PRINTED IN JAPAN
2014.06-1.4 ×1 CR
