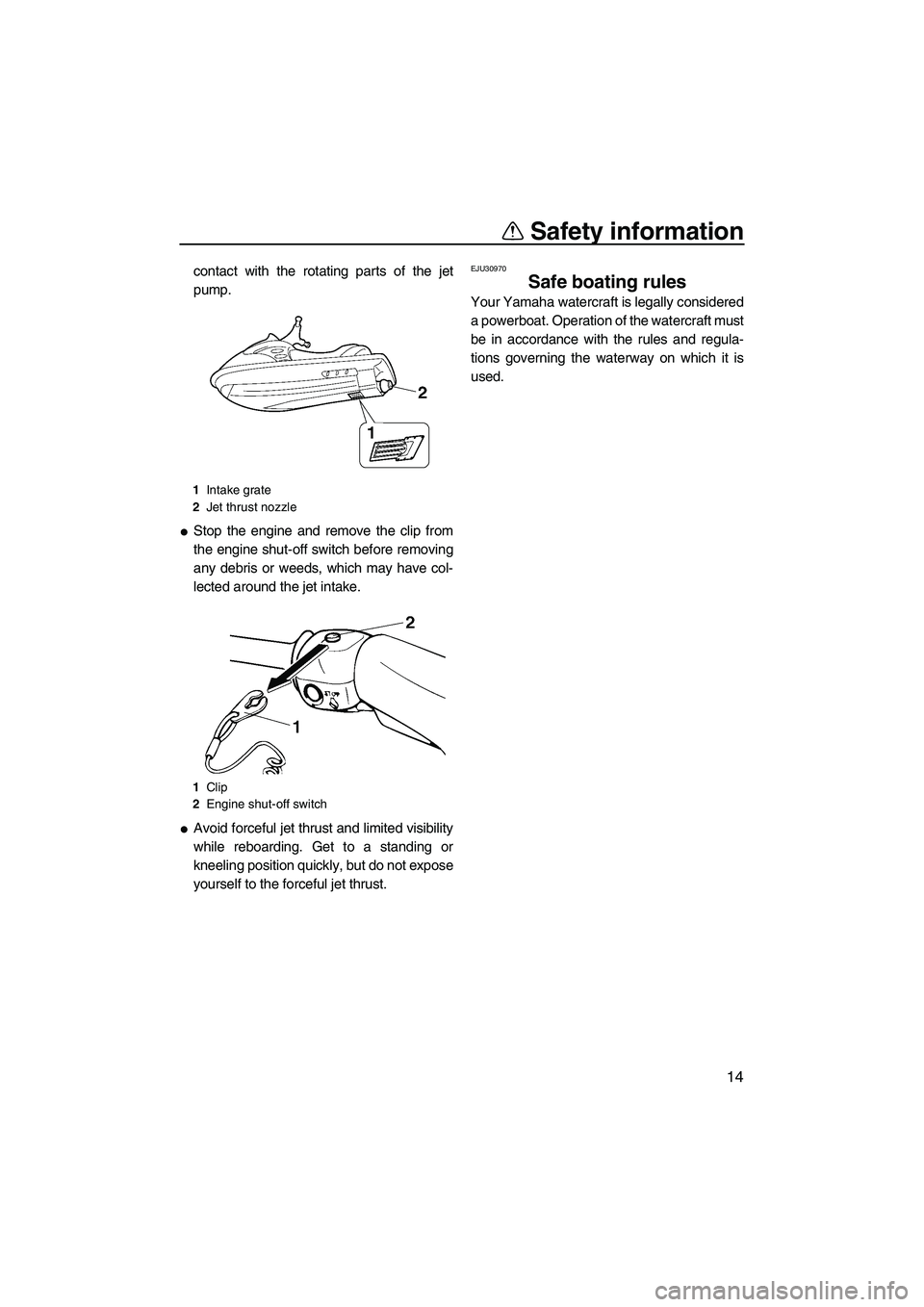

Page 21 of 78
Safety information
14
contact with the rotating parts of the jet
pump.
Stop the engine and remove the clip from
the engine shut-off switch before removing
any debris or weeds, which may have col-
lected around the jet intake.
Avoid forceful jet thrust and limited visibility
while reboarding. Get to a standing or
kneeling position quickly, but do not expose
yourself to the forceful jet thrust.
EJU30970
Safe boating rules
Your Yamaha watercraft is legally considered
a powerboat. Operation of the watercraft must
be in accordance with the rules and regula-
tions governing the waterway on which it is
used.
1Intake grate
2Jet thrust nozzle
1Clip
2Engine shut-off switch
UF1N75E0.book Page 14 Tuesday, May 16, 2006 9:53 AM

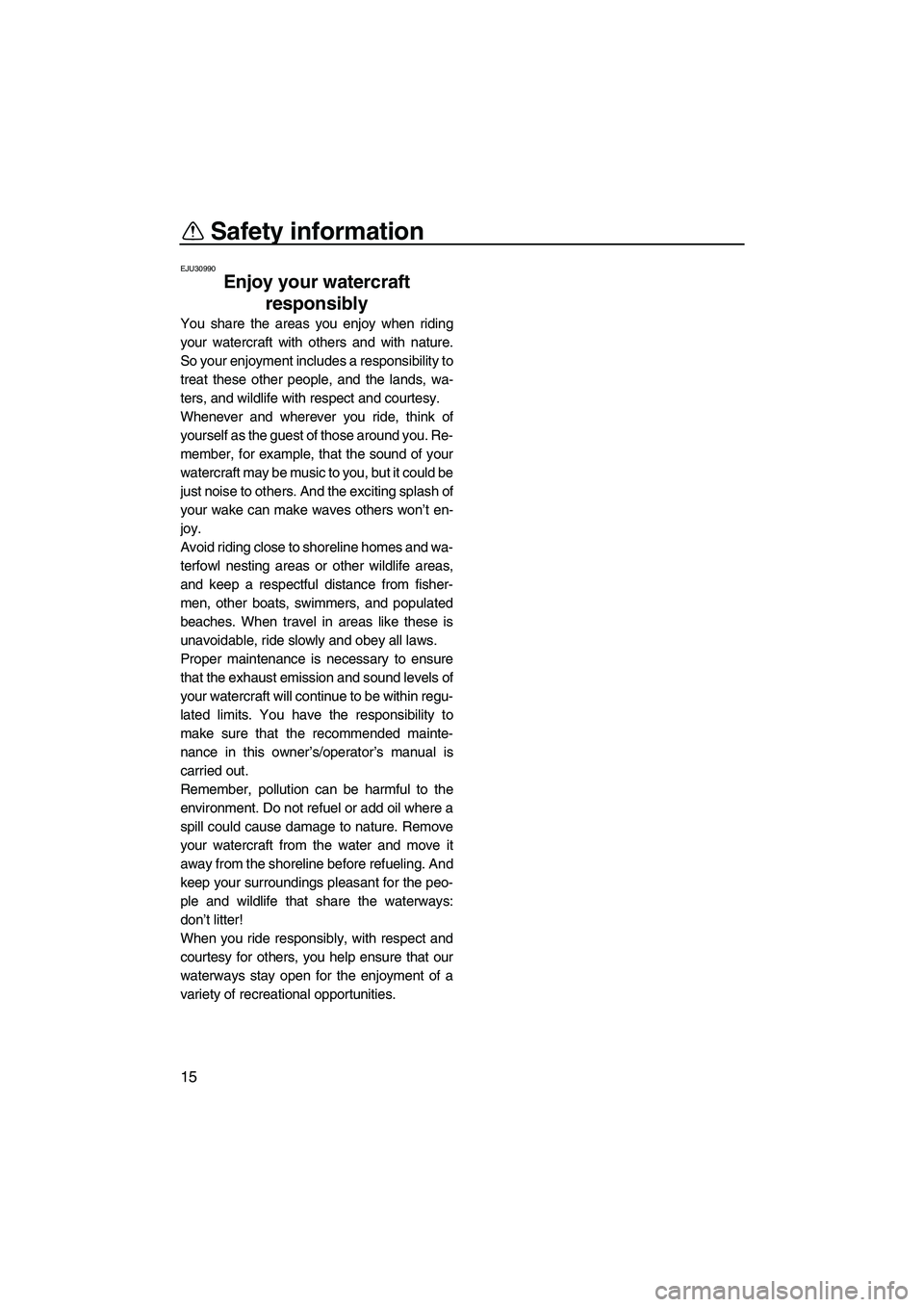

Page 22 of 78
Safety information
15
EJU30990
Enjoy your watercraft
responsibly
You share the areas you enjoy when riding
your watercraft with others and with nature.
So your enjoyment includes a responsibility to
treat these other people, and the lands, wa-
ters, and wildlife with respect and courtesy.
Whenever and wherever you ride, think of
yourself as the guest of those around you. Re-
member, for example, that the sound of your
watercraft may be music to you, but it could be
just noise to others. And the exciting splash of
your wake can make waves others won’t en-
joy.
Avoid riding close to shoreline homes and wa-
terfowl nesting areas or other wildlife areas,
and keep a respectful distance from fisher-
men, other boats, swimmers, and populated
beaches. When travel in areas like these is
unavoidable, ride slowly and obey all laws.
Proper maintenance is necessary to ensure
that the exhaust emission and sound levels of
your watercraft will continue to be within regu-
lated limits. You have the responsibility to
make sure that the recommended mainte-
nance in this owner’s/operator’s manual is
carried out.
Remember, pollution can be harmful to the
environment. Do not refuel or add oil where a
spill could cause damage to nature. Remove
your watercraft from the water and move it
away from the shoreline before refueling. And
keep your surroundings pleasant for the peo-
ple and wildlife that share the waterways:
don’t litter!
When you ride responsibly, with respect and
courtesy for others, you help ensure that our
waterways stay open for the enjoyment of a
variety of recreational opportunities.
UF1N75E0.book Page 15 Tuesday, May 16, 2006 9:53 AM
Page 23 of 78
Features and functions
16
EJU31010
Location of main components
1Bow rope hole
2Storage pouch
3Steering pole
4Handlebars
5Riding tray
6Stern rope hole
7Fuel tank filler cap
8Hood
9Steering pole cover
10Hood latch
11Jet thrust nozzle
12Cooling water pilot outlet
13Intake grate
14Jet intake
15Ride plate
16Drive shaft
UF1N75E0.book Page 16 Tuesday, May 16, 2006 9:53 AM

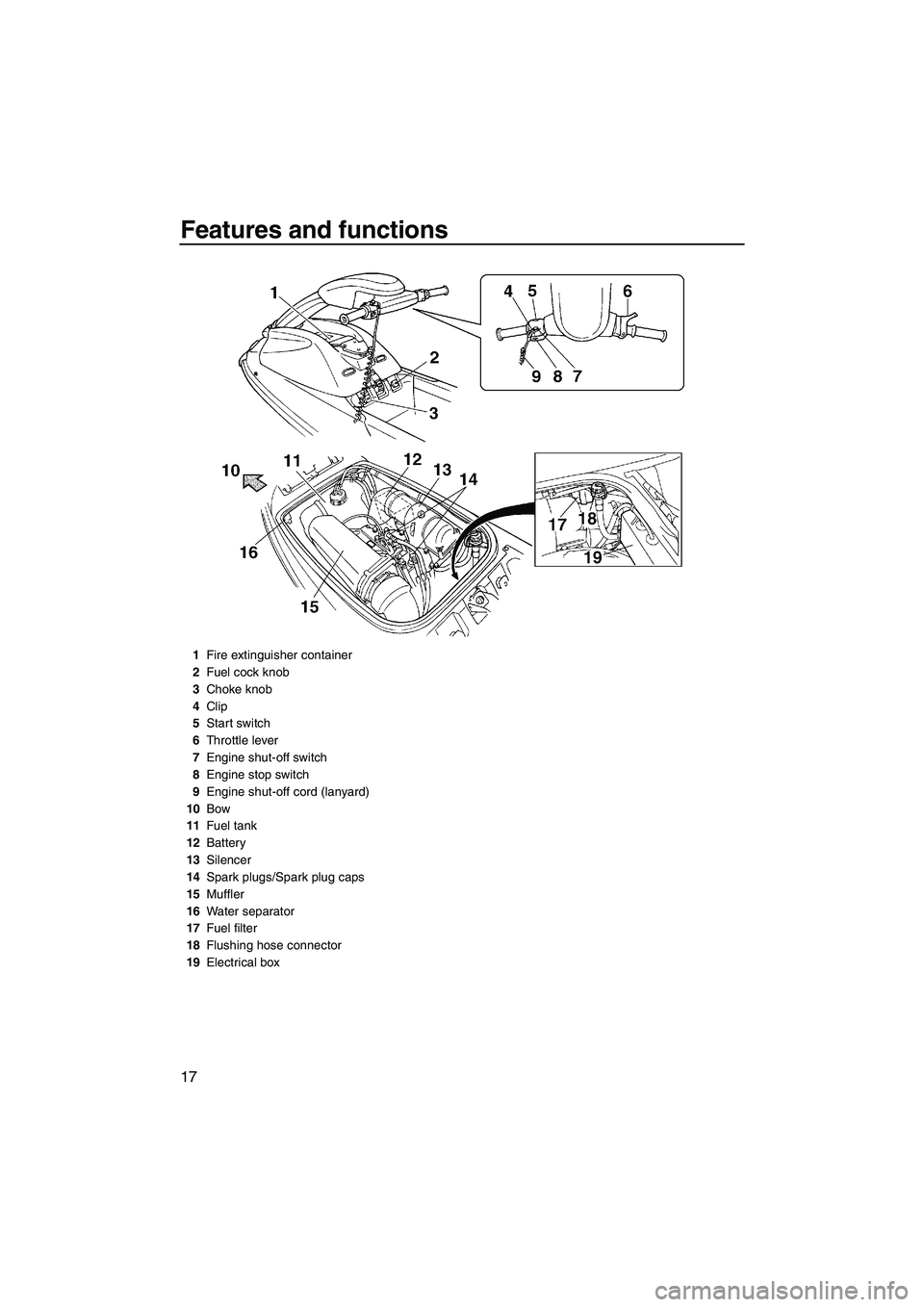

Page 24 of 78
Features and functions
17
1Fire extinguisher container
2Fuel cock knob
3Choke knob
4Clip
5Start switch
6Throttle lever
7Engine shut-off switch
8Engine stop switch
9Engine shut-off cord (lanyard)
10Bow
11Fuel tank
12Battery
13Silencer
14Spark plugs/Spark plug caps
15Muffler
16Water separator
17Fuel filter
18Flushing hose connector
19Electrical box
UF1N75E0.book Page 17 Tuesday, May 16, 2006 9:53 AM

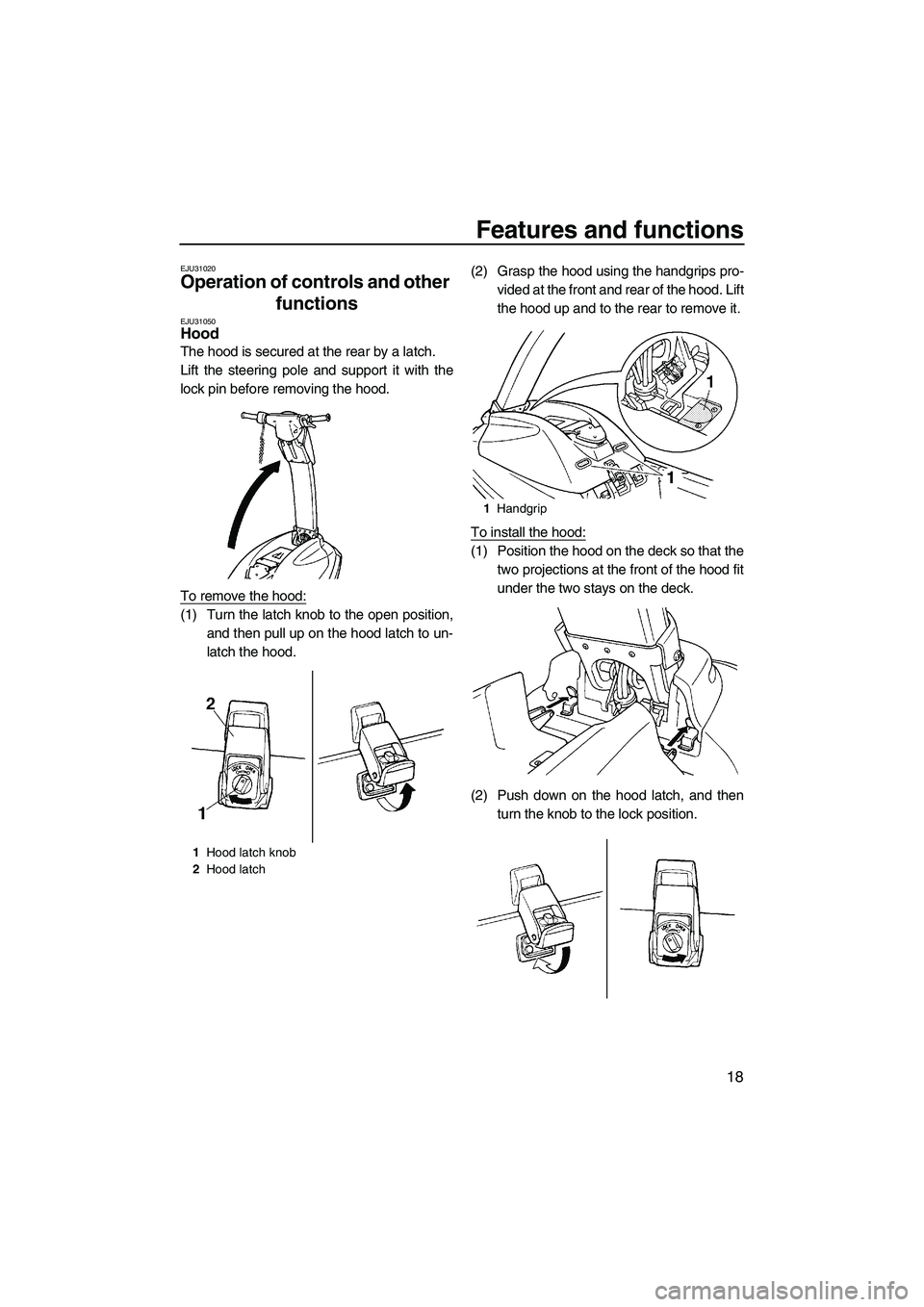

Page 25 of 78
Features and functions
18
EJU31020
Operation of controls and other
functions
EJU31050Hood
The hood is secured at the rear by a latch.
Lift the steering pole and support it with the
lock pin before removing the hood.
To remove the hood:
(1) Turn the latch knob to the open position,
and then pull up on the hood latch to un-
latch the hood.(2) Grasp the hood using the handgrips pro-
vided at the front and rear of the hood. Lift
the hood up and to the rear to remove it.
To install the hood:
(1) Position the hood on the deck so that the
two projections at the front of the hood fit
under the two stays on the deck.
(2) Push down on the hood latch, and then
turn the knob to the lock position.
1Hood latch knob
2Hood latch
1Handgrip
UF1N75E0.book Page 18 Tuesday, May 16, 2006 9:53 AM

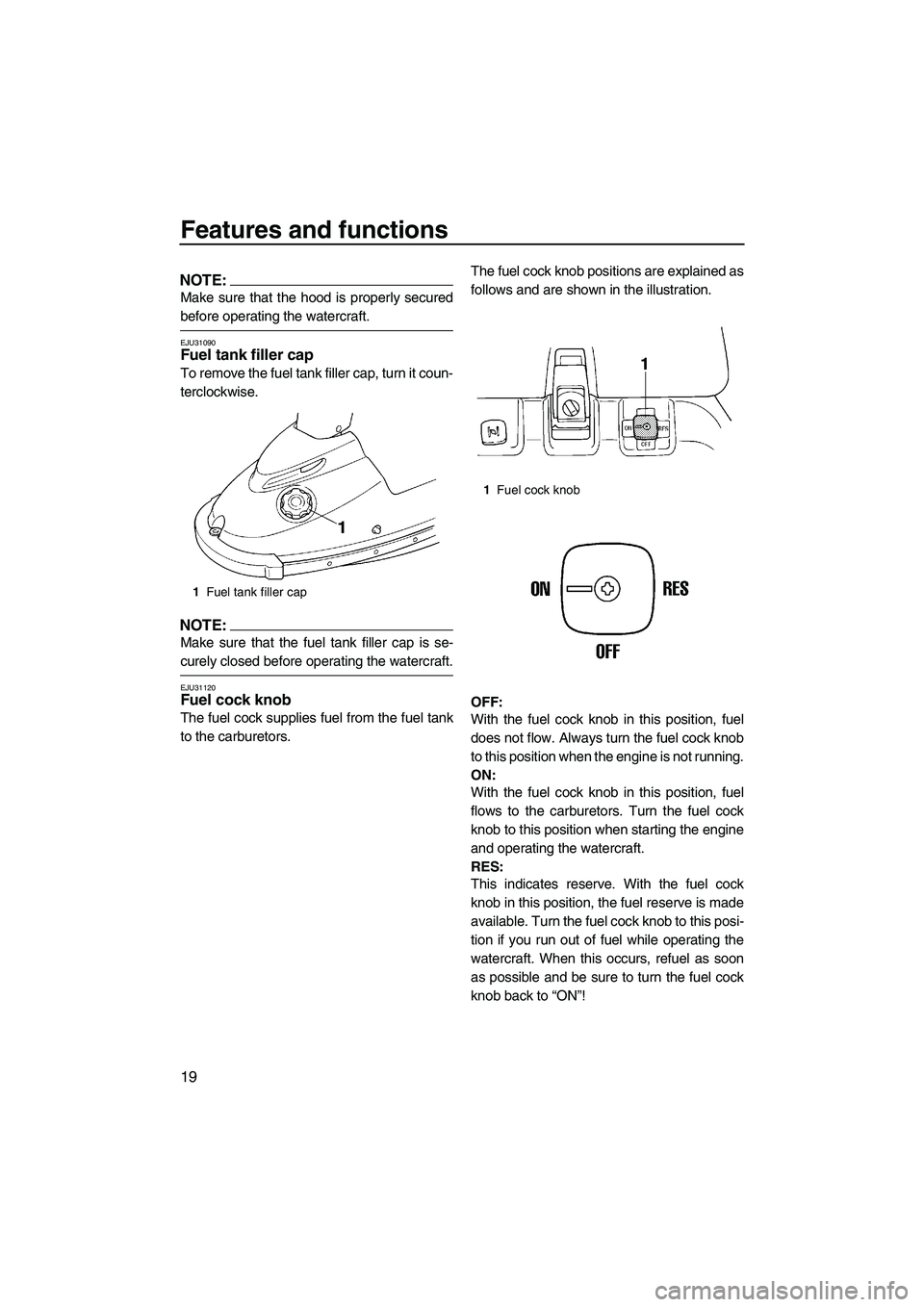

Page 26 of 78
Features and functions
19
NOTE:
Make sure that the hood is properly secured
before operating the watercraft.
EJU31090Fuel tank filler cap
To remove the fuel tank filler cap, turn it coun-
terclockwise.
NOTE:
Make sure that the fuel tank filler cap is se-
curely closed before operating the watercraft.
EJU31120Fuel cock knob
The fuel cock supplies fuel from the fuel tank
to the carburetors.The fuel cock knob positions are explained as
follows and are shown in the illustration.
OFF:
With the fuel cock knob in this position, fuel
does not flow. Always turn the fuel cock knob
to this position when the engine is not running.
ON:
With the fuel cock knob in this position, fuel
flows to the carburetors. Turn the fuel cock
knob to this position when starting the engine
and operating the watercraft.
RES:
This indicates reserve. With the fuel cock
knob in this position, the fuel reserve is made
available. Turn the fuel cock knob to this posi-
tion if you run out of fuel while operating the
watercraft. When this occurs, refuel as soon
as possible and be sure to turn the fuel cock
knob back to “ON”!
1Fuel tank filler cap
1Fuel cock knob
UF1N75E0.book Page 19 Tuesday, May 16, 2006 9:53 AM
Page 27 of 78
Features and functions
20
EJU31150Engine stop switch
Push the engine stop switch (red button) to
stop the engine normally.
EJU31160Engine shut-off switch
Insert the clip, on the end of the engine shut-
off cord, under the engine shut-off switch
(black button). The engine will stop automati-
cally when the clip is removed from the
switch, such as if the operator falls off the wa-
tercraft.
WARNING
EWJ00010
Always attach the engine shut-off cord
to your left wrist and the clip to the en-
gine shut-off switch BEFORE starting
the engine.
To prevent accidental starting of the en-
gine or unauthorized use by children or
others, always remove the clip from the
engine shut-off switch when the engine
is not running.
EJU31170Start switch
Push the start switch (green button) to start
the engine.
NOTE:
The engine will not start when the clip is re-
moved from the engine shut-off switch.
EJU31200Choke knob
Starting a cold engine requires a richer air-fuel
mixture, which is supplied by the choke.
1Engine stop switch
1Engine shut-off cord
2Clip
3Engine shut-off switch
1Start switch
UF1N75E0.book Page 20 Tuesday, May 16, 2006 9:53 AM

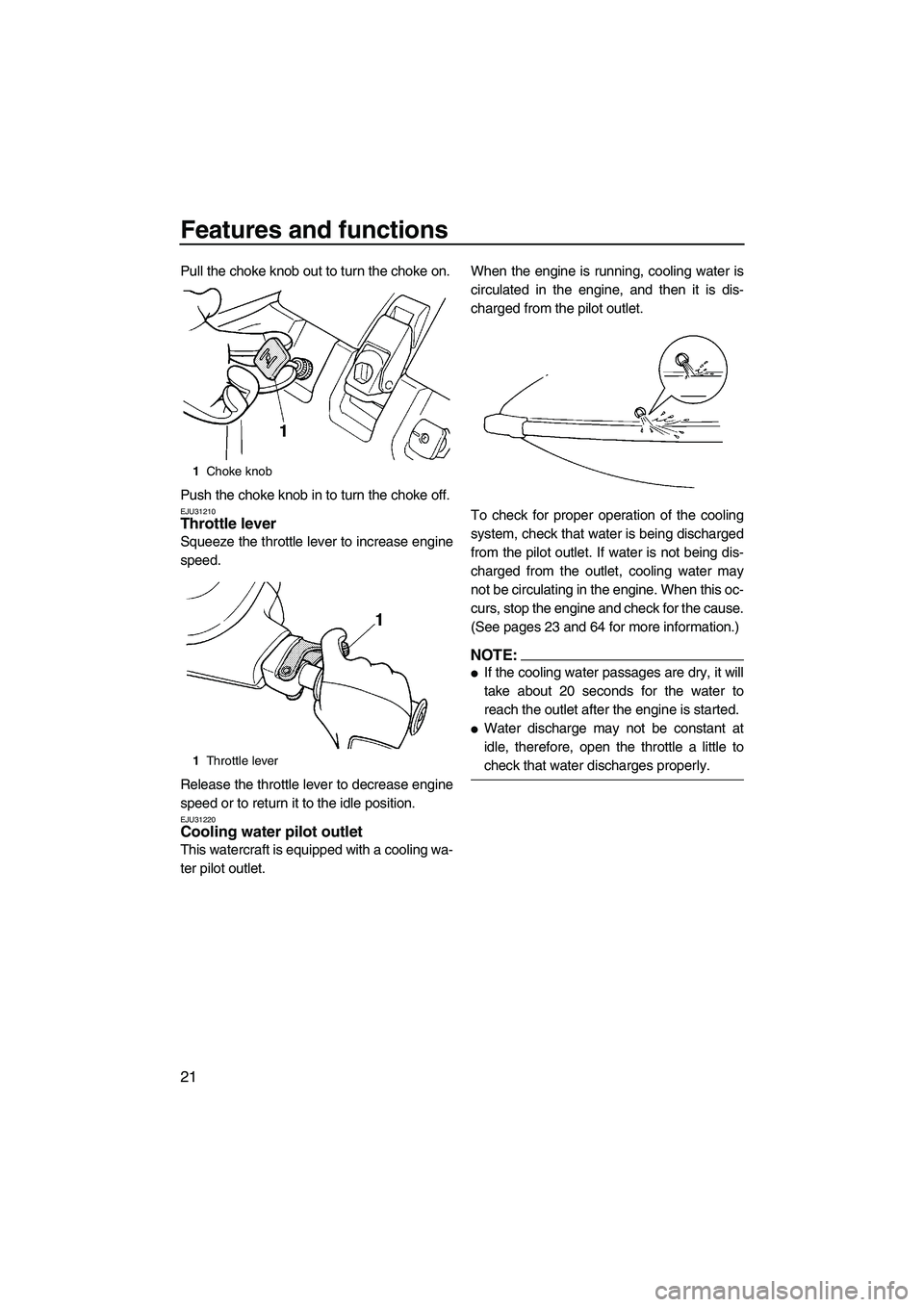

Page 28 of 78
Features and functions
21
Pull the choke knob out to turn the choke on.
Push the choke knob in to turn the choke off.
EJU31210Throttle lever
Squeeze the throttle lever to increase engine
speed.
Release the throttle lever to decrease engine
speed or to return it to the idle position.
EJU31220Cooling water pilot outlet
This watercraft is equipped with a cooling wa-
ter pilot outlet.When the engine is running, cooling water is
circulated in the engine, and then it is dis-
charged from the pilot outlet.
To check for proper operation of the cooling
system, check that water is being discharged
from the pilot outlet. If water is not being dis-
charged from the outlet, cooling water may
not be circulating in the engine. When this oc-
curs, stop the engine and check for the cause.
(See pages 23 and 64 for more information.)
NOTE:
If the cooling water passages are dry, it will
take about 20 seconds for the water to
reach the outlet after the engine is started.
Water discharge may not be constant at
idle, therefore, open the throttle a little to
check that water discharges properly.
1Choke knob
1Throttle lever
UF1N75E0.book Page 21 Tuesday, May 16, 2006 9:53 AM

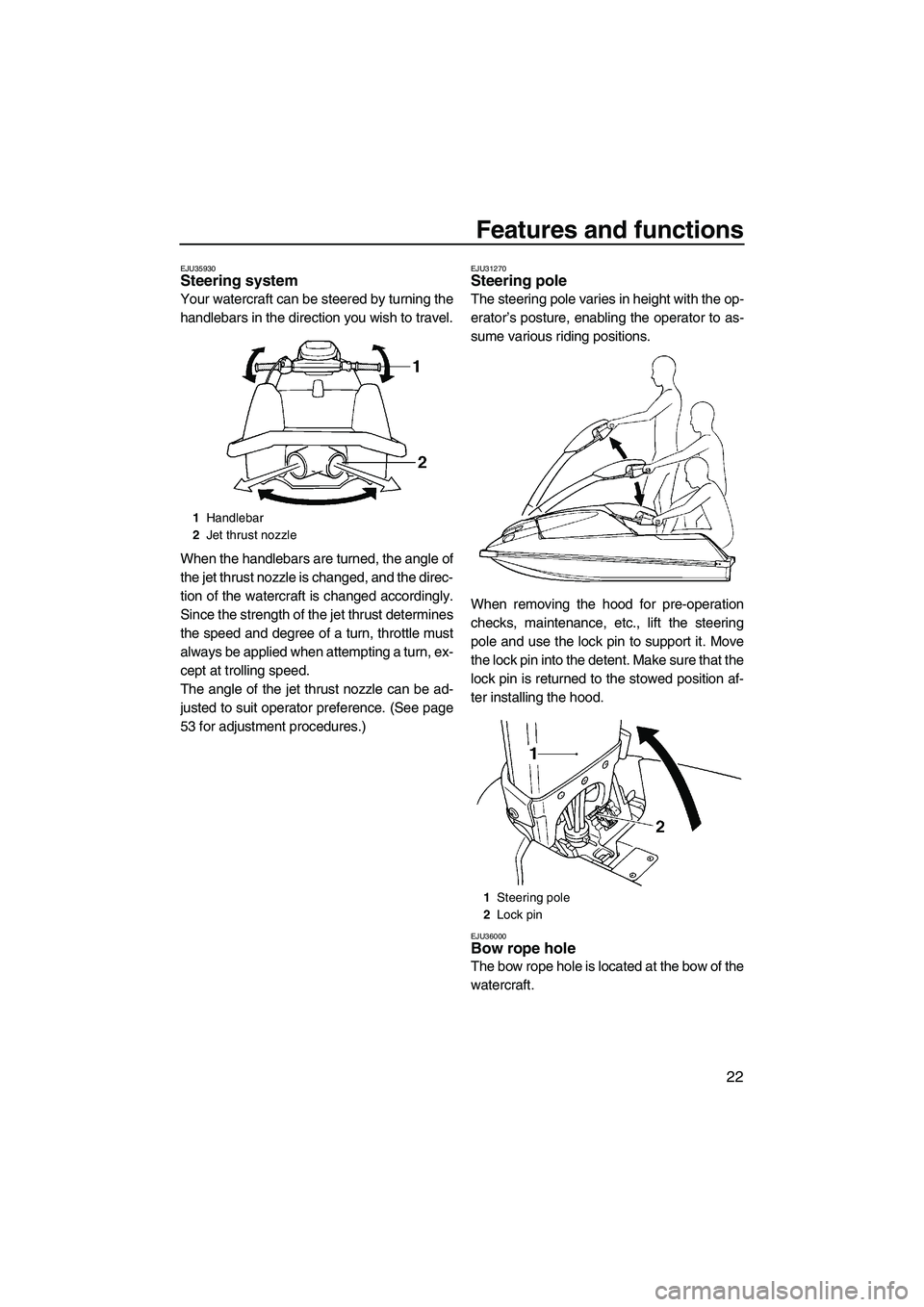

Page 29 of 78
Features and functions
22
EJU35930Steering system
Your watercraft can be steered by turning the
handlebars in the direction you wish to travel.
When the handlebars are turned, the angle of
the jet thrust nozzle is changed, and the direc-
tion of the watercraft is changed accordingly.
Since the strength of the jet thrust determines
the speed and degree of a turn, throttle must
always be applied when attempting a turn, ex-
cept at trolling speed.
The angle of the jet thrust nozzle can be ad-
justed to suit operator preference. (See page
53 for adjustment procedures.)
EJU31270Steering pole
The steering pole varies in height with the op-
erator’s posture, enabling the operator to as-
sume various riding positions.
When removing the hood for pre-operation
checks, maintenance, etc., lift the steering
pole and use the lock pin to support it. Move
the lock pin into the detent. Make sure that the
lock pin is returned to the stowed position af-
ter installing the hood.
EJU36000Bow rope hole
The bow rope hole is located at the bow of the
watercraft.
1Handlebar
2Jet thrust nozzle
1Steering pole
2Lock pin
UF1N75E0.book Page 22 Tuesday, May 16, 2006 9:53 AM

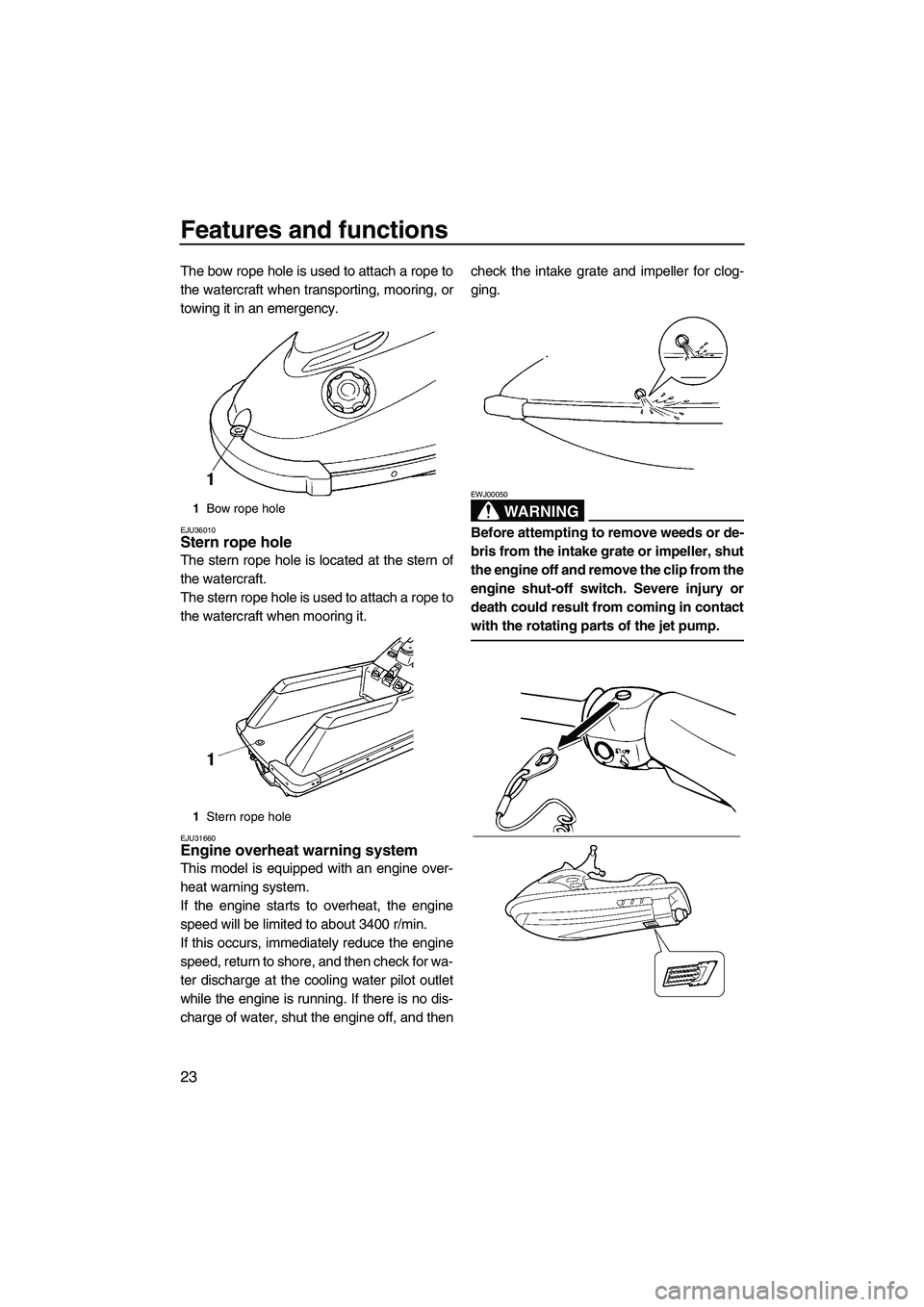

Page 30 of 78
Features and functions
23
The bow rope hole is used to attach a rope to
the watercraft when transporting, mooring, or
towing it in an emergency.
EJU36010Stern rope hole
The stern rope hole is located at the stern of
the watercraft.
The stern rope hole is used to attach a rope to
the watercraft when mooring it.
EJU31660Engine overheat warning system
This model is equipped with an engine over-
heat warning system.
If the engine starts to overheat, the engine
speed will be limited to about 3400 r/min.
If this occurs, immediately reduce the engine
speed, return to shore, and then check for wa-
ter discharge at the cooling water pilot outlet
while the engine is running. If there is no dis-
charge of water, shut the engine off, and thencheck the intake grate and impeller for clog-
ging.
WARNING
EWJ00050
Before attempting to remove weeds or de-
bris from the intake grate or impeller, shut
the engine off and remove the clip from the
engine shut-off switch. Severe injury or
death could result from coming in contact
with the rotating parts of the jet pump.
1Bow rope hole
1Stern rope hole
UF1N75E0.book Page 23 Tuesday, May 16, 2006 9:53 AM
