Page 21 of 78

YAMAHA SUPERJET 2008 Owners Manual Safety information
14
EJU30990

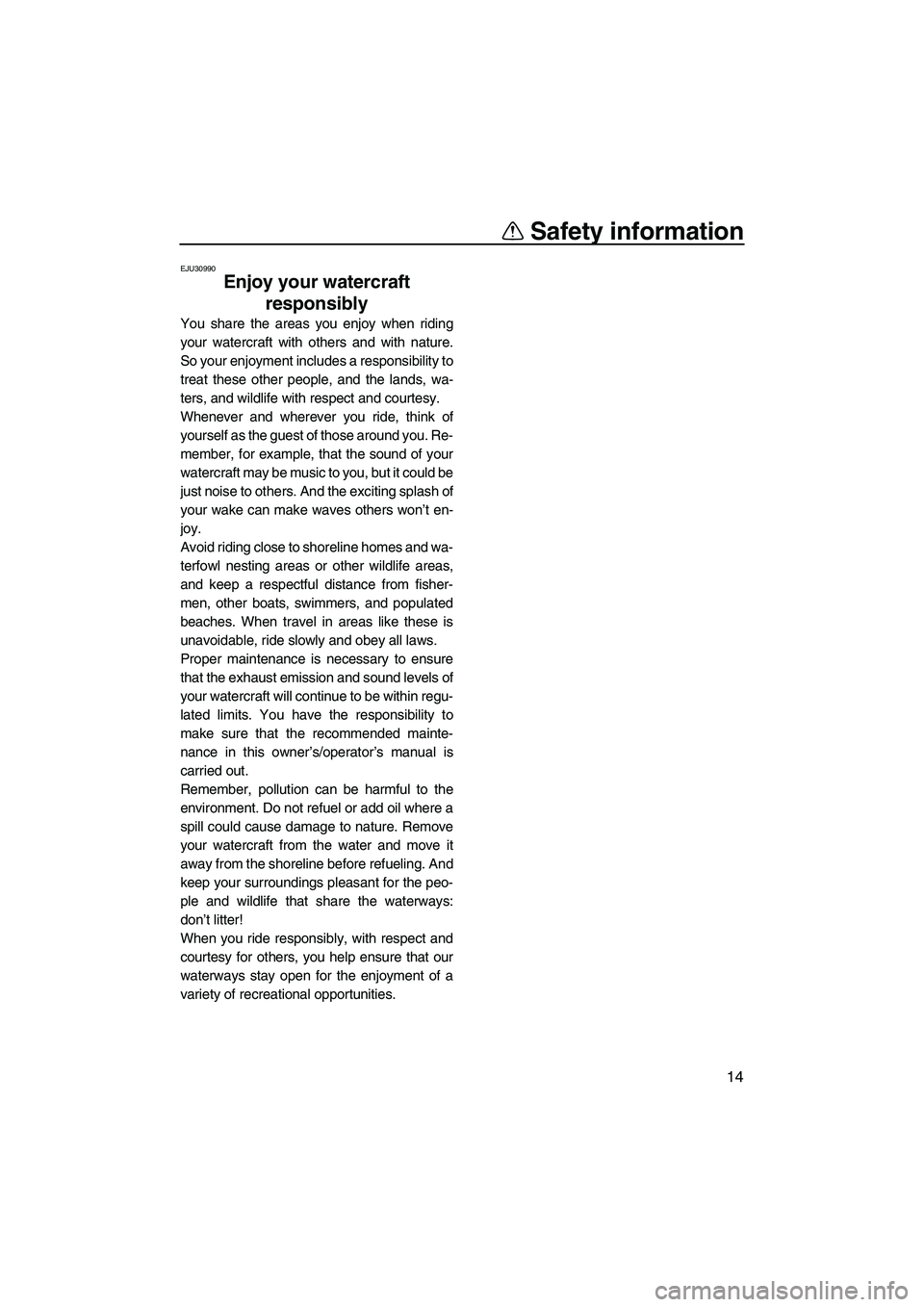

Enjoy your watercraft
responsibly
You share the areas you enjoy when riding
your watercraft with others and with nature.
So your enjoyment includes a responsibility to

Page 22 of 78

YAMAHA SUPERJET 2008 Owners Manual Features and functions
15
EJU31010

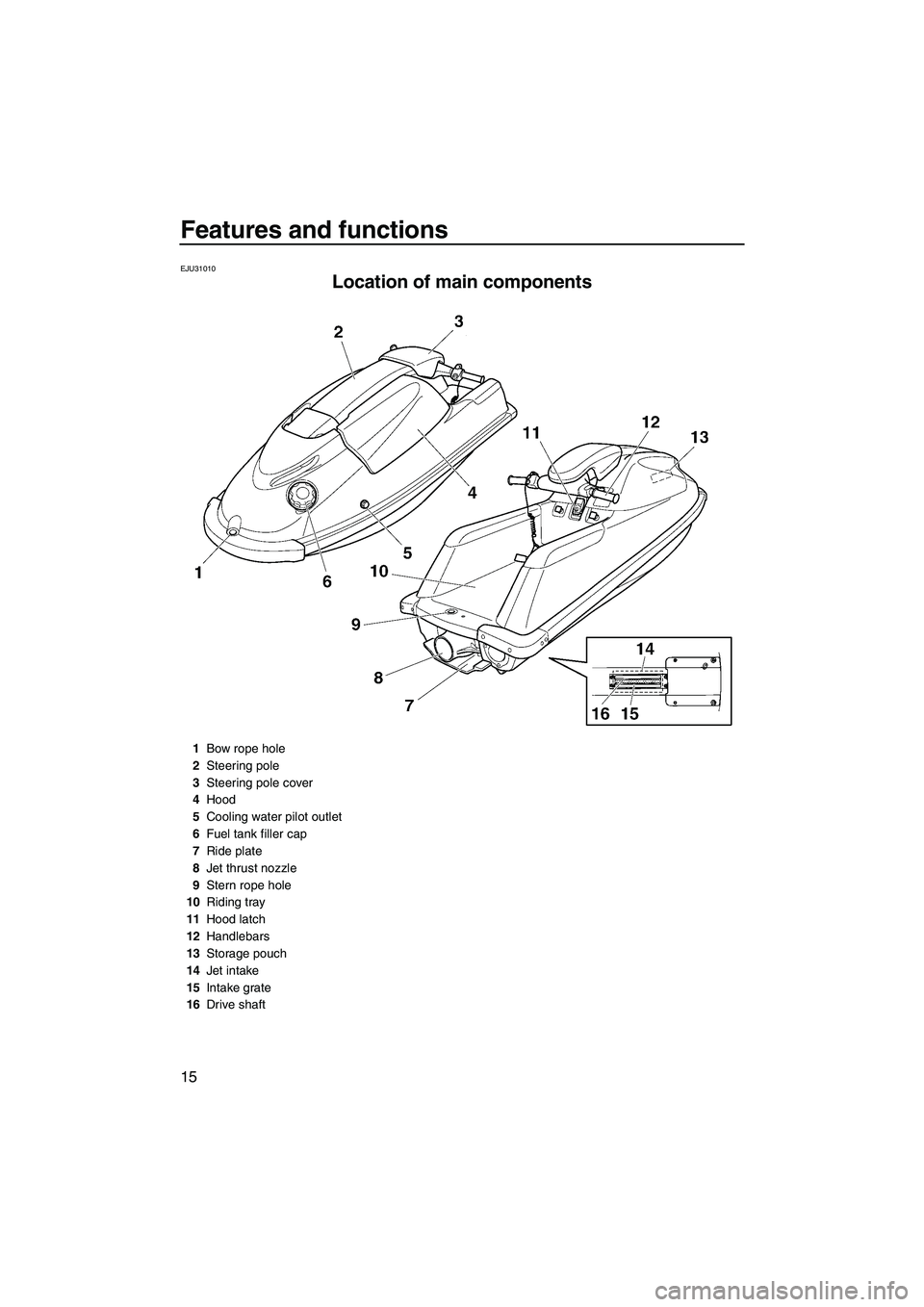

Location of main components
1Bow rope hole
2Steering pole
3Steering pole cover
4Hood
5Cooling water pilot outlet
6Fuel tank filler cap
7Ride plate
8Jet thrust nozzl

Page 23 of 78

YAMAHA SUPERJET 2008 Owners Manual Features and functions
16

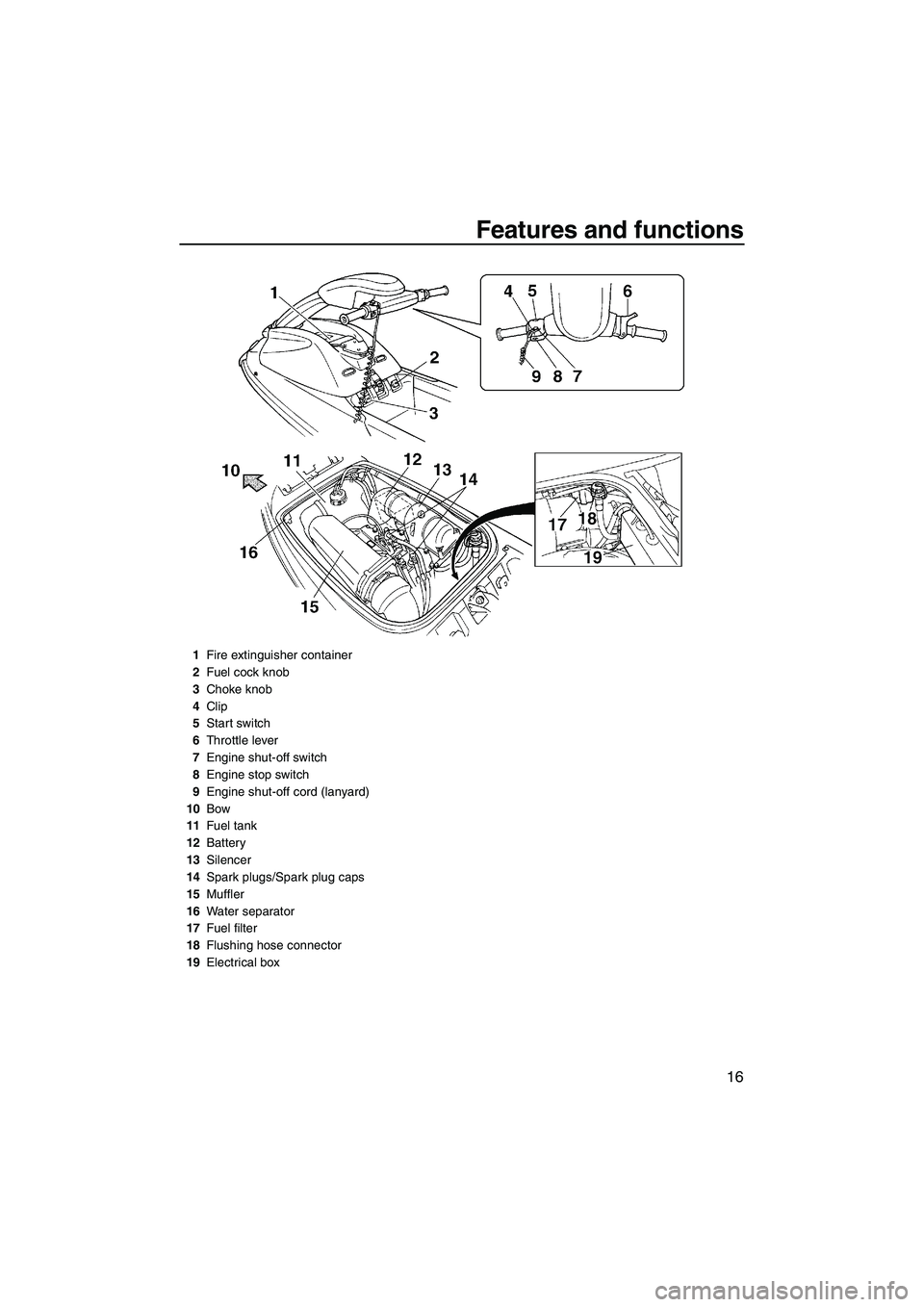

1Fire extinguisher container
2Fuel cock knob
3Choke knob
4Clip
5Start switch
6Throttle lever
7Engine shut-off switch
8Engine stop switch
9Engine shut-off cord (lanyard)
10Bow

Page 24 of 78

YAMAHA SUPERJET 2008 Owners Manual Features and functions
17
EJU31020
Operation of controls and other
functions
EJU31052Hood
The hood is secured at the rear by a latch.
Lift the steering pole and support it with the
lock pin before

Page 25 of 78

YAMAHA SUPERJET 2008 Owners Manual Features and functions
18

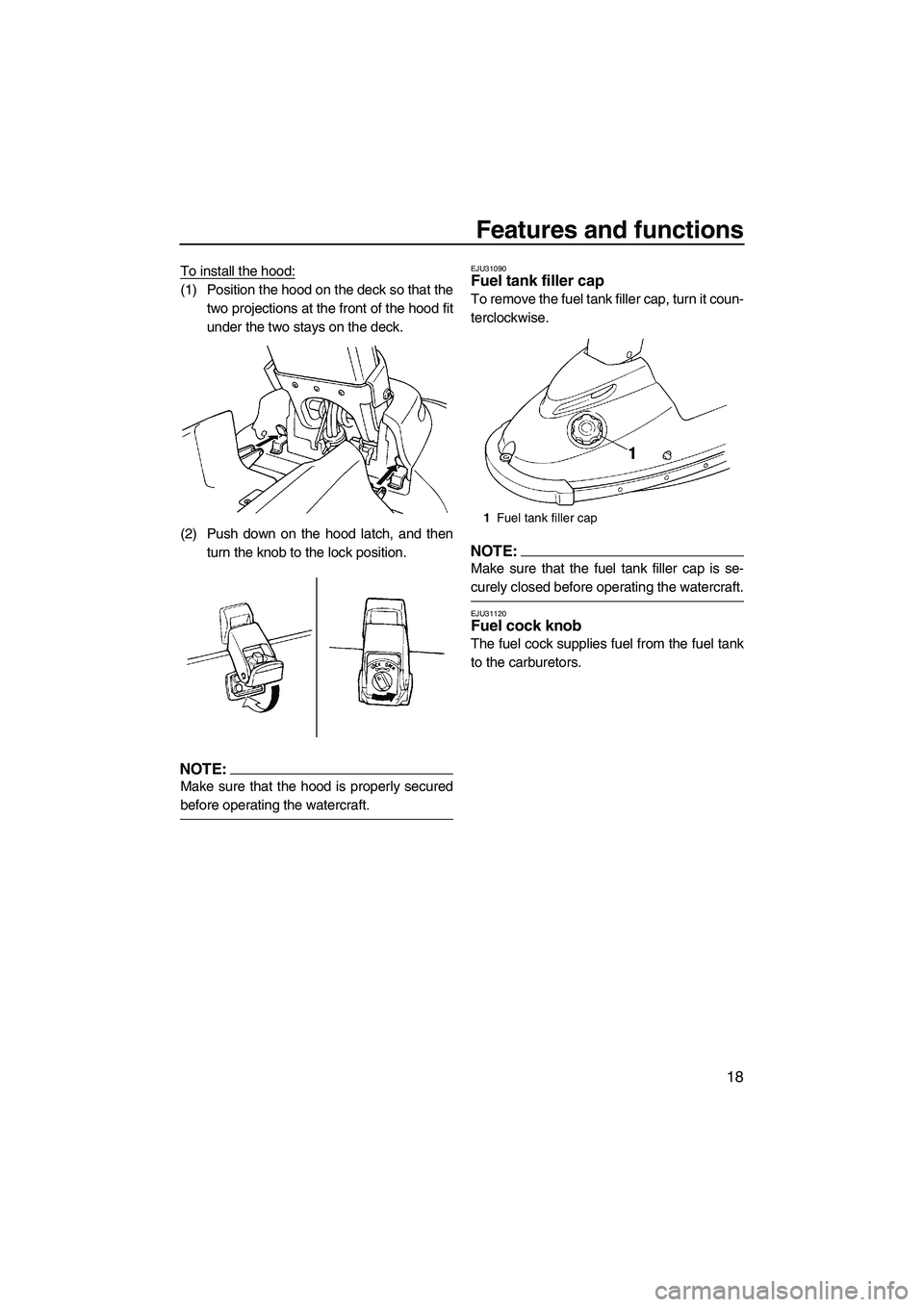

To install the hood:
(1) Position the hood on the deck so that the
two projections at the front of the hood fit
under the two stays on the deck.
(2) Push down on the hood lat

Page 26 of 78

YAMAHA SUPERJET 2008 Owners Manual Features and functions
19

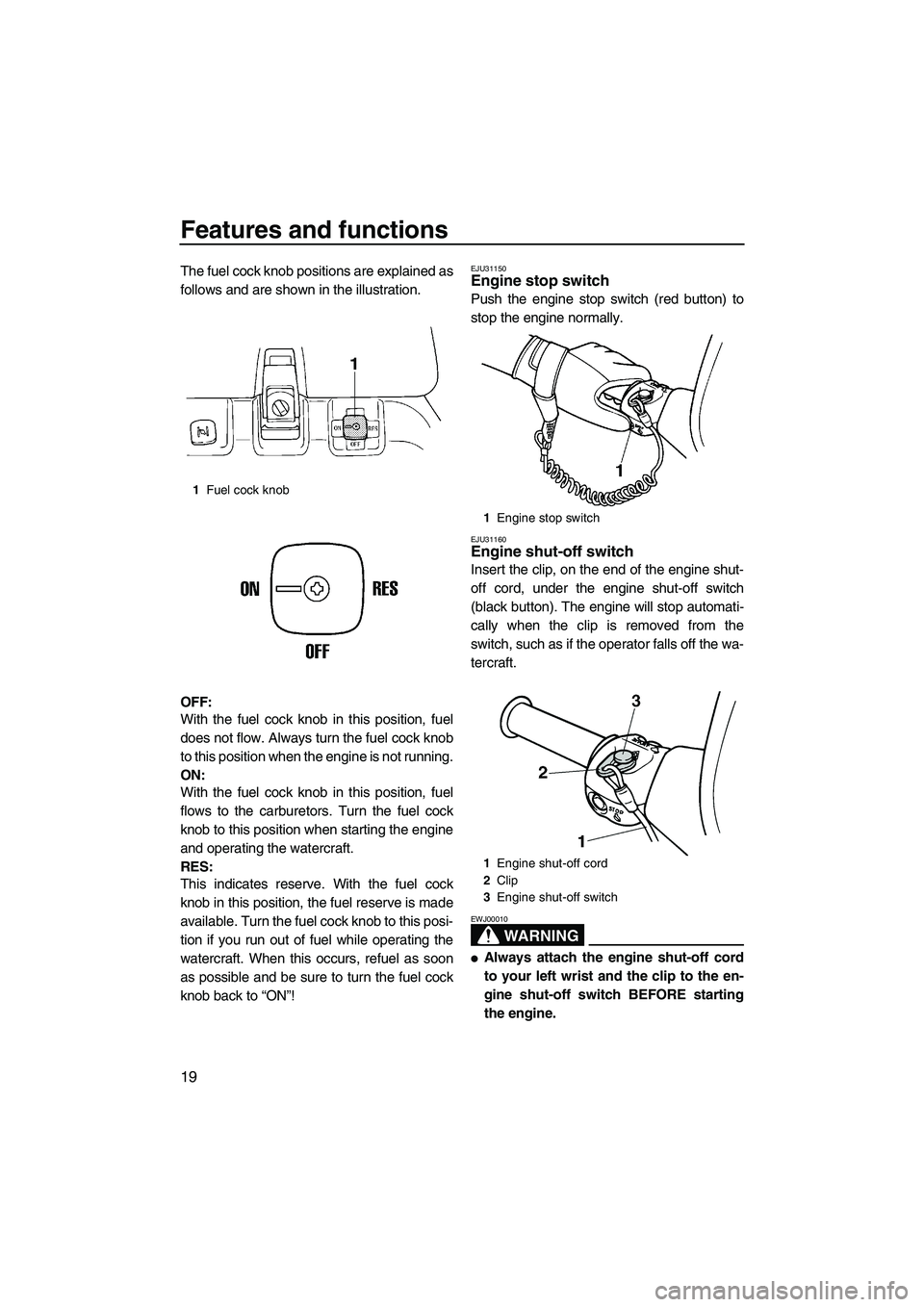

The fuel cock knob positions are explained as
follows and are shown in the illustration.
OFF:
With the fuel cock knob in this position, fuel
does not flow. Always turn the fu

Page 27 of 78

YAMAHA SUPERJET 2008 Owners Manual Features and functions
20
To prevent accidental starting of the en-
gine or unauthorized use by children or
others, always remove the clip from the
engine shut-off switch when the engine
is not runni

Page 28 of 78

YAMAHA SUPERJET 2008 Owners Manual Features and functions
21

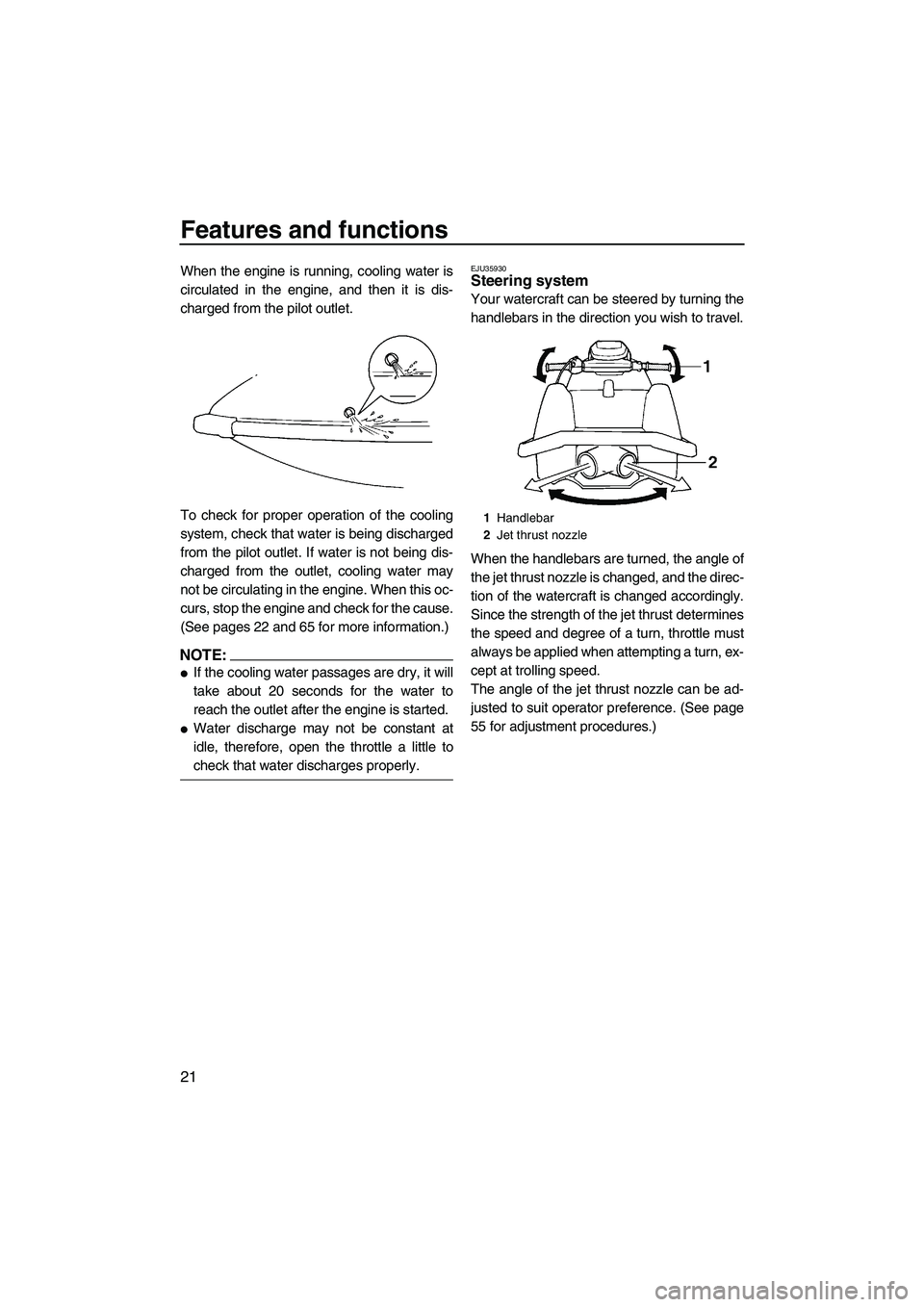

When the engine is running, cooling water is
circulated in the engine, and then it is dis-
charged from the pilot outlet.
To check for proper operation of the cooling
system,

Page 29 of 78

YAMAHA SUPERJET 2008 Owners Manual Features and functions
22

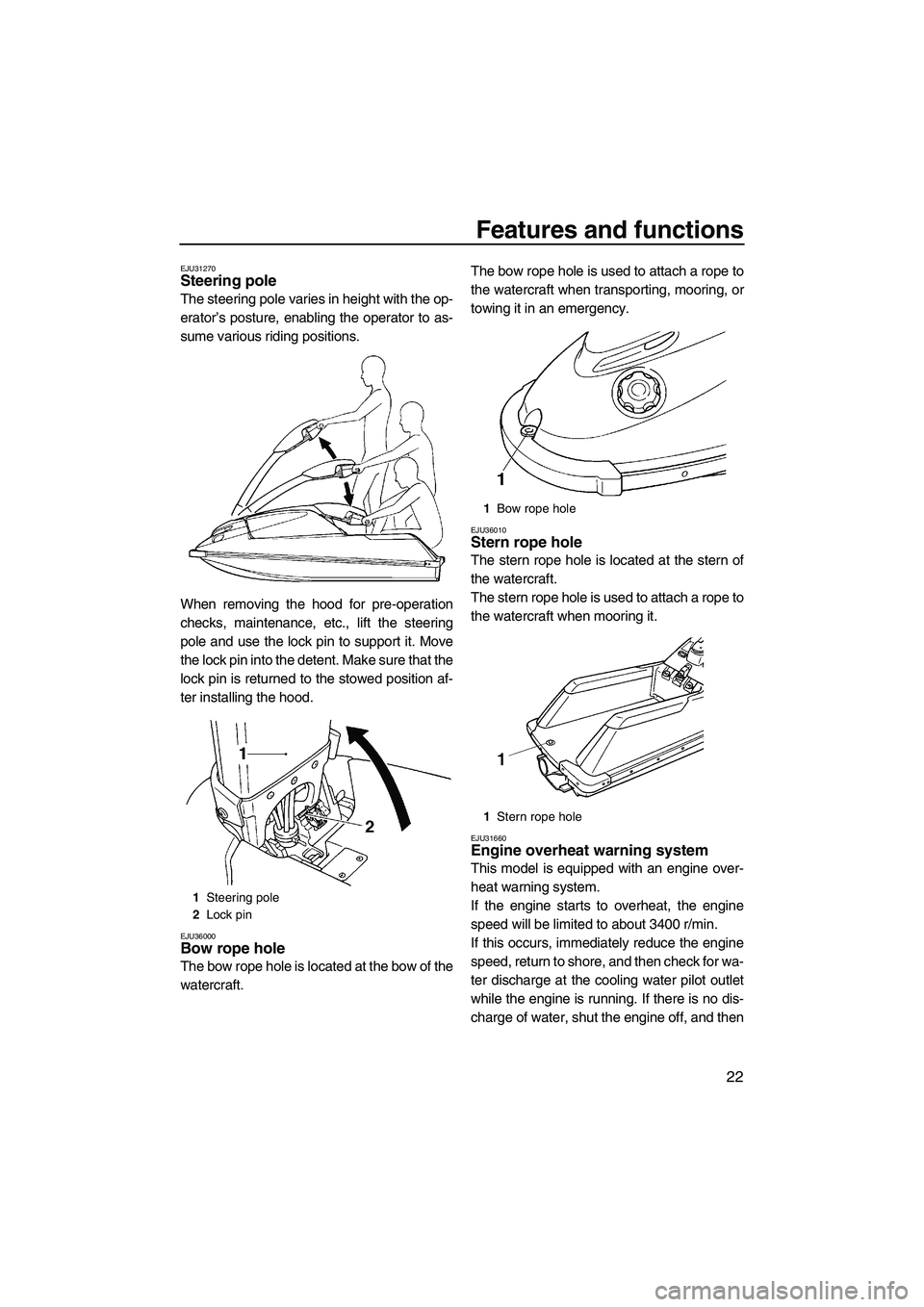

EJU31270Steering pole
The steering pole varies in height with the op-
erator’s posture, enabling the operator to as-
sume various riding positions.
When removing the hood

Page 30 of 78

YAMAHA SUPERJET 2008 Owners Manual Features and functions
23
check the intake grate and impeller for clog-
ging.
WARNING
EWJ00050
Before attempting to remove weeds or de-
bris from the intake grate or impeller, shut
the engine off and
