YAMAHA T105 2002 Manual PDF

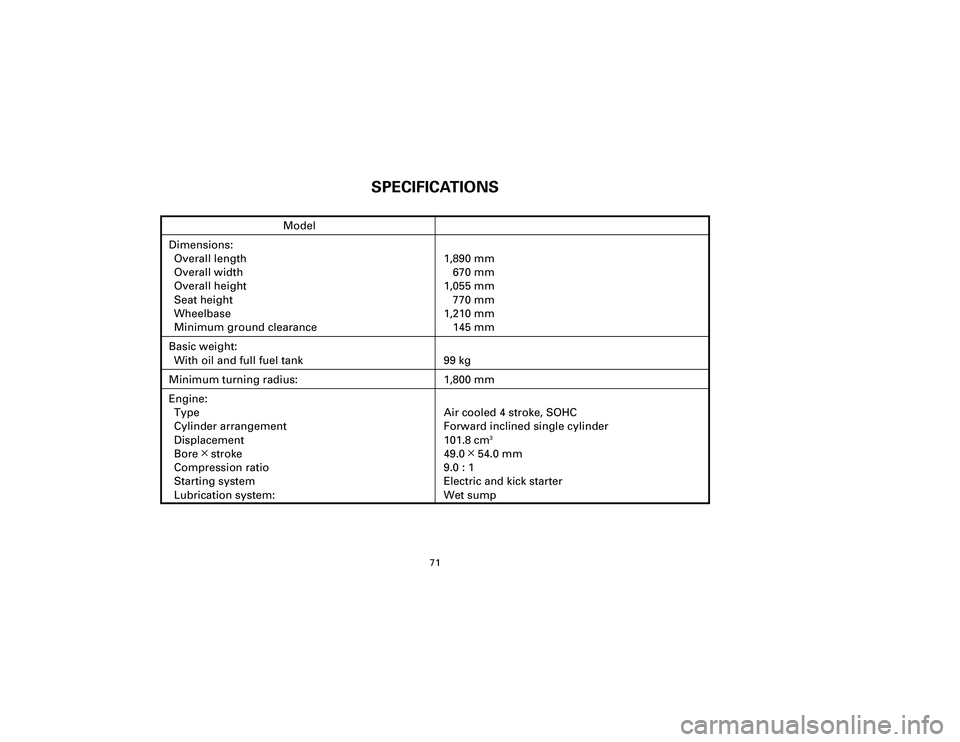

71
Model
Dimensions:
Overall length 1,890 mm
Overall width 670 mm
Overall height 1,055 mm
Seat height 770 mm
Wheelbase 1,210 mm
Minimum ground clearance 145 mm
Basic weight:
With oil and full fuel tank 99 kg
Minimum turning radius: 1,800 mm
Engine:
Type Air cooled 4 stroke, SOHC
Cylinder arrangement Forward inclined single cylinder
Displacement 101.8 cm
3
Bore
×stroke 49.0
×54.0 mm
Compression ratio 9.0 : 1
Starting system Electric and kick starter
Lubrication system: Wet sump
SPECIFICATIONS
5SD O/M-3 9/4/01 2:50 PM Page 71 (1,1)

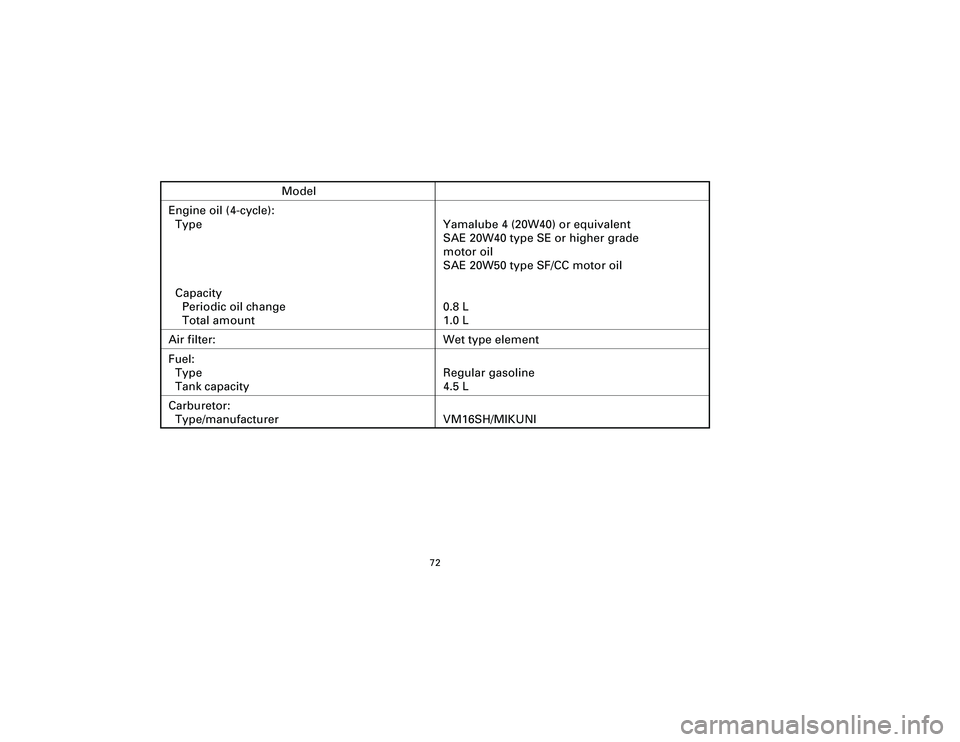

72
Model
Engine oil (4-cycle):
Type Yamalube 4 (20W40) or equivalent
SAE 20W40 type SE or higher grade
motor oil
SAE 20W50 type SF/CC motor oil
Capacity
Periodic oil change 0.8 L
Total amount 1.0 L
Air filter: Wet type element
Fuel:
Type Regular gasoline
Tank capacity 4.5 L
Carburetor:
Type/manufacturer VM16SH/MIKUNI
5SD O/M-3 9/4/01 2:50 PM Page 72 (1,1)

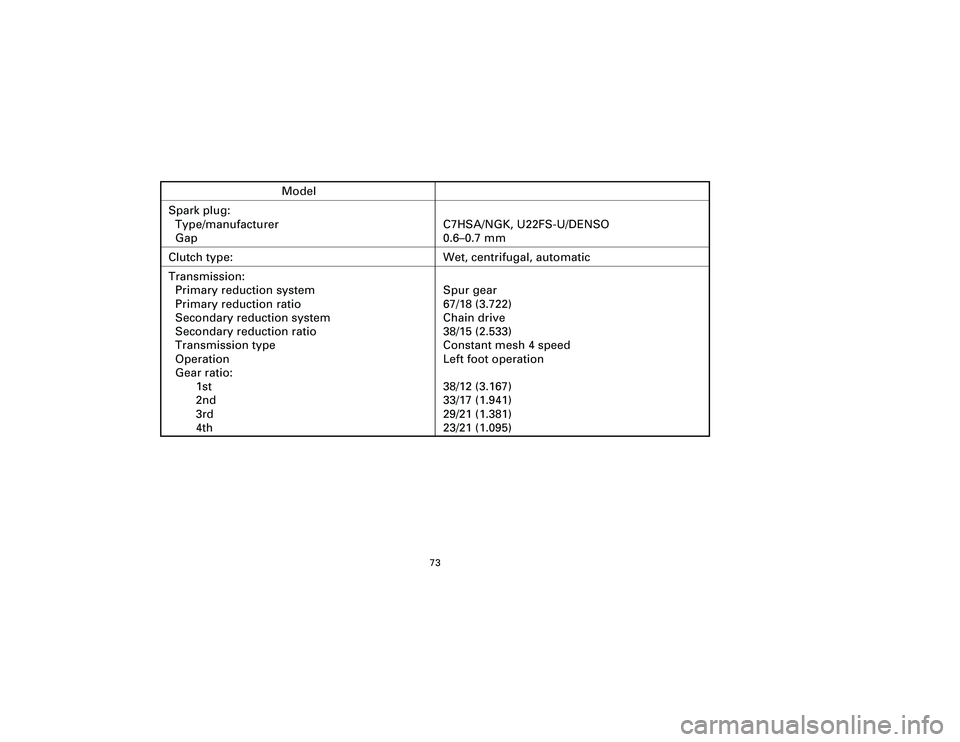

73
Model
Spark plug:
Type/manufacturer C7HSA/NGK, U22FS-U/DENSO
Gap 0.6–0.7 mm
Clutch type: Wet, centrifugal, automatic
Transmission:
Primary reduction system Spur gear
Primary reduction ratio 67/18 (3.722)
Secondary reduction system Chain drive
Secondary reduction ratio 38/15 (2.533)
Transmission type Constant mesh 4 speed
Operation Left foot operation
Gear ratio:
1st 38/12 (3.167)
2nd 33/17 (1.941)
3rd 29/21 (1.381)
4th 23/21 (1.095)
5SD O/M-3 9/4/01 2:50 PM Page 73 (1,1)

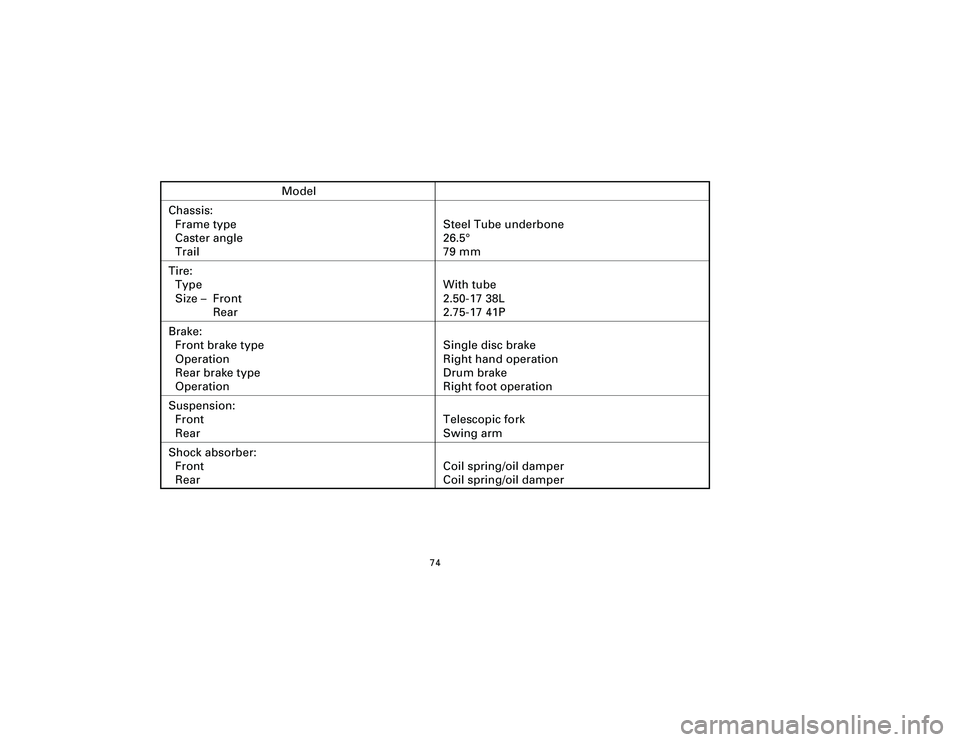

74
Model
Chassis:
Frame type Steel Tube underbone
Caster angle 26.5°
Trail 79 mm
Tire:
Type With tube
Size – Front 2.50-17 38L
Rear 2.75-17 41P
Brake:
Front brake type Single disc brake
Operation Right hand operation
Rear brake type Drum brake
Operation Right foot operation
Suspension:
Front Telescopic fork
Rear Swing arm
Shock absorber:
Front Coil spring/oil damper
Rear Coil spring/oil damper
5SD O/M-3 9/4/01 2:50 PM Page 74 (1,1)

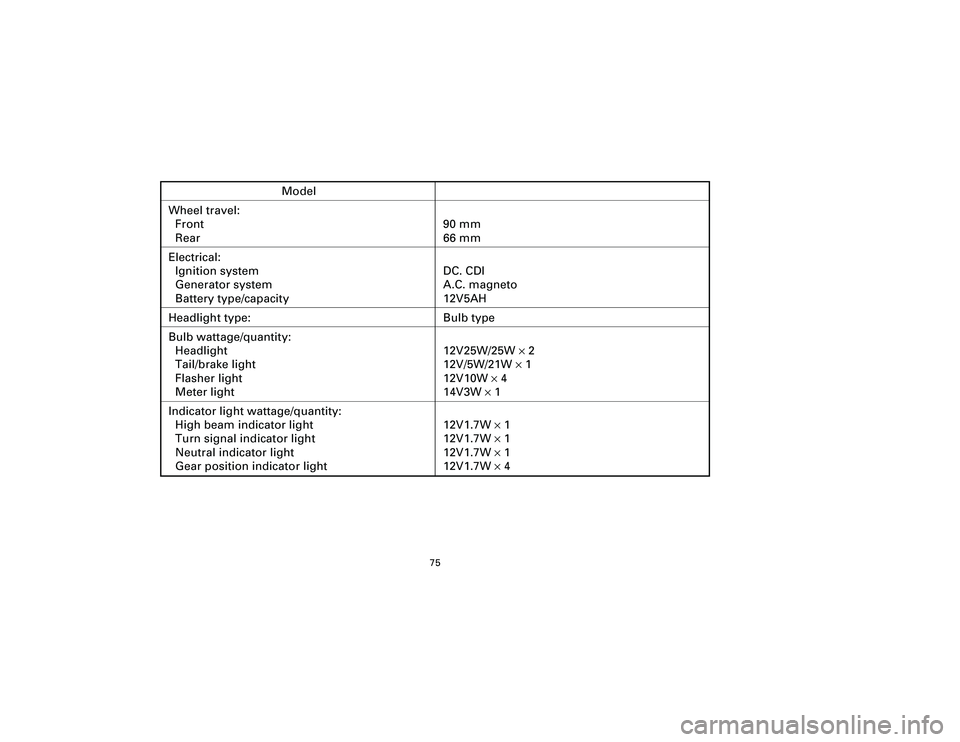

75
Model
Wheel travel:
Front 90 mm
Rear 66 mm
Electrical:
Ignition system DC. CDI
Generator system A.C. magneto
Battery type/capacity 12V5AH
Headlight type: Bulb type
Bulb wattage/quantity:
Headlight 12V25W/25W ×2
Tail/brake light 12V/5W/21W ×1
Flasher light 12V10W ×4
Meter light 14V3W ×1
Indicator light wattage/quantity:
High beam indicator light 12V1.7W ×1
Turn signal indicator light 12V1.7W ×1
Neutral indicator light 12V1.7W ×1
Gear position indicator light 12V1.7W ×4
5SD O/M-3 9/4/01 2:50 PM Page 75 (1,1)
