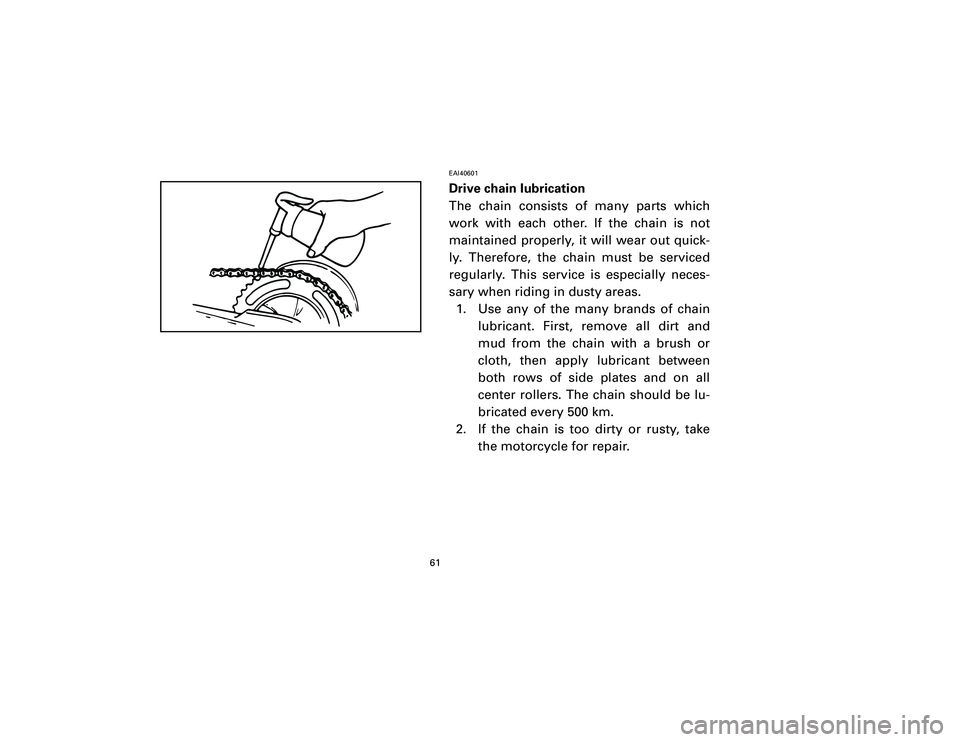

EAI40601Drive chain lubrication
The chain consists of many parts which
work with each other. If the chain is not
maintained properly, it will wear out quick-
ly. Therefore, the chain must be serviced
regularly. This service is especially neces-
sary when riding in dusty areas.
1. Use any of the many brands of chain
lubricant. First, remove all dirt and
mud from the chain with a brush or
cloth, then apply lubricant between
both rows of side plates and on all
center rollers. The chain should be lu-
bricated every 500 km.
2. If the chain is too dirty or rusty, take
the motorcycle for repair.
61
5SD O/M-3 9/4/01 2:50 PM Page 61 (1,1)

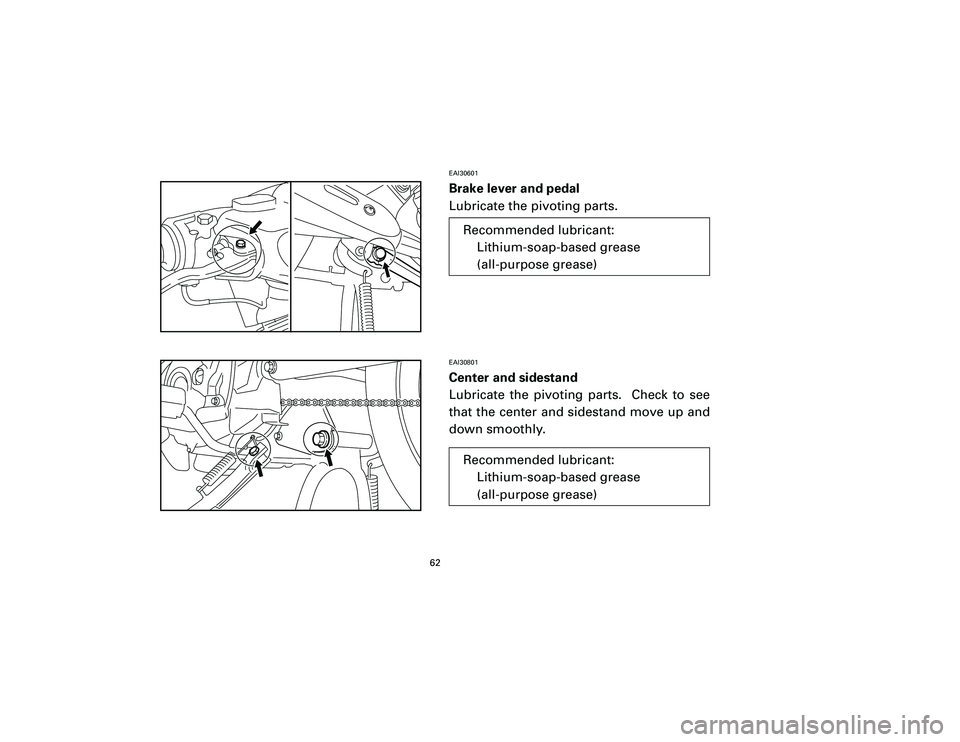

EAI30601Brake lever and pedal
Lubricate the pivoting parts.EAI30801Center and sidestand
Lubricate the pivoting parts. Check to see
that the center and sidestand move up and
down smoothly.
62
Recommended lubricant:
Lithium-soap-based grease
(all-purpose grease)Recommended lubricant:
Lithium-soap-based grease
(all-purpose grease)
5SD O/M-3 9/4/01 2:50 PM Page 62 (1,1)

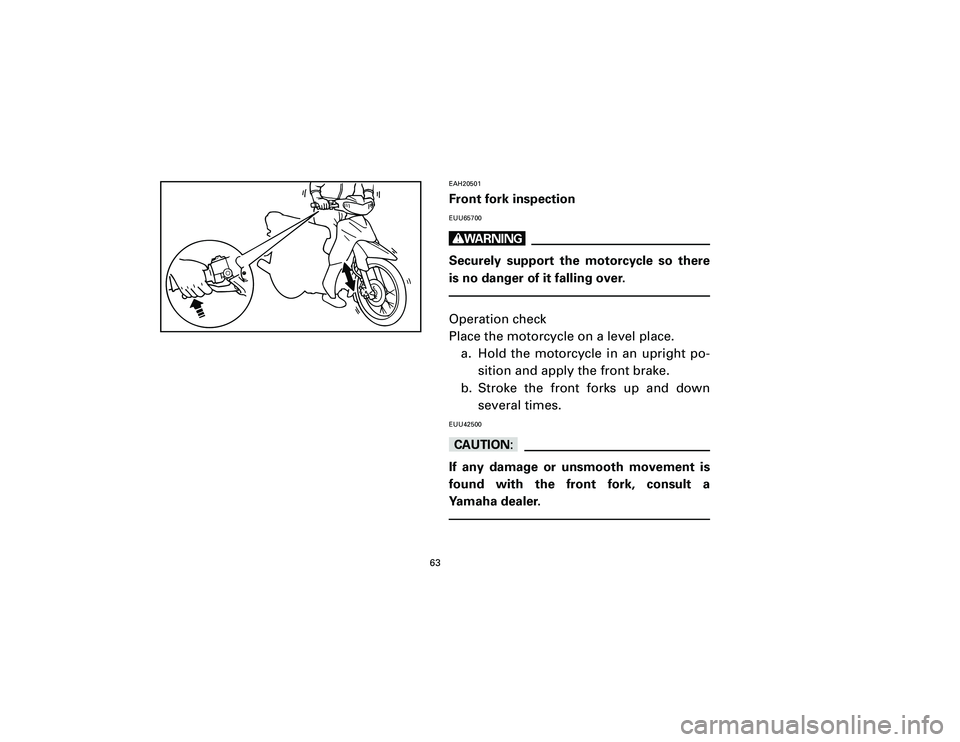

EAH20501Front fork inspectionEUU65700wSecurely support the motorcycle so there
is no danger of it falling over.Operation check
Place the motorcycle on a level place.
a. Hold the motorcycle in an upright po-
sition and apply the front brake.
b. Stroke the front forks up and down
several times.EUU42500cCIf any damage or unsmooth movement is
found with the front fork, consult a
Yamaha dealer.
63
5SD O/M-3 9/4/01 2:50 PM Page 63 (1,1)

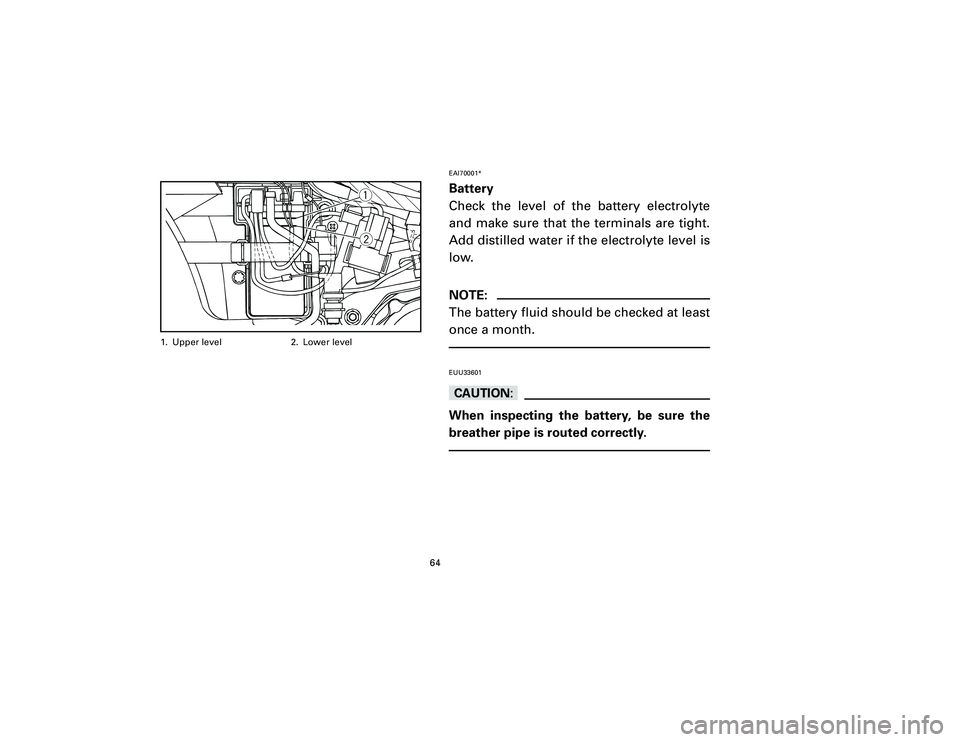

EAI70001*Battery
Check the level of the battery electrolyte
and make sure that the terminals are tight.
Add distilled water if the electrolyte level is
low.NOTE:
The battery fluid should be checked at least
once a month.EUU33601cCWhen inspecting the battery, be sure the
breather pipe is routed correctly.
64
qw
1. Upper level 2. Lower level
5SD O/M-3 9/4/01 2:50 PM Page 64 (1,1)

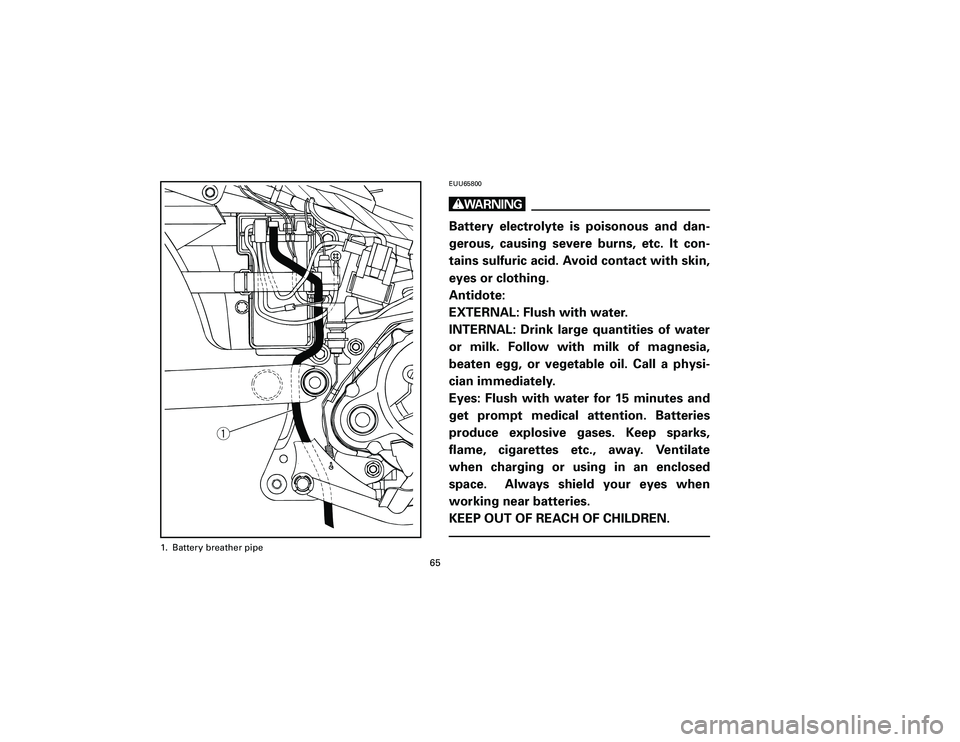

EUU65800wBattery electrolyte is poisonous and dan-
gerous, causing severe burns, etc. It con-
tains sulfuric acid. Avoid contact with skin,
eyes or clothing.
Antidote:
EXTERNAL: Flush with water.
INTERNAL: Drink large quantities of water
or milk. Follow with milk of magnesia,
beaten egg, or vegetable oil. Call a physi-
cian immediately.
Eyes: Flush with water for 15 minutes and
get prompt medical attention. Batteries
produce explosive gases. Keep sparks,
flame, cigarettes etc., away. Ventilate
when charging or using in an enclosed
space. Always shield your eyes when
working near batteries.
KEEP OUT OF REACH OF CHILDREN.
65
q
1. Battery breather pipe
5SD O/M-3 9/4/01 2:50 PM Page 65 (1,1)

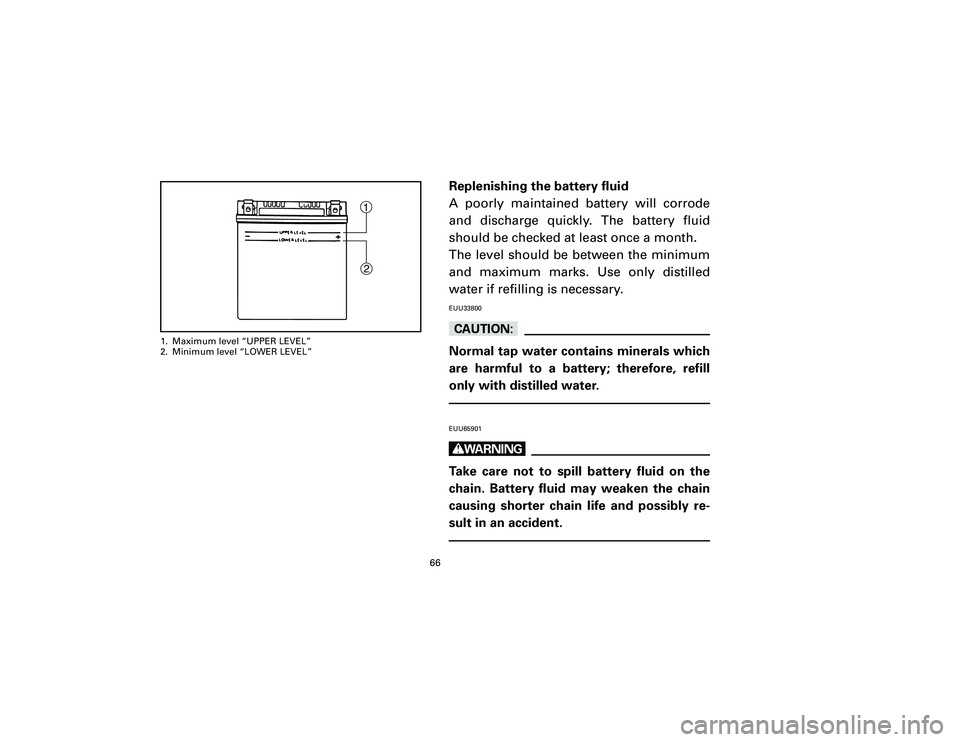

Replenishing the battery fluid
A poorly maintained battery will corrode
and discharge quickly. The battery fluid
should be checked at least once a month.
The level should be between the minimum
and maximum marks. Use only distilled
water if refilling is necessary.EUU33800cCNormal tap water contains minerals which
are harmful to a battery; therefore, refill
only with distilled water.EUU65901wTake care not to spill battery fluid on the
chain. Battery fluid may weaken the chain
causing shorter chain life and possibly re-
sult in an accident.
66
1
2
1. Maximum level “UPPER LEVEL”
2. Minimum level “LOWER LEVEL”
5SD O/M-3 9/4/01 2:50 PM Page 66 (1,1)

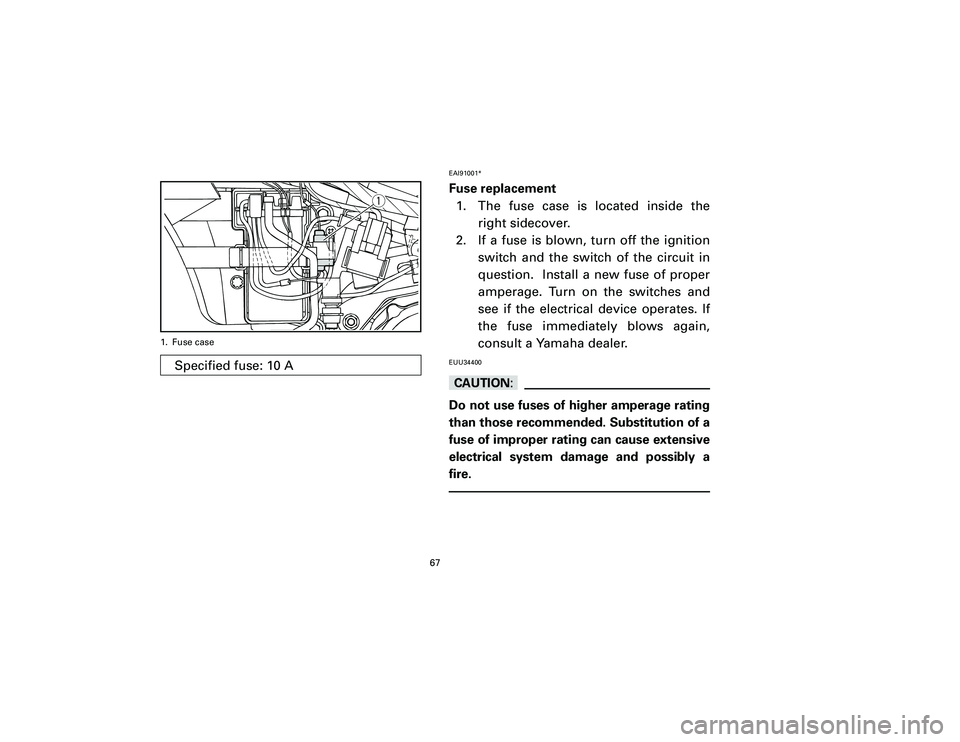

EAI91001*Fuse replacement
1. The fuse case is located inside the
right sidecover.
2. If a fuse is blown, turn off the ignition
switch and the switch of the circuit in
question. Install a new fuse of proper
amperage. Turn on the switches and
see if the electrical device operates. If
the fuse immediately blows again,
consult a Yamaha dealer.EUU34400cCDo not use fuses of higher amperage rating
than those recommended. Substitution of a
fuse of improper rating can cause extensive
electrical system damage and possibly a
fire.
67
q
1. Fuse case
Specified fuse: 10 A
5SD O/M-3 9/4/01 2:50 PM Page 67 (1,1)

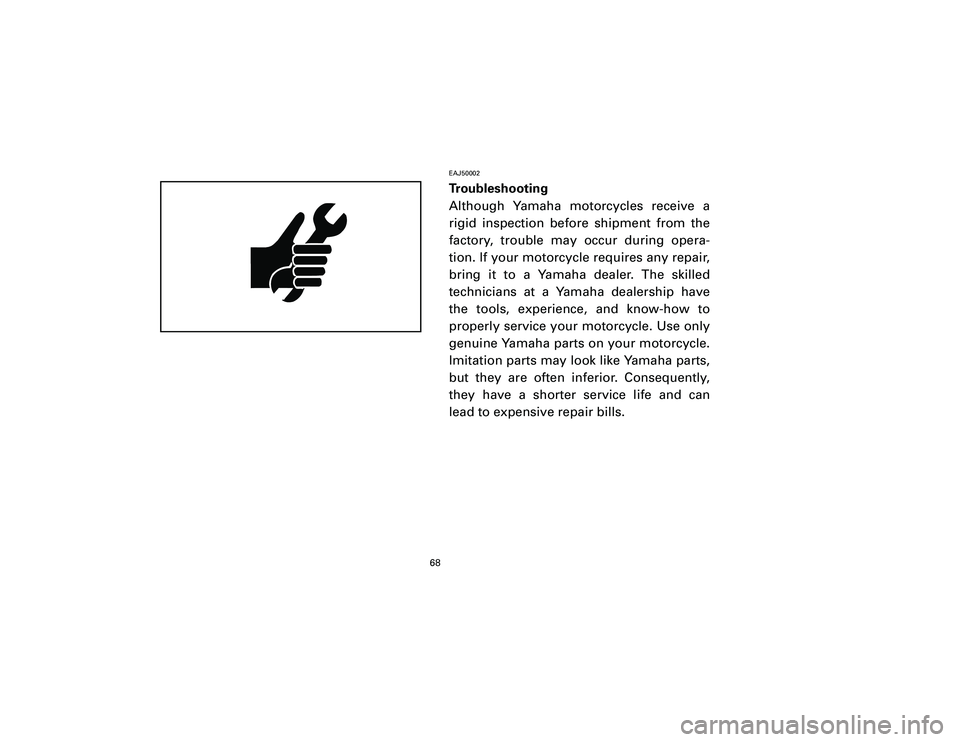

EAJ50002Troubleshooting
Although Yamaha motorcycles receive a
rigid inspection before shipment from the
factory, trouble may occur during opera-
tion. If your motorcycle requires any repair,
bring it to a Yamaha dealer. The skilled
technicians at a Yamaha dealership have
the tools, experience, and know-how to
properly service your motorcycle. Use only
genuine Yamaha parts on your motorcycle.
Imitation parts may look like Yamaha parts,
but they are often inferior. Consequently,
they have a shorter service life and can
lead to expensive repair bills.
68
5SD O/M-3 9/4/01 2:50 PM Page 68 (1,1)

EAK00000
CLEANING AND
STORAGE

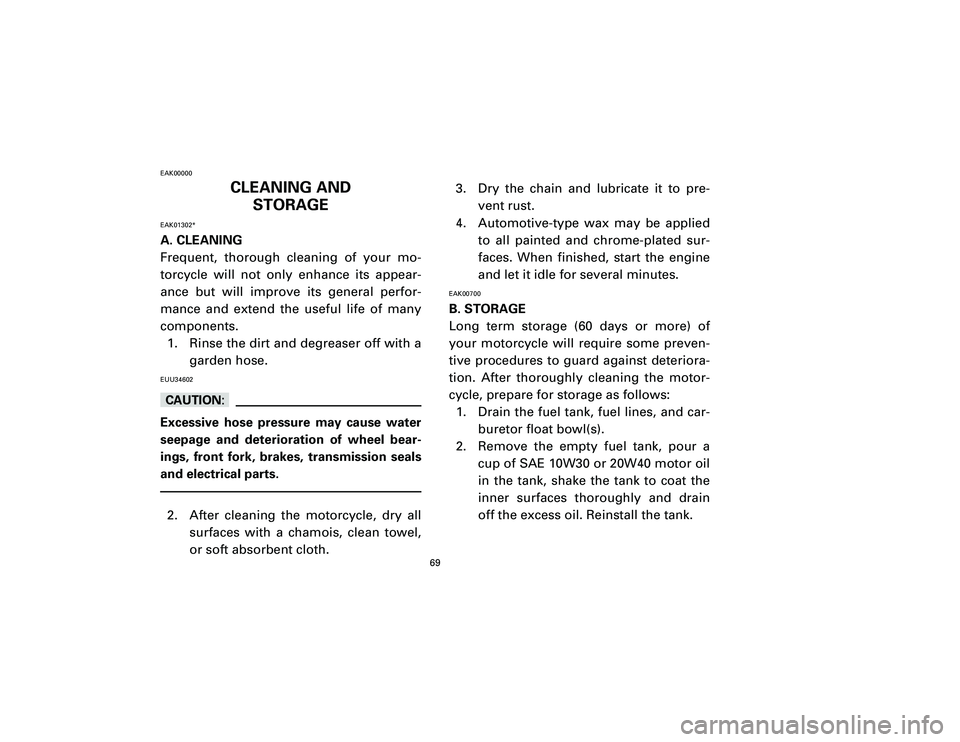

EAK01302*A. CLEANING
Frequent, thorough cleaning of your mo-
torcycle will not only enhance its appear-
ance but will improve its general perfor-
mance and extend the useful life of many
components.
1. Rinse the dirt and degreaser off with a
garden hose.EUU34602cCExcessive hose pressure may cause water
seepage and deterioration of wheel bear-
ings, front fork, brakes, transmission seals
and electrical parts.2. After cleaning the motorcycle, dry all
surfaces with a chamois, clean towel,
or soft absorbent cloth.3. Dry the chain and lubricate it to pre-
vent rust.
4. Automotive-type wax may be applied
to all painted and chrome-plated sur-
faces. When finished, start the engine
and let it idle for several minutes.
EAK00700B. STORAGE
Long term storage (60 days or more) of
your motorcycle will require some preven-
tive procedures to guard against deteriora-
tion. After thoroughly cleaning the motor-
cycle, prepare for storage as follows:
1. Drain the fuel tank, fuel lines, and car-
buretor float bowl(s).
2. Remove the empty fuel tank, pour a
cup of SAE 10W30 or 20W40 motor oil
in the tank, shake the tank to coat the
inner surfaces thoroughly and drain
off the excess oil. Reinstall the tank.
69
5SD O/M-3 9/4/01 2:50 PM Page 69 (1,1)

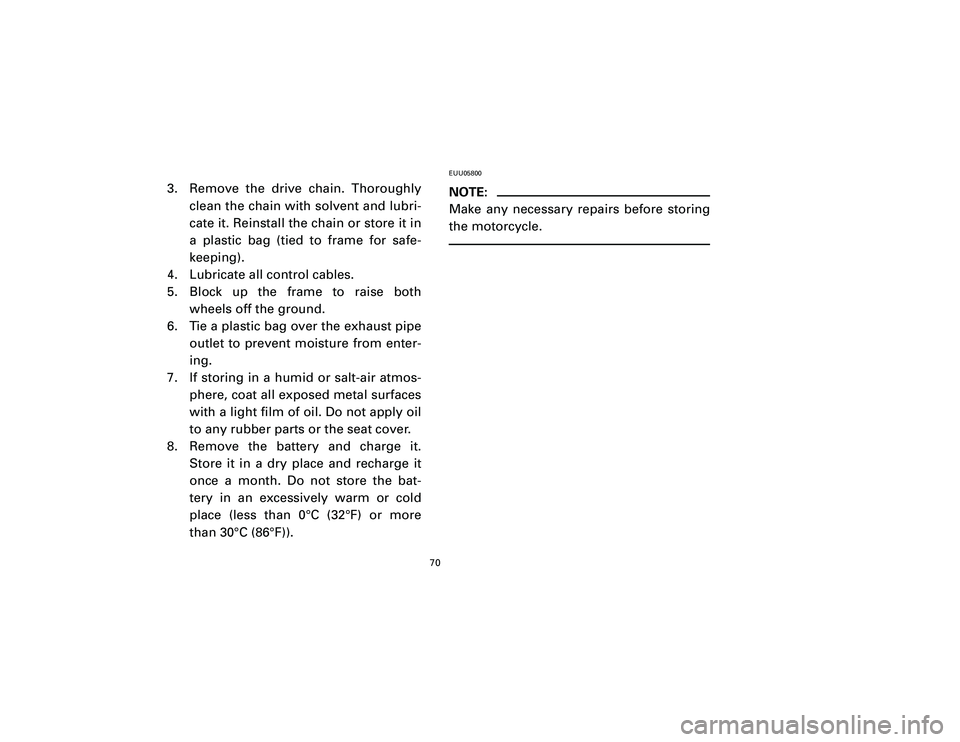

3. Remove the drive chain. Thoroughly
clean the chain with solvent and lubri-
cate it. Reinstall the chain or store it in
a plastic bag (tied to frame for safe-
keeping).
4. Lubricate all control cables.
5. Block up the frame to raise both
wheels off the ground.
6. Tie a plastic bag over the exhaust pipe
outlet to prevent moisture from enter-
ing.
7. If storing in a humid or salt-air atmos-
phere, coat all exposed metal surfaces
with a light film of oil. Do not apply oil
to any rubber parts or the seat cover.
8. Remove the battery and charge it.
Store it in a dry place and recharge it
once a month. Do not store the bat-
tery in an excessively warm or cold
place (less than 0°C (32°F) or more
than 30°C (86°F)).
EUU05800NOTE:
Make any necessary repairs before storing
the motorcycle.
70
