DESCRIPTION
2
Left view ............................................................................................. 2-1
Right view ........................................................................................... 2-2
Controls and instruments ................................................................... 2-3
U5PSE0.book Page 1 Thursday, December 13, 2001 4:29 PM

2-1
2
EAU00026

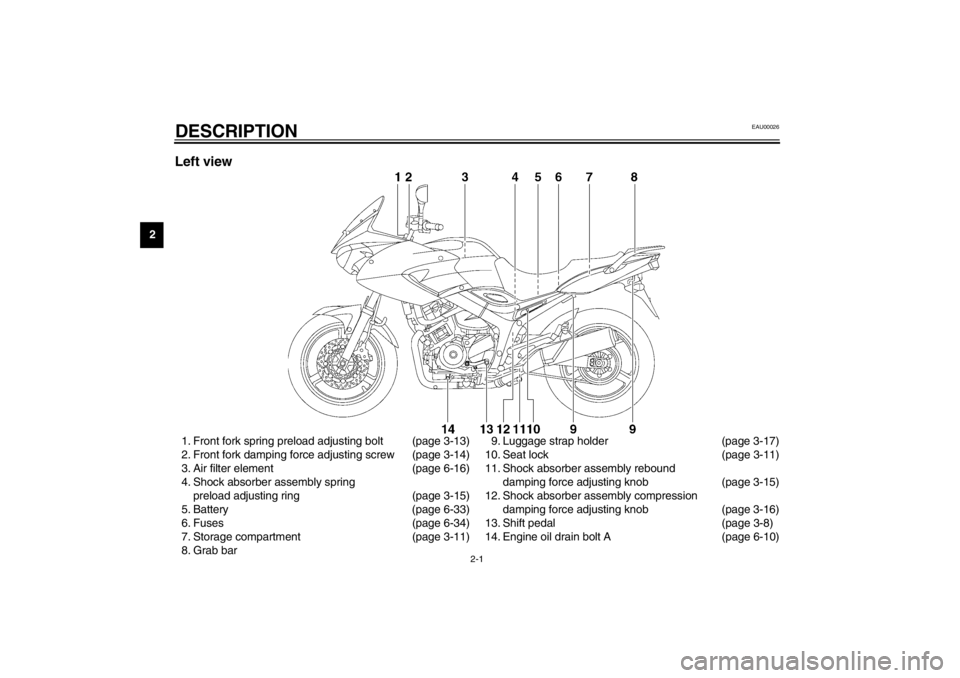

2-DESCRIPTION Left view1. Front fork spring preload adjusting bolt (page 3-13)
2. Front fork damping force adjusting screw (page 3-14)
3. Air filter element (page 6-16)
4. Shock absorber assembly spring
preload adjusting ring (page 3-15)
5. Battery (page 6-33)
6. Fuses (page 6-34)
7. Storage compartment (page 3-11)
8. Grab bar9. Luggage strap holder (page 3-17)
10. Seat lock (page 3-11)
11. Shock absorber assembly rebound
damping force adjusting knob (page 3-15)
12. Shock absorber assembly compression
damping force adjusting knob (page 3-16)
13. Shift pedal (page 3-8)
14. Engine oil drain bolt A (page 6-10)
U5PSE0.book Page 1 Thursday, December 13, 2001 4:29 PM

DESCRIPTION
2-2
2

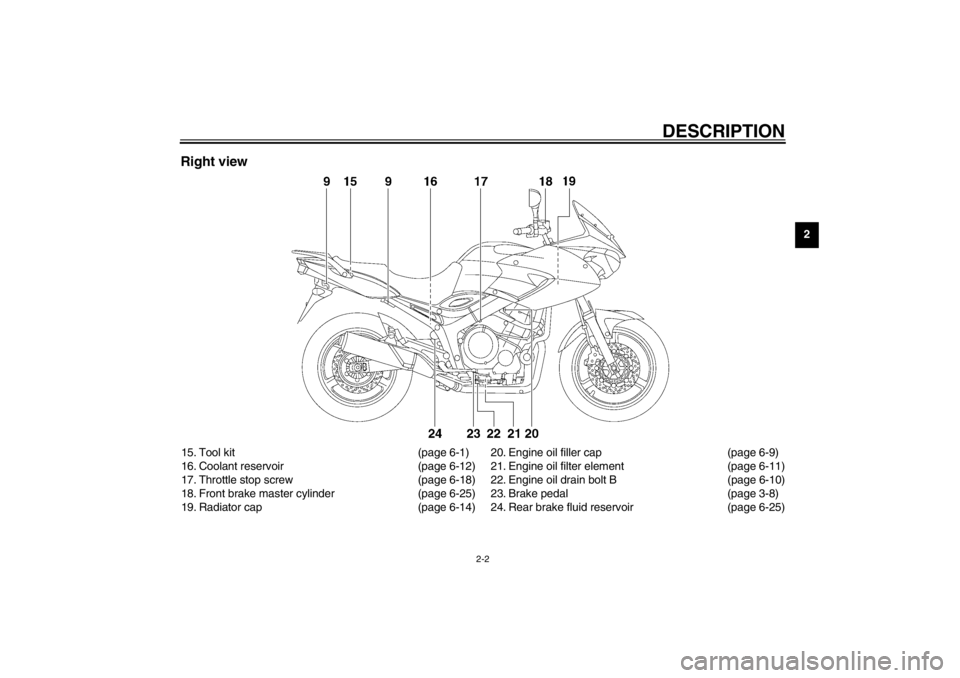

Right view15. Tool kit (page 6-1)
16. Coolant reservoir (page 6-12)
17. Throttle stop screw (page 6-18)
18. Front brake master cylinder (page 6-25)
19. Radiator cap (page 6-14)20. Engine oil filler cap (page 6-9)
21. Engine oil filter element (page 6-11)
22. Engine oil drain bolt B (page 6-10)
23. Brake pedal (page 3-8)
24. Rear brake fluid reservoir (page 6-25)
U5PSE0.book Page 2 Thursday, December 13, 2001 4:29 PM

DESCRIPTION
2-3
2

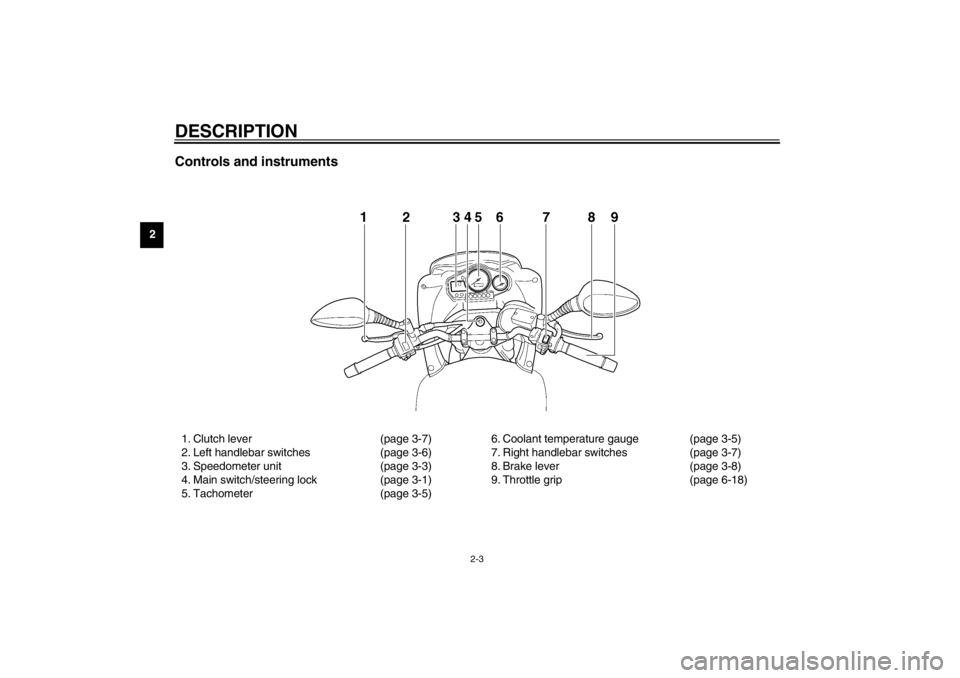

Controls and instruments1. Clutch lever (page 3-7)
2. Left handlebar switches (page 3-6)
3. Speedometer unit (page 3-3)
4. Main switch/steering lock (page 3-1)
5. Tachometer (page 3-5)6. Coolant temperature gauge (page 3-5)
7. Right handlebar switches (page 3-7)
8. Brake lever (page 3-8)
9. Throttle grip (page 6-18)
U5PSE0.book Page 3 Thursday, December 13, 2001 4:29 PM

INSTRUMENT AND CONTROL FUNCTIONS
3
Main switch/steering lock .................................................................. 3-1
Indicator and warning lights ............................................................. 3-2
Speedometer unit .............................................................................. 3-3
Tachometer unit ................................................................................. 3-5
Coolant temperature gauge .............................................................. 3-5
Anti-theft alarm (optional) .................................................................. 3-6
Handlebar switches ........................................................................... 3-6
Clutch lever ....................................................................................... 3-7
Shift pedal ......................................................................................... 3-8
Brake lever ........................................................................................ 3-8
Brake pedal ....................................................................................... 3-8
Fuel tank cap ..................................................................................... 3-9
Fuel ................................................................................................... 3-9
Fuel tank breather hose (for Germany only) ................................... 3-10
Seat ................................................................................................. 3-11
Storage compartment ..................................................................... 3-11
Adjusting the front fork .................................................................... 3-13
Adjusting the shock absorber assembly .......................................... 3-15
Luggage strap holders .................................................................... 3-17
Sidestand ........................................................................................ 3-17
Ignition circuit cut-off system ........................................................... 3-18
U5PSE0.book Page 1 Thursday, December 13, 2001 4:29 PM

3-1
3
EAU00027
3-INSTRUMENT AND CONTROL FUNCTIONS
EAU00029
Main switch/steering lock The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU00036
ON
All electrical systems are supplied with
power, and the engine can be started.
The key cannot be removed.
EAU00038
OFF
All electrical systems are off. The key
can be removed.
EAU00040
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.
To lock the steering1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.
To unlock the steeringPush the key in, and then turn it to
“OFF” while still pushing it.
EW000016
WARNING
@ Never turn the key to “OFF” or
“LOCK” while the motorcycle is
moving, otherwise the electrical
systems will be switched off, which
may result in loss of control or an
accident. Make sure that the motor-
cycle is stopped before turning the
key to “OFF” or “LOCK”. @1. Push.
2. Turn.
U5PSE0.book Page 1 Thursday, December 13, 2001 4:29 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU01590
(Parking)
The steering is locked, and the taillight
and auxiliary light are on, but all other
electrical systems are off. The key can
be removed.
The steering must be locked before the
key can be turned to “”.
ECA00043
CAUTION:_ Do not use the parking position for
an extended length of time, other-
wise the battery may discharge. _
EAU03034
Indicator and warning lights
EAU04478
Fuel level warning symbol “”
This fuel level warning symbol starts
flashing when the fuel level drops be-
low approximately 3.5 L.
EAU04121
Turn signal indicator lights “”
and “”
The corresponding indicator light flash-
es when the turn signal switch is
pushed to the left or right.
EAU00063
High beam indicator light “”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU00061
Neutral indicator light “”
This indicator light comes on when the
transmission is in the neutral position.

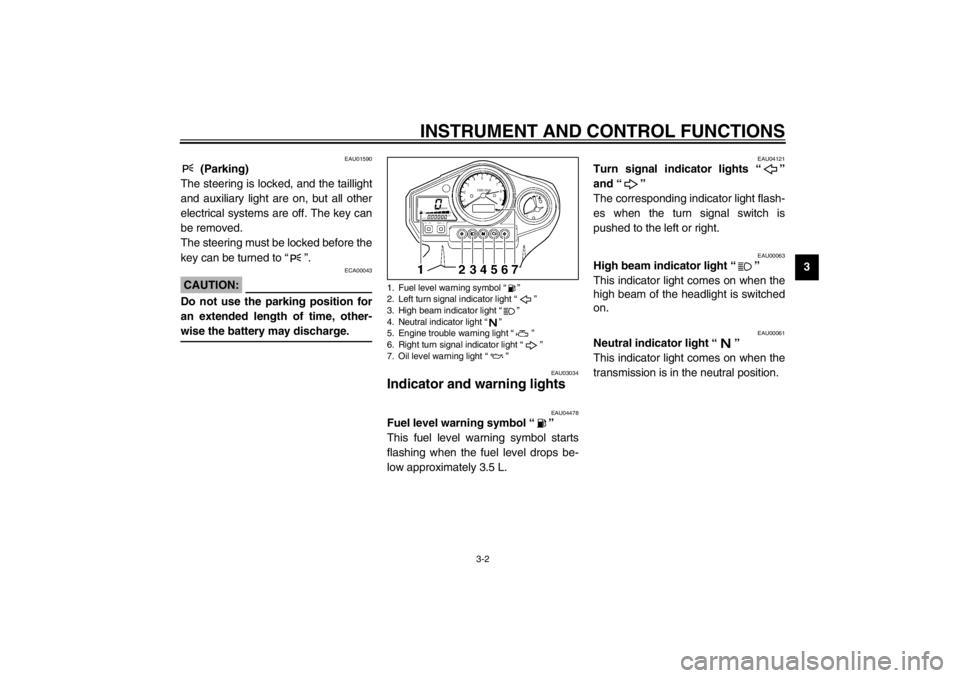

1. Fuel level warning symbol “”
2. Left turn signal indicator light “”
3. High beam indicator light “”
4. Neutral indicator light “”
5. Engine trouble warning light “”
6. Right turn signal indicator light “”
7. Oil level warning light “”
U5PSE0.book Page 2 Thursday, December 13, 2001 4:29 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU04238
Engine trouble warning light “”
This warning light comes on or flashes
when an electrical circuit monitoring
the engine is defective. When this oc-
curs, have a Yamaha dealer check the
self-diagnosis system.NOTE:_ This warning light comes on for a few
seconds when the key is turned to
“ON”, but this does not indicate a mal-
function. _
EAU04301
Oil level warning light “”
This warning light comes on when the
engine oil level is low.
The electrical circuit of the warning light
can be checked according to the fol-
lowing procedure.
1. Turn the key to “ON”.
2. If the warning light does not come
on for a few seconds, then go off,
have a Yamaha dealer check the
electrical circuit.
NOTE:_ Even if the oil level is sufficient, the
warning light may flicker when riding on
a slope or during sudden acceleration
or deceleration, but this is not a mal-
function. _
EAU04428*
Speedometer unit The speedometer unit is equipped with
the following:

a digital speedometer (which
shows riding speed)


an odometer (which shows the to-
tal distance traveled)


two tripmeters (which show the
distance traveled since they were
last set to zero)


a fuel reserve tripmeter (which
shows the distance traveled on the
fuel reserve)

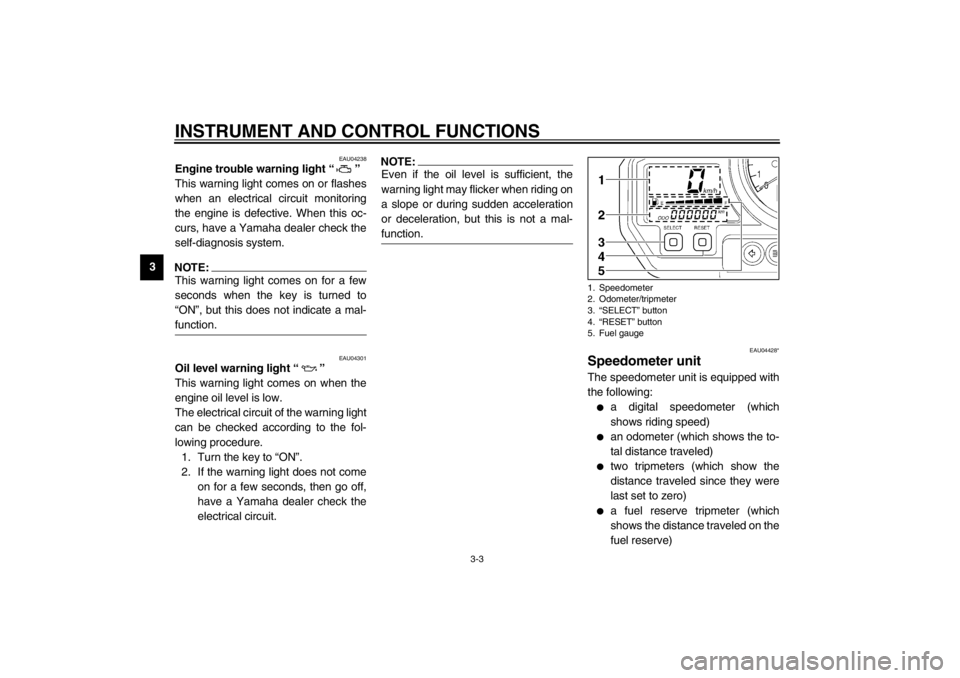

1. Speedometer
2. Odometer/tripmeter
3.“SELECT” button
4.“RESET” button
5. Fuel gauge
U5PSE0.book Page 3 Thursday, December 13, 2001 4:29 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3


a fuel gauge


a self-diagnosis device
NOTE:_ Be sure to turn the key to “ON” before
using the “SELECT” and “RESET” but-
tons. _Odometer and tripmeter modes
Pushing the “SELECT” button switches
the display between the odometer
mode “ODO” and the tripmeter modes
“TRIP 1” and “TRIP 2” in the following
order:
ODO
→ TRIP 1
→ TRIP 2
→ ODO
If the fuel level warning symbol flashes
(see page 3-2), the odometer display
will automatically change to the fuel re-
serve tripmeter mode “TRIP F” and
start counting the distance traveled
from that point. In that case, pushing
the “SELECT” button switches the dis-
play between the various tripmeter and
odometer modes in the following order:
TRIP F
→ TRIP 1
→ TRIP 2
→ ODO
→
TRIP FTo reset a tripmeter, select it by push-
ing the “SELECT” button, and then
push the “RESET” button. If you do not
reset the fuel reserve tripmeter manu-
ally, it will reset itself automatically and
the display will return to “TRIP 1” after
refueling and traveling 5 km.
NOTE:_ After resetting the fuel reserve tripme-
ter, the display will return to “TRIP 1”,
unless a different mode had been pre-
viously selected; in that case, the dis-
play automatically returns to the prior
mode. _Fuel gauge
The fuel gauge indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel gauge disappear to-
wards “E” (Empty) as the fuel level
decreases. When only one segment is
left near “E”, refuel as soon as possi-
ble.Self-diagnosis device
This model is equipped with a self-di-
agnosis device for various electrical cir-
cuits.
If any of those circuits are defective,
the odometer/tripmeter will indicate a
two-digit error code (e.g., 11, 12, 13).
If the odometer/tripmeter indicates
such an error code, note the code num-
ber, and then have a Yamaha dealer
check the motorcycle.
ECA00120
CAUTION:_ If the odometer/tripmeter indicates
an error code, the motorcycle
should be checked as soon as pos-
sible in order to avoid engine dam-
age. _
U5PSE0.book Page 4 Thursday, December 13, 2001 4:29 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
EAU04488
Tachometer unit The electric tachometer allows the rider
to monitor the engine speed and keep it
within the ideal power range.
EC000003
CAUTION:_ Do not operate the engine in the ta-
chometer red zone.
Red zone: 8,000 r/min and above _This tachometer unit is equipped with a
clock.To set the clock:
1. Push both the “SELECT” and
“RESET” buttons for at least two
seconds.
2. When the hour digits start flashing,
push the “RESET” button to set
the hours.
3. Push the “SELECT” button to
change the minutes.
4. When the minute digits start flash-
ing, push the “RESET” button to
set the minutes.
5. Push the “SELECT” button to start
the clock.
NOTE:_

After setting the clock, be sure to
push the “SELECT” button before
turning the key to “OFF”, other-
wise the clock will not be set.


When the key is turned to “OFF”,
the clock display will remain on for
48 hours and then go off to pre-
vent the battery from discharging.
_
EAU01652
Coolant temperature gauge With the key in the “ON” position, the
coolant temperature gauge indicates
the temperature of the coolant. The
coolant temperature varies with chang-
es in the weather and engine load. If
the needle reaches or enters the red
zone, stop the motorcycle and let the
engine cool. (See page 6-44 for further
instructions.)
EC000002
CAUTION:_ Do not operate the engine if it is
overheated. _

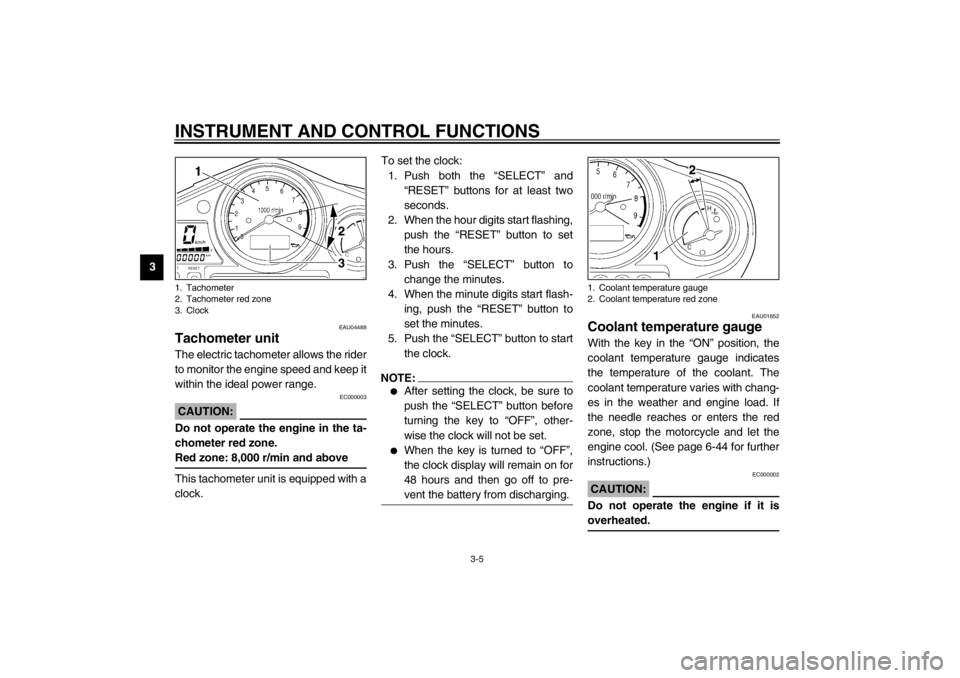

1. Tachometer
2. Tachometer red zone
3. Clock
1. Coolant temperature gauge
2. Coolant temperature red zone
