OPERATION AND IMPORTANT RIDING POINTS
5-3
2
3
4
56
7
8
9

EAU16792
Braking
1. Close the throttle completely.
2. Apply both front and rear brakes
simultaneously while gradually in-
creasing the pressure.
FrontRear
WARNING

EWA10300

Avoid braking hard or suddenly
(especially when leaning over to
one side), otherwise the scooter
may skid or overturn.

Railroad crossings, streetcar
rails, iron plates on road con-
struction sites, and manhole
covers become extremely slip-
pery when wet. Therefore, slow
down when approaching such
areas and cross them with cau-
tion.

Keep in mind that braking on a
wet road is much more difficult.

Ride slowly down a hill, as brak-
ing downhill can be very diffi-
cult.

OPERATION AND IMPORTANT RIDING POINTS
5-4
1
2
3
4
5
6
7
8
9

EAU16820
Tips for reducing fuel
consumption
Fuel consumption depends largely on
your riding style. Consider the following
tips to reduce fuel consumption:

Avoid high engine speeds during
acceleration.

Avoid high engine speeds with no
load on the engine.

Turn the engine off instead of let-
ting it idle for an extended length of
time (e.g., in traffic jams, at traffic
lights or at railroad crossings).
EAU16841
Engine break-in
There is never a more important period
in the life of your engine than the period
between 0 and 1600 km (1000 mi). For
this reason, you should read the follow-
ing material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1600 km (1000 mi). The various parts in
the engine wear and polish themselves
to the correct operating clearances.
During this period, prolonged full-throt-
tle operation or any condition that might
result in engine overheating must be
avoided.
EAU36530
0–1000 km (0–600 mi)
Avoid prolonged operation above
4000 r/min.
1000–1600 km (600–1000 mi)
Avoid prolonged operation above
6000 r/min.
CAUTION:

ECA11281
After 1000 km (600 mi) of operation,the engine oil must be changed, and
the oil filter cartridge or element re-
placed.
1600 km (1000 mi) and beyond
The vehicle can now be operated nor-
mally.
CAUTION:

ECA10310

Keep the engine speed out of
the tachometer red zone.

If any engine trouble should oc-
cur during the engine break-in
period, immediately have a
Yamaha dealer check the vehi-
cle.

OPERATION AND IMPORTANT RIDING POINTS
5-5
2
3
4
56
7
8
9

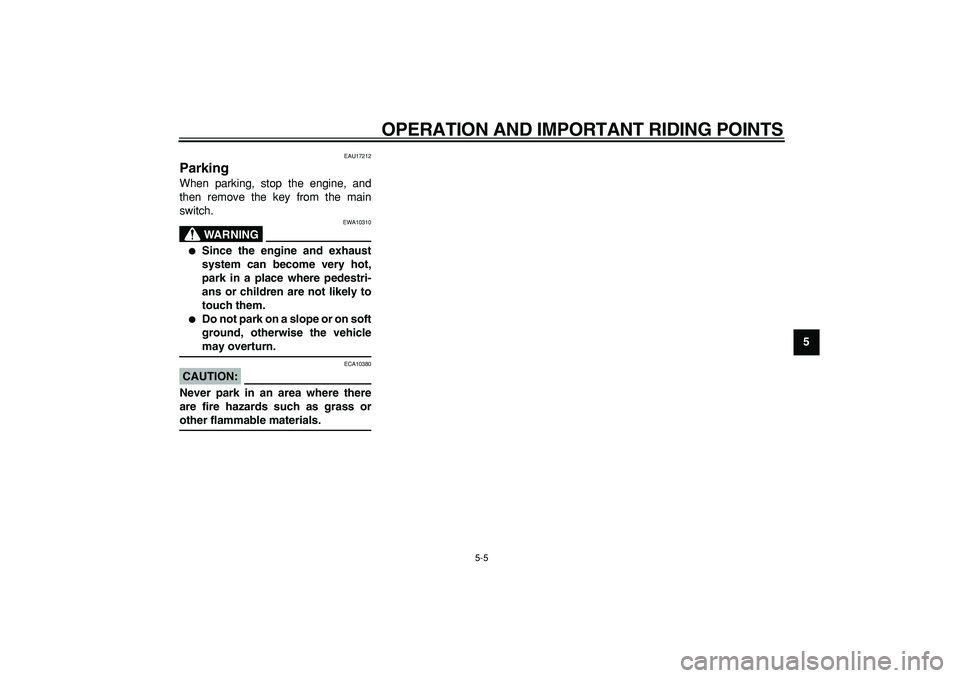

EAU17212
Parking
When parking, stop the engine, and
then remove the key from the main
switch.
WARNING

EWA10310

Since the engine and exhaust
system can become very hot,
park in a place where pedestri-
ans or children are not likely to
touch them.

Do not park on a slope or on soft
ground, otherwise the vehicle
may overturn.
CAUTION:

ECA10380
Never park in an area where there
are fire hazards such as grass or
other flammable materials.

6-1
1
2
3
4
5
6
7
8
9

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU17280
Safety is an obligation of the owner. Pe-
riodic inspection, adjustment and lubri-
cation will keep your vehicle in the
safest and most efficient condition pos-
sible. The most important points of in-
spection, adjustment, and lubrication
are explained on the following pages.
The intervals given in the periodic
maintenance and lubrication chart
should be simply considered as a gen-
eral guide under normal riding condi-
tions. However, DEPENDING ON THE
WEATHER, TERRAIN, GEOGRAPHI-
CAL LOCATION, AND INDIVIDUAL
USE, THE MAINTENANCE INTER-
VALS MAY NEED TO BE SHORT-
ENED.
WARNING

EWA10320
If you are not familiar with mainte-
nance work, have a Yamaha dealer
do it for you.
WARNING

EWA10330
This scooter is designed for use on
paved roads only. If this scooter isoperated in abnormally dusty, mud-
dy or wet conditions, the air filter el-
ement should be cleaned or
replaced more frequently, otherwise
rapid engine wear may result. Con-
sult a Yamaha dealer for proper
maintenance intervals.

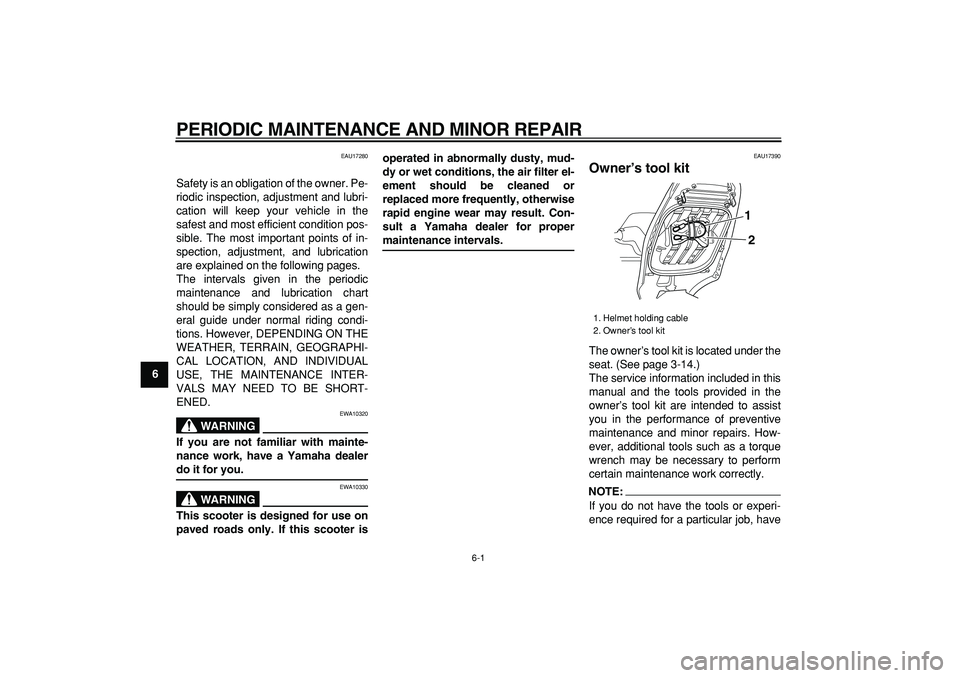

EAU17390
Owner’s tool kit
The owner’s tool kit is located under the
seat. (See page 3-14.)
The service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs. How-
ever, additional tools such as a torque
wrench may be necessary to perform
certain maintenance work correctly.
NOTE:

If you do not have the tools or experi-
ence required for a particular job, have
1. Helmet holding cable
2. Owner’s tool kit
2 1

PERIODIC MAINTENANCE AND MINOR REPAIR
6-2
2
3
4
5
67
8
9

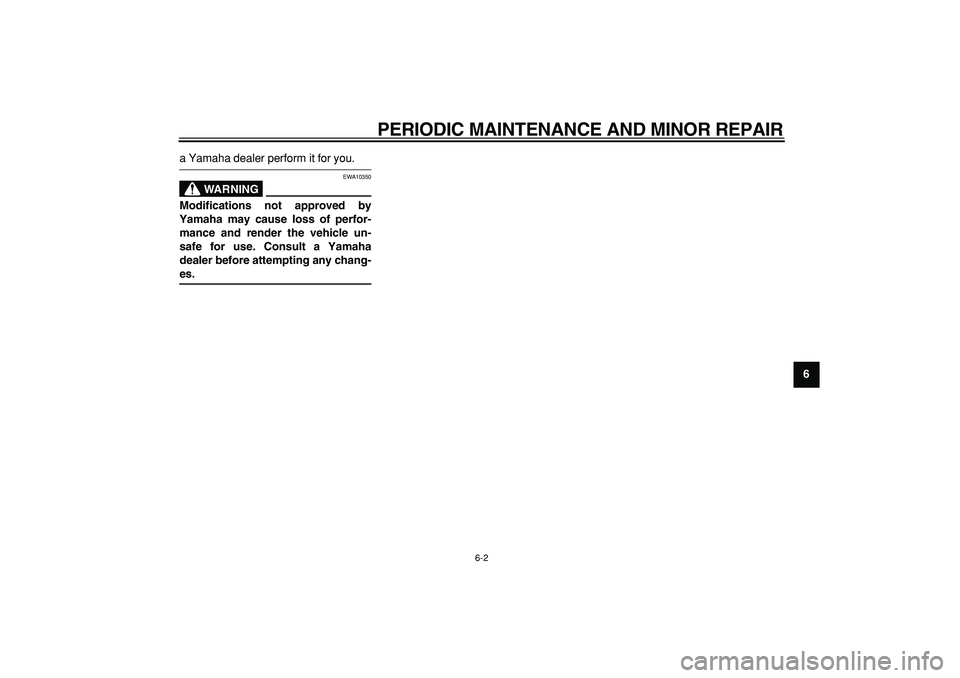

a Yamaha dealer perform it for you.
WARNING

EWA10350
Modifications not approved by
Yamaha may cause loss of perfor-
mance and render the vehicle un-
safe for use. Consult a Yamaha
dealer before attempting any chang-
es.

PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
1
2
3
4
5
6
7
8
9

EAU17706
Periodic maintenance and lubrication chart
NOTE:


The annual checks must be performed every year, except if a kilometer-based maintenance is performed in-
stead.

From 50000 km, repeat the maintenance intervals starting from 10000 km.

Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technical
skills.
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (
×
1000 km)
ANNUAL
CHECK
1 10203040
1*
Fuel line


Check fuel hoses for cracks or damage.
√√√√ √
2
Spark plugs

Check condition.

Clean and regap.
√√

Replace.
√√
3*
Valves

Check valve clearance.

Adjust.Every 40000 km
4
Air filter element

Clean.
√√

Replace.
√√
5*
V-belt case air filter ele-
ments

Clean.
√√

Replace.
√√
6*
Front brake

Check operation, fluid level and vehicle for fluid leak-
age.
√√√√√ √

Replace brake pads. Whenever worn to the limit
7*
Rear brake

Check operation, fluid level and vehicle for fluid leak-
age.
√√√√√ √

Replace brake pads. Whenever worn to the limit
8
Rear brake lock

Check operation.

Adjust.
√√√√√ √

PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
2
3
4
5
67
8
9

9*
Brake hoses

Check for cracks or damage.
√√√√ √

Replace. Every 4 years
10

*
Wheels

Check runout and for damage.
√√√√
11

*
Tires

Check tread depth and for damage.

Replace if necessary.

Check air pressure.

Correct if necessary.
√√√√ √
12

*
Wheel bearings

Check bearing for looseness or damage.
√√√√
13

*
Steering bearings

Check bearing play and steering for roughness.
√√√√√

Lubricate with lithium-soap-based grease. Every 20000 km
14

*
Chassis fasteners

Make sure that all nuts, bolts and screws are properly
tightened.
√√√√ √
15

Sidestand, centerstand

Check operation.

Lubricate.
√√√√ √
16

*
Sidestand switch

Check operation.
√√√√√ √
17

*
Front fork

Check operation and for oil leakage.
√√√√
18

*
Shock absorber assem-
bly

Check operation and shock absorber for oil leakage.
√√√√
19

*
Fuel injection

Adjust engine idling speed and synchronization.
√√√√√ √
20

Engine oil

Change. (See pages 3-5 and 6-11.)
√
When the oil change indicator flashes (every
5000 km)

Check oil level and vehicle for oil leakage. Every 5000 km
√
21

Engine oil filter cartridge

Replace.
√√√
22

*
Cooling system

Check coolant level and vehicle for coolant leakage.
√√√√ √

Change. Every 3 years
23

Chain drive oil

Check vehicle for oil leakage.

Change.
√√√√
24

*
V-belt

Replace.When the V-belt replacement indicator flashes (every
20000 km)
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (
×
1000 km)
ANNUAL
CHECK
1 10203040

PERIODIC MAINTENANCE AND MINOR REPAIR
6-5
1
2
3
4
5
6
7
8
9

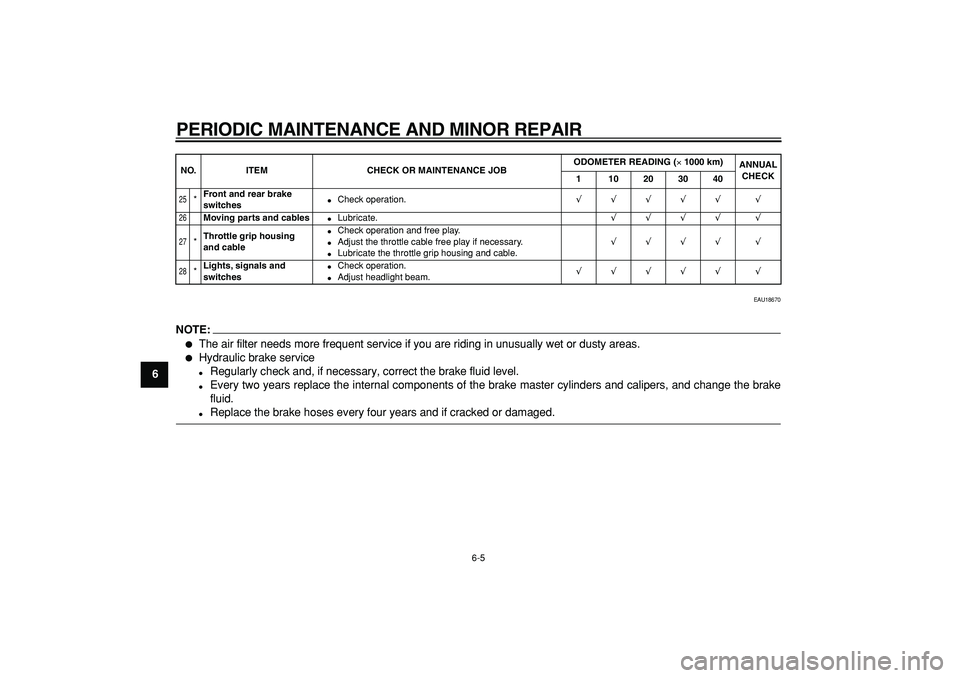

EAU18670
NOTE:


The air filter needs more frequent service if you are riding in unusually wet or dusty areas.

Hydraulic brake service

Regularly check and, if necessary, correct the brake fluid level.

Every two years replace the internal components of the brake master cylinders and calipers, and change the brake
fluid.

Replace the brake hoses every four years and if cracked or damaged.
25

*
Front and rear brake
switches

Check operation.
√√√√√ √
26

Moving parts and cables

Lubricate.
√√√√ √
27

*
Throttle grip housing
and cable

Check operation and free play.

Adjust the throttle cable free play if necessary.

Lubricate the throttle grip housing and cable.
√√√√ √
28

*
Lights, signals and
switches

Check operation.

Adjust headlight beam.
√√√√√ √
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (
×
1000 km)
ANNUAL
CHECK
1 10203040

PERIODIC MAINTENANCE AND MINOR REPAIR
6-6
2
3
4
5
67
8
9

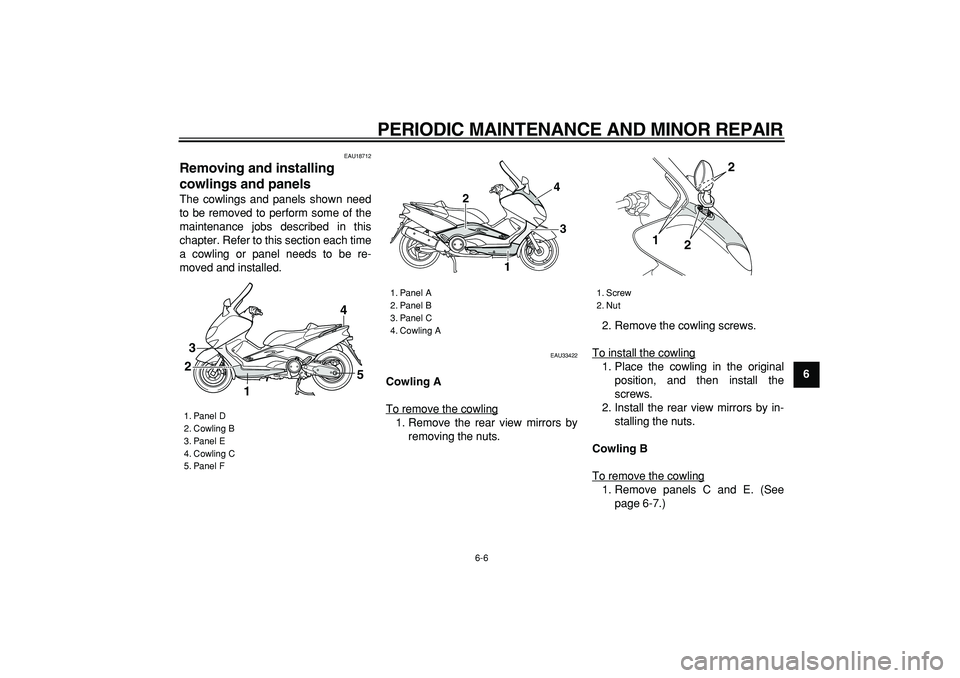

EAU18712
Removing and installing
cowlings and panels
The cowlings and panels shown need
to be removed to perform some of the
maintenance jobs described in this
chapter. Refer to this section each time
a cowling or panel needs to be re-
moved and installed.
EAU33422
Cowling A
To remove the cowling
1. Remove the rear view mirrors by
removing the nuts.2. Remove the cowling screws.
To install the cowling
1. Place the cowling in the original
position, and then install the
screws.
2. Install the rear view mirrors by in-
stalling the nuts.
Cowling B
To remove the cowling1. Remove panels C and E. (See
page 6-7.)

1. Panel D
2. Cowling B
3. Panel E
4. Cowling C
5. Panel F
1
23
4
5

1. Panel A
2. Panel B
3. Panel C
4. Cowling A
4
3
1 2

1. Screw
2. Nut
2
1
2

PERIODIC MAINTENANCE AND MINOR REPAIR
6-7
1
2
3
4
5
6
7
8
9

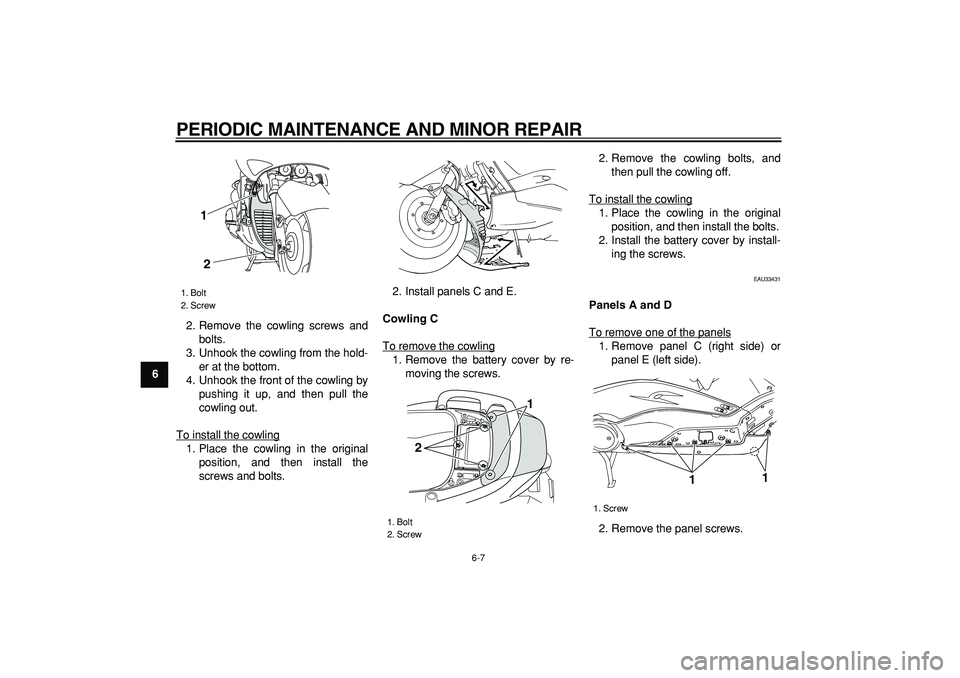

2. Remove the cowling screws and
bolts.
3. Unhook the cowling from the hold-
er at the bottom.
4. Unhook the front of the cowling by
pushing it up, and then pull the
cowling out.
To install the cowling
1. Place the cowling in the original
position, and then install the
screws and bolts.2. Install panels C and E.
Cowling C
To remove the cowling
1. Remove the battery cover by re-
moving the screws.2. Remove the cowling bolts, and
then pull the cowling off.
To install the cowling
1. Place the cowling in the original
position, and then install the bolts.
2. Install the battery cover by install-
ing the screws.

EAU33431
Panels A and D
To remove one of the panels
1. Remove panel C (right side) or
panel E (left side).
2. Remove the panel screws.

1. Bolt
2. Screw
12

1. Bolt
2. Screw
1
2

1. Screw
1
