YAMAHA TMAX 2009 Owner's Guide

INSTRUMENT AND CONTROL FUNCTIONS
3-16
2
34
5
6
7
8
9 To install the fuel tank cap
1. Align the match marks, insert the
fuel tank cap into the tank opening,
and then push down on the cap.
2. Turn the key counterclockwise to
the original position, and then re-move it.
3. Close the lid.
WARNING

EWA11261
Make sure that the fuel tank cap is
properly installed and locked in
place before riding the scooter.
Leaking fuel is a fire hazard.
EAU13212
Fuel
Make sure there is sufficient gasoline in
the tank.
WARNING

EWA10881
Gasoline and gasoline vapors are
extremely flammable. To avoid fires
and explosions and to reduce the
risk of injury when refueling, follow
these instructions.
1. Before refueling, turn off the en-
gine and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the vi-
cinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters and
clothes dryers.
2. Do not overfill the fuel tank. Stop
filling when the fuel reaches the
bottom of the filler tube. Because
fuel expands when it heats up,
heat from the engine or the sun
can cause fuel to spill out of the
fuel tank.
1. Fuel tank cap
1. Match marks
1
1

INSTRUMENT AND CONTROL FUNCTIONS
3-17
1
2
3
4
5
6
7
8
9
3. Wipe up any spilled fuel immedi-
ately.
NOTICE:
Immediately wipe
off spilled fuel with a clean, dry,
soft cloth, since fuel may deteri-
orate painted surfaces or plastic
parts.

[ECA10071]

4. Be sure to securely close the fuel
tank cap.
WARNING

EWA15151
Gasoline is poisonous and can
cause injury or death. Handle gaso-
line with care. Never siphon gaso-
line by mouth. If you should swallow
some gasoline or inhale a lot of gas-
oline vapor, or get some gasoline inyour eyes, see your doctor immedi-
ately. If gasoline spills on your skin,
wash with soap and water. If gaso-
line spills on your clothing, change
your clothes.
EAU33520
NOTICE

ECA11400
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,
as well as to the exhaust system.
Your Yamaha engine has been de-
signed to use regular unleaded gaso-
line with a research octane number of
91 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different brand
or premium unleaded fuel. Use of un-
leaded fuel will extend spark plug lifeand reduce maintenance costs.
1. Fuel tank filler tube
2. Fuel level
21

Recommended fuel:
REGULAR UNLEADED GASOLINE
ONLY
Fuel tank capacity:
15.0 L (3.96 US gal, 3.30 Imp.gal)

INSTRUMENT AND CONTROL FUNCTIONS
3-18
2
34
5
6
7
8
9

EAU13432
Catalytic converter
This model is equipped with a catalytic
converter in the exhaust system.
WARNING

EWA10861
The exhaust system is hot after op-
eration. To prevent a fire hazard or
burns:

Do not park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.

Park the motorcycle in a place
where pedestrians or children
are not likely to touch the hot
exhaust system.

Make sure that the exhaust sys-
tem has cooled down before do-
ing any maintenance work.

Do not allow the engine to idle
more than a few minutes. Long
idling can cause a build-up of
heat.
NOTICE

ECA10701
Use only unleaded gasoline. The use
of leaded gasoline will cause unre-pairable damage to the catalytic
converter.
EAU13932
Seat
To open the seat
1. Place the scooter on the center-
stand.
2. Insert the key into the main switch,
and then turn it counterclockwise
to “OPEN”.
TIP

Do not push inward when turning the
key.
3. Fold the seat up.
1. Open.
1

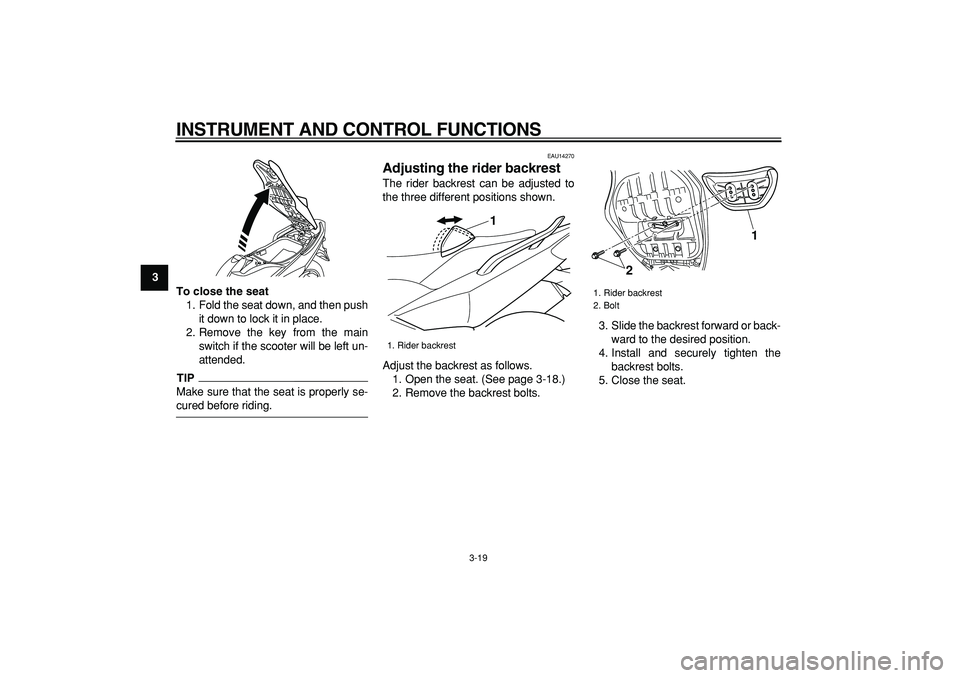

INSTRUMENT AND CONTROL FUNCTIONS
3-19
1
2
3
4
5
6
7
8
9To close the seat
1. Fold the seat down, and then push
it down to lock it in place.
2. Remove the key from the main
switch if the scooter will be left un-
attended.
TIP

Make sure that the seat is properly se-
cured before riding.
EAU14270
Adjusting the rider backrest
The rider backrest can be adjusted to
the three different positions shown.
Adjust the backrest as follows.
1. Open the seat. (See page 3-18.)
2. Remove the backrest bolts.3. Slide the backrest forward or back-
ward to the desired position.
4. Install and securely tighten the
backrest bolts.
5. Close the seat.
1. Rider backrest
1

1. Rider backrest
2. Bolt
2
1

INSTRUMENT AND CONTROL FUNCTIONS
3-20
2
34
5
6
7
8
9

EAU46300
Helmet holder
The helmet holder is located under the
seat. A helmet holding cable is provid-
ed beside the owner’s tool kit to secure
a helmet to the helmet holder.
To secure a helmet to the helmet
holder
1. Open the seat. (See page 3-18.)
2. Pass the helmet holding cable
through the buckle on the helmet
strap as shown, and then hook the
cable loop over the helmet holder.
3. Make sure the helmet holding ca-ble is not touching the shaded pro-
jection, and securely close the
seat.
WARNING! Never ride with
a helmet attached to the helmet
holder, since the helmet may hit
objects, causing loss of control
and possibly an accident.

[EWA10161]

To release the helmet from the hel-
met holder
Open the seat, remove the helmet
holding cable from the helmet holder
and the helmet, and then close the
seat.
EAU44993
Storage compartments
Front storage compartments A and
B
To open a front storage compartment,
slide the lever up, and then pull on the
lever.
WARNING! Do not store heavy
items in these compartments.
[EWA14861]

1. Shaded projection
2. Helmet holding cable
3. Helmet holde
12 3

1. Storage compartment opening lever
2. Front storage compartment A
1
2

INSTRUMENT AND CONTROL FUNCTIONS
3-21
1
2
3
4
5
6
7
8
9
To close the front storage compart-
ments, push the lid into the original po-
sition.
Rear storage compartment
A helmet can be stored in the rear stor-
age compartment under the seat. (See
page 3-18.) To store a helmet in the
rear storage compartment, place the
helmet upside down with the front fac-
ing the left side.
NOTICE:
Keep the
following points in mind when using
the storage compartment. Since the
storage compartment accumulates
heat when exposed to the sun, do
not store anything susceptible to
heat inside it. To avoid humidity
from spreading through the storage
compartment, wrap wet articles in a
plastic bag before storing them in
the compartment. Since the storagecompartment may get wet while the
scooter is being washed, wrap any
articles stored in the compartment
in a plastic bag. Do not keep any-
thing valuable or breakable in the
storage compartment. Do not leave
the seat open for an extended period
of time, otherwise the light may
cause the battery to discharge.

[ECA16081]
NOTICE:
The shaded area is not a
storage compartment. To prevent
damaging the seat hinges, do not
place any items in this area.
[ECA16091]

TIP


Some helmets cannot be stored in
the rear storage compartment be-
1. Storage compartment opening lever
2. Front storage compartment B
1. Storage compartment lid
1
2
1

1. Storage compartment lid
1

1. Rear storage compartment
2. Shaded area
1
2

INSTRUMENT AND CONTROL FUNCTIONS
3-22
2
34
5
6
7
8
9
cause of their size or shape.


Do not leave your scooter unat-
tended with the seat open.
WARNING

EWA11241

Do not exceed the load limit of
5 kg (11 lb) for the rear storage
compartment.

Do not exceed the maximum
load of XP500 194 kg (428 lb)
XP500A 190 kg (419 lb) for the
vehicle.
EAU44970
Rear view mirrors
The rear view mirrors of this vehicle can
be folded backward for parking in nar-
row spaces. Fold the mirrors back to
their original position before riding.
WARNING

EWA14371
Be sure to fold the rear view mirrors
back to their original position before
riding.
EAU46021
Shock absorber assembly
WARNING

EWA10221
This shock absorber assembly con-
tains highly pressurized nitrogen
gas. Read and understand the fol-
lowing information before handling
the shock absorber assembly.

Do not tamper with or attempt to
open the cylinder assembly.

Do not subject the shock ab-
sorber assembly to an open
flame or other high heat source.
This may cause the unit to ex-
plode due to excessive gas
pressure.

Do not deform or damage the
cylinder in any way. Cylinder
damage will result in poor
damping performance.

Do not dispose of a damaged or
worn-out shock absorber as-
sembly yourself. Take the shock
absorber assembly to a Yamaha
dealer for any service.
1. Parking position
2. Riding position
1
1 2
2

INSTRUMENT AND CONTROL FUNCTIONS
3-23
1
2
3
4
5
6
7
8
9

EAU15301
Sidestand
The sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
vehicle upright.
TIP

The built-in sidestand switch is part of
the ignition circuit cut-off system, which
cuts the ignition in certain situations.
(See further down for an explanation of
the ignition circuit cut-off system.)
WARNING

EWA10240
The vehicle must not be ridden with
the sidestand down, or if the side-
stand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control.
Yamaha’s ignition circuit cut-off
system has been designed to assist
the operator in fulfilling the respon-
sibility of raising the sidestand be-
fore starting off. Therefore, check
this system regularly as described
below and have a Yamaha dealer re-pair it if it does not function proper-
ly.
EAU45051
Ignition circuit cut-off system
The ignition circuit cut-off system (com-
prising the sidestand switch and brake
light switches) has the following func-
tions.

It prevents starting when the side-
stand is up, but neither brake is ap-
plied.

It prevents starting when either
brake is applied, but the sidestand
is still down.

It cuts the running engine when the
sidestand is moved down.
Periodically check the operation of the
ignition circuit cut-off system according
to the following procedure.

INSTRUMENT AND CONTROL FUNCTIONS
3-24
2
34
5
6
7
8
9
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is turned on.
3. Turn the key on.
4. Keep the front or rear brake applied.
5. Push the start switch.
Does the engine start?
With the engine still off:
6. Move the sidestand up.
7. Keep the front or rear brake applied.
8. Push the start switch.
Does the engine start?
With the engine still running:
9. Move the sidestand down.
Does the engine stall?
The system is OK. The scooter can be ridden.The sidestand switch may not be working correctly.
The scooter should not be ridden until
checked by a Yamaha dealer.
The brake switch may not be working correctly.
The scooter should not be ridden until
checked by a Yamaha dealer.
The sidestand switch may not be working correctly.
The scooter should not be ridden until
checked by a Yamaha dealer.
YES NO YES NO NO YES
If a malfunction is noted, have a Yamaha
dealer check the system before riding.
WARNING

4-1
1
2
3
4
5
6
7
8
9

FOR YOUR SAFETY – PRE-OPERATION CHECKS
EAU15596
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the inspection
and maintenance procedures and schedules described in the Owner’s Manual.
WARNING

EWA11151
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment damage.
Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures provided in
this manual, have the vehicle inspected by a Yamaha dealer.
Before using this vehicle, check the following points:
ITEM CHECKS PAGE
Fuel

Check fuel level in fuel tank.

Refuel if necessary.

Check fuel line for leakage.3-16
Engine oil

Check oil level in engine.

If necessary, add recommended oil to specified level.

Check vehicle for oil leakage.6-11
Chain drive oil

Check vehicle for oil leakage. 6-14
Coolant

Check coolant level in reservoir.

If necessary, add recommended coolant to specified level.

Check cooling system for leakage.6-15
Front brake

Check operation.

If soft or spongy, have Yamaha dealer bleed hydraulic system.

Check brake pads for wear.

Replace if necessary.

Check fluid level in reservoir.

If necessary, add recommended brake fluid to specified level.

Check hydraulic system for leakage.6-21, 6-22, 6-23
