EAU38262
TIP


Engine air filter and V-belt air filters

This model’s engine air filter is equipped with a disposable oil-coated paper element, which must not be cleaned with
compressed air to avoid damaging it.

The engine air filter element needs to be replaced and the V-belt air filter elements need to be serviced more frequent-
ly when riding in unusually wet or dusty areas.

Hydraulic brake service

After disassembling the brake master cylinders and calipers, always change the fluid. Regularly check the brake fluid
levels and fill the reservoirs as required.

Every two years replace the internal components of the brake master cylinders and calipers, and change the brake
fluid.

Replace the brake hoses every four years and if cracked or damaged.

PERIODIC MAINTENANCE AND ADJUSTMENT
6-23
1
2
3
4
5
6
7
8
9
stalling the bolts, then tightening
them to the specified torque.
NOTICE

ECA12822
Do not apply the rear brake or rear
brake lock after the brake caliper
has been removed, otherwise the
brake caliper piston will be forced
out.
EAU40260
Checking the brake fluid level
Front brake
Rear brake
Insufficient brake fluid may allow air toenter the brake system, possibly caus-
ing it to become ineffective.
Before riding, check that the brake fluid
is above the minimum level mark and
replenish if necessary. A low brake fluid
level may indicate worn brake pads
and/or brake system leakage. If the
brake fluid level is low, be sure to check
the brake pads for wear and the brake
system for leakage.
Observe these precautions:

When checking the fluid level,
make sure that the top of the brake
fluid reservoir is level.

Use only the recommended quality
brake fluid, otherwise the rubber
seals may deteriorate, causing
leakage and poor braking perfor-
mance.

Refill with the same type of brake
fluid. Mixing fluids may result in a
harmful chemical reaction and
lead to poor braking performance.

Be careful that water or dust does
not enter the brake fluid reservoir
Tightening torque:
Brake caliper bolt:
40 Nm (4.0 m·kgf, 28.9 ft·lbf)
1. Minimum level mark
1. Minimum level mark
1
1

Recommended brake fluid:
DOT 4

PERIODIC MAINTENANCE AND ADJUSTMENT
6-24
2
3
4
5
67
8
9
when refilling. Water will signifi-
cantly lower the boiling point of the
fluid and may result in vapor lock,
and dirt may clog the ABS hydrau-
lic unit valves.


Brake fluid may deteriorate paint-
ed surfaces or plastic parts. Al-
ways clean up spilled fluid
immediately.

As the brake pads wear, it is nor-
mal for the brake fluid level to grad-
ually go down. However, if the
brake fluid level goes down sud-
denly, have a Yamaha dealer
check the cause.

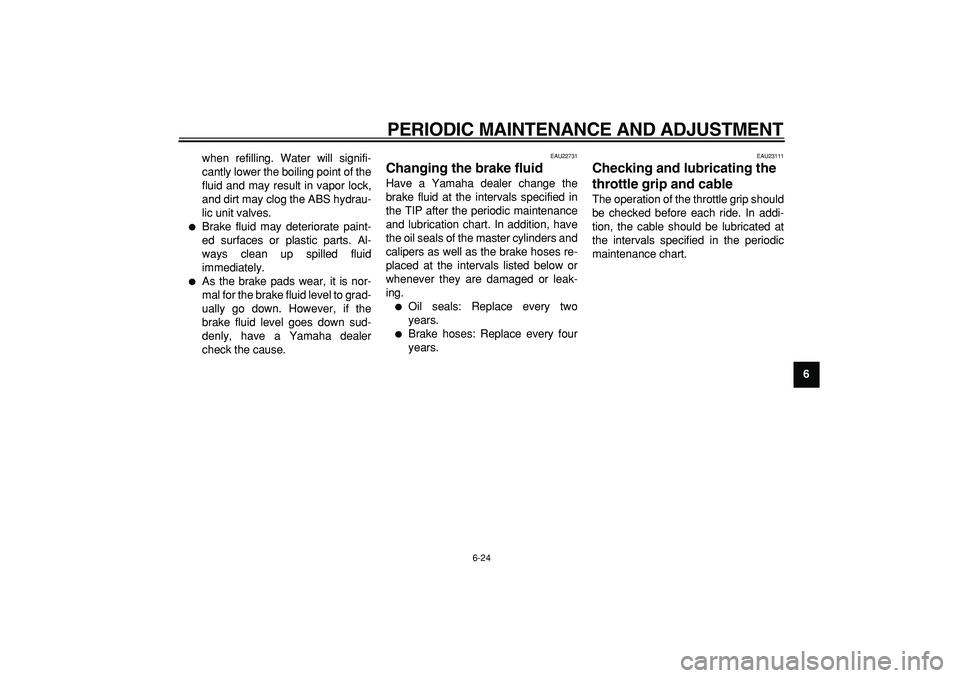

EAU22731
Changing the brake fluid
Have a Yamaha dealer change the
brake fluid at the intervals specified in
the TIP after the periodic maintenance
and lubrication chart. In addition, have
the oil seals of the master cylinders and
calipers as well as the brake hoses re-
placed at the intervals listed below or
whenever they are damaged or leak-
ing.

Oil seals: Replace every two
years.

Brake hoses: Replace every four
years.
EAU23111
Checking and lubricating the
throttle grip and cable
The operation of the throttle grip should
be checked before each ride. In addi-
tion, the cable should be lubricated at
the intervals specified in the periodic
maintenance chart.

SPECIFICATIONS
8-2
2
3
4
5
6
7
89 Chassis:

Frame type:
Diamond
Caster angle:
25.00 °
Trail:
92.0 mm (3.62 in)
Front tire:
Type:
Tubeless
Size:
120/70R15 M/C 56H
Manufacturer/model:
DUNLOP/GPR-100F
Manufacturer/model:
BRIDGESTONE/BT011F
Rear tire:
Type:
Tubeless
Size:
160/60R15 M/C 67H
Manufacturer/model:
DUNLOP/GPR-100L
Manufacturer/model:
BRIDGESTONE/BT012R
Loading:
Maximum load:
XP500 194 kg (428 lb)
XP500A 190 kg (419 lb)
* (Total weight of rider, passenger, cargo
and accessories)
Tire air pressure (measured on cold
tires):
Loading condition:
0–90 kg (0–198 lb)
Front:
225 kPa (2.25 kgf/cm
2

, 33 psi)
Rear:
250 kPa (2.50 kgf/cm
2

, 36 psi)
Loading condition:
XP500 90–194 kg (198–428 lb)
XP500A 90–190 kg (198–419 lb)
Front:
225 kPa (2.25 kgf/cm
2

, 33 psi)
Rear:
280 kPa (2.80 kgf/cm
2

, 41 psi)
Front wheel:
Wheel type:
Cast wheel
Rim size:
15M/C x MT3.50
Rear wheel:
Wheel type:
Cast wheel
Rim size:
15M/C x MT5.00
Front brake:
Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4
Rear brake:
Type:
Single disc brake
Operation:
Left hand operation
Recommended fluid:
DOT 4
Front suspension:
Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
120.0 mm (4.72 in)
Rear suspension:
Type:
Swingarm
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
116.0 mm (4.57 in)
Electrical system:
Ignition system:
TCI (digital)
Charging system:
AC magneto
Battery:
Model:
YTZ10S
Voltage, capacity:
12 V, 8.6 Ah

INDEX
A
ABS (for ABS models) .............................3-14
ABS warning light (for ABS models) ..........3-3
Acceleration and deceleration ...................5-2
Air filter element, replacing ......................6-17
Anti-theft alarm (optional) ........................3-11
Auxiliary light bulb, replacing ...................6-34
B
Battery .....................................................6-27
Brake fluid, changing ...............................6-24
Brake fluid level, checking .......................6-23
Brake lever, front .....................................3-12
Brake lever, rear ......................................3-13
Brake levers, lubricating ..........................6-25
Braking ......................................................5-3
C
Care ...........................................................7-1
Catalytic converter ...................................3-18
Centerstand and sidestand, checking and
lubricating ..............................................6-25
Chain drive oil ..........................................6-14
Coolant ....................................................6-15
Coolant temperature gauge .......................3-5
D
Dimmer switch .........................................3-11
E
Engine break-in .........................................5-4
Engine idling speed .................................6-17
Engine oil and oil filter cartridge ..............6-11
Engine stop switch...................................3-12
Engine trouble warning light ......................3-3
F
Front and rear brake lever free play ........6-21
Front and rear brake pads, checking .......6-22Front fork, checking ................................. 6-26
Fuel ......................................................... 3-16
Fuel consumption, tips for reducing .......... 5-3
Fuel gauge ................................................ 3-5
Fuel tank cap ........................................... 3-15
Fuses, replacing ...................................... 6-29
H
Handlebar switches ................................. 3-11
Hazard switch .......................................... 3-12
Headlight bulb, replacing ......................... 6-31
Helmet holder .......................................... 3-20
High beam indicator light ........................... 3-3
Horn switch.............................................. 3-12
I
Identification numbers ............................... 9-1
Ignition circuit cut-off system ................... 3-23
Immobilizer system.................................... 3-1
Immobilizer system indicator light ............. 3-4
Indicator and warning lights....................... 3-3
K
Key identification number .......................... 9-1
L
License plate light bulb, replacing ........... 6-33
M
Main switch/steering lock .......................... 3-2
Matte color, caution ................................... 7-1
Model label ................................................ 9-2
Multi-function display ................................. 3-6
P
Panels, removing and installing................. 6-7
Parking ...................................................... 5-4
Part locations............................................. 2-1
Pass switch ............................................. 3-11Periodic maintenance and lubrication
chart ........................................................ 6-3
R
Rear brake lock lever .............................. 3-14
Rear brake lock lever cable, adjusting .... 6-21
Rear view mirrors .................................... 3-22
Rider backrest, adjusting......................... 3-19
S
Safe-riding points ...................................... 1-5
Safety information ..................................... 1-1
Seat ......................................................... 3-18
Shock absorber assembly ....................... 3-22
Sidestand ................................................ 3-23
Spark plugs, checking ............................. 6-10
Specifications ............................................ 8-1
Speedometer............................................. 3-4
Starting off ................................................. 5-2
Starting the engine .................................... 5-1
Start switch.............................................. 3-12
Steering, checking................................... 6-27
Storage...................................................... 7-3
Storage compartments ............................ 3-20
T
Tail/brake light ......................................... 6-32
Throttle cable free play, checking ........... 6-18
Throttle grip and cable, checking and
lubricating ............................................. 6-24
Tires ........................................................ 6-19
Tool kit....................................................... 6-2
Troubleshooting ...................................... 6-34
Troubleshooting charts............................ 6-35
Turn signal indicator lights ........................ 3-3
Turn signal light bulb (front), replacing .... 6-32
Turn signal switch ................................... 3-11
