TABLE OF CONTENTS

SAFETY INFORMATION
................. 1-1
Further safe-riding points ................ 1-5
DESCRIPTION
.................................. 2-1
Left view .......................................... 2-1
Right view ........................................ 2-2
Controls and instruments................. 2-3
INSTRUMENT AND CONTROL
FUNCTIONS
....................................... 3-1
Immobilizer system ......................... 3-1
Main switch/steering lock ................ 3-2
Indicator and warning lights ............ 3-3
Speedometer .................................. 3-5
Fuel gauge ...................................... 3-5
Coolant temperature gauge ............ 3-6
Multi-function display ...................... 3-6
Anti-theft alarm (optional) ............. 3-11
Handlebar switches ...................... 3-11
Front brake lever .......................... 3-13
Rear brake lever ........................... 3-13
Rear brake lock lever .................... 3-14
ABS (for ABS models) .................. 3-15
Fuel tank cap ................................ 3-16
Fuel ............................................... 3-17
Catalytic converter ........................ 3-18
Seat .............................................. 3-19
Adjusting the rider backrest .......... 3-19
Helmet holder ............................... 3-20
Storage compartments ................. 3-21
Rear view mirrors ......................... 3-22Shock absorber assembly ............ 3-23
Sidestand ..................................... 3-23
Ignition circuit cut-off system ........ 3-24
FOR YOUR SAFETY –
PRE-OPERATION CHECKS
............. 4-1
OPERATION AND IMPORTANT
RIDING POINTS
................................. 5-1
Starting the engine ......................... 5-1
Starting off ...................................... 5-2
Acceleration and deceleration ........ 5-2
Braking ........................................... 5-3
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-4
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
ADJUSTMENT
................................... 6-1
Owner’s tool kit ............................... 6-1
Periodic maintenance chart for
the emission control system ....... 6-2
General maintenance and
lubrication chart .......................... 6-3
Removing and installing panels ..... 6-6
Checking the spark plugs ............... 6-9
Engine oil and oil filter cartridge ... 6-10
Chain drive oil .............................. 6-13
Coolant ......................................... 6-14
Replacing the air filter element ..... 6-16Adjusting the engine idling
speed ........................................ 6-16
Checking the throttle cable free
play ........................................... 6-17
Valve clearance ........................... 6-17
Tires ............................................. 6-18
Cast wheels ................................. 6-19
Front and rear brake lever free
play ........................................... 6-20
Adjusting the rear brake lock
lever cable ................................ 6-20
Checking the front and rear
brake pads ................................ 6-21
Checking the brake fluid level ...... 6-22
Changing the brake fluid .............. 6-23
Checking and lubricating the
throttle grip and cable ............... 6-23
Lubricating the front and rear
brake levers .............................. 6-24
Checking and lubricating the
centerstand and sidestand ....... 6-24
Checking the front fork ................. 6-25
Checking the steering .................. 6-26
Checking the wheel bearings ....... 6-26
Battery .......................................... 6-26
Replacing the fuses ..................... 6-28
Replacing the headlight bulb ....... 6-30
Tail/brake light .............................. 6-31
Replacing a front turn signal
light bulb ................................... 6-31
Rear turn signal light bulb ............. 6-32

INSTRUMENT AND CONTROL FUNCTIONS
3-2
2
34
5
6
7
8
9 as they may cause signal inter-

ference.
EAU10472
Main switch/steering lock
The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
TIP

Be sure to use the standard key (black
bow) for regular use of the vehicle. To
minimize the risk of losing the code
re-registering key (red bow), keep it in a
safe place and only use it for code
re-registering.
EAU34121
ON
All electrical circuits are supplied with
power; the meter lighting, taillight, li-cense plate light and auxiliary lights
come on, and the engine can be start-
ed. The key cannot be removed.
TIP

The headlights come on automatically
when the engine is started and stay on
until the key is turned to “OFF” or the
sidestand is moved down.
EAU10661
OFF
All electrical systems are off. The key
can be removed.
WARNING

EWA10061
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving.
Otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident.
EAU10683
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.

INSTRUMENT AND CONTROL FUNCTIONS
3-3
1
2
3
4
5
6
7
8
9
To lock the steering
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.
To unlock the steeringPush the key in, and then turn it to
“OFF” while still pushing it.

EAU10941
(Parking)
The steering is locked, and the taillight,
license plate light and auxiliary lights
are on. The hazard lights and turn sig-
nal lights can be turned on, but all other
electrical systems are off. The key can
be removed.
The steering must be locked before the
key can be turned to “ ”.
NOTICE

ECA11020
Do not use the parking position for
an extended length of time, other-
wise the battery may discharge.
EAU11004
Indicator and warning lights
EAU11030
Turn signal indicator lights “” and
“”
The corresponding indicator light flash-
es when the turn signal switch is
pushed to the left or right.
EAU11080
High beam indicator light “”
This indicator light comes on when thehigh beam of the headlight is switched
on.
EAU43023
Engine trouble warning light “”
This warning light comes on if an elec-
trical circuit monitoring the engine is not
working correctly. If this occurs, have a
Yamaha dealer check the self-diagno-
sis system.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. The warning light should come
on for a few seconds, and then go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
TIP

This warning light will come on when
the key is turned to “ON” and the start
switch is pushed, but this does not indi-
cate a malfunction.
1. Turn signal indicator lights “ ” and “ ”
2. High beam indicator light “ ”
3. Anti-lock Brake System (ABS) warning
light “ ” (for ABS models)
4. Immobilizer system indicator light
5. Engine trouble warning light “ ”
1
3
1
2
4
5
ABS

INSTRUMENT AND CONTROL FUNCTIONS
3-12
2
34
5
6
7
8
9 Right

EAU12360
Pass switch “PASS”
Press this switch to flash the headlight.
EAU12400
Dimmer switch “/”
Set this switch to “” for the high
beam and to “” for the low beam.
EAU12460
Turn signal switch “/”
To signal a right-hand turn, push this
switch to “”. To signal a left-hand
turn, push this switch to “”. When re-
leased, the switch returns to the centerposition. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch “”
Press this switch to sound the horn.
EAU12660
Engine stop switch “/”
Set this switch to “” before starting
the engine. Set this switch to “” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12721
Start switch “”
With the sidestand up, push this switch
while applying the front or rear brake to
crank the engine with the starter. See
page 5-1 for starting instructions prior
to starting the engine.
EAU44710
The engine trouble warning light and
ABS warning light (ABS model only)
will come on when the key is turned to
“ON” and the start switch is pushed, butthis does not indicate a malfunction.
EAU12733
Hazard switch “”
With the key in the “ON” or “” posi-
tion, use this switch to turn on the haz-
ard lights (simultaneous flashing of all
turn signal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.
NOTICE

ECA10061
Do not use the hazard lights for an
extended length of time with the en-
gine not running, otherwise the bat-
tery may discharge.
1. Engine stop switch “/”
2. Hazard switch “”
3. Start switch “”
1
23

INSTRUMENT AND CONTROL FUNCTIONS
3-17
1
2
3
4
5
6
7
8
9

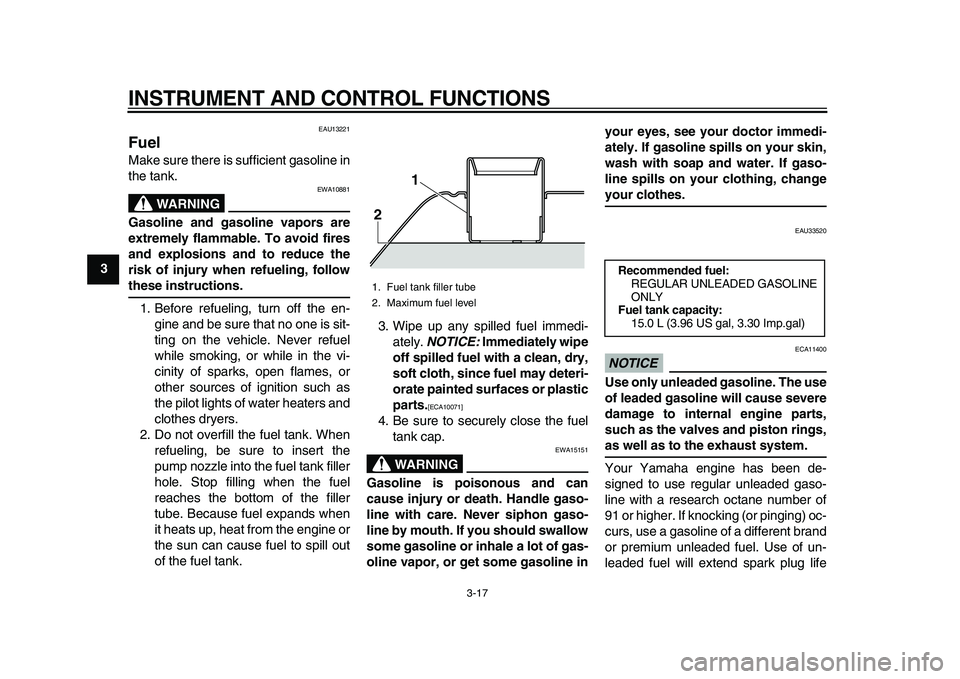

EAU13221
Fuel
Make sure there is sufficient gasoline in
the tank.
WARNING

EWA10881
Gasoline and gasoline vapors are
extremely flammable. To avoid fires
and explosions and to reduce the
risk of injury when refueling, follow
these instructions.
1. Before refueling, turn off the en-
gine and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the vi-
cinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters and
clothes dryers.
2. Do not overfill the fuel tank. When
refueling, be sure to insert the
pump nozzle into the fuel tank filler
hole. Stop filling when the fuel
reaches the bottom of the filler
tube. Because fuel expands when
it heats up, heat from the engine or
the sun can cause fuel to spill out
of the fuel tank.3. Wipe up any spilled fuel immedi-
ately.
NOTICE:
Immediately wipe
off spilled fuel with a clean, dry,
soft cloth, since fuel may deteri-
orate painted surfaces or plastic
parts.

[ECA10071]

4. Be sure to securely close the fuel
tank cap.
WARNING

EWA15151
Gasoline is poisonous and can
cause injury or death. Handle gaso-
line with care. Never siphon gaso-
line by mouth. If you should swallow
some gasoline or inhale a lot of gas-
oline vapor, or get some gasoline inyour eyes, see your doctor immedi-
ately. If gasoline spills on your skin,
wash with soap and water. If gaso-
line spills on your clothing, change
your clothes.
EAU33520
NOTICE

ECA11400
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,
as well as to the exhaust system.
Your Yamaha engine has been de-
signed to use regular unleaded gaso-
line with a research octane number of
91 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different brand
or premium unleaded fuel. Use of un-
leaded fuel will extend spark plug life
1. Fuel tank filler tube
2. Maximum fuel level
21

Recommended fuel:
REGULAR UNLEADED GASOLINE
ONLY
Fuel tank capacity:
15.0 L (3.96 US gal, 3.30 Imp.gal)

5-1
2
3
4
56
7
8
9

OPERATION AND IMPORTANT RIDING POINTS
EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING

EWA10271
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which could cause an accident
or injury.
EAU48020
TIP

This model is equipped with a lean an-
gle sensor to stop the engine in case of
a turnover. In this case, the multi-func-
tion display indicates error code 30, but
this is not a malfunction. Turn the key to
“OFF” and then to “ON” to clear the er-
ror code. Failing to do so will prevent
the engine from starting even though
the engine will crank when pushing the
start switch.
EAU36512
Starting the engine
NOTICE

ECA10250
See page 5-4 for engine break-in in-
structions prior to operating the ve-
hicle for the first time.
In order for the ignition circuit cut-off
system to enable starting, the side-
stand must be up.
See page 3-24 for more information.
1. Turn the key to “ON” and make
sure that the engine stop switch is
set to “”.
The following warning lights, indi-
cator light and indicators should
come on for a few seconds, then
go off.

Engine trouble warning light

ABS warning light (for ABS mod-
els)

Immobilizer system indicator light

V-belt replacement indicator

Oil change indicator
NOTICE

ECA15022
If a warning light, indicator light or
indicator does not go off, see pages

OPERATION AND IMPORTANT RIDING POINTS
5-3
2
3
4
56
7
8
9

EAU16793
Braking
WARNING

EWA10300

Avoid braking hard or suddenly
(especially when leaning over to
one side), otherwise the scooter
may skid or overturn.

Railroad crossings, streetcar
rails, iron plates on road con-
struction sites, and manhole
covers become extremely slip-
pery when wet. Therefore, slow
down when approaching such
areas and cross them with cau-
tion.

Keep in mind that braking on a
wet road is much more difficult.

Ride slowly down a hill, as brak-
ing downhill can be very diffi-
cult.
1. Close the throttle completely.
2. Apply both front and rear brakes
simultaneously while gradually in-
creasing the pressure.
Front
Rear
EAU16820
Tips for reducing fuel
consumption
Fuel consumption depends largely on
your riding style. Consider the following
tips to reduce fuel consumption:

Avoid high engine speeds during
acceleration.

Avoid high engine speeds with no
load on the engine.

Turn the engine off instead of let-
ting it idle for an extended length of
time (e.g., in traffic jams, at traffic
lights or at railroad crossings).

PERIODIC MAINTENANCE AND ADJUSTMENT
6-33
2
3
4
5
67
8
9

EAU43233
Replacing an auxiliary light
bulb
This model is equipped with two auxil-
iary lights. If an auxiliary light bulb burns
out, replace it as follows.
1. Remove the auxiliary light bulb
socket (together with the bulb) by
pulling it out.
2. Remove the burnt-out bulb by pull-
ing it out.
3. Insert a new bulb into the socket.
4. Install the socket (together with the
bulb) by pushing it in.
EAU25881
Troubleshooting
Although Yamaha scooters receive a
thorough inspection before shipment
from the factory, trouble may occur dur-
ing operation. Any problem in the fuel,
compression, or ignition systems, for
example, can cause poor starting and
loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your-
self. However, should your scooter re-
quire any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the scooter prop-
erly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look like
Yamaha parts, but they are often inferi-
or, have a shorter service life and can
lead to expensive repair bills.
WARNING

EWA15141
When checking the fuel system, do
not smoke, and make sure there are
no open flames or sparks in the ar-
ea, including pilot lights from waterheaters or furnaces. Gasoline or
gasoline vapors can ignite or ex-
plode, causing severe injury or
property damage.
1. Auxiliary light bulb socket
1

INDEX
A
ABS (for ABS models) ............................ 3-15
ABS warning light (for ABS models) ......... 3-4
Acceleration and deceleration................... 5-2
Air filter element, replacing ..................... 6-16
Anti-theft alarm (optional)........................ 3-11
Auxiliary light bulb, replacing .................. 6-33
B
Battery..................................................... 6-26
Brake fluid, changing .............................. 6-23
Brake fluid level, checking ...................... 6-22
Brake lever, front..................................... 3-13
Brake lever, rear ..................................... 3-13
Brake levers, lubricating.......................... 6-24
Braking ...................................................... 5-3
C
Care .......................................................... 7-1
Catalytic converter .................................. 3-18
Centerstand and sidestand, checking
and lubricating ...................................... 6-24
Chain drive oil ......................................... 6-13
Coolant.................................................... 6-14
Coolant temperature gauge ...................... 3-6
D
Dimmer switch ........................................ 3-12
E
Engine break-in ......................................... 5-4
Engine idling speed................................. 6-16
Engine oil and oil filter cartridge .............. 6-10
Engine stop switch .................................. 3-12
Engine trouble warning light...................... 3-3
F
Front and rear brake lever free play........ 6-20
Front and rear brake pads, checking ...... 6-21Front fork, checking ................................. 6-25
Fuel.......................................................... 3-17
Fuel consumption, tips for reducing........... 5-3
Fuel gauge................................................. 3-5
Fuel tank cap ........................................... 3-16
Fuses, replacing ...................................... 6-28
H
Handlebar switches ................................. 3-11
Hazard switch .......................................... 3-12
Headlight bulb, replacing ......................... 6-30
Helmet holder .......................................... 3-20
High beam indicator light ........................... 3-3
Horn switch .............................................. 3-12
I
Identification numbers ............................... 9-1
Ignition circuit cut-off system ................... 3-24
Immobilizer system .................................... 3-1
Immobilizer system indicator light.............. 3-4
Indicator and warning lights ....................... 3-3
L
License plate light bulb, replacing ........... 6-32
M
Main switch/steering lock........................... 3-2
Maintenance and lubrication, periodic ....... 6-3
Maintenance, emission control system...... 6-2
Matte color, caution ................................... 7-1
Model label ................................................ 9-1
Multi-function display ................................. 3-6
P
Panels, removing and installing ................. 6-6
Parking ...................................................... 5-4
Part locations ............................................. 2-1
Pass switch.............................................. 3-12
R
Rear brake lock lever .............................. 3-14
Rear brake lock lever cable, adjusting .... 6-20
Rear view mirrors .................................... 3-22
Rider backrest, adjusting......................... 3-19
S
Safe-riding points ...................................... 1-5
Safety information ..................................... 1-1
Seat ......................................................... 3-19
Shock absorber assembly ....................... 3-23
Sidestand ................................................ 3-23
Spark plugs, checking ............................... 6-9
Specifications ............................................ 8-1
Speedometer............................................. 3-5
Starting off ................................................. 5-2
Starting the engine .................................... 5-1
Start switch .............................................. 3-12
Steering, checking................................... 6-26
Storage...................................................... 7-3
Storage compartments ............................ 3-21
T
Tail/brake light ......................................... 6-31
Throttle cable free play, checking ........... 6-17
Throttle grip and cable, checking and
lubricating.............................................. 6-23
Tires ........................................................ 6-18
Tool kit....................................................... 6-1
Troubleshooting ...................................... 6-33
Troubleshooting charts............................ 6-34
Turn signal indicator lights ........................ 3-3
Turn signal light bulb (front), replacing .... 6-31
Turn signal switch ................................... 3-12
