SPECIFICATIONS
8-3
2
3
4
5
6
789

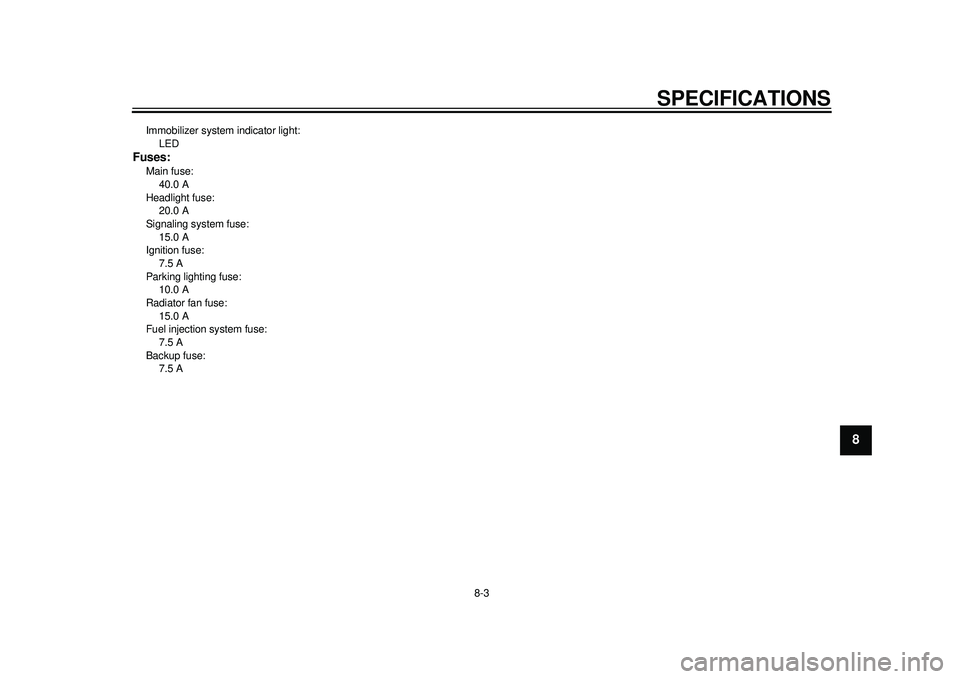

Immobilizer system indicator light: LEDFuses:Main fuse: 40.0 A
Headlight fuse: 20.0 A
Signaling system fuse:
15.0 A
Ignition fuse: 7.5 A
Parking lighting fuse: 10.0 A
Radiator fan fuse:
15.0 A
Fuel injection system fuse: 7.5 A
Backup fuse: 7.5 A
59C-9-E0.book 3 ページ ２０１１年９月１１日　日曜日　午前９時２７分

9-1
1
2
3
4
5
6
7
89
CONSUMER INFORMATION
EAU48612

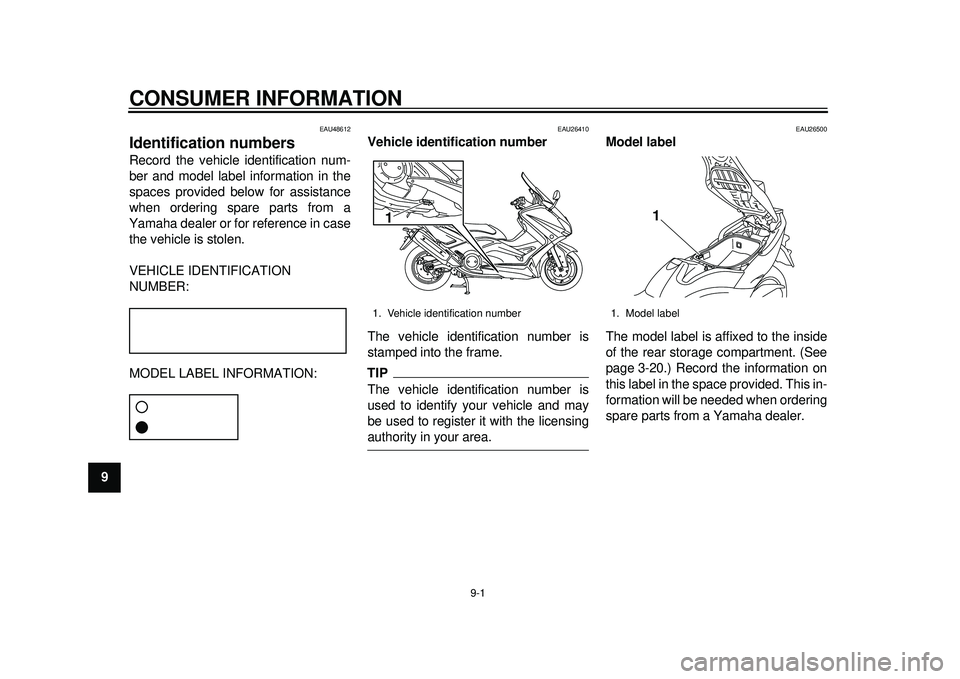

Identification numbers Record the vehicle identification num-
ber and model label information in the
spaces provided below for assistance
when ordering spare parts from a
Yamaha dealer or for reference in case
the vehicle is stolen.
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26410
Vehicle identification number
The vehicle identification number is
stamped into the frame.TIPThe vehicle identification number is
used to identify your vehicle and may
be used to register it with the licensingauthority in your area.
EAU26500
Model label
The model label is affixed to the inside
of the rear storage compartment. (See
page 3-20.) Record the information on
this label in the space provided. This in-
formation will be needed when ordering
spare parts from a Yamaha dealer.
1. Vehicle identification number1
1. Model label
1
59C-9-E0.book 1 ページ ２０１１年９月１１日　日曜日　午前９時２７分

INDEX
AAcceleration and deceleration ................... 5-2
Air filter element, replacing ...................... 6-15
Anti-theft alarm (optional) ........................ 3-12
Auxiliary light bulb, replacing ................... 6-34BBattery ..................................................... 6-28
Brake fluid, changing ............................... 6-24
Brake fluid level, checking ....................... 6-23
Brake lever, front ..................................... 3-13
Brake lever, rear ...................................... 3-14
Brake levers, lubricating .......................... 6-25
Braking ...................................................... 5-3CCables, checking and lubricating ............. 6-24
Care ........................................................... 7-1
Catalytic converter ................................... 3-18
Centerstand and sidestand, checking and lubricating ....................................... 6-26
Coolant .................................................... 6-14DDimmer switch ......................................... 3-12
Drive belt slack ........................................ 6-24EEngine break-in ......................................... 5-4
Engine idling speed ................................. 6-16
Engine oil and oil filter cartridge .............. 6-11
Engine stop switch................................... 3-13
Engine trouble warning light ...................... 3-3FFront and rear brake lever free play, checking ................................................ 6-20
Front and rear brake pads, checking ....... 6-22
Front fork, checking ................................. 6-26 Fuel ......................................................... 3-16
Fuel consumption, tips for reducing .......... 5-3
Fuel tank cap........................................... 3-15
Fuses, replacing ...................................... 6-30
HHandlebar switches ................................. 3-12
Hazard switch.......................................... 3-13
Headlight bulb, replacing......................... 6-31
Helmet holder .......................................... 3-20
High beam indicator light ........................... 3-3
Horn switch ............................................. 3-13IIdentification numbers ............................... 9-1
Ignition circuit cut-off system ................... 3-25
Immobilizer system ................................... 3-1
Immobilizer system indicator light ............. 3-3
Indicator lights and warning light ............... 3-3LLicense plate light bulb, replacing ........... 6-33MMain switch/steering lock .......................... 3-2
Maintenance and lubricatio
n, periodic....... 6-4
Maintenance, emission control system ..... 6-3
Matte color, caution ................................... 7-1
Model label ................................................ 9-1
Multi-function display................................. 3-5PPanels, removing and installing ................ 6-8
Parking ...................................................... 5-4
Part locations ............................................ 2-1
Pass switch ............................................. 3-12RRear brake lock cable, adjusting ............. 6-21
Rear brake lock, checking ....................... 6-21 Rear brake lock lever ............................... 3-15
Rear view mirrors..................................... 3-24
Rider backrest, adjusting .........................3-19
SSafe-riding points .......................................1-5
Safety information ......................................1-1
Seat ......................................................... 3-18
Shock absorber assembly .......................3-24
Sidestand .................................................3-25
Spark plugs, checking ..............................6-10
Specifications.............................................8-1
Speedometer .............................................3-4
Starting off .................................................5-2
Starting the engine.....................................5-1
Start switch ..............................................3-13
Steering, checking ................................... 6-27
Storage ......................................................7-3
Storage compartments ............................3-20TTachometer................................................3-4
Tail/brake light ......................................... 6-32
Throttle grip and cable, checking and
lubricating ..............................................6-25
Throttle grip free play, checking............... 6-17
Tires ......................................................... 6-17
Tool kit .......................................................6-2
Troubleshooting ....................................... 6-34
Troubleshooting charts ............................6-36
Turn signal indicator lights .........................3-3
Turn signal light bulb (front), replacing ....6-32
Turn signal switch .................................... 3-12VValve clearance ....................................... 6-17
Vehicle identificat ion number .....................9-1
