YAMAHA TMAX 2014 Owner's Guide

INSTRUMENT AND CONTROL FUNCTIONS
3-16
234
5
6
7
8
9
TIP

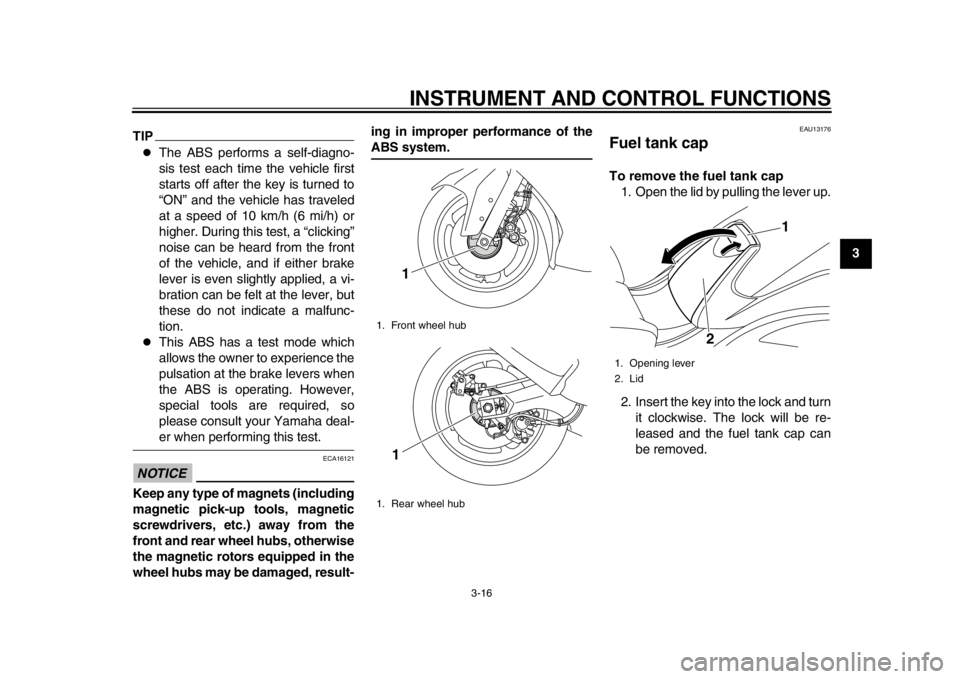

The ABS performs a self-diagno-
sis test each time the vehicle first
starts off after the key is turned to
“ON” and the vehicle has traveled
at a speed of 10 km/h (6 mi/h) or
higher. During this test, a “clicking”
noise can be heard from the front
of the vehicle, and if either brake
lever is even slightly applied, a vi-
bration can be felt at the lever, but
these do not indicate a malfunc-
tion.

This ABS has a test mode which
allows the owner to experience the
pulsation at the brake levers when
the ABS is operating. However,
special tools are required, so
please consult your Yamaha deal-er when performing this test.
NOTICE
ECA16121
Keep any type of magnets (including
magnetic pick-up tools, magnetic
screwdrivers, etc.) away from the
front and rear wheel hubs, otherwise
the magnetic rotors equipped in the
wheel hubs may be damaged, result- ing in improper performance of the
ABS system.
EAU13176
Fuel tank capTo remove the fuel tank cap
1. Open the lid by pulling the lever up.
2. Insert the key into the lock and turn it clockwise. The lock will be re-
leased and the fuel tank cap can
be removed.
1. Front wheel hub
1. Rear wheel hub
11
1. Opening lever
2. Lid
1
2
59C-9-E2.book 16 ページ ２０１３年６月１８日　火曜日　午後１時３３分

INSTRUMENT AND CONTROL FUNCTIONS
3-17
1
23
4
5
6
7
8
9To install the fuel tank cap
1. Align the match marks, insert the fuel tank cap into the tank opening,
and then push down on the cap.
2. Turn the key counterclockwise to the original position, and then re- move it.
3. Close the lid.
WARNING
EWA11262
Make sure that the fuel tank cap is
properly installed and locked in
place before riding the scooter.Leaking fuel is a fire hazard.
EAU13222
FuelMake sure there is sufficient gasoline in
the tank.
WARNING
EWA10882
Gasoline and gasoline vapors are
extremely flammable. To avoid fires
and explosions and to reduce the
risk of injury when refueling, followthese instructions.
1. Before refueling, turn off the en- gine and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the vi-
cinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters and
clothes dryers.
2. Do not overfill the fuel tank. When refueling, be sure to insert the
pump nozzle into the fuel tank filler
hole. Stop filling when the fuel
reaches the bottom of the filler
tube. Because fuel expands when
it heats up, heat from the engine or
the sun can cause fuel to spill out
of the fuel tank.
1. Fuel tank cap
1. Match marks
1
1
59C-9-E2.book 17 ページ ２０１３年６月１８日　火曜日　午後１時３３分

INSTRUMENT AND CONTROL FUNCTIONS
3-18
234
5
6
7
8
9
3. Wipe up any spilled fuel immedi-
ately. NOTICE: Immediately wipe
off spilled fuel with a clean, dry,
soft cloth, since fuel may deteri-
orate painted surfaces or plastic
parts.
[ECA10072]
4. Be sure to securely close the fuel tank cap.
WARNING
EWA15152
Gasoline is poisonous and can
cause injury or death. Handle gaso-
line with care. Never siphon gaso-
line by mouth. If you should swallow
some gasoline or inhale a lot of gas-
oline vapor, or get some gasoline in your eyes, see your doctor immedi-
ately. If gasoline spills on your skin,
wash with soap and water. If gaso-
line spills on your clothing, change
your clothes.
EAU49742
NOTICE
ECA11401
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,as well as to the exhaust system.
Your Yamaha engine has been de-
signed to use regular unleaded gaso-
line with a research octane number of
95 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different brand
or premium unleaded fuel. Use of un-leaded fuel will extend spark plug life
and reduce maintenance costs.
Gasohol
There are two types of gasohol: gaso-
hol containing ethanol and that contain-
ing methanol. Gasohol containing
ethanol can be used if the ethanol con-
tent does not exceed 10% (E10). Gas-
ohol containing methanol is not
recommended by Yamaha because it
can cause damage to the fuel system
or vehicle performance problems.
1. Fuel tank filler tube
2. Maximum fuel level2
1
Recommended fuel:
Regular unleaded gasoline (Gasohol
(E10) acceptable)
Fuel tank capacity: 15.0 L (3.96 US gal, 3.30 Imp.gal)
Fuel reserve amount:
3.0 L (0.79 US gal, 0.66 Imp.gal)
59C-9-E2.book 18 ページ ２０１３年６月１８日　火曜日　午後１時３３分

INSTRUMENT AND CONTROL FUNCTIONS
3-19
1
23
4
5
6
7
8
9
EAU13434
Catalytic converterThis model is equipped with a catalytic
converter in the exhaust system.
WARNING
EWA10863
The exhaust system is hot after op-
eration. To prevent a fire hazard or
burns:
Do not park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.

Park the vehicle in a place
where pedestrians or children
are not likely to touch the hot
exhaust system.

Make sure that the exhaust sys-
tem has cooled down before do-
ing any maintenance work.

Do not allow the engine to idle
more than a few minutes. Long
idling can cause a build-up ofheat.
NOTICE
ECA10702
Use only unleaded gasoline. The use
of leaded gasoline will cause unre-
pairable damage to the catalytic
converter.
EAU13933
SeatTo open the seat1. Place the scooter on the center- stand.
2. Insert the key into the main switch, and then turn it counterclockwise
to “OPEN”.TIPDo not push inward when turning thekey.
3. Fold the seat up.1. Open.
1
59C-9-E2.book 19 ページ ２０１３年６月１８日　火曜日　午後１時３３分

INSTRUMENT AND CONTROL FUNCTIONS
3-20
234
5
6
7
8
9

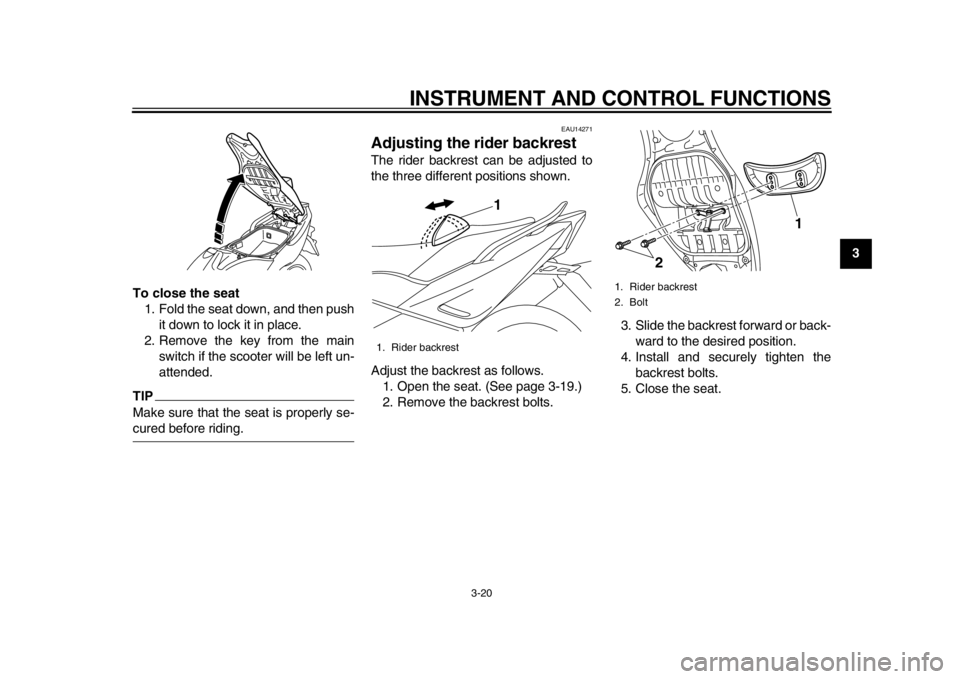

To close the seat
1. Fold the seat down, and then push it down to lock it in place.
2. Remove the key from the main switch if the scooter will be left un-
attended.
TIPMake sure that the seat is properly se-cured before riding.
EAU14271
Adjusting the rider backrestThe rider backrest can be adjusted to
the three different positions shown.
Adjust the backrest as follows.
1. Open the seat. (See page 3-19.)
2. Remove the backrest bolts. 3. Slide the backrest forward or back-
ward to the desired position.
4. Install and securely tighten the backrest bolts.
5. Close the seat.1. Rider backrest
1
1. Rider backrest
2. Bolt
1
2
59C-9-E2.book 20 ページ ２０１３年６月１８日　火曜日　午後１時３３分

INSTRUMENT AND CONTROL FUNCTIONS
3-21
1
23
4
5
6
7
8
9
EAU46301

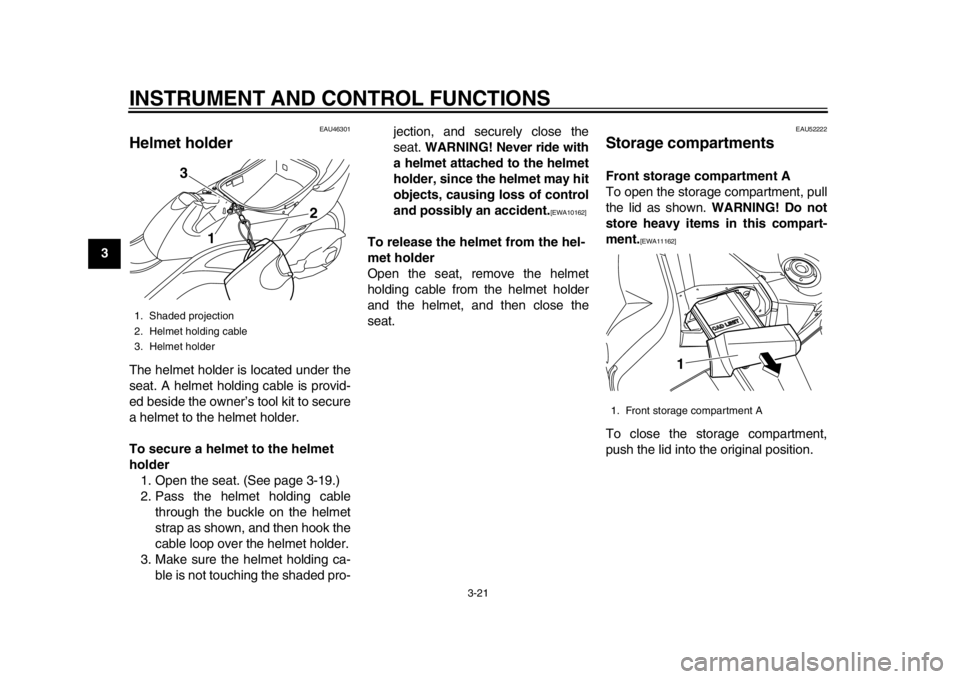

Helmet holderThe helmet holder is located under the
seat. A helmet holding cable is provid-
ed beside the owner’s tool kit to secure
a helmet to the helmet holder.
To secure a helmet to the helmet
holder1. Open the seat. (See page 3-19.)
2. Pass the helmet holding cable through the buckle on the helmet
strap as shown, and then hook the
cable loop over the helmet holder.
3. Make sure the helmet holding ca- ble is not touching the shaded pro- jection, and securely close the
seat.
WARNING! Never ride with
a helmet attached to the helmet
holder, since the helmet may hit
objects, causing loss of control
and possibly an accident.
[EWA10162]
To release the helmet from the hel-
met holder
Open the seat, remove the helmet
holding cable from the helmet holder
and the helmet, and then close the
seat.
EAU52222
Storage compartmentsFront storage compartment A
To open the storage compartment, pull
the lid as shown. WARNING! Do not
store heavy items in this compart-
ment.
[EWA11162]
To close the storage compartment,
push the lid into the original position.
1. Shaded projection
2. Helmet holding cable
3. Helmet holder
3
1
2
1. Front storage compartment A
1
59C-9-E2.book 21 ページ ２０１３年６月１８日　火曜日　午後１時３３分

INSTRUMENT AND CONTROL FUNCTIONS
3-22
234
5
6
7
8
9
Front storage compartment B
To open the storage compartment
when it is locked, insert the key in the
lock, turn it clockwise, and then pull on
the lever while pushing the lever up. To open the storage compartment
when it is unlocked,
simply pull on the
lever while pushing the lever up.
To close the storage compartment,
push the lid into the original position.
To lock the storage compartment, push
the lid into the original position, insert
the key in the lock, turn it counterclock-
wise, and then remove it.
Rear storage compartment
A helmet can be stored in the rear stor-
age compartment under the seat. (See
page 3-19.) To store a helmet in the
rear storage compartment, place the
helmet upside down with the front fac-
ing the left side. NOTICE: Keep the
following points in mind when using
the storage compartment. Since the storage compartment accumulates
heat when exposed to the sun and/
or the engine heat, do not store any-
thing susceptible to heat, consum-
ables or flammable items inside it.
To avoid humidity from spreading
through the storage compartment,
wrap wet articles in a plastic bag be-
fore storing them in the compart-
ment. Since the storage
compartment may get wet while the
scooter is being washed, wrap any
articles stored in the compartment
in a plastic bag. Do not keep any-
thing valuable or breakable in the
storage compartment. Do not leave
the seat open for an extended period
of time, otherwise the light may
cause the battery to discharge.
[ECA16083]
NOTICE:
The shaded area is not a
storage compartment. To prevent
damaging the seat hinges, do not
place any items in this area.
[ECA16092]
1. Unlock.
2. Front storage compartment B
3. Storage compartment opening lever
1 2
3
59C-9-E2.book 22 ページ ２０１３年６月１８日　火曜日　午後１時３３分

INSTRUMENT AND CONTROL FUNCTIONS
3-23
1
23
4
5
6
7
8
9
TIP
Some helmets cannot be stored in
the rear storage compartment be-
cause of their size or shape.

Do not leave your scooter unat-tended with the seat open.
NOTICE
ECA11101
Do not leave the rider seat open for
an extended period of time, other-
wise the light may cause the batteryto discharge.
WARNING
EWA16121
Do not exceed the following loadinglimits:

Front storage compartment A:
0.15 kg (0.3 lb)

Front storage compartment B: 1
kg (2 lb)

Rear storage compartment: 5 kg
(11 lb)

Maximum load for the vehicle:
XP500 198 kg (437 lb)XP500A 194 kg (428 lb)
EAU52212
WindshieldTo suit the rider’s preference, the wind-
shield height can be changed to one of
two positions.
To adjust the windshield height
1. Remove the screw access covers by removing the quick fasteners.
1. Rear storage compartment
2. Shaded area
1
2
1. Windshield
1
59C-9-E2.book 23 ページ ２０１３年６月１８日　火曜日　午後１時３３分

INSTRUMENT AND CONTROL FUNCTIONS
3-24
234
5
6
7
8
9
2. Remove the windshield by remov-
ing the screws.
3. Remove the rubber caps. 4. Install the rubber caps in the de-
sired position.
5. Install the windshield to the de- sired position by installing the
screws. 6. Tighten the screws to the specified
torque. WARNING! A loose wind-
shield could cause an accident.
Be sure to tighten the screws to
the specified torque.
[EWA15511]
7. Place the screw access covers, and then install the quick fasten-
ers.
1. Quick fastener
2. Screw access cover
1. Screw1
2
11
1
1. Rubber cap
1. Rubber cap
1
1
1
1
1. ScrewTightening torque:Windshield screw:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
1
1
59C-9-E2.book 24 ページ ２０１３年６月１８日　火曜日　午後１時３３分

INSTRUMENT AND CONTROL FUNCTIONS
3-25
1
23
4
5
6
7
8
9
EAU39672
Rear view mirrorsThe rear view mirrors of this vehicle can
be folded forward or backward for park-
ing in narrow spaces. Fold the mirrors
back to their original position before rid-
ing.
WARNING
EWA14372
Be sure to fold the rear view mirrors
back to their original position beforeriding.
EAU46022
Shock absorber assembly
WARNING
EWA10222
This shock absorber assembly con-
tains highly pressurized nitrogen
gas. Read and understand the fol-
lowing information before handling
the shock absorber assembly.
Do not tamper with or attempt to
open the cylinder assembly.

Do not subject the shock ab-
sorber assembly to an open
flame or other high heat source.
This may cause the unit to ex-
plode due to excessive gas
pressure.

Do not deform or damage the
cylinder in any way. Cylinder
damage will result in poor
damping performance.

Do not dispose of a damaged or
worn-out shock absorber as-
sembly yourself. Take the shock
absorber assembly to a Yamahadealer for any service.
1. Screw access cover
1
1. Parking position
2. Riding position
1
1 2
2 1
1
59C-9-E2.book 25 ページ ２０１３年６月１８日　火曜日　午後１時３３分
