tow bar YAMAHA TMAX 2015 Owners Manual

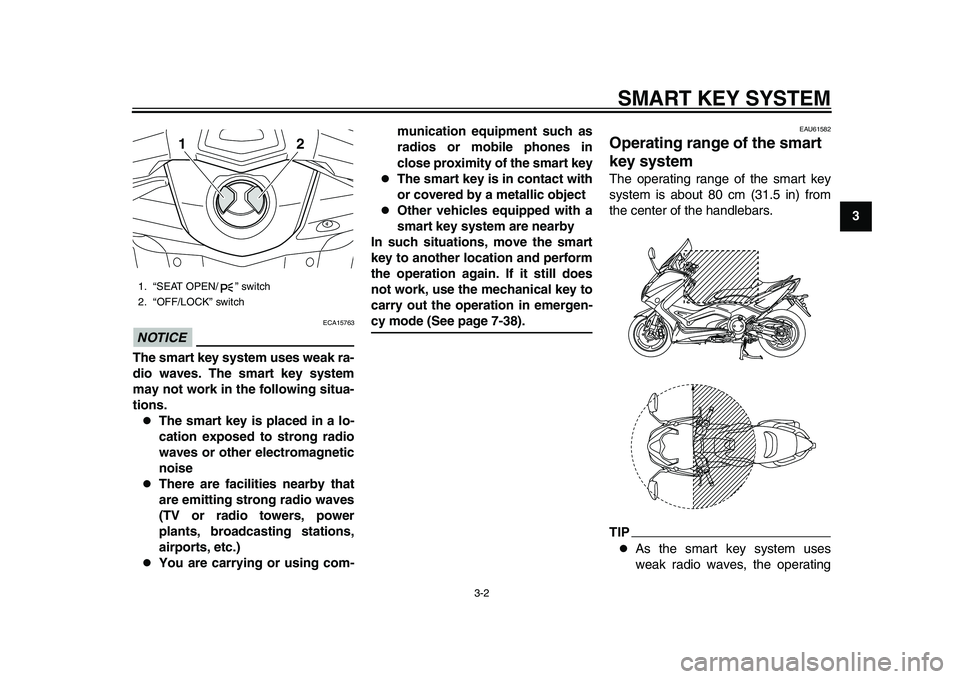

SMART KEY SYSTEM
3-2
1
234
5
6
7
8
9
10
11
12
NOTICE
ECA15763
The smart key system uses weak ra-
dio waves. The smart key system
may not work in the following situa-
tions.
The smart key is placed in a lo-
cation exposed to strong radio
waves or other electromagnetic
noise

There are facilities nearby that
are emitting strong radio waves
(TV or radio towers, power
plants, broadcasting stations,
airports, etc.)

You are carrying or using com- munication equipment such as
radios or mobile phones in
close proximity of the smart key

The smart key is in contact with
or covered by a metallic object

Other vehicles equipped with a
smart key system are nearby
In such situations, move the smart
key to another location and perform
the operation again. If it still does
not work, use the mechanical key to
carry out the operation in emergen-
cy mode (See page 7-38).
EAU61582
Operating range of the smart
key systemThe operating range of the smart key
system is about 80 cm (31.5 in) from
the center of the handlebars.TIP
As the smart key system uses
weak radio waves, the operating
1. “SEAT OPEN/ ” switch
2. “OFF/LOCK” switch
1
2
2PW-9-E0_1.book 2 ページ ２０１５年２月１９日　木曜日　午後３時３０分

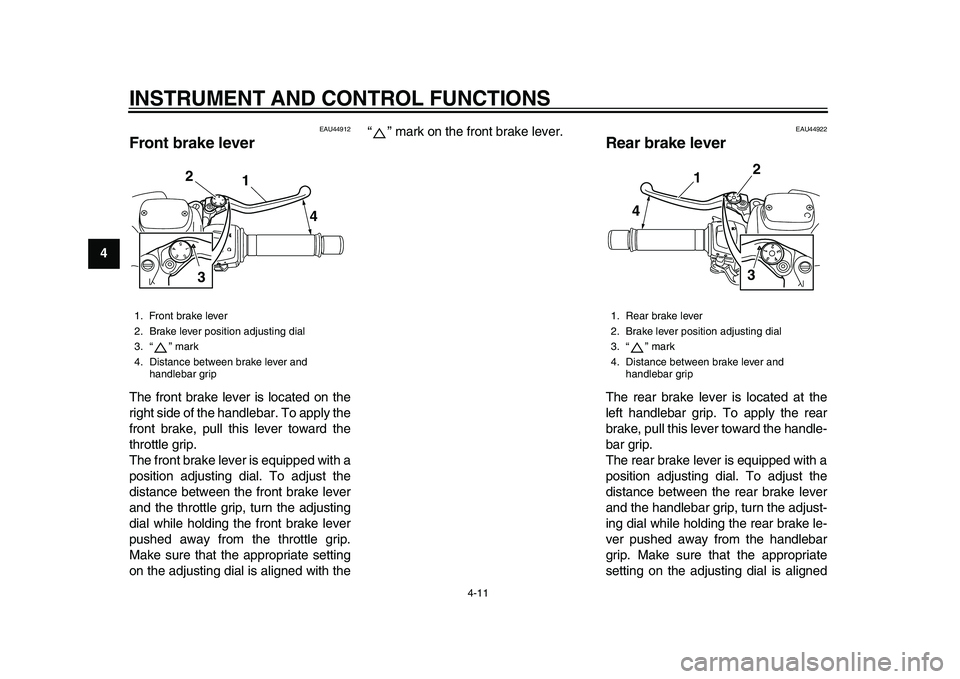

INSTRUMENT AND CONTROL FUNCTIONS
4-11
1
2
34
5
6
7
8
9
10
11
12
EAU44912
Front brake leverThe front brake lever is located on the
right side of the handlebar. To apply the
front brake, pull this lever toward the
throttle grip.
The front brake lever is equipped with a
position adjusting dial. To adjust the
distance between the front brake lever
and the throttle grip, turn the adjusting
dial while holding the front brake lever
pushed away from the throttle grip.
Make sure that the appropriate setting
on the adjusting dial is aligned with the “ ” mark on the front brake lever.
EAU44922
Rear brake leverThe rear brake lever is located at the
left handlebar grip. To apply the rear
brake, pull this lever toward the handle-
bar grip.
The rear brake lever is equipped with a
position adjusting dial. To adjust the
distance between the rear brake lever
and the handlebar grip, turn the adjust-
ing dial while holding the rear brake le-
ver pushed away from the handlebar
grip. Make sure that the appropriate
setting on the adjusting dial is aligned
1. Front brake lever
2. Brake lever position adjusting dial
3. “ ” mark
4. Distance between brake lever and
handlebar grip
1
4
2
3
1. Rear brake lever
2. Brake lever position adjusting dial
3. “ ” mark
4. Distance between brake lever and
handlebar grip
54321
32
1
4
2PW-9-E0_1.book 11 ページ ２０１５年２月１９日　木曜日　午後３時３０分
