Periodic maintenance an d a djustment
8-17
8
8. Install the coolant reservoir cap.
9. Install the coolant reservoir cover.
10. Install the floorboard mat.
EAU33032
Chan gin g the coolant
The coolant must be changed at the in-
tervals specified in the periodic main-
tenance and lubrication chart. Have a
Yamaha dealer change the coolant.
WARNING! Never attempt to remove the ra diator cap when the en gine is
hot.
 [EWA10382] EAU88800
Replacin
g the eng ine air filter
element an d cleanin g the
check hoseThe engine air filter element should be
replaced at the intervals specified in
the periodic maintenance chart. Re-
place the air filter element more fre-
quently if you often ride in wet or dusty
conditions.
In addition, the air filter check hose
must be checked and cleaned by a
Yamaha dealer at the intervals speci-
fied in the periodic maintenance and
lubrication chart.
To replace the air filter element
1. Remove panel C. (See page 8-9.)
2. Remove the air filter case cover by removing the screws. 3. Pull the air filter element out.
4. Insert a new air filter element into
the air filter case.  NOTICE: Make
sure that the air filter element is
properly seated  in the air filter
case. The en gine shoul d never
1. Screw
2. Air filter case cover
1. Air filter element
1
1
2
1
UB3TE0E0.book  Page 17  Tuesday, September 17, 2019  9:35 AM
Page 92 of 126
![YAMAHA TMAX 2020  Owners Manual Periodic maintenance an d a djustment
8-18
8 b
e operated  without the air filter
element installe d, otherwise the
piston(s) an d/or cylin der(s) may
b ecome excessively worn.
[ECA10482]
5. Install t YAMAHA TMAX 2020  Owners Manual Periodic maintenance an d a djustment
8-18
8 b
e operated  without the air filter
element installe d, otherwise the
piston(s) an d/or cylin der(s) may
b ecome excessively worn.
[ECA10482]
5. Install t](/img/51/51446/w960_51446-91.png)
Periodic maintenance an d a djustment
8-18
8 b
e operated  without the air filter
element installe d, otherwise the
piston(s) an d/or cylin der(s) may
b ecome excessively worn.
[ECA10482]
5. Install the air filter case cover by
installing the screws.
6. Install the panel.
EAU44735
Checkin g the eng ine idlin g
spee dCheck the engine idling speed and, if
necessary, have it corrected by a
Yamaha dealer.
EAU21386
Checkin g the throttle  grip free
playMeasure the throttle grip free play as
shown.
Periodically check the throttle grip free
play and, if necessary, have a Yamaha
dealer adjust it.
En gine i dlin g spee d:
1100–1300 r/min
1. Throttle grip free playThrottle  grip free play:
1.0–3.0 mm (0.04–0.12 in)
1
UB3TE0E0.book  Page 18  Tuesday, September 17, 2019  9:35 AM
Page 93 of 126

Periodic maintenance an d a djustment
8-19
8
EAU21403
Valve clearanceThe valves are an important engine
component, and since valve clearance
changes with use, they must be
checked and adjusted at the intervals
specified in the periodic maintenance
chart. Unadjusted valves can result in
improper air-fuel mixture, engine
noise, and eventually engine damage.
To prevent this from occurring, have
your Yamaha dealer check and adjust
the valve clearance at regular intervals.TIPThis service must be performed when
the engine is cold.
EAU77621
TiresTires are the only contact between the
vehicle and the road. Safety in all con-
ditions of riding depends on a relatively
small area of road contact. Therefore, it
is essential to maintain the tires in good
condition at all times and replace them
at the appropriate time with the speci-
fied tires.
Tire air pressure
The tire air pressure should be
checked and, if necessary, adjusted
before each ride.
WARNING
EWA10504
Operation of this vehicle with im-
proper tire pressure may cause se-
vere injury or d eath from loss of
control.  The tire air pressure must b e
checked  and a djuste d on col d
tires (i.e., when the temperature
of the tires equals the am bient
temperature).
 The tire air pressure must b e
a d juste d in accor dance with the
ri din g speed  and with the total wei
ght of ri der, passen ger, car-
g o, an d accessories approve d
for this mo del.
WARNING
EWA10512
Never overloa d your vehicle. Opera-
tion of an overloa ded  vehicle coul d
cause an acci dent.
Col d tire air pressure:
1 person: Front:225 kPa (2.25 kgf/cm², 33 psi)
Rear: 250 kPa (2.50 kgf/cm², 36 psi)
2 persons:
Front:225 kPa (2.25 kgf/cm², 33 psi)
Rear:
280 kPa (2.80 kgf/cm², 41 psi)
Maximum loa d:
Vehicle:
195 kg (430 lb) (XP560D)
197 kg (434 lb) (XP560E)
The vehicle’s maximum load is the
combined weight of the rider, pas-
senger, cargo, and any accessories.
UB3TE0E0.book  Page 19  Tuesday, September 17, 2019  9:35 AM
Page 94 of 126

Periodic maintenance an d a djustment
8-20
8 Tire inspection
The tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail
or glass fragments in it, or if the side-
wall is cracked, have a Yamaha dealer
replace the tire immediately.
TIPThe tire tread depth limits may differ
from country to country. Always com-
ply with the local regulations.
WARNING
EWA10472
Have a Yamaha  dealer replace
excessively worn tires. Besi des
b ein g ille gal, operatin g the vehi-
cle with excessively worn tires
d ecreases ri din g sta bility an d
can lead  to loss of control.
 The replacement of all wheel
and b rake-relate d parts, inclu d-
in g the tires, shoul d b e left to a
Yamaha  dealer, who has the
necessary professional knowl-
e dge an d experience to d o so.
 Ride at mo derate speed s after
chan gin g a tire since the tire
surface must first  be “ broken
in” for it to  develop its optimal
characteristics.Tire information
This model is equipped with tubeless
tires and tire air valves.
Tires age, even if they have not been
used or have only been used occasion-
ally. Cracking of the tread and sidewall
rubber, sometimes accompanied by
carcass deformation, is an evidence of ageing. Old and aged tires shall be
checked by tire specialists to ascertain
their suitability for further use.
WARNING
EWA16101
The front an d rear tires shoul d
b e of the same make an d d e-
si gn, otherwise the han dlin g
characteristics of the vehicle
may  be  different, which coul d
lea d to an acci dent.
 Always make sure that the valve
caps are securely installe d to
prevent air pressure leaka ge.
 Use only the tire valves an d
valve cores liste d  below to
avoi d tire d eflation  during  a ride.After extensive tests, only the tires list-
ed below have been approved for this
model by Yamaha.
1. Tire sidewall
2. Tire tread depthMinimum tire trea d d epth (front an d
rear): 1.6 mm (0.06 in)
1 2
UB3TE0E0.book  Page 20  Tuesday, September 17, 2019  9:35 AM
Page 95 of 126

Periodic maintenance an d a djustment
8-21
8
EAU51921
Cast wheelsTo maximize the performance, durabil-
ity, and safe operation of your vehicle,
note the following points regarding the
specified wheels.
 The wheel rims should be
checked for cracks, bends, warp-
age or other damage before each
ride. If any damage is found, have
a Yamaha dealer replace the
wheel. Do not attempt even the
smallest repair to the wheel. A de-
formed or cracked wheel must be
replaced.
 The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short-
ened tire life.
 After repairing or replacing the
front tire, tighten the valve stem
nut and locknut to the specified
torques.
Front tire:
Size:
120/70R15M/C 56H
Manufacturer/model:
BRIDGESTONE/BATTLAX SCF
Tire air valve: PVR59A
Valve core: #9100 (original)
Rear tire:
Size:160/60R15M/C 67H
Manufacturer/model:
BRIDGESTONE/BATTLAX SCR
Tire air valve: TR412
Valve core: #9100 (original)
1. Valve stem nut
2. Valve stem locknut
Tightenin g torques:
Valve stem nut: 2.0 N·m (0.20 kgf·m, 1.5 lb·ft)
Valve stem locknut:
3.0 N·m (0.30 kgf·m, 2.2 lb·ft)
1
2
UB3TE0E0.book  Page 21  Tuesday, September 17, 2019  9:35 AM
Page 96 of 126

Periodic maintenance an d a djustment
8-22
8
EAU50861
Checkin g the front an d rear
b rake lever free playFront
Rear There should be no free play at the
brake lever ends. If there is free play,
have a Yamaha dealer inspect the
brake system.
WARNING
EWA14212
A soft or spon
gy feelin g in the b rake
lever can in dicate the presence of
air in the hy draulic system. If there is
air in the hy draulic system, have a
Yamaha  dealer  blee d the system  be-
fore operatin g the vehicle. Air in the
hy draulic system will  diminish the
b rakin g performance, which may re-
sult in loss of control and  an acci-
d ent.
EAU53033
A djustin g the rear  brake lock
cab lePeriodically check the rear brake lock
cable length and adjust if necessary.
1. Release the rear brake lock lever.
2. To increase the rear brake lock ca- ble length, turn the adjusting nut at
the rear brake caliper in direction
(a). To decrease the rear brake
lock cable length, turn the adjust-
ing nut in direction (b).
1. No brake lever free play
1. No brake lever free play
1
1
1. Adjusting nut
2. Rear brake lock cable lengthRear  brake lock cab le length:
43–45 mm (1.69–1.77 in)
1
2
(b)
(a)
UB3TE0E0.book  Page 22  Tuesday, September 17, 2019  9:35 AM
Page 97 of 126

Periodic maintenance an d a djustment
8-23
8
3. Confirm that the rear brake lock
lever (page 5-18) functions prop-
erly and that the rear wheel rotates
freely when unlocked.
WARNING
EWA20290
If proper a djustment cannot b e ob-
taine d as d escri bed , have a Yamaha
d ealer make this ad justment.
EAU52293
Checking the rear  brake lockThe rear brake lock must be checked
at the intervals specified in the periodic
maintenance and lubrication chart.
1. Adjust the rear brake lock cable.
2. Apply the rear brake lock, and then try to push the vehicle to con-
firm that the rear brake lock func-
tions properly.
3. The rear brake lock caliper is pro- vided with a wear indicator, which
allows you to check the rear brake
lock pads. To check the rear brake
lock pads, check the position of
the indicator when the rear brake
lock lever is applied. If the indica-
tor has passed the wear indicator
groove, have a Yamaha dealer
check the rear brake lock.
4. Make sure that there are no tears or cracks on the rubber boot.
1. Wear indicator groove
2. Wear indicator
3. Rubber boot
1
2 3
UB3TE0E0.book  Page 23  Tuesday, September 17, 2019  9:35 AM
Page 98 of 126

Periodic maintenance an d a djustment
8-24
8
EAU22312

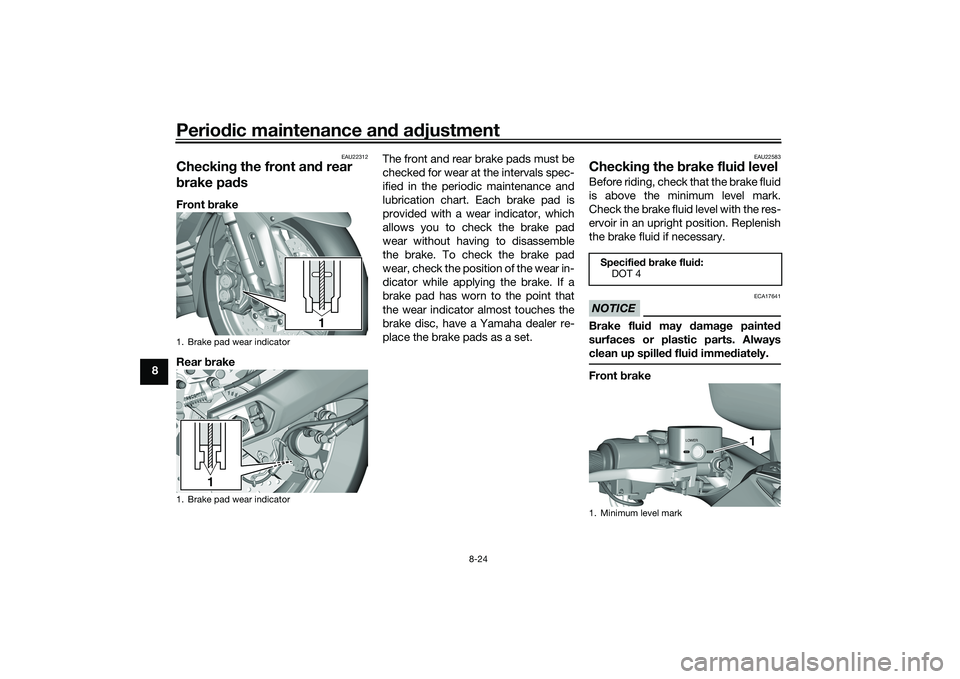

Checkin g the front an d rear
b rake pa dsFront  brake
Rear  brake The front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart. Each brake pad is
provided with a wear indicator, which
allows you to check the brake pad
wear without having to disassemble
the brake. To check the brake pad
wear, check the position of the wear in-
dicator while applying the brake. If a
brake pad has worn to the point that
the wear indicator almost touches the
brake disc, have a Yamaha dealer re-
place the brake pads as a set.
EAU22583
Checkin
g the  brake flui d levelBefore riding, check that the brake fluid
is above the minimum level mark.
Check the brake fluid level with the res-
ervoir in an upright position. Replenish
the brake fluid if necessary.NOTICE
ECA17641
Brake flui d may  damag e painted
surfaces or plastic parts. Always
clean up spille d flui d imme diately.Front  brake
1. Brake pad wear indicator
1. Brake pad wear indicator
1
1
Specifie d b rake flui d:
DOT 41. Minimum level mark
LOWER
1
UB3TE0E0.book  Page 24  Tuesday, September 17, 2019  9:35 AM
Page 99 of 126

Periodic maintenance an d a djustment
8-25
8
Rear
brake
As the brake pads wear, it is normal for
the brake fluid level to gradually go
down.  A low brake fluid level may indi-
cate worn brake pads or brake
system leakage; therefore, be sure
to check the brake pads for wear
and the brake system for leakage.
 If the brake fluid level goes down
suddenly, have a Yamaha dealer
check the cause before further rid-
ing.
WARNING
EWA15991
Improper maintenance can result in
loss of b raking a bility. O bserve
these precautions:
Insufficient  brake flui d may al-
low air to enter the b rake sys-
tem, re ducin g  brakin g
performance.
 Clean the filler cap  before re-
movin g. Use only DOT 4 b rake
flui d from a seale d container.
 Use only the specified  b rake flu-
i d ; otherwise, the ru bber seals
may  deteriorate, causin g leak-
a g e.
 Refill with the same type of
brake flui d. A dding a  brake fluid
other than DOT 4 may result in a
harmful chemical reaction.
 Be careful that water d oes not
enter the  brake flui d reservoir
when refillin g. Water will si gnifi-
cantly lower the  boilin g point of
the flui d an d may result in vapor
lock.
EAU22734
Chan gin g the  brake flui dHave a Yamaha dealer change the
brake fluid every 2 years. In addition,
have the seals of the master cylinders
and brake calipers, as well as the brake
hoses replaced at the intervals listed
below or sooner if they are damaged or
leaking.
 Brake seals: every 2 years
 Brake hoses: every 4 years
1. Minimum level mark
LOW ER
1
UB3TE0E0.book  Page 25  Tuesday, September 17, 2019  9:35 AM
Page 100 of 126

Periodic maintenance an d a djustment
8-26
8
EAU88810
Drive b eltThe drive belt should be visually in-
spected before each ride. Check for
excessive wear, damage, and dirt. Al-
so, the drive belt tension must be
checked and adjusted by a Yamaha
dealer at the intervals specified in the
periodic maintenance chart.
To check the  drive  belt
1. On a level surface, place the vehi- cle on its centerstand.
2. Rotate the rear wheel and check the belt surface for signs of wear
or damage. 3. If cracks, excessive wear, or dam-
age is found, have the belt in-
spected or replaced by your
Yamaha dealer.
4. If the drive belt or drive belt sprocket is dirty, remove the drive
belt covers by removing the bolts
and quick fasteners.
5. Clean the drive belt and remove any debris from the drive belt
sprocket.  NOTICE: Do not allow
d irt or san d to accumulate in the
d rive  belt area, otherwise the
d rive  belt will wear out quickly.
[ECA26970]
6. Install the drive belt covers by in-
stalling the bolts and quick fasten-
ers.
1. Stone damage
2. Cog damage
1
2
1. Quick fastener
2. Bolt
3. Drive belt cover1 23
UB3TE0E0.book  Page 26  Tuesday, September 17, 2019  9:35 AM
