Instrument and control functions
5-15
5
4. Push the “MENU” switch to make
the selection and return to the
menu screen.
Selectin g the d isplay items
1. Use the select switch to highlight “Display Change”. 2. Push the “MENU” switch, use the
select switch to highlight the dis-
play to change, and then push the
“MENU” switch again.
3. Use the select switch to highlight the item to change, and then push
the “MENU” switch.
TIPDisplay item order is as follows.4. Use the select switch to select theitem to show, and then push the
“MENU” switch.A.TEMP TRIP-1 TRIP-2
ODO
CRNT.F F.AVG RANGE
UB3TE0E0.book Page 15 Tuesday, September 17, 2019 9:35 AM

Instrument and control functions
5-16
5 5. When you finished changing the
settings, use the select switch to
highlight “ ”, and then push the
“MENU” switch to return to the
previous display.
6. Use the select switch to highlight “ ”, and then push the
“MENU” switch to return to the
menu screen.
Meter panel brightness
1. Use the select switch to highlight “Brightness”.
2. Push the “MENU” switch.
3. Use the select switch to select the desired brightness level. 4. Push the “MENU” switch to return
to the menu screen.
Setting the clock
TIPThe clock uses a 12-hour time system.1. Use the select switch to highlight “Clock”. 2. Push the “MENU” switch.
3. When the hour digits are highlight-
ed, use the select switch to set the
hours.
4. Push the “MENU” switch, and the minute digits are highlighted.
5. Use the select switch to set the minutes.
UB3TE0E0.book Page 16 Tuesday, September 17, 2019 9:35 AM

Instrument and control functions
5-17
5
6. Push the “MENU” switch to return
to the menu screen.
Resetting all of the display items
1. Use the select switch to highlight “All Reset”.
2. Push the “MENU” switch.
3. Use the select switch to highlight “YES”, and then push the “MENU”
switch. All items are reset to facto-
ry preset or default settings.
TIPThe odometer, clock, maintenance
counter item “Oil” and maintenance
counter item “V-Belt” will not be reset.To exit the setting mode1. Use the select switch to highlight“Return”. 2. Push the “MENU” switch to exit
the setting mode and return to the
standard display mode.
UB3TE0E0.book Page 17 Tuesday, September 17, 2019 9:35 AM

Instrument and control functions
5-18
5
EAU44916
Front brake leverThe front brake lever is located on the
right side of the handlebar. To apply
the front brake, pull this lever toward
the throttle grip.
The front brake lever is equipped with
a brake lever position adjusting dial. To
adjust the distance between the front
brake lever and the throttle grip, push
the brake lever away from the throttle
grip and rotate the adjusting dial. Make
sure the setting number on the adjust-
ing dial aligns with the match mark on
the brake lever.
EAU44926
Rear brake leverThe rear brake lever is located at the
left handlebar grip. To apply the rear
brake, pull this lever toward the han-
dlebar grip.
The rear brake lever is equipped with a
brake lever position adjusting dial. To
adjust the distance between the rear
brake lever and the handlebar grip,
push the brake lever away from the
handlebar grip and rotate the adjusting
dial. Make sure the setting number on
the adjusting dial aligns with the match
mark on the brake lever.
EAU63230
Rear brake lock leverThis vehicle is equipped with a rear
brake lock lever to prevent the rear
wheel from moving while stopped at
traffic signals, railroad crossings, etc.
To lock the rear wheel
Push the rear brake lock lever to the
left until it snaps into place.
To unlock the rear wheel
Push the rear brake lock lever back to
the original position.
1. Front brake lever
2. Distance
3. Match mark
4. Brake lever position adjusting dial
1
3
4
2
1. Rear brake lever
2. Distance
3. Match mark
4. Brake lever position adjusting dial
5
4321
1
3
2
4
1. Rear brake lock lever
1
UB3TE0E0.book Page 18 Tuesday, September 17, 2019 9:35 AM

Instrument and control functions
5-19
5

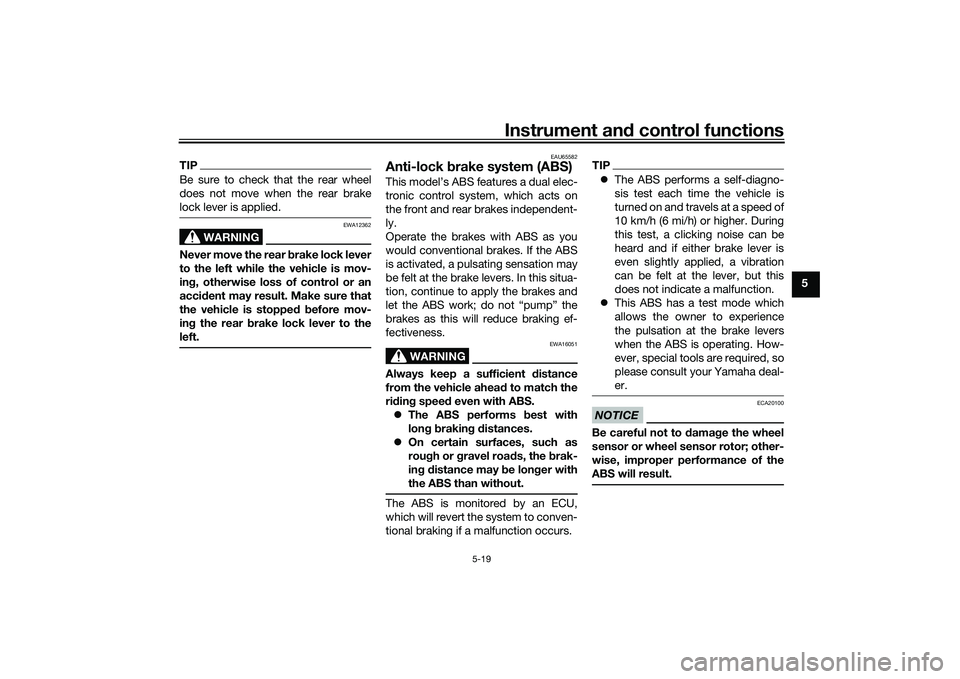

TIPBe sure to check that the rear wheel
does not move when the rear brake
lock lever is applied.
WARNING
EWA12362
Never move the rear brake lock lever
to the left while the vehicle is mov-
in g, otherwise loss of control or an
acci dent may result. Make sure that
the vehicle is stoppe d b efore mov-
in g the rear brake lock lever to the
left.
EAU65582
Anti-lock brake system (ABS)This model’s ABS features a dual elec-
tronic control system, which acts on
the front and rear brakes independent-
ly.
Operate the brakes with ABS as you
would conventional brakes. If the ABS
is activated, a pulsating sensation may
be felt at the brake levers. In this situa-
tion, continue to apply the brakes and
let the ABS work; do not “pump” the
brakes as this will reduce braking ef-
fectiveness.
WARNING
EWA16051
Always keep a sufficient d istance
from the vehicle ahea d to match the
ri din g speed even with ABS.
 The ABS performs best with
lon g b rakin g d istances.
 On certain surfaces, such as
rou gh or g ravel roa ds, the b rak-
in g d istance may be lon ger with
the ABS than without.The ABS is monitored by an ECU,
which will revert the system to conven-
tional braking if a malfunction occurs.
TIP The ABS performs a self-diagno-
sis test each time the vehicle is
turned on and travels at a speed of
10 km/h (6 mi/h) or higher. During
this test, a clicking noise can be
heard and if either brake lever is
even slightly applied, a vibration
can be felt at the lever, but this
does not indicate a malfunction.
 This ABS has a test mode which
allows the owner to experience
the pulsation at the brake levers
when the ABS is operating. How-
ever, special tools are required, so
please consult your Yamaha deal-
er.NOTICE
ECA20100
Be careful not to d amage the wheel
sensor or wheel sensor rotor; other-
wise, improper performance of the
ABS will result.
UB3TE0E0.book Page 19 Tuesday, September 17, 2019 9:35 AM

Instrument and control functions
5-20
5
EAU77324
Fuel tank capTo access the fuel tank, open the fuel
tank cap lid. (See page 3-11.)
To remove the fuel tank cap, press the
lock release button and turn the fuel
tank cap counterclockwise. To install the fuel tank cap, turn it
clockwise until the lock release button
pops out.
WARNING
EWA11263
Make sure that the fuel tank cap is
properly installe
d an d locked in
place before operatin g the vehicle.
Leakin g fuel is a fire hazar d.
1. Front wheel sensor rotor
2. Front wheel sensor
1. Rear wheel sensor rotor
2. Rear wheel sensor
1212
1. Fuel tank cap lid
1. Lock release button
2. Fuel tank cap
1
1
2
UB3TE0E0.book Page 20 Tuesday, September 17, 2019 9:35 AM

Instrument and control functions
5-21
5
EAU13222
FuelMake sure there is sufficient gasoline in
the tank.
WARNING
EWA10882
Gasoline an d gasoline vapors are
extremely flammab le. To avoid fires
an d explosions an d to re duce the
risk of injury when refuelin g, follow
these instructions.1. Before refueling, turn off the en- gine and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the vi-
cinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters
and clothes dryers.
2. Do not overfill the fuel tank. When refueling, be sure to insert the
pump nozzle into the fuel tank filler
hole. Stop filling when the fuel
reaches the bottom of the filler
tube. Because fuel expands when
it heats up, heat from the engine or
the sun can cause fuel to spill out
of the fuel tank. 3. Wipe up any spilled fuel immedi-
ately. NOTICE: Immediately
wipe off spille d fuel with a clean,
d ry, soft cloth, since fuel may
d eteriorate painte d surfaces or
plastic parts.
[ECA10072]
4. Be sure to securely close the fuel tank cap.
WARNING
EWA15152
Gasoline is poisonous an d can
cause injury or d eath. Handle gaso-
line with care. Never siphon gasoline
b y mouth. If you shoul d swallow
some gasoline or inhale a lot of gas-
oline vapor, or g et some gasoline in
your eyes, see your doctor imme di- ately. If g
asoline spills on your skin,
wash with soap an d water. If gaso-
line spills on your clothin g, chan ge
your clothes.
EAU86072
Your Yamaha engine was designed to
use unleaded gasoline with a research
octane number of 95 or higher. If en-
gine knocking or pinging occurs, use a
gasoline of a different brand or higher
octane rating.
1. Maximum fuel level
2. Fuel tank filler tube
1 2
Recommen
ded fuel:
Unleaded gasoline (E10 acceptable)
Octane num ber (RON):
95
Fuel tank capacity: 15 L (4.0 US gal, 3.3 Imp.gal)
Fuel tank reserve:
3.0 L (0.79 US gal, 0.66 Imp.gal)
UB3TE0E0.book Page 21 Tuesday, September 17, 2019 9:35 AM

Instrument and control functions
5-22
5
TIP This mark identifies the recom-
mended fuel for this vehicle as
specified by European regulation
(EN228).
 Confirm the gasoline pump nozzle
has the same fuel identification
mark.Gasohol
There are two types of gasohol: gaso-
hol containing ethanol and that con-
taining methanol. Gasohol containing
ethanol can be used if the ethanol con-
tent does not exceed 10% (E10). Gas-
ohol containing methanol is not
recommended by Yamaha because it
can cause damage to the fuel system
or vehicle performance problems.
NOTICE
ECA11401
Use only unlea ded g asoline. The use
of lea ded g asoline will cause severe
d amag e to internal en gine parts,
such as the valves an d piston rin gs,
as well as to the exhaust system.
EAU80200
Fuel tank overflow hoseBefore operating the vehicle:  Check the fuel tank overflow hose
connection.
 Check the fuel tank overflow hose
for cracks or damage, and replace
it if necessary.
 Make sure that the end of the fuel
tank overflow hose is not blocked,
and clean it if necessary.
 Make sure that the end of the fuel
tank overflow hose is positioned
as shown.TIPSee page 8-12 for canister information.
E5
E10
1. Fuel tank overflow hose
1
UB3TE0E0.book Page 22 Tuesday, September 17, 2019 9:35 AM

Instrument and control functions
5-23
5
EAU13435
Catalytic converterThe exhaust system contains catalytic
converter(s) to reduce harmful exhaust
emissions.
WARNING
EWA10863
The exhaust system is hot after op-
eration. To prevent a fire hazar d or
b urns:
 Do not park the vehicle near
possi ble fire hazar ds such as
g rass or other materials that
easily burn.
 Park the vehicle in a place
where pe destrians or chil dren
are not likely to touch the hot
exhaust system.
 Make sure that the exhaust sys-
tem has coole d down before
d oin g any maintenance work.
 Do not allow the en gine to i dle
more than a few minutes. Lon g
i d lin g can cause a buil d-up of
heat.
EAU88751
Stora ge compartmentsFront storag e compartment
To open the storage compartment,
press the button.
Open the lid as shown. To close the storage compartment,
push the lid into the original position.
TIPFor XP560D: this compartment has an
electronic lock. (See page 3-12.)Rear storag
e compartment
This storage compartment was de-
signed to hold one full-faced helmet or
two 3/4-faced helmets. NOTICE: The
sha ded area is not a stora ge com-
partment. To prevent damag ing the
seat hin ges, do not place any items
in this area.
[ECA16092]
1. Button
1. Lid
1
1
1. Lid1
UB3TE0E0.book Page 23 Tuesday, September 17, 2019 9:35 AM

Instrument and control functions
5-24
5
TIP Some helmets cannot be stored in
the rear storage compartment be-
cause of their size or shape.
 Do not leave the vehicle unattend-
ed with the seat open.
 Do not place the smart key inside
a storage compartment. It may get
locked inside and the smart key
system not operate normally.NOTICE
ECA15964
Do not leave the seat open for
an exten ded period of time, oth-
erwise the li ght may cause the
b attery to d ischarge. 
Since the storag e compartment
may get wet when washin g the
vehicle, wrap any articles store d
in the compartment in a plastic
b ag .
 To avoi d humi dity from sprea d-
in g throu gh the stora ge com-
partment an d to discoura ge
possi ble mold g rowth, wrap wet
articles in a plastic bag b efore
storin g them in the compart-
ment.
 Do not keep anythin g valua ble
or breakab le in the stora ge
compartment.
 Since the storag e compartment
accumulates heat from the en-
g ine an d from d irect sunli ght, do
not store anythin g su
sceptible
to heat, such as foo d or flamma-
b le items, insi de the compart-
ment.WARNING
EWA20960
 Do not exceed the load limit of
1.0 k g (2 l b) for the front storag e
compartment. 
Do not exceed the load limit of
5.0 k g (11 l b) for the rear stora ge
compartment.
 Do not exceed the maximum
loa d of 195 k g (430 l b) (XP560D)
197 k g (434 l b) (XP560E) for the
vehicle.
1. Rear storage compartment
2. Shaded area
12
UB3TE0E0.book Page 24 Tuesday, September 17, 2019 9:35 AM
