Specifications
8-2
8
Trail:68 mm (2.7 in)
Track: 385 mm (15.2 in)Front tire:Type:Tubeless
Size: 90/80-14M/C 43P
Manufacturer/model:
CHENG SHIN/M6231Rear tire:Type:Tubeless
Size:
110/90-12 64P
Manufacturer/model: CHENG SHIN/M6232Loa din g:Maximum load:
169 kg (373 lb)
(Total weight of rider, passenger, cargo
and accessories)Tire air pressure (measure d on col d
tires):
Front:
175 kPa (1.75 kgf/cm2, 25 psi)
Rear: 225 kPa (2.25 kgf/cm2, 33 psi)
Front wheel:Wheel type:Cast wheel
Rim size: 14M/C x MT2.15
Rear wheel:Wheel type:Cast wheel
Rim size:
12 x MT2.15Unifie d b rake system:Operation:
Activated by rear brakeFront brake:Type:
Disc brake
Operation: Right hand operation
Specified brake fluid:
DOT 4Rear brake:Type:
Disc brake
Operation:
Left hand operation
Specified brake fluid: DOT 4Front suspension:Type:
Telescopic fork
Spring/shock absorber type: Coil spring/oil damper
Wheel travel: 90 mm (3.5 in)Rear suspension:Type:Unit swing
Spring/shock absorber type: Coil spring/oil damper Wheel travel:
89 mm (3.5 in)
Electrical system:System voltage:
12 V
Ignition system: TCI
Charging system: AC magnetoBattery:Model:YTZ7V
Voltage, capacity: 12 V, 6.0 AhHea dlig ht:Bulb type:
Halogen bulbBul b volta ge, watta ge × quantity:Headlight:
12 V, 55.0 W/60.0 W × 1 (MW125)
12 V, 60.0 W/55.0 W × 1 (MW125A)
Brake/tail light:
LED
Front turn signal light: 12 V, 10.0 W × 2
Rear turn signal light: 12 V, 10.0 W × 2
Auxiliary light:
LED
Meter lighting: LED
High beam indicator light: LED
U2CME2E0.book Page 2 Friday, August 21, 2015 9:16 AM

Specifications
8-3
8
Turn signal indicator light:LED
Coolant temperature warning light: LED
Engine trouble warning light:
LED
ABS warning light: LED (MW125A)Fuse:Main fuse:
20.0 A
Headlight fuse: 15.0 A (MW125)
20.0 A (MW125A)
Signaling system fuse: 10.0 A
ABS control unit fuse: 10.0 A (MW125A)
ABS motor fuse:
30.0 A (MW125A)
ABS solenoid fuse: 20.0 A (MW125A)
Backup fuse: 10.0 A
U2CME2E0.book Page 3 Friday, August 21, 2015 9:16 AM

Consumer information
9-1
9
EAU53562

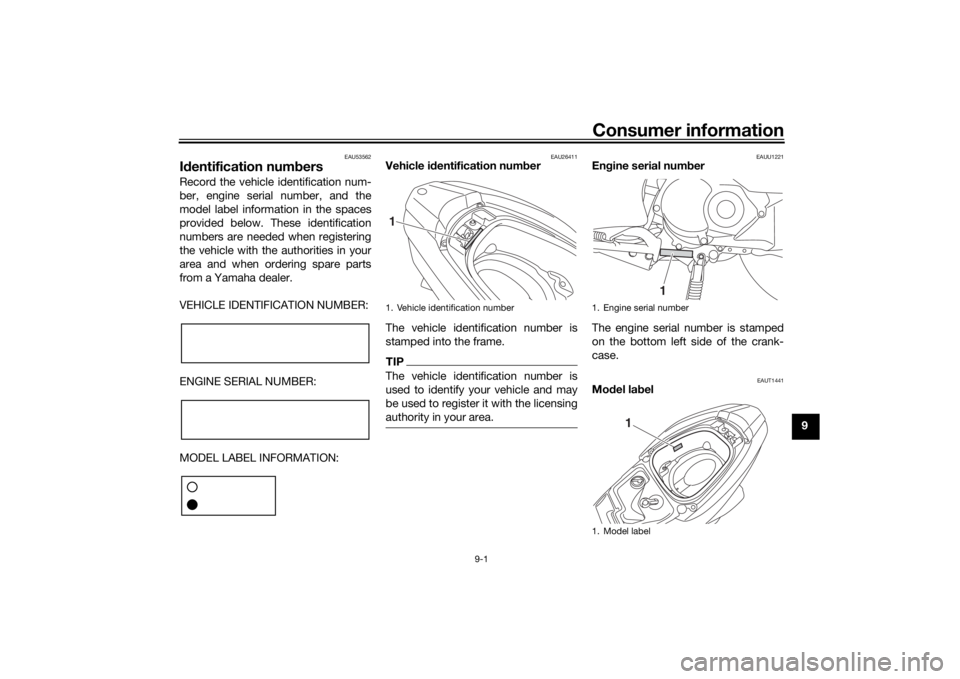

Id entification num bersRecord the vehicle identification num-
ber, engine serial number, and the
model label information in the spaces
provided below. These identification
numbers are needed when registering
the vehicle with the authorities in your
area and when ordering spare parts
from a Yamaha dealer.
VEHICLE IDENTIFICATION NUMBER:
ENGINE SERIAL NUMBER:
MODEL LABEL INFORMATION:
EAU26411
Vehicle i dentification num ber
The vehicle identification number is
stamped into the frame.TIPThe vehicle identification number is
used to identify your vehicle and may
be used to register it with the licensing
authority in your area.
EAUU1221
En gine serial num ber
The engine serial number is stamped
on the bottom left side of the crank-
case.
EAUT1441
Mo del la bel
1. Vehicle identification number1
1. Engine serial number
1. Model label
1
1
U2CME2E0.book Page 1 Friday, August 21, 2015 9:16 AM

Consumer information
9-2
9The model label is affixed to the inside
of the storage compartment. (See
page 3-16.) Record the information on
this label in the space provided. This
information will be needed when order-
ing spare parts from a Yamaha dealer.
U2CME2E0.book Page 2 Friday, August 21, 2015 9:16 AM

10-1
10
Index
AABS (for ABS models) .......................... 3-11
ABS warning light (for ABS models) ....... 3-4
Acceleration and deceleration ................ 5-3
Air filter and V-belt case air filter
elements ............................................. 6-14
Auxiliary DC connector ......................... 3-20
Auxiliary lights....................................... 6-30BBattery .................................................. 6-26
Brake fluid, changing............................ 6-22
Brake fluid level, checking.................... 6-20
Brake lever, front .................................. 3-10
Brake lever, rear ................................... 3-10
Brake levers, lubricating ....................... 6-23
Braking ................................................... 5-3CCables, checking and lubricating ......... 6-22
Care ........................................................ 7-1
Catalytic converter ............................... 3-14
Centerstand and sidestand, checking and lubricating .................... 6-23
Coolant ................................................. 6-13
Coolant temperature warning light ......... 3-4DDimmer switch...................................... 3-10EEngine break-in ...................................... 5-4
Engine oil and oil strainer ..................... 6-10
Engine serial number .............................. 9-1
Engine trouble warning light ................... 3-4FFinal transmission oil ............................ 6-12
Front and rear brake pads, checking ... 6-20 Front brake lever free play, checking ... 6-19
Front fork, checking ............................. 6-24
Fuel ...................................................... 3-13
Fuel consumption, tips for reducing ...... 5-3
Fuel tank cap........................................ 3-12
Fuses, replacing ................................... 6-27
HHandlebar switches ............................... 3-9
Headlight bulb, replacing ..................... 6-29
High beam indicator light ....................... 3-4
Horn switch .......................................... 3-10IIdentification numbers ........................... 9-1
Ignition circuit cut-off system .............. 3-18
Indicator lights and warning lights ......... 3-3KKeyhole shutter ...................................... 3-3LLeaning system, checking ................... 6-26
Luggage hook ...................................... 3-17MMain switch/steering lock ...................... 3-1
Maintenance and lubrication, periodic... 6-4
Maintenance, emission control
system ................................................. 6-3
Matte color, caution ............................... 7-1
Model label............................................. 9-1
Multi-function meter unit ........................ 3-5PPanel, removing and installing ............... 6-8
Parking ................................................... 5-4
Part locations ......................................... 2-1
Passenger footrest ............................... 3-15
RRear brake lever free play, checking .... 6-19SSafe-riding points ................................... 1-5
Safety information................................... 1-1
Seat....................................................... 3-15
Self-diagnosis device ............................. 3-5
Sidestand.............................................. 3-17
Spark plug, checking .............................. 6-8
Specifications ......................................... 8-1
Starting off .............................................. 5-2
Starting the engine ................................. 5-1
Start switch ........................................... 3-10
Steering, checking ................................ 6-25
Steering tie rod, checking..................... 6-25
Storage ................................................... 7-4
Storage compartment........................... 3-16TTail/brake light ...................................... 6-30
Throttle grip and cable,
checking and lubricating .................... 6-22
Throttle grip free play, checking ........... 6-16
Tires ...................................................... 6-17
Tool kit .................................................... 6-2
Troubleshooting .................................... 6-31
Troubleshooting charts ......................... 6-32
Turn signal indicator lights...................... 3-3
Turn signal light bulb ............................ 6-31
Turn signal switch ................................. 3-10VValve clearance..................................... 6-16
Vehicle identification number ................. 9-1
U2CME2E0.book Page 1 Friday, August 21, 2015 9:16 AM

Index
10-2
10
WWheel bearings, checking..................... 6-25
Wheels .................................................. 6-18
U2CME2E0.book Page 2 Friday, August 21, 2015 9:16 AM
