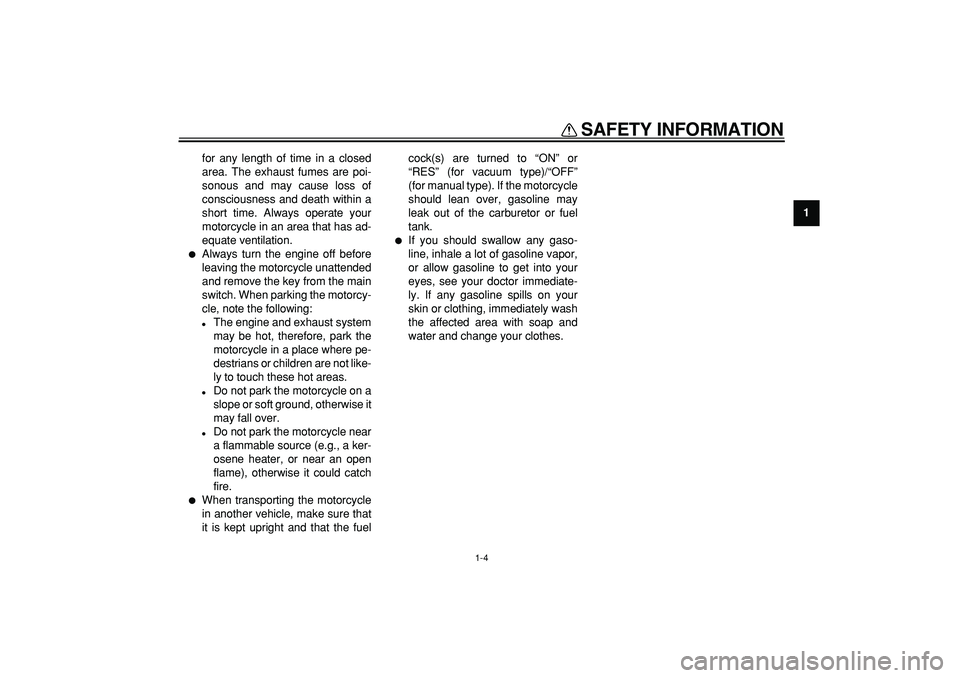

SAFETY INFORMATION
1-4
1
for any length of time in a closed
area. The exhaust fumes are poi-
sonous and may cause loss of
consciousness and death within a
short time. Always operate your
motorcycle in an area that has ad-
equate ventilation.

Always turn the engine off before
leaving the motorcycle unattended
and remove the key from the main
switch. When parking the motorcy-
cle, note the following:

The engine and exhaust system
may be hot, therefore, park the
motorcycle in a place where pe-
destrians or children are not like-
ly to touch these hot areas.

Do not park the motorcycle on a
slope or soft ground, otherwise it
may fall over.

Do not park the motorcycle near
a flammable source (e.g., a ker-
osene heater, or near an open
flame), otherwise it could catch
fire.

When transporting the motorcycle
in another vehicle, make sure that
it is kept upright and that the fuelcock(s) are turned to “ON” or
“RES” (for vacuum type)/“OFF”
(for manual type). If the motorcycle
should lean over, gasoline may
leak out of the carburetor or fuel
tank.

If you should swallow any gaso-
line, inhale a lot of gasoline vapor,
or allow gasoline to get into your
eyes, see your doctor immediate-
ly. If any gasoline spills on your
skin or clothing, immediately wash
the affected area with soap and
water and change your clothes.

2-1
1
2
3
4
5
6
7
8
9

DESCRIPTION
EAU10410

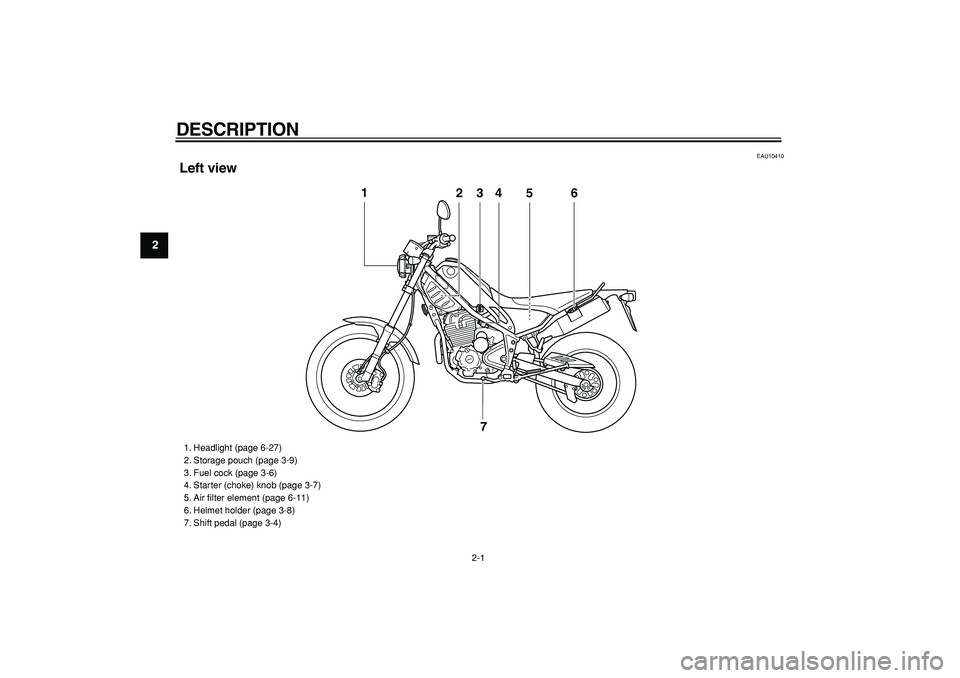

Left view
3
4
2
6 5
1
7

1. Headlight (page 6-27)
2. Storage pouch (page 3-9)
3. Fuel cock (page 3-6)
4. Starter (choke) knob (page 3-7)
5. Air filter element (page 6-11)
6. Helmet holder (page 3-8)
7. Shift pedal (page 3-4)

DESCRIPTION
2-2
2
3
4
5
6
7
8
9

EAU10420

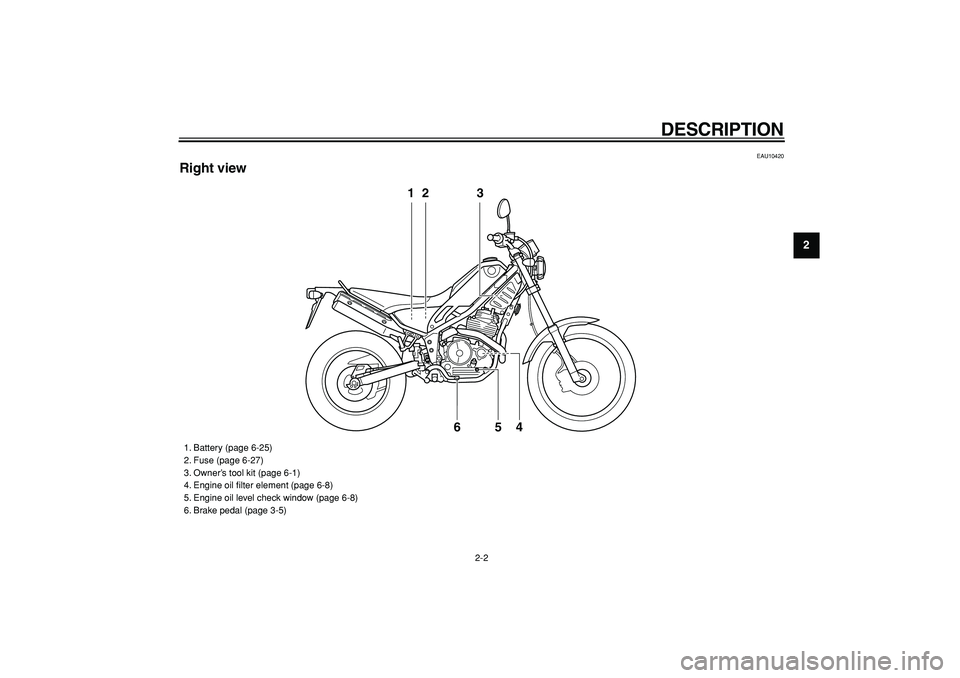

Right view
12 3
4 5 6

1. Battery (page 6-25)
2. Fuse (page 6-27)
3. Owner’s tool kit (page 6-1)
4. Engine oil filter element (page 6-8)
5. Engine oil level check window (page 6-8)
6. Brake pedal (page 3-5)

DESCRIPTION
2-3
1
2
3
4
5
6
7
8
9

EAU10430

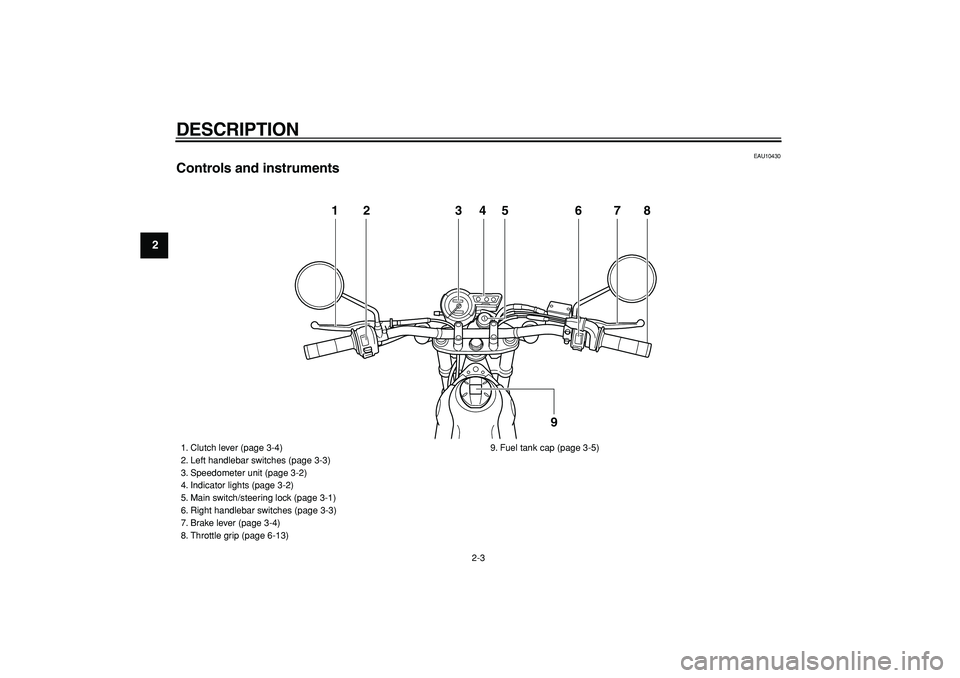

Controls and instruments
12 345 6 78
9

1. Clutch lever (page 3-4)
2. Left handlebar switches (page 3-3)
3. Speedometer unit (page 3-2)
4. Indicator lights (page 3-2)
5. Main switch/steering lock (page 3-1)
6. Right handlebar switches (page 3-3)
7. Brake lever (page 3-4)
8. Throttle grip (page 6-13)9. Fuel tank cap (page 3-5)

3-1
2
34
5
6
7
8
9

INSTRUMENT AND CONTROL FUNCTIONS
EAU10460
Main switch/steering lock
The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU10570
ON
All electrical circuits are supplied with
power; the meter lighting, taillight and
auxiliary light come on, and the engine
can be started. The key cannot be re-
moved.
NOTE:

The headlight comes on automatically
when the engine is started and stays on
until the key is turned to “OFF”.
EAU10660
OFF
All electrical systems are off. The key
can be removed.
EAU10690
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.
To lock the steering
1. Turn the handlebars all the way to
the left or right.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.To unlock the steering
Push the key into the main switch, and
then turn it to “OFF” while still pushing
it.
WARNING

EWA10060
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving,
otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident. Make
sure that the vehicle is stopped be-
fore turning the key to “OFF” or
“LOCK”.
1. Push.
2. Turn.1
2

1. Push.
2. Turn.
1 2

INSTRUMENT AND CONTROL FUNCTIONS
3-2
1
2
3
4
5
6
7
8
9

EAU10980

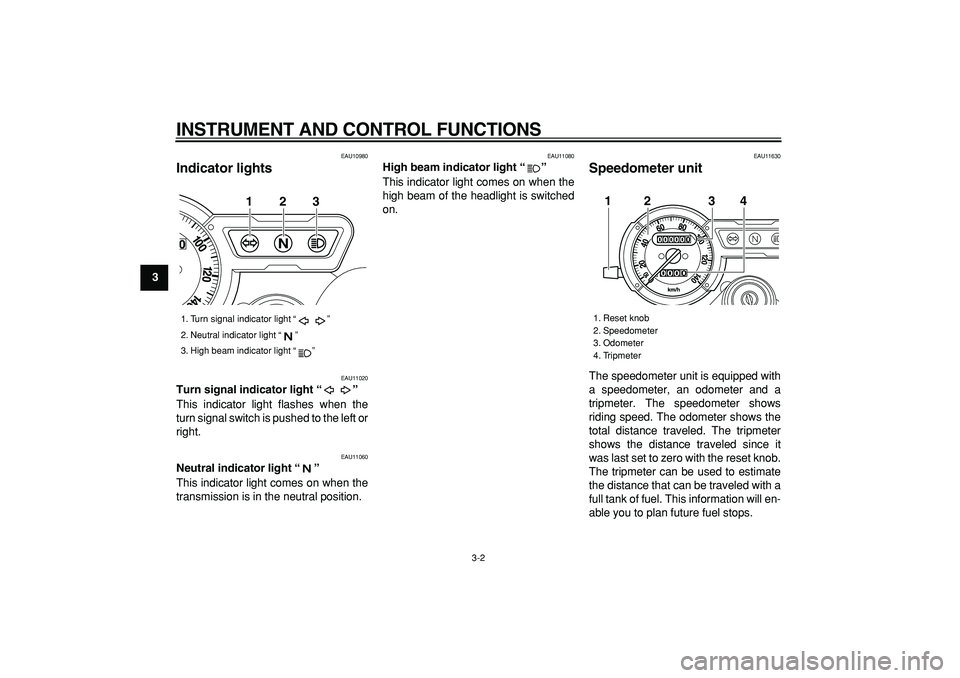

Indicator lights
EAU11020
Turn signal indicator light “”
This indicator light flashes when the
turn signal switch is pushed to the left or
right.
EAU11060
Neutral indicator light “”
This indicator light comes on when the
transmission is in the neutral position.
EAU11080
High beam indicator light “”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11630
Speedometer unit
The speedometer unit is equipped with
a speedometer, an odometer and a
tripmeter. The speedometer shows
riding speed. The odometer shows the
total distance traveled. The tripmeter
shows the distance traveled since it
was last set to zero with the reset knob.
The tripmeter can be used to estimate
the distance that can be traveled with a
full tank of fuel. This information will en-
able you to plan future fuel stops.
1. Turn signal indicator light “ ”
2. Neutral indicator light “ ”
3. High beam indicator light “ ”
1
2
3

1. Reset knob
2. Speedometer
3. Odometer
4. Tripmeter
1
2
3
4

INSTRUMENT AND CONTROL FUNCTIONS
3-3
2
34
5
6
7
8
9

EAU12343
Handlebar switches
LeftRight
EAU12400
Dimmer switch “/”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
EAU12460
Turn signal switch “/”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When re-
leased, the switch returns to the center
position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch “”
Press this switch to sound the horn.
EAU12660
Engine stop switch “/”
Set this switch to “ ” before starting
the engine. Set this switch to “ ” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12710
Start switch “”
Push this switch to crank the engine
with the starter.
CAUTION:

ECA10050
See page 5-1 for starting instruc-
tions prior to starting the engine.
1. Dimmer switch “ / ”
2. Turn signal switch “ / ”
3. Horn switch “ ”
1
2
3

1. Engine stop switch “ / ”
2. Start switch “ ”
1
2

INSTRUMENT AND CONTROL FUNCTIONS
3-4
1
2
3
4
5
6
7
8
9

EAU12820

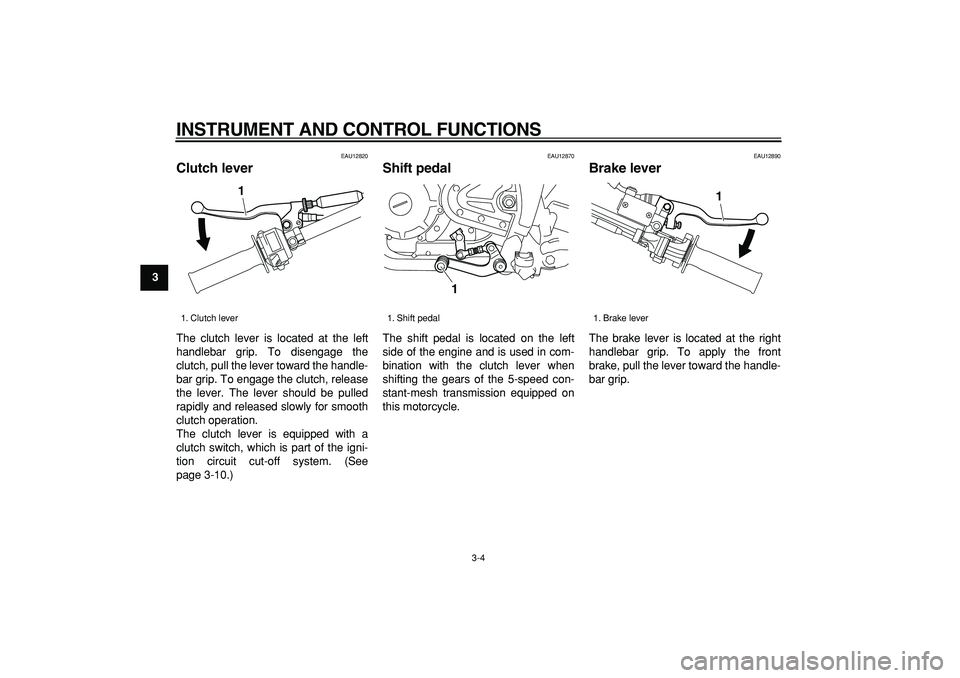

Clutch lever
The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handle-
bar grip. To engage the clutch, release
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See
page 3-10.)
EAU12870
Shift pedal
The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch lever when
shifting the gears of the 5-speed con-
stant-mesh transmission equipped on
this motorcycle.
EAU12890
Brake lever
The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.
1. Clutch lever
1

1. Shift pedal1

1. Brake lever
1

INSTRUMENT AND CONTROL FUNCTIONS
3-5
2
34
5
6
7
8
9

EAU12941

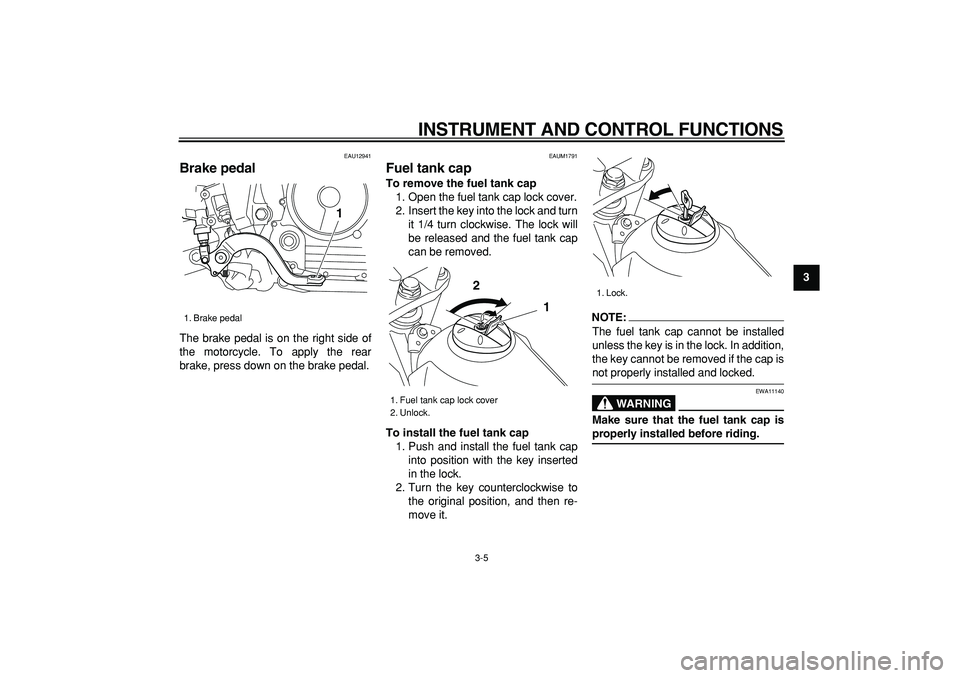

Brake pedal
The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.
EAUM1791
Fuel tank cap
To remove the fuel tank cap
1. Open the fuel tank cap lock cover.
2. Insert the key into the lock and turn
it 1/4 turn clockwise. The lock will
be released and the fuel tank cap
can be removed.
To install the fuel tank cap
1. Push and install the fuel tank cap
into position with the key inserted
in the lock.
2. Turn the key counterclockwise to
the original position, and then re-
move it.
NOTE:

The fuel tank cap cannot be installed
unless the key is in the lock. In addition,
the key cannot be removed if the cap is
not properly installed and locked.
WARNING

EWA11140
Make sure that the fuel tank cap is
properly installed before riding.
1. Brake pedal
1

1. Fuel tank cap lock cover
2. Unlock.
1
2

1. Lock.

INSTRUMENT AND CONTROL FUNCTIONS
3-6
1
2
3
4
5
6
7
8
9

EAU13210

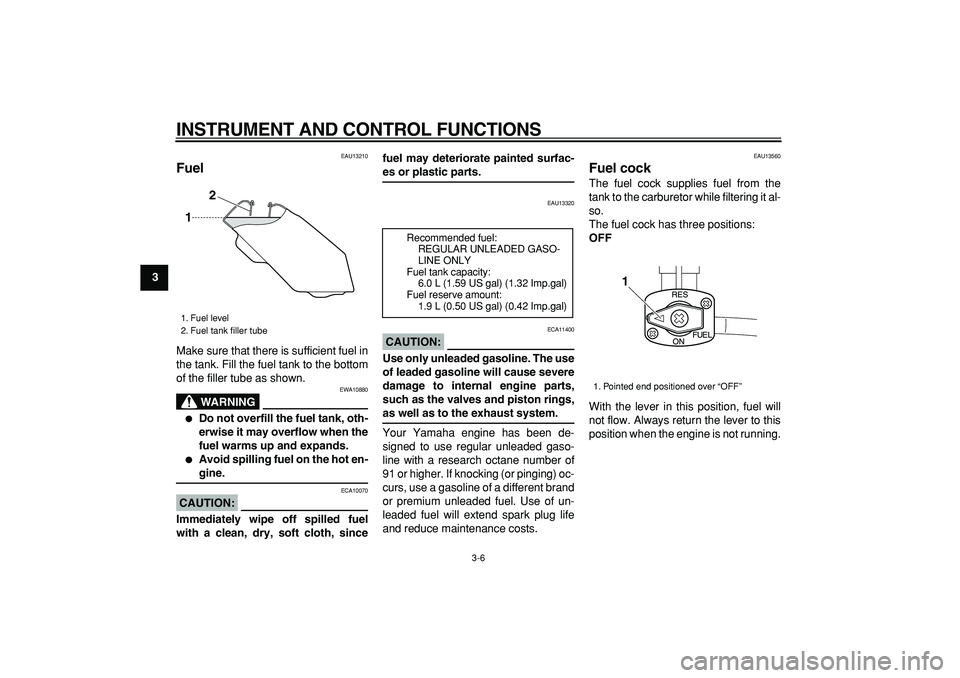

Fuel
Make sure that there is sufficient fuel in
the tank. Fill the fuel tank to the bottom
of the filler tube as shown.
WARNING

EWA10880

Do not overfill the fuel tank, oth-
erwise it may overflow when the
fuel warms up and expands.

Avoid spilling fuel on the hot en-
gine.
CAUTION:

ECA10070
Immediately wipe off spilled fuel
with a clean, dry, soft cloth, sincefuel may deteriorate painted surfac-
es or plastic parts.
EAU13320
CAUTION:

ECA11400
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,
as well as to the exhaust system.
Your Yamaha engine has been de-
signed to use regular unleaded gaso-
line with a research octane number of
91 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different brand
or premium unleaded fuel. Use of un-
leaded fuel will extend spark plug life
and reduce maintenance costs.
EAU13560
Fuel cock
The fuel cock supplies fuel from the
tank to the carburetor while filtering it al-
so.
The fuel cock has three positions:
OFF
With the lever in this position, fuel will
not flow. Always return the lever to this
position when the engine is not running.
1. Fuel level
2. Fuel tank filler tube
1
2

Recommended fuel:
REGULAR UNLEADED GASO-
LINE ONLY
Fuel tank capacity:
6.0 L (1.59 US gal) (1.32 Imp.gal)
Fuel reserve amount:
1.9 L (0.50 US gal) (0.42 Imp.gal)
1. Pointed end positioned over “OFF”
1
