PERIODIC MAINTENANCE AND MINOR REPAIR
6-35
2
3
4
5
67
8
9

EAU25901

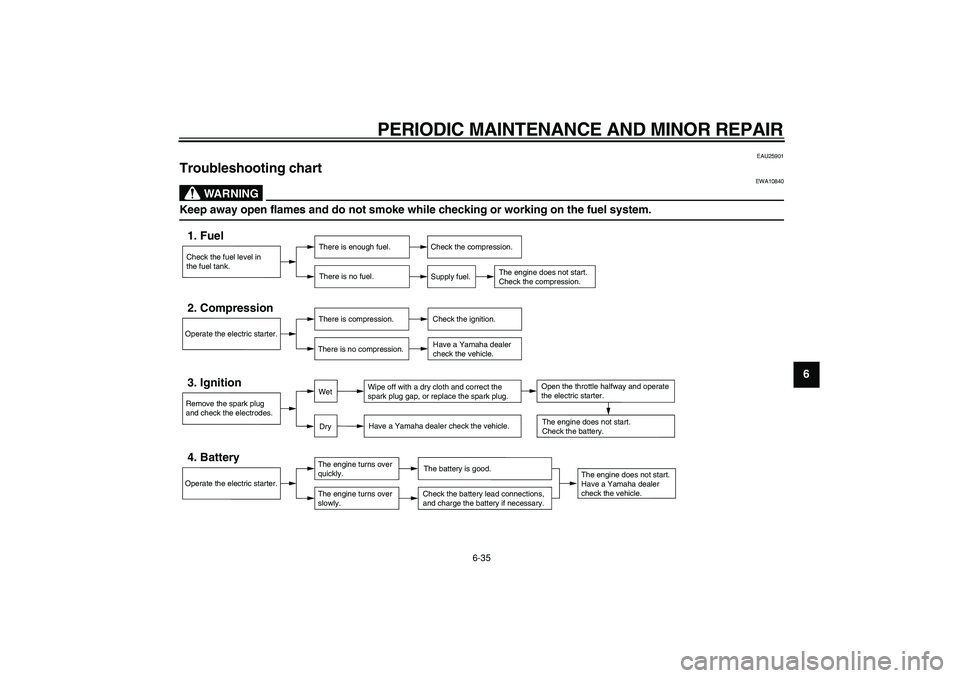

Troubleshooting chart
WARNING

EWA10840
Keep away open flames and do not smoke while checking or working on the fuel system.
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the electric starter.2. Compression
There is compression.
There is no compression.
Check the ignition.
Have a Yamaha dealer
check the vehicle.
Remove the spark plug
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug.
Have a Yamaha dealer check the vehicle.
The engine does not start.
Have a Yamaha dealer
check the vehicle.
The engine does not start.
Check the battery.
Operate the electric starter.4. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the battery lead connections,
and charge the battery if necessary.
DryWet
Open the throttle halfway and operate
the electric starter.

MOTORCYCLE CARE AND STORAGE
7-4
2
3
4
5
6
78
9
by loosening the drain bolt; this will
prevent fuel deposits from building
up. Pour the drained fuel into the
fuel tank.
4. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
5. Perform the following steps to pro-
tect the cylinder, piston rings, etc.
from corrosion.
a. Remove the spark plug cap
and spark plug.
b. Pour a teaspoonful of engine oil
into the spark plug bore.
c. Install the spark plug cap onto
the spark plug, and then place
the spark plug on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder wall with oil.)
e. Remove the spark plug cap
from the spark plug, and then
install the spark plug and the
spark plug cap.
WARNING

EWA10950
To prevent damage or injury from
sparking, make sure to ground the
spark plug electrodes while turning
the engine over.
6. Lubricate all control cables and the
pivoting points of all levers and
pedals as well as of the sidestand/
centerstand.
7. Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
8. Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.
9. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place
[less than 0 °C (30 °F) or more
than 30 °C (90 °F)]. For more in-formation on storing the battery,
see page 6-25.
NOTE:

Make any necessary repairs before
storing the motorcycle.

INDEX
A
Air filter element and check hose, replacing
and cleaning ..........................................6-11
Auxiliary light bulb, replacing ...................6-30
B
Battery .....................................................6-25
Brake and clutch levers, checking and
lubricating ..............................................6-22
Brake and shift pedals, checking and
lubricating ..............................................6-22
Brake fluid, changing ...............................6-19
Brake fluid level, checking .......................6-18
Brake lever ................................................3-4
Brake lever free play, adjusting ...............6-16
Brake pedal ...............................................3-5
C
Cables, checking and lubricating .............6-21
Carburetor, adjusting ...............................6-12
Care ...........................................................7-1
Caution, matte black ..................................7-1
Clutch lever ................................................3-4
Clutch lever free play, adjusting ..............6-16
D
Dimmer switch ...........................................3-3
Drive chain, cleaning and lubricating .......6-20
Drive chain slack .....................................6-19
E
Engine break-in .........................................5-3
Engine idling speed .................................6-12
Engine oil and oil filter element ..................6-8
Engine, starting a warm .............................5-2
Engine stop switch.....................................3-3
F
Front and rear brake pads, checking .......6-17Front fork, checking ................................. 6-24
Fuel ........................................................... 3-6
Fuel cock ................................................... 3-6
Fuel consumption, tips for reducing .......... 5-3
Fuel tank cap ............................................. 3-5
Fuse, replacing ........................................ 6-27
H
Handlebar switches ................................... 3-3
Headlight bulb, replacing ......................... 6-27
Helmet holder ............................................ 3-8
High beam indicator light ........................... 3-2
Horn switch................................................ 3-3
I
Identification numbers ............................... 9-1
Ignition circuit cut-off system ................... 3-10
Indicator lights ........................................... 3-2
K
Key identification number .......................... 9-1
M
Main switch/steering lock .......................... 3-1
Model label ................................................ 9-2
N
Neutral indicator light................................. 3-2
P
Panels, removing and installing................. 6-5
Parking ...................................................... 5-4
Part locations............................................. 2-1
Periodic maintenance and lubrication
chart ........................................................ 6-2
Pre-operation check list ............................. 4-2
R
Rear brake light switch, adjusting............ 6-17
Rear suspension, lubricating ................... 6-23
S
Safety information ..................................... 1-1
Seat ........................................................... 3-8
Shifting ...................................................... 5-2
Shift pedal ................................................. 3-4
Shock absorber ......................................... 3-9
Sidestand .................................................. 3-9
Sidestand, checking and lubricating........ 6-23
Spark plug, checking ................................. 6-6
Specifications ............................................ 8-1
Speedometer unit ...................................... 3-2
Starter (choke) knob.................................. 3-7
Starting a cold engine ............................... 5-1
Start switch................................................ 3-3
Steering, checking................................... 6-24
Storage...................................................... 7-3
Storage pouch ........................................... 3-9
Supporting the motorcycle ...................... 6-31
T
Tail/brake light bulb, replacing ................ 6-29
Throttle cable free play, checking ........... 6-13
Throttle grip and cable, checking and
lubricating ............................................. 6-21
Tires ........................................................ 6-13
Tool kit....................................................... 6-1
Troubleshooting ...................................... 6-34
Troubleshooting chart ............................. 6-35
Turn signal indicator light .......................... 3-2
Turn signal light bulb, replacing .............. 6-29
Turn signal switch ..................................... 3-3
V
Valve clearance....................................... 6-13
Vehicle identification number .................... 9-1
