Periodic maintenance an d a djustment
7-8
7
To install the spark plu
g
1. Clean the surface of the spark plug gasket and its mating surfa-
ce, and then wipe off any grime
from the spark plug threads.
2. Install the spark plug with the spark plug wrench, and then tight-
en it to the specified torque.
TIP
If a torque wrench is not available
when installing a spark plug, a good
estimate of the correct torque is 1/4–
1/2 turn past finger tight. However, the
spark plug should be tightened to the
specified torque as soon as possible.
3. Install the spark plug cap.
EAU39847
Engine oil
The engine oil level should be checked
before each ride. In addition, the oil
must be changed at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
To check the en gine oil level
1. Place the motorcycle on a level surface and hold it in an upright
position. A slight tilt to the side can
result in a false reading.
2. Start the engine, warm it up for several minutes, and then turn it
off.
3. Wait a few minutes until the oil set- tles, remove the engine oil filler
cap, wipe the engine oil dipstick
clean, insert it back into the oil filler
hole (without screwing it in), and
then remove it again to check the
oil level.
TIP
The engine oil should be between the
tip of the dipstick and the maximum
level mark.
Tightening torque:
Spark plug: 13 Nm (1.3 m·kgf, 9.4 ft·lbf)
1. Engine oil filler cap
2. Engine oil dipstick
3. Maximum level mark
4. Tip of the engine oil dipstick
1
3
4
2
UB5181E0.book Page 8 Monday, April 6, 2015 9:22 AM

Periodic maintenance an d a djustment
7-9
7 4. If the engine oil is not between the
tip of the dipstick and the maxi-
mum level mark, add sufficient oil
of the recommended type to raise
it to the correct level.
5. Insert the dipstick into the oil filler hole, and then tighten the oil filler
cap.
To chan ge the en gine oil
1. Start the engine, warm it up for several minutes, and then turn it
off.
2. Place an oil pan under the engine to collect the used oil.
3. Remove the engine oil filler cap, the engine oil drain bolt and its
gasket to drain the oil from the
crankcase.
4. Install a new gasket and the drain bolt, and then tighten the drain
bolt to the specified torque.
5. Refill with the specified amount of the recommended engine oil, and
then install and tighten the oil filler
cap.
NOTICE
ECA11621
In or der to prevent clutch slip-
pa ge (since the en gine oil also
lu bricates the clutch), do not
mix any chemical add itives. Do
not use oils with a d iesel speci-
fication of “CD” or oils of a hi gh-
er quality than specified . In
a ddition, do not use oils la bele d
“ENERGY CONSERVING II” or
hi gher.
 Make sure that no forei gn mate-
rial enters the crankcase.
6. Start the engine, and then let it idle for several minutes while checking
it for oil leakage. If oil is leaking,
immediately turn the engine off
and check for the cause.
7. Turn the engine off, and then check the oil level and correct it if
necessary.
1. Engine oil drain bolt
2. Gasket
Tightenin g torque:
Engine oil drain bolt: 20 Nm (2.0 m·kgf, 14 ft·lbf)
12
Recommended engine oil:
See page 9-1.
Oil change quantity: 0.80 L (0.85 US qt, 0.70 Imp.qt)
UB5181E0.book Page 9 Monday, April 6, 2015 9:22 AM

Periodic maintenance an d a djustment
7-10
7
EAU41638
Cleanin g the air filter element
The air filter element should be cleaned
or replaced at the intervals specified in
the periodic maintenance and lubrica-
tion chart. Clean or, if necessary, re-
place the air filter element more
frequently if you are riding in unusually
wet or dusty areas.
To clean the air filter element
1. Remove panel A. (See page 7-6.)
2. Remove the air filter case cover by removing the screws.
3. Pull the sponge material and the air filter mesh out.
4. Clean the mesh with solvent, and then wipe the solvent off. 5. Clean the sponge material with
solvent, and then squeeze the re-
maining solvent out. WARNING!
Use only a ded icated parts
cleanin g solvent. To avoi d the
risk of fire or explosion, do not
use gasoline or solvents with a
low flash point.
[EWA10432] NOTICE:
To avoi d damag ing the foam
material, han dle it g ently an d
carefully, an d d o not twist or
wrin g it.
[ECA10512]
6. Apply oil of the recommended
type to the entire surface of the
sponge material, and then
squeeze the excess oil out.
TIP
The sponge material should be wet but
not dripping.
7. Insert the mesh and the spongematerial into the air filter case.
NOTICE: Make sure that the
mesh an d the spon ge material
are properly seate d in the air fil-
ter case. The en gine shoul d
never be operated without the
mesh an d the spon ge material
1. Air filter case cover
2. Screw
1. Sponge material
2. Air filter mesh
2
1
1
2
Recommen
ded oil:
Yamaha foam air filter oil or other
quality foam air filter oil
UB5181E0.book Page 10 Monday, April 6, 2015 9:22 AM

Periodic maintenance an d a djustment
7-11
7 installe
d, otherwise the pis-
ton(s) an d/or cylin der(s) may b e-
come excessively worn.
[ECA15573]
8. Install the air filter case cover by installing the screws.
TIP
Make sure that the spark plug lead is
inserted into the guide as shown.
9. Install the panel.
To clean the air filter check hose
1. Check the hoses at the bottom of the air filter case for accumulated
dirt or water. 2. If dirt or water is visible, remove
the hoses, clean them, and then
reinstall them.
1. Spark plug lead
2. Guide
1
12
1. Air filter check hose
1
UB5181E0.book Page 11 Monday, April 6, 2015 9:22 AM

Periodic maintenance an d a djustment
7-12
7
EAU40422
Cleanin g the spark arrester
The spark arrester should be cleaned
at the intervals specified in the periodic
maintenance and lubrication chart.
WARNING
EWA10981
 Always let the exhaust system
cool prior to touchin g exhaust
components.
 Do not start the en gine when
cleanin g the exhaust system.
TIP
Make sure to select a well-ventilated
area free of combustible materials to
clean the spark arrester.
1. Remove the tailpipe by removing
the bolts, and then pulling it out of
the muffler.
2. Tap the tailpipe lightly, and then use a wire brush to remove any
carbon deposits from the spark
arrester portion of the tailpipe and
inside of the tailpipe housing. 3. Insert the tailpipe into the muffler,
and then install and tighten the
bolts to the specified torque.
TIP
Make sure to align the bolt holes when
inserting the tailpipe.
1. Tailpipe
2. Tailpipe bolt
21
1. Spark arrester
Ti
ghtenin g torque:
Tailpipe bolt: 10 Nm (1.0 m·kgf, 7.2 ft·lbf)
1
UB5181E0.book Page 12 Monday, April 6, 2015 9:22 AM

Periodic maintenance an d a djustment
7-13
7
EAU39931
A djustin g the car buretor
The carburetor is an important part of
the engine and requires very sophisti-
cated adjustment. Therefore, most
carburetor adjustments should be left
to a Yamaha dealer, who has the nec-
essary professional knowledge and ex-
perience. The adjustment described in
the following section, however, may be
serviced by the owner as part of rou-
tine maintenance.
NOTICE
ECA10551
The car buretor has b een set and ex-
tensively teste d at the Yamaha fac-
tory. Chan gin g these settin gs
without sufficient technical knowl-
e dge may result in poor perfor-
mance of or damag e to the en gine.
EAU21363
A djustin g the eng ine idlin g
spee d
The engine idling speed must be
checked and, if necessary, adjusted as
follows at the intervals specified in the
periodic maintenance and lubrication
chart.
TIP
A diagnostic tachometer is needed to
make this adjustment.
1. Attach the tachometer to the
spark plug lead.
2. Start the engine and warm it up for several minutes at 1000–2000
r/min while occasionally revving it
to 4000–5000 r/min.
TIP
The engine is warm when it quickly re-
sponds to the throttle.
3. Check the engine idling speedand, if necessary, adjust it to
specification by turning the throt-
tle stop screw. To increase the en-
gine idling speed, turn the screw in
direction (a). To decrease the en-
gine idling speed, turn the screw in
direction (b).
1. Throttle stop screw
(a) (b)
1
UB5181E0.book Page 13 Monday, April 6, 2015 9:22 AM

Periodic maintenance an d a djustment
7-14
7
TIP
If the specified idling speed cannot be
obtained as described above, have a
Yamaha dealer make the adjustment.
EAU21385
Checkin g the throttle grip free
play
The throttle grip free play should mea-
sure 4.0–6.0 mm (0.16–0.24 in) at the
inner edge of the throttle grip. Periodi-
cally check the throttle grip free play
and, if necessary, have a Yamaha deal-
er adjust it.
En gine i dlin g spee d:
1600–1800 r/min
1. Throttle grip free play
1
UB5181E0.book Page 14 Monday, April 6, 2015 9:22 AM

Periodic maintenance an d a djustment
7-15
7
EAU21402
Valve clearance
The valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.
EAU40916
Tires
Tires are the only contact between the
vehicle and the road. Safety in all con-
ditions of riding depends on a relatively
small area of road contact. Therefore, it
is essential to maintain the tires in good
condition at all times and replace them
at the appropriate time with the speci-
fied tires.
Tire air pressure
The tire air pressure should be
checked and, if necessary, adjusted
before each ride.
WARNING
EWA15371
Operation of this vehicle with im-
proper tire pressure may cause se-
vere injury or d eath from loss of
control.
The tire air pressure must be
checked and a djuste d on col d tires
(i.e., when the temperature of the
tires equals the am bient tempera-
ture).
Stan dar d tire air pressure:
Front: 100 kPa (1.00 kgf/cm², 15 psi)
Rear:
100 kPa (1.00 kgf/cm², 15 psi)
UB5181E0.book Page 15 Monday, April 6, 2015 9:22 AM

Periodic maintenance an d a djustment
7-16
7

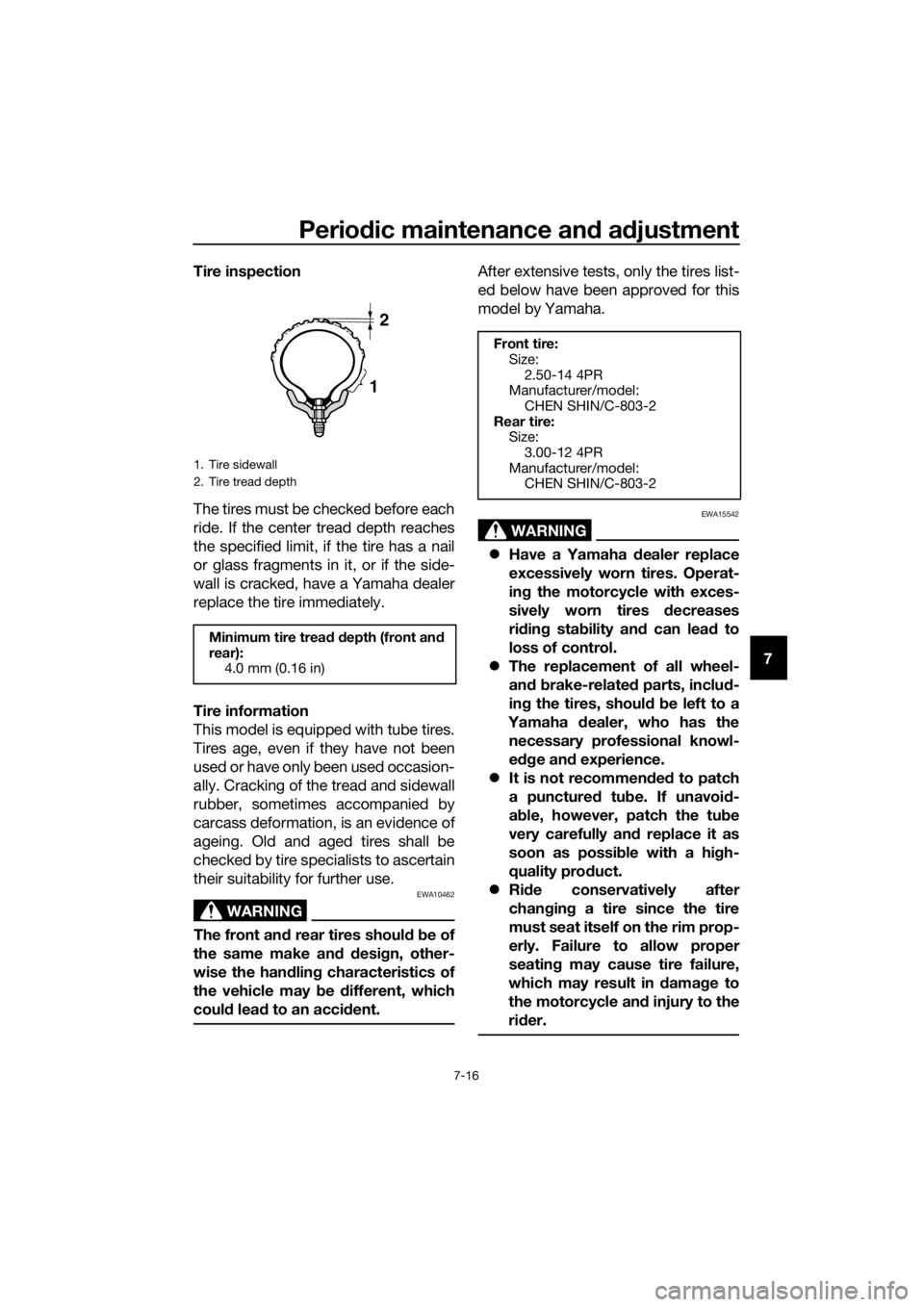

Tire inspection
The tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail
or glass fragments in it, or if the side-
wall is cracked, have a Yamaha dealer
replace the tire immediately.
Tire information
This model is equipped with tube tires.
Tires age, even if they have not been
used or have only been used occasion-
ally. Cracking of the tread and sidewall
rubber, sometimes accompanied by
carcass deformation, is an evidence of
ageing. Old and aged tires shall be
checked by tire specialists to ascertain
their suitability for further use.
WARNING
EWA10462
The front an
d rear tires shoul d b e of
the same make an d d esi gn, other-
wise the han dlin g characteristics of
the vehicle may be different, which
coul d lea d to an acci dent.
After extensive tests, only the tires list-
ed below have been approved for this
model by Yamaha.
WARNING
EWA15542
 Have a Yamaha dealer replace
excessively worn tires. Operat-
in g the motorcycle with exces-
sively worn tires decreases
ri din g sta bility an d can lead to
loss of control.
 The replacement of all wheel-
and b rake-relate d parts, inclu d-
in g the tires, shoul d b e left to a
Yamaha dealer, who has the
necessary professional knowl-
e dg e an d experience.
 It is not recommen ded to patch
a puncture d tu be. If unavoi d-
a b le, however, patch the tu be
very carefully an d replace it as
soon as possi ble with a hi gh-
quality pro duct.
 Ride conservatively after
chan gin g a tire since the tire
must seat itself on the rim prop-
erly. Failure to allow proper
seatin g may cause tire failure,
which may result in damag e to
the motorcycle an d injury to the
ri der.
1. Tire sidewall
2. Tire tread depth
Minimum tire trea d d epth (front an d
rear): 4.0 mm (0.16 in)
1
2
Front tire:
Size: 2.50-14 4PR
Manufacturer/model:
CHEN SHIN/C-803-2
Rear tire: Size:
3.00-12 4PR
Manufacturer/model: CHEN SHIN/C-803-2
UB5181E0.book Page 16 Monday, April 6, 2015 9:22 AM

Periodic maintenance an d a djustment
7-17
7
EAU21944
Spoke wheels
WARNING
EWA10611
The wheels on this mo del are not
d esi gne d for use with tu beless tires.
Do not attempt to use tu beless tires
on this mo del.
To maximize the performance, durabil-
ity, and safe operation of your motor-
cycle, note the following points
regarding the specified wheels.
 The wheel rims should be
checked for cracks, bends, warp-
age or other damage, and the
spokes for looseness or damage
before each ride. If any damage is
found, have a Yamaha dealer re-
place the wheel. Do not attempt
even the smallest repair to the
wheel. A deformed or cracked
wheel must be replaced.
 The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short-
ened tire life.
EAU44664
Adjustin g the clutch free play
The clutch free play must be checked
and, if necessary, adjusted as follows
at the intervals specified in the periodic
maintenance and lubrication chart.
1. Loosen the locknut.
2. Slowly turn the clutch adjusting screw in direction (a) until resis-
tance is felt, and then turn it 1/8
turn in direction (b).
3. Tighten the locknut to the speci- fied torque.
TIP
When tightening the locknut, hold the
clutch adjusting screw with a screw-
driver so that it does not turn together
with the locknut.
1. Locknut
2. Clutch adjusting screw
Tightening torque:
Locknut:
8 Nm (0.8 m·kgf, 5.8 ft·lbf)
1 2
(a)(b)
UB5181E0.book Page 17 Monday, April 6, 2015 9:22 AM
