Motorcycle care and stora ge
8-4
8
EAU26153
Stora ge
Short-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover. Be
sure the engine and the exhaust sys-
tem are cool before covering the mo-
torcycle.
NOTICE
ECA10811
 Storin g the motorcycle in a
poorly ventilated room or cover-
in g it with a tarp, while it is still
wet, will allow water an d humi d-
ity to seep in an d cause rust.
 To prevent corrosion, avoi d
d amp cellars, sta bles ( because
of the presence of ammonia)
an d areas where stron g chemi-
cals are store d.
Lon g-term
Before storing your motorcycle for sev-
eral months: 1. Follow all the instructions in the “Care” section of this chapter.
2. For motorcycles equipped with a fuel cock that has an “OFF” posi-
tion: Turn the fuel cock lever to
“OFF”.
3. Drain the carburetor float chamber by loosening the drain bolt; this
will prevent fuel deposits from
building up. Pour the drained fuel
into the fuel tank.
4. Fill up the fuel tank and add fuel stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating. 5. Perform the following steps to
protect the cylinder, piston rings,
etc. from corrosion.a. Remove the spark plug cap and spark plug.
b. Pour a teaspoonful of engine oil into the spark plug bore.
c. Install the spark plug cap onto the spark plug, and then place
the spark plug on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several times with the starter. (This will
coat the cylinder wall with oil.)
WARNING! To prevent d am-
a g e or injury from sparkin g,
make sure to groun d the
spark plu g electro des while
turnin g the en gine over.
[EWA10952]
e. Remove the spark plug cap
from the spark plug, and then
install the spark plug and the
spark plug cap.
6. Lubricate all control cables and the pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.
7. Check and, if necessary, correct the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
8. Cover the muffler outlet with a plastic bag to prevent moisture
from entering it.
UB5181E0.book Page 4 Monday, April 6, 2015 9:22 AM

Motorcycle care and stora ge
8-5
8 9. Remove the battery and fully char-
ge it. Store it in a cool, dry place
and charge it once a month. Do
not store the battery in an exces-
sively cold or warm place [less
than 0 °C (30 °F) or more than 30
°C (90 °F)]. For more information
on storing the battery, see page
7-27.
TIP
Make any necessary repairs before
storing the motorcycle.
UB5181E0.book Page 5 Monday, April 6, 2015 9:22 AM

Specifications
9-1
9
Dimensions:
Overall length:1565 mm (61.6 in)
Overall width:
680 mm (26.8 in)
Overall height: 923 mm (36.3 in)
Seat height: 670 mm (26.4 in)
Wheelbase:
1080 mm (42.5 in)
Ground clearance: 180 mm (7.09 in)
Minimum turning radius: 1700 mm (66.9 in)
Wei ght:
Curb weight:
72 kg (159 lb)
Technical permissible mass (Maximum load +
Curb weight):
132 kg (291 lb)
Noise an d vi bration level:
Noise level (77/311/EEC):
78.9 dB(A)
(TT-R110E_AUT/BEL/CHE/CYP/CZE/
DEU/DNK/ESP/FIN/FRA/GBR/GRC/IRL/IT
A/NLD/NOR/POL/PRT/SVK/SVN/SWE)
Uncertainty of measurement:
3.0 dB(A)
(TT-R110E_AUT/BEL/CHE/CYP/CZE/
DEU/DNK/ESP/FIN/FRA/GBR/GRC/IRL/IT
A/NLD/NOR/POL/PRT/SVK/SVN/SWE)
Vibration on seat (EN1032, ISO5008): Will not exceed 0.5 m/s²
(TT-R110E_AUT/BEL/CHE/CYP/CZE/
DEU/DNK/ESP/FIN/FRA/GBR/GRC/IRL/IT
A/NLD/NOR/POL/PRT/SVK/SVN/SWE)
Vibration on handlebar (EN1032, ISO5008): Will not exceed 2.5 m/s²
(TT-R110E_AUT/BEL/CHE/CYP/CZE/
DEU/DNK/ESP/FIN/FRA/GBR/GRC/IRL/IT
A/NLD/NOR/POL/PRT/SVK/SVN/SWE)
Engine:
Engine type:
Air cooled 4-stroke, SOHC
Cylinder arrangement: Single cylinder
Displacement:
110 cm³ Bore
× stroke:
51.0 × 54.0 mm (2.01 × 2.13 in)
Compression ratio: 9.3 : 1
Starting system:
Electric starter and kickstarter
Lubrication system: Wet sump
Engine oil:
Recommended brand:
YAMALUBE
SAE viscosity grades: 10W-40
Recommended engine oil grade: API service SG type or higher, JASO
standard MA
Engine oil quantity: Periodic oil change:
0.80 L (0.85 US qt, 0.70 Imp.qt)
Air filter:
Air filter element: Wet element
Fuel:
Recommended fuel:Regular unleaded gasoline (Gasohol (E10)
acceptable)
Fuel tank capacity: 3.8 L (1.00 US gal, 0.84 Imp.gal)
Fuel reserve amount: 0.5 L (0.13 US gal, 0.11 Imp.gal)
Car buretor:
Type × quantity:
VM16 x 1
Spark plu g(s):
Manufacturer/model:
NGK/CR6HSA
Spark plug gap: 0.6–0.7 mm (0.024–0.028 in)
Clutch:
Clutch type:
Wet, multiple-disc and centrifugal
automatic
Transmission:
Primary reduction ratio:3.722 (67/18)
Final drive: Chain
Secondary reduction ratio:
2.500 (35/14)
UB5181E0.book Page 1 Monday, April 6, 2015 9:22 AM

Specifications
9-2
9
Transmission type:Constant mesh 4-speed
Operation: Left foot operation
Gear ratio:
1st:3.166 (38/12)
2nd:
1.941 (33/17)
3rd: 1.380 (29/21)
4th: 1.095 (23/21)
Chassis:
Frame type:
Backbone
Caster angle: 26.00 °
Trail: 60 mm (2.4 in)
Front tire:
Type:With tube
Size: 2.50-14 4PR
Manufacturer/model:
CHEN SHIN/C-803-2
Speed rating: 120 km/h (75 mph)
Rear tire:
Type:
With tube
Size: 3.00-12 4PR
Manufacturer/model: CHEN SHIN/C-803-2
Speed rating:
120 km/h (75 mph)
Loa din g:
Maximum rider weight:
60.0 kg (132 lb)
Tire air pressure (measure d on col d
tires):
Front:
100 kPa (1.00 kgf/cm², 15 psi)
Rear:
100 kPa (1.00 kgf/cm², 15 psi)
Front wheel:
Wheel type:Spoke wheel Rim size:
14x1.40
Rear wheel:
Wheel type:
Spoke wheel
Rim size: 12x1.60
Front brake:
Type:
Drum brake
Operation: Right hand operation
Rear brake:
Type:
Drum brake
Operation:
Right foot operation
Front suspension:
Type:Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel: 115 mm (4.5 in)
Rear suspension:
Type:
Swingarm
Spring/shock absorber type: Coil spring/gas-oil damper
Wheel travel: 110 mm (4.3 in)
Electrical system:
System voltage:12 V
Ignition system: DC CDI
Charging system:
AC magneto
Battery:
Model:GT4B-5
Voltage, capacity:
12 V, 2.5 Ah
Fuse:
Fuse:10.0 A
UB5181E0.book Page 2 Monday, April 6, 2015 9:22 AM

Specifications
9-3
9
EAU51132
For Europe only
The figures quoted are emission levels
and are not necessarily safe working
levels. Whilst there is a correlation be-
tween the emission and exposure lev-
els, this cannot be used reliably to
determine whether or not further pre-
cautions are required. Factors that in-
fluence the actual level of exposure of
work-force include the characteristics
of the work room, the other sources of
noise, etc. i.e. the number of machines
and other adjacent processes, and the
length of time for which an operator is
exposed to the noise. Also the permis-
sible exposure level can vary from
country. This information, however, will
enable the user of the machine to make
a better evaluation of the hazard and
risk.
UB5181E0.book Page 3 Monday, April 6, 2015 9:22 AM

Consumer information
10-1
10
EAU53562
Id entification num bers
Record the vehicle identification num-
ber, engine serial number, and the
model label information in the spaces
provided below. These identification
numbers are needed when registering
the vehicle with the authorities in your
area and when ordering spare parts
from a Yamaha dealer.
VEHICLE IDENTIFICATION NUMBER:
ENGINE SERIAL NUMBER:
MODEL LABEL INFORMATION:
EAU26401Vehicle i dentification num ber The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.
TIP
The vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
EAU26442En
gine serial num ber
The engine serial number is stamped
into the crankcase.
EAU36981Mo del lab el
The model label is affixed to the frame
behind panel B. (See page 7-6.) Re-
cord the information on this label in the
1. Vehicle identification number
1
1. Engine serial number
1. Model label
1
1
UB5181E0.book Page 1 Monday, April 6, 2015 9:22 AM

Consumer information
10-2
10
space provided. This information will
be needed when ordering spare parts
from a Yamaha dealer.
EAU48121Vehicle Emission Control Informa-
tion la
bel (For Canad a)
The Vehicle Emission Control Informa-
tion label is affixed at the location in the
illustration. This label shows specifica-
tions related to exhaust emissions as
required by federal law, state law and
Environment Canada.
1. Vehicle Emission Control Information label
1
UB5181E0.book Page 2 Monday, April 6, 2015 9:22 AM

11-1
11
Index
A
Air filter element, cleaning .................... 7-10
B
Battery .................................................. 7-27
Brake lever .............................................. 4-2
Brake lever, checking and
lubricating ........................................... 7-23
Brake lever free play, adjusting ............ 7-18
Brake pedal............................................. 4-3
Brake pedal, checking and lubricating ........................................... 7-24
Brake pedal free play, adjusting ........... 7-19
Brake shoes, checking ......................... 7-20
C
Cables, checking and lubricating ......... 7-22
Carburetor, adjusting ............................ 7-13
Care ........................................................ 8-1
Clutch free play, adjusting .................... 7-17
D
Drive chain, cleaning and lubricating .... 7-22
Drive chain slack................................... 7-20
E
Engine break-in....................................... 6-3
Engine idling speed .............................. 7-13
Engine oil ................................................ 7-8
Engine serial number ............................ 10-1
Engine, starting a warm .......................... 6-2
Engine stop switch ................................. 4-1
F
Front fork, checking .............................. 7-25
Fuel ......................................................... 4-4
Fuel cock ................................................ 4-7
Fuel tank breather hose .......................... 4-6
Fuel tank cap .......................................... 4-3
Fuse, replacing ..................................... 7-28
H
Handlebar switches ................................ 4-1
I
Identification numbers .......................... 10-1
K
Kickstarter............................................... 4-8
L
Labels, location....................................... 1-1
M
Main switch ............................................. 4-1
Maintenance and lubrication, periodic ... 7-4
Maintenance, emission control
system .................................................. 7-3
Matte color, caution ................................ 8-1
Model label ........................................... 10-1
P
Panels, removing and installing.............. 7-6
Parking ................................................... 6-4
Part locations ......................................... 3-1
S
Safety information .................................. 2-1
Seat ........................................................ 4-9
Shifting ................................................... 6-2
Shift pedal .............................................. 4-2
Shift pedal, checking ............................ 7-19
Shock absorber assembly ...................... 4-9
Sidestand ............................................. 4-10
Sidestand, checking and lubricating .... 7-24
Spark arrester, cleaning ....................... 7-12
Spark plug, checking ............................. 7-7
Specifications ......................................... 9-1
Starter (choke) lever ............................... 4-8
Starting and warming up a cold engine .................................................. 6-1
Starting circuit cut-off system .............. 4-10
Start switch ............................................ 4-1
Steering, checking................................ 7-26
Storage ................................................... 8-4
Supporting the motorcycle................... 7-29
Swingarm pivots, lubricating ................ 7-25
T
Throttle grip and cable, checking and lubricating .......................................... 7-23
Throttle grip free play, checking........... 7-14
Tires ...................................................... 7-15
Tool kit.................................................... 7-2
Troubleshooting ................................... 7-33
Troubleshooting chart .......................... 7-34
V
Valve clearance .................................... 7-15
Vehicle Emission Control Information label (For Canada) .............................. 10-2
Vehicle identification number ............... 10-1
W
Wheel bearings, checking .................... 7-26
Wheel (front) ......................................... 7-29
Wheel (rear) .......................................... 7-31
Wheels .................................................. 7-17
UB5181E0.book Page 1 Monday, April 6, 2015 9:22 AM

UB5181E0.book Page 2 Monday, April 6, 2015 9:22 AM

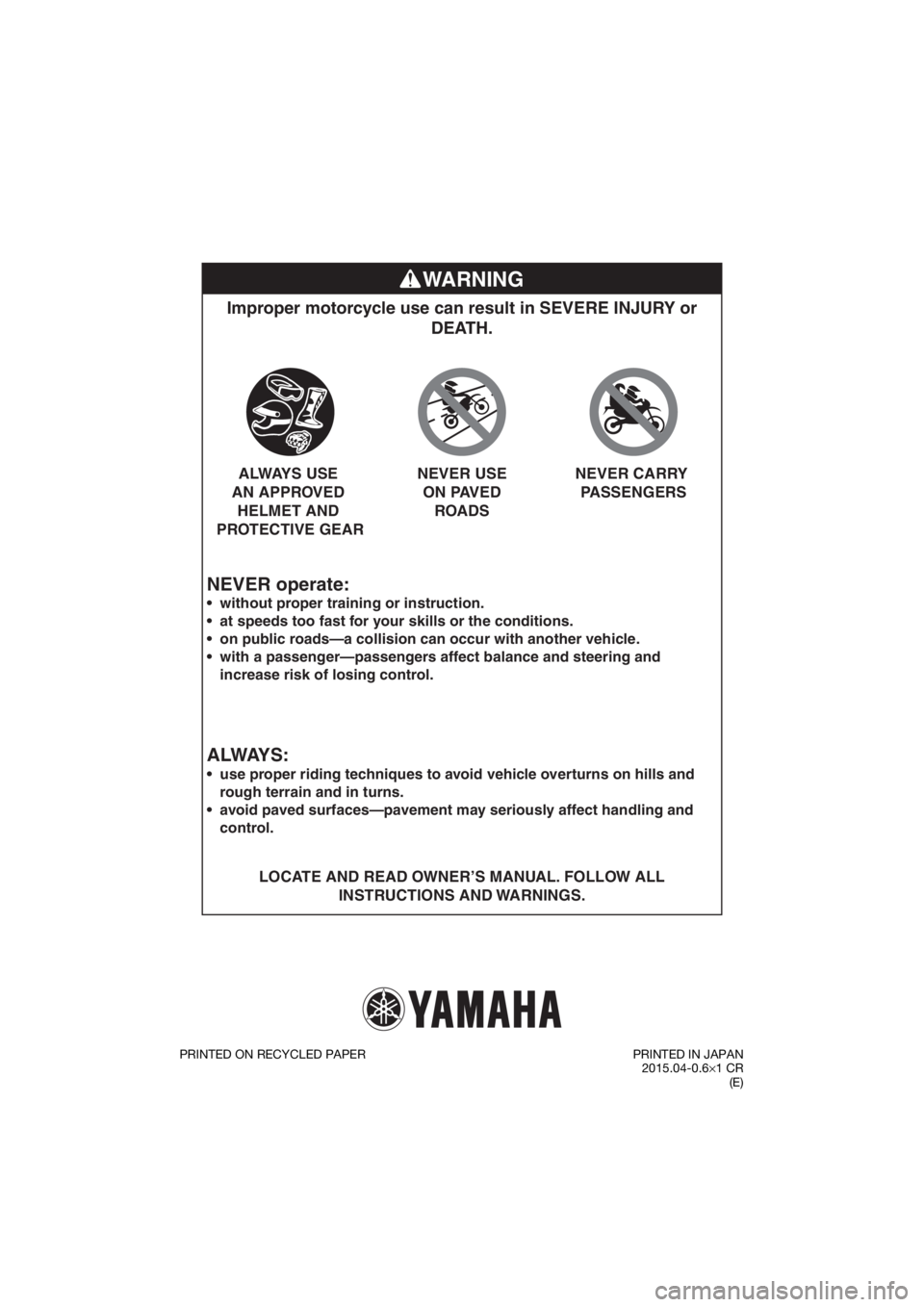

WARNING
NEVER operate:
Improper motorcycle use can result in SEVERE INJURY or DEATH.
LOCATE AND READ OWNER’S MANUAL. FOLLOW ALL
INSTRUCTIONS AND WARNINGS.



without proper training or instruction.
at speeds too fast for your skills or the conditions.
on public roads—a collision can occur with another vehicle.
with a passenger—passengers affect balance and steering and
increase risk of losing control.
ALWAYS:


use proper riding techniques to avoid vehicle overturns on hills and
rough terrain and in turns.
avoid paved surfaces—pavement may seriously affect handling and
control.
ALWAYS USE
AN APPROVED HELMET AND
PROTECTIVE GEAR NEVER USE
ON PAVED ROADS NEVER CARRY
PASSENGERS
PRINTED ON RECYCLED PAPER PRINTED IN JAPAN
2015.04-0.6× 1 CR
(E)
UB5181E0.book Page 1 Monday, April 6, 2015 9:22 AM
