DESCRIPTION
2-3
2
EAU10430

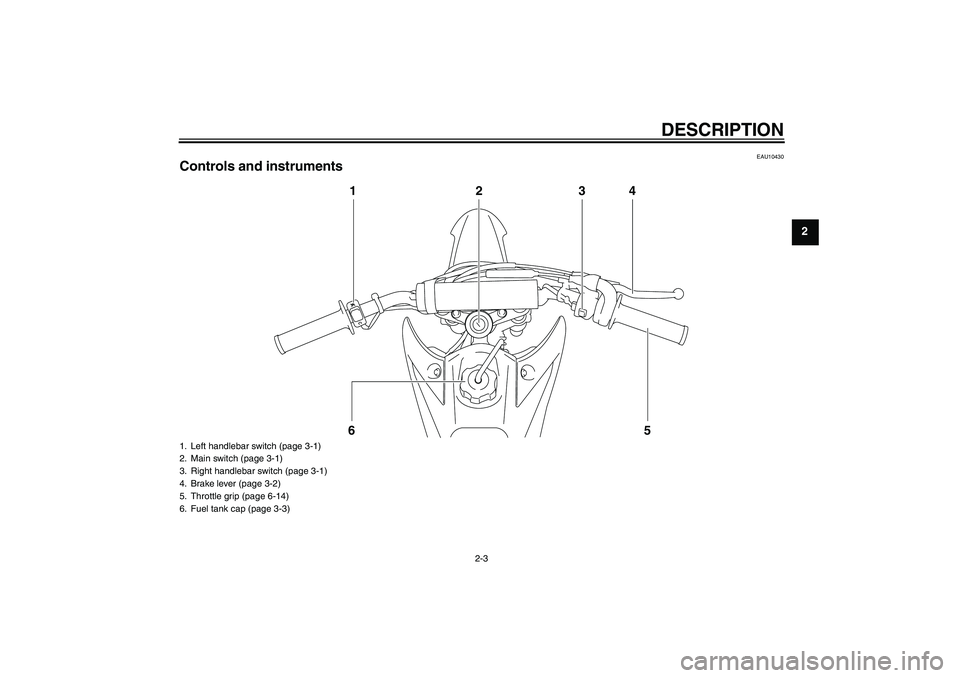

Controls and instruments
1234
5 6
1. Left handlebar switch (page 3-1)
2. Main switch (page 3-1)
3. Right handlebar switch (page 3-1)
4. Brake lever (page 3-2)
5. Throttle grip (page 6-14)
6. Fuel tank cap (page 3-3)
U5B680E0.book Page 3 Tuesday, July 17, 2007 9:11 AM
Page 22 of 78
INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
EAU40340

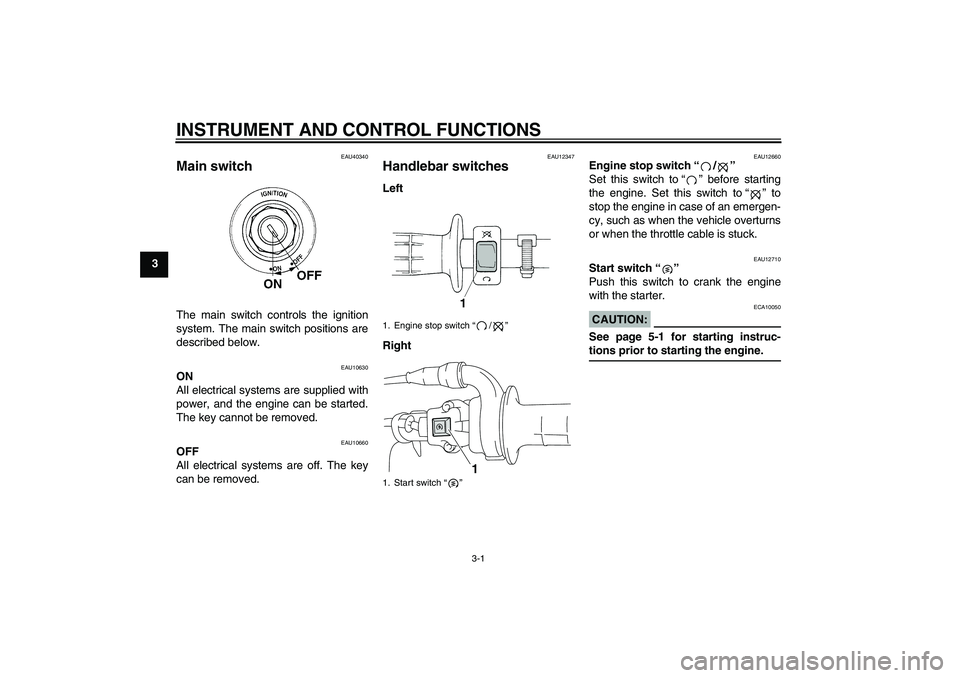

Main switch The main switch controls the ignition
system. The main switch positions are
described below.
EAU10630
ON
All electrical systems are supplied with
power, and the engine can be started.
The key cannot be removed.
EAU10660
OFF
All electrical systems are off. The key
can be removed.
EAU12347
Handlebar switches Left
Right
EAU12660
Engine stop switch“/”
Set this switch to“” before starting
the engine. Set this switch to“” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12710
Start switch“”
Push this switch to crank the engine
with the starter.CAUTION:
ECA10050
See page 5-1 for starting instruc-tions prior to starting the engine.
1. Engine stop switch“/”
1. Start switch“”
1
U5B680E0.book Page 1 Tuesday, July 17, 2007 9:11 AM
Page 23 of 78
INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU39850

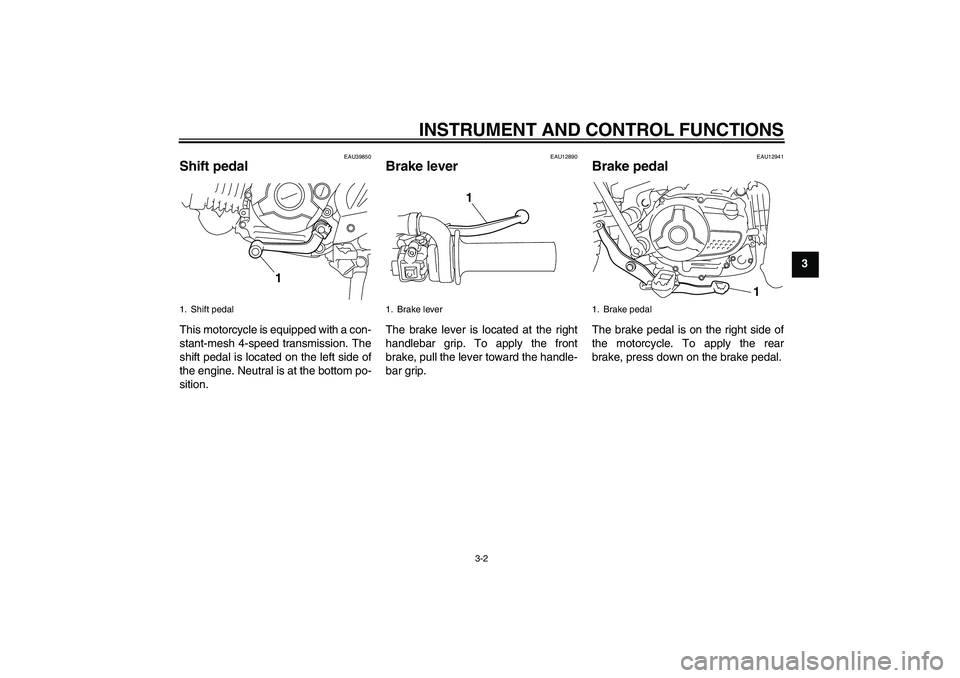

Shift pedal This motorcycle is equipped with a con-
stant-mesh 4-speed transmission. The
shift pedal is located on the left side of
the engine. Neutral is at the bottom po-
sition.
EAU12890
Brake lever The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.
EAU12941
Brake pedal The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.
1. Shift pedal
1
1. Brake lever
1
1. Brake pedal
1
U5B680E0.book Page 2 Tuesday, July 17, 2007 9:11 AM
Page 24 of 78
INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU13181

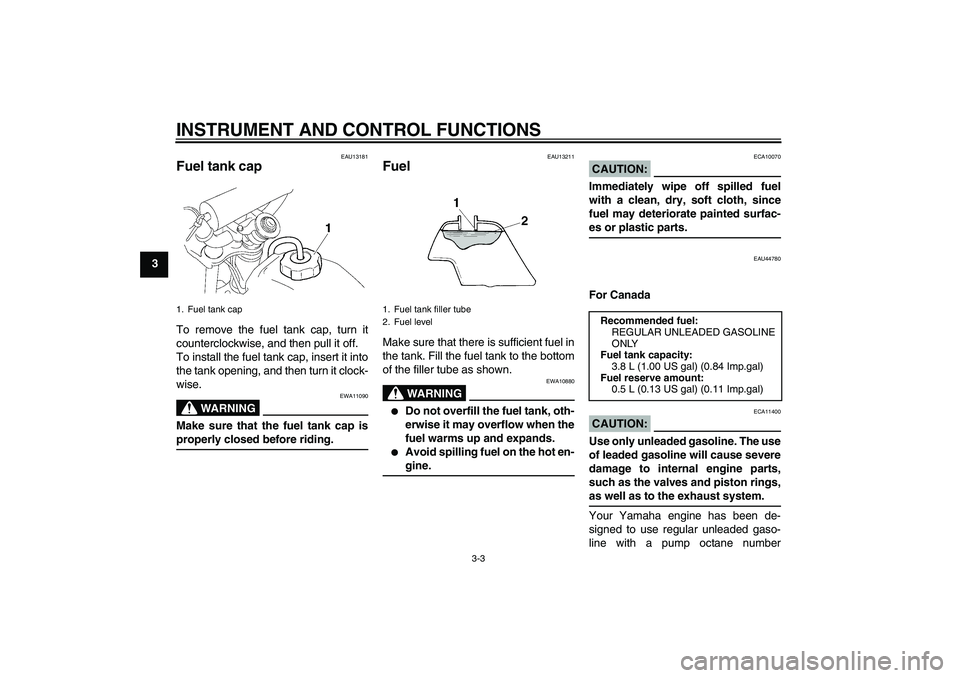

Fuel tank cap To remove the fuel tank cap, turn it
counterclockwise, and then pull it off.
To install the fuel tank cap, insert it into
the tank opening, and then turn it clock-
wise.
WARNING
EWA11090
Make sure that the fuel tank cap isproperly closed before riding.
EAU13211
Fuel Make sure that there is sufficient fuel in
the tank. Fill the fuel tank to the bottom
of the filler tube as shown.
WARNING
EWA10880
Do not overfill the fuel tank, oth-
erwise it may overflow when the
fuel warms up and expands.
Avoid spilling fuel on the hot en-gine.
CAUTION:
ECA10070
Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since
fuel may deteriorate painted surfac-es or plastic parts.
EAU44780
For CanadaCAUTION:
ECA11400
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,as well as to the exhaust system.
Your Yamaha engine has been de-
signed to use regular unleaded gaso-
line with a pump octane number
1. Fuel tank cap
1. Fuel tank filler tube
2. Fuel level
Recommended fuel:
REGULAR UNLEADED GASOLINE
ONLY
Fuel tank capacity:
3.8 L (1.00 US gal) (0.84 Imp.gal)
Fuel reserve amount:
0.5 L (0.13 US gal) (0.11 Imp.gal)
U5B680E0.book Page 3 Tuesday, July 17, 2007 9:11 AM
Page 25 of 78
INSTRUMENT AND CONTROL FUNCTIONS
3-4
3 [(R+M)/2] of 86 or higher, or a research
octane number of 91 or higher. If
knocking (or pinging) occurs, use a
gasoline of a different brand or premi-
um unleaded fuel. Use of unleaded fuel
will extend spark plug life and reduce
maintenance cost.
Gasohol
There are two types of gasohol: gaso-
hol containing ethanol and that contain-
ing methanol. Gasohol containing
ethanol can be used if ethanol content
does not exceed 10%. Gasohol con-
taining methanol is not recommended
by Yamaha because it can cause dam-
age to the fuel system or vehicle perfor-
mance problems.
For Europe and Oceania
CAUTION:
ECA11400
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,as well as to the exhaust system.
Your Yamaha engine has been de-
signed to use regular unleaded gaso-
line with a research octane number of
91 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different brand
or premium unleaded fuel. Use of un-
leaded fuel will extend spark plug life
and reduce maintenance costs.
EAU13412

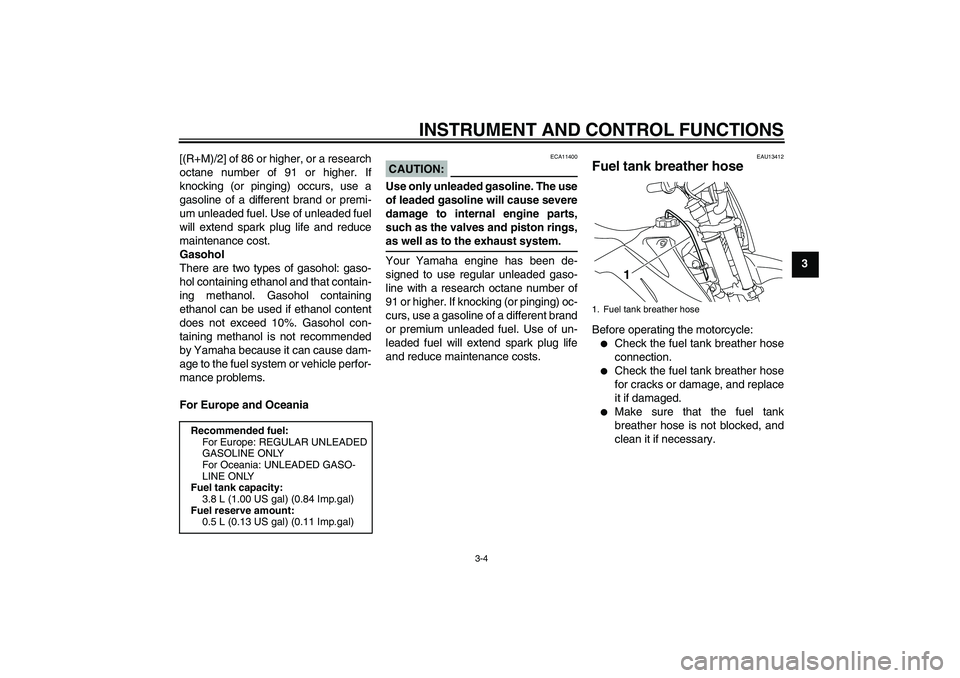

Fuel tank breather hose Before operating the motorcycle:
Check the fuel tank breather hose
connection.
Check the fuel tank breather hose
for cracks or damage, and replace
it if damaged.
Make sure that the fuel tank
breather hose is not blocked, and
clean it if necessary.
Recommended fuel:
For Europe: REGULAR UNLEADED
GASOLINE ONLY
For Oceania: UNLEADED GASO-
LINE ONLY
Fuel tank capacity:
3.8 L (1.00 US gal) (0.84 Imp.gal)
Fuel reserve amount:
0.5 L (0.13 US gal) (0.11 Imp.gal)
1. Fuel tank breather hose
1
U5B680E0.book Page 4 Tuesday, July 17, 2007 9:11 AM
Page 26 of 78
INSTRUMENT AND CONTROL FUNCTIONS
3-5
3

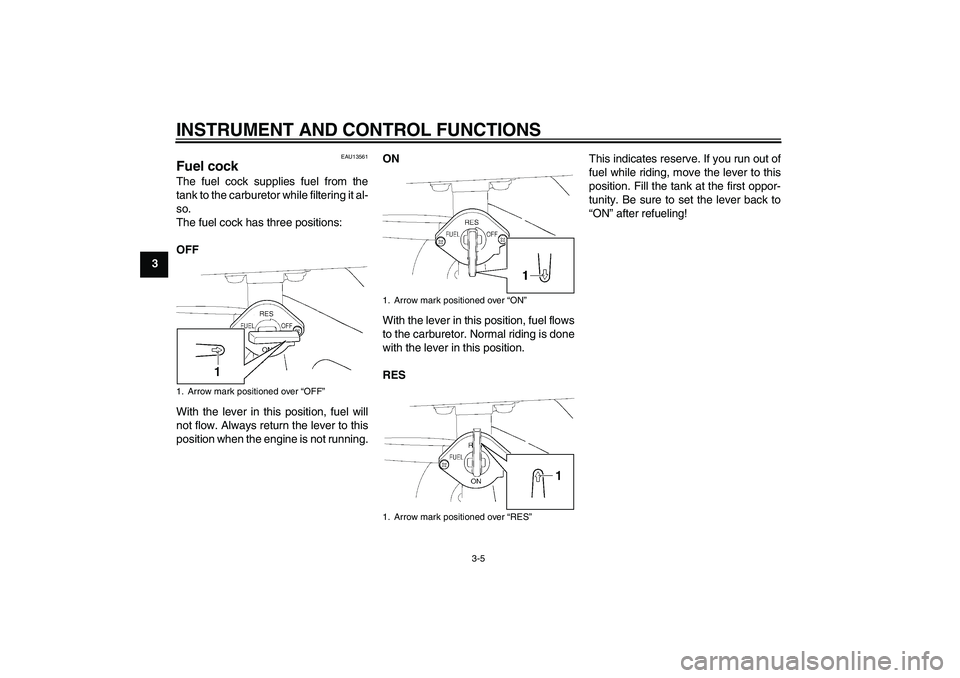

EAU13561
Fuel cock The fuel cock supplies fuel from the
tank to the carburetor while filtering it al-
so.
The fuel cock has three positions:
OFF
With the lever in this position, fuel will
not flow. Always return the lever to this
position when the engine is not running.ON
With the lever in this position, fuel flows
to the carburetor. Normal riding is done
with the lever in this position.
RESThis indicates reserve. If you run out of
fuel while riding, move the lever to this
position. Fill the tank at the first oppor-
tunity. Be sure to set the lever back to
“ON” after refueling!1. Arrow mark positioned over “OFF”
1. Arrow mark positioned over “ON”
1. Arrow mark positioned over “RES”
U5B680E0.book Page 5 Tuesday, July 17, 2007 9:11 AM
Page 27 of 78
INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
EAU13590

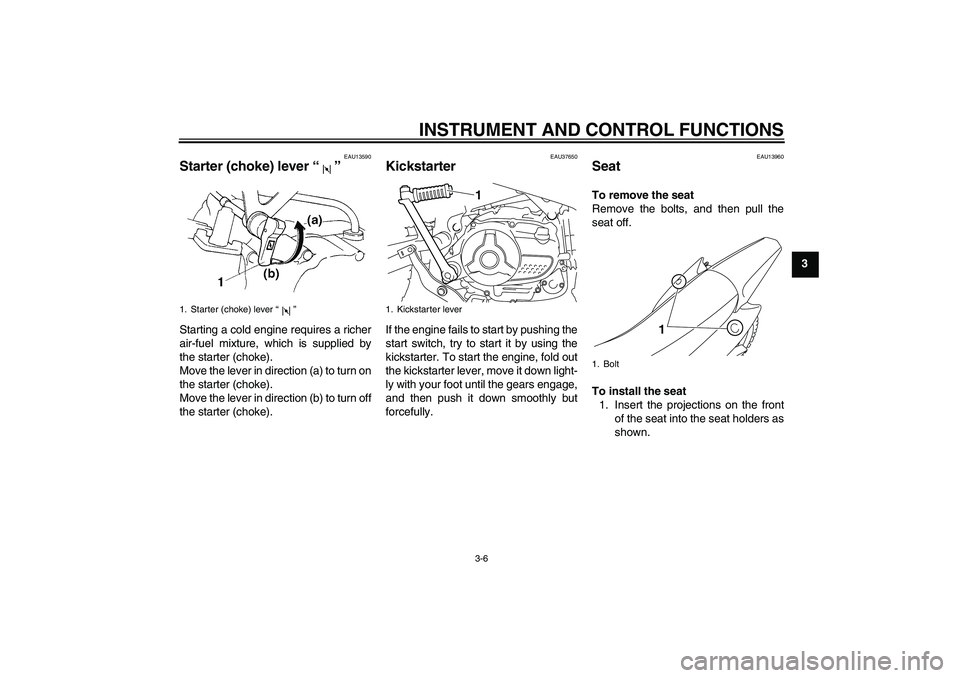

Starter (choke) lever“” Starting a cold engine requires a richer
air-fuel mixture, which is supplied by
the starter (choke).
Move the lever in direction (a) to turn on
the starter (choke).
Move the lever in direction (b) to turn off
the starter (choke).
EAU37650
Kickstarter If the engine fails to start by pushing the
start switch, try to start it by using the
kickstarter. To start the engine, fold out
the kickstarter lever, move it down light-
ly with your foot until the gears engage,
and then push it down smoothly but
forcefully.
EAU13960
Seat To remove the seat
Remove the bolts, and then pull the
seat off.
To install the seat
1. Insert the projections on the front
of the seat into the seat holders as
shown.
1. Starter (choke) lever“”
1. Kickstarter lever
1
1. Bolt
1
U5B680E0.book Page 6 Tuesday, July 17, 2007 9:11 AM
Page 28 of 78
INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
2. Place the seat in the original posi-
tion, and then tighten the bolts.
NOTE:Make sure that the seat is properly se-cured before riding.
EAU37490
Sidestand The sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
vehicle upright.
WARNING
EWA14190
The vehicle must not be ridden with
the sidestand down, or if the side-
stand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resultingin a possible loss of control.
EAU41610
Starting circuit cut-off system The starting circuit cut-off system pre-
vents starting when the transmission is
in gear.
Periodically check the operation of the
starting circuit cut-off system according
to the following procedure.
WARNING
EWA10250
If a malfunction is noted, have a
Yamaha dealer check the system be-fore riding.
1. Projection
2. Seat holder
1
2
U5B680E0.book Page 7 Tuesday, July 17, 2007 9:11 AM
Page 29 of 78
INSTRUMENT AND CONTROL FUNCTIONS
3-8
3

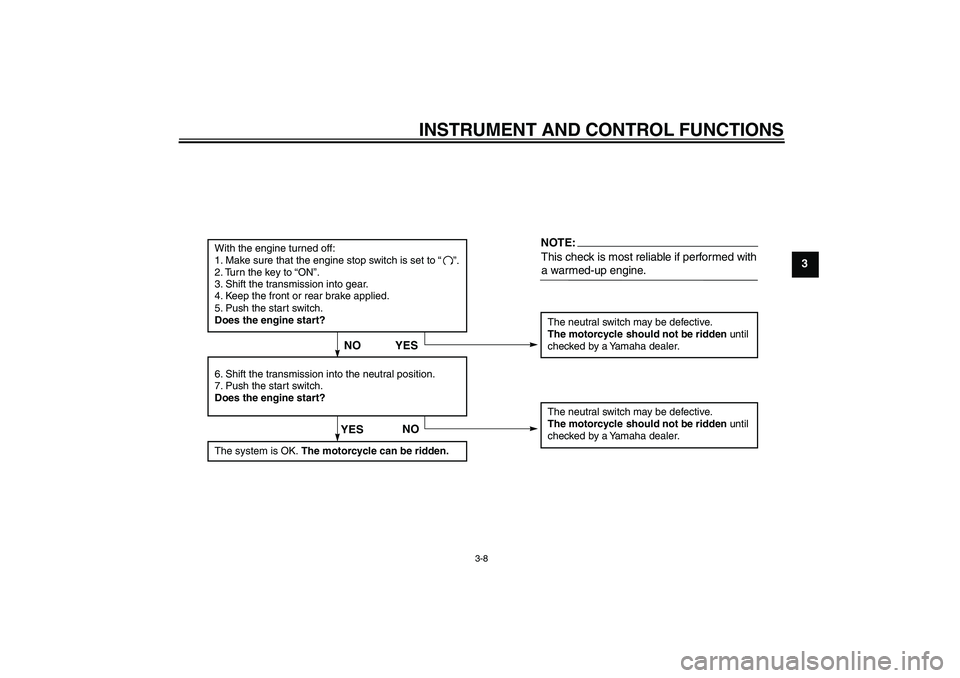

With the engine turned off:
1. Make sure that the engine stop switch is set to “
”.
2. Turn the key to “ON”.
3. Shift the transmission into gear.
4. Keep the front or rear brake applied.
5. Push the start switch.
Does the engine start?
The neutral switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
6. Shift the transmission into the neutral position.
7. Push the start switch.
Does the engine start?
The neutral switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
YES
NOTE:
a warmed-up engine.
NO
The system is OK. The motorcycle can be ridden.
YES
NO
This check is most reliable if performed with
U5B680E0.book Page 8 Tuesday, July 17, 2007 9:11 AM
Page 30 of 78
PRE-OPERATION CHECKS
4-1
4
EAU15593
The condition of a vehicle is the owner’s responsibility. Vital components can start to deteriorate quickly and unexpectedly,
even if the vehicle remains unused (for example, as a result of exposure to the elements). Any damage, fluid leakage or loss
of tire air pressure could have serious consequences. Therefore, it is very important, in addition to a thorough visual inspec-
tion, to check the following points before each ride.NOTE:Pre-operation checks should be made each time the vehicle is used. Such an inspection can be accomplished in a very shorttime; and the added safety it assures is more than worth the time involved.
WARNING
EWA11150
If any item in the Pre-operation check list is not working properly, have it inspected and repaired before operatingthe vehicle.U5B680E0.book Page 1 Tuesday, July 17, 2007 9:11 AM
