YAMAHA TTR110 2009 Owner's Guide

OPERATION AND IMPORTANT RIDING POINTS
5-2
5
EAU16640

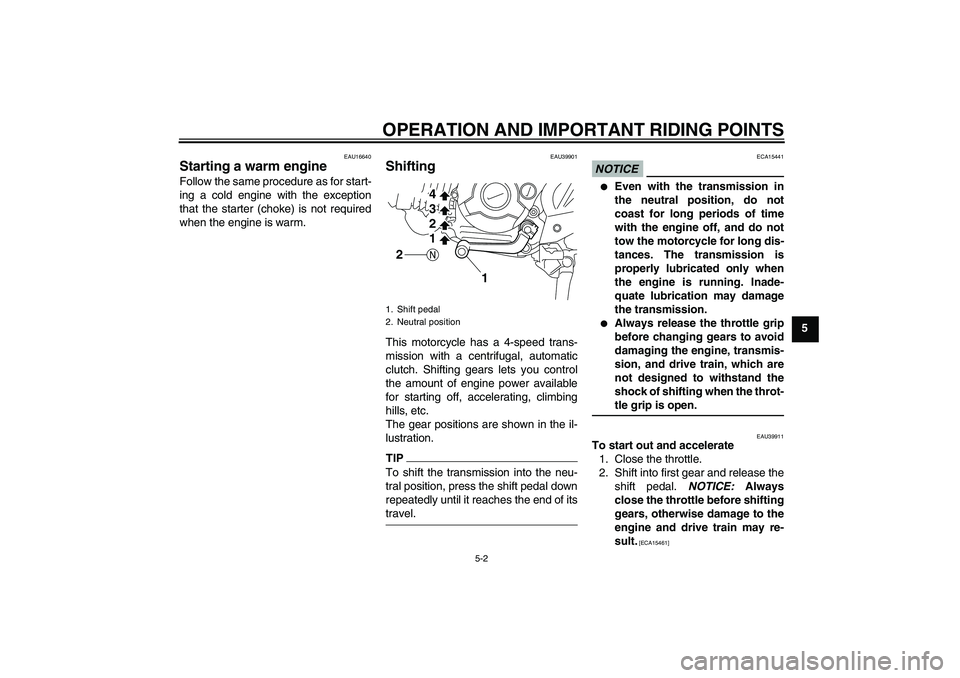

Starting a warm engine Follow the same procedure as for start-
ing a cold engine with the exception
that the starter (choke) is not required
when the engine is warm.
EAU39901
Shifting This motorcycle has a 4-speed trans-
mission with a centrifugal, automatic
clutch. Shifting gears lets you control
the amount of engine power available
for starting off, accelerating, climbing
hills, etc.
The gear positions are shown in the il-
lustration.TIPTo shift the transmission into the neu-
tral position, press the shift pedal down
repeatedly until it reaches the end of itstravel.
NOTICE
ECA15441


Even with the transmission in
the neutral position, do not
coast for long periods of time
with the engine off, and do not
tow the motorcycle for long dis-
tances. The transmission is
properly lubricated only when
the engine is running. Inade-
quate lubrication may damage
the transmission.


Always release the throttle grip
before changing gears to avoid
damaging the engine, transmis-
sion, and drive train, which are
not designed to withstand the
shock of shifting when the throt-tle grip is open.
EAU39911
To start out and accelerate
1. Close the throttle.
2. Shift into first gear and release the
shift pedal. NOTICE: Always
close the throttle before shifting
gears, otherwise damage to the
engine and drive train may re-
sult.
[ECA15461]
1. Shift pedal
2. Neutral position
1
2
1 2
34
U5B681E0.book Page 2 Tuesday, June 17, 2008 5:48 PM

OPERATION AND IMPORTANT RIDING POINTS
5-3

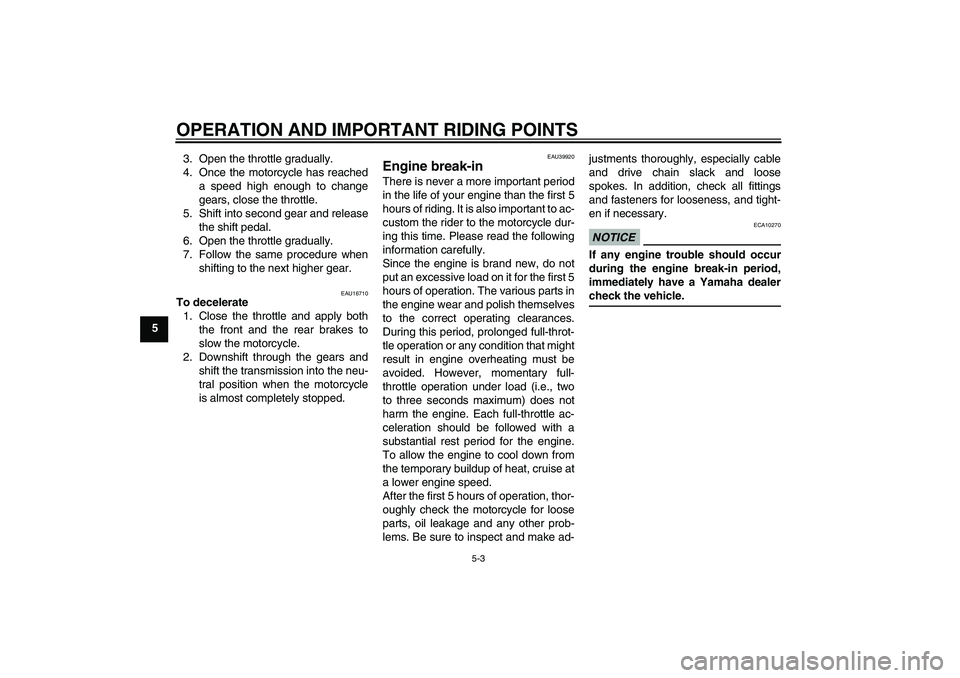

53. Open the throttle gradually.
4. Once the motorcycle has reached
a speed high enough to change
gears, close the throttle.
5. Shift into second gear and release
the shift pedal.
6. Open the throttle gradually.
7. Follow the same procedure when
shifting to the next higher gear.
EAU16710
To decelerate
1. Close the throttle and apply both
the front and the rear brakes to
slow the motorcycle.
2. Downshift through the gears and
shift the transmission into the neu-
tral position when the motorcycle
is almost completely stopped.
EAU39920
Engine break-in There is never a more important period
in the life of your engine than the first 5
hours of riding. It is also important to ac-
custom the rider to the motorcycle dur-
ing this time. Please read the following
information carefully.
Since the engine is brand new, do not
put an excessive load on it for the first 5
hours of operation. The various parts in
the engine wear and polish themselves
to the correct operating clearances.
During this period, prolonged full-throt-
tle operation or any condition that might
result in engine overheating must be
avoided. However, momentary full-
throttle operation under load (i.e., two
to three seconds maximum) does not
harm the engine. Each full-throttle ac-
celeration should be followed with a
substantial rest period for the engine.
To allow the engine to cool down from
the temporary buildup of heat, cruise at
a lower engine speed.
After the first 5 hours of operation, thor-
oughly check the motorcycle for loose
parts, oil leakage and any other prob-
lems. Be sure to inspect and make ad-justments thoroughly, especially cable
and drive chain slack and loose
spokes. In addition, check all fittings
and fasteners for looseness, and tight-
en if necessary.
NOTICE
ECA10270
If any engine trouble should occur
during the engine break-in period,
immediately have a Yamaha dealercheck the vehicle.
U5B681E0.book Page 3 Tuesday, June 17, 2008 5:48 PM

OPERATION AND IMPORTANT RIDING POINTS
5-4
5
EAU17171

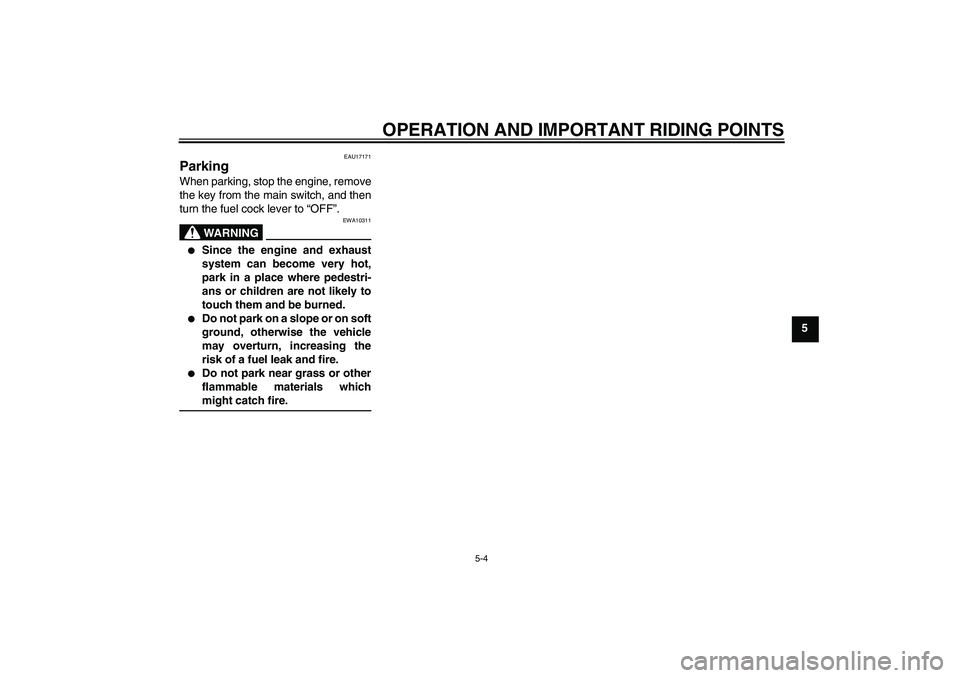

Parking When parking, stop the engine, remove
the key from the main switch, and then
turn the fuel cock lever to “OFF”.
WARNING
EWA10311


Since the engine and exhaust
system can become very hot,
park in a place where pedestri-
ans or children are not likely to
touch them and be burned.


Do not park on a slope or on soft
ground, otherwise the vehicle
may overturn, increasing the
risk of a fuel leak and fire.


Do not park near grass or other
flammable materials whichmight catch fire.
U5B681E0.book Page 4 Tuesday, June 17, 2008 5:48 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-1
6
EAU41951

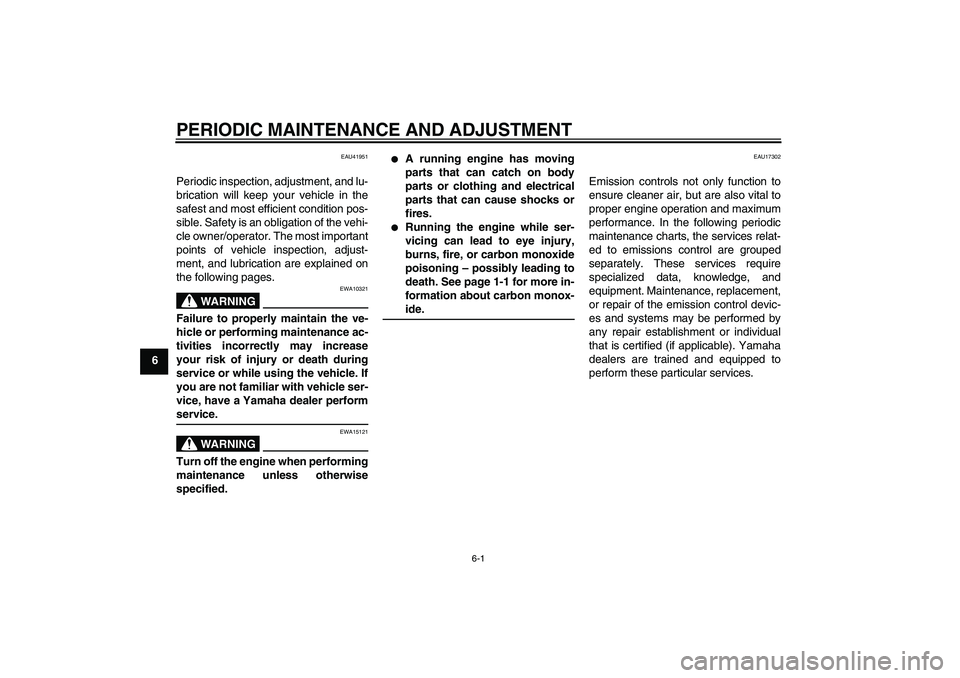

Periodic inspection, adjustment, and lu-
brication will keep your vehicle in the
safest and most efficient condition pos-
sible. Safety is an obligation of the vehi-
cle owner/operator. The most important
points of vehicle inspection, adjust-
ment, and lubrication are explained on
the following pages.
WARNING
EWA10321
Failure to properly maintain the ve-
hicle or performing maintenance ac-
tivities incorrectly may increase
your risk of injury or death during
service or while using the vehicle. If
you are not familiar with vehicle ser-
vice, have a Yamaha dealer performservice.
WARNING
EWA15121
Turn off the engine when performing
maintenance unless otherwise
specified.


A running engine has moving
parts that can catch on body
parts or clothing and electrical
parts that can cause shocks or
fires.


Running the engine while ser-
vicing can lead to eye injury,
burns, fire, or carbon monoxide
poisoning – possibly leading to
death. See page 1-1 for more in-
formation about carbon monox-ide.
EAU17302
Emission controls not only function to
ensure cleaner air, but are also vital to
proper engine operation and maximum
performance. In the following periodic
maintenance charts, the services relat-
ed to emissions control are grouped
separately. These services require
specialized data, knowledge, and
equipment. Maintenance, replacement,
or repair of the emission control devic-
es and systems may be performed by
any repair establishment or individual
that is certified (if applicable). Yamaha
dealers are trained and equipped to
perform these particular services.
U5B681E0.book Page 1 Tuesday, June 17, 2008 5:48 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-2
6
EAU17311

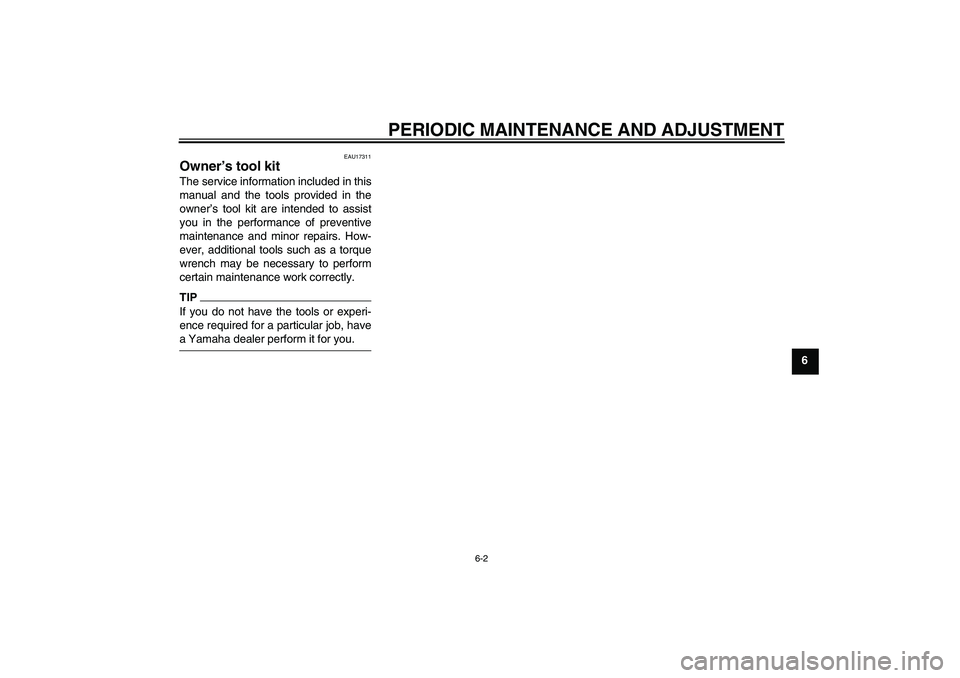

Owner’s tool kit The service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs. How-
ever, additional tools such as a torque
wrench may be necessary to perform
certain maintenance work correctly.TIPIf you do not have the tools or experi-
ence required for a particular job, havea Yamaha dealer perform it for you.
U5B681E0.book Page 2 Tuesday, June 17, 2008 5:48 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-3
6
EAU39943
Periodic maintenance chart for the emission control system TIP

From 7000 km (4200 mi) or 18 months, repeat the maintenance intervals starting from 3000 km (1800 mi) or 6 months.


Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technicalskills.
No. ITEM CHECKS AND MAINTENANCE JOBSINITIAL ODOMETER READINGS
1000 km
(600 mi) or
1 month or
30 hours3000 km
(1800 mi) or
6 months or
90 hours5000 km
(3000 mi) or
12 months or
150 hours
1*Fuel lineCheck fuel hoses for cracks or damage.
Replace if necessary.√√
2 Spark plugCheck condition.
Adjust gap and clean.√√
3*Valve clearanceCheck and adjust valve clearance when engine is cold.√
4*Air filter elementClean with solvent.
Replace if necessary.√√
5*Crankcase breather sys-
temCheck ventilation hose for cracks or damage and drain
any deposits.
Replace if necessary.√√√
6*CarburetorCheck engine idling speed and starter operation.
Adjust if necessary.√√√
7 Exhaust systemCheck for leakage.
Tighten if necessary.
Replace gasket(s) if necessary.√√
8 Engine oilChange (warm engine before draining).√√√
U5B681E0.book Page 3 Tuesday, June 17, 2008 5:48 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-4
6
EAU35348

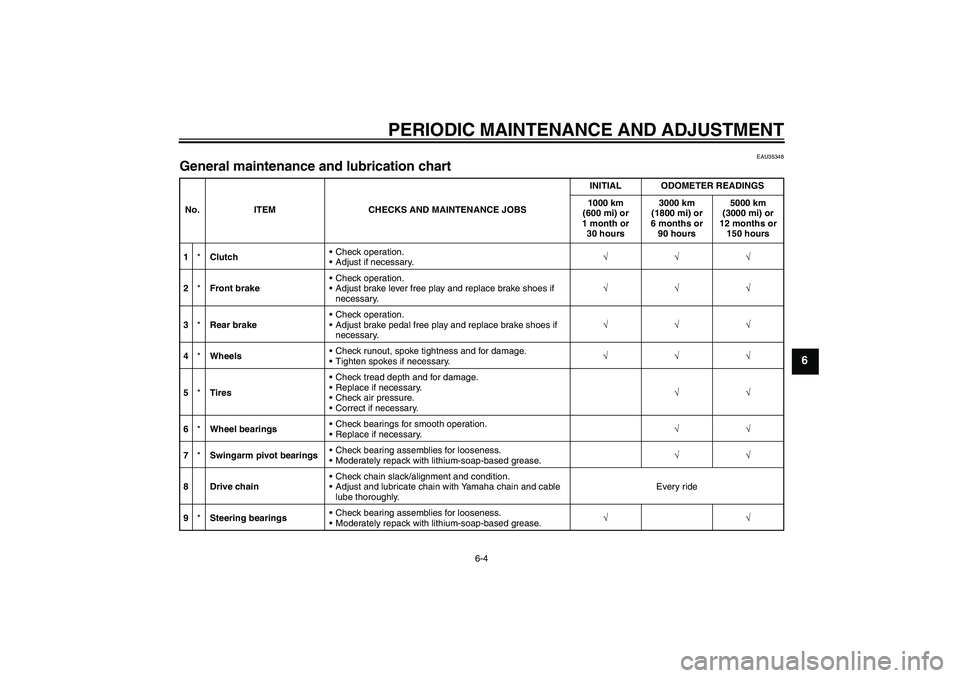

General maintenance and lubrication chart No. ITEM CHECKS AND MAINTENANCE JOBSINITIAL ODOMETER READINGS
1000 km
(600 mi) or
1 month or
30 hours3000 km
(1800 mi) or
6 months or
90 hours5000 km
(3000 mi) or
12 months or
150 hours
1*ClutchCheck operation.
Adjust if necessary.√√√
2*Front brakeCheck operation.
Adjust brake lever free play and replace brake shoes if
necessary.√√√
3*Rear brakeCheck operation.
Adjust brake pedal free play and replace brake shoes if
necessary.√√√
4*WheelsCheck runout, spoke tightness and for damage.
Tighten spokes if necessary.√√√
5*TiresCheck tread depth and for damage.
Replace if necessary.
Check air pressure.
Correct if necessary.√√
6*Wheel bearingsCheck bearings for smooth operation.
Replace if necessary.√√
7*Swingarm pivot bearingsCheck bearing assemblies for looseness.
Moderately repack with lithium-soap-based grease.√√
8Drive chainCheck chain slack/alignment and condition.
Adjust and lubricate chain with Yamaha chain and cable
lube thoroughly.Every ride
9*Steering bearingsCheck bearing assemblies for looseness.
Moderately repack with lithium-soap-based grease.√√
U5B681E0.book Page 4 Tuesday, June 17, 2008 5:48 PM

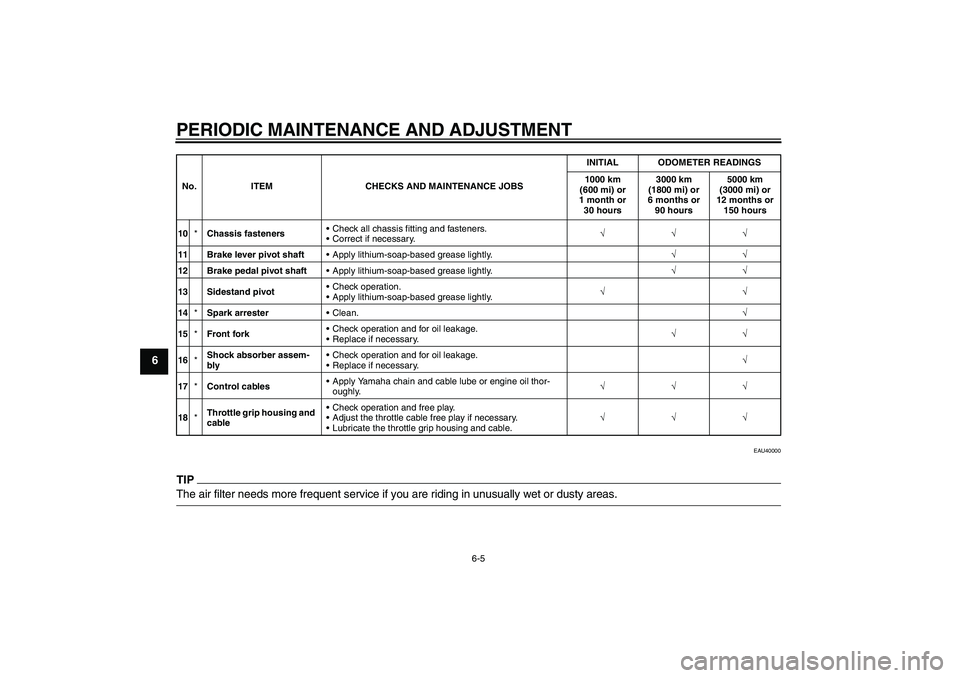

PERIODIC MAINTENANCE AND ADJUSTMENT
6-5
6
EAU40000
TIPThe air filter needs more frequent service if you are riding in unusually wet or dusty areas.10*Chassis fastenersCheck all chassis fitting and fasteners.
Correct if necessary.√√√
11 Brake lever pivot shaftApply lithium-soap-based grease lightly.√√
12 Brake pedal pivot shaftApply lithium-soap-based grease lightly.√√
13 Sidestand pivotCheck operation.
Apply lithium-soap-based grease lightly.√√
14*Spark arresterClean.√
15*Front forkCheck operation and for oil leakage.
Replace if necessary.√√
16*Shock absorber assem-
blyCheck operation and for oil leakage.
Replace if necessary.√
17*Control cablesApply Yamaha chain and cable lube or engine oil thor-
oughly.√√√
18*Throttle grip housing and
cableCheck operation and free play.
Adjust the throttle cable free play if necessary.
Lubricate the throttle grip housing and cable.√√√ No. ITEM CHECKS AND MAINTENANCE JOBSINITIAL ODOMETER READINGS
1000 km
(600 mi) or
1 month or
30 hours3000 km
(1800 mi) or
6 months or
90 hours5000 km
(3000 mi) or
12 months or
150 hoursU5B681E0.book Page 5 Tuesday, June 17, 2008 5:48 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-6
6
EAU18771

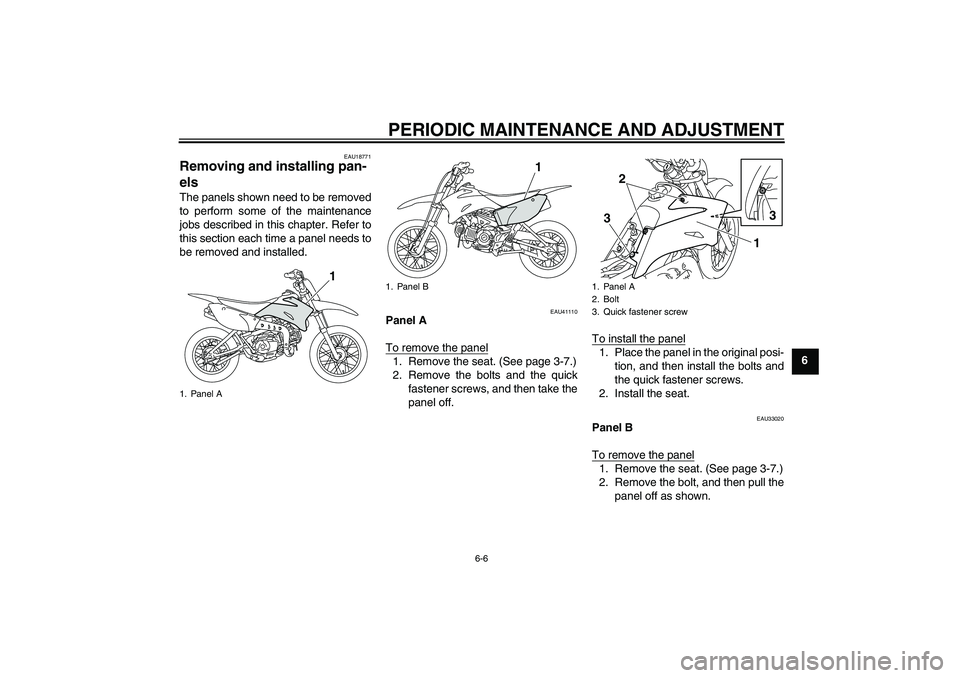

Removing and installing pan-
els The panels shown need to be removed
to perform some of the maintenance
jobs described in this chapter. Refer to
this section each time a panel needs to
be removed and installed.
EAU41110
Panel A
To remove the panel1. Remove the seat. (See page 3-7.)
2. Remove the bolts and the quick
fastener screws, and then take the
panel off.To install the panel
1. Place the panel in the original posi-
tion, and then install the bolts and
the quick fastener screws.
2. Install the seat.
EAU33020
Panel B
To remove the panel1. Remove the seat. (See page 3-7.)
2. Remove the bolt, and then pull the
panel off as shown.
1. Panel A
1
1. Panel B
1
1. Panel A
2. Bolt
3. Quick fastener screw
3
1 2
3
U5B681E0.book Page 6 Tuesday, June 17, 2008 5:48 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-7

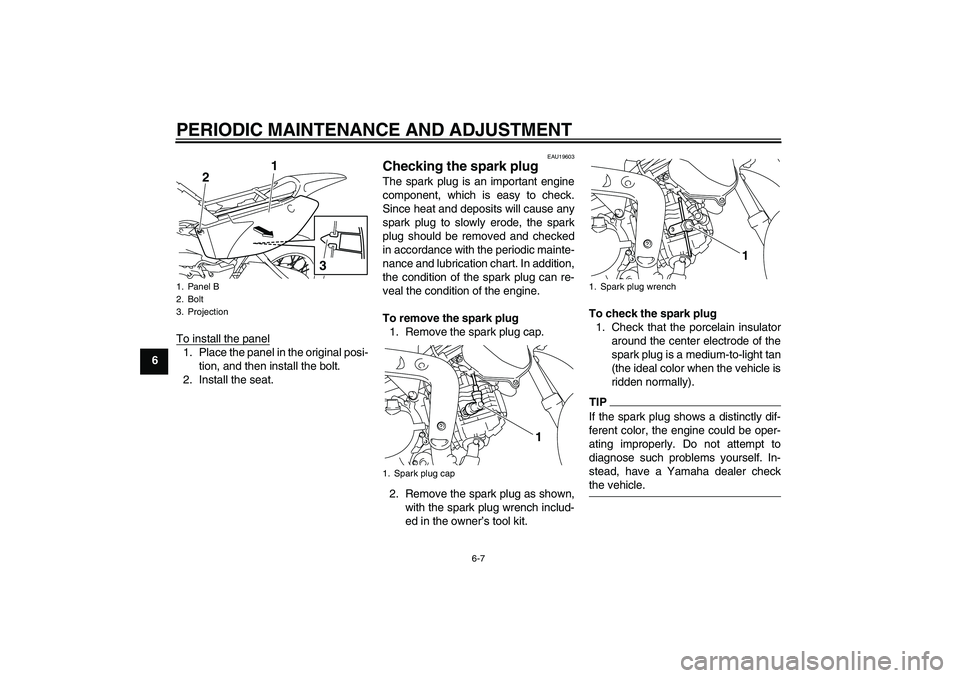

6To install the panel
1. Place the panel in the original posi-
tion, and then install the bolt.
2. Install the seat.
EAU19603
Checking the spark plug The spark plug is an important engine
component, which is easy to check.
Since heat and deposits will cause any
spark plug to slowly erode, the spark
plug should be removed and checked
in accordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plug can re-
veal the condition of the engine.
To remove the spark plug
1. Remove the spark plug cap.
2. Remove the spark plug as shown,
with the spark plug wrench includ-
ed in the owner’s tool kit.To check the spark plug
1. Check that the porcelain insulator
around the center electrode of the
spark plug is a medium-to-light tan
(the ideal color when the vehicle is
ridden normally).
TIPIf the spark plug shows a distinctly dif-
ferent color, the engine could be oper-
ating improperly. Do not attempt to
diagnose such problems yourself. In-
stead, have a Yamaha dealer checkthe vehicle.
1. Panel B
2. Bolt
3. Projection
3
1
2
1. Spark plug cap
1
1. Spark plug wrench
1
U5B681E0.book Page 7 Tuesday, June 17, 2008 5:48 PM
