PERIODIC MAINTENANCE AND ADJUSTMENT
6-8
6 2. Check the spark plug for electrode
erosion and excessive carbon or
other deposits, and replace it if
necessary.
To install the spark plug
1. Measure the spark plug gap with a
wire thickness gauge and, if nec-
essary, adjust the gap to specifica-
tion.2. Clean the surface of the spark plug
gasket and its mating surface, and
then wipe off any grime from the
spark plug threads.
3. Install the spark plug with the
spark plug wrench, and then tight-
en it to the specified torque.
TIPIf a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-fied torque as soon as possible.
4. Install the spark plug cap.
EAU39842
Engine oil The engine oil level should be checked
before each ride. In addition, the oil
must be changed at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
To check the engine oil level
1. Place the motorcycle on a level
surface and hold it in an upright po-
sition. A slight tilt to the side can re-
sult in a false reading.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Wait a few minutes until the oil set-
tles, remove the oil filler cap, wipe
the dipstick clean, insert it back
into the oil filler hole (without
screwing it in), and then remove it
again to check the oil level.

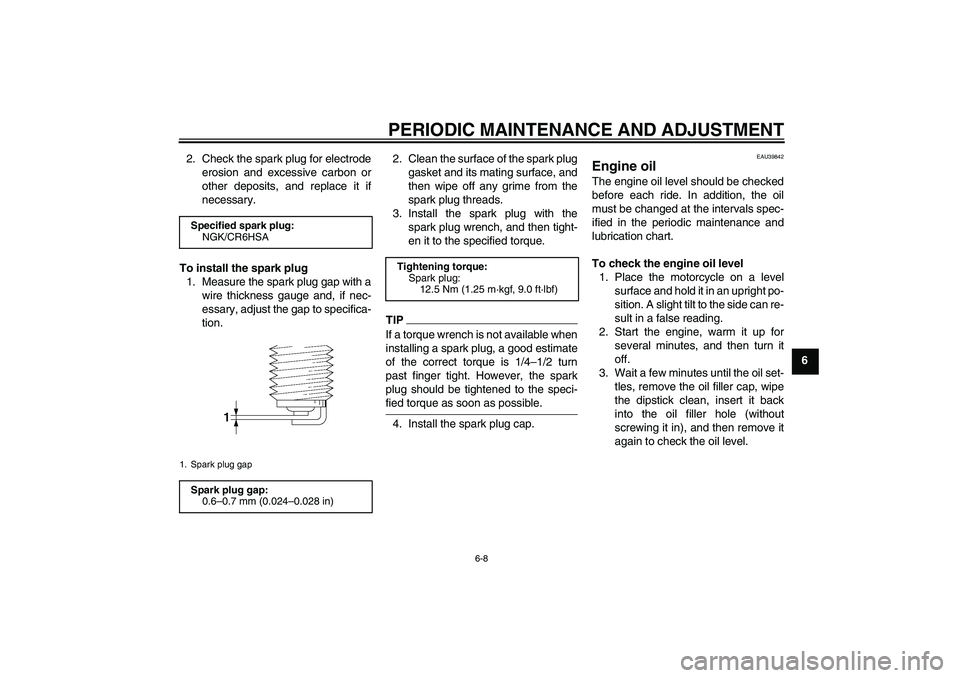

Specified spark plug:
NGK/CR6HSA1. Spark plug gapSpark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Tightening torque:
Spark plug:
12.5 Nm (1.25 m·kgf, 9.0 ft·lbf)
U5B681E0.book Page 8 Tuesday, June 17, 2008 5:48 PM
Page 42 of 76
PERIODIC MAINTENANCE AND ADJUSTMENT
6-9
6
TIPThe engine oil should be between theminimum and maximum level marks.
4. If the engine oil is at or below the
minimum level mark, add sufficient
oil of the recommended type to
raise it to the correct level.
5. Insert the dipstick into the oil filler
hole, and then tighten the oil filler
cap.To change the engine oil
1. Start the engine, warm it up for
several minutes, and then turn it
off.
2. Place an oil pan under the engine
to collect the used oil.
3. Remove the engine oil filler cap
and drain bolt to drain the oil from
the crankcase.
4. Install the engine oil drain bolt, and
then tighten it to the specified
torque.5. Refill with the specified amount of
the recommended engine oil, and
then install and tighten the engine
oil filler cap.
NOTICE
ECA11620
In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.
Make sure that no foreign mate-rial enters the crankcase.

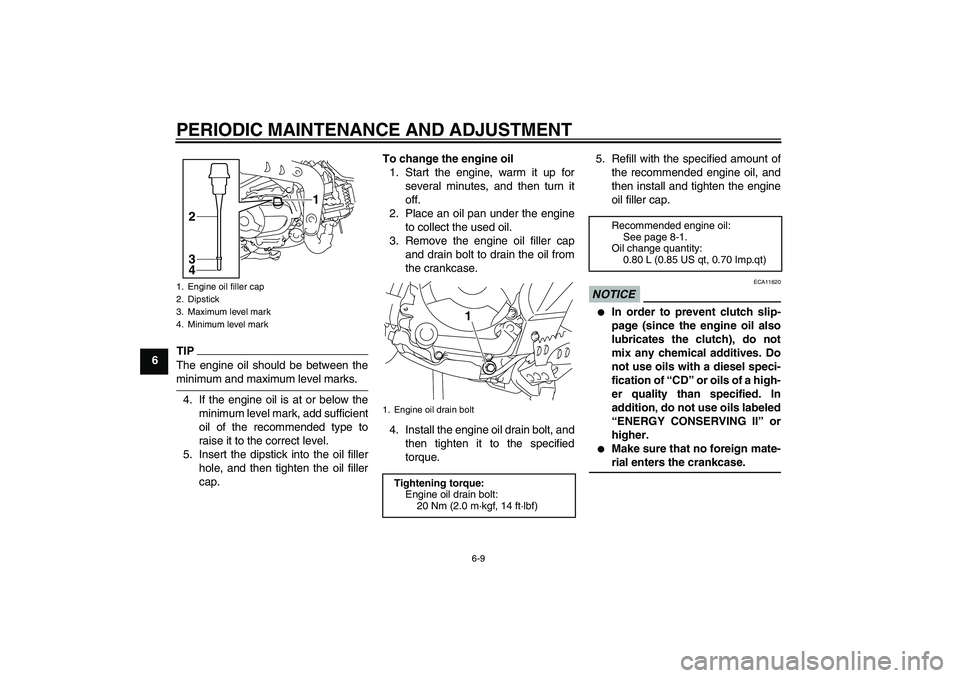

1. Engine oil filler cap
2. Dipstick
3. Maximum level mark
4. Minimum level mark
1
3
4
2
1. Engine oil drain boltTightening torque:
Engine oil drain bolt:
20 Nm (2.0 m·kgf, 14 ft·lbf)
1
Recommended engine oil:
See page 8-1.
Oil change quantity:
0.80 L (0.85 US qt, 0.70 Imp.qt)
U5B681E0.book Page 9 Tuesday, June 17, 2008 5:48 PM
Page 43 of 76
PERIODIC MAINTENANCE AND ADJUSTMENT
6-10
6 6. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
7. Turn the engine off, and then
check the oil level and correct it if
necessary.
EAU41635
Cleaning the air filter element The air filter element should be cleaned
or replaced at the intervals specified in
the periodic maintenance and lubrica-
tion chart. Clean or, if necessary, re-
place the air filter element more
frequently if you are riding in unusually
wet or dusty areas.
To clean the air filter element
1. Remove panel A. (See page 6-6.)
2. Remove the air filter case cover by
removing the screws.
3. Pull the sponge material and the
mesh out.4. Clean the mesh with solvent, and
then wipe the solvent off.
5. Clean the sponge material with
solvent, and then squeeze the re-
maining solvent out. WARNING!
Use only a dedicated parts
cleaning solvent. To avoid the
risk of fire or explosion, do not
use gasoline or solvents with a
low flash point.
[EWA10431]
NOTICE:
To avoid damaging the foam
material, handle it gently and
carefully, and do not twist or
wring it.
[ECA10511]
1.“CD” specification
2.“ENERGY CONSERVING II”
1
2

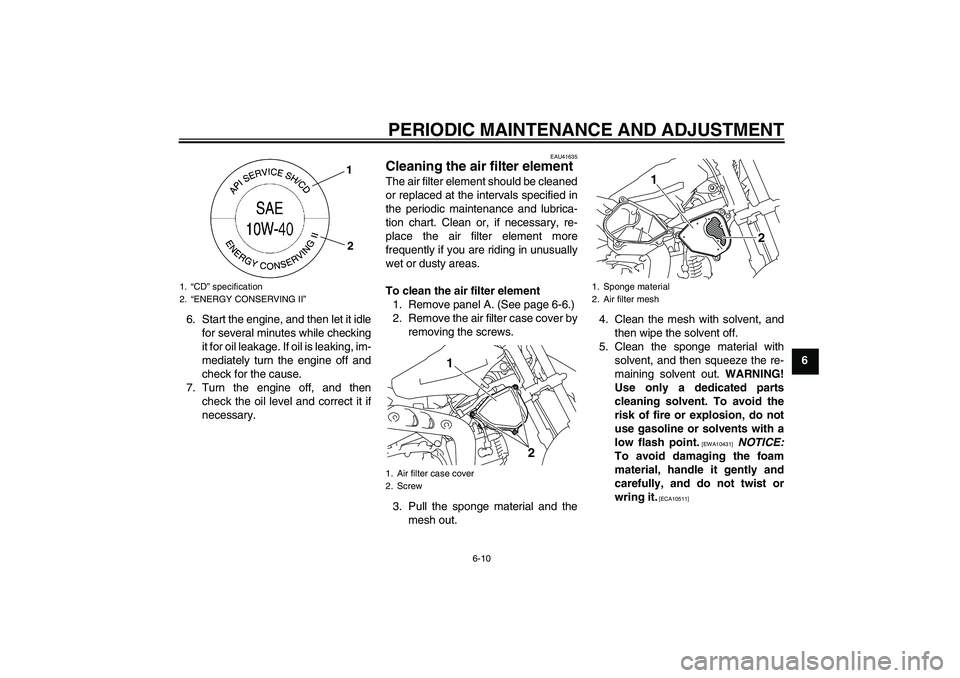

1. Air filter case cover
2. Screw
2 1
1. Sponge material
2. Air filter mesh
1
2
U5B681E0.book Page 10 Tuesday, June 17, 2008 5:48 PM
Page 44 of 76
PERIODIC MAINTENANCE AND ADJUSTMENT
6-11

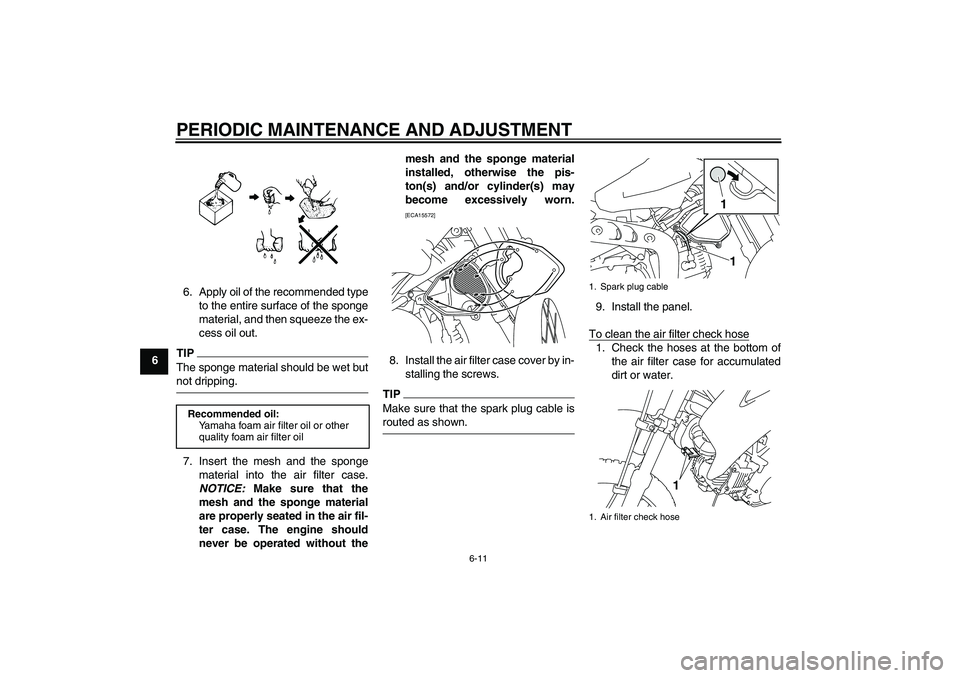

66. Apply oil of the recommended type
to the entire surface of the sponge
material, and then squeeze the ex-
cess oil out.
TIPThe sponge material should be wet butnot dripping.
7. Insert the mesh and the sponge
material into the air filter case.
NOTICE: Make sure that the
mesh and the sponge material
are properly seated in the air fil-
ter case. The engine should
never be operated without themesh and the sponge material
installed, otherwise the pis-
ton(s) and/or cylinder(s) may
become excessively worn.
[ECA15572]
8. Install the air filter case cover by in-
stalling the screws.TIPMake sure that the spark plug cable isrouted as shown.9. Install the panel.
To clean the air filter check hose
1. Check the hoses at the bottom of
the air filter case for accumulated
dirt or water.
Recommended oil:
Yamaha foam air filter oil or other
quality foam air filter oil
1. Spark plug cable
1. Air filter check hose
1 1
1
U5B681E0.book Page 11 Tuesday, June 17, 2008 5:48 PM
Page 45 of 76
PERIODIC MAINTENANCE AND ADJUSTMENT
6-12
6 2. If dirt or water is visible, remove
the hoses, clean them, and then
reinstall them.
EAU40421
Cleaning the spark arrester The spark arrester should be cleaned
at the intervals specified in the periodic
maintenance and lubrication chart.
WARNING
EWA10980
Always let the exhaust system
cool prior to touching exhaust
components.
Do not start the engine whencleaning the exhaust system.
TIPMake sure to select a well-ventilated
area free of combustible materials toclean the spark arrester.
1. Remove the tailpipe by removing
the bolts, and then pulling it out of
the muffler.2. Tap the tailpipe lightly, and then
use a wire brush to remove any
carbon deposits from the spark ar-
rester portion of the tailpipe and in-
side of the tailpipe housing.

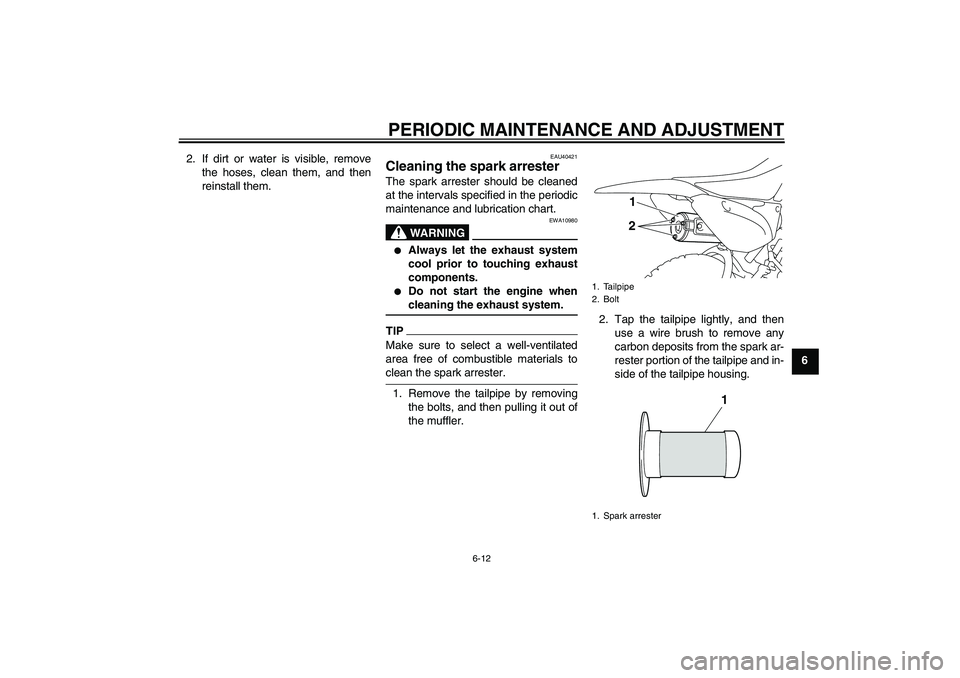

1. Tailpipe
2. Bolt
1. Spark arrester
21
1
U5B681E0.book Page 12 Tuesday, June 17, 2008 5:48 PM
Page 46 of 76
PERIODIC MAINTENANCE AND ADJUSTMENT
6-13
63. Insert the tailpipe into the muffler,
and then install and tighten the
bolts to the specified torque.
TIPMake sure to align the bolt holes wheninserting the tailpipe.
EAU39930
Adjusting the carburetor The carburetor is an important part of
the engine and requires very sophisti-
cated adjustment. Therefore, most car-
buretor adjustments should be left to a
Yamaha dealer, who has the neces-
sary professional knowledge and expe-
rience. The adjustment described in the
following section, however, may be ser-
viced by the owner as part of routine
maintenance.NOTICE
ECA10550
The carburetor has been set and ex-
tensively tested at the Yamaha fac-
tory. Changing these settings
without sufficient technical knowl-
edge may result in poor perfor-mance of or damage to the engine.
EAU21362
Adjusting the engine idling
speed The engine idling speed must be
checked and, if necessary, adjusted as
follows at the intervals specified in the
periodic maintenance and lubrication
chart.TIPA diagnostic tachometer is needed tomake this adjustment.
1. Attach the tachometer to the spark
plug lead.
2. Start the engine and warm it up for
several minutes at 1000–2000
r/min while occasionally revving it
to 4000–5000 r/min.TIPThe engine is warm when it quickly re-sponds to the throttle.
3. Check the engine idling speed
and, if necessary, adjust it to spec-
ification by turning the throttle stop
screw. To increase the engine
idling speed, turn the screw in di-

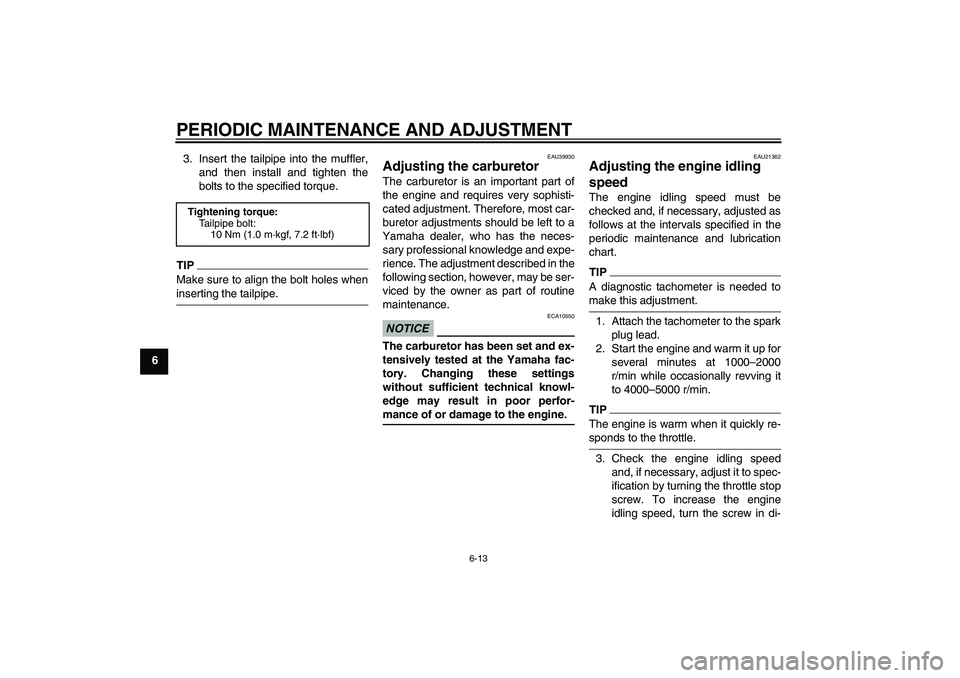

Tightening torque:
Tailpipe bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
U5B681E0.book Page 13 Tuesday, June 17, 2008 5:48 PM
Page 47 of 76
PERIODIC MAINTENANCE AND ADJUSTMENT
6-14
6 rection (a). To decrease the en-
gine idling speed, turn the screw in
direction (b).
TIPIf the specified idling speed cannot be
obtained as described above, have aYamaha dealer make the adjustment.
EAU21382
Checking the throttle cable
free play The throttle cable free play should mea-
sure 4.0–6.0 mm (0.16–0.24 in) at the
throttle grip. Periodically check the
throttle cable free play and, if neces-
sary, have a Yamaha dealer adjust it.
EAU21401
Valve clearance The valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.

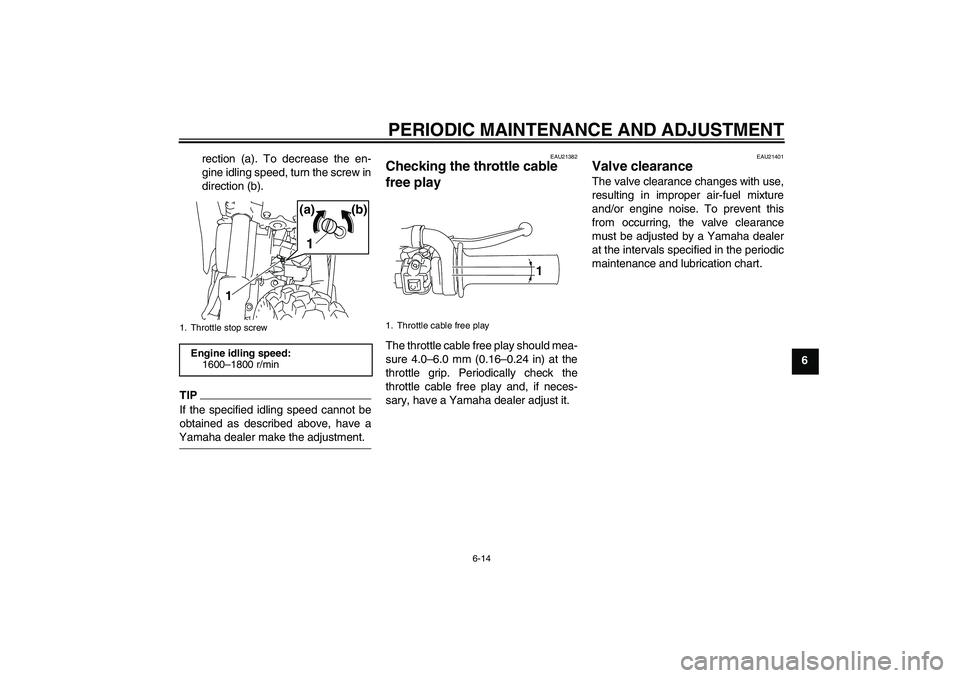

1. Throttle stop screwEngine idling speed:
1600–1800 r/min
1(a) (b)
1
1. Throttle cable free play
1
U5B681E0.book Page 14 Tuesday, June 17, 2008 5:48 PM
Page 48 of 76
PERIODIC MAINTENANCE AND ADJUSTMENT
6-15
6
EAU39821
Tires To maximize the performance, durabil-
ity, and safe operation of your motor-
cycle, note the following points
regarding the specified tires.
Tire air pressure
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
WARNING
EWA14381
Operation of this vehicle with im-
proper tire pressure may cause se-
vere injury or death from loss of
control.
The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).
The tire air pressure must be ad-
justed in accordance with the
weight of the rider, the riding
speed, and the riding condi-tions.Tire inspection
The tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail or
glass fragments in it, or if the sidewall is
cracked, have a Yamaha dealer re-
place the tire immediately.Tire information
This motorcycle is equipped with spoke
wheels and tube tires.
WARNING
EWA10461
The front and rear tires should be of
the same make and design, other-
wise the handling characteristics of
the vehicle may be different, whichcould lead to an accident.
After extensive tests, only the tires list-
ed below have been approved for this
model by Yamaha Motor Co., Ltd.
WARNING
EWA14390
Have a Yamaha dealer replace
excessively worn tires. Operat-
ing the motorcycle with exces-

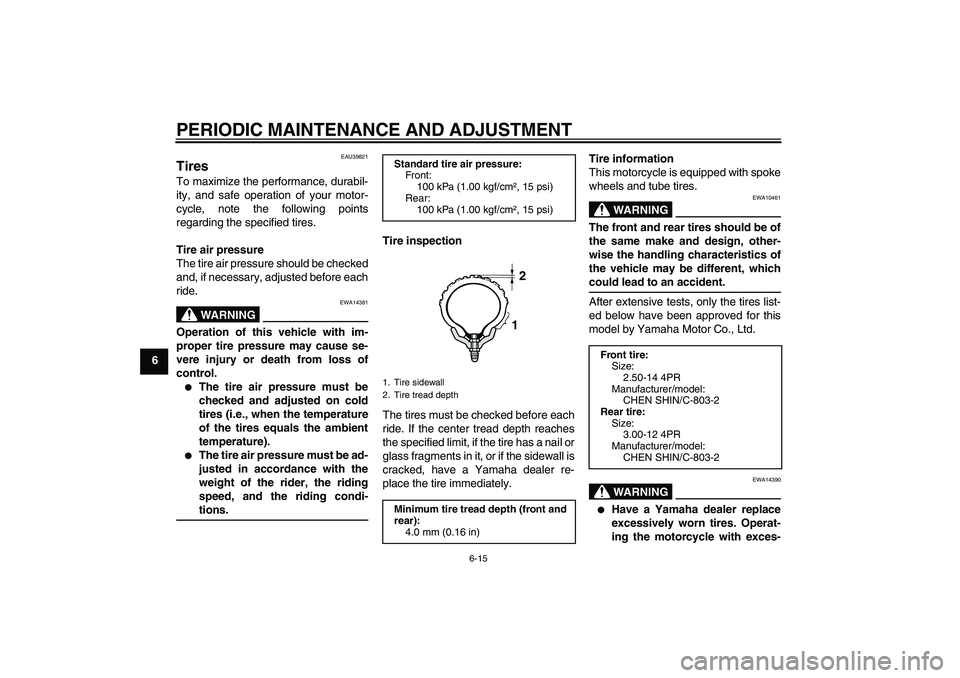

Standard tire air pressure:
Fr o nt :
100 kPa (1.00 kgf/cm², 15 psi)
Rear:
100 kPa (1.00 kgf/cm², 15 psi)1. Tire sidewall
2. Tire tread depthMinimum tire tread depth (front and
rear):
4.0 mm (0.16 in)
12
Front tire:
Size:
2.50-14 4PR
Manufacturer/model:
CHEN SHIN/C-803-2
Rear tire:
Size:
3.00-12 4PR
Manufacturer/model:
CHEN SHIN/C-803-2
U5B681E0.book Page 15 Tuesday, June 17, 2008 5:48 PM
Page 49 of 76

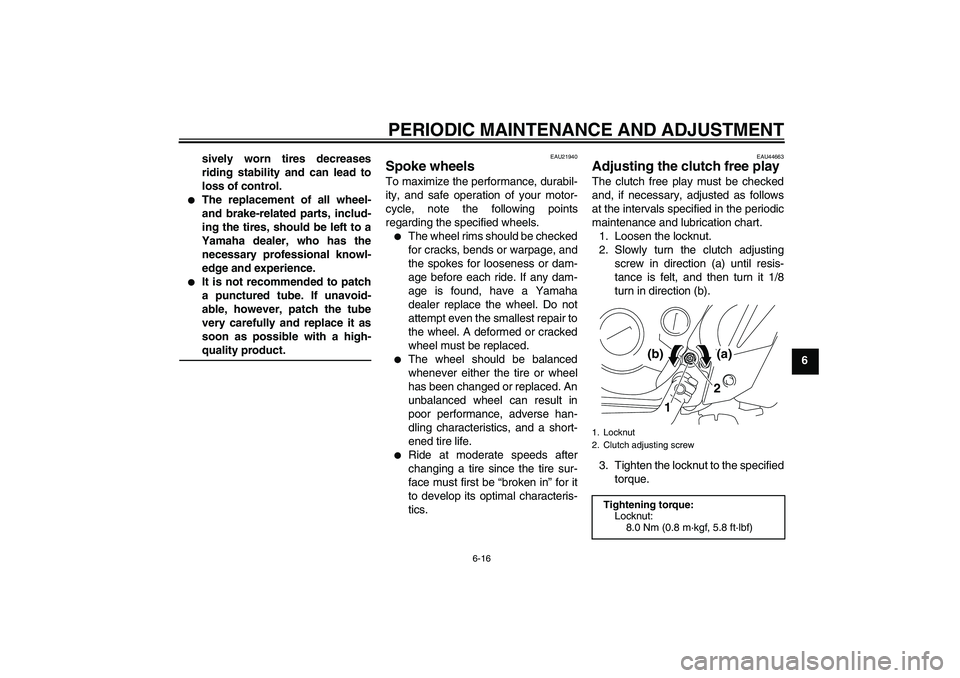

PERIODIC MAINTENANCE AND ADJUSTMENT
6-16
6 sively worn tires decreases
riding stability and can lead to
loss of control.
The replacement of all wheel-
and brake-related parts, includ-
ing the tires, should be left to a
Yamaha dealer, who has the
necessary professional knowl-
edge and experience.
It is not recommended to patch
a punctured tube. If unavoid-
able, however, patch the tube
very carefully and replace it as
soon as possible with a high-quality product.
EAU21940
Spoke wheels To maximize the performance, durabil-
ity, and safe operation of your motor-
cycle, note the following points
regarding the specified wheels.
The wheel rims should be checked
for cracks, bends or warpage, and
the spokes for looseness or dam-
age before each ride. If any dam-
age is found, have a Yamaha
dealer replace the wheel. Do not
attempt even the smallest repair to
the wheel. A deformed or cracked
wheel must be replaced.
The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short-
ened tire life.
Ride at moderate speeds after
changing a tire since the tire sur-
face must first be “broken in” for it
to develop its optimal characteris-
tics.
EAU44663
Adjusting the clutch free play The clutch free play must be checked
and, if necessary, adjusted as follows
at the intervals specified in the periodic
maintenance and lubrication chart.
1. Loosen the locknut.
2. Slowly turn the clutch adjusting
screw in direction (a) until resis-
tance is felt, and then turn it 1/8
turn in direction (b).
3. Tighten the locknut to the specified
torque.1. Locknut
2. Clutch adjusting screw
Tightening torque:
Locknut:
8.0 Nm (0.8 m·kgf, 5.8 ft·lbf)
12
(a)
(b)
U5B681E0.book Page 16 Tuesday, June 17, 2008 5:48 PM
Page 50 of 76
PERIODIC MAINTENANCE AND ADJUSTMENT
6-17
6
TIPWhen tightening the locknut, hold the
clutch adjusting screw with a screwdriv-
er so that it does not turn together withthe locknut.
EAU44881
Adjusting the brake lever free
play The brake lever free play should mea-
sure 10.0–20.0 mm (0.39–0.79 in) as
shown. Periodically check the brake le-
ver free play and, if necessary, adjust it
as follows.
1. Slide the rubber cover back.
2. Loosen the locknut at the brake le-
ver.3. To increase the brake lever free
play, turn the adjusting bolt in di-
rection (a). To decrease the brake
lever free play, turn the adjusting
bolt in direction (b).
4. If the specified brake lever free
play could be obtained as de-
scribed above, tighten the locknut
and skip the rest of the procedure,
otherwise proceed as follows.
5. Fully turn the adjusting bolt at the
brake lever in direction (a) to loos-
en the brake cable.
6. Loosen the locknut at the brake
shoe plate.
7. To increase the brake lever free
play, turn the adjusting bolt in di-
rection (a). To decrease the brake
lever free play, turn the adjusting
bolt in direction (b).1. Rubber cover
2. Brake lever free play adjusting bolt
3. Locknut
4. Brake lever free play
3
2
1
(b)
(a)4
U5B681E0.book Page 17 Tuesday, June 17, 2008 5:48 PM
