LOCATION OF IMPORTANT LABELS1-1
1
EAU48114
Read and understand all of the labels on your vehicle. They contain important information for safe and proper operation of
your vehicle. Never remove any labels from your vehicle. If a label becomes difficult to read or comes off, a replacement label
is available from your Yamaha dealer.
For Canada

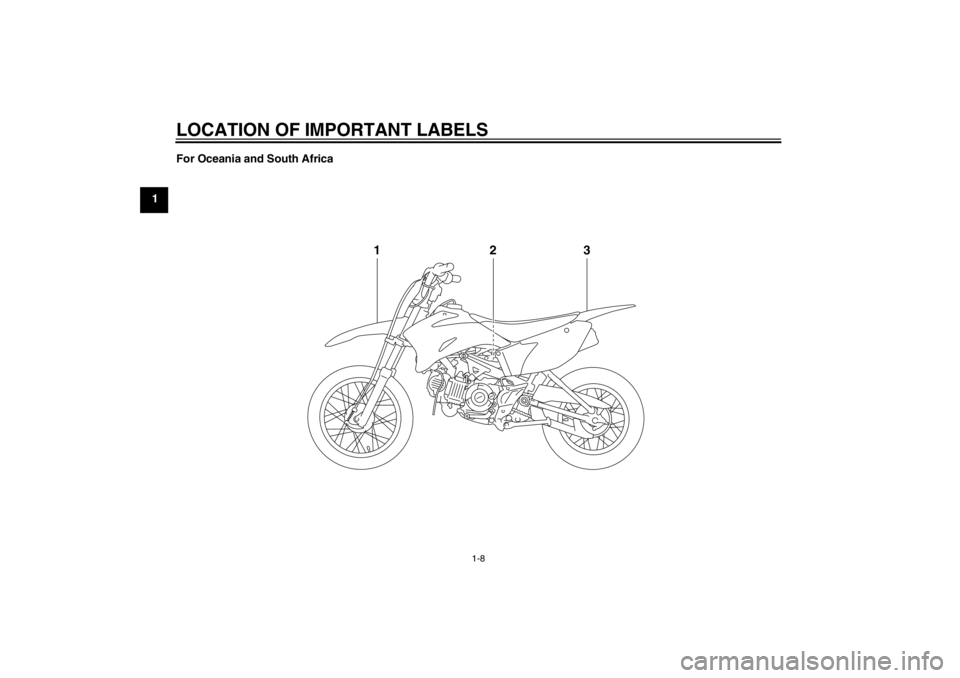

1,2
3
5,6,7,8
4
U5B684E0.book Page 1 Monday, June 13, 2011 4:46 PM

LOCATION OF IMPORTANT LABELS
1-2
1For Canada
CMVSSCANADANSVAC
TRANSPORT
506
2
4
1
3
Cold tire normal pressure should be set as
follows.FRONT : 100kPa, {1.00kgf/cm
2}, 15psi
REAR : 100kPa, {1.00kgf/cm2}, 15psi
3RV-21668-A0
TIRE INFORMATION
La pression des pneus à froid doit normalement
être réglée comme suit.
AVANT : 100kPa, {1.00kgf/cm
2}, 15psi
ARRIERE
: 100kPa, {1.00kgf/cm
2}, 15psi
3RV-21668-B0
INFORMATION SUR LES PNEUS
U5B684E0.book Page 2 Monday, June 13, 2011 4:46 PM

LOCATION OF IMPORTANT LABELS1-3
1
For Canada
3JK-82377-00
This spark ignition system meets all requirements
of the Canadian Interference Causing Equipment
Regulations.
Ce systè
me d’allumage par é tincelle de véhicule
respecte toutes les exigences du R èglement sur le
maté riel brouilleur du Canada.
THIS VEHICLE IS A RESTRICTED USE
MOTORCYCLE AND IS NOT INTENDED FOR
USE ON PUBLIC HIGHWAYS.
CE VÉHICULE EST UNE MOTOCYCLETTE À
USAGE RESTREINT DONT L ’USAGE N’EST PAS
DESTINÉ AUX VOIES PUBLIQUES.
3PT-2416E-10
3PT-2118K-A1
56
8
7
U5B684E0.book Page 3 Monday, June 13, 2011 4:46 PM

LOCATION OF IMPORTANT LABELS
1-4
1For Europe
4
1,2
3
U5B684E0.book Page 4 Monday, June 13, 2011 4:46 PM

LOCATION OF IMPORTANT LABELS1-5
1
For Europe
5PG-2816R-00
100 kPa
1.00 kgf/cm²
15 psi
100 kPa
1.00 kgf/cm²
15 psi
4AA-22259-408AC-2817L-00
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPAN
2011
5B6-2156A-10
TT-R110E
5.4 kW 72 kg
12
4
3
U5B684E0.book Page 5 Monday, June 13, 2011 4:46 PM

LOCATION OF IMPORTANT LABELS
1-6
1Familiarize yourself with the following pictograms and read the explanatory text.
**.* kPa
*.** kgf/cm²
*.* psi **.* kPa
*.** kgf/cm²
*.* psi
Read the Owner ’s manual.
This unit contains high-pressure
nitrogen gas.
Mishandling can cause
an explosion. Do not incinerate,
puncture or open.
Turn off the main switch after
riding to avoid draining the
battery. Use unleaded gasoline only.
Measure the tire pressure when
the tires are cold.
Adjust the tire pressure.
Improper tire pressure can
cause loss of control.
Loss of control can result in
severe injury or death.
U5B684E0.book Page 6 Monday, June 13, 2011 4:46 PM

LOCATION OF IMPORTANT LABELS1-7
1
******
*** kW *** kg1
23
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPAN
****1 1
2
3
Model Name
Max. Power
Mass In Running Order
1 Year of construction
U5B684E0.book Page 7 Monday, June 13, 2011 4:46 PM

LOCATION OF IMPORTANT LABELS
1-8
1For Oceania and South Africa
13
2
U5B684E0.book Page 8 Monday, June 13, 2011 4:46 PM

LOCATION OF IMPORTANT LABELS1-9
1
For Oceania and South Africa
TIRE INFORMATION
Cold tire normal pressure should be set as
follows.
FRONT : 100kPa, {
1.00kgf/cm
2}, 15psi
REAR : 100kPa, {1.00kgf/cm2}, 15psi
3RV-21668-A0
4AA-22259-40
3PT-2118K-A1
12
3
U5B684E0.book Page 9 Monday, June 13, 2011 4:46 PM

2-1
2
SAFETY INFORMATION
EAU4121A
Be a Responsible Owner
As the vehicle’s owner, you are respon-
sible for the safe and proper operation
of your motorcycle.
Motorcycles are single-track vehicles.
Their safe use and operation are de-
pendent upon the use of proper riding
techniques as well as the expertise of
the operator. Every operator should
know the following requirements before
riding this motorcycle.
He or she should:

Obtain thorough instructions from
a competent source on all aspects
of motorcycle operation.


Observe the warnings and mainte-
nance requirements in this Own-
er ’s Manual.


Obtain qualified training in safe
and proper riding techniques.


Obtain professional technical ser-
vice as indicated in this Owner ’s
Manual and/or when made neces-
sary by mechanical conditions. Safe Riding
Perform the pre-operation checks each
time you use the vehicle to make sure it
is in safe operating condition. Failure to
inspect or maintain the vehicle properly
increases the possibility of an accident
or equipment damage. See page 5-1
for a list of pre-operation checks.


This motorcycle is designed for off-
road use only, therefore, it is illegal
to operate it on public streets,
roads, or highways, even a dirt or
gravel one. Off-road use on public
lands may be illegal. Please check
local regulations before riding.


This motorcycle is designed to car-
ry the operator only. No passen-
gers.


The failure of motorists to detect
and recognize motorcycles in traf-
fic is the predominating cause of
automobile/motorcycle accidents.
Many accidents have been caused
by an automobile driver who did
not see the motorcycle. Making
yourself conspicuous appears to
be very effective in reducing the
chance of this type of accident.
Therefore:
 Wear a brightly colored jacket.
 Use extra caution when you are
approaching and passing
through intersections, since in-
tersections are the most likely
places for motorcycle accidents
to occur.
 Ride where other motorists can
see you. Avoid riding in another
motorist’ s blind spot.


Many accidents involve inexperi-
enced operators.
 Make sure that you are qualified
and that you only lend your mo-
torcycle to other qualified opera-
tors.
 Know your skills and limits.
Staying within your limits may
help you to avoid an accident.
 We recommend that you prac-
tice riding your motorcycle until
you have become thoroughly fa-
miliar with the motorcycle and all
of its controls.
U5B684E0.book Page 1 Monday, June 13, 2011 4:46 PM
