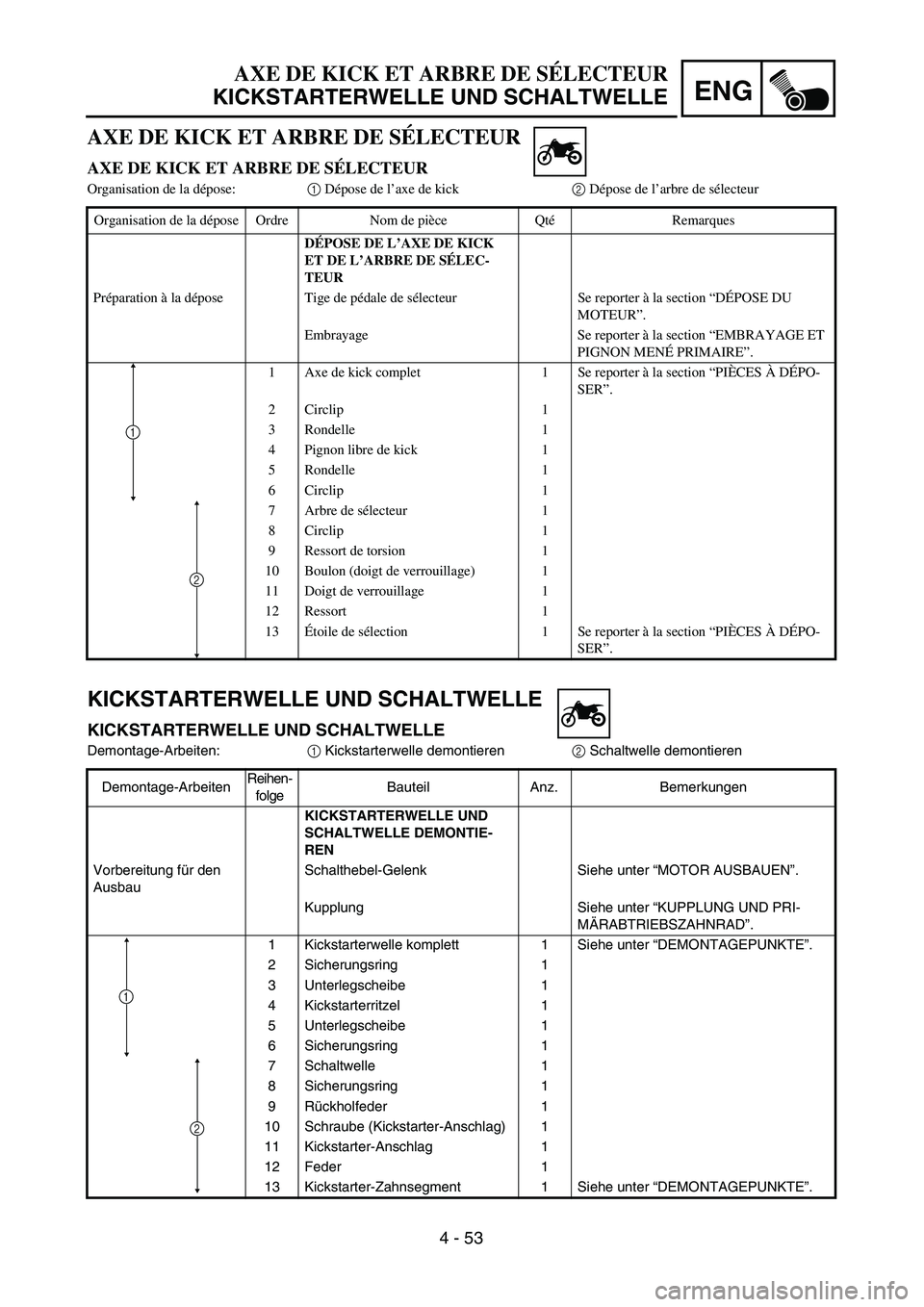

Page 371 of 616

YAMAHA TTR125 2007  Owners Manual ENG
4 - 53
AXE DE KICK ET ARBRE DE SÉLECTEUR
KICKSTARTERWELLE UND SCHALTWELLE
KICKSTARTERWELLE UND SCHALTWELLE
KICKSTARTERWELLE UND SCHALTWELLE
Demontage-Arbeiten:1 Kickstarterwelle demontieren2 Scha

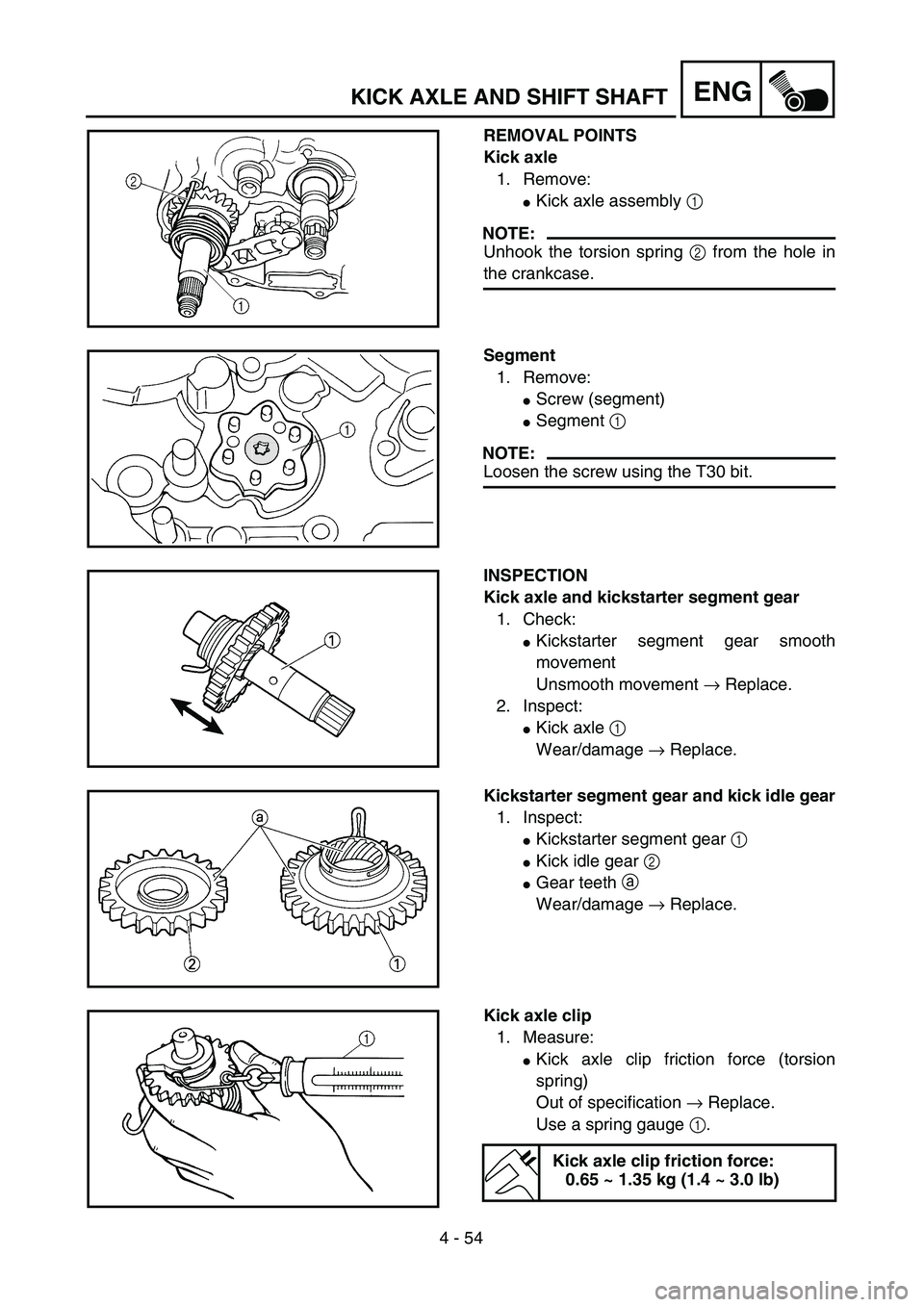

Page 372 of 616

YAMAHA TTR125 2007  Owners Manual 4 - 54
ENGKICK AXLE AND SHIFT SHAFT
REMOVAL POINTS
Kick axle
1. Remove:
Kick axle assembly 1
NOTE:
Unhook the torsion spring 2 from the hole in
the crankcase.
Segment
1. Remove:
Screw (segment)
Se

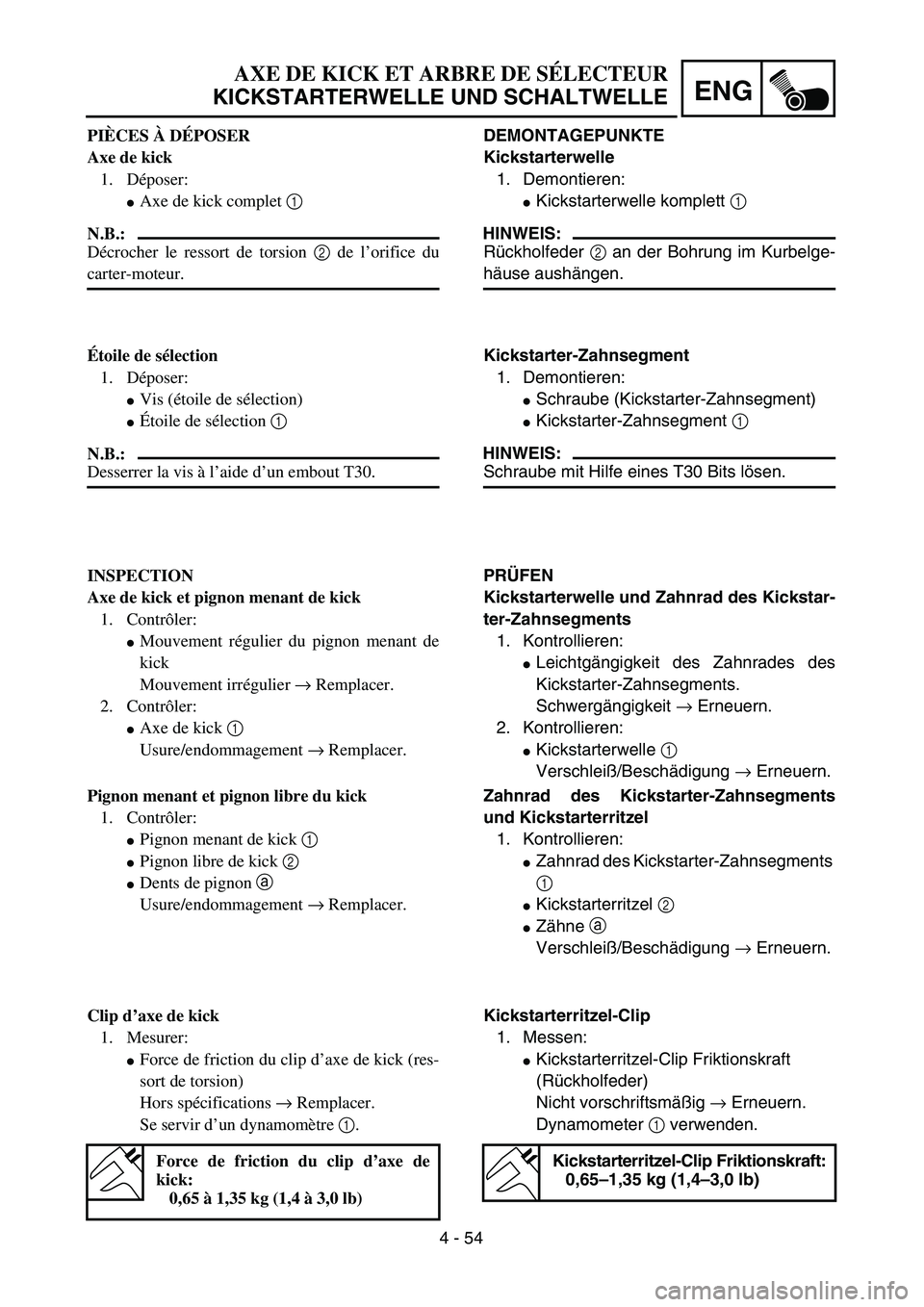

Page 373 of 616

YAMAHA TTR125 2007  Owners Manual 4 - 54
ENG
AXE DE KICK ET ARBRE DE SÉLECTEUR
KICKSTARTERWELLE UND SCHALTWELLE
DEMONTAGEPUNKTE
Kickstarterwelle
1. Demontieren:
Kickstarterwelle komplett 1
HINWEIS:
Rückholfeder 2 an der Bohrung im

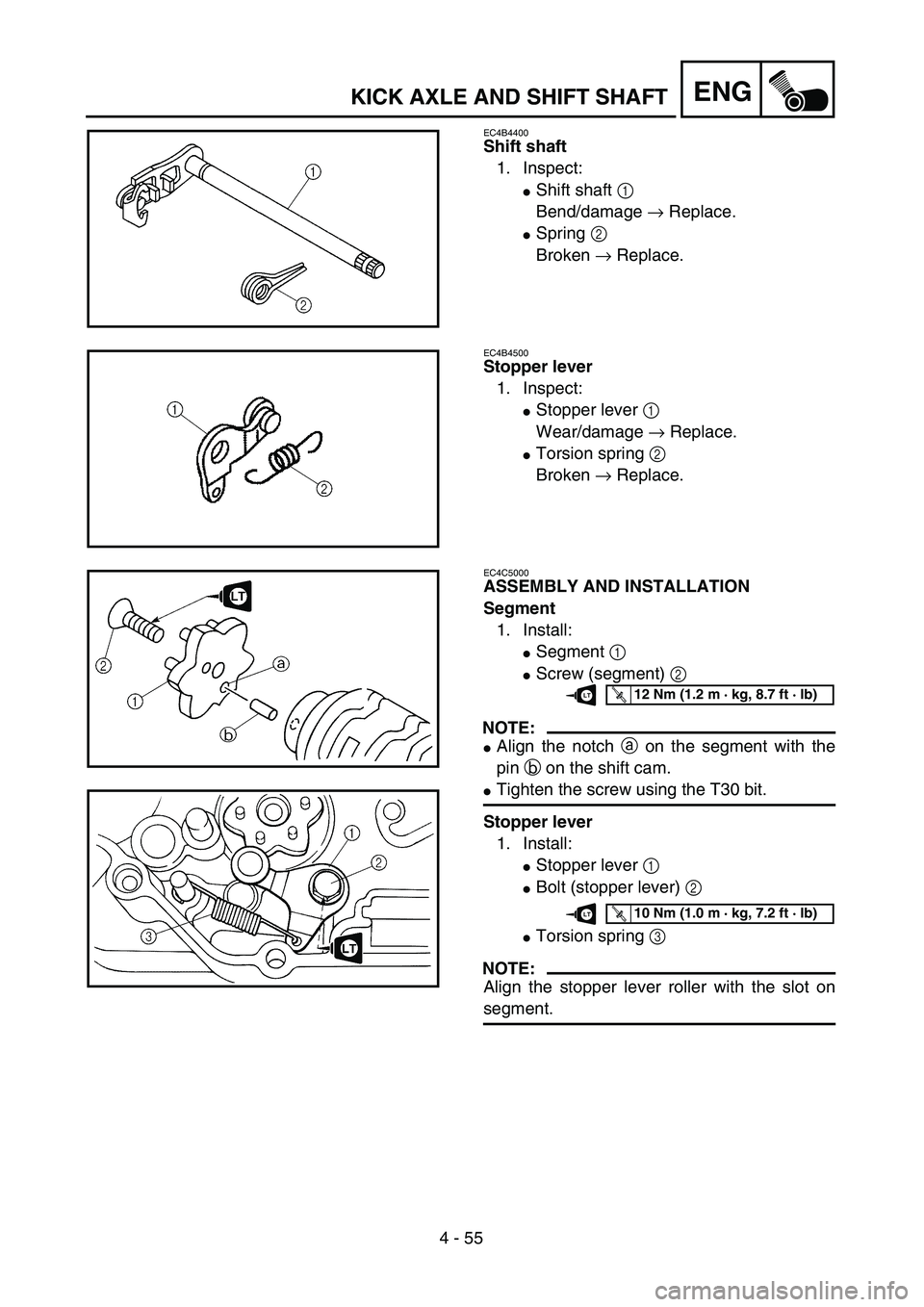

Page 374 of 616

YAMAHA TTR125 2007  Owners Manual 4 - 55
ENGKICK AXLE AND SHIFT SHAFT
EC4B4400
Shift shaft
1. Inspect:
Shift shaft 1
Bend/damage → Replace.
Spring 2
Broken → Replace.
EC4B4500
Stopper lever
1. Inspect:
Stopper lever 1
Wear/d

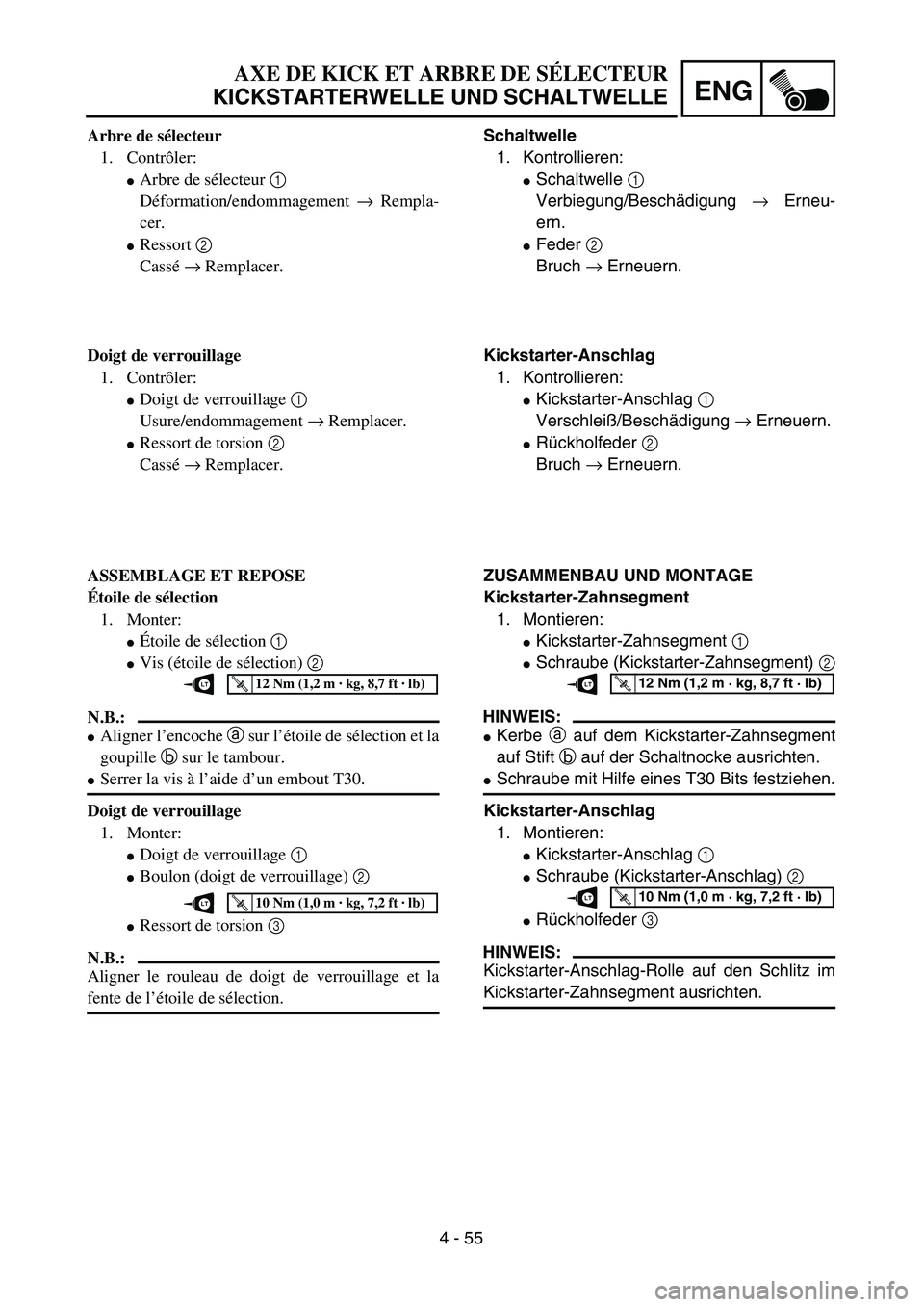

Page 375 of 616

YAMAHA TTR125 2007  Owners Manual 4 - 55
ENG
AXE DE KICK ET ARBRE DE SÉLECTEUR
KICKSTARTERWELLE UND SCHALTWELLE
Schaltwelle
1. Kontrollieren:
Schaltwelle 1
Verbiegung/Beschädigung → Erneu-
ern.
Feder 2
Bruch → Erneuern.
Kick

Page 376 of 616

YAMAHA TTR125 2007  Owners Manual 4 - 56
ENGKICK AXLE AND SHIFT SHAFT
Shift shaft
1. Install:
Shift shaft 1
NOTE:
Apply the lithium soap base grease on the oil
seal lip of the left crankcase side.
Hook the spring ends onto the sto

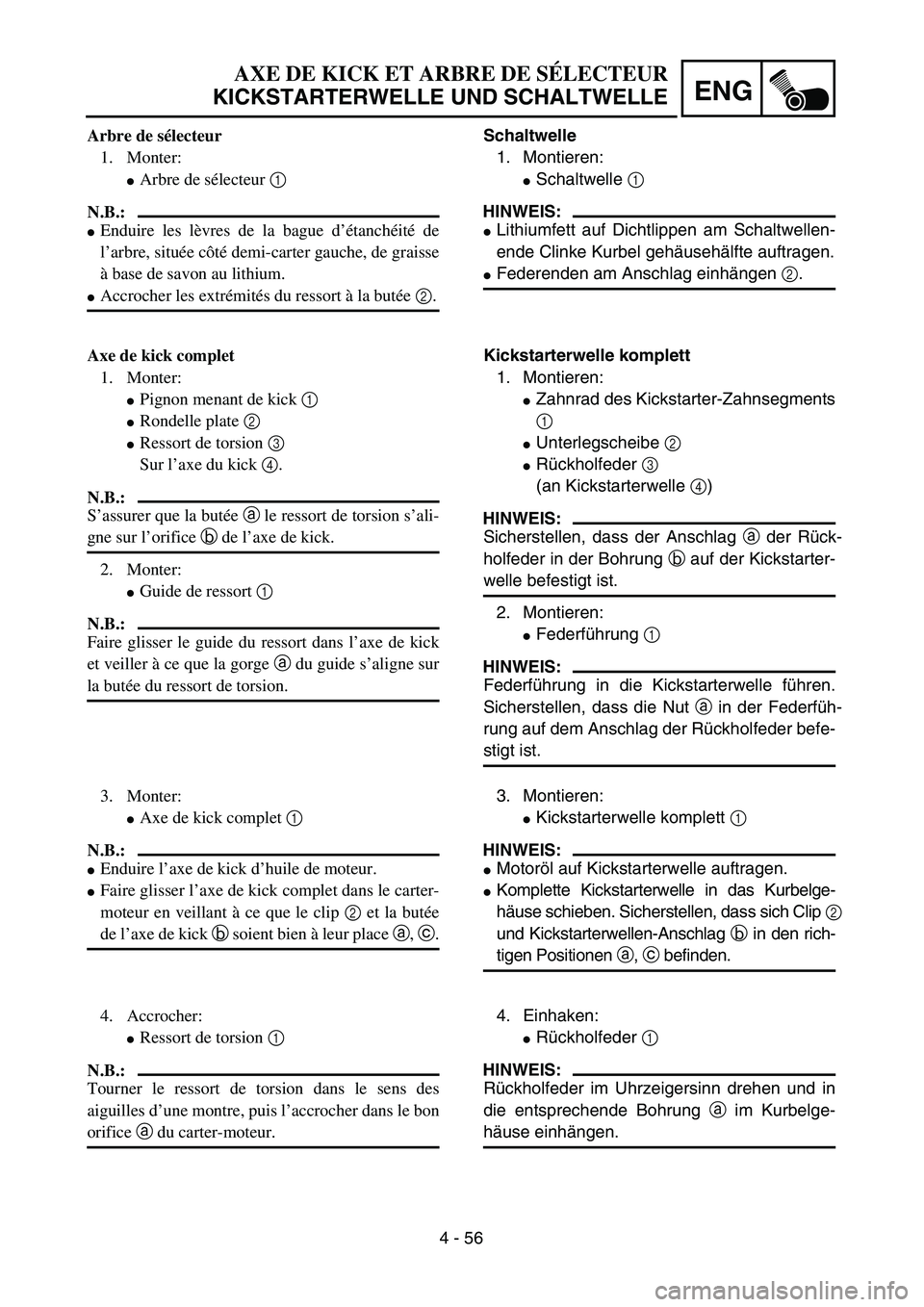

Page 377 of 616

YAMAHA TTR125 2007  Owners Manual 4 - 56
ENG
AXE DE KICK ET ARBRE DE SÉLECTEUR
KICKSTARTERWELLE UND SCHALTWELLE
Schaltwelle
1.  Montieren:
 Schaltwelle  1
HINWEIS:
 Lithiumfett auf Dichtlippen am Schaltwellen-
ende Clinke Kurbel g

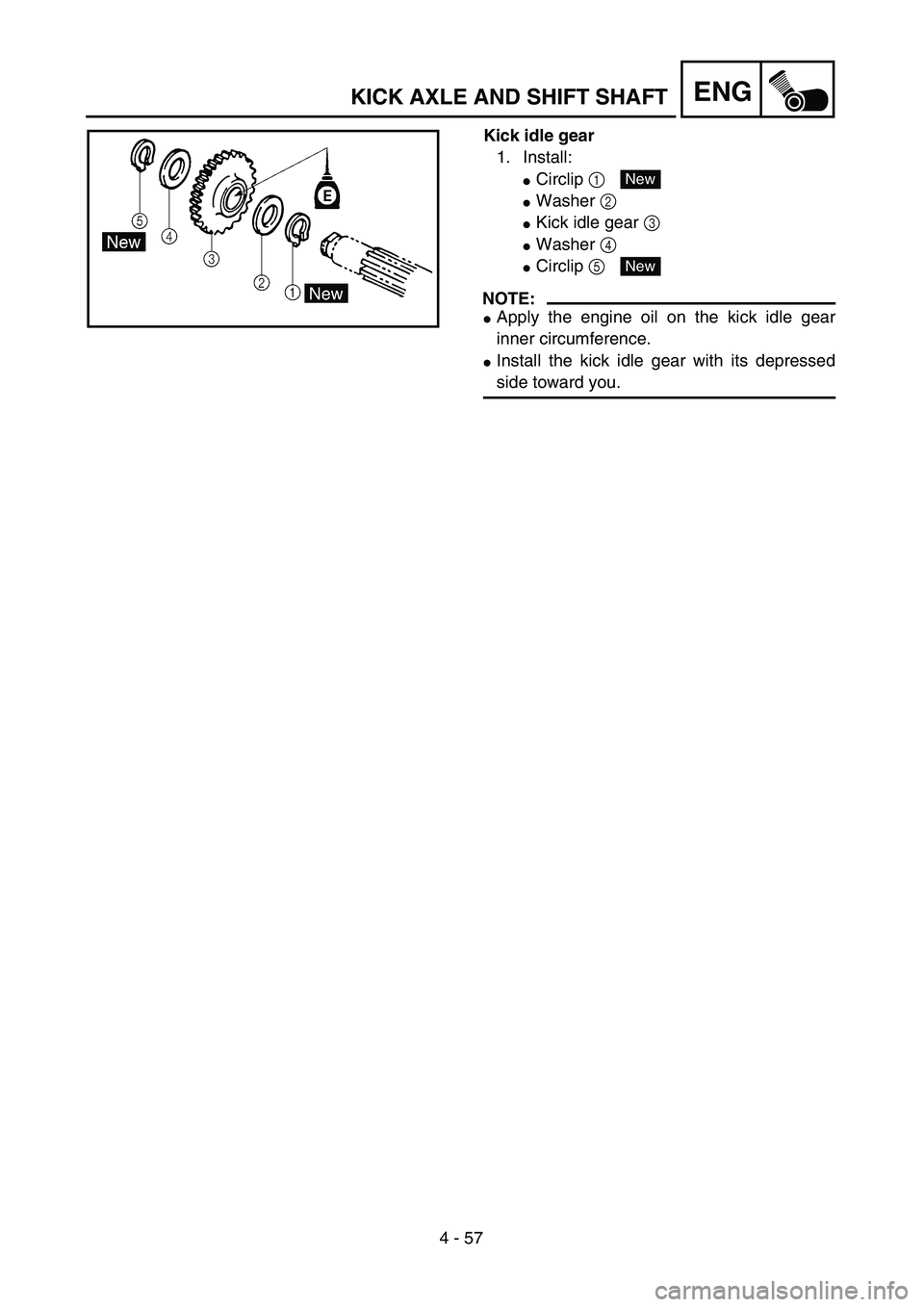

Page 378 of 616

YAMAHA TTR125 2007  Owners Manual 4 - 57
ENGKICK AXLE AND SHIFT SHAFT
Kick idle gear
1. Install:
Circlip 1
Washer 2
Kick idle gear 3
Washer 4
Circlip 5
NOTE:
Apply the engine oil on the kick idle gear
inner circumference.


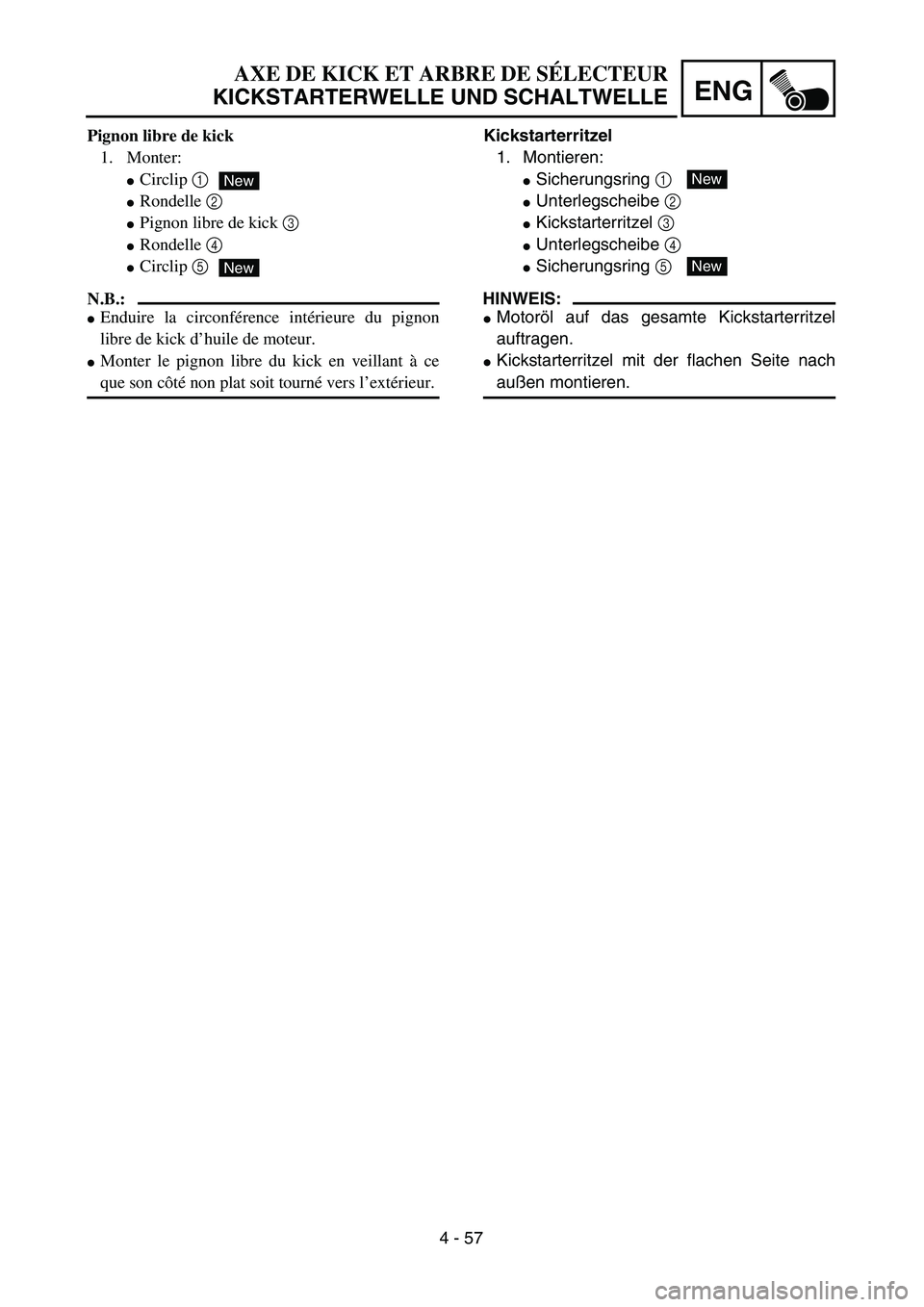

Page 379 of 616

YAMAHA TTR125 2007  Owners Manual 4 - 57
ENG
AXE DE KICK ET ARBRE DE SÉLECTEUR
KICKSTARTERWELLE UND SCHALTWELLE
Kickstarterritzel
1. Montieren:
Sicherungsring 1
Unterlegscheibe 2
Kickstarterritzel 3
Unterlegscheibe 4
Sicheru

Page 380 of 616

YAMAHA TTR125 2007  Owners Manual 4 - 58
ENG
EC4L0000
CDI MAGNETO (TT-R125/TT-R125LW)
Extent of removal:1 CDI magneto removal
Extent of removal Order Part name Q’ty Remarks
CDI MAGNETO REMOVAL
Preparation for removal Seat and fuel
