YAMAHA TTR50 2010 Owner's Guide
Manufacturer: YAMAHA, Model Year: 2010, Model line: TTR50, Model: YAMAHA TTR50 2010Pages: 84, PDF Size: 2.5 MB

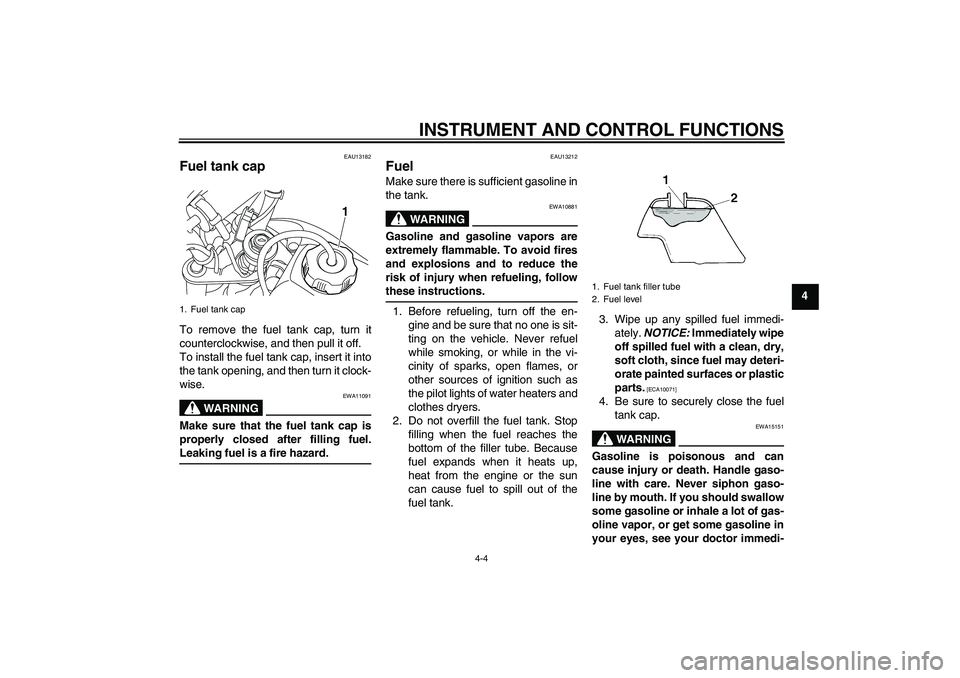

Page 31 of 84
INSTRUMENT AND CONTROL FUNCTIONS
4-4
4
EAU13182
Fuel tank cap To remove the fuel tank cap, turn it
counterclockwise, and then pull it off.
To install the fuel tank cap, insert it into
the tank opening, and then turn it clock-
wise.
WARNING
EWA11091
Make sure that the fuel tank cap is
properly closed after filling fuel.
Leaking fuel is a fire hazard.
EAU13212
Fuel Make sure there is sufficient gasoline in
the tank.
WARNING
EWA10881
Gasoline and gasoline vapors are
extremely flammable. To avoid fires
and explosions and to reduce the
risk of injury when refueling, follow
these instructions.1. Before refueling, turn off the en-
gine and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the vi-
cinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters and
clothes dryers.
2. Do not overfill the fuel tank. Stop
filling when the fuel reaches the
bottom of the filler tube. Because
fuel expands when it heats up,
heat from the engine or the sun
can cause fuel to spill out of the
fuel tank.3. Wipe up any spilled fuel immedi-
ately. NOTICE: Immediately wipe
off spilled fuel with a clean, dry,
soft cloth, since fuel may deteri-
orate painted surfaces or plastic
parts.
[ECA10071]
4. Be sure to securely close the fuel
tank cap.
WARNING
EWA15151
Gasoline is poisonous and can
cause injury or death. Handle gaso-
line with care. Never siphon gaso-
line by mouth. If you should swallow
some gasoline or inhale a lot of gas-
oline vapor, or get some gasoline in
your eyes, see your doctor immedi-
1. Fuel tank cap
1
1. Fuel tank filler tube
2. Fuel level
U1P684E0.book Page 4 Tuesday, April 28, 2009 10:22 AM

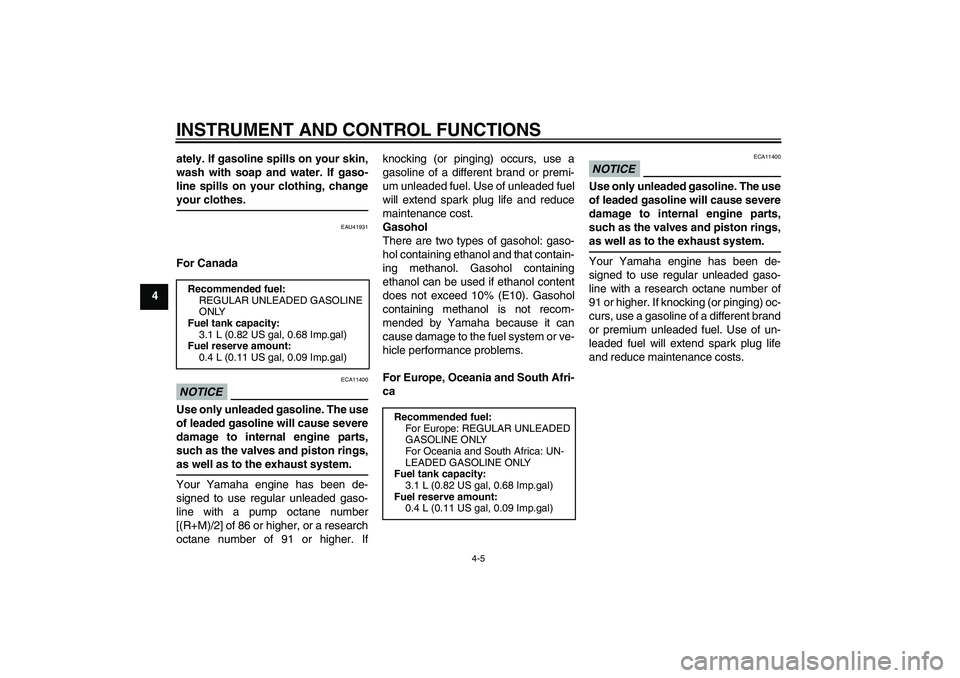

Page 32 of 84
INSTRUMENT AND CONTROL FUNCTIONS
4-5
4ately. If gasoline spills on your skin,
wash with soap and water. If gaso-
line spills on your clothing, change
your clothes.
EAU41931
For CanadaNOTICE
ECA11400
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,
as well as to the exhaust system.Your Yamaha engine has been de-
signed to use regular unleaded gaso-
line with a pump octane number
[(R+M)/2] of 86 or higher, or a research
octane number of 91 or higher. Ifknocking (or pinging) occurs, use a
gasoline of a different brand or premi-
um unleaded fuel. Use of unleaded fuel
will extend spark plug life and reduce
maintenance cost.
Gasohol
There are two types of gasohol: gaso-
hol containing ethanol and that contain-
ing methanol. Gasohol containing
ethanol can be used if ethanol content
does not exceed 10% (E10). Gasohol
containing methanol is not recom-
mended by Yamaha because it can
cause damage to the fuel system or ve-
hicle performance problems.
For Europe, Oceania and South Afri-
ca
NOTICE
ECA11400
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,
as well as to the exhaust system.Your Yamaha engine has been de-
signed to use regular unleaded gaso-
line with a research octane number of
91 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different brand
or premium unleaded fuel. Use of un-
leaded fuel will extend spark plug life
and reduce maintenance costs.
Recommended fuel:
REGULAR UNLEADED GASOLINE
ONLY
Fuel tank capacity:
3.1 L (0.82 US gal, 0.68 Imp.gal)
Fuel reserve amount:
0.4 L (0.11 US gal, 0.09 Imp.gal)
Recommended fuel:
For Europe: REGULAR UNLEADED
GASOLINE ONLY
For Oceania and South Africa: UN-
LEADED GASOLINE ONLY
Fuel tank capacity:
3.1 L (0.82 US gal, 0.68 Imp.gal)
Fuel reserve amount:
0.4 L (0.11 US gal, 0.09 Imp.gal)
U1P684E0.book Page 5 Tuesday, April 28, 2009 10:22 AM
Page 33 of 84
INSTRUMENT AND CONTROL FUNCTIONS
4-6
4
EAU13412
Fuel tank breather hose Before operating the motorcycle:
Check the fuel tank breather hose
connection.
Check the fuel tank breather hose
for cracks or damage, and replace
it if damaged.
Make sure that the fuel tank
breather hose is not blocked, and
clean it if necessary.
EAU13561
Fuel cock The fuel cock supplies fuel from the
tank to the carburetor while filtering it al-
so.
The fuel cock has three positions:
OFF
With the lever in this position, fuel will
not flow. Always return the lever to this
position when the engine is not running.ON
With the lever in this position, fuel flows
to the carburetor. Normal riding is done
with the lever in this position.
RES
1. Fuel tank breather hose
1. Arrow mark positioned over “OFF”
1. Arrow mark positioned over “ON”
1. Arrow mark positioned over “RES”
U1P684E0.book Page 6 Tuesday, April 28, 2009 10:22 AM

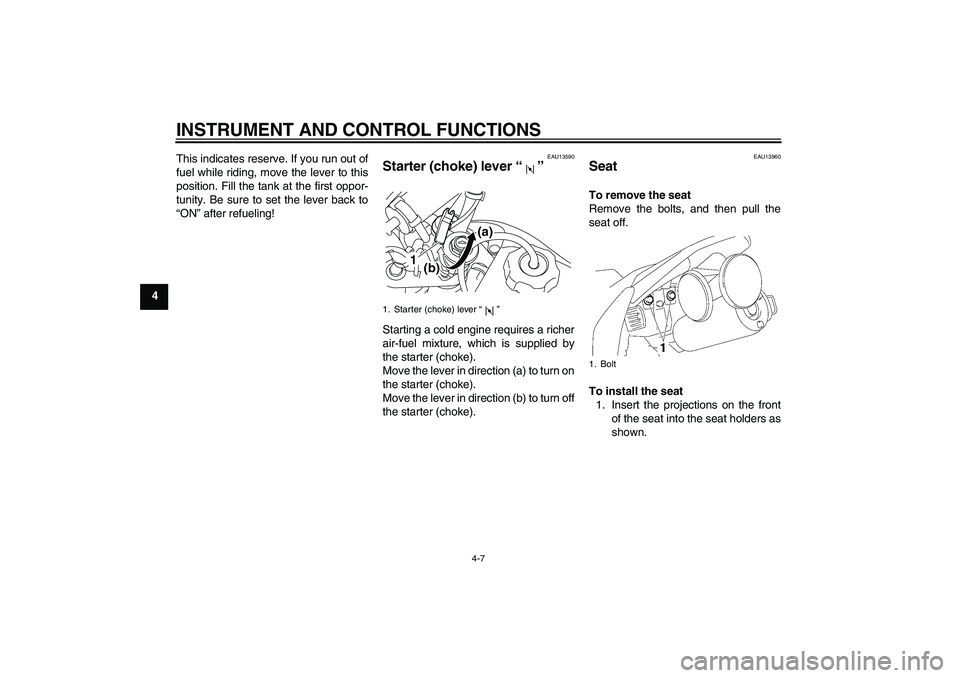

Page 34 of 84
INSTRUMENT AND CONTROL FUNCTIONS
4-7
4This indicates reserve. If you run out of
fuel while riding, move the lever to this
position. Fill the tank at the first oppor-
tunity. Be sure to set the lever back to
“ON” after refueling!
EAU13590
Starter (choke) lever“” Starting a cold engine requires a richer
air-fuel mixture, which is supplied by
the starter (choke).
Move the lever in direction (a) to turn on
the starter (choke).
Move the lever in direction (b) to turn off
the starter (choke).
EAU13960
Seat To remove the seat
Remove the bolts, and then pull the
seat off.
To install the seat
1. Insert the projections on the front
of the seat into the seat holders as
shown.
1. Starter (choke) lever“”
1
(a)
(b)
1. Bolt
U1P684E0.book Page 7 Tuesday, April 28, 2009 10:22 AM

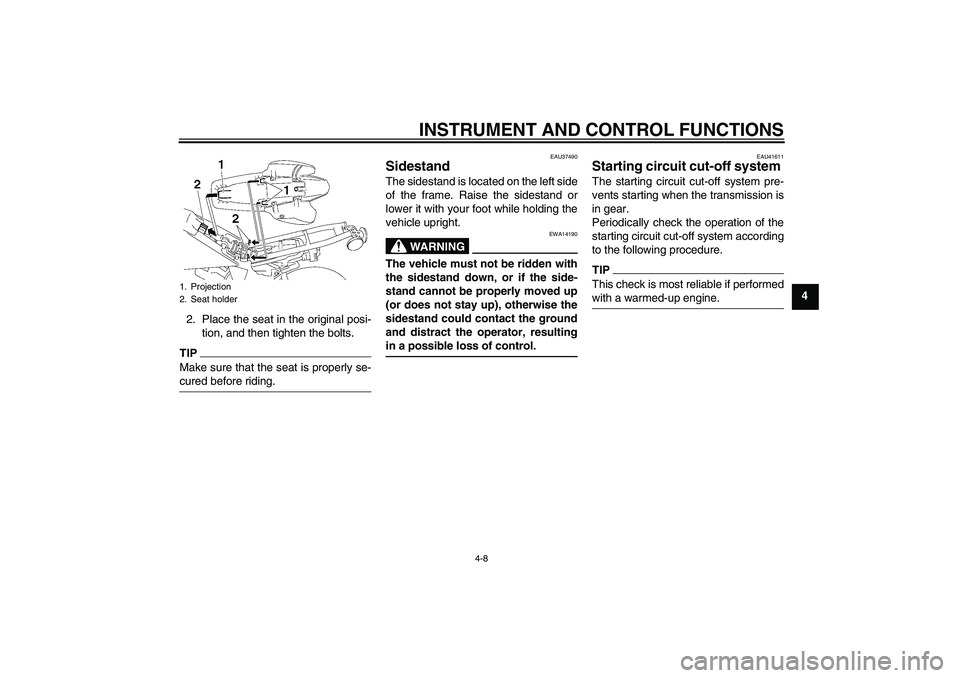

Page 35 of 84
INSTRUMENT AND CONTROL FUNCTIONS
4-8
4
2. Place the seat in the original posi-
tion, and then tighten the bolts.
TIPMake sure that the seat is properly se-
cured before riding.
EAU37490
Sidestand The sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
vehicle upright.
WARNING
EWA14190
The vehicle must not be ridden with
the sidestand down, or if the side-
stand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control.
EAU41611
Starting circuit cut-off system The starting circuit cut-off system pre-
vents starting when the transmission is
in gear.
Periodically check the operation of the
starting circuit cut-off system according
to the following procedure.TIPThis check is most reliable if performed
with a warmed-up engine.
1. Projection
2. Seat holder
U1P684E0.book Page 8 Tuesday, April 28, 2009 10:22 AM
Page 36 of 84
INSTRUMENT AND CONTROL FUNCTIONS
4-9
4
With the engine turned off:
1. Make sure that the engine stop switch is set to “
”.
2. Turn the key to “ON”.
3. Shift the transmission into gear.
4. Keep the front or rear brake applied.
5. Push the start switch.
Does the engine start?
The neutral switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
6. Shift the transmission into the neutral position.
7. Push the start switch.
Does the engine start?
The neutral switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
YES NO
The system is OK. The motorcycle can be ridden.
YES
NO
If a malfunction is noted, have a Yamaha
dealer check the system before riding.
WARNING
U1P684E0.book Page 9 Tuesday, April 28, 2009 10:22 AM

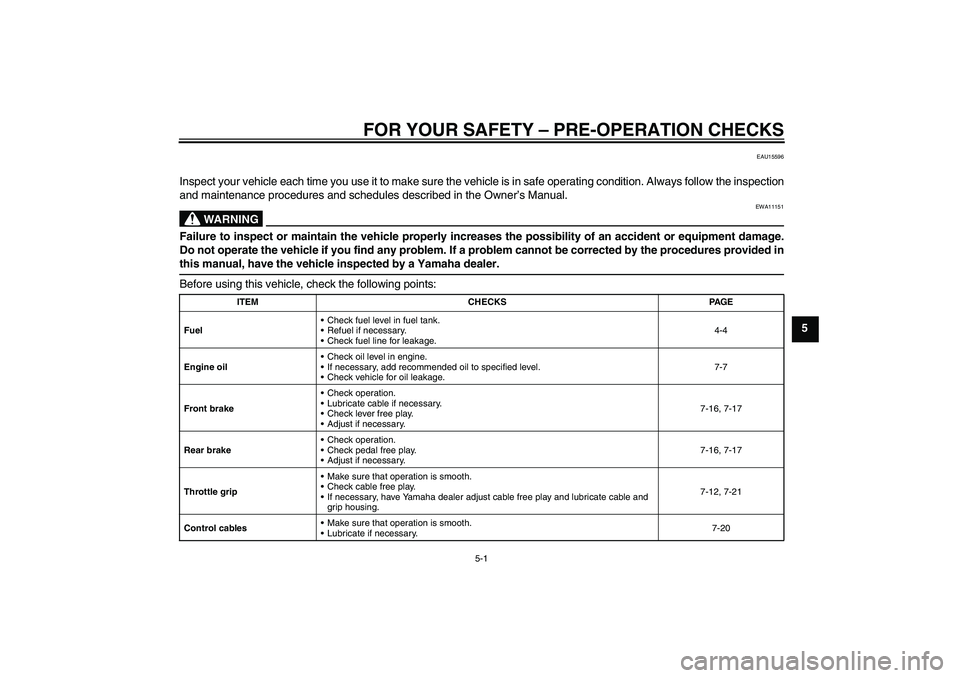

Page 37 of 84
FOR YOUR SAFETY – PRE-OPERATION CHECKS
5-1
5
EAU15596
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the inspection
and maintenance procedures and schedules described in the Owner’s Manual.
WARNING
EWA11151
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment damage.
Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures provided in
this manual, have the vehicle inspected by a Yamaha dealer.Before using this vehicle, check the following points:
ITEM CHECKS PAGE
FuelCheck fuel level in fuel tank.
Refuel if necessary.
Check fuel line for leakage.4-4
Engine oilCheck oil level in engine.
If necessary, add recommended oil to specified level.
Check vehicle for oil leakage.7-7
Front brakeCheck operation.
Lubricate cable if necessary.
Check lever free play.
Adjust if necessary.7-16, 7-17
Rear brakeCheck operation.
Check pedal free play.
Adjust if necessary.7-16, 7-17
Throttle gripMake sure that operation is smooth.
Check cable free play.
If necessary, have Yamaha dealer adjust cable free play and lubricate cable and
grip housing.7-12, 7-21
Control cablesMake sure that operation is smooth.
Lubricate if necessary.7-20
U1P684E0.book Page 1 Tuesday, April 28, 2009 10:22 AM

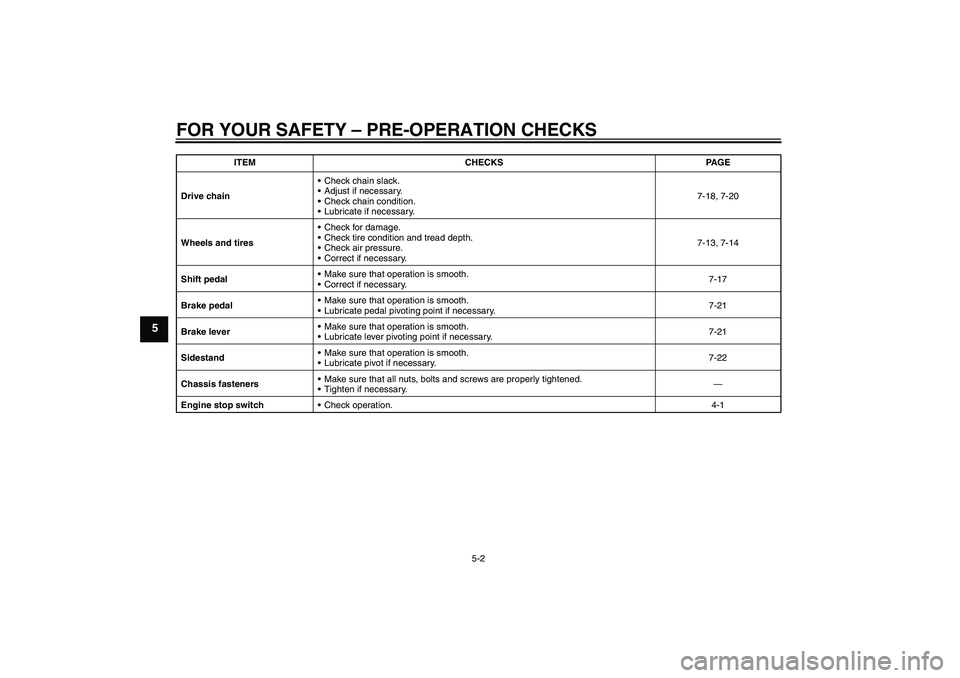

Page 38 of 84
FOR YOUR SAFETY – PRE-OPERATION CHECKS
5-2
5
Drive chainCheck chain slack.
Adjust if necessary.
Check chain condition.
Lubricate if necessary.7-18, 7-20
Wheels and tiresCheck for damage.
Check tire condition and tread depth.
Check air pressure.
Correct if necessary.7-13, 7-14
Shift pedalMake sure that operation is smooth.
Correct if necessary.7-17
Brake pedalMake sure that operation is smooth.
Lubricate pedal pivoting point if necessary.7-21
Brake leverMake sure that operation is smooth.
Lubricate lever pivoting point if necessary.7-21
SidestandMake sure that operation is smooth.
Lubricate pivot if necessary.7-22
Chassis fastenersMake sure that all nuts, bolts and screws are properly tightened.
Tighten if necessary.—
Engine stop switchCheck operation.4-1 ITEM CHECKS PAGE
U1P684E0.book Page 2 Tuesday, April 28, 2009 10:22 AM
Page 39 of 84
OPERATION AND IMPORTANT RIDING POINTS
6-1
6
EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10271
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which could cause an accident
or injury.
EAU40096
Starting and warming up a
cold engine 1. Turn the fuel cock lever to “ON”.
2. Turn the key to “ON” and make
sure that the engine stop switch is
set to“”.
3. Shift the transmission into the neu-
tral position.
WARNING
EWA14410
Be sure to shift the transmis-
sion into neutral before starting
the engine.
Never ride with the sidestand
down.
4. Turn the starter (choke) on and
completely close the throttle. (See
page 4-7.)
5. Start the engine by pushing the
start switch. NOTICE: For maxi-
mum engine life, never acceler-
ate hard when the engine is
cold!
[ECA11041]
6. When the engine is warm, turn the
starter (choke) off.
TIPThe engine is warm when it responds
normally to the throttle with the starter
(choke) turned off.
U1P684E0.book Page 1 Tuesday, April 28, 2009 10:22 AM

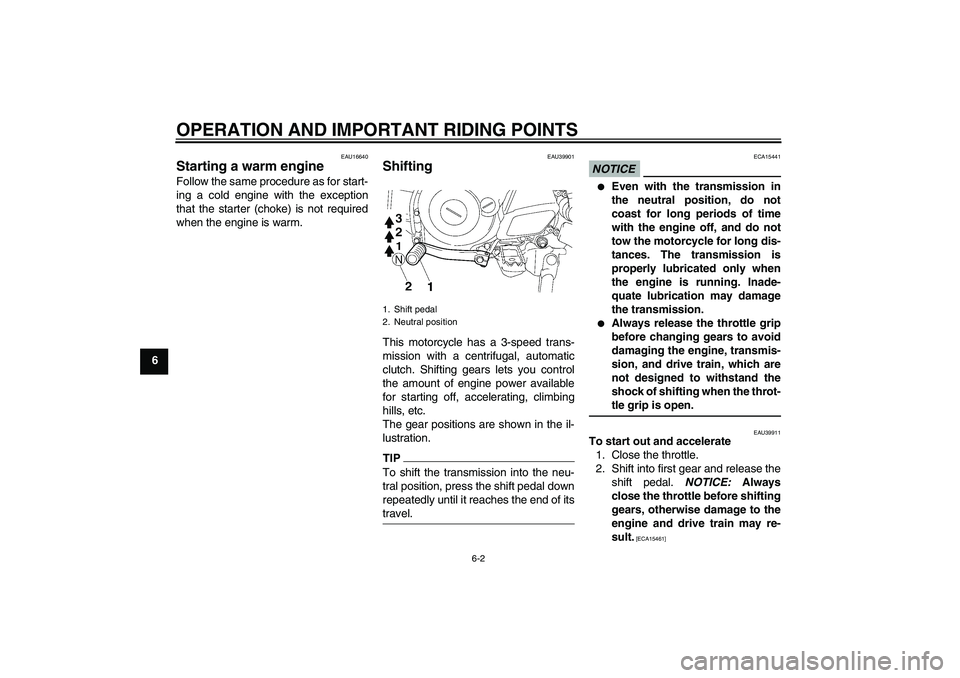

Page 40 of 84
OPERATION AND IMPORTANT RIDING POINTS
6-2
6
EAU16640
Starting a warm engine Follow the same procedure as for start-
ing a cold engine with the exception
that the starter (choke) is not required
when the engine is warm.
EAU39901
Shifting This motorcycle has a 3-speed trans-
mission with a centrifugal, automatic
clutch. Shifting gears lets you control
the amount of engine power available
for starting off, accelerating, climbing
hills, etc.
The gear positions are shown in the il-
lustration.TIPTo shift the transmission into the neu-
tral position, press the shift pedal down
repeatedly until it reaches the end of its
travel.
NOTICE
ECA15441
Even with the transmission in
the neutral position, do not
coast for long periods of time
with the engine off, and do not
tow the motorcycle for long dis-
tances. The transmission is
properly lubricated only when
the engine is running. Inade-
quate lubrication may damage
the transmission.
Always release the throttle grip
before changing gears to avoid
damaging the engine, transmis-
sion, and drive train, which are
not designed to withstand the
shock of shifting when the throt-
tle grip is open.
EAU39911
To start out and accelerate
1. Close the throttle.
2. Shift into first gear and release the
shift pedal. NOTICE: Always
close the throttle before shifting
gears, otherwise damage to the
engine and drive train may re-
sult.
[ECA15461]
1. Shift pedal
2. Neutral position
U1P684E0.book Page 2 Tuesday, April 28, 2009 10:22 AM
