key YAMAHA TTR50 2010 Owners Manual

IMPORTANT MANUAL INFORMATION
EAU10132
Particularly important information is distinguished in this manual by the following notations:
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible injury
or death.
A WARNING indicates a hazardous situation which, if not avoided, could result in
death or serious injury.
A NOTICE indicates special precautions that must be taken to avoid damage to the
vehicle or other property.
A TIP provides key information to make procedures easier or clearer.
WARNING
NOTICETIP
U1P684E0.book Page 1 Tuesday, April 28, 2009 10:22 AM

INSTRUMENT AND CONTROL FUNCTIONS
4-1
4
EAU40340
Main switch The main switch controls the ignition
system. The main switch positions are
described below.
EAU10630
ON
All electrical systems are supplied with
power, and the engine can be started.
The key cannot be removed.
EAU45751
OFF
All electrical systems are off. The key
can be removed.
WARNING
EWA10072
Never turn the key to “OFF” while
the vehicle is moving, otherwise the
electrical systems will be switched
off, which may result in loss of con-
trol or an accident.
EAU12348
Handlebar switches Left
Right1. Engine stop switch“/”
1. Start switch“”
1
U1P684E0.book Page 1 Tuesday, April 28, 2009 10:22 AM

INSTRUMENT AND CONTROL FUNCTIONS
4-9
4
With the engine turned off:
1. Make sure that the engine stop switch is set to “
”.
2. Turn the key to “ON”.
3. Shift the transmission into gear.
4. Keep the front or rear brake applied.
5. Push the start switch.
Does the engine start?
The neutral switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
6. Shift the transmission into the neutral position.
7. Push the start switch.
Does the engine start?
The neutral switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
YES NO
The system is OK. The motorcycle can be ridden.
YES
NO
If a malfunction is noted, have a Yamaha
dealer check the system before riding.
WARNING
U1P684E0.book Page 9 Tuesday, April 28, 2009 10:22 AM

OPERATION AND IMPORTANT RIDING POINTS
6-1
6
EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10271
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which could cause an accident
or injury.
EAU40096
Starting and warming up a
cold engine 1. Turn the fuel cock lever to “ON”.
2. Turn the key to “ON” and make
sure that the engine stop switch is
set to“”.
3. Shift the transmission into the neu-
tral position.
WARNING
EWA14410


Be sure to shift the transmis-
sion into neutral before starting
the engine.


Never ride with the sidestand
down.
4. Turn the starter (choke) on and
completely close the throttle. (See
page 4-7.)
5. Start the engine by pushing the
start switch. NOTICE: For maxi-
mum engine life, never acceler-
ate hard when the engine is
cold!
[ECA11041]
6. When the engine is warm, turn the
starter (choke) off.
TIPThe engine is warm when it responds
normally to the throttle with the starter
(choke) turned off.
U1P684E0.book Page 1 Tuesday, April 28, 2009 10:22 AM

OPERATION AND IMPORTANT RIDING POINTS
6-4
6
EAU17171
Parking When parking, stop the engine, remove
the key from the main switch, and then
turn the fuel cock lever to “OFF”.
WARNING
EWA10311


Since the engine and exhaust
system can become very hot,
park in a place where pedestri-
ans or children are not likely to
touch them and be burned.


Do not park on a slope or on soft
ground, otherwise the vehicle
may overturn, increasing the
risk of a fuel leak and fire.


Do not park near grass or other
flammable materials which
might catch fire.
U1P684E0.book Page 4 Tuesday, April 28, 2009 10:22 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
7-25
7 To charge the battery
Have a Yamaha dealer charge the bat-
tery as soon as possible if it seems to
have discharged. Keep in mind that the
battery tends to discharge more quickly
if the vehicle is equipped with optional
electrical accessories.
NOTICE
ECA16520
To charge a VRLA (Valve Regulated
Lead Acid) battery, a special (con-
stant-voltage) battery charger is re-
quired. Using a conventional battery
charger will damage the battery. If
you do not have access to a con-
stant-voltage battery charger, have a
Yamaha dealer charge your battery.To store the battery
1. If the vehicle will not be used for
more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
NOTICE: When removing the
battery, be sure the key is
turned to “OFF” before discon-
necting the coupler.
[ECA16322]
2. If the battery will be stored for more
than two months, check it at least
once a month and fully charge it if
necessary.
3. Fully charge the battery before in-
stallation.NOTICE
ECA16530
Always keep the battery charged.
Storing a discharged battery can
cause permanent battery damage.
EAU42023
Replacing the fuse The fuse is located inside the battery
coupler. (See page 7-24.)
If the fuse is blown, replace it as fol-
lows.
1. Turn the key to “OFF” and turn off
all electrical circuits.
2. Disconnect the battery coupler.
3. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15131]
1. Fuse
2. Spare fuse
U1P684E0.book Page 25 Tuesday, April 28, 2009 10:22 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
7-26
74. Connect the battery coupler.
5. Turn the key to “ON”.
6. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU24350
Supporting the motorcycle Since this model is not equipped with a
centerstand, follow these precautions
when removing the front and rear
wheel or performing other maintenance
requiring the motorcycle to stand up-
right. Check that the motorcycle is in a
stable and level position before starting
any maintenance. A strong wooden
box can be placed under the engine for
added stability.
To service the front wheel
1. Stabilize the rear of the motorcycle
by using a motorcycle stand or, if
an additional motorcycle stand is
not available, by placing a jack un-
der the frame in front of the rear
wheel.
2. Raise the front wheel off the
ground by using a motorcycle
stand.
To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a motor-
cycle stand is not available, by placinga jack either under each side of the
frame in front of the rear wheel or under
each side of the swingarm.
Specified fuse:
10.0 A
U1P684E0.book Page 26 Tuesday, April 28, 2009 10:22 AM

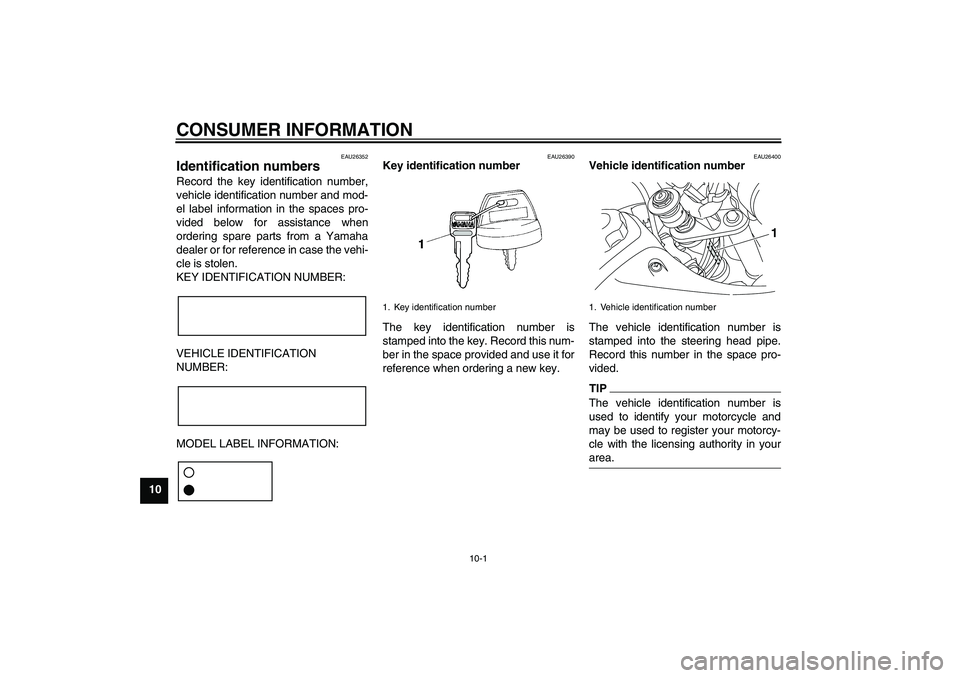

CONSUMER INFORMATION
10-1
10
EAU26352
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26390
Key identification number
The key identification number is
stamped into the key. Record this num-
ber in the space provided and use it for
reference when ordering a new key.
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
1. Key identification number
1. Vehicle identification number
1
U1P684E0.book Page 1 Tuesday, April 28, 2009 10:22 AM

INDEXAAir filter element, cleaning....................... 7-8BBattery................................................... 7-24
Brake lever .............................................. 4-3
Brake lever, checking and lubricating ... 7-21
Brake lever free play, adjusting............. 7-16
Brake pedal ............................................. 4-3
Brake pedal, checking and
lubricating ........................................... 7-21
Brake pedal free play, adjusting............ 7-16
Brake shoes, checking .......................... 7-17CCables, checking and lubricating .......... 7-20
Carburetor, adjusting ............................ 7-11
Care ........................................................ 8-1
Clutch free play, adjusting..................... 7-15DDrive chain, cleaning and lubricating .... 7-20
Drive chain slack ................................... 7-18EEngine break-in ....................................... 6-3
Engine idling speed............................... 7-11
Engine oil ................................................ 7-7
Engine, starting a warm .......................... 6-2
Engine stop switch .................................. 4-2FFront fork, checking .............................. 7-22
Fuel ......................................................... 4-4
Fuel cock................................................. 4-6
Fuel tank breather hose .......................... 4-6
Fuel tank cap .......................................... 4-4
Fuse, replacing ..................................... 7-25
HHandlebar switches ................................ 4-1IIdentification numbers .......................... 10-1KKey identification number ..................... 10-1LLabels, location....................................... 1-1MMain switch ............................................. 4-1
Maintenance and lubrication, periodic .... 7-3
Maintenance, emission control system... 7-2
Matte color, caution ................................ 8-1
Model label ........................................... 10-2PParking ................................................... 6-4
Part locations .......................................... 3-1SSafety information................................... 2-1
Seat ........................................................ 4-7
Shifting.................................................... 6-2
Shift pedal............................................... 4-3
Shift pedal, checking ............................ 7-17
Sidestand................................................ 4-8
Sidestand, checking and lubricating ..... 7-22
Spark arrester, cleaning ....................... 7-10
Spark plug, checking .............................. 7-6
Specifications ......................................... 9-1
Speed limiter........................................... 4-2
Starter (choke) lever ............................... 4-7
Starting and warming up a cold
engine .................................................. 6-1
Starting circuit cut-off system ................. 4-8
Start switch ............................................. 4-2Steering, checking................................. 7-23
Storage.................................................... 8-3
Supporting the motorcycle .................... 7-26
Swingarm pivots, lubricating ................. 7-22
TThrottle cable free play, adjusting ......... 7-12
Throttle grip and cable, checking and
lubricating ........................................... 7-21
Tires ...................................................... 7-13
Troubleshooting .................................... 7-30
Troubleshooting chart ........................... 7-31VValve clearance..................................... 7-13
Vehicle Emission Control Information
label (For Canada) .............................. 10-2
Vehicle identification number ................ 10-1WWheel bearings, checking ..................... 7-23
Wheel (front) ......................................... 7-27
Wheel (rear) .......................................... 7-28
Wheels .................................................. 7-14
U1P684E0.book Page 1 Tuesday, April 28, 2009 10:22 AM
