Page 51 of 82

YAMAHA TTR90 2007 Workshop Manual PERIODIC MAINTENANCE AND MINOR REPAIR
6-13
6
EAU39930
Adjusting the carburetor The carburetor is an important part of
the engine and requires very sophisti-
cated adjustment. Therefore, most car-
bure

Page 52 of 82

YAMAHA TTR90 2007 Workshop Manual PERIODIC MAINTENANCE AND MINOR REPAIR
6-14
6
EAU21370
Adjusting the throttle cable
free play The throttle cable free play should mea-
sure 3.0–5.0 mm (0.12–0.20 in) at the
throttle grip. Periodic

Page 53 of 82

YAMAHA TTR90 2007 Workshop Manual PERIODIC MAINTENANCE AND MINOR REPAIR
6-15
6
EAU39820
Tires To maximize the performance, durabil-
ity, and safe operation of your motor-
cycle, note the following points
regarding the specified tires.

Page 54 of 82

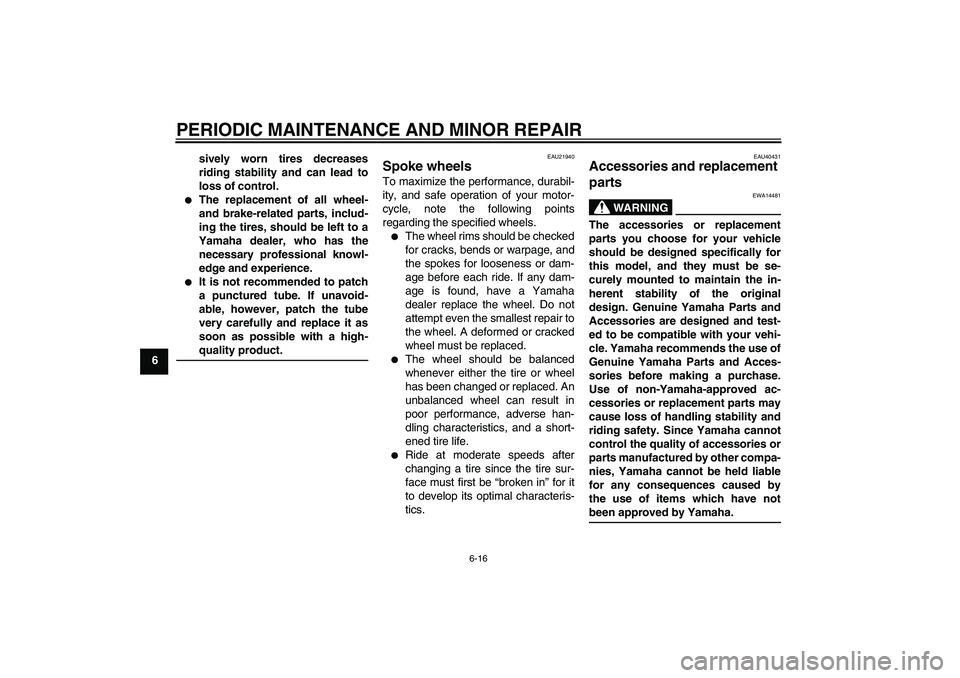

YAMAHA TTR90 2007 Workshop Manual PERIODIC MAINTENANCE AND MINOR REPAIR
6-16
6sively worn tires decreases
riding stability and can lead to
loss of control.

The replacement of all wheel-
and brake-related parts, includ-
ing the tires

Page 55 of 82

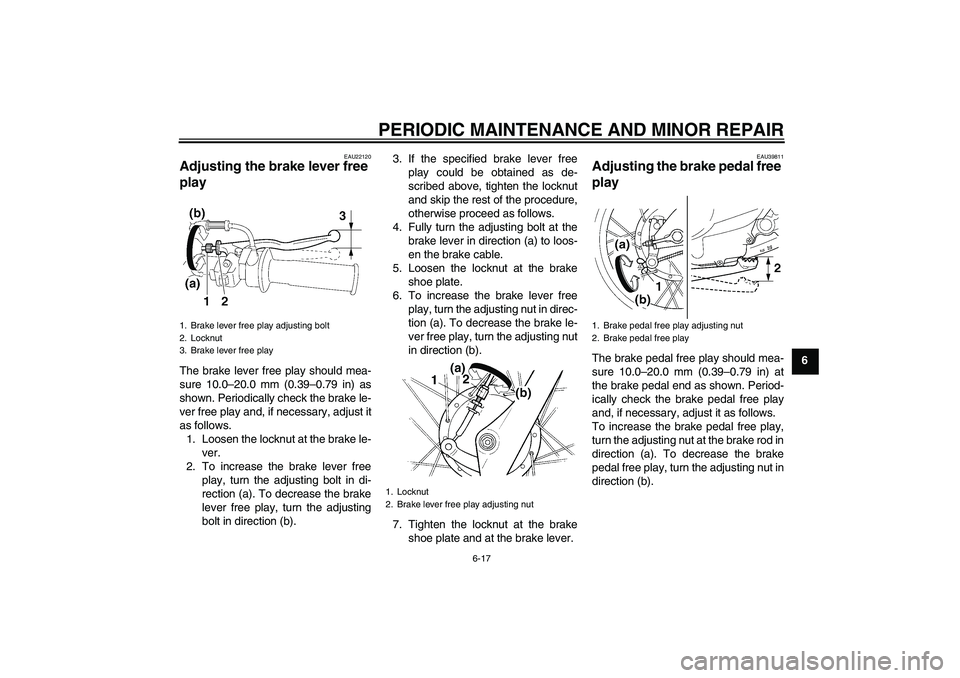

YAMAHA TTR90 2007 Workshop Manual PERIODIC MAINTENANCE AND MINOR REPAIR
6-17
6
EAU22120
Adjusting the brake lever free
play The brake lever free play should mea-
sure 10.0–20.0 mm (0.39–0.79 in) as
shown. Periodically check the b

Page 56 of 82

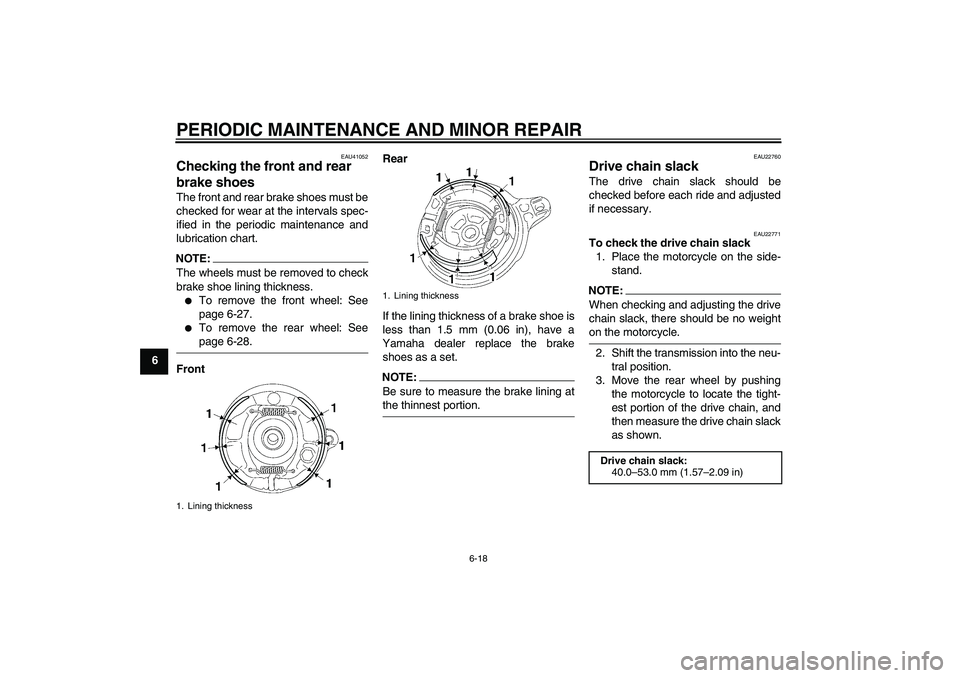

YAMAHA TTR90 2007 Workshop Manual PERIODIC MAINTENANCE AND MINOR REPAIR
6-18
6
EAU41052
Checking the front and rear
brake shoes The front and rear brake shoes must be
checked for wear at the intervals spec-
ified in the periodic main

Page 57 of 82

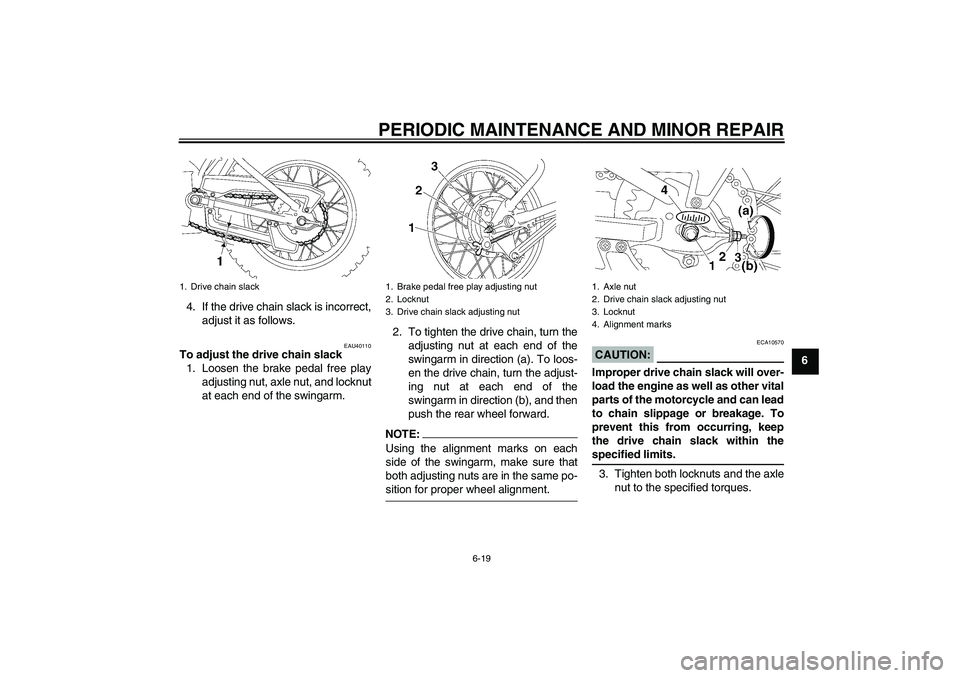

YAMAHA TTR90 2007 Workshop Manual PERIODIC MAINTENANCE AND MINOR REPAIR
6-19
6 4. If the drive chain slack is incorrect,
adjust it as follows.
EAU40110
To adjust the drive chain slack
1. Loosen the brake pedal free play
adjusting nut,

Page 58 of 82

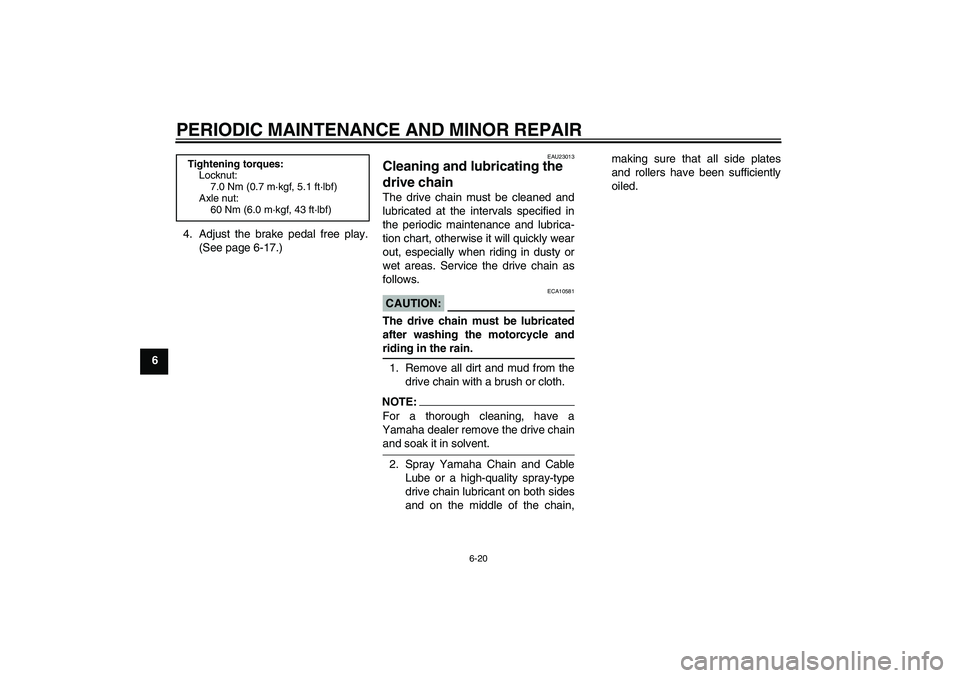

YAMAHA TTR90 2007 Workshop Manual PERIODIC MAINTENANCE AND MINOR REPAIR
6-20
64. Adjust the brake pedal free play.
(See page 6-17.)
EAU23013
Cleaning and lubricating the
drive chain The drive chain must be cleaned and
lubricated at t

Page 59 of 82

YAMAHA TTR90 2007 Workshop Manual PERIODIC MAINTENANCE AND MINOR REPAIR
6-21
6
EAU23090
Checking and lubricating the
cables The operation of all control cables and
the condition of the cables should be
checked before each ride, and t

Page 60 of 82

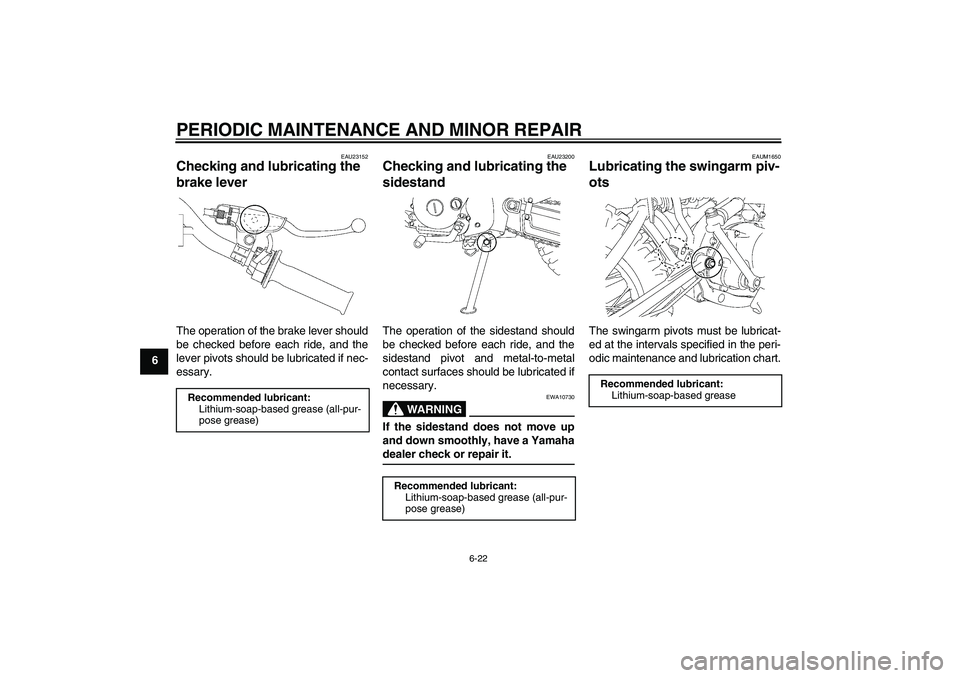

YAMAHA TTR90 2007 Workshop Manual PERIODIC MAINTENANCE AND MINOR REPAIR
6-22
6
EAU23152
Checking and lubricating the
brake lever The operation of the brake lever should
be checked before each ride, and the
lever pivots should be lubr
