MOTORCYCLE CARE AND STORAGE
7-1
7
EAU40461
Care While the open design of a motorcycle
reveals the attractiveness of the tech-
nology, it also makes it more vulnera-
ble. Rust and corrosion can develop
even if high-quality components are
used. A rusty exhaust pipe may go un-
noticed on a car, however, it detracts
from the overall appearance of a motor-
cycle. Frequent and proper care does
not only comply with the terms of the
warranty, but it will also keep your
motorcycle looking good, extend its life
and optimize its performance.
Before cleaning
1. Cover the muffler outlet with a
plastic bag after the engine has
cooled down.
2. Make sure that all caps and covers
as well as all electrical couplers
and connectors, including the
spark plug cap, are tightly in-
stalled.
3. Remove extremely stubborn dirt,
like oil burnt onto the crankcase,
with a degreasing agent and a
brush, but never apply such prod-ucts onto seals, gaskets, sprock-
ets, the drive chain and wheel
axles. Always rinse the dirt and de-
greaser off with water.
Cleaning
CAUTION:
ECA10770


Avoid using strong acidic wheel
cleaners, especially on spoked
wheels. If such products are
used on hard-to-remove dirt, do
not leave the cleaner on the af-
fected area any longer than in-
structed. Also, thoroughly rinse
the area off with water, immedi-
ately dry it, and then apply a cor-
rosion protection spray.


Improper cleaning can damage
windshields, cowlings, panels
and other plastic parts. Use only
a soft, clean cloth or sponge
with mild detergent and water to
clean plastic.


Do not use any harsh chemical
products on plastic parts. Be
sure to avoid using cloths or
sponges which have been in
contact with strong or abrasivecleaning products, solvent or
thinner, fuel (gasoline), rust re-
movers or inhibitors, brake flu-
id, antifreeze or electrolyte.


Do not use high-pressure wash-
ers or steam-jet cleaners since
they cause water seepage and
deterioration in the following ar-
eas: seals (of wheel and swing-
arm bearings, fork and brakes),
electric components (couplers,
connectors, instruments,
switches and lights), breather
hoses and vents.


For motorcycles equipped with
a windshield: Do not use strong
cleaners or hard sponges as
they will cause dulling or
scratching. Some cleaning com-
pounds for plastic may leave
scratches on the windshield.
Test the product on a small hid-
den part of the windshield to
make sure that it does not leave
any marks. If the windshield is
scratched, use a quality plastic
polishing compound afterwashing.
U3P281E0.book Page 1 Monday, April 17, 2006 11:26 AM

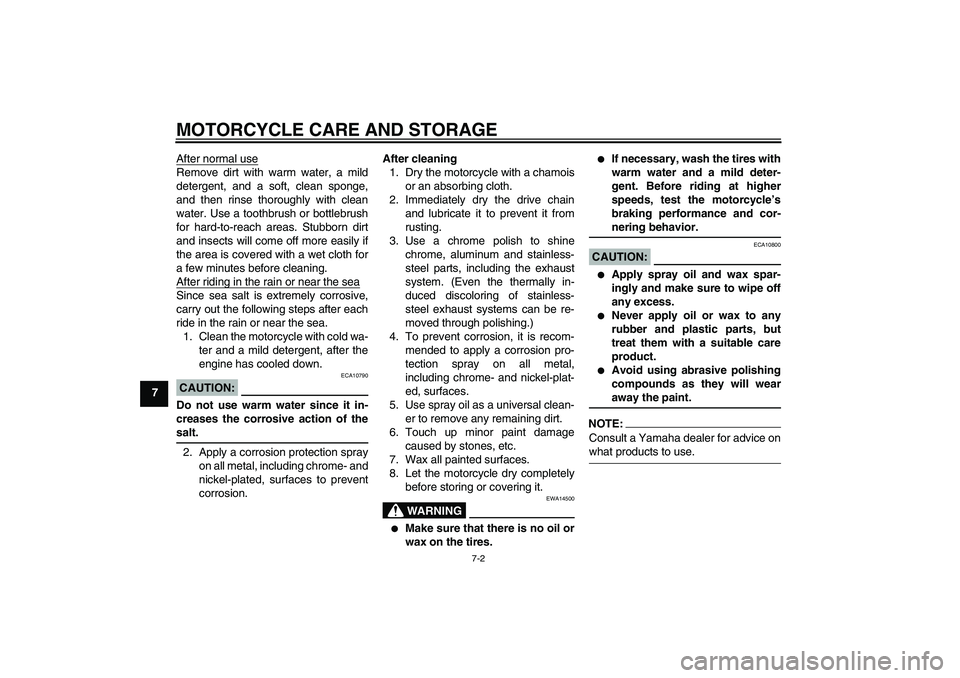

MOTORCYCLE CARE AND STORAGE
7-2
7After normal use
Remove dirt with warm water, a mild
detergent, and a soft, clean sponge,
and then rinse thoroughly with clean
water. Use a toothbrush or bottlebrush
for hard-to-reach areas. Stubborn dirt
and insects will come off more easily if
the area is covered with a wet cloth for
a few minutes before cleaning.
After riding in the rain or near the seaSince sea salt is extremely corrosive,
carry out the following steps after each
ride in the rain or near the sea.
1. Clean the motorcycle with cold wa-
ter and a mild detergent, after the
engine has cooled down.CAUTION:
ECA10790
Do not use warm water since it in-
creases the corrosive action of thesalt.
2. Apply a corrosion protection spray
on all metal, including chrome- and
nickel-plated, surfaces to prevent
corrosion.After cleaning
1. Dry the motorcycle with a chamois
or an absorbing cloth.
2. Immediately dry the drive chain
and lubricate it to prevent it from
rusting.
3. Use a chrome polish to shine
chrome, aluminum and stainless-
steel parts, including the exhaust
system. (Even the thermally in-
duced discoloring of stainless-
steel exhaust systems can be re-
moved through polishing.)
4. To prevent corrosion, it is recom-
mended to apply a corrosion pro-
tection spray on all metal,
including chrome- and nickel-plat-
ed, surfaces.
5. Use spray oil as a universal clean-
er to remove any remaining dirt.
6. Touch up minor paint damage
caused by stones, etc.
7. Wax all painted surfaces.
8. Let the motorcycle dry completely
before storing or covering it.
WARNING
EWA14500


Make sure that there is no oil or
wax on the tires.


If necessary, wash the tires with
warm water and a mild deter-
gent. Before riding at higher
speeds, test the motorcycle’s
braking performance and cor-nering behavior.
CAUTION:
ECA10800


Apply spray oil and wax spar-
ingly and make sure to wipe off
any excess.


Never apply oil or wax to any
rubber and plastic parts, but
treat them with a suitable care
product.


Avoid using abrasive polishing
compounds as they will wearaway the paint.
NOTE:Consult a Yamaha dealer for advice onwhat products to use.
U3P281E0.book Page 2 Monday, April 17, 2006 11:26 AM

MOTORCYCLE CARE AND STORAGE
7-3
7
EAU40651
Storage [TT-R90(W)]Short-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover.CAUTION:
ECA10810


Storing the motorcycle in a
poorly ventilated room or cover-
ing it with a tarp, while it is still
wet, will allow water and humid-
ity to seep in and cause rust.


To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-cals are stored.
Long-term
Before storing your motorcycle for sev-
eral months:
1. Follow all the instructions in the
“Care” section of this chapter.
2. For motorcycles equipped with a
fuel cock that has an “OFF” posi-
tion: Turn the fuel cock lever to
“OFF”.3. Drain the carburetor float chamber
by loosening the drain bolt; this will
prevent fuel deposits from building
up. Pour the drained fuel into the
fuel tank.
4. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
5. Perform the following steps to pro-
tect the cylinder, piston rings, etc.
from corrosion.
a. Remove the spark plug cap
and spark plug.
b. Pour a teaspoonful of engine oil
into the spark plug bore.
c. Install the spark plug cap onto
the spark plug, and then place
the spark plug on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder wall with oil.)
e. Remove the spark plug cap
from the spark plug, and then
install the spark plug and the
spark plug cap.
WARNING
EWA10950
To prevent damage or injury from
sparking, make sure to ground the
spark plug electrodes while turningthe engine over.
6. Lubricate all control cables and the
pivoting points of all levers and
pedals as well as of the sidestand.
7. Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
8. Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.NOTE:Make any necessary repairs beforestoring the motorcycle.
U3P281E0.book Page 3 Monday, April 17, 2006 11:26 AM

MOTORCYCLE CARE AND STORAGE
7-4
7
EAU26150
Storage [TT-R90E(W)]Short-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover.CAUTION:
ECA10810


Storing the motorcycle in a
poorly ventilated room or cover-
ing it with a tarp, while it is still
wet, will allow water and humid-
ity to seep in and cause rust.


To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-cals are stored.
Long-term
Before storing your motorcycle for sev-
eral months:
1. Follow all the instructions in the
“Care” section of this chapter.
2. For motorcycles equipped with a
fuel cock that has an “OFF” posi-
tion: Turn the fuel cock lever to
“OFF”.3. Drain the carburetor float chamber
by loosening the drain bolt; this will
prevent fuel deposits from building
up. Pour the drained fuel into the
fuel tank.
4. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
5. Perform the following steps to pro-
tect the cylinder, piston rings, etc.
from corrosion.
a. Remove the spark plug cap
and spark plug.
b. Pour a teaspoonful of engine oil
into the spark plug bore.
c. Install the spark plug cap onto
the spark plug, and then place
the spark plug on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder wall with oil.)
e. Remove the spark plug cap
from the spark plug, and then
install the spark plug and the
spark plug cap.
WARNING
EWA10950
To prevent damage or injury from
sparking, make sure to ground the
spark plug electrodes while turningthe engine over.
6. Lubricate all control cables and the
pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.
7. Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
8. Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.
9. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0 °C (30 °F) or more than 30
U3P281E0.book Page 4 Monday, April 17, 2006 11:26 AM

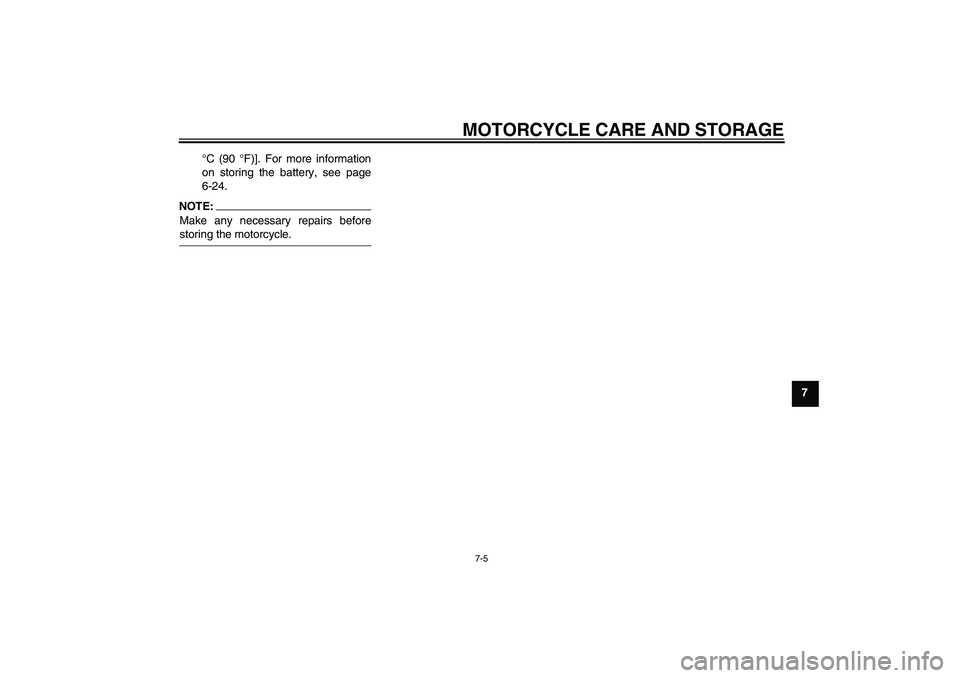

MOTORCYCLE CARE AND STORAGE
7-5
7 °C (90 °F)]. For more information
on storing the battery, see page
6-24.
NOTE:Make any necessary repairs beforestoring the motorcycle.
U3P281E0.book Page 5 Monday, April 17, 2006 11:26 AM

SPECIFICATIONS
8-1
8
Dimensions:Overall length:
TT-R90 1525 mm (60.0 in)
(AUS)(AUT)(BEL)(CHE)(DEU)(DNK)(ESP
)(FIN)(FRA)(GBR)(GRC)(IRL)(NLD)(NOR)
(NZL)(PRT)(SWE)(ZAF)
TT-R90 1550 mm (61.0 in) (CAN)
TT-R90E 1525 mm (60.0 in)
(AUS)(AUT)(BEL)(CHE)(DEU)(DNK)(ESP
)(FIN)(FRA)(GBR)(GRC)(IRL)(NLD)(NOR)
(NZL)(PRT)(SWE)(ZAF)
TT-R90E 1550 mm (61.0 in) (CAN)
Overall width:
605 mm (23.8 in)
Overall height:
865 mm (34.1 in)
Seat height:
625 mm (24.6 in)
Wheelbase:
1040 mm (40.9 in)
Ground clearance:
TT-R90 160 mm (6.30 in) (CAN)
TT-R90 172 mm (6.77 in)
(AUS)(AUT)(BEL)(CHE)(DEU)(DNK)(ESP
)(FIN)(FRA)(GBR)(GRC)(IRL)(NLD)(NOR)
(NZL)(PRT)(SWE)(ZAF)
TT-R90E 160 mm (6.30 in) (CAN)
TT-R90E 172 mm (6.77 in)
(AUS)(AUT)(BEL)(CHE)(DEU)(DNK)(ESP
)(FIN)(FRA)(GBR)(GRC)(IRL)(NLD)(NOR)
(NZL)(PRT)(SWE)(ZAF)
Minimum turning radius:
1300 mm (51.2 in)
Weight:With oil and fuel:
TT-R90 64.0 kg (141 lb)
TT-R90E 67.0 kg (148 lb)Engine:Engine type:
Air cooled 4-stroke, SOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
89.0 cm³ (5.43 cu.in)
Bore × stroke:
47.0 × 51.8 mm (1.85 × 2.04 in)
Compression ratio:
8.50 :1
Starting system:
TT-R90 Kickstarter
TT-R90E Electric starter and kickstarter
Lubrication system:
Wet sumpEngine oil:Type:
TT-R90 SAE10W30 or SAE10W40 or
SAE15W40 or SAE20W40 or SAE20W50
(AUS)(AUT)(BEL)(CHE)(DEU)(DNK)(ESP
)(FIN)(FRA)(GBR)(GRC)(IRL)(NLD)(NOR)
(NZL)(PRT)(SWE)(ZAF)
TT-R90 YAMALUBE 4, SAE10W30 or
SAE20W40 (CAN)
TT-R90E SAE10W30 or SAE10W40 or
SAE15W40 or SAE20W40 or SAE20W50
(AUS)(AUT)(BEL)(CHE)(DEU)(DNK)(ESP
)(FIN)(FRA)(GBR)(GRC)(IRL)(NLD)(NOR)(NZL)(PRT)(SWE)(ZAF)
TT-R90E YAMALUBE 4, SAE10W30 or
SAE20W40 (CAN)
Recommended engine oil grade:
API service SE, SF, SG type or higher
Engine oil quantity:
Periodic oil change:
0.80 L (0.85 US qt) (0.70 Imp.qt)
Air filter:Air filter element:
Wet element
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40
10° 30° 50° 70° 90°
110°
0°
130°F
YAMALUBE 4 (10W30)
or SAE 10W30
YAMALUBE 4 (20W40)
or SAE 20W40
–10° 0° 10° 20° 30°
40° –20°
50°C
U3P281E0.book Page 1 Monday, April 17, 2006 11:26 AM

SPECIFICATIONS
8-2
8
Fuel:Recommended fuel:
TT-R90 Regular unleaded gasoline only
(AUT)(BEL)(CAN)(CHE)(DEU)(DNK)(ESP
)(FIN)(FRA)(GBR)(GRC)(IRL)(NLD)(NOR)
(PRT)(SWE)(ZAF)
TT-R90 Unleaded gasoline only
(AUS)(NZL)
TT-R90E Regular unleaded gasoline only
(AUT)(BEL)(CAN)(CHE)(DEU)(DNK)(ESP
)(FIN)(FRA)(GBR)(GRC)(IRL)(NLD)(NOR)
(PRT)(SWE)(ZAF)
TT-R90E Unleaded gasoline only
(AUS)(NZL)
Fuel tank capacity:
4.2 L (1.11 US gal) (0.92 Imp.gal)
Fuel reserve amount:
0.5 L (0.13 US gal) (0.11 Imp.gal)Carburetor:Manufacturer:
MIKUNI
Type × quantity:
VM16SH x 1Spark plug (s):Manufacturer/model:
NGK/CR6HSA
Manufacturer/model:
DENSO/U20FSR-U
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)Clutch:Clutch type:
Wet, multiple-disc and centrifugal
automatic
Transmission:Primary reduction system:
Spur gear
Primary reduction ratio:
67/18 (3.722)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
35/14 (2.500)
Transmission type:
Constant mesh 3-speed
Operation:
Left foot operation
Gear ratio:
1st:
37/13 (2.846)
2nd:
33/19 (1.736)
3rd:
28/23 (1.217)Chassis:Frame type:
Steel tube backbone
Caster angle:
24.83 °
Trail:
56.0 mm (2.20 in)Front tire:Type:
With tube
Size:
2.50-14 4PR
Manufacturer/model:
CHENG SHIN/KNOBBY
Rear tire:Type:
With tube
Size:
3.00-12 4PR
Manufacturer/model:
CHENG SHIN/KNOBBYTire air pressure (measured on cold
tires):
Front:
100 kPa (15 psi) (1.00 kgf/cm²)
Rear:
100 kPa (15 psi) (1.00 kgf/cm²)
Front wheel:Wheel type:
Spoke wheel
Rim size:
14x1.40Rear wheel:Wheel type:
Spoke wheel
Rim size:
12x1.60Front brake:Type:
Drum brake
Operation:
Right hand operationRear brake:Type:
Drum brake
Operation:
Right foot operation
U3P281E0.book Page 2 Monday, April 17, 2006 11:26 AM

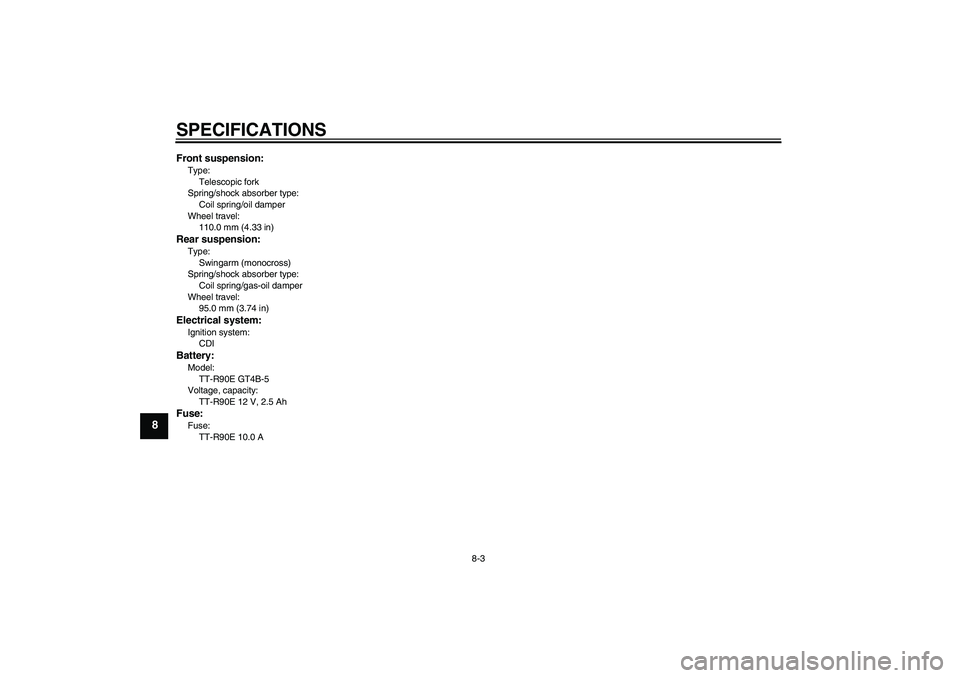

SPECIFICATIONS
8-3
8
Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
110.0 mm (4.33 in)Rear suspension:Type:
Swingarm (monocross)
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
95.0 mm (3.74 in)Electrical system:Ignition system:
CDIBattery:Model:
TT-R90E GT4B-5
Voltage, capacity:
TT-R90E 12 V, 2.5 AhFuse:Fuse:
TT-R90E 10.0 A
U3P281E0.book Page 3 Monday, April 17, 2006 11:26 AM

CONSUMER INFORMATION
9-1
9
EAU26351
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
TT-R90E(W)
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26390
Key identification number
[TT-R90E(W)]
The key identification number is
stamped into the key. Record this num-
ber in the space provided and use it for
reference when ordering a new key.
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.NOTE:
The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in yourarea.
1. Key identification number
1. Vehicle identification number
U3P281E0.book Page 1 Monday, April 17, 2006 11:26 AM

CONSUMER INFORMATION
9-2
9

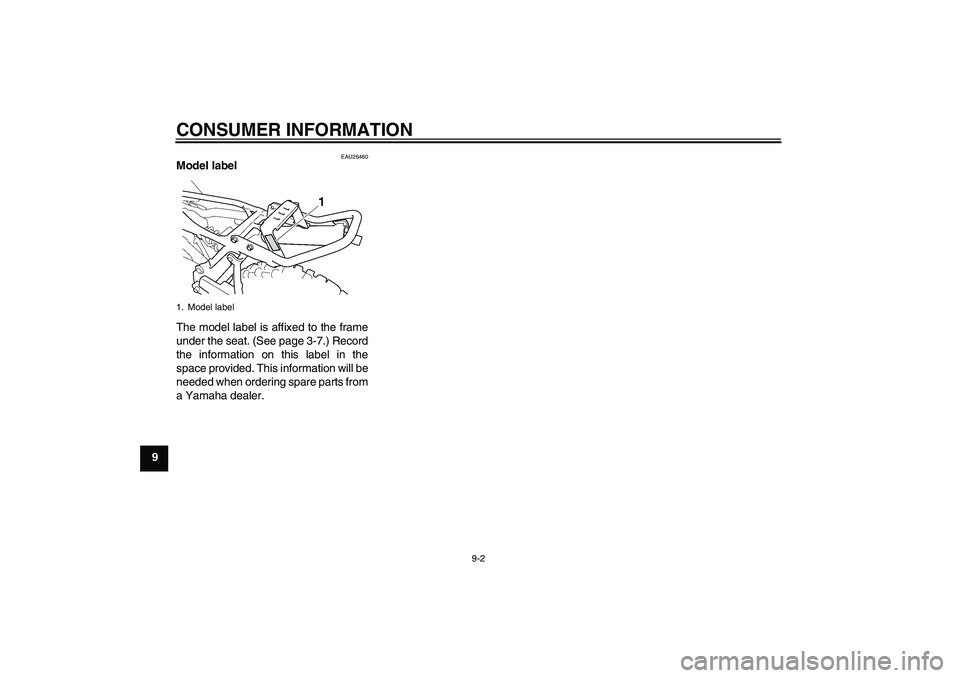

EAU26480
Model label
The model label is affixed to the frame
under the seat. (See page 3-7.) Record
the information on this label in the
space provided. This information will be
needed when ordering spare parts from
a Yamaha dealer.1. Model labelU3P281E0.book Page 2 Monday, April 17, 2006 11:26 AM
