PERIODIC MAINTENANCE AND MINOR REPAIR
6-23
6
EAU23271
Checking the front fork The condition and operation of the front
fork must be checked as follows at the
intervals specified in the periodic main-
tenance and lubrication chart.
To check the condition
WARNING
EWA10750
Securely support the vehicle so thatthere is no danger of it falling over.
Check the inner tubes for scratches,
damage and excessive oil leakage.
To check the operation
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.
2. While applying the front brake,
push down hard on the handlebars
several times to check if the front
fork compresses and rebounds
smoothly.
CAUTION:
ECA10590
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-pair it.
EAU23280
Checking the steering Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the pe-
riodic maintenance and lubrication
chart.
1. Place a stand under the engine to
raise the front wheel off the
ground.
WARNING
EWA10750
Securely support the vehicle so thatthere is no danger of it falling over.
2. Hold the lower ends of the front
fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steering.
U3P281E0.book Page 23 Monday, April 17, 2006 11:26 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-24
6
EAU23290
Checking the wheel bearings The front and rear wheel bearings must
be checked at the intervals specified in
the periodic maintenance and lubrica-
tion chart. If there is play in the wheel
hub or if the wheel does not turn
smoothly, have a Yamaha dealer check
the wheel bearings.
EAU34221
Battery [TT-R90E(W)]The battery is located behind cowling
A. (See page 6-6.)
This model is equipped with a sealed-
type (MF) battery, which does not re-
quire any maintenance. There is no
need to check the electrolyte or to add
distilled water.
WARNING
EWA10760


Electrolyte is poisonous and
dangerous since it contains sul-
furic acid, which causes severe
burns. Avoid any contact with
skin, eyes or clothing and al-
1. Battery coupler
2. Battery
3. Battery band
U3P281E0.book Page 24 Monday, April 17, 2006 11:26 AM

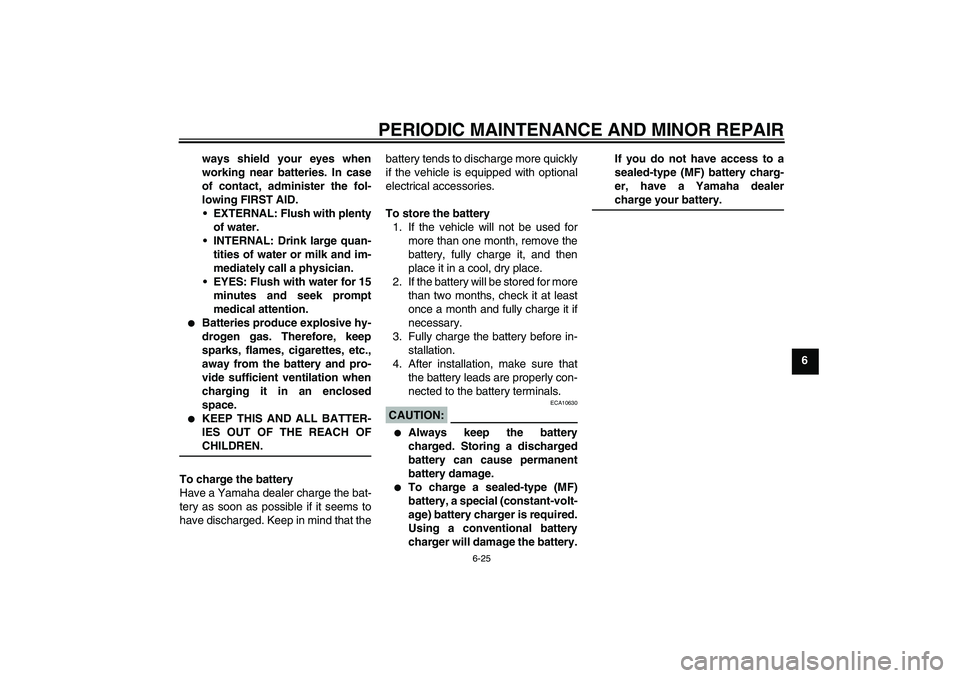

PERIODIC MAINTENANCE AND MINOR REPAIR
6-25
6 ways shield your eyes when
working near batteries. In case
of contact, administer the fol-
lowing FIRST AID.
EXTERNAL: Flush with plenty
of water.
INTERNAL: Drink large quan-
tities of water or milk and im-
mediately call a physician.
EYES: Flush with water for 15
minutes and seek prompt
medical attention.


Batteries produce explosive hy-
drogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and pro-
vide sufficient ventilation when
charging it in an enclosed
space.


KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OFCHILDREN.
To charge the battery
Have a Yamaha dealer charge the bat-
tery as soon as possible if it seems to
have discharged. Keep in mind that thebattery tends to discharge more quickly
if the vehicle is equipped with optional
electrical accessories.
To store the battery
1. If the vehicle will not be used for
more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
2. If the battery will be stored for more
than two months, check it at least
once a month and fully charge it if
necessary.
3. Fully charge the battery before in-
stallation.
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.
CAUTION:
ECA10630


Always keep the battery
charged. Storing a discharged
battery can cause permanent
battery damage.


To charge a sealed-type (MF)
battery, a special (constant-volt-
age) battery charger is required.
Using a conventional battery
charger will damage the battery.If you do not have access to a
sealed-type (MF) battery charg-
er, have a Yamaha dealer
charge your battery.
U3P281E0.book Page 25 Monday, April 17, 2006 11:26 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-26
6
EAU23490
Replacing the fuse
[TT-R90E(W)]The fuse box is located under the seat.
(See page 3-7.)
If the fuse is blown, replace it as fol-
lows.
1. Turn the key to “OFF” and turn off
all electrical circuits.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
CAUTION:
ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly afire.
3. Turn the key to “ON” and turn on
the electrical circuits to check if the
devices operate.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU24350
Supporting the motorcycle Since this model is not equipped with a
centerstand, follow these precautions
when removing the front and rear
wheel or performing other maintenance
requiring the motorcycle to stand up-
right. Check that the motorcycle is in a
stable and level position before starting
any maintenance. A strong wooden
box can be placed under the engine for
added stability.
To service the front wheel
1. Stabilize the rear of the motorcycle
by using a motorcycle stand or, if
an additional motorcycle stand is
not available, by placing a jack un-
der the frame in front of the rear
wheel.
2. Raise the front wheel off the
ground by using a motorcycle
stand.
To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a motor-
cycle stand is not available, by placing
1. Fuse
2. Spare fuseSpecified fuse:
TT-R90E 10.0 A
U3P281E0.book Page 26 Monday, April 17, 2006 11:26 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-27
6 a jack either under each side of the
frame in front of the rear wheel or under
each side of the swingarm.
EAU24360
Front wheel
EAU41810
To remove the front wheel
WARNING
EWA10820


It is advisable to have a Yamaha
dealer service the wheel.


Securely support the motor-
cycle so that there is no dangerof it falling over.
1. Loosen the locknut at the brake le-
ver, and then turn the adjusting
bolt fully in direction (a).
2. Loosen the axle nut.3. Lift the front wheel off the ground
according to the procedure on
page 6-26.
4. Remove the axle nut and washer.
5. Pull the wheel axle out, and then
remove the wheel.
1. Locknut
2. Brake lever free play adjusting bolt
1. Axle nut
2. Washer
1. Wheel axle
U3P281E0.book Page 27 Monday, April 17, 2006 11:26 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-28
6
EAU41691
To install the front wheel
1. Lift the wheel up between the fork
legs.
2. Insert the wheel axle from the
right-hand side.NOTE:Make sure that the slot in the brake
shoe plate fits over the retainer on thefork leg.
3. Lower the front wheel so that it is
on the ground.
4. Install the washer and axle nut,
and then tighten the axle nut to the
specified torque.5. Adjust the brake lever free play.
(See page 6-17.)
6. While applying the front brake,
push down hard on the handlebar
several times to check for proper
fork operation.
EAU25080
Rear wheel
EAU41641
To remove the rear wheel
WARNING
EWA10820


It is advisable to have a Yamaha
dealer service the wheel.


Securely support the motor-
cycle so that there is no dangerof it falling over.
1. Disconnect the brake torque rod
from the brake shoe plate by re-
moving the cotter pin, the nut and
the bolt.
1. Slot
2. Retainer
Tightening torque:
Axle nut:
35 Nm (3.5 m·kgf, 25 ft·lbf)
1. Brake torque rod
2. Cotter pin
3. Brake torque rod bolt and nut
4. Brake shoe plate
U3P281E0.book Page 28 Monday, April 17, 2006 11:26 AM

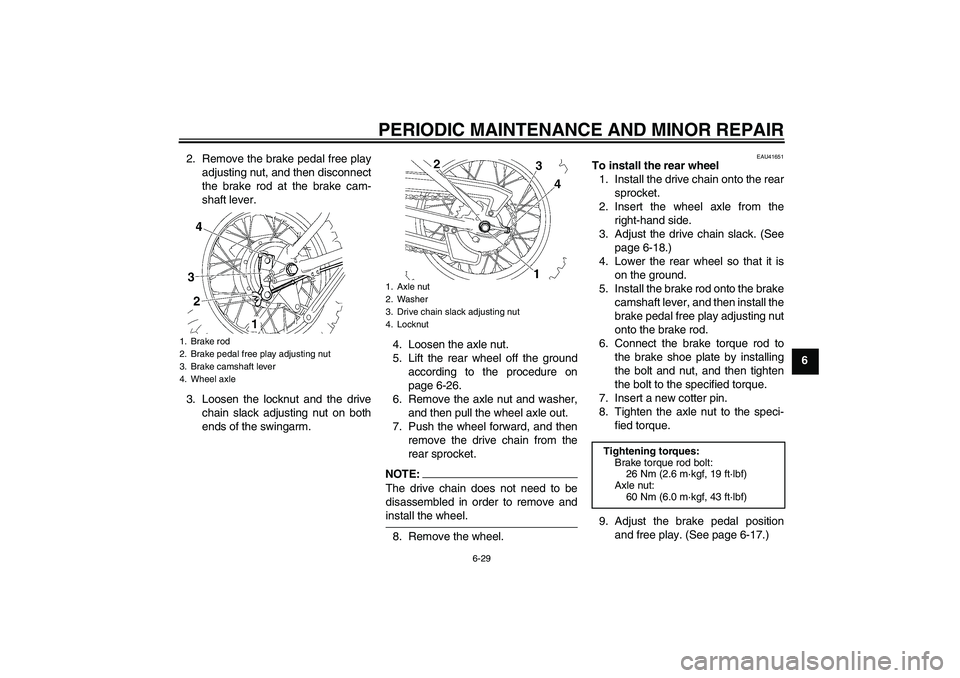

PERIODIC MAINTENANCE AND MINOR REPAIR
6-29
6 2. Remove the brake pedal free play
adjusting nut, and then disconnect
the brake rod at the brake cam-
shaft lever.
3. Loosen the locknut and the drive
chain slack adjusting nut on both
ends of the swingarm.4. Loosen the axle nut.
5. Lift the rear wheel off the ground
according to the procedure on
page 6-26.
6. Remove the axle nut and washer,
and then pull the wheel axle out.
7. Push the wheel forward, and then
remove the drive chain from the
rear sprocket.
NOTE:The drive chain does not need to be
disassembled in order to remove andinstall the wheel.
8. Remove the wheel.
EAU41651
To install the rear wheel
1. Install the drive chain onto the rear
sprocket.
2. Insert the wheel axle from the
right-hand side.
3. Adjust the drive chain slack. (See
page 6-18.)
4. Lower the rear wheel so that it is
on the ground.
5. Install the brake rod onto the brake
camshaft lever, and then install the
brake pedal free play adjusting nut
onto the brake rod.
6. Connect the brake torque rod to
the brake shoe plate by installing
the bolt and nut, and then tighten
the bolt to the specified torque.
7. Insert a new cotter pin.
8. Tighten the axle nut to the speci-
fied torque.
9. Adjust the brake pedal position
and free play. (See page 6-17.)
1. Brake rod
2. Brake pedal free play adjusting nut
3. Brake camshaft lever
4. Wheel axle
1. Axle nut
2. Washer
3. Drive chain slack adjusting nut
4. Locknut
Tightening torques:
Brake torque rod bolt:
26 Nm (2.6 m·kgf, 19 ft·lbf)
Axle nut:
60 Nm (6.0 m·kgf, 43 ft·lbf)
U3P281E0.book Page 29 Monday, April 17, 2006 11:26 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-30
6
WARNING
EWA10660
After adjusting the brake pedal free
play, check the operation of thebrake light.
EAU25850
Troubleshooting Although Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur dur-
ing operation. Any problem in the fuel,
compression, or ignition systems, for
example, can cause poor starting and
loss of power.
The following troubleshooting chart
represents a quick and easy procedure
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look like
Yamaha parts, but they are often inferi-
or, have a shorter service life and can
lead to expensive repair bills.
U3P281E0.book Page 30 Monday, April 17, 2006 11:26 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-31
6
EAU25971
Troubleshooting chart [TT-R90(W)]
WARNING
EWA10840
Keep away open flames and do not smoke while checking or working on the fuel system.
Check the fuel level in
the fuel tank.1. Fuel
There is
enough fuel.
There is
no fuel.
Supply fuel.
Operate the kickstarter.2. Compression
There is compression.
There is
no compression.Check the ignition.
Have a Yamaha dealer
check the vehicle.
Remove the spark plug
and check the electrodes.3. Ignition
Wet
DryWipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug.
Have a Yamaha dealer check the vehicle.The engine does not start.
Have a Yamaha dealer check the vehicle.
Open the throttle halfway and operate
the kickstarter.
Check the compression.
The engine does not start.
Check the compression.
U3P281E0.book Page 31 Monday, April 17, 2006 11:26 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-32
6
EAU25901
Troubleshooting chart [TT-R90E(W)]
WARNING
EWA10840
Keep away open flames and do not smoke while checking or working on the fuel system.
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the electric starter.2. Compression
There is compression.
There is no compression.
Check the ignition.
Have a Yamaha dealer
check the vehicle.
Remove the spark plug
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug.
Have a Yamaha dealer check the vehicle.
The engine does not start.
Have a Yamaha dealer
check the vehicle.
The engine does not start.
Check the battery.
Operate the electric starter.4. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the battery lead connections,
and charge the battery if necessary.
DryWet
Open the throttle halfway and operate
the electric starter.
U3P281E0.book Page 32 Monday, April 17, 2006 11:26 AM
