YAMAHA TZR50 2008 Owners Manual
Manufacturer: YAMAHA, Model Year: 2008, Model line: TZR50, Model: YAMAHA TZR50 2008Pages: 78, PDF Size: 1.63 MB
Page 1 of 78
5WX-F8199-E2
TZR50
OWNER’S MANUAL
5WX-F8199-E2.qxd 29/05/2006 14:23 Página 1
Page 2 of 78
5WX-F8199-E2.qxd 29/05/2006 14:23 Página 2
Page 3 of 78

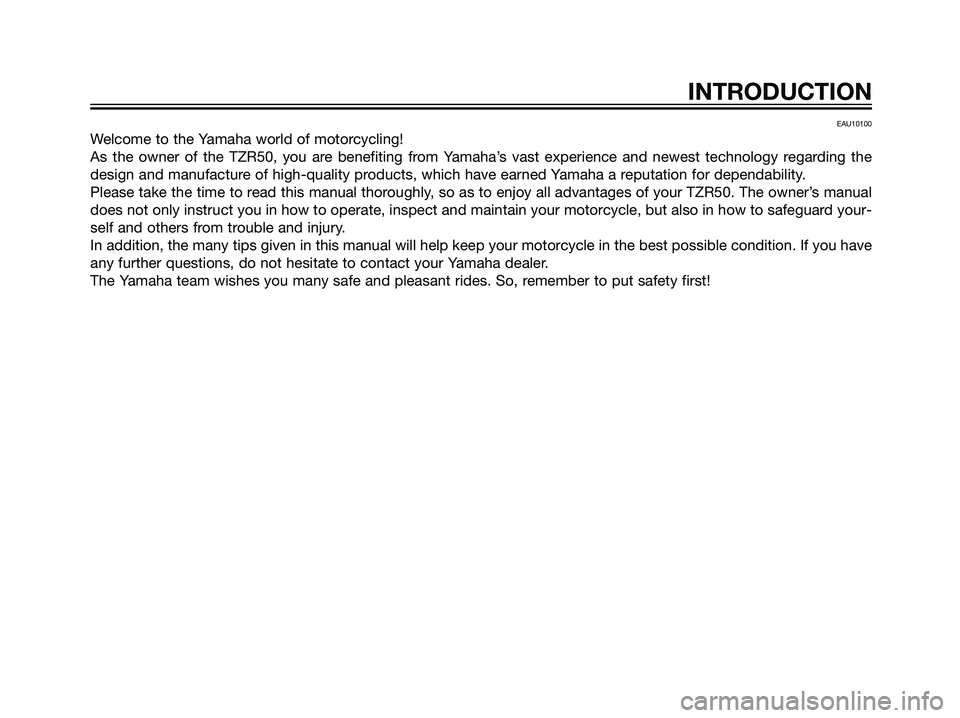

EAU10100
Welcome to the Yamaha world of motorcycling!
As the owner of the TZR50, you are benefiting from Yamaha’s vast experience and newest technology regarding the
design and manufacture of high-quality products, which have earned Yamaha a reputation for dependability.
Please take the time to read this manual thoroughly, so as to enjoy all advantages of your TZR50. The owner’s manual
does not only instruct you in how to operate, inspect and maintain your motorcycle, but also in how to safeguard your-
self and others from trouble and injury.
In addition, the many tips given in this manual will help keep your motorcycle in the best possible condition. If you have
any further questions, do not hesitate to contact your Yamaha dealer.
The Yamaha team wishes you many safe and pleasant rides. So, remember to put safety first!
INTRODUCTION
5WX-F8199-E2.qxd 29/05/2006 14:23 Página 3
Page 4 of 78

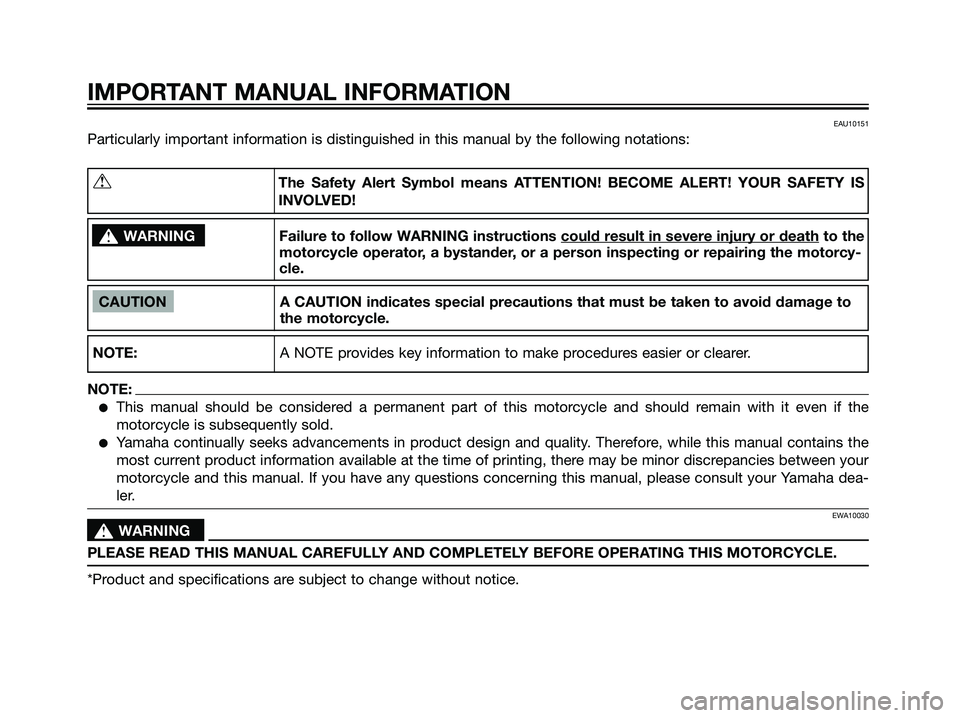

EAU10151
Particularly important information is distinguished in this manual by the following notations:
IMPORTANT MANUAL INFORMATION
CAUTION A CAUTION indicates special precautions that must be taken to avoid damage to
the motorcycle.
NOTE:A NOTE provides key information to make procedures easier or clearer.
NOTE:
This manual should be considered a permanent part of this motorcycle and should remain with it even if the
motorcycle is subsequently sold.
Yamaha continually seeks advancements in product design and quality. Therefore, while this manual contains the
most current product information available at the time of printing, there may be minor discrepancies between your
motorcycle and this manual. If you have any questions concerning this manual, please consult your Yamaha dea-
ler.
EWA10030
s s
WARNING
PLEASE READ THIS MANUAL CAREFULLY AND COMPLETELY BEFORE OPERATING THIS MOTORCYCLE.
*Product and specifications are subject to change without notice.
s s
WARNINGFailure to follow WARNING instructions could result in severe injury or deathto the
motorcycle operator, a bystander, or a person inspecting or repairing the motorcy-
cle.
The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS
INVOLVED!t
5WX-F8199-E2.qxd 29/05/2006 14:23 Página 4
Page 5 of 78

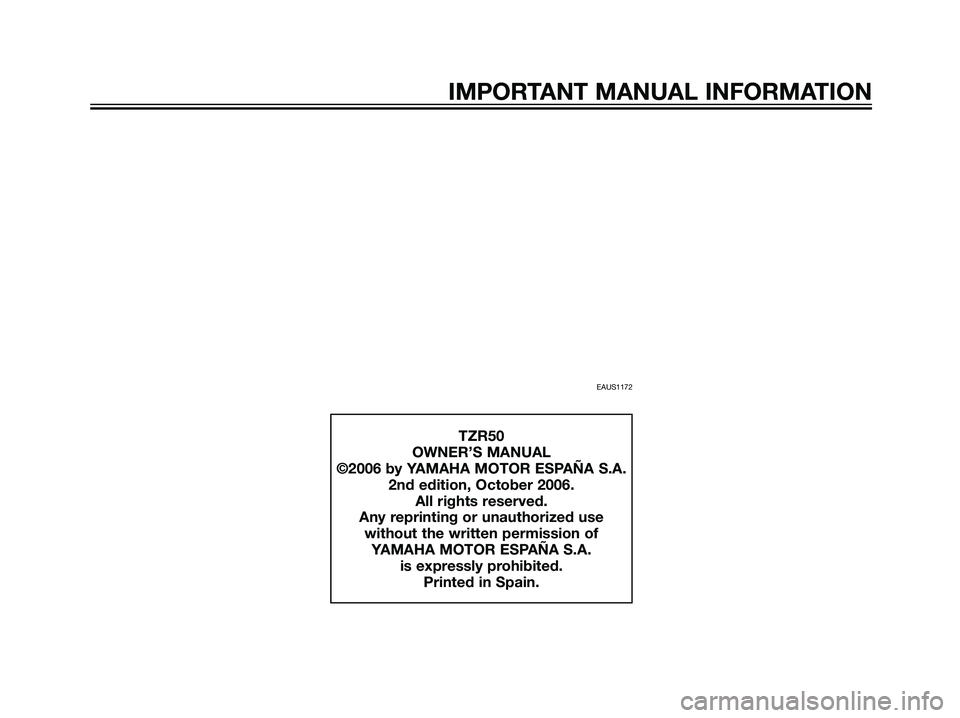

IMPORTANT MANUAL INFORMATION
EAUS1172
TZR50
OWNER’S MANUAL
©2006 by YAMAHA MOTOR ESPAÑA S.A.
2nd edition, October 2006.
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
YAMAHA MOTOR ESPAÑA S.A.
is expressly prohibited.
Printed in Spain.
5WX-F8199-E2.qxd 13/9/06 11:01 Página 5
Page 6 of 78

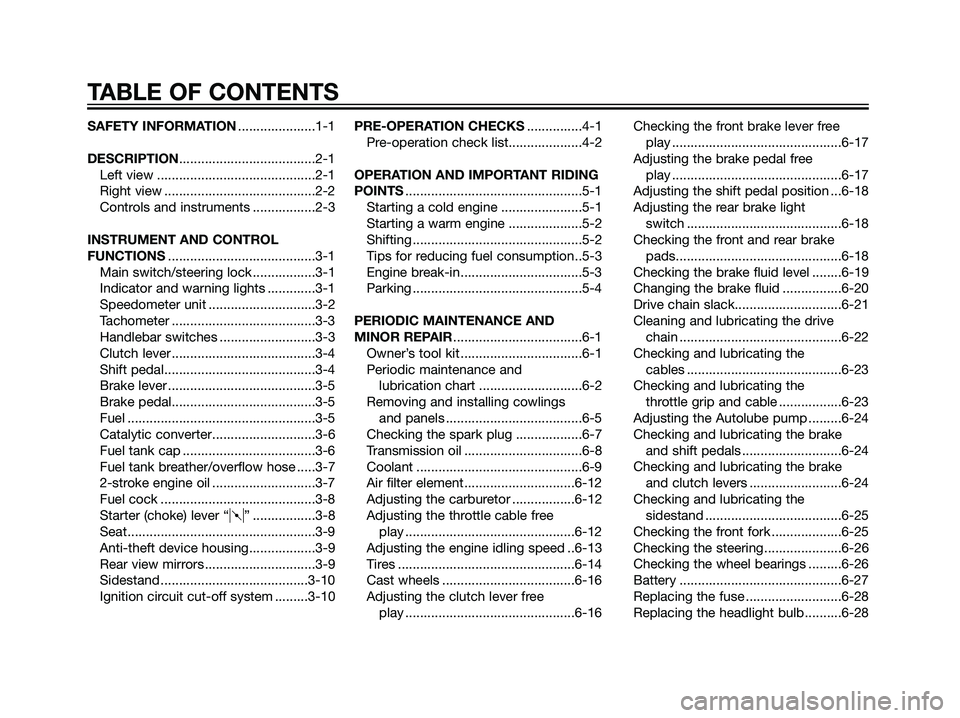

SAFETY INFORMATION.....................1-1
DESCRIPTION.....................................2-1
Left view ...........................................2-1
Right view .........................................2-2
Controls and instruments .................2-3
INSTRUMENT AND CONTROL
FUNCTIONS........................................3-1
Main switch/steering lock .................3-1
Indicator and warning lights .............3-1
Speedometer unit .............................3-2
Tachometer .......................................3-3
Handlebar switches ..........................3-3
Clutch lever .......................................3-4
Shift pedal.........................................3-4
Brake lever ........................................3-5
Brake pedal.......................................3-5
Fuel ...................................................3-5
Catalytic converter............................3-6
Fuel tank cap ....................................3-6
Fuel tank breather/overflow hose .....3-7
2-stroke engine oil ............................3-7
Fuel cock ..........................................3-8
Starter (choke) lever “
q” .................3-8
Seat...................................................3-9
Anti-theft device housing..................3-9
Rear view mirrors ..............................3-9
Sidestand ........................................3-10
Ignition circuit cut-off system .........3-10PRE-OPERATION CHECKS...............4-1
Pre-operation check list....................4-2
OPERATION AND IMPORTANT RIDING
POINTS................................................5-1
Starting a cold engine ......................5-1
Starting a warm engine ....................5-2
Shifting ..............................................5-2
Tips for reducing fuel consumption..5-3
Engine break-in.................................5-3
Parking ..............................................5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR...................................6-1
Owner’s tool kit .................................6-1
Periodic maintenance and
lubrication chart ............................6-2
Removing and installing cowlings
and panels .....................................6-5
Checking the spark plug ..................6-7
Transmission oil ................................6-8
Coolant .............................................6-9
Air filter element ..............................6-12
Adjusting the carburetor .................6-12
Adjusting the throttle cable free
play ..............................................6-12
Adjusting the engine idling speed ..6-13
Tires ................................................6-14
Cast wheels ....................................6-16
Adjusting the clutch lever free
play ..............................................6-16Checking the front brake lever free
play ..............................................6-17
Adjusting the brake pedal free
play ..............................................6-17
Adjusting the shift pedal position ...6-18
Adjusting the rear brake light
switch ..........................................6-18
Checking the front and rear brake
pads.............................................6-18
Checking the brake fluid level ........6-19
Changing the brake fluid ................6-20
Drive chain slack.............................6-21
Cleaning and lubricating the drive
chain ............................................6-22
Checking and lubricating the
cables ..........................................6-23
Checking and lubricating the
throttle grip and cable .................6-23
Adjusting the Autolube pump .........6-24
Checking and lubricating the brake
and shift pedals ...........................6-24
Checking and lubricating the brake
and clutch levers .........................6-24
Checking and lubricating the
sidestand .....................................6-25
Checking the front fork ...................6-25
Checking the steering.....................6-26
Checking the wheel bearings .........6-26
Battery ............................................6-27
Replacing the fuse ..........................6-28
Replacing the headlight bulb..........6-28
TABLE OF CONTENTS
5WX-F8199-E2.qxd 29/05/2006 14:23 Página 6
Page 7 of 78

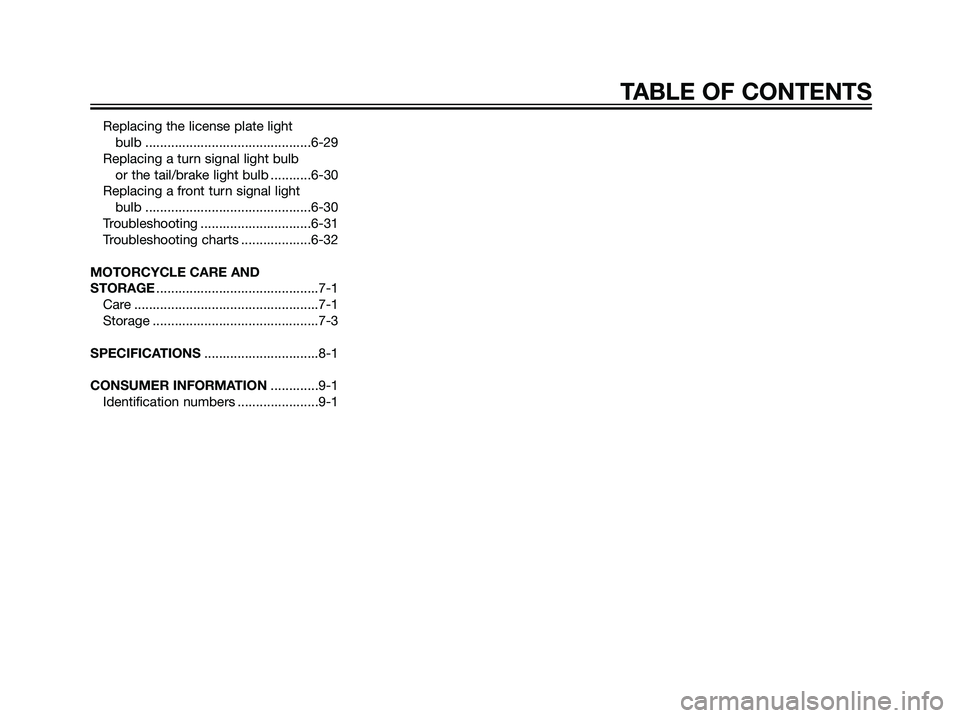

Replacing the license plate light
bulb .............................................6-29
Replacing a turn signal light bulb
or the tail/brake light bulb ...........6-30
Replacing a front turn signal light
bulb .............................................6-30
Troubleshooting ..............................6-31
Troubleshooting charts ...................6-32
MOTORCYCLE CARE AND
STORAGE............................................7-1
Care ..................................................7-1
Storage .............................................7-3
SPECIFICATIONS...............................8-1
CONSUMER INFORMATION.............9-1
Identification numbers ......................9-1
TABLE OF CONTENTS
5WX-F8199-E2.qxd 29/05/2006 14:23 Página 7
Page 8 of 78

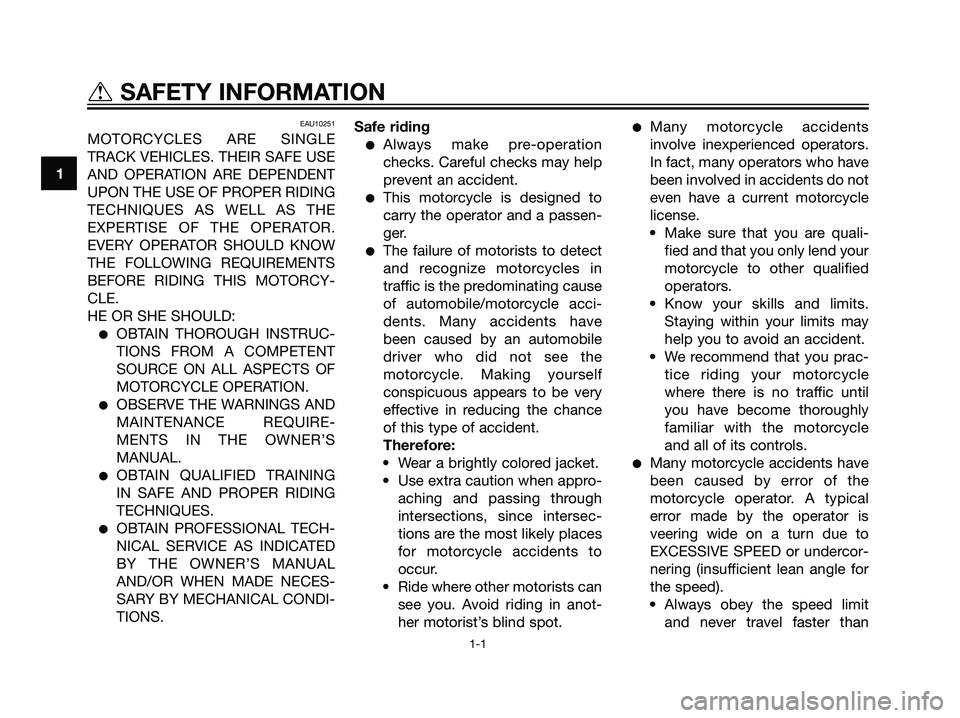

EAU10251
MOTORCYCLES ARE SINGLE
TRACK VEHICLES. THEIR SAFE USE
AND OPERATION ARE DEPENDENT
UPON THE USE OF PROPER RIDING
TECHNIQUES AS WELL AS THE
EXPERTISE OF THE OPERATOR.
EVERY OPERATOR SHOULD KNOW
THE FOLLOWING REQUIREMENTS
BEFORE RIDING THIS MOTORCY-
CLE.
HE OR SHE SHOULD:
OBTAIN THOROUGH INSTRUC-
TIONS FROM A COMPETENT
SOURCE ON ALL ASPECTS OF
MOTORCYCLE OPERATION.
OBSERVE THE WARNINGS AND
MAINTENANCE REQUIRE-
MENTS IN THE OWNER’S
MANUAL.
OBTAIN QUALIFIED TRAINING
IN SAFE AND PROPER RIDING
TECHNIQUES.
OBTAIN PROFESSIONAL TECH-
NICAL SERVICE AS INDICATED
BY THE OWNER’S MANUAL
AND/OR WHEN MADE NECES-
SARY BY MECHANICAL CONDI-
TIONS.Safe riding
Always make pre-operation
checks. Careful checks may help
prevent an accident.
This motorcycle is designed to
carry the operator and a passen-
ger.
The failure of motorists to detect
and recognize motorcycles in
traffic is the predominating cause
of automobile/motorcycle acci-
dents. Many accidents have
been caused by an automobile
driver who did not see the
motorcycle. Making yourself
conspicuous appears to be very
effective in reducing the chance
of this type of accident.
Therefore:
• Wear a brightly colored jacket.
• Use extra caution when appro-
aching and passing through
intersections, since intersec-
tions are the most likely places
for motorcycle accidents to
occur.
• Ride where other motorists can
see you. Avoid riding in anot-
her motorist’s blind spot.
Many motorcycle accidents
involve inexperienced operators.
In fact, many operators who have
been involved in accidents do not
even have a current motorcycle
license.
• Make sure that you are quali-
fied and that you only lend your
motorcycle to other qualified
operators.
• Know your skills and limits.
Staying within your limits may
help you to avoid an accident.
• We recommend that you prac-
tice riding your motorcycle
where there is no traffic until
you have become thoroughly
familiar with the motorcycle
and all of its controls.
Many motorcycle accidents have
been caused by error of the
motorcycle operator. A typical
error made by the operator is
veering wide on a turn due to
EXCESSIVE SPEED or undercor-
nering (insufficient lean angle for
the speed).
• Always obey the speed limit
and never travel faster than
1
tSAFETY INFORMATION
1-1
5WX-F8199-E2.qxd 29/05/2006 14:23 Página 8
Page 9 of 78

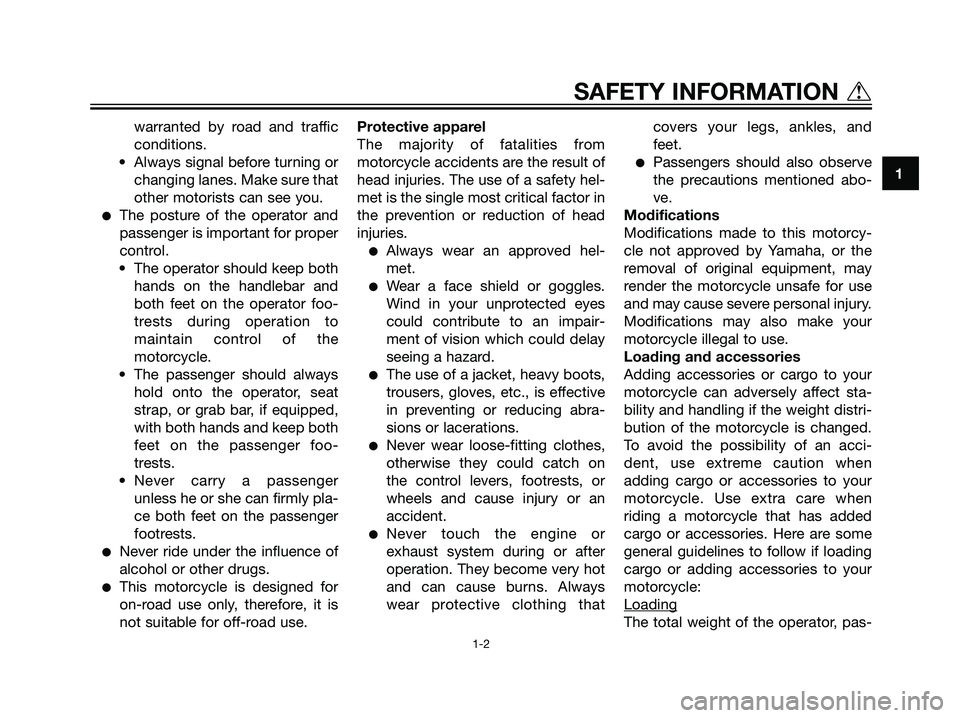

warranted by road and traffic
conditions.
• Always signal before turning or
changing lanes. Make sure that
other motorists can see you.
The posture of the operator and
passenger is important for proper
control.
• The operator should keep both
hands on the handlebar and
both feet on the operator foo-
trests during operation to
maintain control of the
motorcycle.
• The passenger should always
hold onto the operator, seat
strap, or grab bar, if equipped,
with both hands and keep both
feet on the passenger foo-
trests.
• Never carry a passenger
unless he or she can firmly pla-
ce both feet on the passenger
footrests.
Never ride under the influence of
alcohol or other drugs.
This motorcycle is designed for
on-road use only, therefore, it is
not suitable for off-road use.Protective apparel
The majority of fatalities from
motorcycle accidents are the result of
head injuries. The use of a safety hel-
met is the single most critical factor in
the prevention or reduction of head
injuries.
Always wear an approved hel-
met.
Wear a face shield or goggles.
Wind in your unprotected eyes
could contribute to an impair-
ment of vision which could delay
seeing a hazard.
The use of a jacket, heavy boots,
trousers, gloves, etc., is effective
in preventing or reducing abra-
sions or lacerations.
Never wear loose-fitting clothes,
otherwise they could catch on
the control levers, footrests, or
wheels and cause injury or an
accident.
Never touch the engine or
exhaust system during or after
operation. They become very hot
and can cause burns. Always
wear protective clothing thatcovers your legs, ankles, and
feet.
Passengers should also observe
the precautions mentioned abo-
ve.
Modifications
Modifications made to this motorcy-
cle not approved by Yamaha, or the
removal of original equipment, may
render the motorcycle unsafe for use
and may cause severe personal injury.
Modifications may also make your
motorcycle illegal to use.
Loading and accessories
Adding accessories or cargo to your
motorcycle can adversely affect sta-
bility and handling if the weight distri-
bution of the motorcycle is changed.
To avoid the possibility of an acci-
dent, use extreme caution when
adding cargo or accessories to your
motorcycle. Use extra care when
riding a motorcycle that has added
cargo or accessories. Here are some
general guidelines to follow if loading
cargo or adding accessories to your
motorcycle:
Loading
The total weight of the operator, pas-
1
SAFETY INFORMATION t
1-2
5WX-F8199-E2.qxd 29/05/2006 14:23 Página 9
Page 10 of 78
senger, accessories and cargo must
not exceed the maximum load limit.
When loading within this weight limit,
keep the following in mind:
Cargo and accessory weight
should be kept as low and close
to the motorcycle as possible.
Make sure to distribute the
weight as evenly as possible on
both sides of the motorcycle to
minimize imbalance or instability.
Shifting weights can create a
sudden imbalance. Make sure
that accessories and cargo are
securely attached to the
motorcycle before riding. Check
accessory mounts and cargo res-
traints frequently.
Never attach any large or heavy
items to the handlebar, front fork,
or front fender. These items,
including such cargo as sleeping
bags, duffel bags, or tents, can
create unstable handling or slow
steering response.Accessories
Genuine Yamaha accessories have
been specifically designed for use on
this motorcycle. Since Yamaha can-
not test all other accessories that may
be available, you must personally be
responsible for the proper selection,
installation and use of non-Yamaha
accessories. Use extreme caution
when selecting and installing any
accessories.
Keep the following guidelines in mind,
as well as those provided under “Loa-
ding” when mounting accessories.
Never install accessories or carry
cargo that would impair the per-
formance of your motorcycle.
Carefully inspect the accessory
before using it to make sure that
it does not in any way reduce
ground clearance or cornering
clearance, limit suspension tra-
vel, steering travel or control ope-
ration, or obscure lights or reflec-
tors.
• Accessories fitted to the hand-
lebar or the front fork area can
create instability due to impro-
per weight distribution oraerodynamic changes. If
accessories are added to the
handlebar or front fork area,
they must be as lightweight as
possible and should be kept to
a minimum.
• Bulky or large accessories may
seriously affect the stability of
the motorcycle due to aerody-
namic effects. Wind may
attempt to lift the motorcycle,
or the motorcycle may become
unstable in cross winds. These
accessories may also cause
instability when passing or
being passed by large vehicles.
• Certain accessories can dis-
place the operator from his or
her normal riding position. This
improper position limits the fre-
edom of movement of the ope-
rator and may limit control abi-
lity, therefore, such
accessories are not recom-
mended.
Use caution when adding electri-
cal accessories. If electrical
accessories exceed the capacity
of the motorcycle’s electrical sys-
Maximum load:
196 kg (432.18 lb)1
tSAFETY INFORMATION
1-3
5WX-F8199-E2.qxd 29/05/2006 14:23 Página 10
