YAMAHA TZR50 2008 Workshop Manual

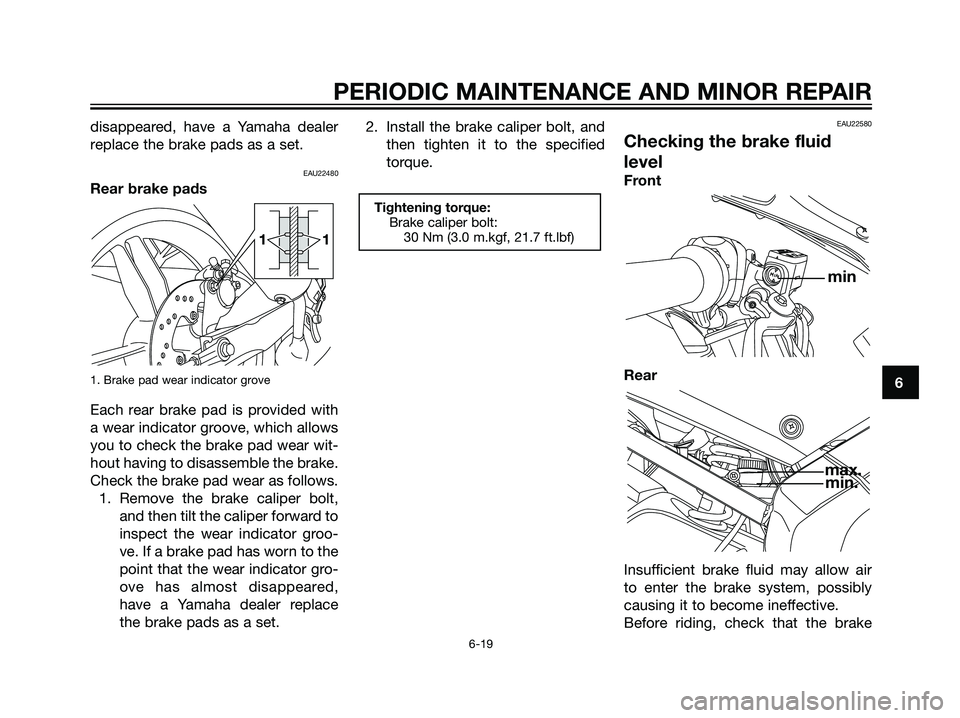

disappeared, have a Yamaha dealer
replace the brake pads as a set.
EAU22480
Rear brake pads
1. Brake pad wear indicator grove
Each rear brake pad is provided with
a wear indicator groove, which allows
you to check the brake pad wear wit-
hout having to disassemble the brake.
Check the brake pad wear as follows.
1. Remove the brake caliper bolt,
and then tilt the caliper forward to
inspect the wear indicator groo-
ve. If a brake pad has worn to the
point that the wear indicator gro-
ove has almost disappeared,
have a Yamaha dealer replace
the brake pads as a set.2. Install the brake caliper bolt, and
then tighten it to the specified
torque.
EAU22580
Checking the brake fluid
level
Front
Rear
Insufficient brake fluid may allow air
to enter the brake system, possibly
causing it to become ineffective.
Before riding, check that the brake
max.
min.
min
Tightening torque:
Brake caliper bolt:
30 Nm (3.0 m.kgf, 21.7 ft.lbf)
11
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-19
5WX-F8199-E2.qxd 29/05/2006 14:23 Página 19

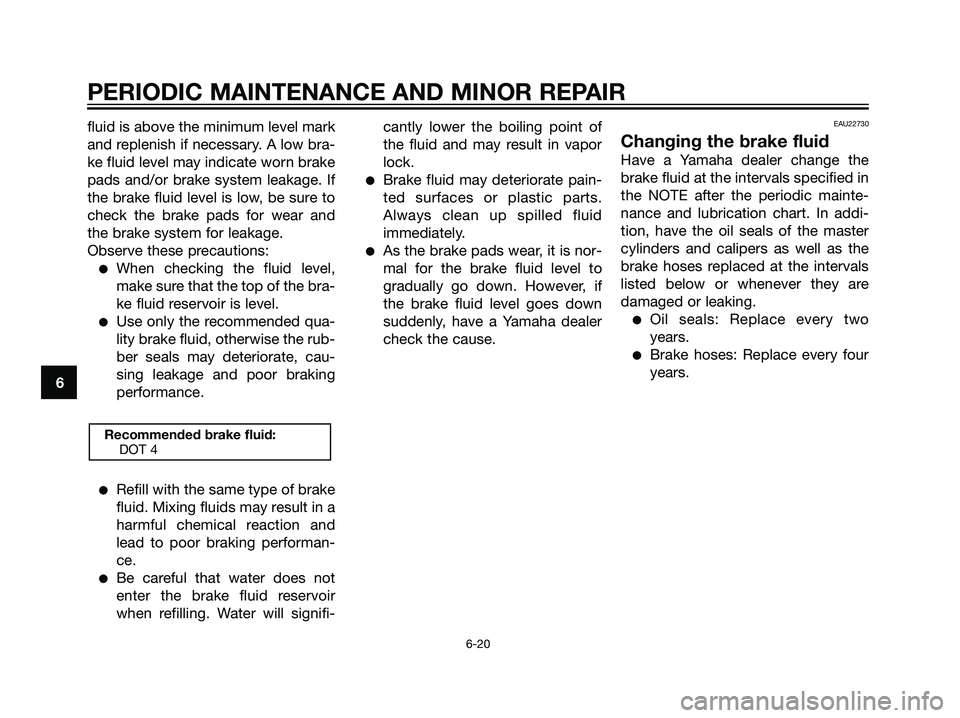

fluid is above the minimum level mark
and replenish if necessary. A low bra-
ke fluid level may indicate worn brake
pads and/or brake system leakage. If
the brake fluid level is low, be sure to
check the brake pads for wear and
the brake system for leakage.
Observe these precautions:
When checking the fluid level,
make sure that the top of the bra-
ke fluid reservoir is level.
Use only the recommended qua-
lity brake fluid, otherwise the rub-
ber seals may deteriorate, cau-
sing leakage and poor braking
performance.
Refill with the same type of brake
fluid. Mixing fluids may result in a
harmful chemical reaction and
lead to poor braking performan-
ce.
Be careful that water does not
enter the brake fluid reservoir
when refilling. Water will signifi-cantly lower the boiling point of
the fluid and may result in vapor
lock.
Brake fluid may deteriorate pain-
ted surfaces or plastic parts.
Always clean up spilled fluid
immediately.
As the brake pads wear, it is nor-
mal for the brake fluid level to
gradually go down. However, if
the brake fluid level goes down
suddenly, have a Yamaha dealer
check the cause.
EAU22730
Changing the brake fluid
Have a Yamaha dealer change the
brake fluid at the intervals specified in
the NOTE after the periodic mainte-
nance and lubrication chart. In addi-
tion, have the oil seals of the master
cylinders and calipers as well as the
brake hoses replaced at the intervals
listed below or whenever they are
damaged or leaking.
Oil seals: Replace every two
years.
Brake hoses: Replace every four
years.
Recommended brake fluid:
DOT 4
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-20
5WX-F8199-E2.qxd 29/05/2006 14:23 Página 20

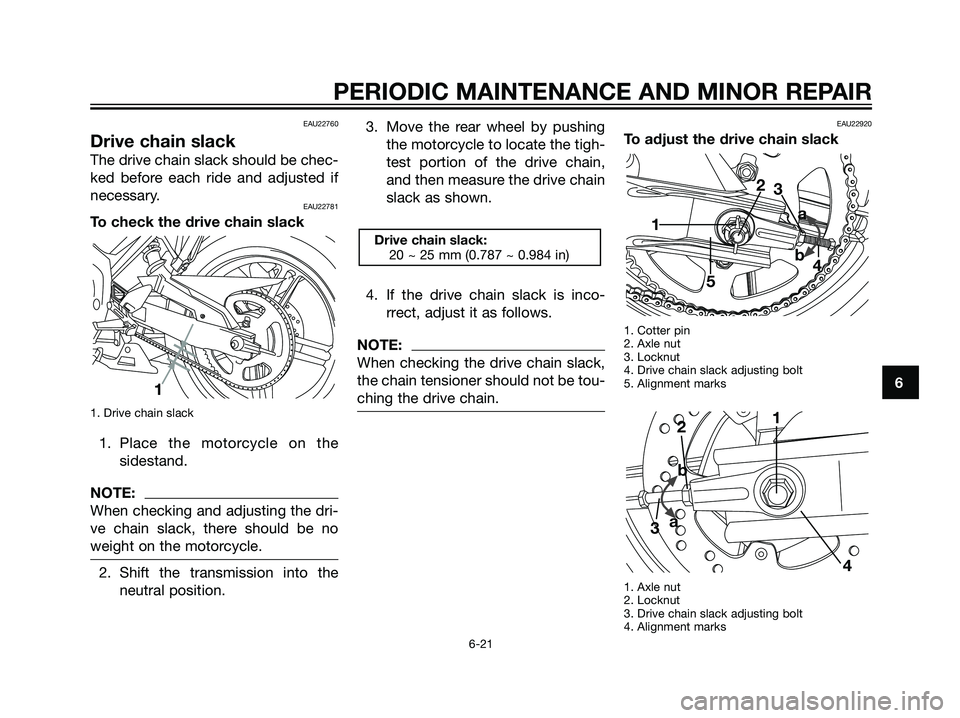

EAU22760
Drive chain slack
The drive chain slack should be chec-
ked before each ride and adjusted if
necessary.
EAU22781
To check the drive chain slack
1. Drive chain slack
1. Place the motorcycle on the
sidestand.
NOTE:
When checking and adjusting the dri-
ve chain slack, there should be no
weight on the motorcycle.
2. Shift the transmission into the
neutral position.3. Move the rear wheel by pushing
the motorcycle to locate the tigh-
test portion of the drive chain,
and then measure the drive chain
slack as shown.
4. If the drive chain slack is inco-
rrect, adjust it as follows.
NOTE:
When checking the drive chain slack,
the chain tensioner should not be tou-
ching the drive chain.
EAU22920
To adjust the drive chain slack
1. Cotter pin
2. Axle nut
3. Locknut
4. Drive chain slack adjusting bolt
5. Alignment marks
1. Axle nut
2. Locknut
3. Drive chain slack adjusting bolt
4. Alignment marks
1
2
4 3
b
a
12
3
4
5a
b
Drive chain slack:
20 ~ 25 mm (0.787 ~ 0.984 in)
16
PERIODIC MAINTENANCE AND MINOR REPAIR
6-21
5WX-F8199-E2.qxd 29/05/2006 14:23 Página 21

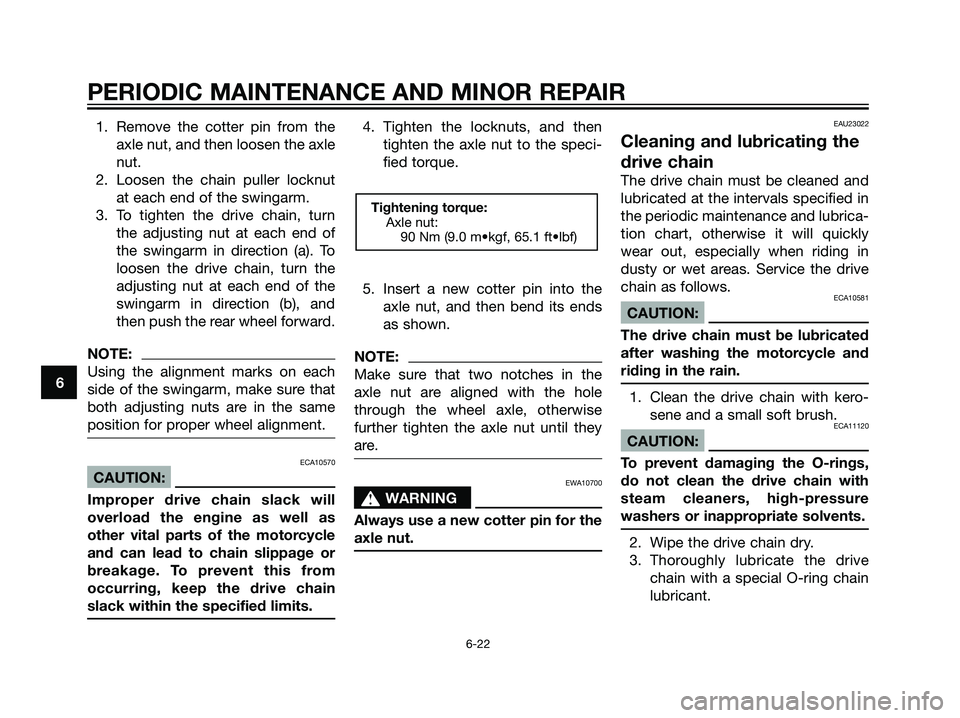

1. Remove the cotter pin from the
axle nut, and then loosen the axle
nut.
2. Loosen the chain puller locknut
at each end of the swingarm.
3. To tighten the drive chain, turn
the adjusting nut at each end of
the swingarm in direction (a). To
loosen the drive chain, turn the
adjusting nut at each end of the
swingarm in direction (b), and
then push the rear wheel forward.
NOTE:
Using the alignment marks on each
side of the swingarm, make sure that
both adjusting nuts are in the same
position for proper wheel alignment.
ECA10570
CAUTION:
Improper drive chain slack will
overload the engine as well as
other vital parts of the motorcycle
and can lead to chain slippage or
breakage. To prevent this from
occurring, keep the drive chain
slack within the specified limits.
4. Tighten the locknuts, and then
tighten the axle nut to the speci-
fied torque.
5. Insert a new cotter pin into the
axle nut, and then bend its ends
as shown.
NOTE:
Make sure that two notches in the
axle nut are aligned with the hole
through the wheel axle, otherwise
further tighten the axle nut until they
are.
EWA10700
s s
WARNING
Always use a new cotter pin for the
axle nut.
EAU23022
Cleaning and lubricating the
drive chain
The drive chain must be cleaned and
lubricated at the intervals specified in
the periodic maintenance and lubrica-
tion chart, otherwise it will quickly
wear out, especially when riding in
dusty or wet areas. Service the drive
chain as follows.
ECA10581
CAUTION:
The drive chain must be lubricated
after washing the motorcycle and
riding in the rain.
1. Clean the drive chain with kero-
sene and a small soft brush.
ECA11120
CAUTION:
To prevent damaging the O-rings,
do not clean the drive chain with
steam cleaners, high-pressure
washers or inappropriate solvents.
2. Wipe the drive chain dry.
3. Thoroughly lubricate the drive
chain with a special O-ring chain
lubricant.
Tightening torque:
Axle nut:
90 Nm (9.0 m•kgf, 65.1 ft•lbf)
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-22
5WX-F8199-E2.qxd 29/05/2006 14:23 Página 22

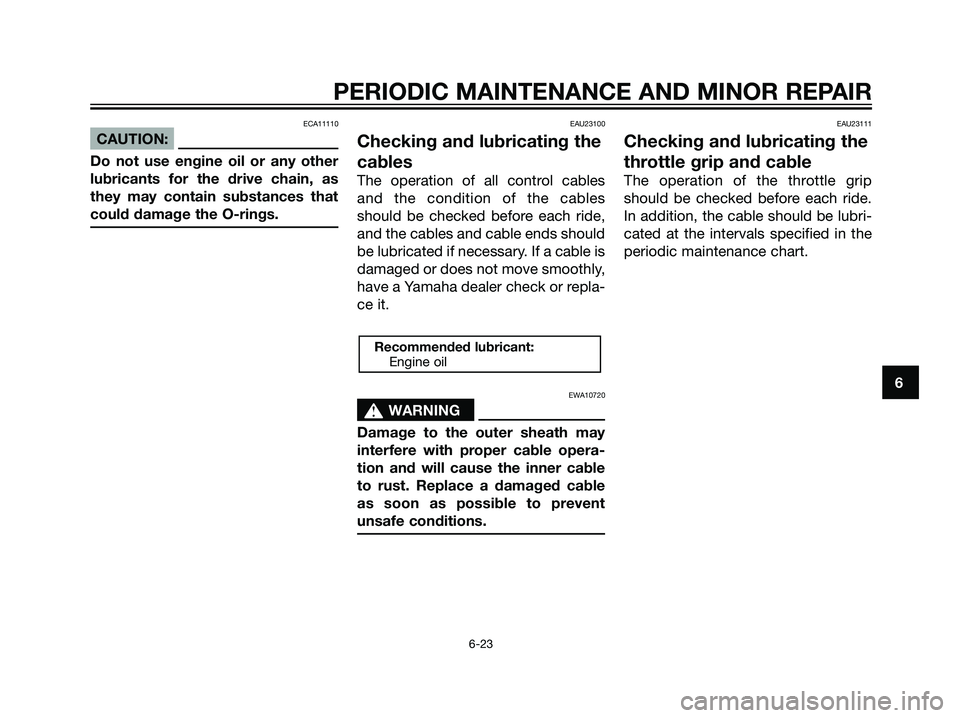

ECA11110
CAUTION:
Do not use engine oil or any other
lubricants for the drive chain, as
they may contain substances that
could damage the O-rings.
EAU23100
Checking and lubricating the
cables
The operation of all control cables
and the condition of the cables
should be checked before each ride,
and the cables and cable ends should
be lubricated if necessary. If a cable is
damaged or does not move smoothly,
have a Yamaha dealer check or repla-
ce it.
EWA10720
s s
WARNING
Damage to the outer sheath may
interfere with proper cable opera-
tion and will cause the inner cable
to rust. Replace a damaged cable
as soon as possible to prevent
unsafe conditions.
EAU23111
Checking and lubricating the
throttle grip and cable
The operation of the throttle grip
should be checked before each ride.
In addition, the cable should be lubri-
cated at the intervals specified in the
periodic maintenance chart.
Recommended lubricant:
Engine oil
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-23
5WX-F8199-E2.qxd 29/05/2006 14:23 Página 23

EAU23120

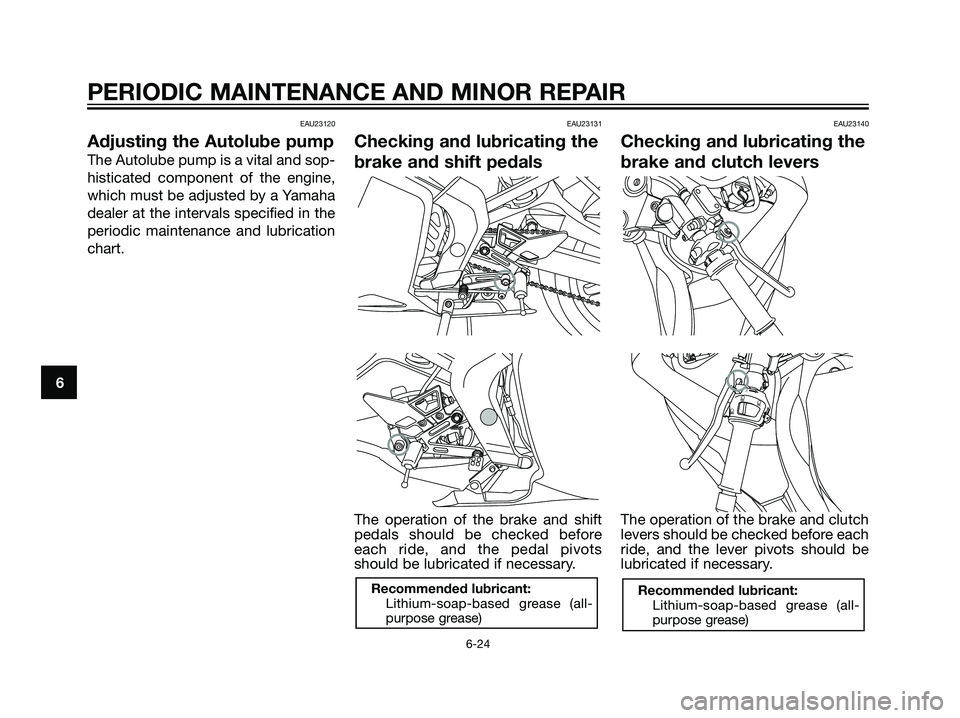

Adjusting the Autolube pump
The Autolube pump is a vital and sop-
histicated component of the engine,
which must be adjusted by a Yamaha
dealer at the intervals specified in the
periodic maintenance and lubrication
chart.
EAU23131
Checking and lubricating the
brake and shift pedals
The operation of the brake and shift
pedals should be checked before
each ride, and the pedal pivots
should be lubricated if necessary.
EAU23140
Checking and lubricating the
brake and clutch levers
The operation of the brake and clutch
levers should be checked before each
ride, and the lever pivots should be
lubricated if necessary.
Recommended lubricant:
Lithium-soap-based grease (all-
purpose grease)
j
kj
q
Recommended lubricant:
Lithium-soap-based grease (all-
purpose grease)
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-24
5WX-F8199-E2.qxd 29/05/2006 14:23 Página 24

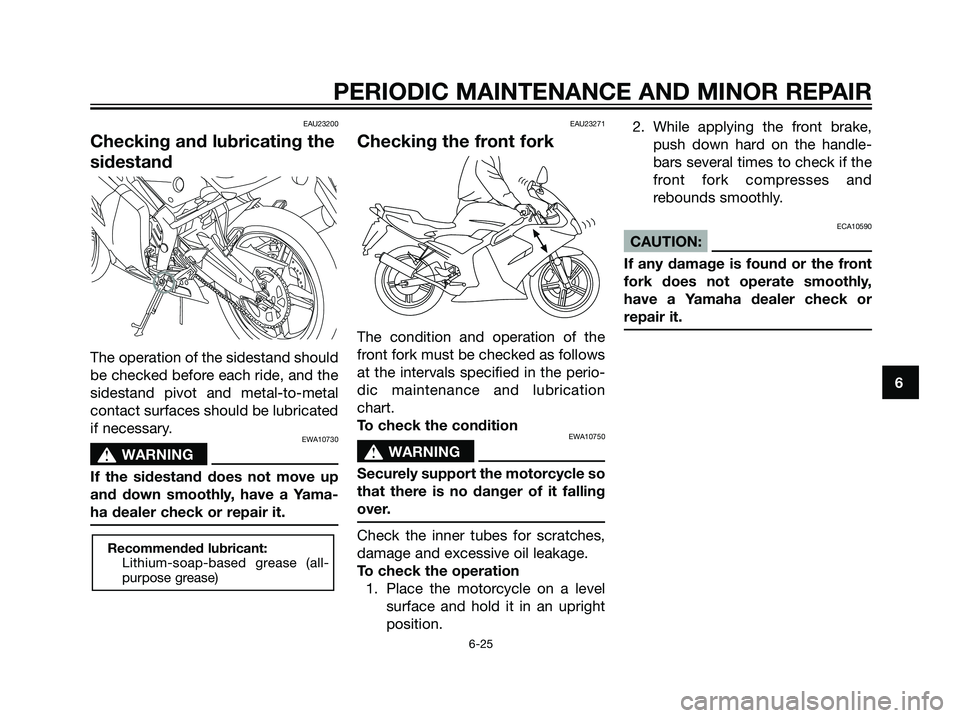

EAU23200
Checking and lubricating the
sidestand
The operation of the sidestand should
be checked before each ride, and the
sidestand pivot and metal-to-metal
contact surfaces should be lubricated
if necessary.
EWA10730
s s
WARNING
If the sidestand does not move up
and down smoothly, have a Yama-
ha dealer check or repair it.
EAU23271
Checking the front fork
The condition and operation of the
front fork must be checked as follows
at the intervals specified in the perio-
dic maintenance and lubrication
chart.
To check the condition
EWA10750
s s
WARNING
Securely support the motorcycle so
that there is no danger of it falling
over.
Check the inner tubes for scratches,
damage and excessive oil leakage.
To check the operation
1. Place the motorcycle on a level
surface and hold it in an upright
position.2. While applying the front brake,
push down hard on the handle-
bars several times to check if the
front fork compresses and
rebounds smoothly.
ECA10590
CAUTION:
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or
repair it.
Recommended lubricant:
Lithium-soap-based grease (all-
purpose grease)
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-25
5WX-F8199-E2.qxd 29/05/2006 14:23 Página 25

EAU23280

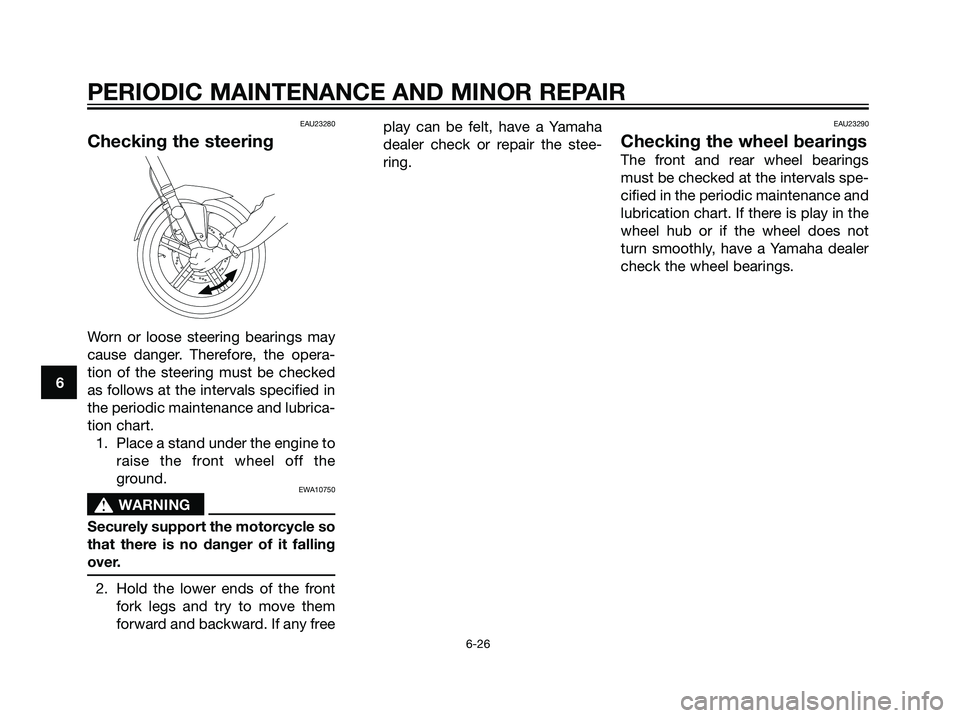

Checking the steering
Worn or loose steering bearings may
cause danger. Therefore, the opera-
tion of the steering must be checked
as follows at the intervals specified in
the periodic maintenance and lubrica-
tion chart.
1. Place a stand under the engine to
raise the front wheel off the
ground.
EWA10750
s s
WARNING
Securely support the motorcycle so
that there is no danger of it falling
over.
2. Hold the lower ends of the front
fork legs and try to move them
forward and backward. If any freeplay can be felt, have a Yamaha
dealer check or repair the stee-
ring.
EAU23290
Checking the wheel bearings
The front and rear wheel bearings
must be checked at the intervals spe-
cified in the periodic maintenance and
lubrication chart. If there is play in the
wheel hub or if the wheel does not
turn smoothly, have a Yamaha dealer
check the wheel bearings.
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-26
5WX-F8199-E2.qxd 29/05/2006 14:23 Página 26

EAU23441

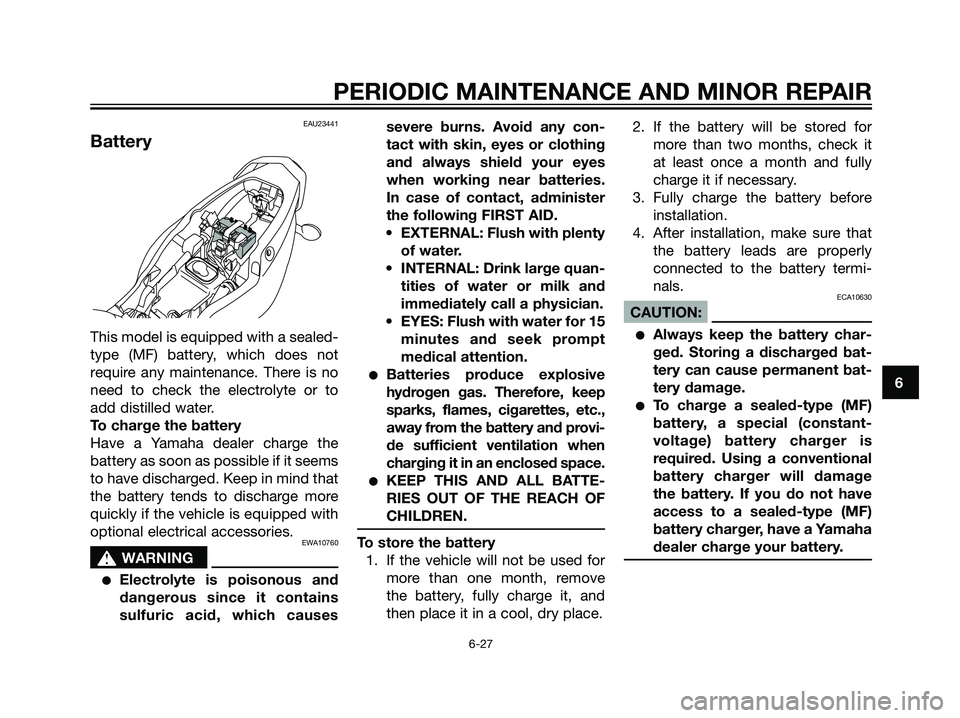

Battery
This model is equipped with a sealed-
type (MF) battery, which does not
require any maintenance. There is no
need to check the electrolyte or to
add distilled water.
To charge the battery
Have a Yamaha dealer charge the
battery as soon as possible if it seems
to have discharged. Keep in mind that
the battery tends to discharge more
quickly if the vehicle is equipped with
optional electrical accessories.
EWA10760
s s
WARNING
Electrolyte is poisonous and
dangerous since it contains
sulfuric acid, which causessevere burns. Avoid any con-
tact with skin, eyes or clothing
and always shield your eyes
when working near batteries.
In case of contact, administer
the following FIRST AID.
• EXTERNAL: Flush with plenty
of water.
• INTERNAL: Drink large quan-
tities of water or milk and
immediately call a physician.
• EYES: Flush with water for 15
minutes and seek prompt
medical attention.
Batteries produce explosive
hydrogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and provi-
de sufficient ventilation when
charging it in an enclosed space.
KEEP THIS AND ALL BATTE-
RIES OUT OF THE REACH OF
CHILDREN.
To store the battery
1. If the vehicle will not be used for
more than one month, remove
the battery, fully charge it, and
then place it in a cool, dry place.2. If the battery will be stored for
more than two months, check it
at least once a month and fully
charge it if necessary.
3. Fully charge the battery before
installation.
4. After installation, make sure that
the battery leads are properly
connected to the battery termi-
nals.
ECA10630
CAUTION:
Always keep the battery char-
ged. Storing a discharged bat-
tery can cause permanent bat-
tery damage.
To charge a sealed-type (MF)
battery, a special (constant-
voltage) battery charger is
required. Using a conventional
battery charger will damage
the battery. If you do not have
access to a sealed-type (MF)
battery charger, have a Yamaha
dealer charge your battery.
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-27
5WX-F8199-E2.qxd 29/05/2006 14:23 Página 27

EAU23481

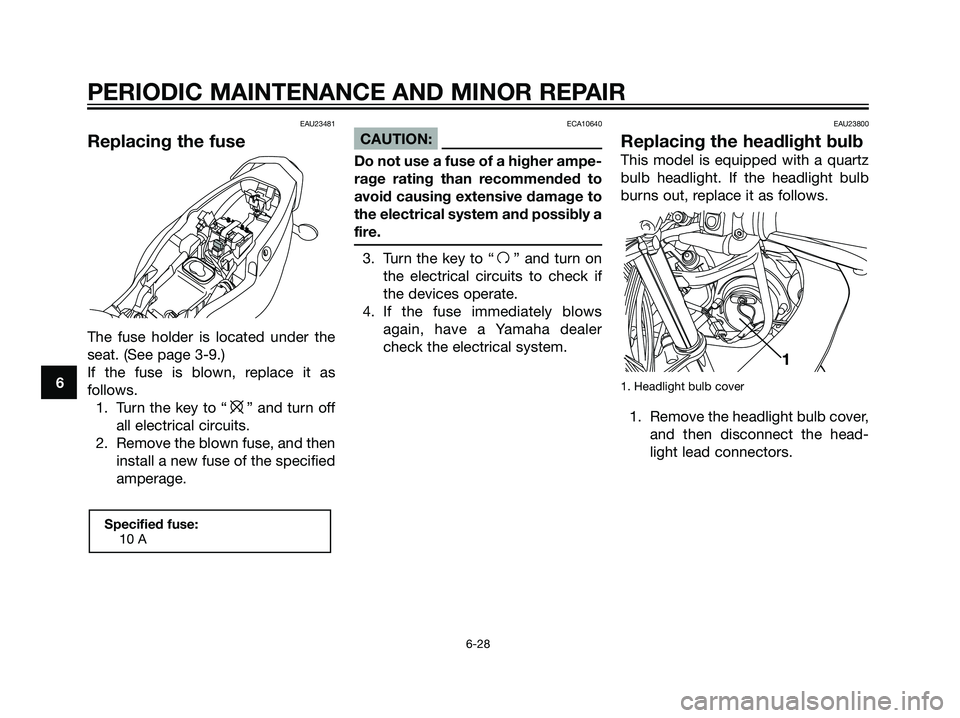

Replacing the fuse
The fuse holder is located under the
seat. (See page 3-9.)
If the fuse is blown, replace it as
follows.
1. Turn the key to “
e” and turn off
all electrical circuits.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
ECA10640
CAUTION:
Do not use a fuse of a higher ampe-
rage rating than recommended to
avoid causing extensive damage to
the electrical system and possibly a
fire.
3. Turn the key to “f” and turn on
the electrical circuits to check if
the devices operate.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU23800
Replacing the headlight bulb
This model is equipped with a quartz
bulb headlight. If the headlight bulb
burns out, replace it as follows.
1. Headlight bulb cover
1. Remove the headlight bulb cover,
and then disconnect the head-
light lead connectors.
1
Specified fuse:
10 A
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-28
5WX-F8199-E2.qxd 29/05/2006 14:23 Página 28
