YAMAHA VIKING VI 2016 Service Manual

4-1
4
EBU31212INSTRUMENT AND CONTROL FUNCTIONSEBU31220Main switchFunctions of the respective switch positions
are as follows:
EBU31230“” (on):
All electrical circuits are supplied with power.
The key cannot be removed.TIPThe helmet indicator light comes on and stays
on while the key is turned to “ ” (on). EBU31240“ ” (off):
All electrical circuits are switched off. The key
can be removed.EBU31250“” (start):
The electric starter is engaged by turning and
holding the key in this position. Release the
key when the engine starts.
1. Main switch
2. “ ” (off)
3. “ ” (on)
4. “ ” (start)
1
2
34
UB857AE0.book Page 1 Monday, August 24, 2015 8:59 AM

4-2
4
EBU31261Indicator lights and warning lights
EBU31270Low-range indicator light “L”
This indicator light comes on when the drive
select lever is in the “L” position.EBU31280High-range indicator light “H”
This indicator light comes on when the drive
select lever is in the “H” position.
1. On-Command differential gear lock indicator light “DIFF. LOCK”
2. Low-range indicator light “L”
3. High-range indicator light “H”
4. Neutral indicator light “N”
5. Reverse indicator light “R”
6. Parking brake indicator light “ ”
7. On-Command four-wheel-drive/differential gear lock indicator “ ”/“ ”
8. Engine trouble warning light “ ”
9. Coolant temperature warning light “ ”
10.Electric Power Steering warning light “EPS”356421
7
8109
1. Helmet indicator light “ ”
2. Seat belt indicator light “ ”
21
UB857AE0.book Page 2 Monday, August 24, 2015 8:59 AM

4-3
4
EBU31290Neutral indicator light “N”
This indicator light comes on when the drive
select lever is in the “N” position.EBU31300Reverse indicator light “R”
This indicator light comes on when the drive
select lever is in the “R” position.EBU31310Parking brake indicator light “ ”
This indicator light comes on when the park-
ing brake is applied.EBU31320On-Command four-wheel-drive
indicator “ ”, On-Command differential
gear lock indicator “ ” and indicator light
“DIFF. LOCK”
The On-Command four-wheel-drive
indicator “ ” comes on when the On-Com-
mand drive knob “2WD/4WD/DIFF LOCK” is
set to the “4WD” position.The On-Command differential gear lock
indicator “ ” and the On-Command differen-
tial gear lock indicator light “DIFF. LOCK”
come on when the On-Command drive knob
“2WD/4WD/DIFF LOCK” is set to the “DIFF
LOCK” position.
TIP
Due to the synchronizing mechanism in the
differential gear case, the four-wheel-drive
indicator may not come on until the vehicle
starts moving.
 When the On-Command drive knob
“2WD/4WD/DIFF LOCK” is set to “DIFF
LOCK” or “4WD”, the indicator “ ” and the
indicator light “DIFF. LOCK” will flash until
the differential gear is completely locked or
unlocked. If the indicator and the indicator
light continue to flash, the differential is not
completely locked or unlocked. In this
case, start moving to allow time for the dif-
ferential to lock or unlock.
UB857AE0.book Page 3 Monday, August 24, 2015 8:59 AM

4-4
4
EBU31330Coolant temperature warning light “ ”
If the coolant temperature reaches a specific
level, this light comes on to warn that the
coolant temperature is too hot. If the light
comes on during operation, stop the engine
as soon as it is safe to do so and allow the en-
gine to cool down for about 10 minutes. (See
page 8-60.)
The electrical circuit of the warning light can
be checked by turning the key to “ ” (on). If
the warning light does not come on initially
when the key is turned to “ ” (on), or if the
warning light remains on, have a Yamaha
dealer check the electrical circuit.NOTICEECB02040The engine may overheat if the vehicle is
overloaded. If this happens, reduce the
load to specification. 
After restarting, make sure that the
warning light is out. Continuous use
while this warning light is on may cause
damage to the engine.
EBU31340Engine trouble warning light “ ”
This warning light comes on or flashes if a
problem is detected in the electrical circuit
monitoring the engine. When this occurs,
have a Yamaha dealer check the self-diagno-
sis system. (See page 4-10 for an explanation
of the self-diagnosis device.)
The electrical circuit of the warning light can
be checked by turning the key to “ ” (on). If
the warning light does not come on initially
when the key is turned to “ ” (on), or if the
warning light remains on, have a Yamaha
dealer check the electrical circuit.
UB857AE0.book Page 4 Monday, August 24, 2015 8:59 AM

4-5
4
EBU33040Electric Power Steering warning light
“EPS”
This warning light comes on when the key is
turned to “ ” (on), and then goes off once
the engine is started. If the warning light re-
mains on or comes on after the engine is
started, the EPS system may not be working
correctly. When this occurs, have a Yamaha
dealer check the EPS system.
The electrical circuit of the warning light can
be checked by turning the key to “ ” (on). If
the warning light does not come on, have a
Yamaha dealer check the electrical circuit.TIPIf the steering load is too heavy (i.e., exces-
sive steering use when the Viking VI is travel-
ing at a slow speed), the power assist is
reduced to protect the EPS motor from over-
heating.
EBU31360Helmet indicator light “ ”
The indicator light comes on and stays on
while the key is turned to “ ” (on) to remind
the occupants to always wear a helmet. If the
indicator light does not come on when the key
is turned to “ ” (on), have a Yamaha dealer
check the electrical circuit.EBU31370Seat belt indicator light “ ”
The indicator light comes on when the key is
turned to “ ” (on) to remind the occupants
to fasten their seat belt. The indicator light
stays on until the driver seat belt is properly
latched. If the indicator light does not come
on when the key is turned to “ ” (on), or if
the indicator light remains on after the driver
seat belt is properly latched, have a Yamaha
dealer check the electrical circuit.
UB857AE0.book Page 5 Monday, August 24, 2015 8:59 AM

4-6
4
EBU31380Multi-function meter unitThe multi-function meter unit is equipped with
the following:
a speedometer
 an odometer
 two tripmeters (which show the distance
traveled since they were last set to zero) 
a clock
 an hour meter (which shows the total time
the engine has been running)
 a voltage display (which shows the battery
voltage)
 a fuel meter
 a self-diagnosis device

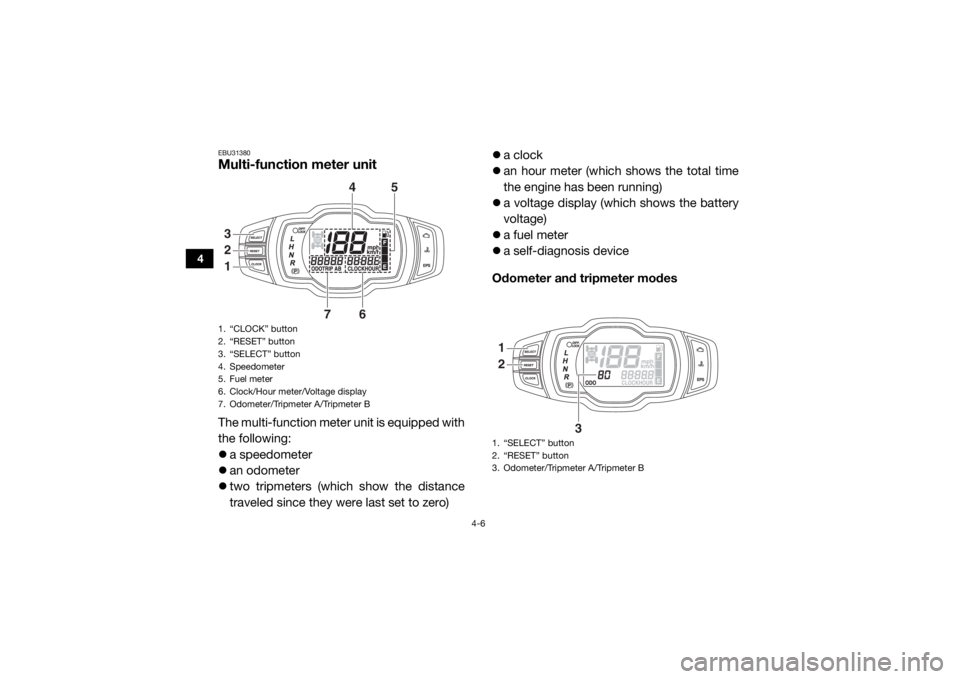

Odometer and tripmeter modes1. “CLOCK” button
2. “RESET” button
3. “SELECT” button
4. Speedometer
5. Fuel meter
6. Clock/Hour meter/Voltage display
7. Odometer/Tripmeter A/Tripmeter B321
4
5
6
7
1. “SELECT” button
2. “RESET” button
3. Odometer/Tripmeter A/Tripmeter B12
3
UB857AE0.book Page 6 Monday, August 24, 2015 8:59 AM

4-7
4
Pushing the “SELECT” button switches the
display between the odometer mode “ODO”
and the tripmeter modes “TRIP A” and “TRIP
B” in the following order:
ODO → TRIP A → TRIP B → ODO
To reset a tripmeter, select it by pushing the
“SELECT” button, and then push the “RE-
SET” button for at least three seconds. The
tripmeters can be used to estimate the dis-
tance that can be traveled with a full tank of
fuel. This information enables you to plan fu-
ture fuel stops.TIPTo switch the display between “mph” and
“km/h”, turn the key to “ ” (off), then push
and hold the “SELECT” button while turning
the key to “ ” (on).
Clock, hour meter and voltage display
modes
Pushing the “CLOCK” button switches the
display between the clock mode “CLOCK”,
the hour meter mode “HOUR”, and the volt-
age display mode “ ” in the following or-
der:

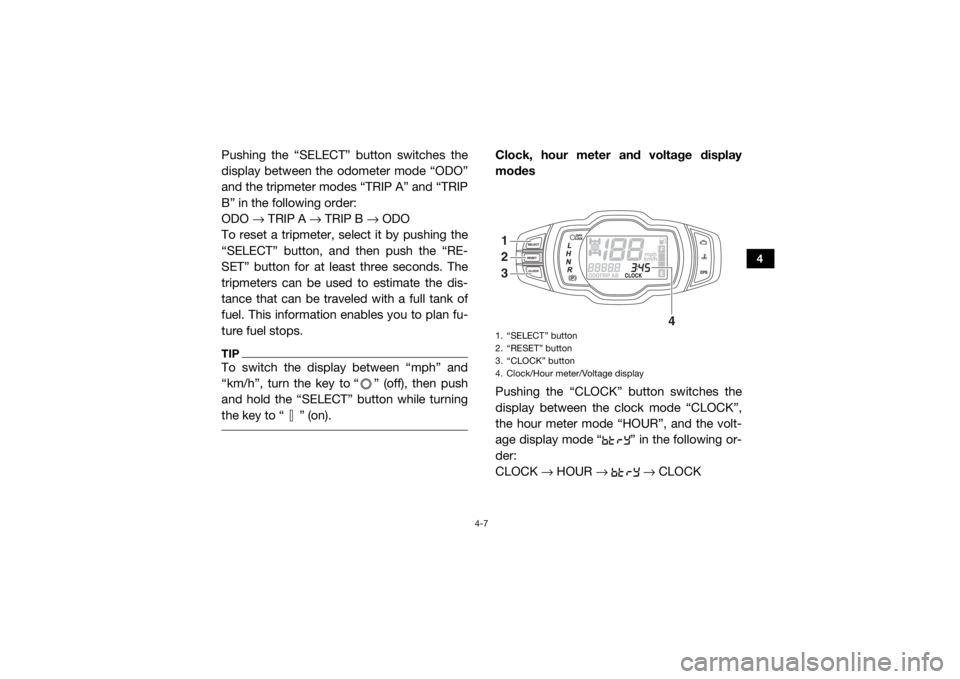

CLOCK → HOUR → → CLOCK1. “SELECT” button
2. “RESET” button
3. “CLOCK” button
4. Clock/Hour meter/Voltage display
4
123
UB857AE0.book Page 7 Monday, August 24, 2015 8:59 AM

4-8
4
To set the clock1. Set the display to the clock mode.
2. Push the “SELECT” button and “RESET”button together for at least three sec-
onds.
3. When the hour digits start flashing, push the “RESET” button to set the hours.
4. Push the “SELECT” button, and the mi-
nute digits will start flashing.
5. Push the “RESET” button to set the minu- tes.
6. Push the “SELECT” button, and then re- lease it to start the clock. Voltage display mode

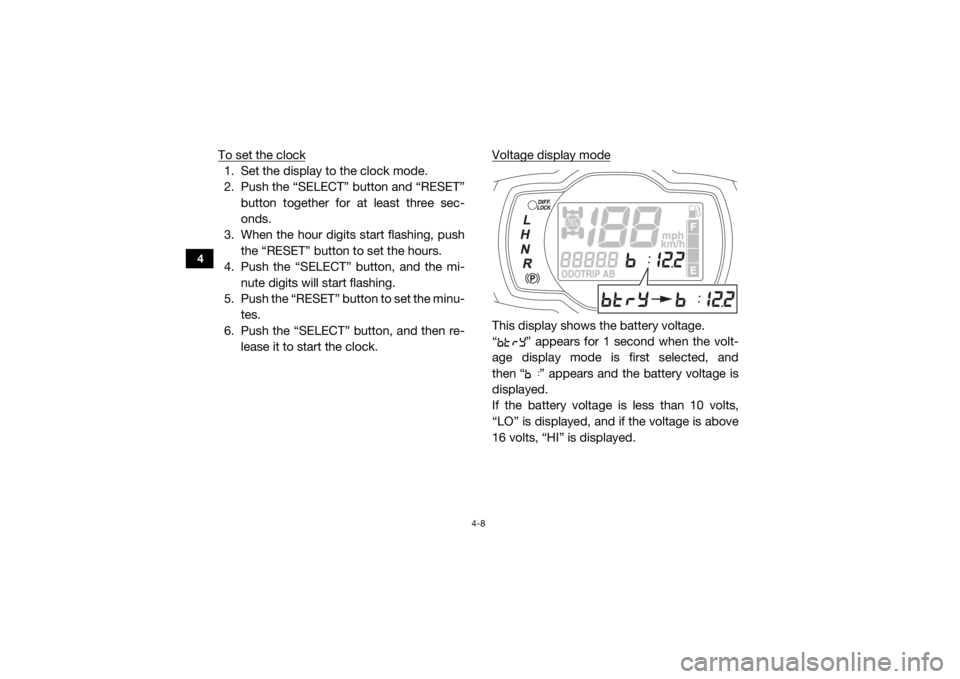

This display shows the battery voltage.
“ ” appears for 1 second when the volt-
age display mode is first selected, and
then “ ” appears and the battery voltage is
displayed.
If the battery voltage is less than 10 volts,
“LO” is displayed, and if the voltage is above
16 volts, “HI” is displayed.
UB857AE0.book Page 8 Monday, August 24, 2015 8:59 AM

4-9
4
NOTICEECB02050If the voltage display indicates “LO” or
“HI”, there may be trouble with the battery
charging circuit or the battery may be
faulty. If this occurs, have a Yamaha dealer

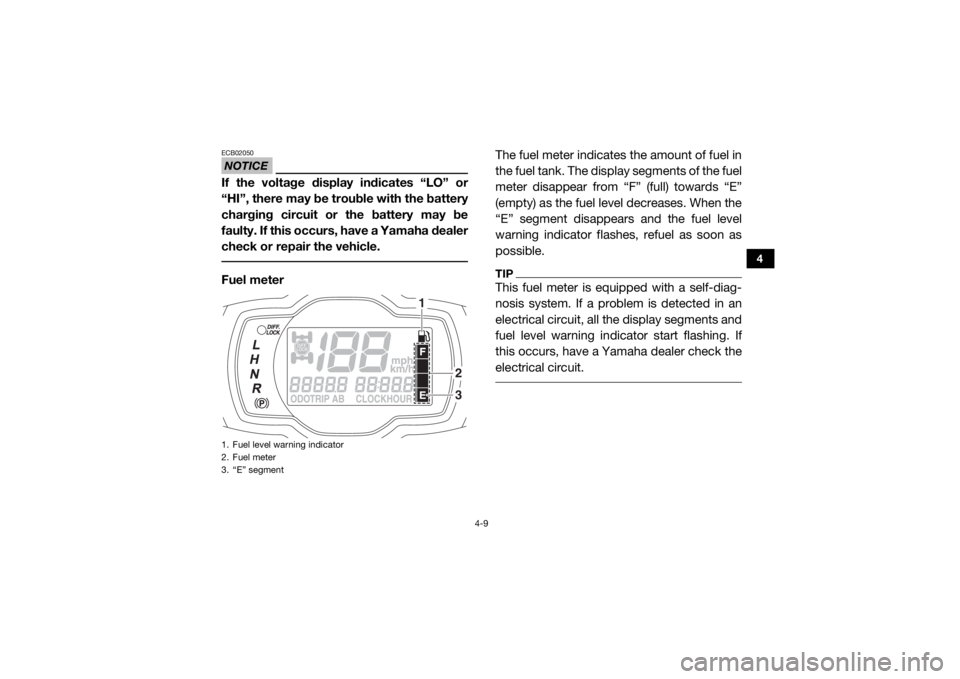

check or repair the vehicle. Fuel meterThe fuel meter indicates the amount of fuel in
the fuel tank. The display segments of the fuel
meter disappear from “F” (full) towards “E”
(empty) as the fuel level decreases. When the
“E” segment disappears and the fuel level
warning indicator flashes, refuel as soon as
possible.
TIPThis fuel meter is equipped with a self-diag-
nosis system. If a problem is detected in an
electrical circuit, all the display segments and
fuel level warning indicator start flashing. If
this occurs, have a Yamaha dealer check the
electrical circuit.
1. Fuel level warning indicator
2. Fuel meter
3. “E” segment
1
23
UB857AE0.book Page 9 Monday, August 24, 2015 8:59 AM

4-10
4

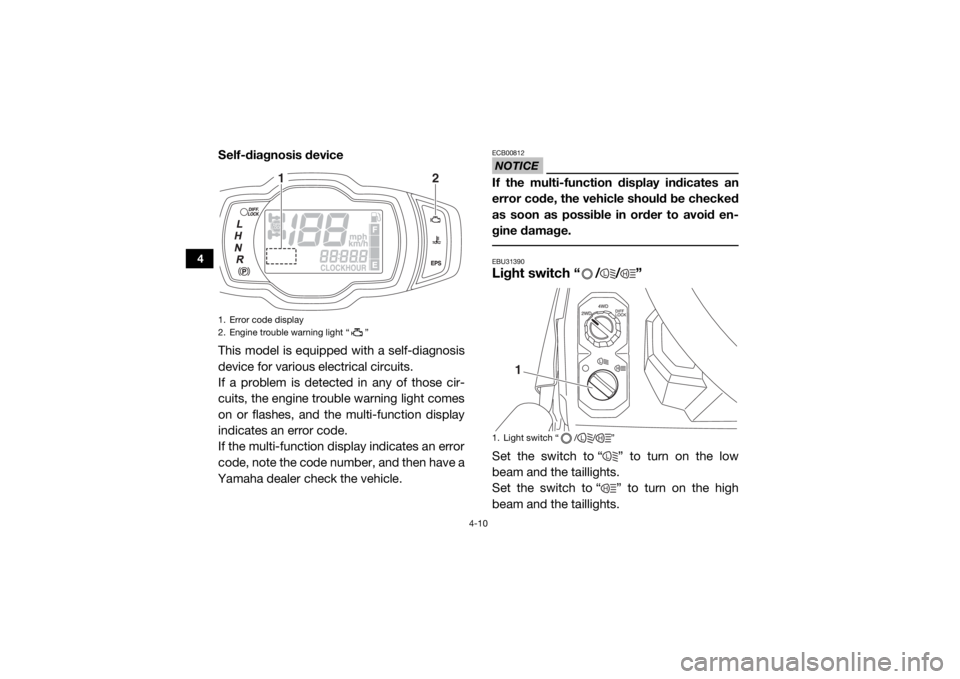

Self-diagnosis device
This model is equipped with a self-diagnosis
device for various electrical circuits.
If a problem is detected in any of those cir-
cuits, the engine trouble warning light comes
on or flashes, and the multi-function display
indicates an error code.
If the multi-function display indicates an error
code, note the code number, and then have a
Yamaha dealer check the vehicle.
NOTICEECB00812If the multi-function display indicates an
error code, the vehicle should be checked
as soon as possible in order to avoid en-
gine damage. EBU31390Light switch “ / / ”Set the switch to “ ” to turn on the low
beam and the taillights.
Set the switch to “ ” to turn on the high
beam and the taillights.
1. Error code display
2. Engine trouble warning light “ ”
2
1
1. Light switch “ / / ”
L
H
1
L
HLH
UB857AE0.book Page 10 Monday, August 24, 2015 8:59 AM
