YAMAHA VIKING VI 2016 Repair Manual

4-21
4

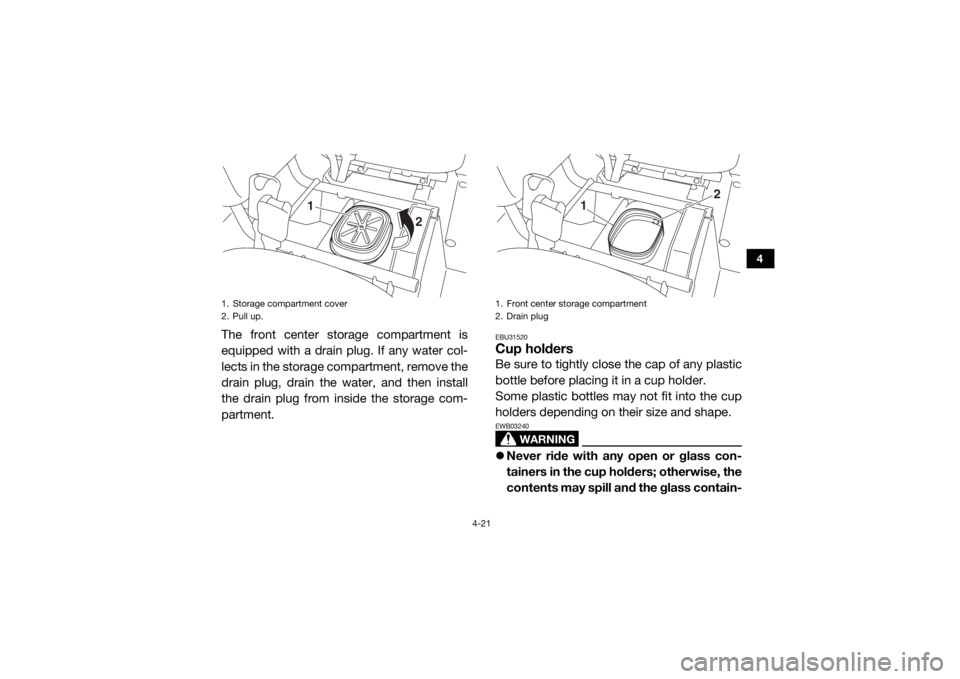

The front center storage compartment is
equipped with a drain plug. If any water col-
lects in the storage compartment, remove the
drain plug, drain the water, and then install
the drain plug from inside the storage com-
partment.

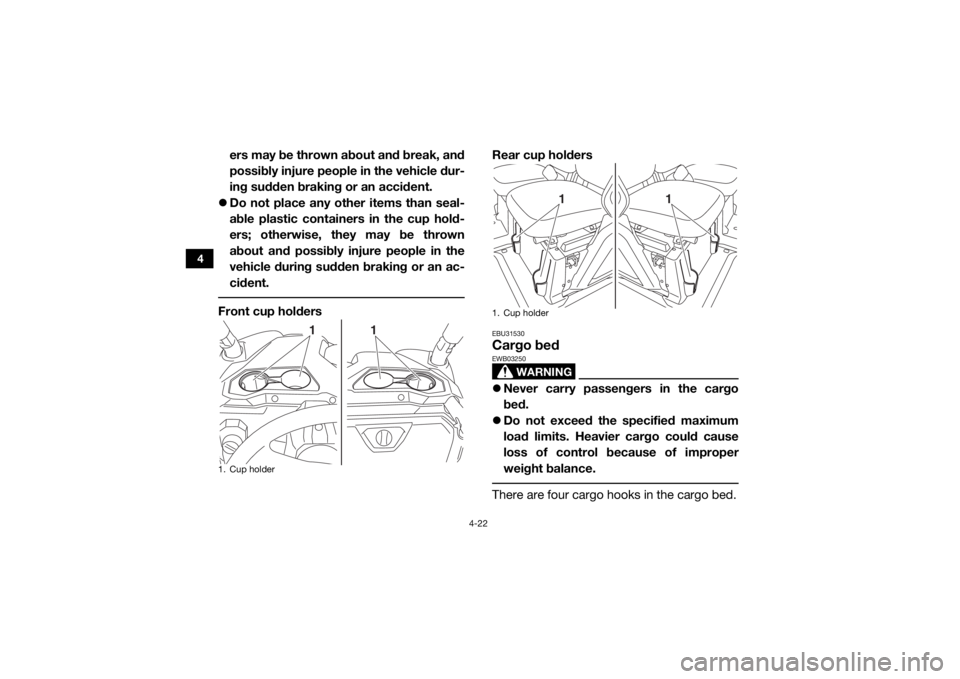

EBU31520Cup holdersBe sure to tightly close the cap of any plastic
bottle before placing it in a cup holder.
Some plastic bottles may not fit into the cup
holders depending on their size and shape.
WARNING
EWB03240Never ride with any open or glass con-
tainers in the cup holders; otherwise, the
contents may spill and the glass contain-
1. Storage compartment cover
2. Pull up.
1
2
1. Front center storage compartment
2. Drain plug
2
1
UB857AE0.book Page 21 Monday, August 24, 2015 8:59 AM

4-22
4
ers may be thrown about and break, and
possibly injure people in the vehicle dur-
ing sudden braking or an accident.
 Do not place any other items than seal-
able plastic containers in the cup hold-
ers; otherwise, they may be thrown
about and possibly injure people in the
vehicle during sudden braking or an ac-
cident. Front cup holders Rear cup holders

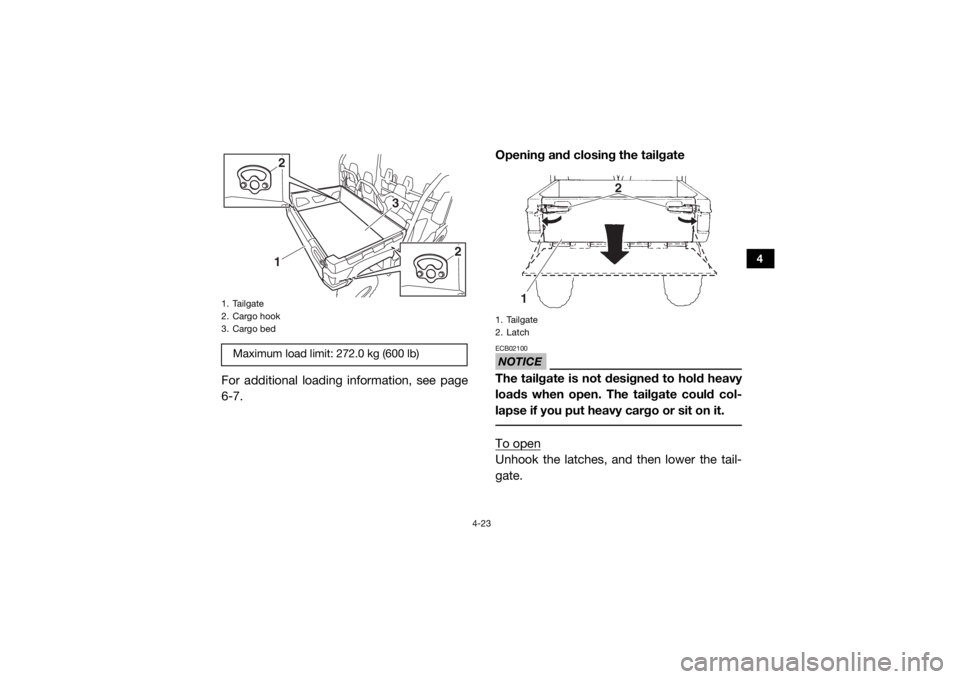

EBU31530Cargo bed
WARNING
EWB03250
Never carry passengers in the cargo
bed.
 Do not exceed the specified maximum
load limits. Heavier cargo could cause
loss of control because of improper
weight balance. There are four cargo hooks in the cargo bed.
1. Cup holder
11
1. Cup holder
1
1
UB857AE0.book Page 22 Monday, August 24, 2015 8:59 AM

4-23
4
For additional loading information, see page
6-7.Opening and closing the tailgate
NOTICEECB02100The tailgate is not designed to hold heavy
loads when open. The tailgate could col-
lapse if you put heavy cargo or sit on it. To openUnhook the latches, and then lower the tail-
gate.
1. Tailgate
2. Cargo hook
3. Cargo bedMaximum load limit: 272.0 kg (600 lb)
1
3
2
2
1. Tailgate
2. Latch
2
1
UB857AE0.book Page 23 Monday, August 24, 2015 8:59 AM

4-24
4
To closeLift the tailgate to the original position, and
then hook the latches.

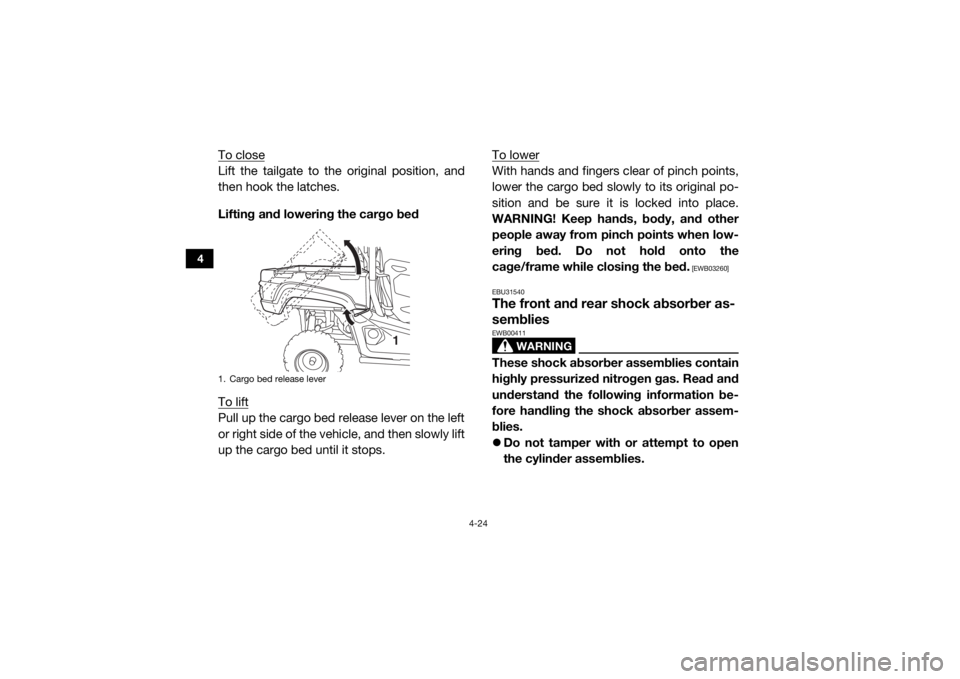

Lifting and lowering the cargo bed
To liftPull up the cargo bed release lever on the left
or right side of the vehicle, and then slowly lift
up the cargo bed until it stops.To lower
With hands and fingers clear of pinch points,
lower the cargo bed slowly to its original po-
sition and be sure it is locked into place.
WARNING! Keep hands, body, and other
people away from pinch points when low-
ering bed. Do not hold onto the
cage/frame while closing the bed.
[EWB03260]
EBU31540
The front and rear shock absorber as-
semblies
WARNING
EWB00411These shock absorber assemblies contain
highly pressurized nitrogen gas. Read and
understand the following information be-
fore handling the shock absorber assem-
blies.
 Do not tamper with or attempt to open
the cylinder assemblies.
1. Cargo bed release lever
1
UB857AE0.book Page 24 Monday, August 24, 2015 8:59 AM

4-25
4
Do not subject the shock absorber as-
semblies to an open flame or other high
heat source. This may cause the unit to
explode due to excessive gas pressure.
 Do not deform or damage the cylinders
in any way. Cylinder damage will result in
poor damping performance.
 Do not dispose of a damaged or worn
out shock absorber assembly yourself.
Take the shock absorber assembly to a
Yamaha dealer for any service. EBU31550Trailer hitch bracket and receiverThis vehicle is equipped with a trailer hitch
bracket and a 5 cm (2 in) receiver for a stan-
dard trailer hitch. Tr ailer towing equipment
can be obtained at a Yamaha dealer. (See
page 6-7 for precaution information.)
EBU31560Auxiliary DC jacksThis vehicle is equipped with two auxiliary DC
jacks. One auxiliary DC jack is located at the
right side of the storage compartment under
the multi-function meter, and the other is lo-
cated in front of the rear right passenger seat.
The auxiliary DC jacks can be used for suit-
able work lights, radios, etc. The auxiliary DC
jacks should only be used when the engine is
running and the headlights are turned off.1. Trailer hitch bracket
2. Receiver
2
1
UB857AE0.book Page 25 Monday, August 24, 2015 8:59 AM

4-26
4
NOTICEECB02110The combined load of the accessories
connected to the front and rear auxiliary
DC jacks must never exceed the stated
maximum capacity. Exceeding the maxi-
mum capacity may overload the circuit
and cause the fuse to blow.
 If accessories are used without the en-
gine running, the battery may discharge.
 Do not use an automotive cigarette light-
er or other accessories with a plug that
gets hot, because the jack can be dam-
aged. To use an auxiliary DC jack1. Set the light switch to “ ”.
2. Turn the accessory off.
3. Start the engine. (See page 6-2.)
4. Open the auxiliary DC jack cap, and then
insert the accessory power plug into the
jack.
1. Auxiliary DC jack cap
2. Front auxiliary DC jack
1. Auxiliary DC jack cap
2. Rear auxiliary DC jack
2
1
21
UB857AE0.book Page 26 Monday, August 24, 2015 8:59 AM

4-27
4
5. Turn the accessory on.
6. When the auxiliary DC jack is not beingused, cover it with the cap.Maximum rated capacity for the auxiliary DC
jack:DC 12 V, 10 A (120 W)
UB857AE0.book Page 27 Monday, August 24, 2015 8:59 AM

5-1
5
EBU31572
FOR YOUR SAFETY – PRE-OPERATION CHECKS
EBU31581Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition.
Always follow the inspection and maintenance procedures and schedules described in the Own-
er’s Manual.
WARNING
EWB00482Failure to inspect or maintain the vehicle properly increases the possibility of an accident
or equipment damage. Do not operate the vehicle if you find any problem. If a problem can-
not be corrected by the procedures provided in this manual, have the vehicle inspected by
a Yamaha dealer. Before using this vehicle, check the following points:
ITEM ROUTINE PAGE
Brakes • Check operation, free play, fluid level, and fluid leakage.
• Fill with DOT 4 brake fluid if necessary. 5-3, 8-36, 8-41
Parking brake • Check for proper operation, condition, and free play. 8-39
Fuel • Check fuel level.
• Fill with the recommended fuel if necessary. 5-3
Engine oil • Check oil level.
• Fill with oil to proper level if necessary. 5-5, 8-12
UB857AE0.book Page 1 Monday, August 24, 2015 8:59 AM

5-2
5
Coolant• Check coolant level in reservoir.
• Fill with coolant if necessary.
5-6, 8-20
Final gear oil/Differen-
tial gear oil • Check for leakage. 5-6, 5-6, 8-16, 8-18
Accelerator pedal • Check for proper accelerator pedal operation. 5-7
Seat belts • Check for proper operation and belt wear. 5-7
Passenger handhold • Check for stability and proper fastening. 5-7, 7-9
Steering • Check for proper operation. 5-7
Fittings and fasteners • Check all fittings and fasteners. 5-8
Instruments, lights and
switches • Check operation, and correct if necessary. 5-8, 8-53, 8-55, 8-56
Wheels and tires • Check tire pressure and for wear and damage. 5-8, 8-43, 8-45
Axle boots • Check for damage. 8-25
ITEM ROUTINE PAGE
UB857AE0.book Page 2 Monday, August 24, 2015 8:59 AM

5-3
5
EBU31730Front and rear brakesBrake pedal
Check that there is no free play in the brake
pedal. If there is free play, have a Yamaha
dealer check the brake system. (See page
8-39.)
 Check the operation of the brake pedal. It
should move smoothly and there should be
a firm feeling when the brakes are applied.
If not, have the vehicle inspected by a
Yamaha dealer.
Brake fluid level
Check the brake fluid level. Add fluid if neces-
sary. (See page 8-37.) Brake fluid leakage
Check to see if any brake fluid is leaking out
of the pipe joints or the brake fluid reservoir.
Apply the brakes firmly for one minute. If there
is any leakage, have the vehicle inspected by
a Yamaha dealer.
Brake operation
Check the operation of the brakes at the start
of every ride. Test the brakes at slow speed
after starting out to make sure they are work-
ing properly. If the brakes do not provide
proper braking performance, inspect the
brake system. (See page 8-36.)
EBU33200FuelMake sure there is sufficient fuel in the tank.
Specified brake fluid: DOT 4
UB857AE0.book Page 3 Monday, August 24, 2015 8:59 AM
