Features and functions
20

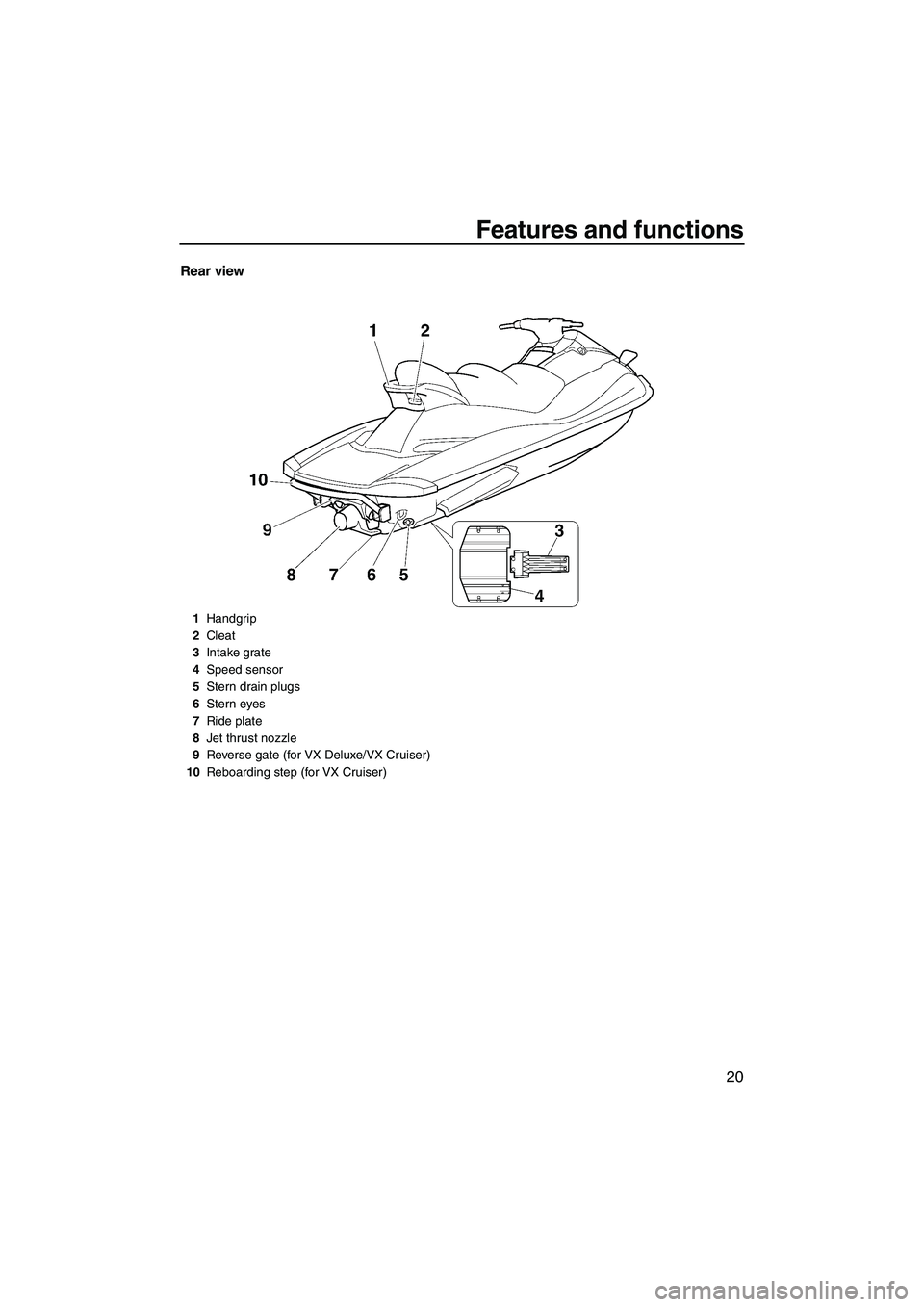

Rear view
1Handgrip
2Cleat
3Intake grate
4Speed sensor
5Stern drain plugs
6Stern eyes
7Ride plate
8Jet thrust nozzle
9Reverse gate (for VX Deluxe/VX Cruiser)
10Reboarding step (for VX Cruiser)
UF2L70E0.book Page 20 Thursday, June 19, 2008 8:38 AM

Features and functions
34
and then check the intake grate and impeller
for clogging. (See page 78 for more informa-
tion.) NOTICE: If you cannot locate and
correct the cause of the overheating, con-
sult a Yamaha dealer. Continuing to oper-
ate at higher speeds could result in severe
engine damage.
[ECJ00041]
TIP:
Press the select button on the multifunction
information center to stop the buzzer.
EJU31631Check engine warning indicator
If a sensor malfunction or a short circuit is de-
tected, the “WARNING” light and the checkengine warning indicator begin to blink, and
the buzzer sounds intermittently.
If this occurs, reduce the engine speed, return
to shore, and have a Yamaha dealer check
the engine.
TIP:
Press the select button on the multifunction
information center to stop the buzzer.
EJU35001“SECURITY” indicator light
(for VX Deluxe/VX Cruiser)
The “SECURITY” indicator light comes on
when the unlock mode of the Yamaha Securi-
ty System is selected. The watercraft can be1Select button
1Select button
UF2L70E0.book Page 34 Thursday, June 19, 2008 8:38 AM

Trouble recovery
76
Engine runs irregu-
larly or stallsFuel Empty Refill as soon as pos-
sible38
Stale or contaminat-
edHave serviced by
Yamaha dealer68
Fuel tank Water or dirt present Have serviced by
Yamaha dealer68
Spark plug Fouled or defective Replace 70
Incorrect heat range Replace 70
Gap incorrect Adjust 70
Spark plug
capLoose Connect properly 70
Cracked, torn, or
damagedHave serviced by
Yamaha dealer—
Electrical wir-
ingLoose connection Have serviced by
Yamaha dealer—
Fuel injec-
tion systemFaulty or clogged in-
jectorsHave serviced by
Yamaha dealer—
Warning light or in-
dicator blinksFuel level Empty Refill as soon as pos-
sible38
Oil pressure
warningOil pressure dropped Have serviced by
Yamaha dealer33
Engine over-
heatedJet intake clogged Clean
78
Check engine
warningFaulty sensors Have serviced by
Yamaha dealer34 TROUBLE POSSIBLE CAUSE REMEDY PAGE
