Further safe-riding points
•Be sure to signal clearly when making turns.
•Braking can be extremely difficult on a wet road. Avoid hard braking, because the scooter could slide.
Apply the brakes slowly when stopping on a wet surface.
•Slow down as you approach a corner or turn. Once you have completed a turn, accelerate slowly.
•Be careful when passing parked cars. A driver might not see you and open a door in your path.
•Railroad crossings, streetcar rails, iron plates on road construction sites, and manhole covers become
extremely slippery when wet. Slow down and cross them with caution. Keep the scooter upright, otherwise
it could slide out from under you.
•The brake lining could get wet when you wash the scooter. After washing the scooter, check the brakes
before riding.
•Always wear a helmet, gloves, trousers (tapered around the cuff and ankle so they do not flap), and a
bright colored jacket.
•Do not carry too much luggage on the scooter. An overloaded scooter is unstable. Use a strong cord to
secure any luggage to the carrier. A loose load will affect the stability of the scooter and could divert
your attention from the road.

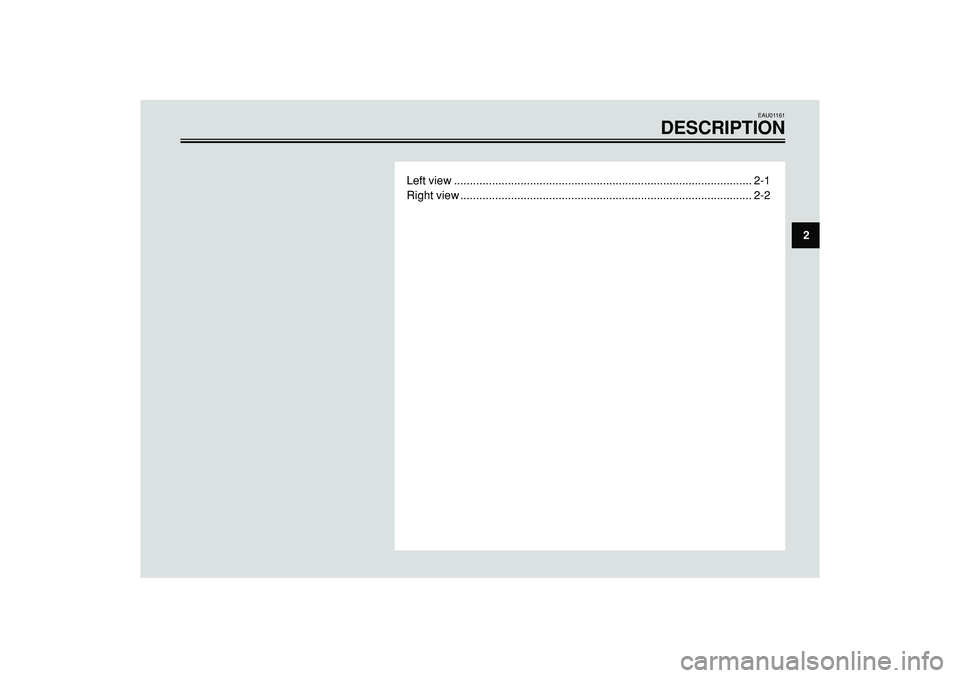

Left view .............................................................................................. 2-1
Right view ............................................................................................ 2-2
2
EAU01161
DESCRIPTION

2
DESCRIPTION
Left view
6
5 7
1234
1. Rear brake lever (page 3-5, 6-12, 6-15)
2. Fuel gauge (page 3-3)
3. Speedometer (page 3-3)
4. Main switch (page 3-1, 3-8)5. Final transmission oil filler cap (page 6-6)
6. Kick starter (page 3-7)
7. Air filter (page 6-7)
2-1

2
DESCRIPTION
Right view
8910
11
12
13
14
8. Rear carrier (page 3-9)
9. Passenger seat —
10. Throttle grip (page 6-9, 6-15)
11. Front brake lever (page 3-5, 6-12, 6-15)12. Luggage hook (page 3-9)
13. Battery / fuse (page 6-18 — 6-19)
14. Fuel and oil tank cap (page 3-5)
2-2

EAU00027
INSTRUMENT AND CONTROL FUNCTIONS
Main switch / steering lock .................................................................. 3-1
Indicator and warning lights ................................................................ 3-2
Speedometer unit ................................................................................ 3-3
Fuel gauge .......................................................................................... 3-3
Handlebar switches ............................................................................. 3-4
Front brake lever ................................................................................. 3-5
Rear brake lever .................................................................................. 3-5
Fuel and 2-stroke engine oil tank caps ............................................... 3-5
Fuel ..................................................................................................... 3-6
Catalytic converter .............................................................................. 3-7
2-stroke engine oil ............................................................................... 3-7
Kickstarter ........................................................................................... 3-7
Rider seat ............................................................................................ 3-8
Storage compartment ......................................................................... 3-8
Carrier ................................................................................................. 3-9
Luggage hook ..................................................................................... 3-9
3

3
INSTRUMENT AND CONTROL FUNCTIONS
PUSH
OPEN
ZAUM0253
EAU00029
Main switch/steering lock
The main switch/steering lock controls
the ignition and lighting systems, and
is used to lock the steering. The various
positions are described below.
EAU00038
OFF “”
All electrical systems are off. The key
can be removed.
EAU04470
CHECK “”
The 2-stroke engine oil level warning
light should come on. See page 3-2 for
an explanation of the engine oil level
warning light.
EAU00040
LOCK “ ”
The steering is locked, and all electrical
systems are off. The key can be
removed.
To lock the steering
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “
”
position, and then turn it to “
”
while still pushing it.
3. Remove the key.
To unlock the steering
Push the key in, and then turn it to “
”
while still pushing it.
EW000016
Never turn the key to “ ” or “ ”
while the scooter is moving, otherwise
the electrical systems will be switched
off, which may result in loss of control
or an accident. Make sure that the scoo-
ter is stopped before turning the key
to “ ” or “ ”.
EAU04384
ON “ ”
All electrical circuits are supplied with
power, the taillight and meter lighting
come on, and the engine can be
started. The key cannot be removed.
NOTE :
The headlight comes on as soon as the
engine is started.
3-1

INSTRUMENT AND CONTROL FUNCTIONS
312ZAUM0184
1. Turn signal indicator light ""
2. High beam indicator light "
`"
EAU00057
Turn signal indicator light ""
This indicator light flashes when the
turn signal switch is pushed to the left
or right.
EAU00063
High beam indicator light ""
This indicator light comes on when the
high beam of the headlight is switched
on.
1
ZAUM0357
1. Oil level indicator light ""
EAU02958
Oil level warning light ""
This warning light comes on when the
key is in the "
" position or when the
oil level in the 2-stroke engine oil tank
is low during operation. If the warning
light comes on during operation, stop
immediately and fill the oil tank with
Yamalube 2 or equivalent 2-stroke
engine oil of either JASO grade "FC"
or ISO grades "EG-C" or "EG-D". The
warning light should go off after the 2-
stroke engine oil tank has been refilled.
NOTE :
If the warning light does not come on
when the key is in the "
" position or
does not go off after the 2-stroke engine
oil tank has been refilled, have a
Yamaha dealer check the electrical cir-
cuit.
EC000000
Do not operate the scooter until you
know that the engine oil level is
sufficient.
3-2
EAU03034
Indicator and warning lights

3
INSTRUMENT AND CONTROL FUNCTIONS
12
ZAUM0185
1. Speedometer
2. Odometer
EAU00098
Speedometer unit
The speedometer unit is equipped with
a speedometer and an odometer. The
speedometer shows riding speed. The
odometer shows the total distance
traveled.
1
ZAUM0358
1. Fuel gauge
EAU00113
Fuel gauge
The fuel gauge indicates the amount
of fuel in the fuel tank. The needle
moves towards "E" (Empty) as the fuel
level decreases. When the needle
reaches "E", refuel as soon as possi-
ble.
NOTE :
Do not allow the fuel tank to empty itself
completely.
