YAMAHA WOLVERINE 2017 Owner's Manual
Manufacturer: YAMAHA, Model Year: 2017, Model line: WOLVERINE, Model: YAMAHA WOLVERINE 2017Pages: 186, PDF Size: 4.22 MB
Page 21 of 186
1-13
1
Liste de vérification
de sécurité intégrale
YAMAHA 1XD-F1558-10TêteCasque et protection des yeuxCorps Ceinture de sécurité et vêtements de protectionMainsÀ l’intérieur du véhicule, tenantla
poignée de maintien ou le volant.PiedsSur le plancher ou les repose-pieds, prêts à
encaisser le choc; portière fermée.
1XD-F8446-00
Be Prepared
Adjust, lock and never remove handhold.
Always use handhold, Never hold cage.
Always wear seatbelt and helmet.
1XD-F8446-10
Toujours prévoir l’imprévu.
Régler et verrouiller la poignée de maintien; ne jamais la retirer.
Toujours agripper la poignée de maintien, non l’arceau de protection.
Toujours porter la ceinture de sécurité et un casque approprié.22
23
24
U2MB7BE0.book Page 13 Thursday, March 3, 2016 11:46 AM
Page 22 of 186

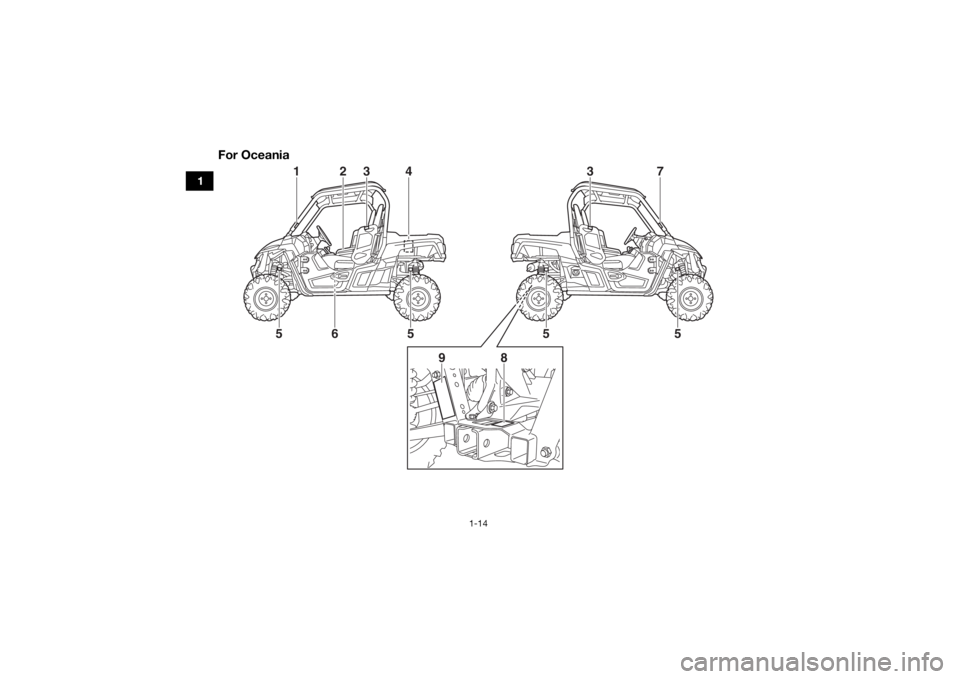

1-14
1
For Oceania
1
2
3
4
9
8
5
5
6
7
3
5
5
U2MB7BE0.book Page 14 Thursday, March 3, 2016 11:46 AM
Page 23 of 186

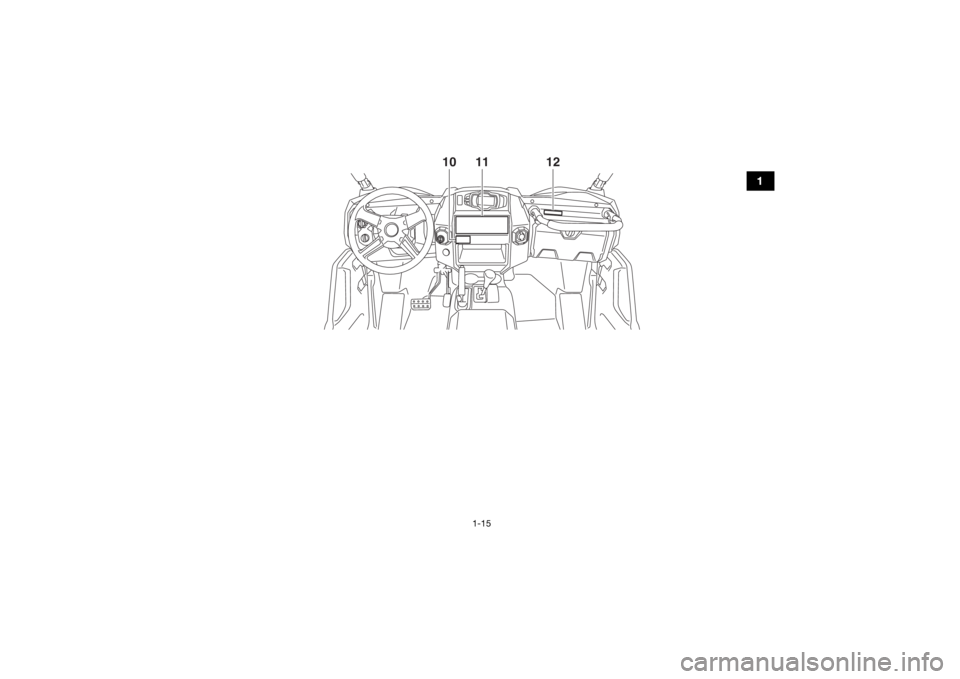

1-15
1
11
10
12
U2MB7BE0.book Page 15 Thursday, March 3, 2016 11:46 AM
Page 24 of 186

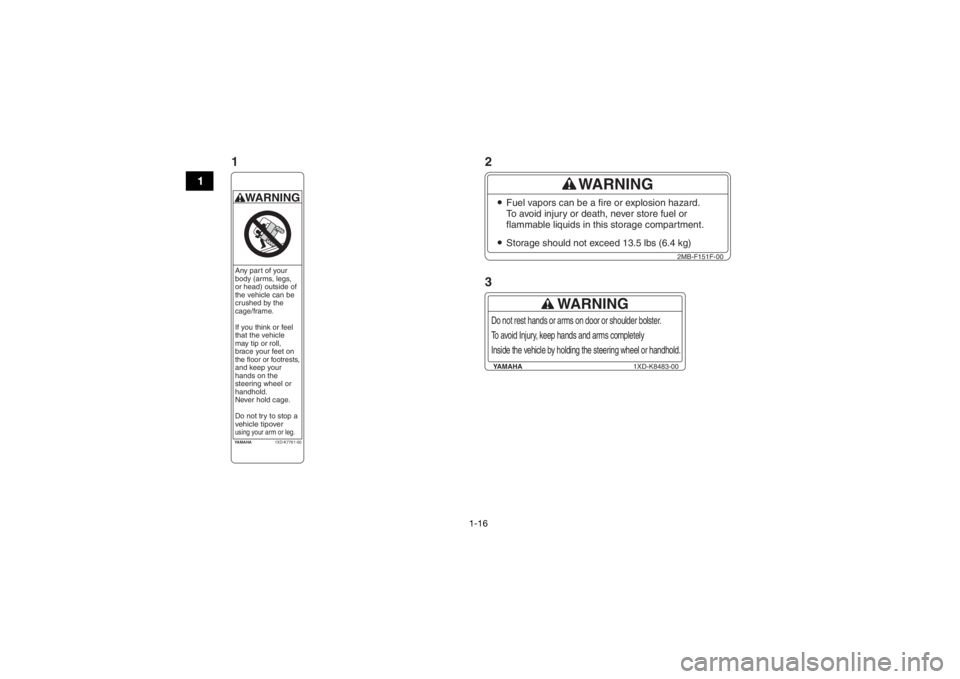

1-16
1
YAMAHA1XD-K7761-00WARNINGAny part of your
body (arms, legs,
or head) outside of
the vehicle can be
crushed by the
cage/frame.
If you think or feel
that the vehicle
may tip or roll,
brace your feet on the floor or footrests,and keep your
hands on the
steering wheel or
handhold.
Never hold cage.
Do not try to stop a vehicle tipover using your arm or leg.
YAMAHA 1XD-K8483-00
WARNING
Do not rest hands or arms on door or shoulder bolster.
To avoid Injury, keep hands and arms completely
Inside the vehicle by holding the steering wheel or handhold.
WARNING
Fuel vapors can be a fire or explosion hazard.
To avoid injury or death, never store fuel or
flammable liquids in this storage compartment.Storage should not exceed 13.5 lbs (6.4 kg)
2MB-F151F-00
12
3
U2MB7BE0.book Page 16 Thursday, March 3, 2016 11:46 AM
Page 25 of 186

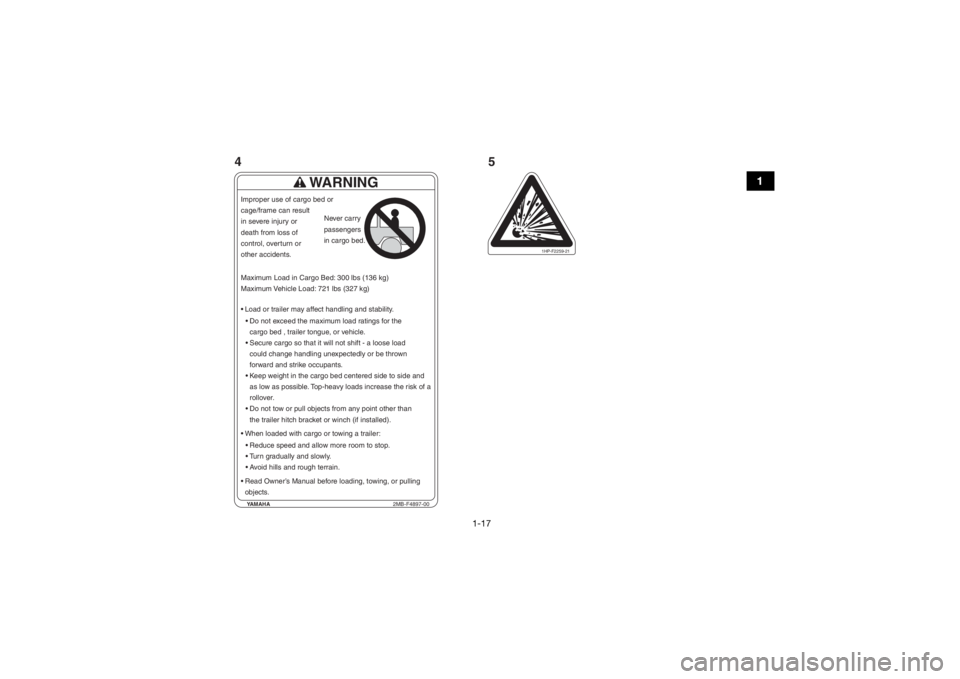

1-17
1
YAMAHA2MB-F4897-00
WARNING
Load or trailer may affect handling and stability.
Do not exceed the maximum load ratings for thecargo bed , trailer tongue, or vehicle.
When loaded with cargo or towing a trailer: Reduce speed and allow more room to stop.
Turn gradually and slowly.
Avoid hills and rough terrain. Secure cargo so that it will not shift - a loose loadcould change handling unexpectedly or be thrown
forward and strike occupants.
Keep weight in the cargo bed centered side to side and as low as possible. Top-heavy loads increase the risk of a
rollover.
Do not tow or pull objects from any point other than the trailer hitch bracket or winch (if installed).
Read Owner’s Manual before loading, towing, or pulling objects.
Improper use of cargo bed or
cage/frame can result
in severe injury or
death from loss of
control, overturn or
other accidents.
Maximum Load in Cargo Bed: 300 lbs (136 kg)
Maximum Vehicle Load: 721 lbs (327 kg)
Never carry
passengers
in cargo bed.
1HP-F2259-21
45
U2MB7BE0.book Page 17 Thursday, March 3, 2016 11:46 AM
Page 26 of 186

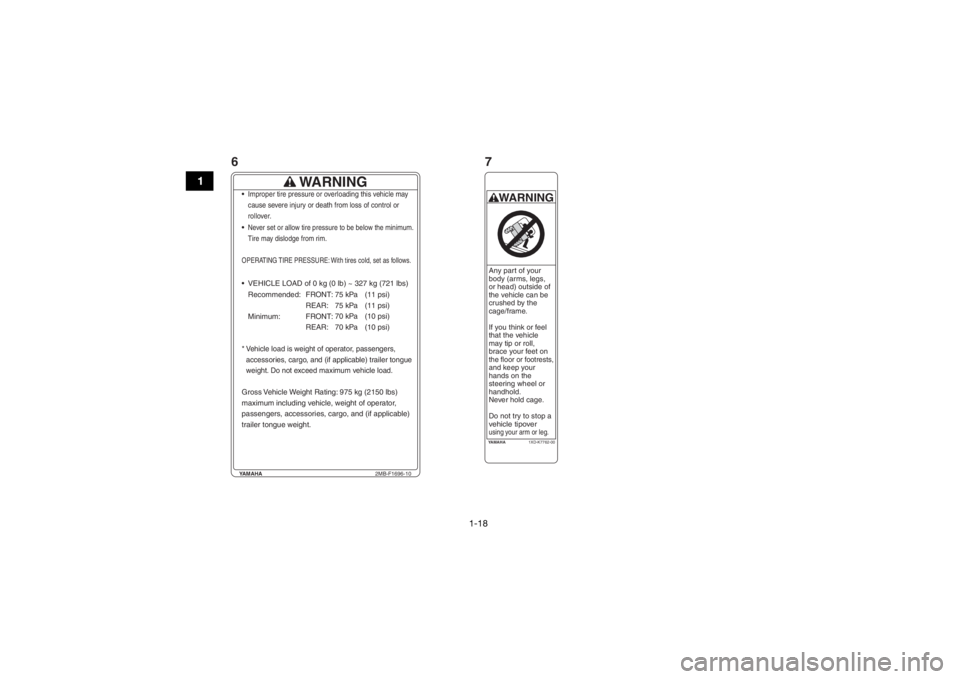

1-18
1
YAMAHA2MB-F1696-10
WARNING
Improper tire pressure or overloading this vehicle may
cause severe injury or death from loss of control or
rollover.Never set or allow tire pressure to be below the minimum.
Tire may dislodge from rim. VEHICLE LOAD of 0 kg (0 lb) ~ 327 kg (721 lbs)
Recommended: FRONT: REAR:
Minimum: FRONT: REAR:75 kPa
75 kPa
70 kPa
70 kPa (11 psi)
(11 psi)
(10 psi)
(10 psi)
*Vehicle load is weight of operator, passengers,
accessories, cargo, and (if applicable) trailer tongue
weight. Do not exceed maximum vehicle load.Gross Vehicle Weight Rating: 975 kg (2150 lbs)
maximum including vehicle, weight of operator,
passengers, accessories, cargo, and (if applicable)
trailer tongue weight.OPERATING TIRE PRESSURE: With tires cold, set as follows.
YA M A H A 1XD-K7762-00WARNINGAny part of your
body (arms, legs,
or head) outside of
the vehicle can be
crushed by the
cage/frame.
If you think or feel
that the vehicle
may tip or roll,
brace your feet on the floor or footrests,and keep your
hands on the
steering wheel or
handhold.
Never hold cage.
Do not try to stop a vehicle tipover using your arm or leg.
67
U2MB7BE0.book Page 18 Thursday, March 3, 2016 11:46 AM
Page 27 of 186

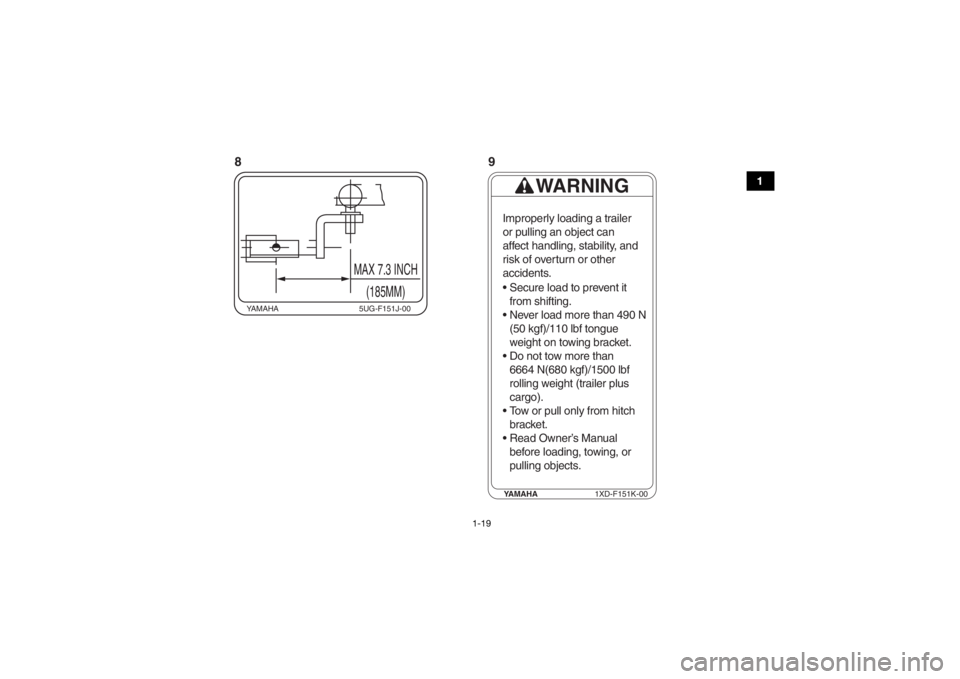

1-19
1
YAMAHA5UG-F151J-00
MAX 7.3 INCH
(185MM)
YAMAHA 1XD-F151K-00
WARNING
Improperly loading a trailer
or pulling an object can
affect handling, stability, and
risk of overturn or other
accidents.
Secure load to prevent it
from shifting.
Never load more than 490 N (50 kgf)/110 lbf tongue
weight on towing bracket.
Do not tow more than 6664 N(680 kgf)/1500 lbf
rolling weight (trailer plus
cargo).
Tow or pull only from hitch bracket.
Read Owner’s Manual before loading, towing, or
pulling objects.
89
U2MB7BE0.book Page 19 Thursday, March 3, 2016 11:46 AM
Page 28 of 186

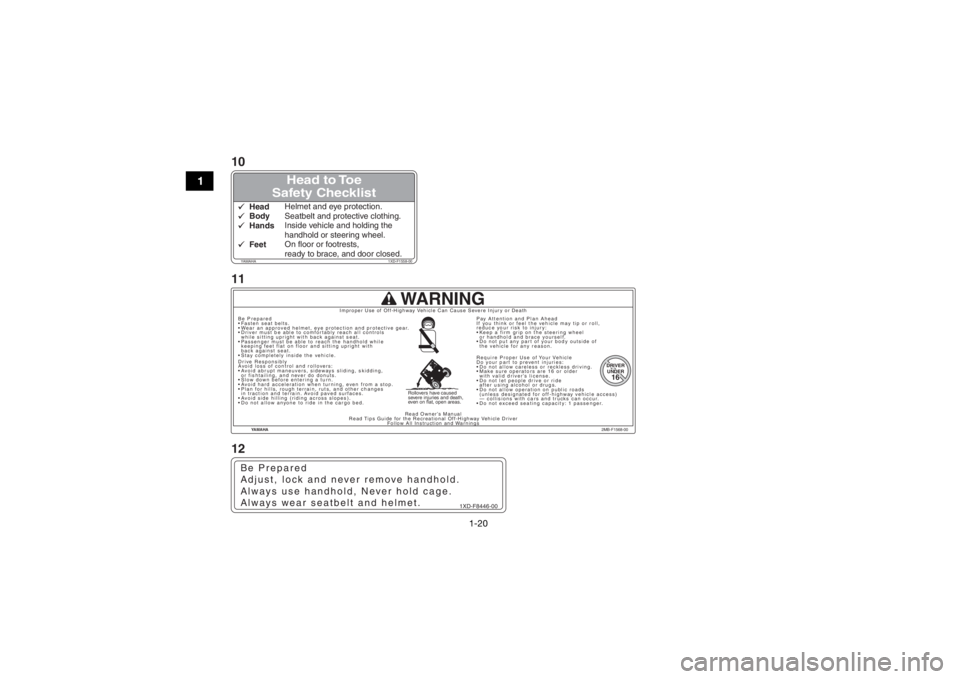

1-20
1
Head to Toe
Safety Checklist
YAMAHA 1XD-F1558-00HeadHelmet and eye protection.BodySeatbelt and protective clothing.HandsInside vehicle and holding the
handhold or steering wheel.FeetOn floor or footrests,
ready to brace, and door closed.
1XD-F8446-00
Be Prepared
Adjust, lock and never remove handhold.
Always use handhold, Never hold cage.
Always wear seatbelt and helmet.YAMAHA
2MB-F1568-00
WARNING
DRIVER DRIVER
UNDER
UNDER16
16DRIVERUNDER16
Improper Use of Off-Highway Vehicle Can Cause Severe Injury or Death
Read Owner’s Manual
Read Tips Guide for the Recreational Off-Highway Vehicle Driver Follow All Instruction and Warnings
Be Prepared
Drive Responsibly
If you think or feel the vehicle may tip or roll,
reduce your risk to injury: Pay Attention and Plan Ahead
Do not allow careless or reckless driving.
Do your part to prevent injuries: Require Proper Use of Your Vehicle
Rollovers have caused
severe injuries and death,
even on flat, open areas.
Stay completely inside the vehicle.
Passenger must be able to reach the handhold while
keeping feet flat on floor and sitting upright with
back against seat.
Driver must be able to comfortably reach all controls
while sitting upright with back against seat.
Wear an approved helmet, eye protection and protective gear.
Fasten seat belts.
Do not allow anyone to ride in the cargo bed.
Avoid side hilling (riding across slopes).
Plan for hills, rough terrain, ruts, and other changes
in traction and terrain. Avoid paved surfaces.
Avoid hard acceleration when turning, even from a stop.
Slow down before entering a turn.
Avoid abrupt maneuvers, sideways sliding, skidding,
or fishtailing, and never do donuts.
Avoid loss of control and rollovers: Do not put any part of your body outside of
the vehicle for any reason.
Keep a firm grip on the steering wheel
or handhold and brace yourself.
Do not exceed seating capacity: 1 passenger.
Do not allow operation on public roads
(unless designated for off-highway vehicle access)
— collisions with cars and trucks can occur.
Do not let people drive or ride
after using alcohol or drugs.
Make sure operators are 16 or older
with valid driver’s license.
10
11
12
U2MB7BE0.book Page 20 Thursday, March 3, 2016 11:46 AM
Page 29 of 186
2-1
2
EBU31150
SAFETY INFORMATION
SAFETY INFORMATION
EBU33441Be a responsible owner
As the vehicle’s owner, you are responsible for the safe and proper operation of your Yamaha
Wolverine. While understanding all parts of this manual are important for vehicle ownership, be
sure to read this chapter and the instructions in Chapter 7 before operating your Yamaha
Wolverine. Also use these two chapters and the la bels on the vehicle to instruct new operators
and passengers. Do not allow anyone else to oper ate your vehicle or ride as a passenger if you
are unsure that he/she is willing and able to follow these instructions.
Get to know your vehicle
This off-road vehicle will handle and maneuver differently from cars, ATVs, go-carts, golf-cars
and grounds-keeping vehicles. Follow these instruct ions to reduce your risk of an accident and
to reduce the risk of serious injury or death in the event of an accident.U2MB7BE0.book Page 1 Thursday, March 3, 2016 11:46 AM
Page 30 of 186
2-2
2
Before you operate your Yamaha Wolverine
Prepare yourself and your passenger:
• This vehicle is intended for use only by an operator 16 or older with a valid motor vehicle li-
cense. Check country laws fo r minimum age requirements.
• This vehicle is designed to carry the driver and one passenger. Never carry passengers in the cargo bed.
• Both driver and passenger should wear seat belts properly.
• Both driver and passenger must be able to put both feet flat on the floorboard while seated
upright with their backs against the backrests. Passenger must be able to reach and hold
the passenger handhold within the cage/frame.
• Both driver and passenger should wear an appr oved motorcycle helmet that fits properly.
Both driver and passenger should also wear eye protection (goggles or a face shield), gloves,
over-the-ankle boots, long-sleeved shirt or jacket, and long pants.
DRIVER
UNDER
16
U2MB7BE0.book Page 2 Thursday, March 3, 2016 11:46 AM
