Page 41 of 186
4-3
4
EBU31290Neutral indicator light “N”
This indicator light comes on when the drive
select lever is in the “N” position.EBU31300Reverse indicator light “R”
This indicator light comes on when the drive
select lever is in the “R” position.EBU31310Parking brake indicator light “ ”
This indicator light comes on when the park-
ing brake is applied.EBU31320On-Command four-wheel-drive
indicator “ ”, On-Command differential
gear lock indicator “ ” and indicator light
“DIFF. LOCK”
The On-Command four-wheel-drive
indicator “ ” comes on when the On-Com-
mand drive knob “2WD/4WD/DIFF LOCK” is
set to the “4WD” position.The On-Command differential gear lock
indicator “ ” and the On-Command differen-
tial gear lock indicator light “DIFF. LOCK”
come on when the On-Command drive knob
“2WD/4WD/DIFF LOCK” is set to the “DIFF
LOCK” position.
TIP
Due to the synchronizing mechanism in the
differential gear case, the four-wheel-drive
indicator may not come on until the vehicle
starts moving.
When the On-Command drive knob
“2WD/4WD/DIFF LOCK” is set to “DIFF
LOCK” or “4WD”, the indicator “ ” and the
indicator light “DIFF. LOCK” will flash until
the differential gear is completely locked or
unlocked. If the indicator and the indicator
light continue to flash, the differential is not
completely locked or unlocked. In this
case, start moving to allow time for the dif-
ferential to lock or unlock.
U2MB7BE0.book Page 3 Thursday, March 3, 2016 11:46 AM
Page 42 of 186
4-4
4
EBU31330Coolant temperature warning light “ ”
If the coolant temperature reaches a specific
level, this light comes on to warn that the
coolant temperature is too hot. If the light
comes on during operation, stop the engine
as soon as it is safe to do so and allow the en-
gine to cool down for about 10 minutes. (See
page 8-60.)
The electrical circuit of the warning light can
be checked by turning the key to “ ” (on). If
the warning light does not come on initially
when the key is turned to “ ” (on), or if the
warning light remains on, have a Yamaha
dealer check the electrical circuit.NOTICEECB02040The engine may overheat if the vehicle is
overloaded. If this happens, reduce the
load to specification.
After restarting, make sure that the
warning light is out. Continuous use
while this warning light is on may cause
damage to the engine.
EBU31340Engine trouble warning light “ ”
This warning light comes on or flashes if a
problem is detected in the electrical circuit
monitoring the engine. When this occurs,
have a Yamaha dealer check the self-diagno-
sis system. (See page 4-10 for an explanation
of the self-diagnosis device.)
The electrical circuit of the warning light can
be checked by turning the key to “ ” (on). If
the warning light does not come on initially
when the key is turned to “ ” (on), or if the
warning light remains on, have a Yamaha
dealer check the electrical circuit.
U2MB7BE0.book Page 4 Thursday, March 3, 2016 11:46 AM
Page 43 of 186
4-5
4
EBU33041Electric Power Steering warning light
“EPS”
This warning light comes on when the key is
turned to “ ” (on), and then goes off once
the engine is started. If the warning light re-
mains on or comes on after the engine is
started, the EPS system may not be working
correctly. When this occurs, have a Yamaha
dealer check the EPS system.
The electrical circuit of the warning light can
be checked by turning the key to “ ” (on). If
the warning light does not come on, have a
Yamaha dealer check the electrical circuit.TIPIf the steering load is too heavy (e.g., exces-
sive steering use at slow speed or when op-
erating in deep mud, sand, or snow), the
power assist is reduced to protect the EPS
motor from overheating.
EBU31360Helmet indicator light “ ”
The indicator light comes on and stays on
while the key is turned to “ ” (on) to remind
the occupants to always wear a helmet. If the
indicator light does not come on when the key
is turned to “ ” (on), have a Yamaha dealer
check the electrical circuit.EBU31370Seat belt indicator light “ ”
The indicator light comes on when the key is
turned to “ ” (on) to remind the occupants
to fasten their seat belt. The indicator light
stays on until the driver seat belt is properly
latched. If the indicator light does not come
on when the key is turned to “ ” (on), or if
the indicator light remains on after the driver
seat belt is properly latched, have a Yamaha
dealer check the electrical circuit.
U2MB7BE0.book Page 5 Thursday, March 3, 2016 11:46 AM
Page 44 of 186
4-6
4
EBU31383Multi-function meter unitThe multi-function meter unit is equipped with
the following:
speedometer
odometer
two tripmeters
clock
hour meter
voltage display
fuel gauge
error code display
Speedometer
The speedometer shows the vehicle’s travel-
ing speed. The speedometer can be set to
“mph” or “km/h”. This also changes the
odometer and tripmeter units between miles
and kilometers. To change the display be-
tween “mph” and “km/h”, turn the key to “ ”
(off), then while holding the “SELECT” button
pushed, turn the key to “ ” (on).1. “CLOCK” button
2. “RESET” button
3. “SELECT” button
4. Speedometer
5. Fuel gauge
6. Clock/Hour meter/Voltage display
7. Odometer/Tripmeter A/Tripmeter B321
4
5
6
7
U2MB7BE0.book Page 6 Thursday, March 3, 2016 11:46 AM
Page 45 of 186
4-7
4
Odometer and tripmeters
The odometer shows the total distance trav-
eled by the vehicle. The odometer can be
used for maintenance and service intervals.
The tripmeters show the distance traveled
since they were last reset. The tripmeters can
be used to record the distance traveled on a
single trip, or to estimate the distance that
can be traveled with a full tank of gas, etc.Push the “SELECT” button to switch between
the odometer “ODO” and the tripmeters
“TRIP A” and “TRIP B” in the following order:
ODO
→ TRIP A → TRIP B → ODO
To reset a tripmeter, set the display to the
tripmeter you want to reset, then push the
“RESET” button for three seconds.
TIP The odometer will lock at 99999.
The tripmeters will reset and continue
counting after 9999.9 is reached.

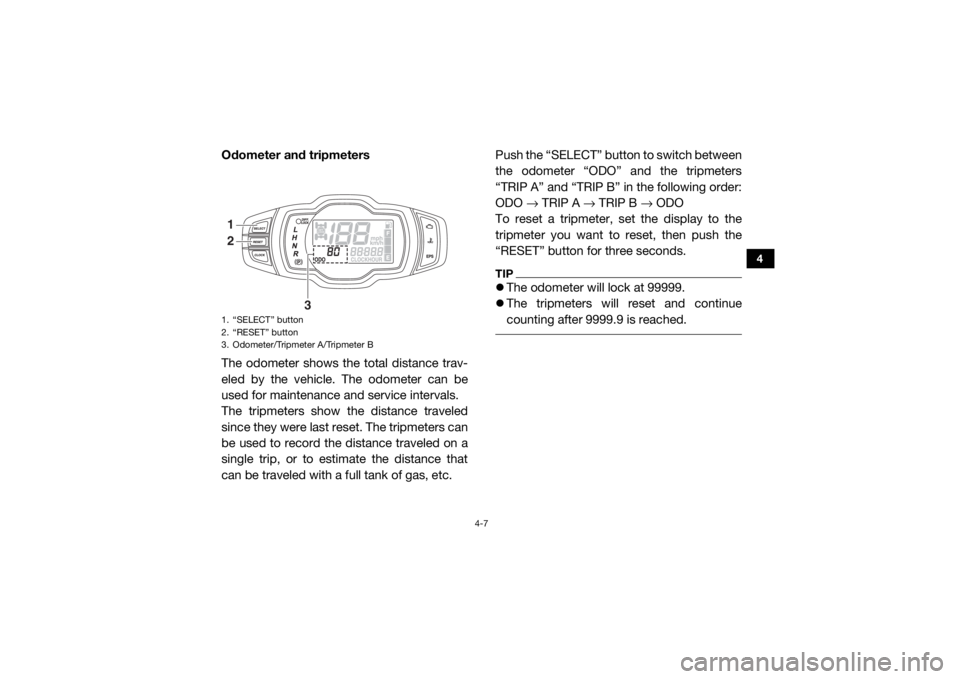

1. “SELECT” button
2. “RESET” button
3. Odometer/Tripmeter A/Tripmeter B12
3
U2MB7BE0.book Page 7 Thursday, March 3, 2016 11:46 AM
Page 46 of 186
4-8
4
Clock, hour meter and voltage display
The clock displays time in 12-hour format.
The hour meter shows the total time the en-
gine has been running.
The voltage display shows the battery volt-
age.
Push the “CLOCK” button to switch between
the clock “CLOCK”, the hour meter mode
“HOUR” and the voltage display
mode “ ” in the following order:CLOCK
→ HOUR → → CLOCK
To set the clock
1. Set the display to the clock.
2. Push both the “SELECT” button and “RESET” button for three seconds. The
hour digits will start flashing.
3. Push the “RESET” button to set the hours.
4. Push the “SELECT” button, and the mi-
nute digits will start flashing.
5. Push the “RESET” button to set the minu- tes.
6. Push the “SELECT” button and then re- lease it to start the clock.

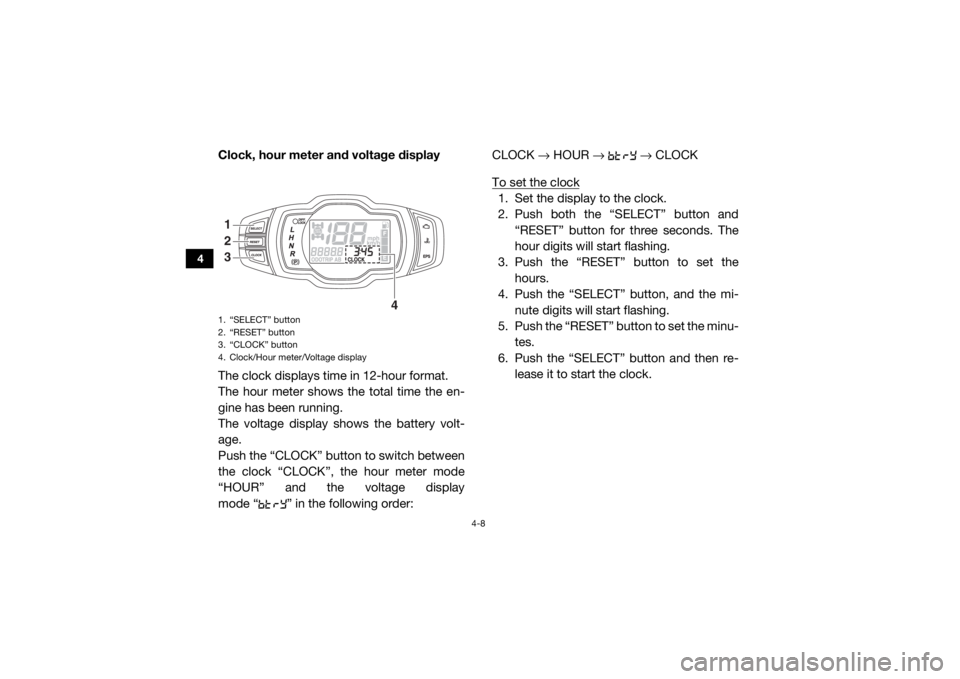

1. “SELECT” button
2. “RESET” button
3. “CLOCK” button
4. Clock/Hour meter/Voltage display
4
123U2MB7BE0.book Page 8 Thursday, March 3, 2016 11:46 AM
Page 47 of 186
4-9
4

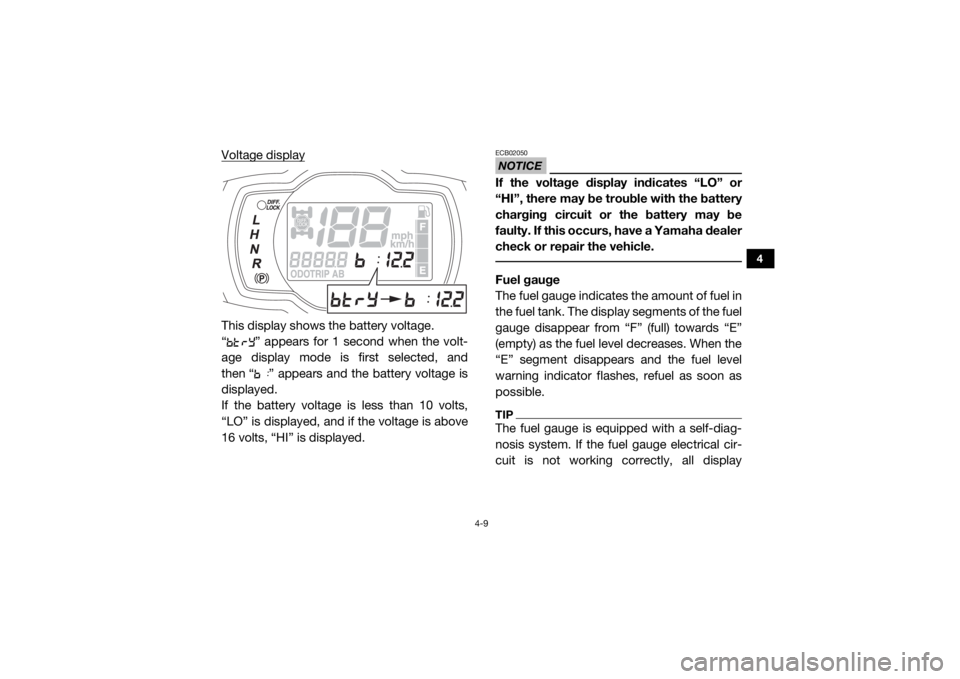

Voltage displayThis display shows the battery voltage.
“ ” appears for 1 second when the volt-
age display mode is first selected, and
then “ ” appears and the battery voltage is
displayed.
If the battery voltage is less than 10 volts,
“LO” is displayed, and if the voltage is above
16 volts, “HI” is displayed.
NOTICEECB02050If the voltage display indicates “LO” or
“HI”, there may be trouble with the battery
charging circuit or the battery may be
faulty. If this occurs, have a Yamaha dealer
check or repair the vehicle. Fuel gauge
The fuel gauge indicates the amount of fuel in
the fuel tank. The display segments of the fuel
gauge disappear from “F” (full) towards “E”
(empty) as the fuel level decreases. When the
“E” segment disappears and the fuel level
warning indicator flashes, refuel as soon as
possible.TIPThe fuel gauge is equipped with a self-diag-
nosis system. If the fuel gauge electrical cir-
cuit is not working correctly, all display
U2MB7BE0.book Page 9 Thursday, March 3, 2016 11:46 AM
Page 48 of 186
4-10
4
segments and the fuel level warning indicator
will flash repeatedly. If this occurs, have a
Yamaha dealer check the vehicle.
Error code display
This model is equipped with a self-diagnosis
device for various electrical circuits.
If a problem is detected in any of those cir-
cuits, the engine trouble warning light will
come on or flash, and the display will indicate
an error code.
If the display indicates an error code, note the
code number and have a Yamaha dealer
check the vehicle.
1. Fuel level warning indicator
2. Fuel gauge
3. “E” segment
1
23
1. Error code display
2. Engine trouble warning light “ ”
2
1
U2MB7BE0.book Page 10 Thursday, March 3, 2016 11:46 AM
Page 49 of 186
4-11
4

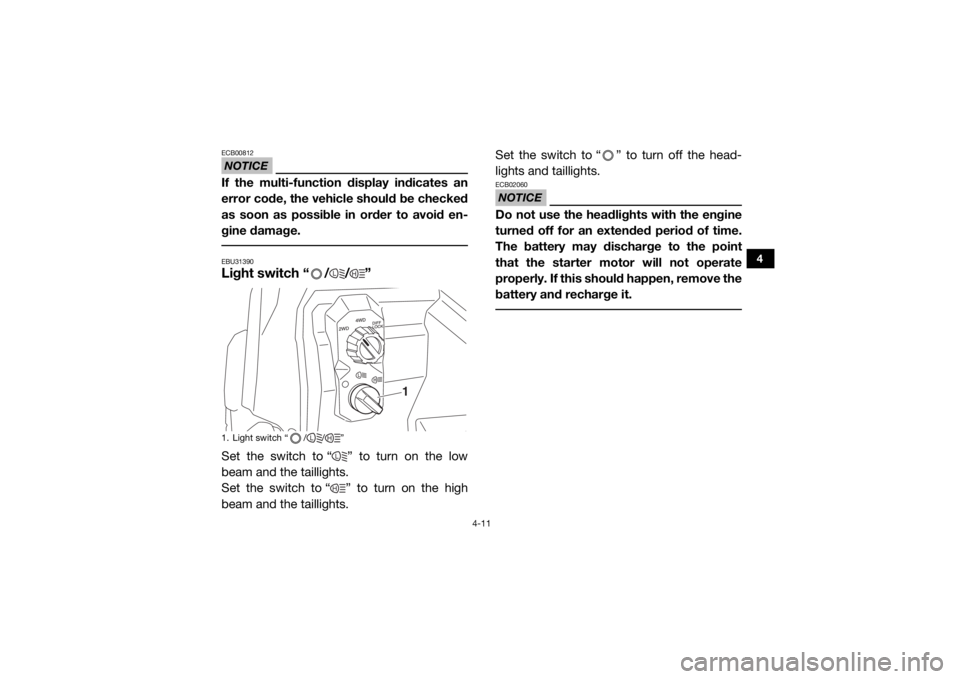

NOTICEECB00812If the multi-function display indicates an
error code, the vehicle should be checked
as soon as possible in order to avoid en-
gine damage. EBU31390Light switch “ / / ”Set the switch to “ ” to turn on the low
beam and the taillights.
Set the switch to “ ” to turn on the high
beam and the taillights.Set the switch to “ ” to turn off the head-
lights and taillights.
NOTICEECB02060Do not use the headlights with the engine
turned off for an extended period of time.
The battery may discharge to the point
that the starter motor will not operate
properly. If this should happen, remove the
battery and recharge it.
1. Light switch “ / / ”
L
H
1
L
HLH
U2MB7BE0.book Page 11 Thursday, March 3, 2016 11:46 AM
Page 50 of 186
4-12
4
EBU31400On-Command drive knob
“2WD/4WD/DIFF LOCK”This vehicle is equipped with an On-Com-
mand drive knob to select the drive mode.
The knob has three positions: “2WD”, “4WD”,
and “DIFF LOCK”. Select the appropriate
drive according to terrain and conditions.
“2WD” (two-wheel drive): Power is supplied
to the rear wheels only.
“4WD” (four-wheel drive): Power is sup-
plied to the rear and front wheels.
“DIFF LOCK” (four-wheel drive with the dif-
ferential gear locked): Power is supplied to
the rear and front wheels with the differen-
tial gear locked. Unlike the “4WD” mode, all
wheels turn at the same speed regardless
of traction.
EBU33192Horn switch “ ”Press the switch to sound the horn.

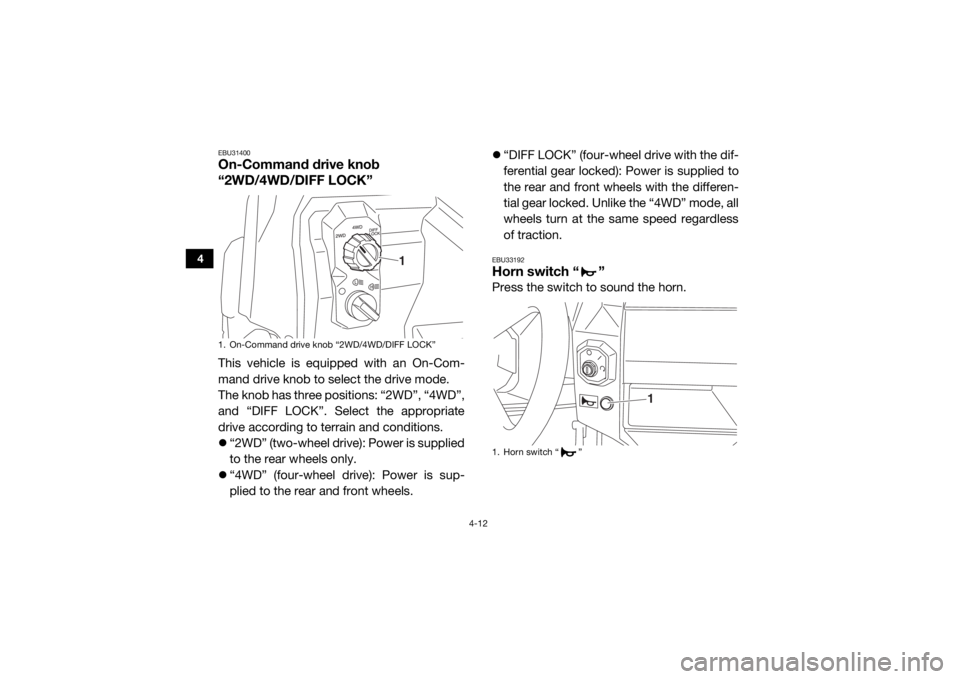

1. On-Command drive knob “2WD/4WD/DIFF LOCK”
1
1. Horn switch “ ”
1
