YAMAHA WR 250F 2011 Owner's Guide

1-21

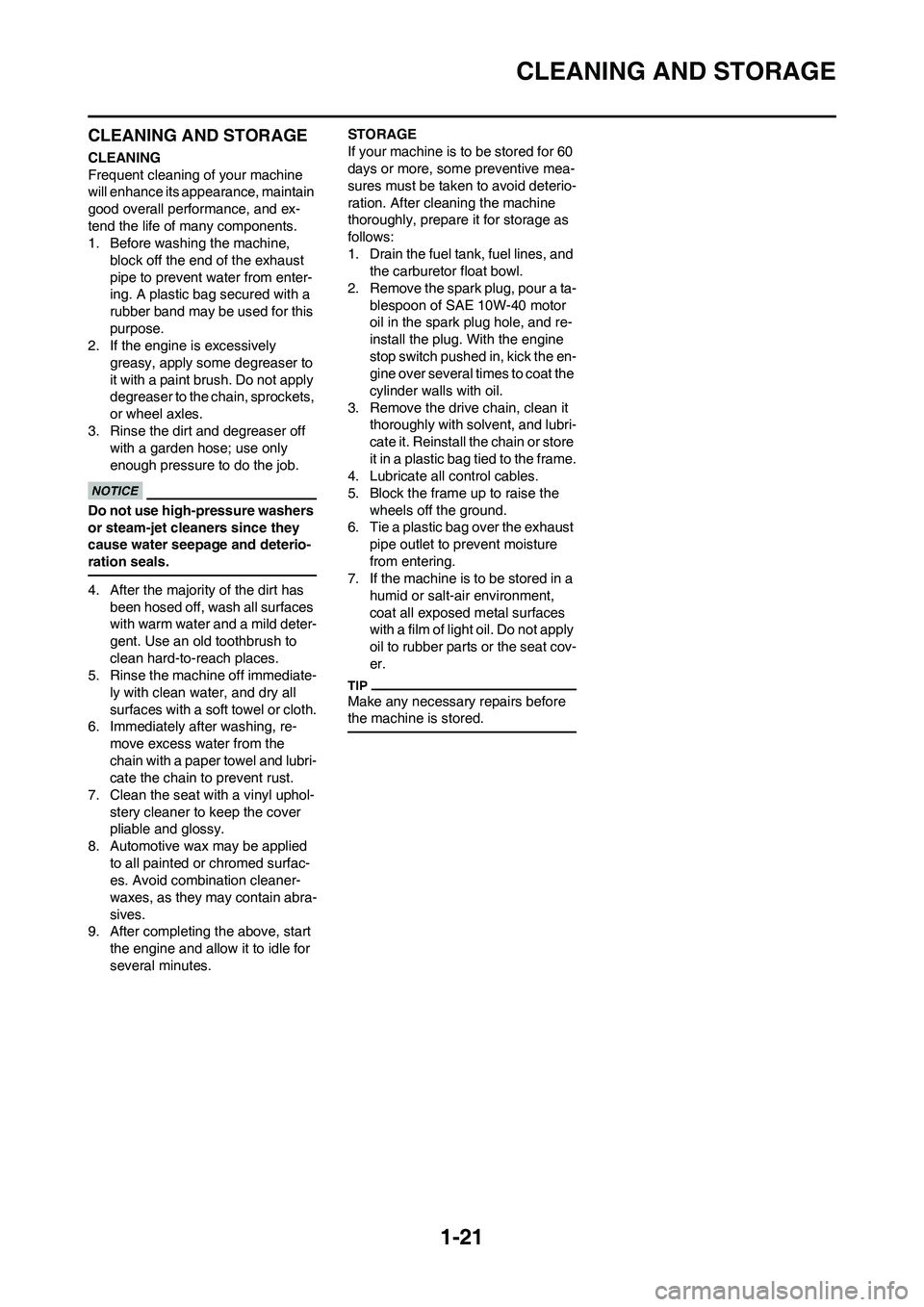

CLEANING AND STORAGE
CLEANING AND STORAGE
CLEANING
Frequent cleaning of your machine
will enhance its appearance, maintain
good overall performance, and ex-
tend the life of many components.
1. Before washing the machine,
block off the end of the exhaust
pipe to prevent water from enter-
ing. A plastic bag secured with a
rubber band may be used for this
purpose.
2. If the engine is excessively
greasy, apply some degreaser to
it with a paint brush. Do not apply
degreaser to the chain, sprockets,
or wheel axles.
3. Rinse the dirt and degreaser off
with a garden hose; use only
enough pressure to do the job.
Do not use high-pressure washers
or steam-jet cleaners since they
cause water seepage and deterio-
ration seals.
4. After the majority of the dirt has
been hosed off, wash all surfaces
with warm water and a mild deter-
gent. Use an old toothbrush to
clean hard-to-reach places.
5. Rinse the machine off immediate-
ly with clean water, and dry all
surfaces with a soft towel or cloth.
6. Immediately after washing, re-
move excess water from the
chain with a paper towel and lubri-
cate the chain to prevent rust.
7. Clean the seat with a vinyl uphol-
stery cleaner to keep the cover
pliable and glossy.
8. Automotive wax may be applied
to all painted or chromed surfac-
es. Avoid combination cleaner-
waxes, as they may contain abra-
sives.
9. After completing the above, start
the engine and allow it to idle for
several minutes.STORAGE
If your machine is to be stored for 60
days or more, some preventive mea-
sures must be taken to avoid deterio-
ration. After cleaning the machine
thoroughly, prepare it for storage as
follows:
1. Drain the fuel tank, fuel lines, and
the carburetor float bowl.
2. Remove the spark plug, pour a ta-
blespoon of SAE 10W-40 motor
oil in the spark plug hole, and re-
install the plug. With the engine
stop switch pushed in, kick the en-
gine over several times to coat the
cylinder walls with oil.
3. Remove the drive chain, clean it
thoroughly with solvent, and lubri-
cate it. Reinstall the chain or store
it in a plastic bag tied to the frame.
4. Lubricate all control cables.
5. Block the frame up to raise the
wheels off the ground.
6. Tie a plastic bag over the exhaust
pipe outlet to prevent moisture
from entering.
7. If the machine is to be stored in a
humid or salt-air environment,
coat all exposed metal surfaces
with a film of light oil. Do not apply
oil to rubber parts or the seat cov-
er.
Make any necessary repairs before
the machine is stored.

2-1

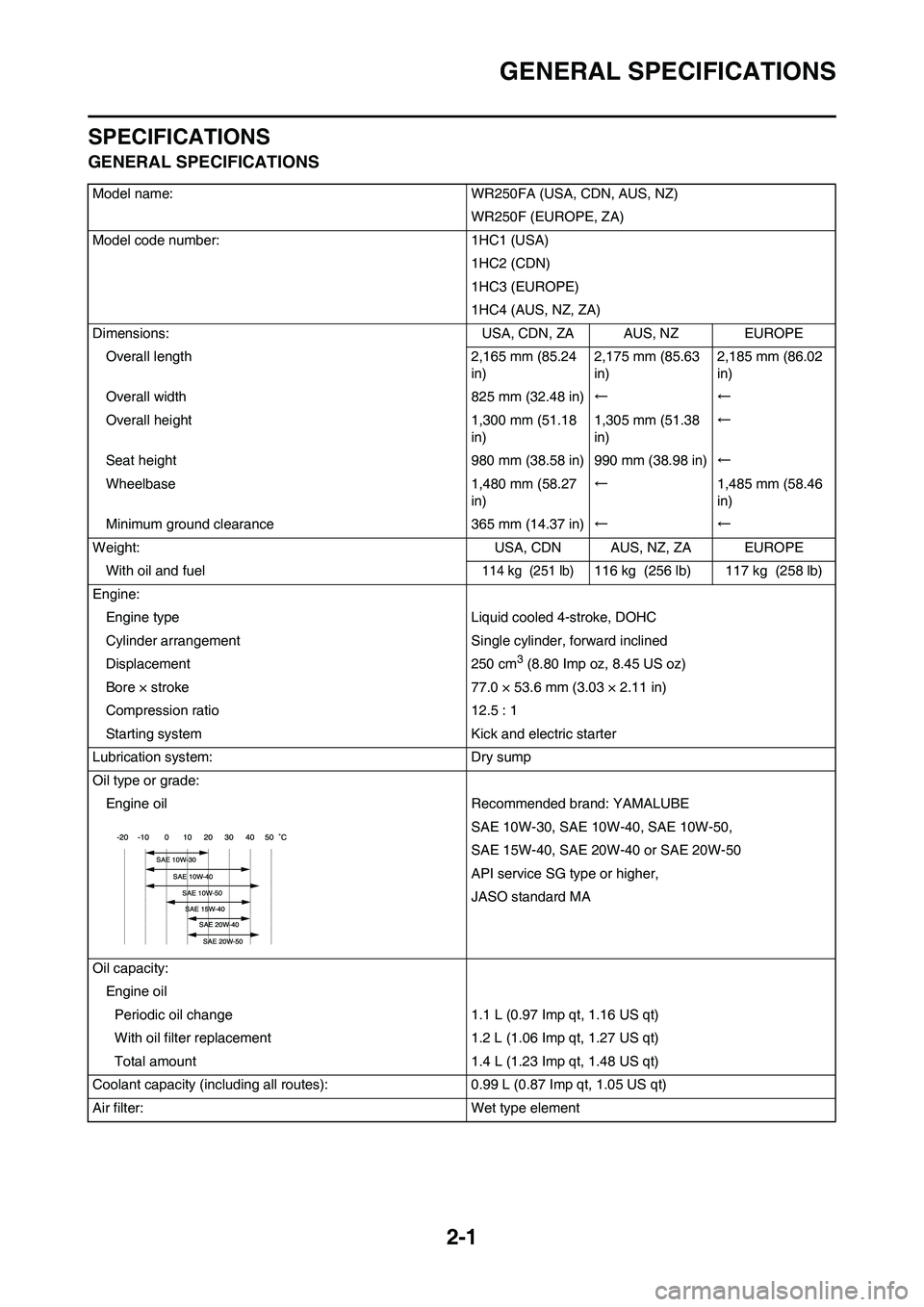

GENERAL SPECIFICATIONS
SPECIFICATIONS
GENERAL SPECIFICATIONS
Model name: WR250FA (USA, CDN, AUS, NZ)WR250F (EUROPE, ZA)
Model code number: 1HC1 (USA) 1HC2 (CDN)
1HC3 (EUROPE)
1HC4 (AUS, NZ, ZA)
Dimensions: USA, CDN, ZA AUS, NZ EUROPE
Overall length 2,165 mm (85.24 in)2,175 mm (85.63
in)2,185 mm (86.02
in)
Overall width 825 mm (32.48 in) ←←
Overall height 1,300 mm (51.18 in)1,305 mm (51.38
in)←
Seat height 980 mm (38.58 in) 990 mm (38.98 in) ←
Wheelbase 1,480 mm (58.27 in)←
1,485 mm (58.46
in)
Minimum ground clearance 365 mm (14.37 in) ←←
Weight: USA, CDN AUS, NZ, ZA EUROPE With oil and fuel
114 kg (251 lb)116 kg (256 lb) 117 kg (258 lb)
Engine: Engine type Liquid cooled 4-stroke, DOHC
Cylinder arrangement Single cylinder, forward inclined
Displacement 250 cm
3 (8.80 Imp oz, 8.45 US oz)
Bore × stroke 77.0 × 53.6 mm (3.03 × 2.11 in)
Compression ratio 12.5 : 1
Starting system Kick and electric starter
Lubrication system: Dry sump
Oil type or grade: Engine oil Recommended brand: YAMALUBE SAE 10W-30, SAE 10W-40, SAE 10W-50,
SAE 15W-40, SAE 20W-40 or SAE 20W-50
API service SG type or higher,
JASO standard MA
Oil capacity: Engine oilPeriodic oil change 1.1 L (0.97 Imp qt, 1.16 US qt)
With oil filter replacement 1.2 L (1.06 Imp qt, 1.27 US qt)
Total amount 1.4 L (1.23 Imp qt, 1.48 US qt)
Coolant capacity (including all routes ): 0.99 L (0.87 Imp qt, 1.05 US qt)
Air filter: Wet type element

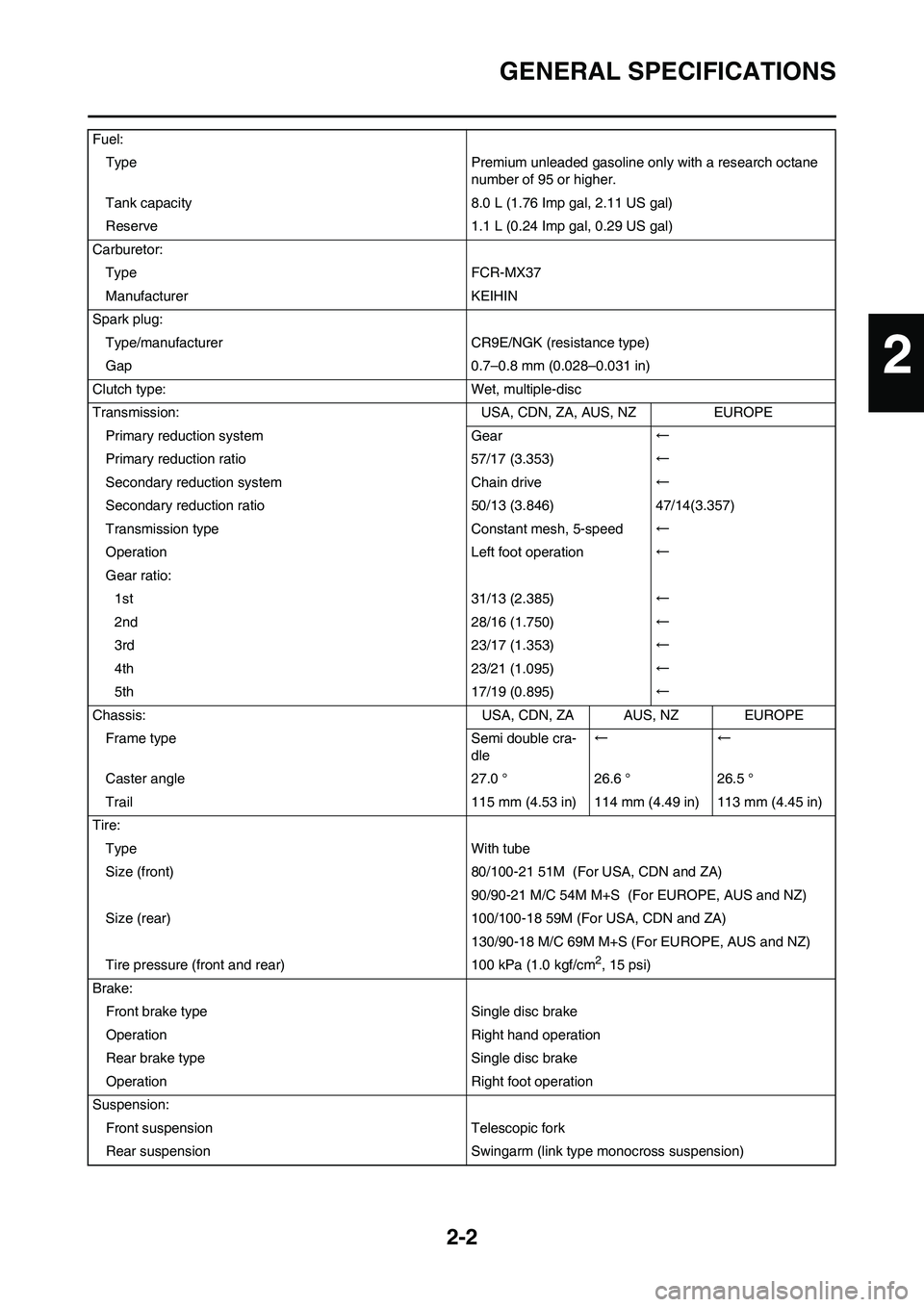

2-2
GENERAL SPECIFICATIONS
Fuel:
Type Premium unleaded gasoline only with a research octane
number of 95 or higher.
Tank capacity 8.0 L (1.76 Imp gal, 2.11 US gal)
Reserve 1.1 L (0.24 Imp gal, 0.29 US gal)
Carburetor:
Type FCR-MX37
Manufacturer KEIHIN
Spark plug:
Type/manufacturer CR9E/NGK (resistance type)
Gap 0.7–0.8 mm (0.028–0.031 in)
Clutch type: Wet, multiple-disc
Transmission: USA, CDN, ZA, AUS, NZ EUROPE
Primary reduction system Gear←
Primary reduction ratio 57/17 (3.353)←
Secondary reduction system Chain drive←
Secondary reduction ratio 50/13 (3.846) 47/14(3.357)
Transmission type Constant mesh, 5-speed←
Operation Left foot operation←
Gear ratio:
1st 31/13 (2.385)←
2nd 28/16 (1.750)←
3rd 23/17 (1.353)←
4th 23/21 (1.095)←
5th 17/19 (0.895)←
Chassis: USA, CDN, ZA AUS, NZ EUROPE
Frame type Semi double cra-
dle←←
Caster angle 27.0 ° 26.6 ° 26.5 °
Trail 115 mm (4.53 in) 114 mm (4.49 in) 113 mm (4.45 in)
Tire:
Type With tube
Size (front) 80/100-21 51M (For USA, CDN and ZA)
90/90-21 M/C 54M M+S (For EUROPE, AUS and NZ)
Size (rear) 100/100-18 59M (For USA, CDN and ZA)
130/90-18 M/C 69M M+S (For EUROPE, AUS and NZ)
Tire pressure (front and rear) 100 kPa (1.0 kgf/cm
2, 15 psi)
Brake:
Front brake type Single disc brake
Operation Right hand operation
Rear brake type Single disc brake
Operation Right foot operation
Suspension:
Front suspension Telescopic fork
Rear suspension Swingarm (link type monocross suspension)
2

2-3

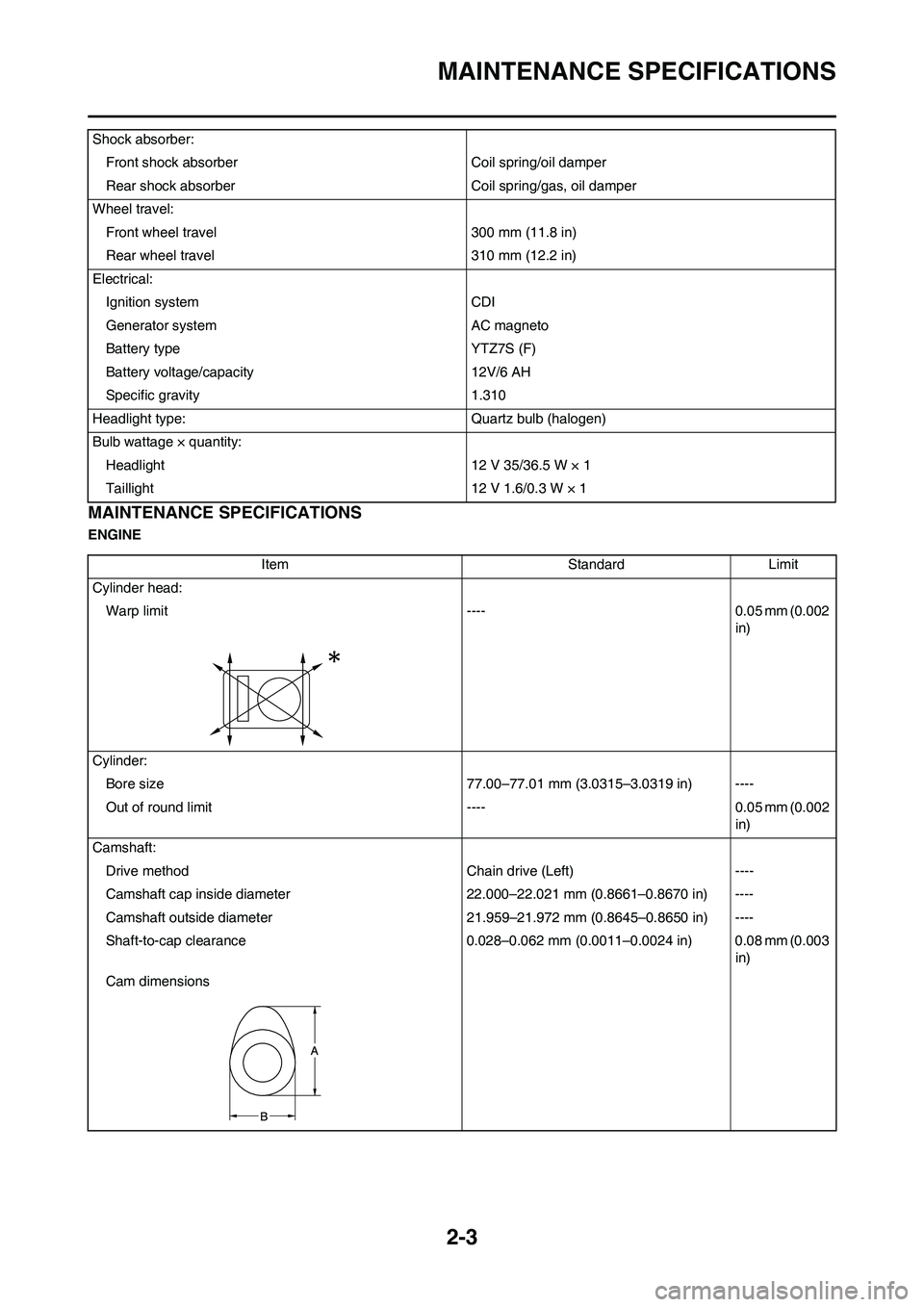

MAINTENANCE SPECIFICATIONS
MAINTENANCE SPECIFICATIONS
ENGINEShock absorber:
Front shock absorber Coil spring/oil damper
Rear shock absorber Coil spring/gas, oil damper
Wheel travel:
Front wheel travel 300 mm (11.8 in)
Rear wheel travel 310 mm (12.2 in)
Electrical:
Ignition system CDI
Generator system AC magneto
Battery type YTZ7S (F)
Battery voltage/capacity 12V/6 AH
Specific gravity 1.310
Headlight type: Quartz bulb (halogen)
Bulb wattage × quantity:
Headlight 12 V 35/36.5 W × 1
Taillight 12 V 1.6/0.3 W × 1
Item Standard Limit
Cylinder head:
Warp limit ---- 0.05 mm (0.002
in)
Cylinder:
Bore size 77.00–77.01 mm (3.0315–3.0319 in) ----
Out of round limit ---- 0.05 mm (0.002
in)
Camshaft:
Drive method Chain drive (Left) ----
Camshaft cap inside diameter 22.000–22.021 mm (0.8661–0.8670 in) ----
Camshaft outside diameter 21.959–21.972 mm (0.8645–0.8650 in) ----
Shaft-to-cap clearance 0.028–0.062 mm (0.0011–0.0024 in) 0.08 mm (0.003
in)
Cam dimensions

2-4

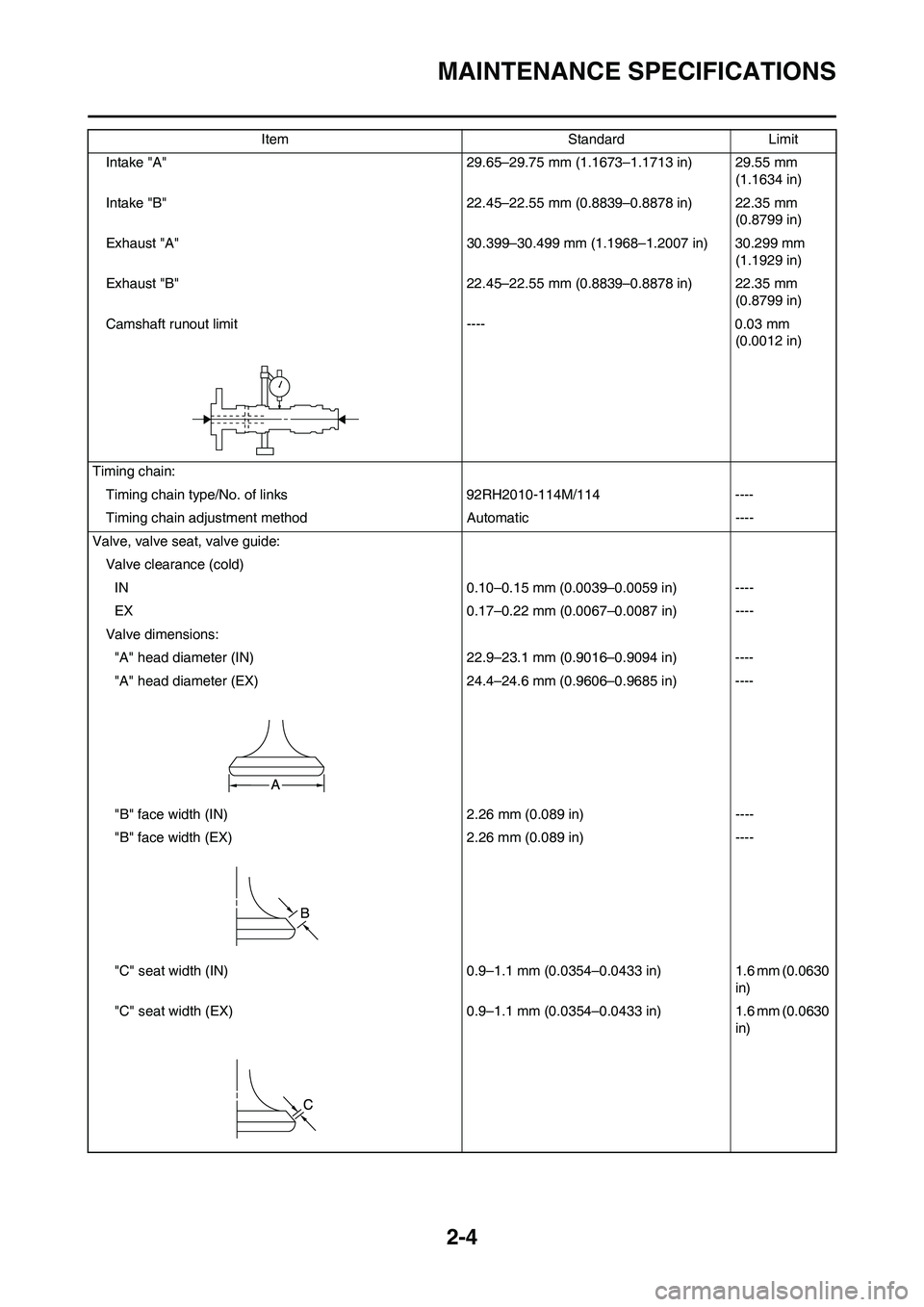

MAINTENANCE SPECIFICATIONS
Intake "A" 29.65–29.75 mm (1.1673–1.1713 in) 29.55 mm
(1.1634 in)
Intake "B" 22.45–22.55 mm (0.8839–0.8878 in) 22.35 mm
(0.8799 in)
Exhaust "A" 30.399–30.499 mm (1.1968–1.2007 in) 30.299 mm
(1.1929 in)
Exhaust "B" 22.45–22.55 mm (0.8839–0.8878 in) 22.35 mm
(0.8799 in)
Camshaft runout limit ---- 0.03 mm
(0.0012 in)
Timing chain:
Timing chain type/No. of links 92RH2010-114M/114 ----
Timing chain adjustment method Automatic ----
Valve, valve seat, valve guide:
Valve clearance (cold)
IN 0.10–0.15 mm (0.0039–0.0059 in) ----
EX 0.17–0.22 mm (0.0067–0.0087 in) ----
Valve dimensions:
"A" head diameter (IN) 22.9–23.1 mm (0.9016–0.9094 in) ----
"A" head diameter (EX) 24.4–24.6 mm (0.9606–0.9685 in) ----
"B" face width (IN) 2.26 mm (0.089 in) ----
"B" face width (EX) 2.26 mm (0.089 in) ----
"C" seat width (IN) 0.9–1.1 mm (0.0354–0.0433 in) 1.6 mm (0.0630
in)
"C" seat width (EX) 0.9–1.1 mm (0.0354–0.0433 in) 1.6 mm (0.0630
in) Item Standard Limit

2-5

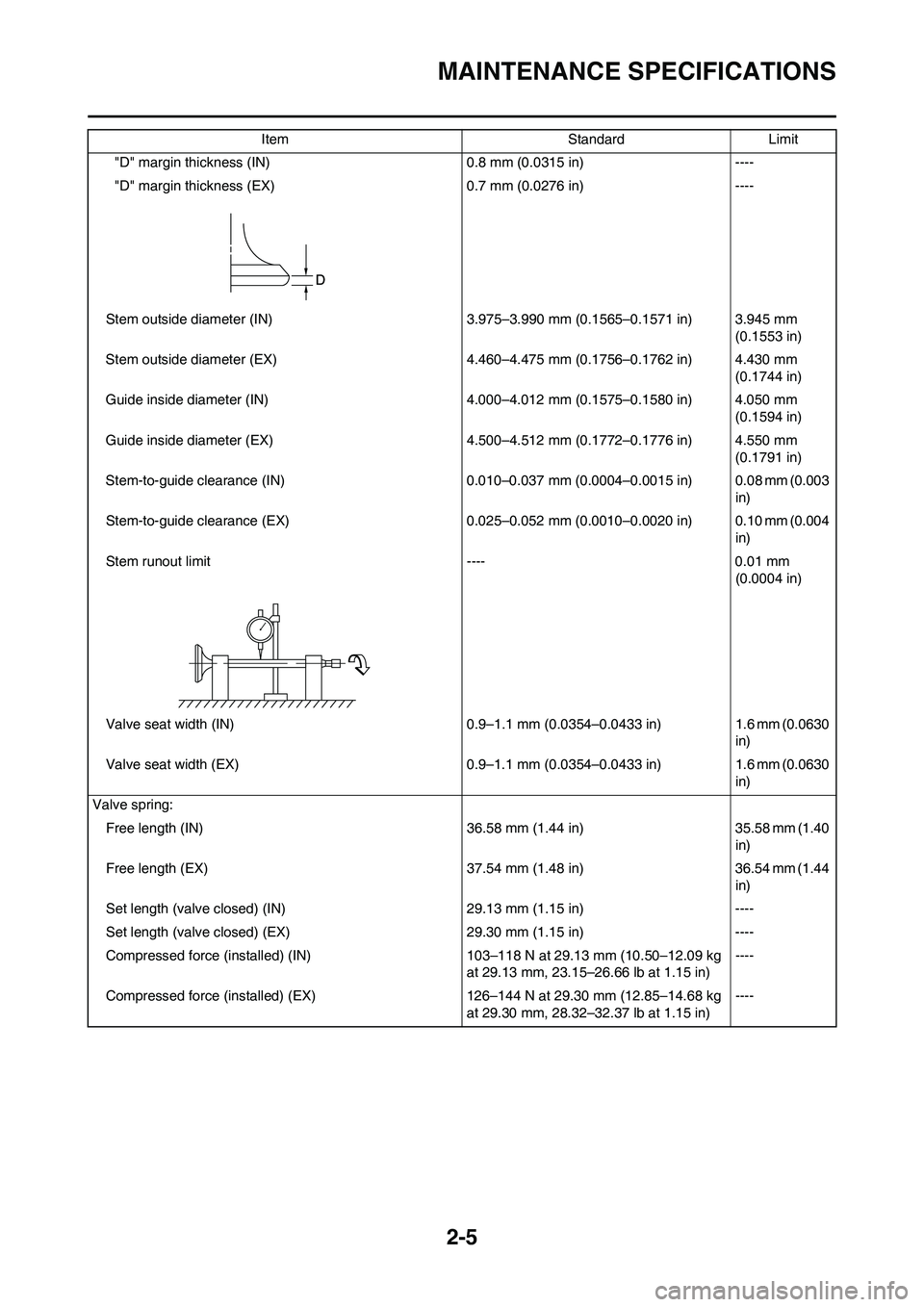

MAINTENANCE SPECIFICATIONS
"D" margin thickness (IN) 0.8 mm (0.0315 in) ----
"D" margin thickness (EX) 0.7 mm (0.0276 in) ----
Stem outside diameter (IN) 3.975–3.990 mm (0.1565–0.1571 in) 3.945 mm
(0.1553 in)
Stem outside diameter (EX) 4.460–4.475 mm (0.1756–0.1762 in) 4.430 mm
(0.1744 in)
Guide inside diameter (IN) 4.000–4.012 mm (0.1575–0.1580 in) 4.050 mm
(0.1594 in)
Guide inside diameter (EX) 4.500–4.512 mm (0.1772–0.1776 in) 4.550 mm
(0.1791 in)
Stem-to-guide clearance (IN) 0.010–0.037 mm (0.0004–0.0015 in) 0.08 mm (0.003
in)
Stem-to-guide clearance (EX) 0.025–0.052 mm (0.0010–0.0020 in) 0.10 mm (0.004
in)
Stem runout limit ---- 0.01 mm
(0.0004 in)
Valve seat width (IN) 0.9–1.1 mm (0.0354–0.0433 in) 1.6 mm (0.0630
in)
Valve seat width (EX) 0.9–1.1 mm (0.0354–0.0433 in) 1.6 mm (0.0630
in)
Valve spring:
Free length (IN) 36.58 mm (1.44 in) 35.58 mm (1.40
in)
Free length (EX) 37.54 mm (1.48 in) 36.54 mm (1.44
in)
Set length (valve closed) (IN) 29.13 mm (1.15 in) ----
Set length (valve closed) (EX) 29.30 mm (1.15 in) ----
Compressed force (installed) (IN) 103–118 N at 29.13 mm (10.50–12.09 kg
at 29.13 mm, 23.15–26.66 lb at 1.15 in)----
Compressed force (installed) (EX) 126–144 N at 29.30 mm (12.85–14.68 kg
at 29.30 mm, 28.32–32.37 lb at 1.15 in)---- Item Standard Limit

2-6

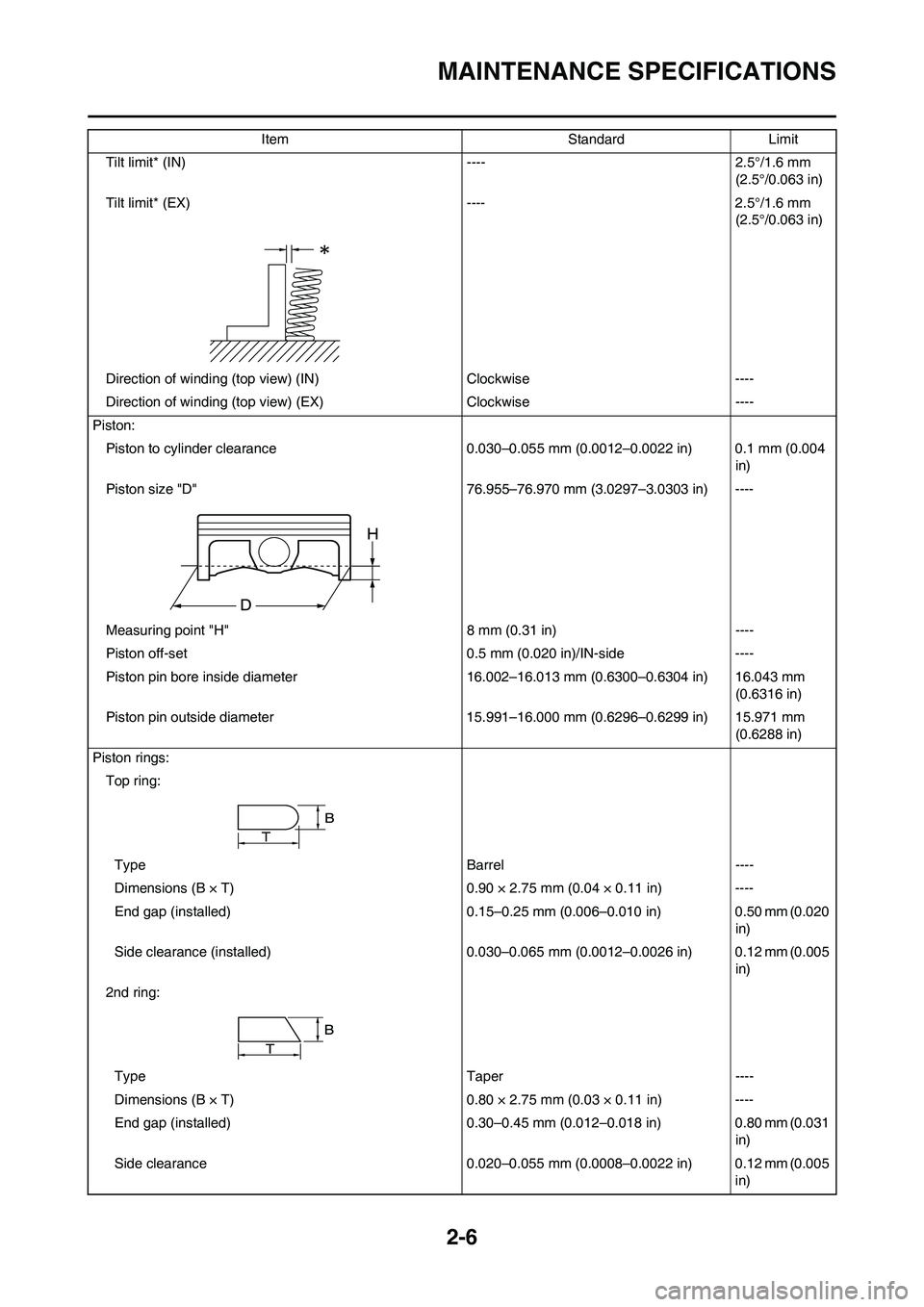

MAINTENANCE SPECIFICATIONS
Tilt limit* (IN) ---- 2.5°/1.6 mm
(2.5°/0.063 in)
Tilt limit* (EX) ---- 2.5°/1.6 mm
(2.5°/0.063 in)
Direction of winding (top view) (IN) Clockwise ----
Direction of winding (top view) (EX) Clockwise ----
Piston:
Piston to cylinder clearance 0.030–0.055 mm (0.0012–0.0022 in) 0.1 mm (0.004
in)
Piston size "D" 76.955–76.970 mm (3.0297–3.0303 in) ----
Measuring point "H" 8 mm (0.31 in) ----
Piston off-set 0.5 mm (0.020 in)/IN-side ----
Piston pin bore inside diameter 16.002–16.013 mm (0.6300–0.6304 in) 16.043 mm
(0.6316 in)
Piston pin outside diameter 15.991–16.000 mm (0.6296–0.6299 in) 15.971 mm
(0.6288 in)
Piston rings:
Top ring:
Type Barrel ----
Dimensions (B × T) 0.90 × 2.75 mm (0.04 × 0.11 in) ----
End gap (installed) 0.15–0.25 mm (0.006–0.010 in) 0.50 mm (0.020
in)
Side clearance (installed) 0.030–0.065 mm (0.0012–0.0026 in) 0.12 mm (0.005
in)
2nd ring:
Type Taper ----
Dimensions (B × T) 0.80 × 2.75 mm (0.03 × 0.11 in) ----
End gap (installed) 0.30–0.45 mm (0.012–0.018 in) 0.80 mm (0.031
in)
Side clearance 0.020–0.055 mm (0.0008–0.0022 in) 0.12 mm (0.005
in) Item Standard Limit

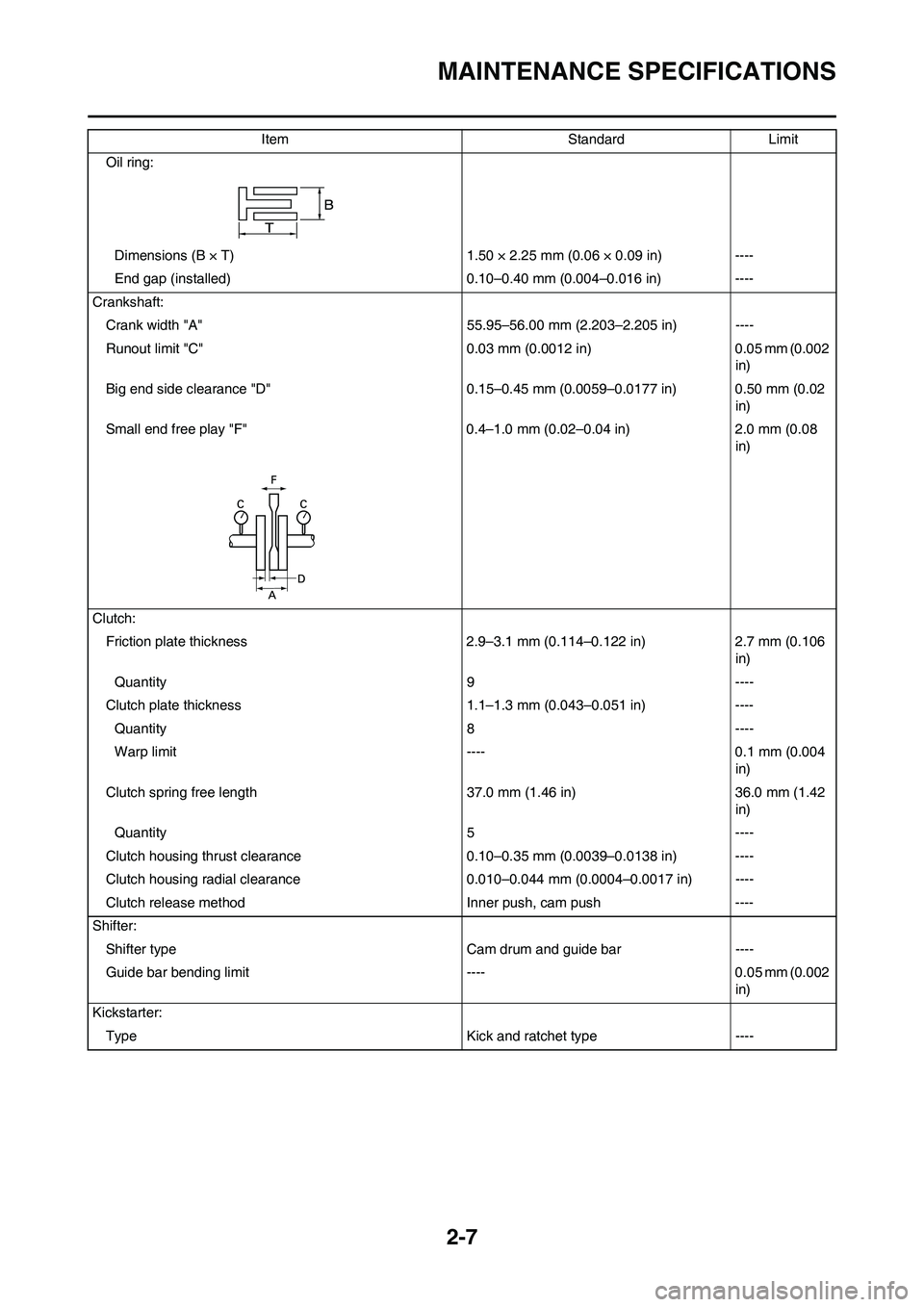

2-7
MAINTENANCE SPECIFICATIONS
Oil ring:
Dimensions (B × T) 1.50 × 2.25 mm (0.06 × 0.09 in) ----
End gap (installed) 0.10–0.40 mm (0.004–0.016 in) ----
Crankshaft:
Crank width "A" 55.95–56.00 mm (2.203–2.205 in) ----
Runout limit "C" 0.03 mm (0.0012 in) 0.05 mm (0.002
in)
Big end side clearance "D" 0.15–0.45 mm (0.0059–0.0177 in) 0.50 mm (0.02
in)
Small end free play "F" 0.4–1.0 mm (0.02–0.04 in) 2.0 mm (0.08
in)
Clutch:
Friction plate thickness 2.9–3.1 mm (0.114–0.122 in) 2.7 mm (0.106
in)
Quantity 9 ----
Clutch plate thickness 1.1–1.3 mm (0.043–0.051 in) ----
Quantity 8 ----
Warp limit ---- 0.1 mm (0.004
in)
Clutch spring free length 37.0 mm (1.46 in) 36.0 mm (1.42
in)
Quantity 5 ----
Clutch housing thrust clearance 0.10–0.35 mm (0.0039–0.0138 in) ----
Clutch housing radial clearance 0.010–0.044 mm (0.0004–0.0017 in) ----
Clutch release method Inner push, cam push ----
Shifter:
Shifter type Cam drum and guide bar ----
Guide bar bending limit ---- 0.05 mm (0.002
in)
Kickstarter:
Type Kick and ratchet type ----Item Standard Limit

2-8

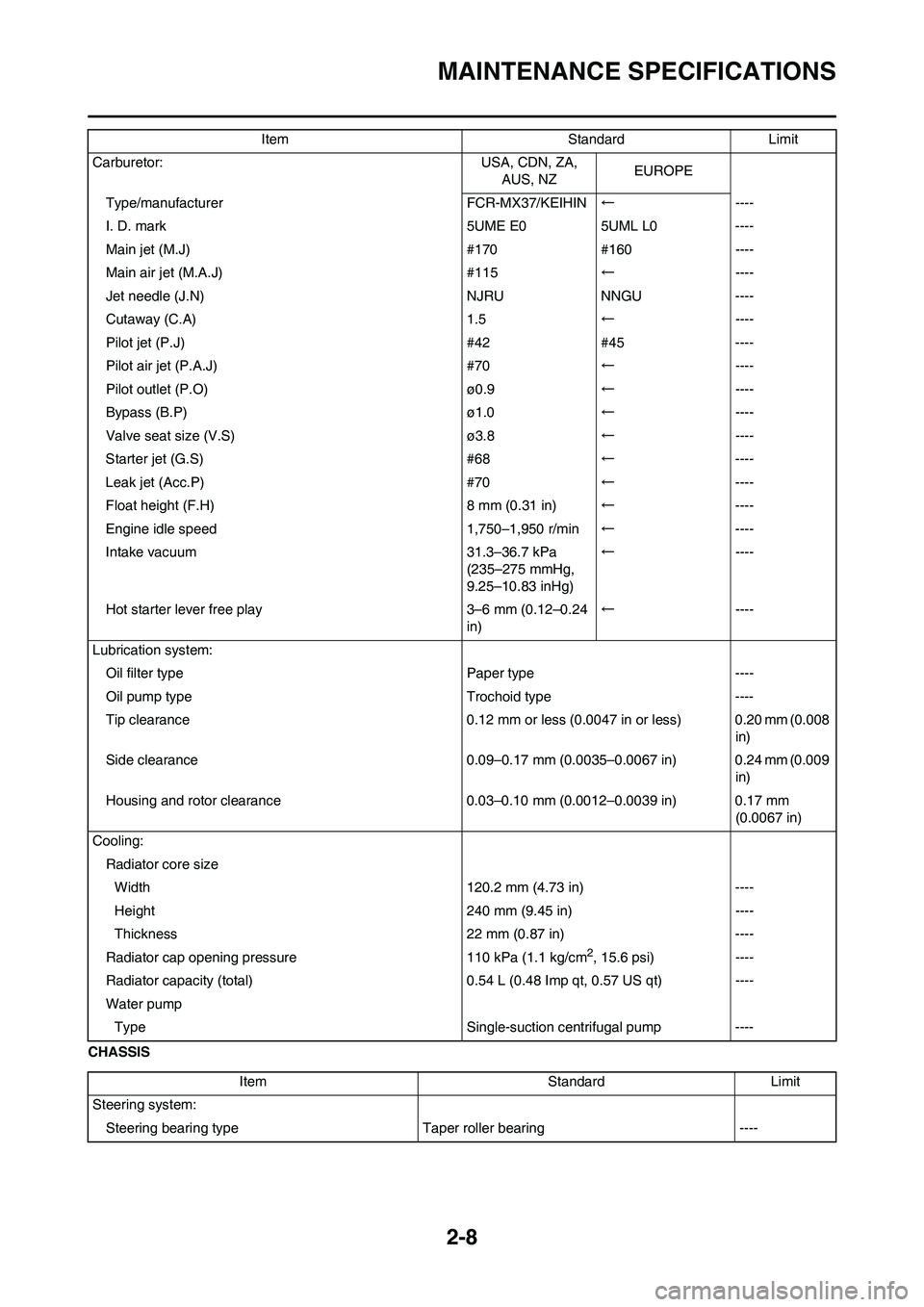

MAINTENANCE SPECIFICATIONS
CHASSISCarburetor: USA, CDN, ZA,
AUS, NZEUROPE
Type/manufacturer FCR-MX37/KEIHIN←----
I. D. mark 5UME E0 5UML L0 ----
Main jet (M.J) #170 #160 ----
Main air jet (M.A.J) #115←----
Jet needle (J.N) NJRU NNGU ----
Cutaway (C.A) 1.5←----
Pilot jet (P.J) #42 #45 ----
Pilot air jet (P.A.J) #70←----
Pilot outlet (P.O) ø0.9←----
Bypass (B.P) ø1.0←----
Valve seat size (V.S) ø3.8←----
Starter jet (G.S) #68←----
Leak jet (Acc.P) #70←----
Float height (F.H) 8 mm (0.31 in)←----
Engine idle speed 1,750–1,950 r/min←----
Intake vacuum 31.3–36.7 kPa
(235–275 mmHg,
9.25–10.83 inHg)←----
Hot starter lever free play 3–6 mm (0.12–0.24
in)←----
Lubrication system:
Oil filter type Paper type ----
Oil pump type Trochoid type ----
Tip clearance 0.12 mm or less (0.0047 in or less) 0.20 mm (0.008
in)
Side clearance 0.09–0.17 mm (0.0035–0.0067 in) 0.24 mm (0.009
in)
Housing and rotor clearance 0.03–0.10 mm (0.0012–0.0039 in) 0.17 mm
(0.0067 in)
Cooling:
Radiator core size
Width 120.2 mm (4.73 in) ----
Height 240 mm (9.45 in) ----
Thickness 22 mm (0.87 in) ----
Radiator cap opening pressure 110 kPa (1.1 kg/cm
2, 15.6 psi) ----
Radiator capacity (total) 0.54 L (0.48 Imp qt, 0.57 US qt) ----
Water pump
Type Single-suction centrifugal pump ----Item Standard Limit
Item Standard Limit
Steering system:
Steering bearing typeTaper roller bearing ----

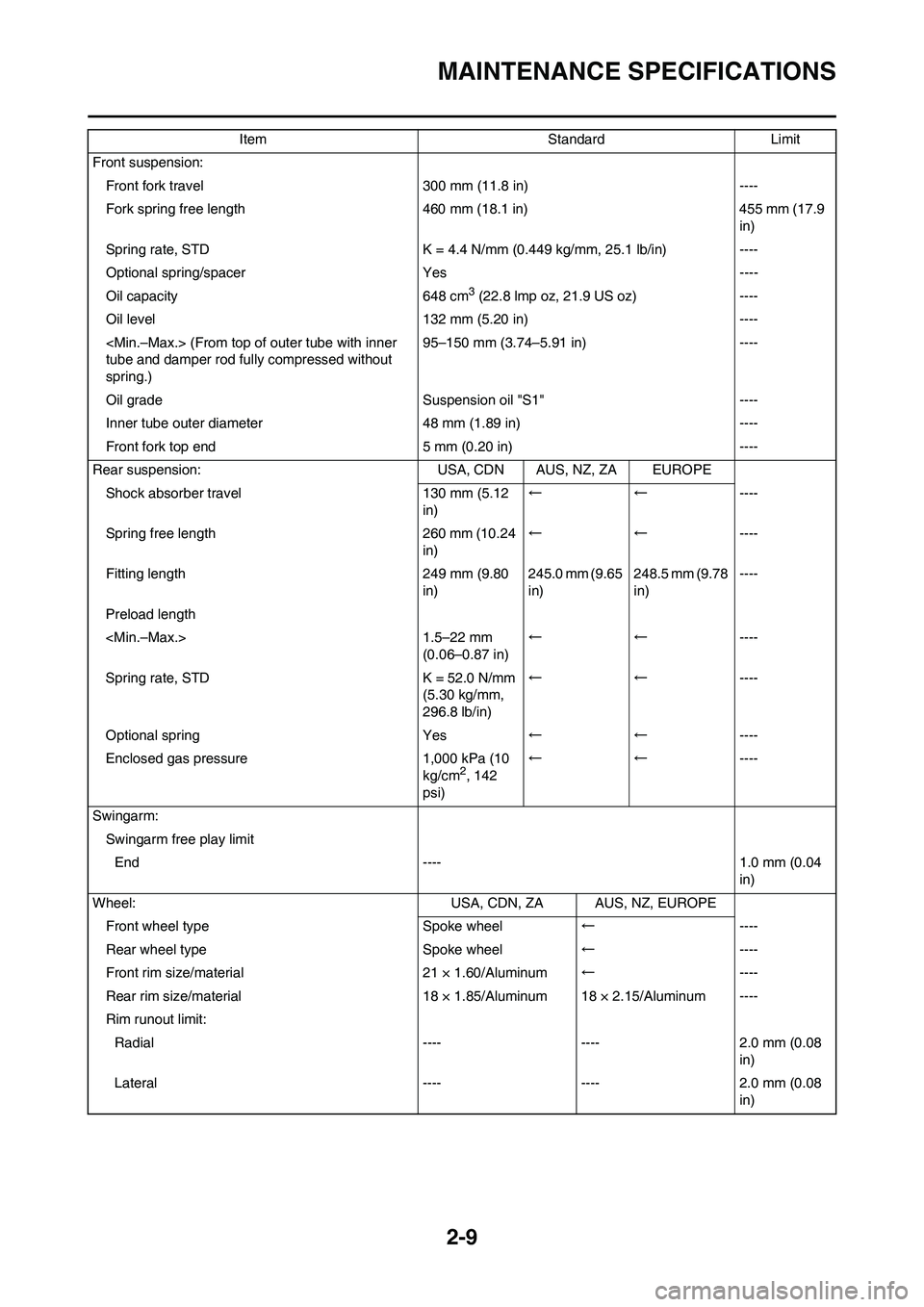

2-9
MAINTENANCE SPECIFICATIONS
Front suspension:
Front fork travel 300 mm (11.8 in) ----
Fork spring free length 460 mm (18.1 in) 455 mm (17.9
in)
Spring rate, STD K = 4.4 N/mm (0.449 kg/mm, 25.1 lb/in) ----
Optional spring/spacer Yes ----
Oil capacity 648 cm
3 (22.8 lmp oz, 21.9 US oz) ----
Oil level 132 mm (5.20 in) ----
(From top of outer tube with inner
tube and damper rod fully compressed without
spring.)95–150 mm (3.74–5.91 in) ----
Oil grade Suspension oil "S1" ----
Inner tube outer diameter 48 mm (1.89 in) ----
Front fork top end 5 mm (0.20 in) ----
Rear suspension: USA, CDN AUS, NZ, ZA EUROPE
Shock absorber travel 130 mm (5.12
in)←←----
Spring free length 260 mm (10.24
in)←←----
Fitting length 249 mm (9.80
in)245.0 mm (9.65
in)248.5 mm (9.78
in)----
Preload length
1.5–22 mm
(0.06–0.87 in)←←----
Spring rate, STD K = 52.0 N/mm
(5.30 kg/mm,
296.8 lb/in)←←----
Optional spring Yes←←----
Enclosed gas pressure 1,000 kPa (10
kg/cm
2, 142
psi)←←----
Swingarm:
Swingarm free play limit
End ---- 1.0 mm (0.04
in)
Wheel: USA, CDN, ZA AUS, NZ, EUROPE
Front wheel type Spoke wheel←----
Rear wheel type Spoke wheel←----
Front rim size/material 21 × 1.60/Aluminum←----
Rear rim size/material 18 × 1.85/Aluminum18 × 2.15/Aluminum ----
Rim runout limit:
Radial ---- ---- 2.0 mm (0.08
in)
Lateral ---- ---- 2.0 mm (0.08
in) Item Standard Limit
