FRONT FORK
5-47
TIP
• Apply the lithium-soap-based grease on the
dust seal lip and oil seal lip.
• Apply the fork oil on the inner tube.
• When installing the oil seal, use vinyl seat “a”
with fork oil applied to protect the oil seal lip.

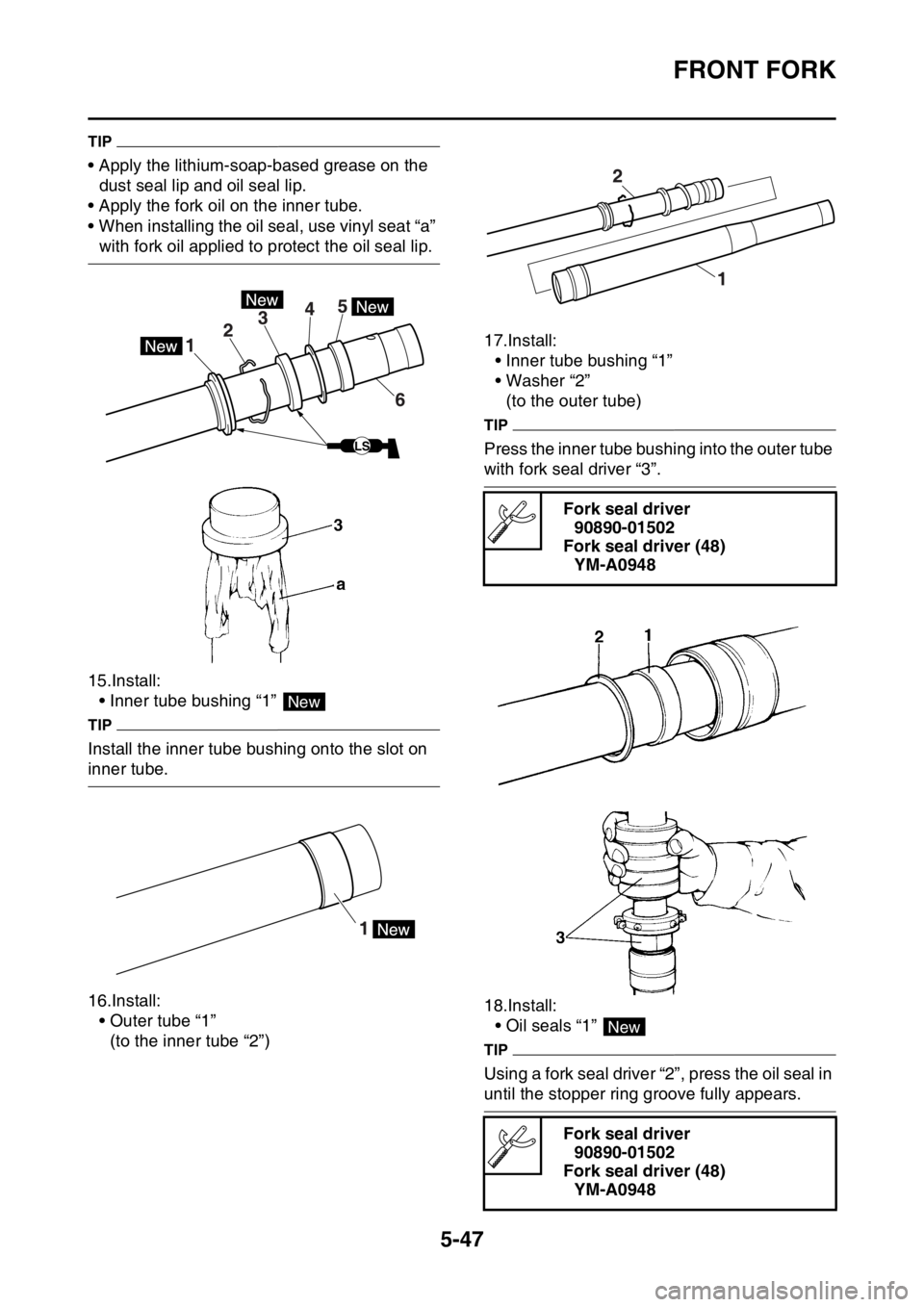

15.Install:
• Inner tube bushing “1”
TIP
Install the inner tube bushing onto the slot on
inner tube.
16.Install:
• Outer tube “1”
(to the inner tube “2”)17.Install:
• Inner tube bushing “1”
• Washer “2”
(to the outer tube)
TIP
Press the inner tube bushing into the outer tube
with fork seal driver “3”.
18.Install:
• Oil seals “1”
TIP
Using a fork seal driver “2”, press the oil seal in
until the stopper ring groove fully appears.
LS
New
Fork seal driver
90890-01502
Fork seal driver (48)
YM-A0948
Fork seal driver
90890-01502
Fork seal driver (48)
YM-A0948
New

FRONT FORK
5-48

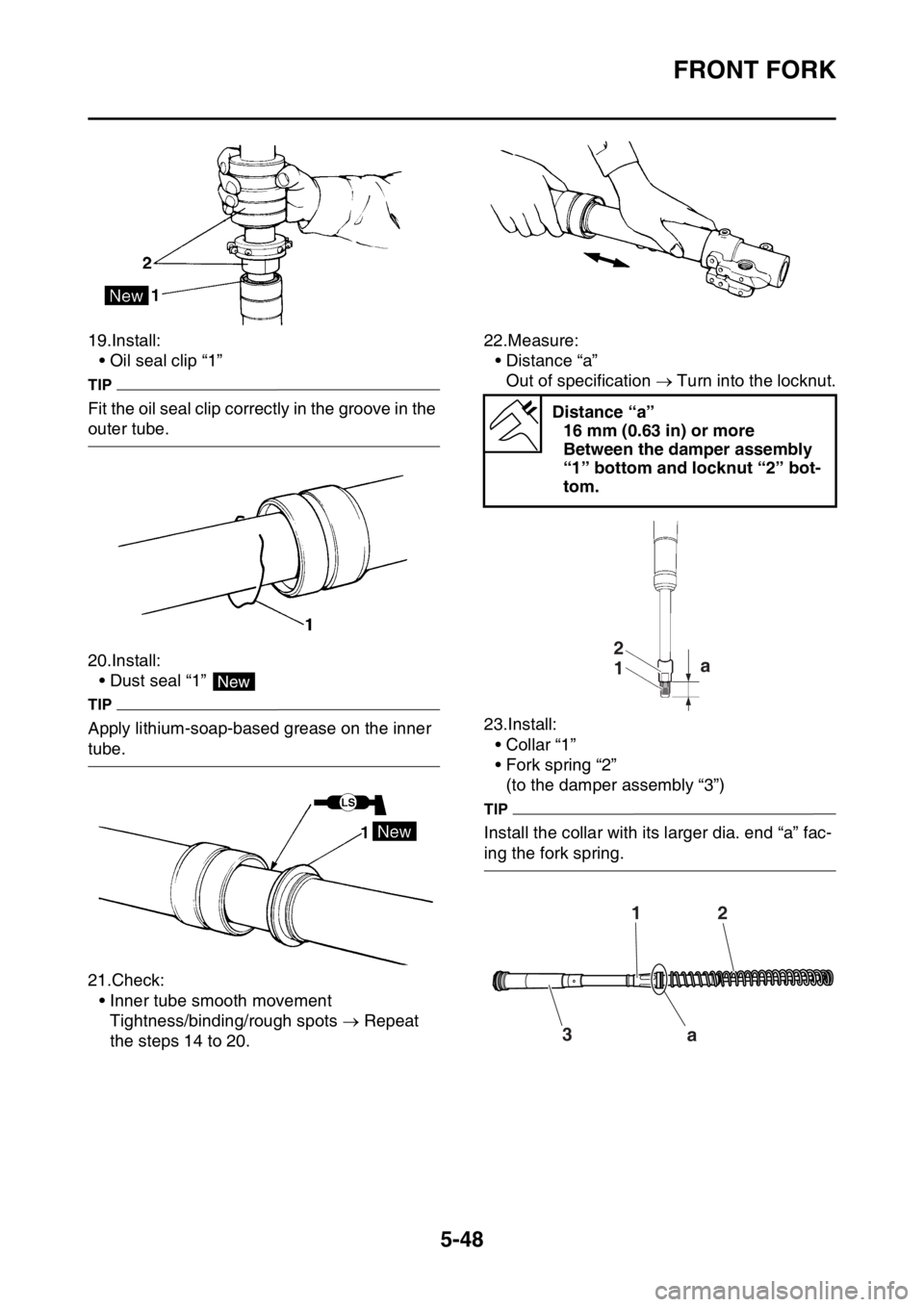

19.Install:
• Oil seal clip “1”
TIP
Fit the oil seal clip correctly in the groove in the
outer tube.
20.Install:
• Dust seal “1”
TIP
Apply lithium-soap-based grease on the inner
tube.
21.Check:
• Inner tube smooth movement
Tightness/binding/rough spots  Repeat
the steps 14 to 20.22.Measure:
• Distance “a”
Out of specification  Turn into the locknut.
23.Install:
• Collar “1”
• Fork spring “2”
(to the damper assembly “3”)
TIP
Install the collar with its larger dia. end “a” fac-
ing the fork spring.
New
Distance “a”
16 mm (0.63 in) or more
Between the damper assembly
“1” bottom and locknut “2” bot-
tom.
1 2a
12
3
a

FRONT FORK
5-49
24.Install:
• Damper assembly “1”
(to the inner tube “2”)
ECA
NOTICE
Allow the damper assembly to slide slowly
down the inner tube until it contacts the bot-
tom of the inner tube. Be careful not to dam-
age the inner tube.

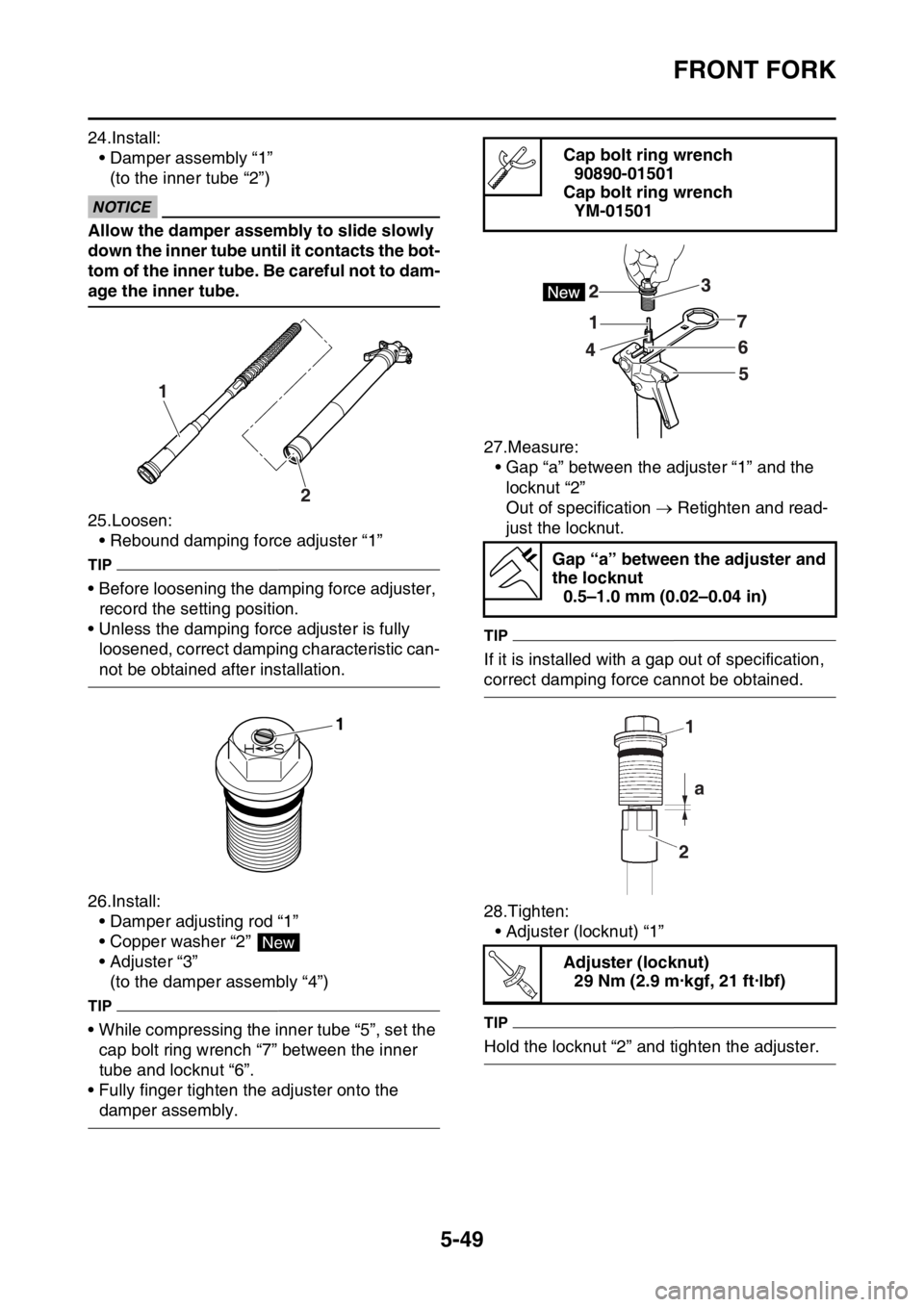

25.Loosen:
• Rebound damping force adjuster “1”
TIP
• Before loosening the damping force adjuster,
record the setting position.
• Unless the damping force adjuster is fully
loosened, correct damping characteristic can-
not be obtained after installation.
26.Install:
• Damper adjusting rod “1”
• Copper washer “2”
• Adjuster “3”
(to the damper assembly “4”)
TIP
• While compressing the inner tube “5”, set the
cap bolt ring wrench “7” between the inner
tube and locknut “6”.
• Fully finger tighten the adjuster onto the
damper assembly.27.Measure:
• Gap “a” between the adjuster “1” and the
locknut “2”
Out of specification  Retighten and read-
just the locknut.
TIP
If it is installed with a gap out of specification,
correct damping force cannot be obtained.
28.Tighten:
• Adjuster (locknut) “1”
TIP
Hold the locknut “2” and tighten the adjuster.
1
2
1
New
Cap bolt ring wrench
90890-01501
Cap bolt ring wrench
YM-01501
Gap “a” between the adjuster and
the locknut
0.5–1.0 mm (0.02–0.04 in)
Adjuster (locknut)
29 Nm (2.9 m·kgf, 21 ft·lbf)
1
2a
T R..

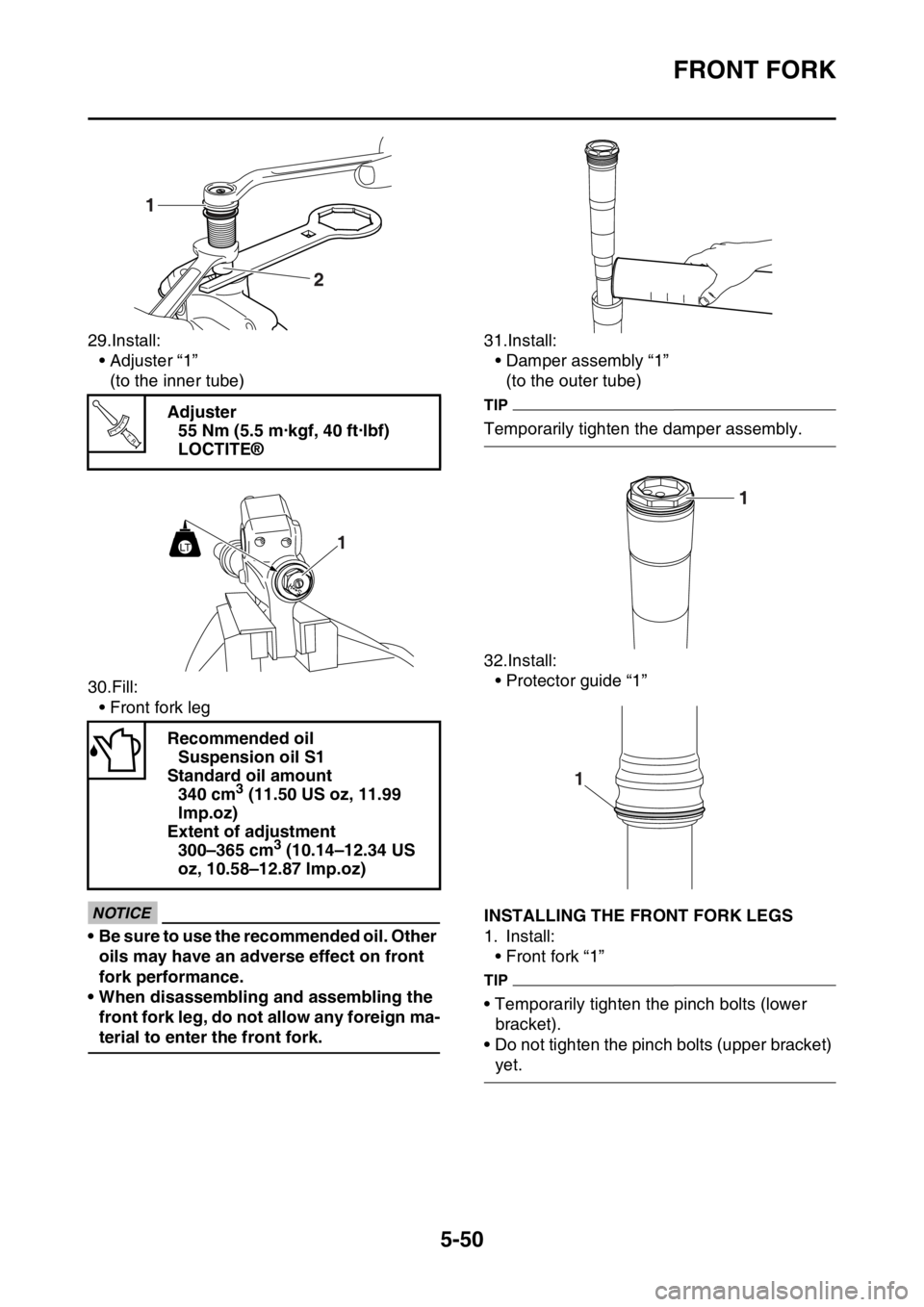

FRONT FORK
5-50
29.Install:
• Adjuster “1”
(to the inner tube)
30.Fill:
• Front fork leg
ECA
NOTICE
• Be sure to use the recommended oil. Other
oils may have an adverse effect on front
fork performance.
• When disassembling and assembling the
front fork leg, do not allow any foreign ma-
terial to enter the front fork.31.Install:
• Damper assembly “1”
(to the outer tube)
TIP
Temporarily tighten the damper assembly.
32.Install:
• Protector guide “1”
EAS2GB7202INSTALLING THE FRONT FORK LEGS

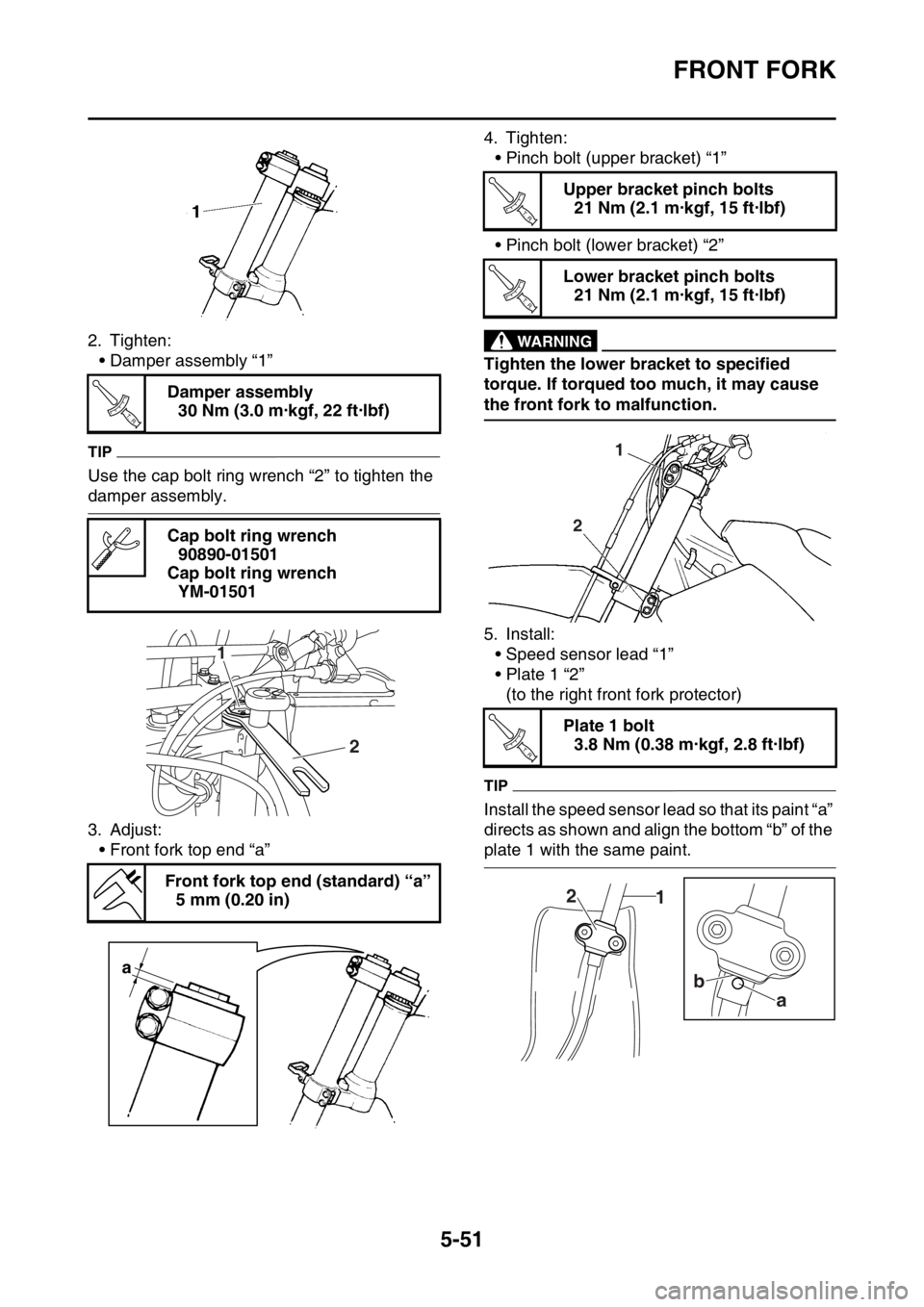

1. Install:
• Front fork “1”
TIP
• Temporarily tighten the pinch bolts (lower
bracket).
• Do not tighten the pinch bolts (upper bracket)
yet. Adjuster
55 Nm (5.5 m·kgf, 40 ft·lbf)
LOCTITE®
Recommended oil
Suspension oil S1
Standard oil amount
340 cm
3 (11.50 US oz, 11.99
lmp.oz)
Extent of adjustment
300–365 cm
3 (10.14–12.34 US
oz, 10.58–12.87 lmp.oz)
T R..
1LT
1

FRONT FORK
5-51
2. Tighten:
• Damper assembly “1”
TIP
Use the cap bolt ring wrench “2” to tighten the
damper assembly.
3. Adjust:
• Front fork top end “a”4. Tighten:
• Pinch bolt (upper bracket) “1”
• Pinch bolt (lower bracket) “2”
EWA
WARNING
Tighten the lower bracket to specified
torque. If torqued too much, it may cause
the front fork to malfunction.
5. Install:
• Speed sensor lead “1”
• Plate 1 “2”
(to the right front fork protector)
TIP
Install the speed sensor lead so that its paint “a”
directs as shown and align the bottom “b” of the
plate 1 with the same paint. Damper assembly
30 Nm (3.0 m·kgf, 22 ft·lbf)
Cap bolt ring wrench
90890-01501
Cap bolt ring wrench
YM-01501
Front fork top end (standard) “a”
5 mm (0.20 in)
T R..
2
1
a
Upper bracket pinch bolts
21 Nm (2.1 m·kgf, 15 ft·lbf)
Lower bracket pinch bolts
21 Nm (2.1 m·kgf, 15 ft·lbf)
Plate 1 bolt
3.8 Nm (0.38 m·kgf, 2.8 ft·lbf)
T R..
T R..
21
T R..
1 2
a b

FRONT FORK
5-52

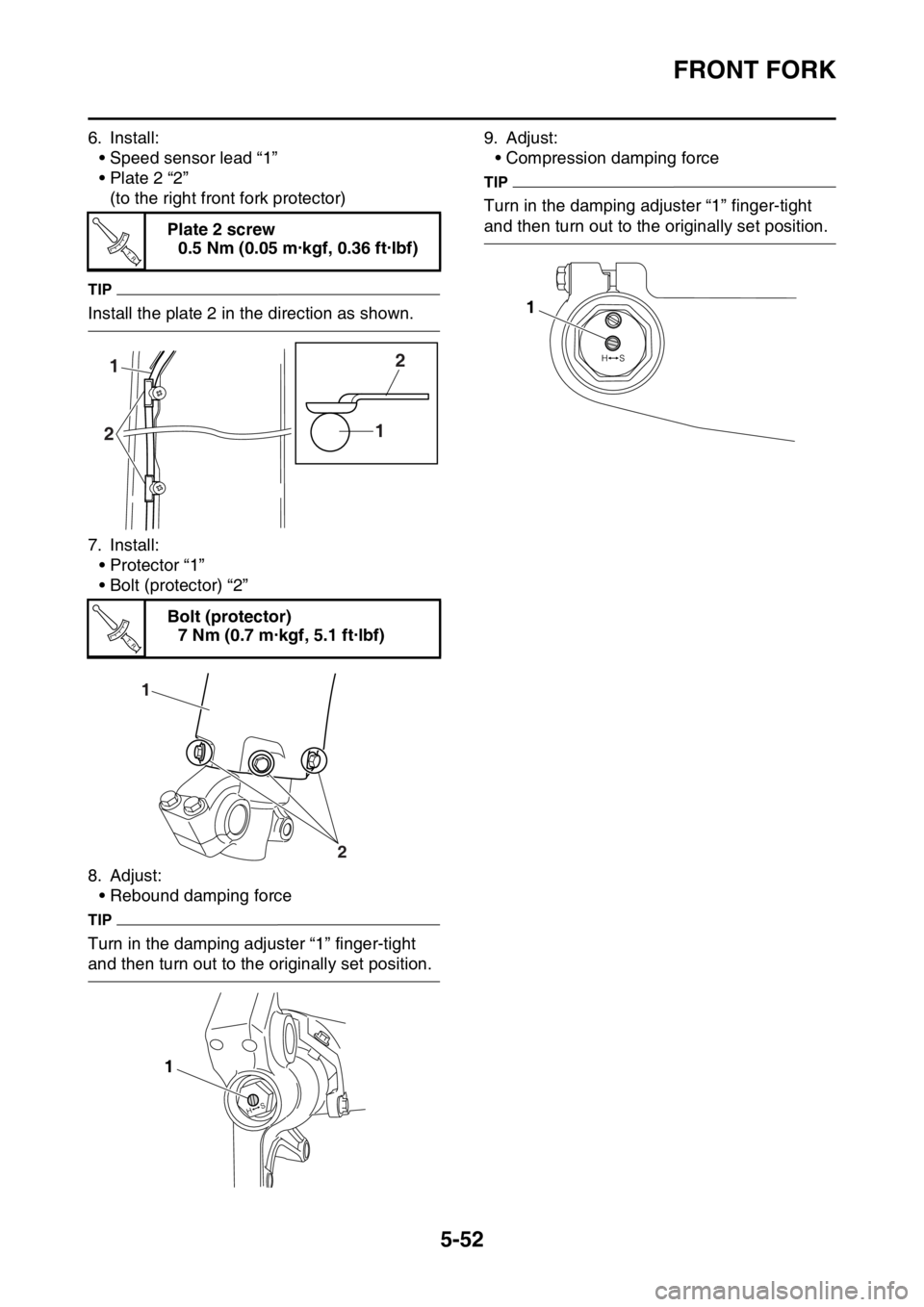

6. Install:
• Speed sensor lead “1”
• Plate 2 “2”
(to the right front fork protector)
TIP
Install the plate 2 in the direction as shown.
7. Install:
• Protector “1”
• Bolt (protector) “2”
8. Adjust:
• Rebound damping force
TIP
Turn in the damping adjuster “1” finger-tight
and then turn out to the originally set position.9. Adjust:
• Compression damping force
TIP
Turn in the damping adjuster “1” finger-tight
and then turn out to the originally set position.
Plate 2 screw
0.5 Nm (0.05 m·kgf, 0.36 ft·lbf)
Bolt (protector)
7 Nm (0.7 m·kgf, 5.1 ft·lbf)
T R..
1
212
T R..
1
2
1
1

STEERING HEAD
5-53
EAS2GB7203
STEERING HEAD

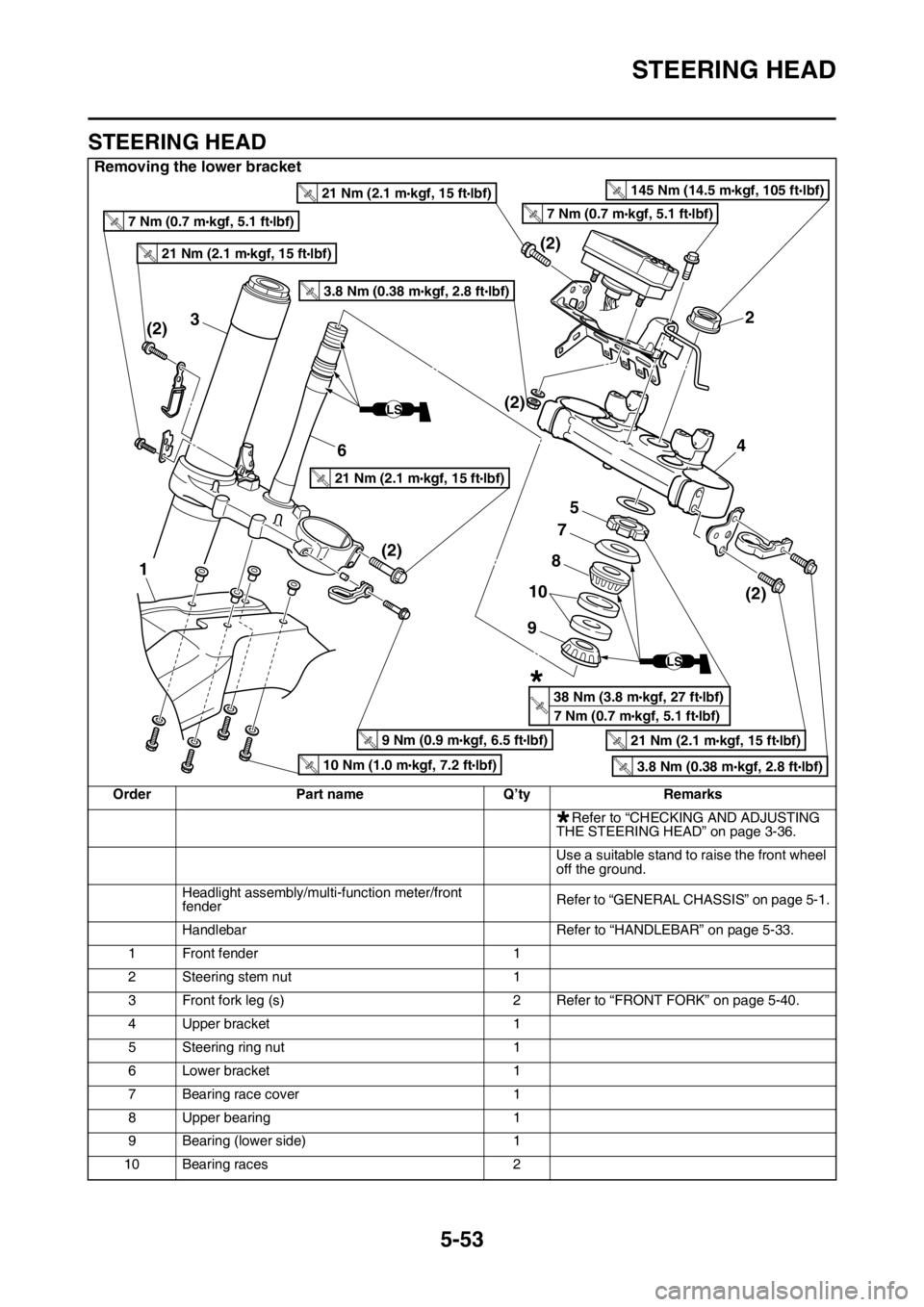

Removing the lower bracket
Order Part name Q’ty Remarks
Refer to “CHECKING AND ADJUSTING
THE STEERING HEAD” on page 3-36.
Use a suitable stand to raise the front wheel
off the ground.
Headlight assembly/multi-function meter/front
fenderRefer to “GENERAL CHASSIS” on page 5-1.
Handlebar Refer to “HANDLEBAR” on page 5-33.
1 Front fender 1
2 Steering stem nut 1
3 Front fork leg (s) 2 Refer to “FRONT FORK” on page 5-40.
4 Upper bracket 1
5 Steering ring nut 1
6 Lower bracket 1
7 Bearing race cover 1
8 Upper bearing 1
9 Bearing (lower side) 1
10 Bearing races 2
2
4
5
7
3
(2)(2)
(2)
(2) (2)
1
6
8
9
10
LS
LS
T
.R.21 Nm (2.1 mlbf) kgf, 15 ft
T
.R.21 Nm (2.1 mlbf) kgf, 15 ft
T
.R.21 Nm (2.1 mlbf) kgf, 15 ft
T
.R.21 Nm (2.1 mlbf) kgf, 15 ft
T
.R.3.8 Nm (0.38 mlbf) kgf, 2.8 ft
T
.R.3.8 Nm (0.38 mlbf) kgf, 2.8 ft
T
.R.9 Nm (0.9 mlbf) kgf, 6.5 ft
T
.R.7 Nm (0.7 mlbf) kgf, 5.1 ftT
.R.7 Nm (0.7 mlbf) kgf, 5.1 ft
T
.R.10 Nm (1.0 mlbf) kgf, 7.2 ft
T
.R.145 Nm (14.5 mlbf) kgf, 105 ft
T
.R.38 Nm (3.8 mlbf) kgf, 27 ft
7 Nm (0.7 m
lbf) kgf, 5.1 ft
*
*

STEERING HEAD
5-54
For installation, reverse the removal proce-
dure.

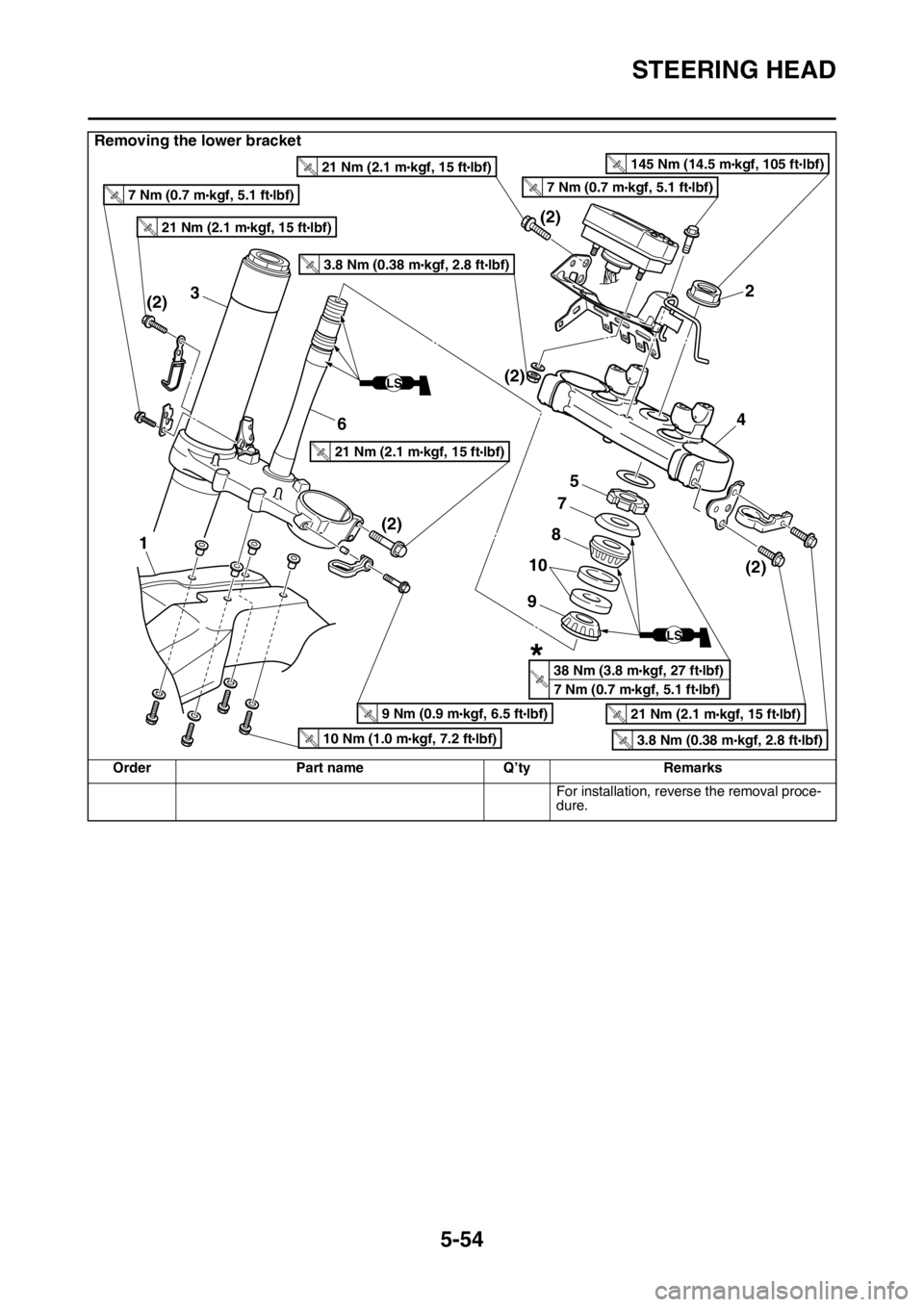

Removing the lower bracket
Order Part name Q’ty Remarks
2
4
5
7
3
(2)(2)
(2)
(2) (2)
1
6
8
9
10
LS
LS
T
.R.21 Nm (2.1 mlbf) kgf, 15 ft
T
.R.21 Nm (2.1 mlbf) kgf, 15 ft
T
.R.21 Nm (2.1 mlbf) kgf, 15 ft
T
.R.21 Nm (2.1 mlbf) kgf, 15 ft
T
.R.3.8 Nm (0.38 mlbf) kgf, 2.8 ft
T
.R.3.8 Nm (0.38 mlbf) kgf, 2.8 ft
T
.R.9 Nm (0.9 mlbf) kgf, 6.5 ft
T
.R.7 Nm (0.7 mlbf) kgf, 5.1 ftT
.R.7 Nm (0.7 mlbf) kgf, 5.1 ft
T
.R.10 Nm (1.0 mlbf) kgf, 7.2 ft
T
.R.145 Nm (14.5 mlbf) kgf, 105 ft
T
.R.38 Nm (3.8 mlbf) kgf, 27 ft
7 Nm (0.7 m
lbf) kgf, 5.1 ft
*

STEERING HEAD
5-55
EAS2GB7204REMOVING THE LOWER BRACKET
1. Use a suitable stand to raise the front wheel
off the ground.
EWA
WARNING
Securely support the vehicle so that there is
no danger of it falling over.

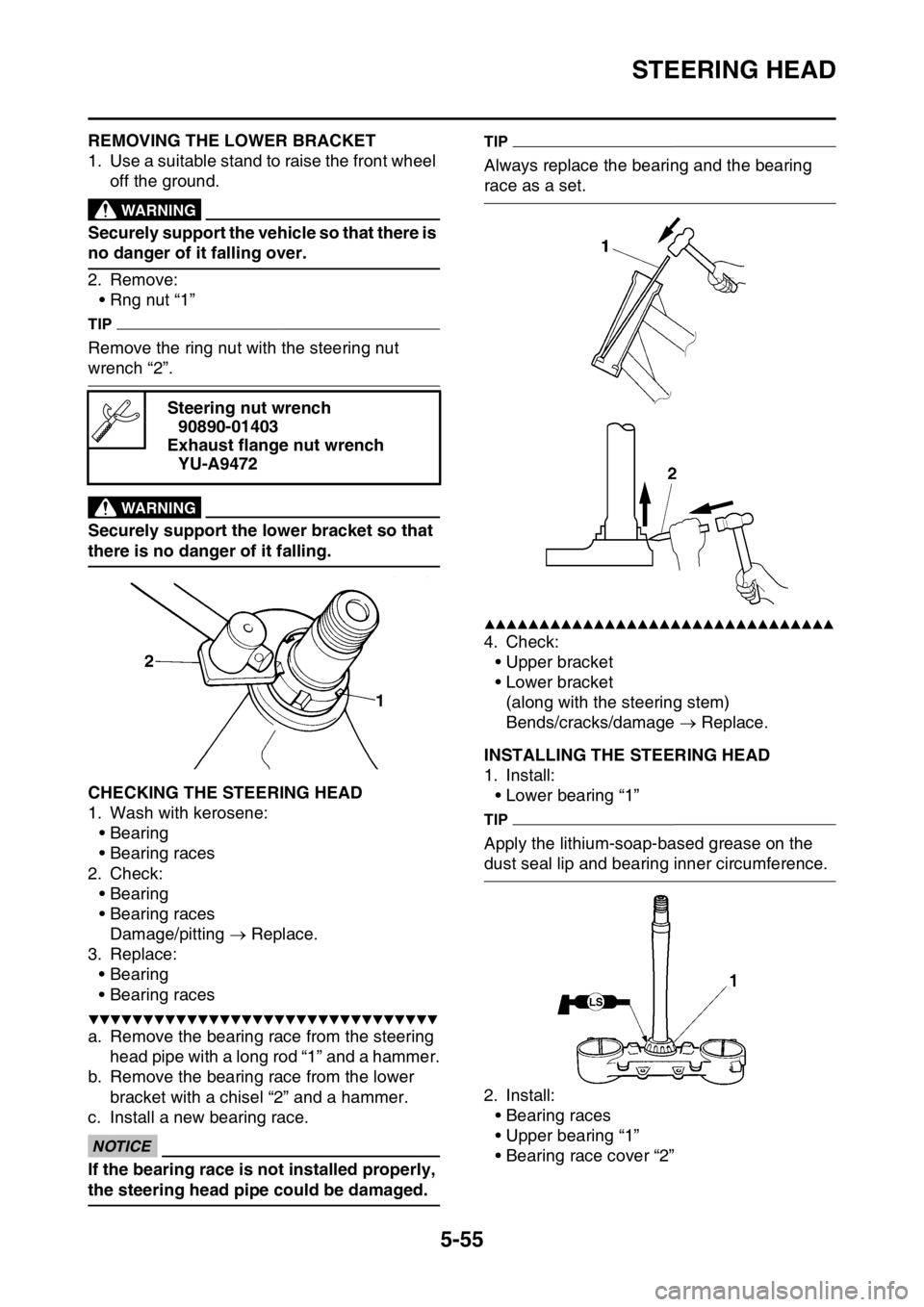

2. Remove:
• Rng nut “1”
TIP
Remove the ring nut with the steering nut
wrench “2”.
EWA
WARNING
Securely support the lower bracket so that
there is no danger of it falling.
EAS2GB7205CHECKING THE STEERING HEAD
1. Wash with kerosene:
• Bearing
• Bearing races
2. Check:
• Bearing
• Bearing races
Damage/pitting  Replace.
3. Replace:
• Bearing
• Bearing races
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Remove the bearing race from the steering
head pipe with a long rod “1” and a hammer.
b. Remove the bearing race from the lower
bracket with a chisel “2” and a hammer.
c. Install a new bearing race.
ECA
NOTICE
If the bearing race is not installed properly,
the steering head pipe could be damaged.
TIP
Always replace the bearing and the bearing
race as a set.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
4. Check:
• Upper bracket
• Lower bracket
(along with the steering stem)
Bends/cracks/damage  Replace.
EAS2GB7206INSTALLING THE STEERING HEAD
1. Install:
• Lower bearing “1”
TIP
Apply the lithium-soap-based grease on the
dust seal lip and bearing inner circumference.
2. Install:
• Bearing races
• Upper bearing “1”
• Bearing race cover “2” Steering nut wrench
90890-01403
Exhaust flange nut wrench
YU-A9472

STEERING HEAD
5-56
TIP
Apply the lithium-soap-based grease on the
bearing and bearing race cover lip.
3. Install:
• Lower bracket “1”
TIP
Apply the lithium-soap-based grease on the
bearing, the portion “a” and thread of the steer-
ing stem.
4. Install:
• Steering ring nut “1”
TIP
Install the steering nut with its stepped side “a”
facing downward.
Tighten the steering ring nut with a steering
nut wrench “2”.
Refer to “CHECKING AND ADJUSTING
THE STEERING HEAD” on page 3-36.5. Check the steering stem by turning this lock
to lock. If there is any binding, remove the
steering stem and check the steering bear-
ing.
6. Install:
• Washer “1”
7. Install:
• Front fork “1”
• Upper bracket “2”
TIP
• Temporarily tighten the pinch bolts (lower
bracket).
• Do not tighten the pinch bolts (upper bracket)
yet.
8. Install:
• Steering stem nut “1” Steering ring nut
7 Nm (0.7 m·kgf, 5.1 ft·lbf)
LS
1 a
LSLS
T R..
Steering stem nut
145 Nm (14.5 m·kgf, 105 ft·lbf)
T R..
