COOLING SYSTEM
RADIATOR....................................................................................................... 7-1
HANDLING NOTE ...................................................................................... 7-3
CHECKING THE RADIATOR ..................................................................... 7-3
WATER PUMP.................................................................................................. 7-4
REMOVING THE OIL SEAL ....................................................................... 7-6
CHECKING THE WATER PUMP ............................................................... 7-6
CHECKING THE BEARING....................................................................... 7-6
INSTALLING THE OIL SEAL..................................................................... 7-6
ASSEMBLING THE WATER PUMP........................................................... 7-6

RADIATOR
7-1
EAS2GB7328
TIP
This section is intended for those who have basic knowledge and skill concerning the servicing of
Yamaha motorcycles (e.g., Yamaha dealers, service engineers, etc.). Those who have little knowl-
edge and skill concerning servicing are requested not to undertake inspection, adjustment, disas-
sembly, or reassembly only by reference to this manual. It may lead to servicing trouble and
mechanical damage.
EAS2GB7329
RADIATOR
Removing the radiator
Order Part name Q’ty Remarks
CoolantDrain.
Refer to “CHANGING THE COOLANT” on
page 3-10.
Seat Refer to “GENERAL CHASSIS” on page 5-1.
Side cover (left/right) Refer to “GENERAL CHASSIS” on page 5-1.
Air scoop (left / right) Refer to “GENERAL CHASSIS” on page 5-1.
Fuel tank Refer to “FUEL TANK” on page 8-1.
Air filter case Refer to “THROTTLE BODY” on page 8-7.
1 Radiator guard 2
2 Radiator hose clamp 8 Loosen.
3 Radiator fan 1
12
13
New
New
New
LS
LS
3
458 Nm (0.8 m kgf, 5.8 ft Ibf)T.R.
6
7
89
10
112
2
2
2 22 2
1 1

RADIATOR
7-2
4 Right radiator 1
5 Radiator hose 2 1
6 Radiator hose 3 1
7 Radiator hose 4 1
8 Radiator pipe 2 1
9 Radiator breather hose 1
10 Left radiator 1
11 Radiator hose 1 1
12 Radiator pipe 1 1
13 Coolant temperature sensor 1
For installation, reverse the removal proce-
dure.
Removing the radiator
Order Part name Q’ty Remarks
12
13
New
New
New
LS
LS
3
458 Nm (0.8 m kgf, 5.8 ft Ibf)T.R.
6
7
89
10
112
2
2
2 22 2
1 1

RADIATOR
7-3
EAS2GB7330HANDLING NOTEEWA
WARNING
If coolant seems hot, do not remove the ra-
diator cap.
EAS2GB7331CHECKING THE RADIATOR
1. Check:
• Radiator fins “1”
Obstructions  Clean.
Apply compressed air to the rear of the radi-
ator.
Damage  Repair or replace.
TIP
Correct any flattened fins with a thin, flat-head
screwdriver.
2. Check:
• Radiator hoses
• Radiator pipes
Crack/damage  Replace.

WATER PUMP
7-4
EAS2GB7332
WATER PUMP
Removing the water pump
Order Part name Q’ty Remarks
CoolantDrain.
Refer to “CHANGING THE COOLANT” on
page 3-10.
Engine oilDrain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-17.
Right crankcase cover Refer to “CLUTCH” on page 6-40.
1 Water pump housing 1
2 Dowel pin 2
3Gasket 1
4Washer 2
5Collar 1
6Gear 1
7Pin 1
8 Impeller shaft assembly 1
9 Oil seal 1
10 Bearing 1
11 Oil seal 1
9
8
2
2
3
1
10
6
7
5
4
4
10 Nm (1.0 mkgf, 7.2 ftIbf)T.R.
10 Nm (1.0 mkgf, 7.2 ftIbf)T.R.
New
New
New
E
11
New
E
LS
LS

WATER PUMP
7-5
For installation, reverse the removal proce-
dure.
Removing the water pump
Order Part name Q’ty Remarks
9
8
2
2
3
1
10
6
7
5
4
4
10 Nm (1.0 mkgf, 7.2 ftIbf)T.R.
10 Nm (1.0 mkgf, 7.2 ftIbf)T.R.
New
New
New
E
11
New
E
LS
LS

WATER PUMP
7-6
EAS2GB7333REMOVING THE OIL SEAL
TIP
• Remove the oil seal when the coolant level
changes frequently more than usual, coolant
has discolored, or engine oil has become
milky.
• Do not use the removed oil seal.
1. Remove:
• Oil seals “1”
EAS2GB7334CHECKING THE WATER PUMP
1. Check:
• Water pump housing cover
• Impeller shaft
Cracks/damage/wear  Replace.
EAS2GB7335CHECKING THE BEARING
1. Check:
• Bearing
Rotate the inner race with your finger.
Rough spot/seizure  Replace.
EAS2GB7336INSTALLING THE OIL SEAL
1. Install:
• Oil seals “1”
TIP
• Apply the lithium-soap-based grease on the
oil seal lip.
• Install the oil seal with its manufacture’s
marks or numbers facing the right crankcase
cover “2”.2. Install:
• Bearing “1”
TIP
Install the bearing by pressing its outer race
parallel.
EAS2GB7337ASSEMBLING THE WATER PUMP
1. Install:
• Impeller shaft assembly “1”
• Washer “2”
•Pin “3”
• Gear “4”
• Collar “5”
• Circlip “6”
TIP
• Take care so that the oil seal lip is not dam-
aged or the spring does not slip off its posi-
tion.
• When installing the impeller shaft, apply the
engine oil to the oil seal lip, the bearing, and
the impeller shaft.
1 1
New
1 1New
New
LS
LS2
New
1
2
52346
New
E

WATER PUMP
7-7
2. Install:
• Dowel pin “1”
• Gasket “2”
3. Install:
• Water pump housing “1”
• Water pump housing bolt “2”
• Washer “3”
• Coolant drain bolt “4”Water pump housing bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Coolant drain bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
New
21
1New
T R..
New
T R..
2
2
43 1
New

8
FUEL SYSTEM
FUEL TANK...................................................................................................... 8-1
REMOVING THE FUEL TANK ................................................................... 8-3
REMOVING THE FUEL PUMP .................................................................. 8-3
CHECKING THE FUEL PUMP BODY........................................................ 8-3
INSTALLING THE FUEL PUMP ................................................................. 8-3
REMOVING THE FUEL SENDER.............................................................. 8-4
CHECKING THE FUEL SENDER .............................................................. 8-4
INSTALLING THE FUEL SENDER ............................................................ 8-4
INSTALLING THE FUEL TANK.................................................................. 8-4
CHECKING THE FUEL PRESSURE ......................................................... 8-5
CHECKING THE DAMPER ........................................................................ 8-5
CHECKING AND REPLACING THE PROTECTOR .................................. 8-6
THROTTLE BODY............................................................................................ 8-7
CHECKING THE INJECTOR ................................................................... 8-10
CHECKING THE THROTTLE BODY ....................................................... 8-10
CHECKING THE THROTTLE BODY JOINT ............................................ 8-10
ADJUSTING THE THROTTLE POSITION SENSOR............................... 8-11

FUEL TANK
8-1
EAS2GB7338
TIP
This section is intended for those who have basic knowledge and skill concerning the servicing of
Yamaha motorcycles (e.g., Yamaha dealers, service engineers, etc.). Those who have little knowl-
edge and skill concerning servicing are requested not to undertake inspection, adjustment, disas-
sembly, or reassembly only by reference to this manual. It may lead to servicing trouble and
mechanical damage.
EAS2GB7339

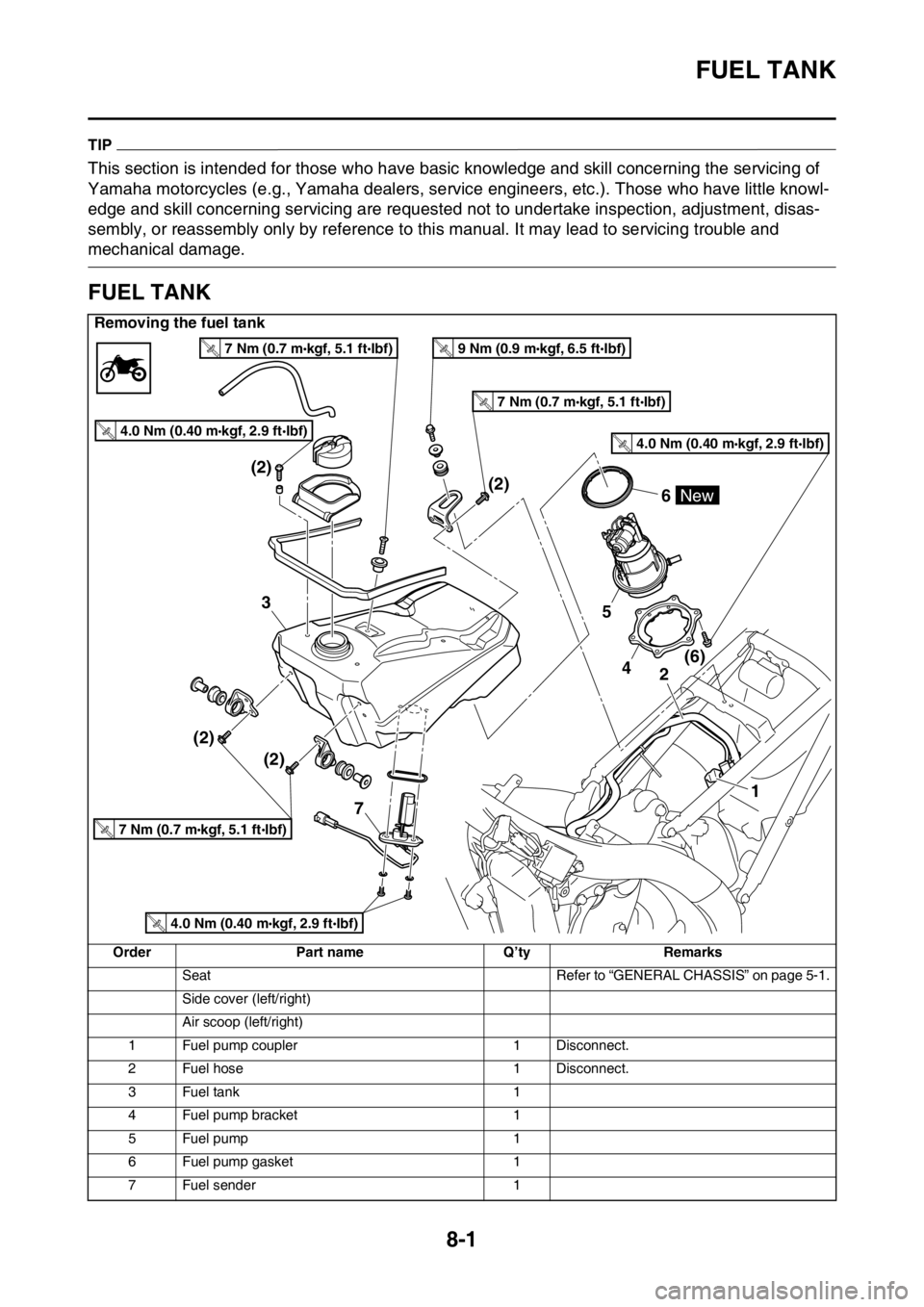

FUEL TANK
